MAYRC 100A 75V VESCTOOL Dustproof Speed Controller for Electric Scooter E-bike

  • $267.98
    Unit price per

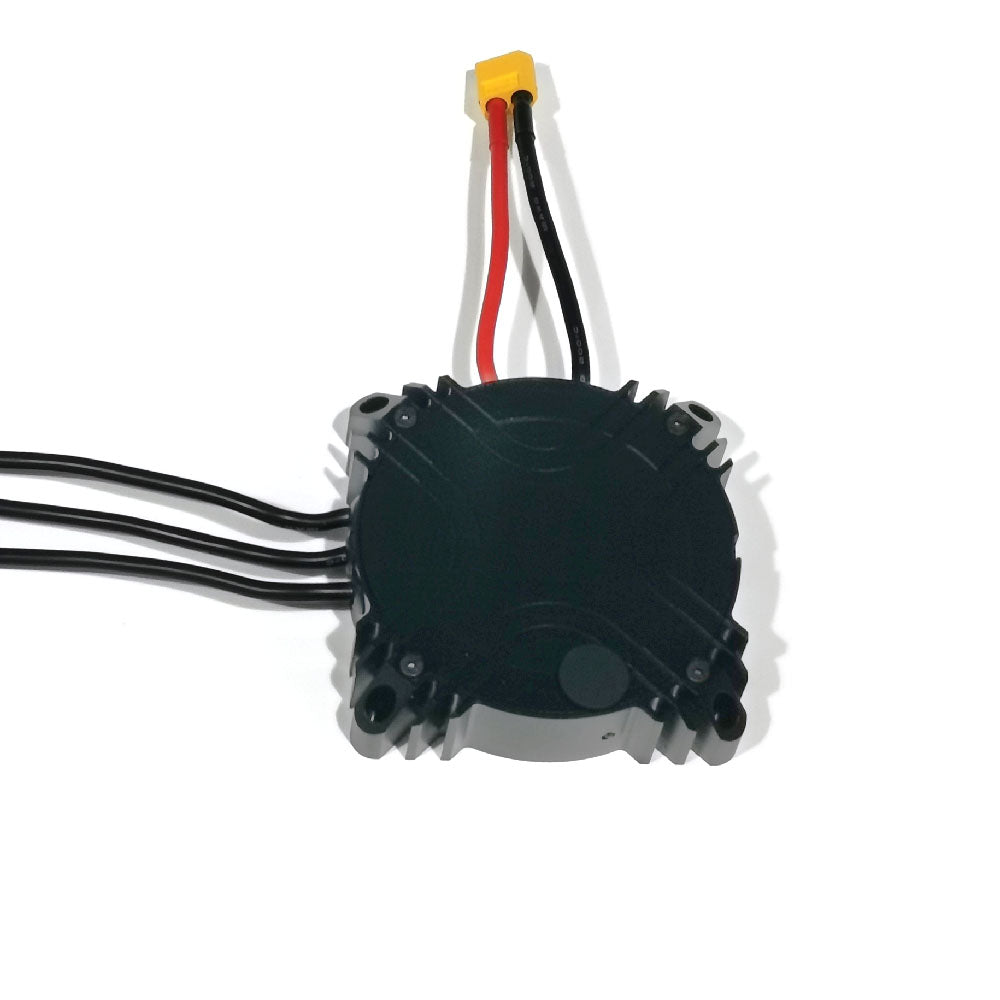

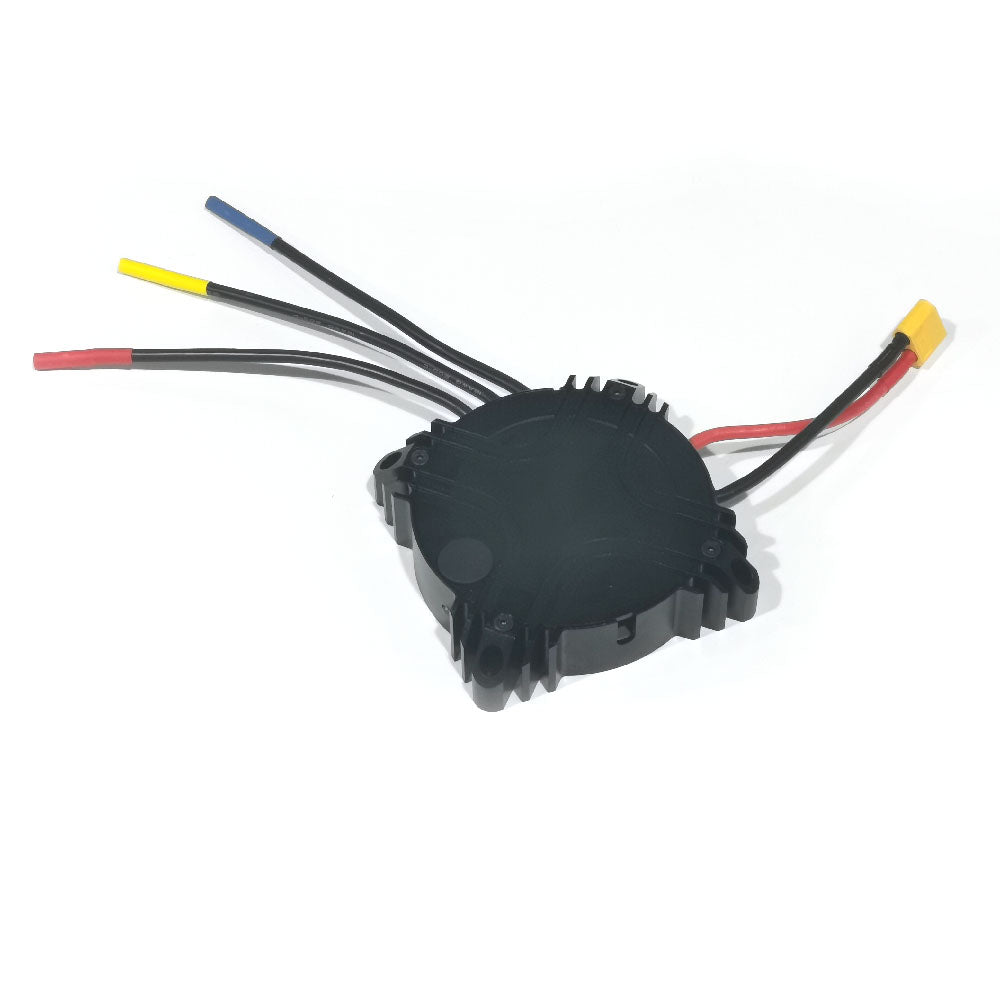

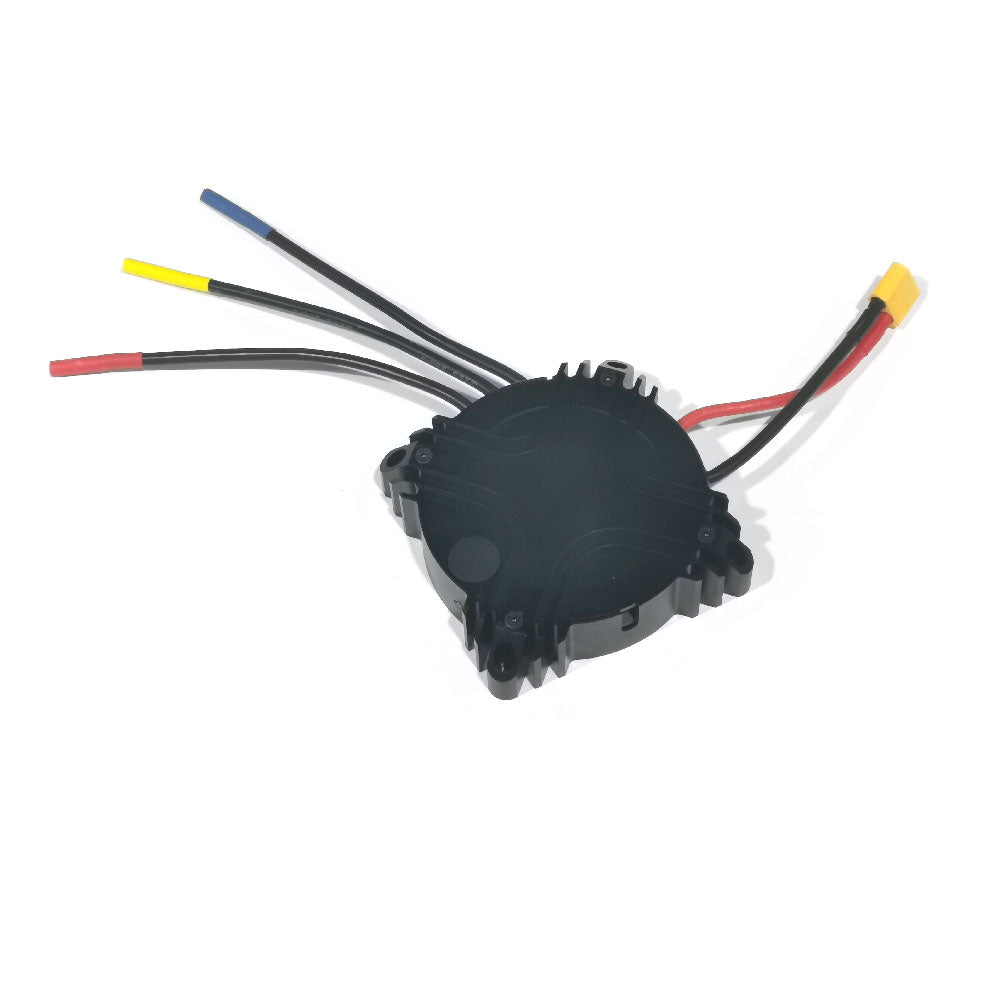

MAYRC 100A 75V VESCTOOL Dustproof Speed Controller for Electric Scooter E-bike


Model: MTSPF7.5RK
With Aluminum Case: YES
Cont. Current: 100A
Input Volt.: 75V
Hardware: Based on V7.5 High voltage
Firmware: Upgradable
Software: VESCTOOL Compatible
FOC: YES; Better than V4.12
Compatible motor: Sensor or sensorless
Weight:  335g

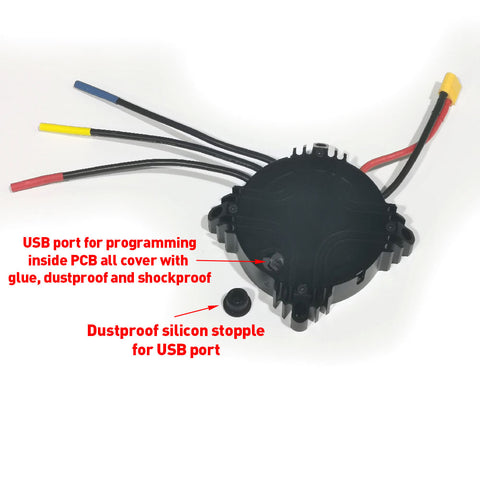

The case verion inside components will be poured with glue for dust proof and shockproof, so even if for fighting robots, electric mountainboard usage, the components could stays in good condition.

Port definations:

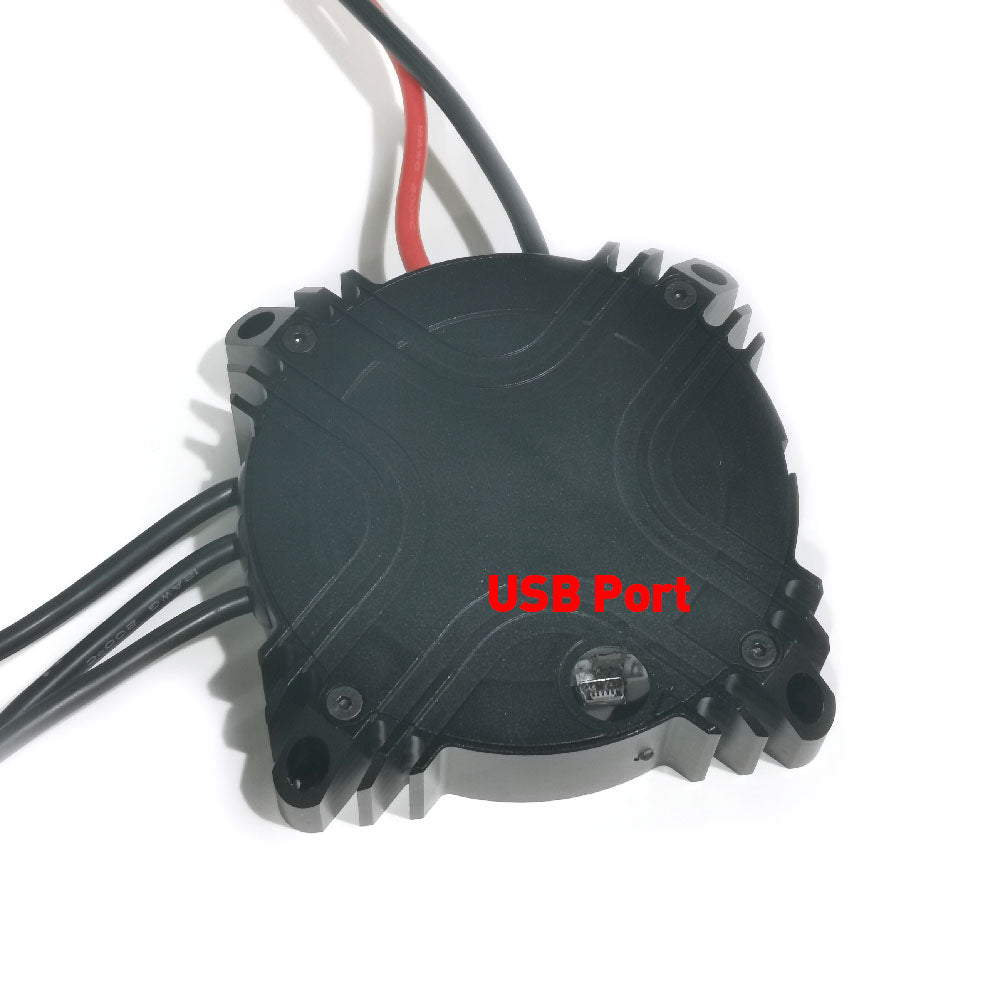

1. USB port for programming;
2. PPM port to connect PPM transceivers;
3. SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
4. CAN Port for CAN communication with other devices and controller arrays;
5. COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the controller!
6. Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders).


1. Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array! Permanent damage may result from Y-PPM wiring.
2. Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.


MTSPF7.5RK is a circular PCB ESC based on 75V VESCTOOL software and hardware structure. It is mainly used for brushless motors on mobile devices with battery voltages below 18S Lipo. And the round size is particularly suitable for combined installation with large joint motors, to be used for position control of robotic arms and robotic dog legs, etc. In addition, it can also combine with an underwater motor for underwater propulsion and used for electric skateboard, cable camera, electric bike, etc.
