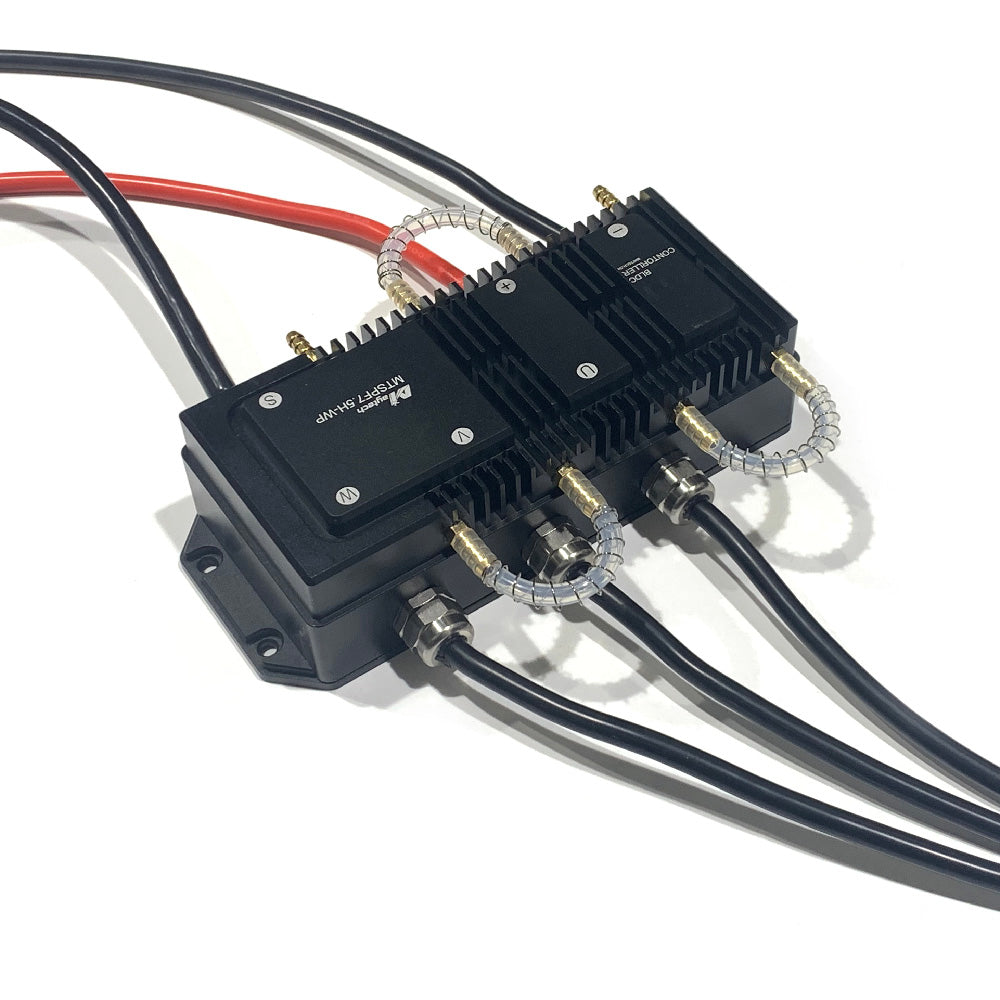

MAYRC 400A with Water cooling IP68 Waterproof VESCTool Controller for Electric Jet Board Hydrofoilsurfing
MAYRC 400A with Water cooling IP68 Waterproof VESCTool Controller for Electric Jet Board Hydrofoilsurfing
Specification:
| Model： | MTSPF7.5H-WP |
| Cont. Current： | 400A |
| Max. Current： | 1000A |
| Volt.： | 25-85V |

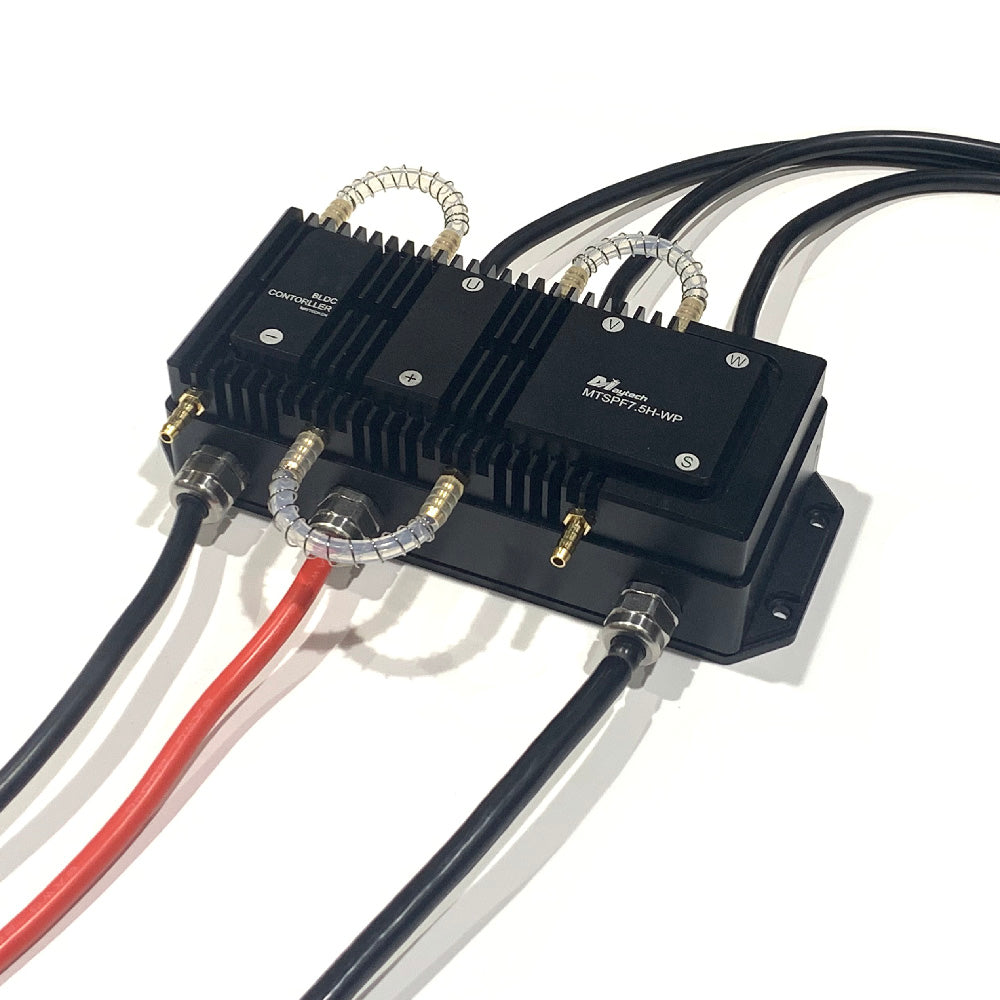

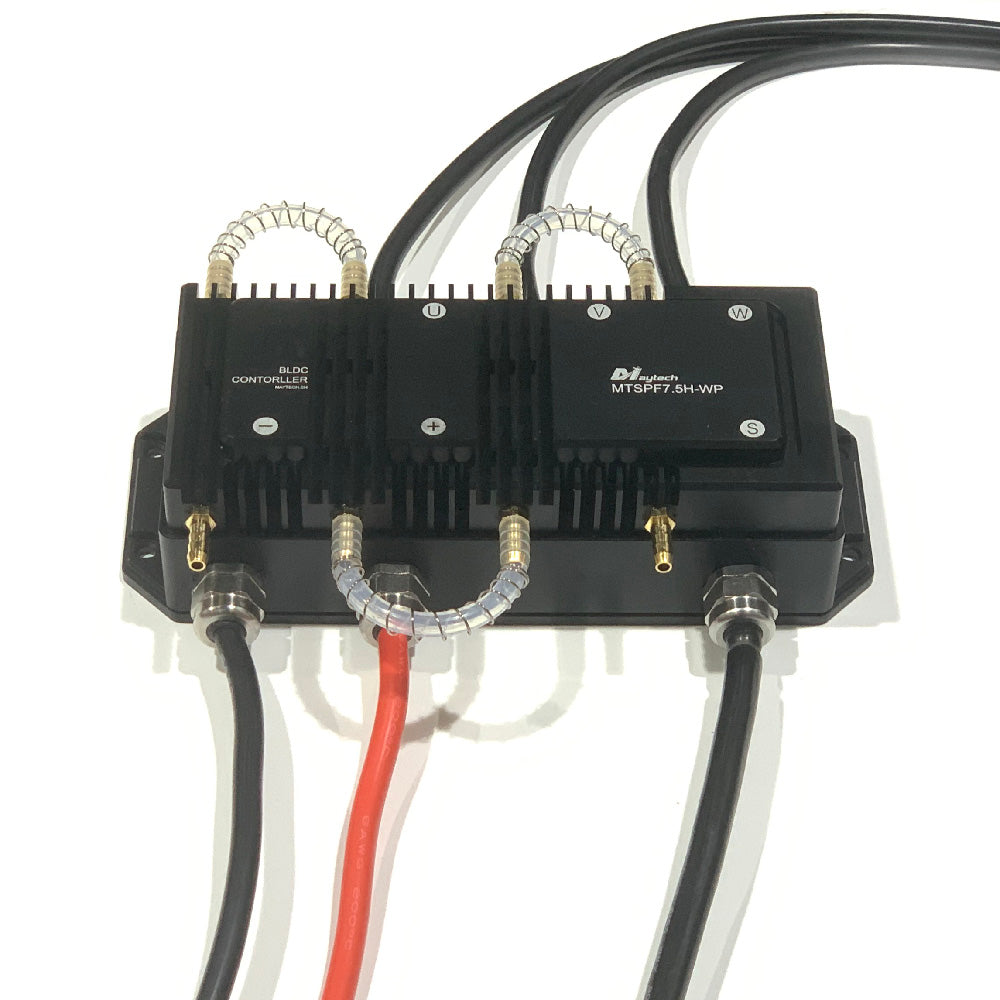

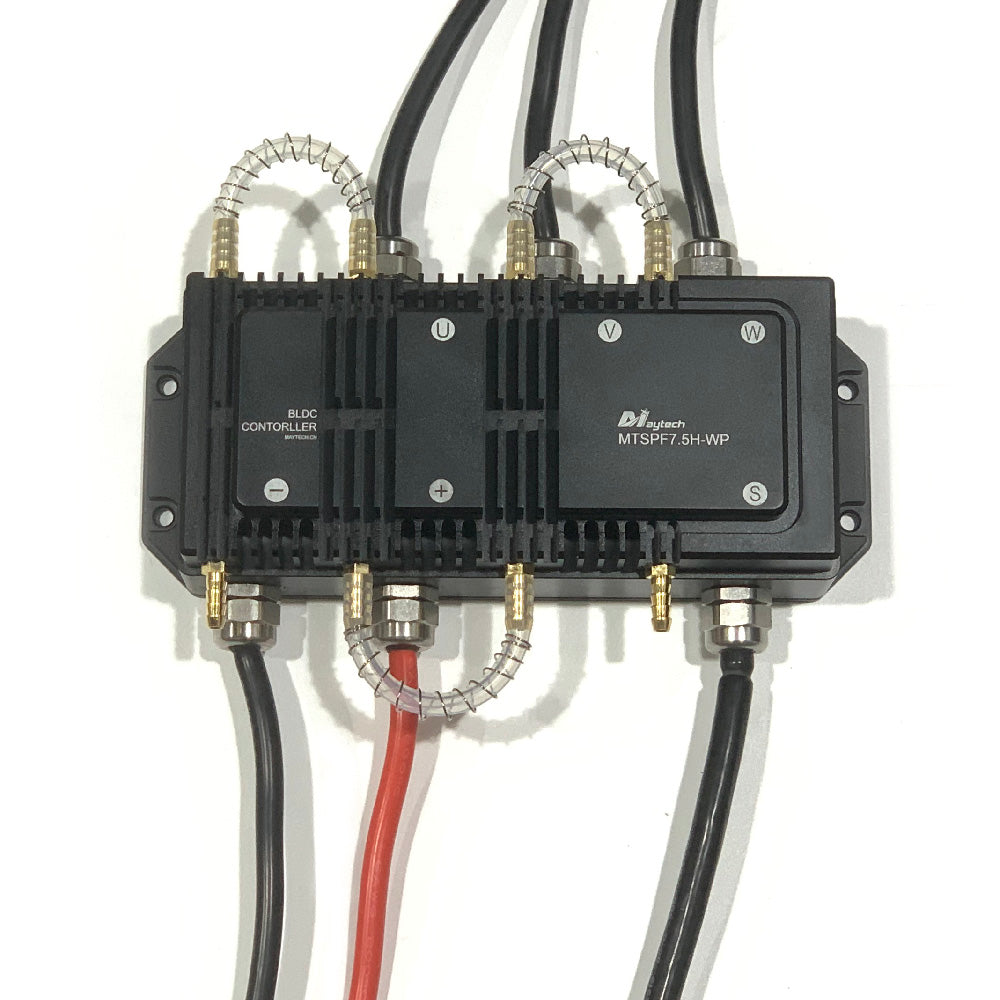

| Water-cooled： | 【With water-cooled tubes;】 【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system;】 |
| Size： | 148*84*56mm with Aluminum case |
| Weight： | 900g |
Features:
1：VESCtool compatible speed controller;
2：Soft-switching to reduce the losses in power electronic switches;
3：Adjustable Forward/Backward/Brake;
4：Configurable RPM, Current, Voltage and Power limits;
5：With 5V and 12V external power supply interfaces, no interference caused when powering analog circuits such as twist/thumb throttles.;
6：Regenerative Braking Function;
7：Separation of low power electronics from the high power electronics, make it more reliable;

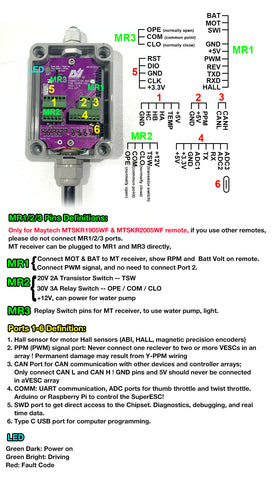

8：Support PPM, Analog (ADC), UART, Canbus input;
Application:
Electric car, ev car, electric surfboard, electric motorcycle, electric foil, hydrofoil, motorized boat rc boat, agv car, go cart, etc.
Notice：
1. Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array!
Permanent damage may result from Y-PPM wiring.
2. Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.
MTSPF7.5H-WP with Water cooling speed control The delivery time is about 14 days, please extend the delivery time by 14 days after placing the order, thank you.
