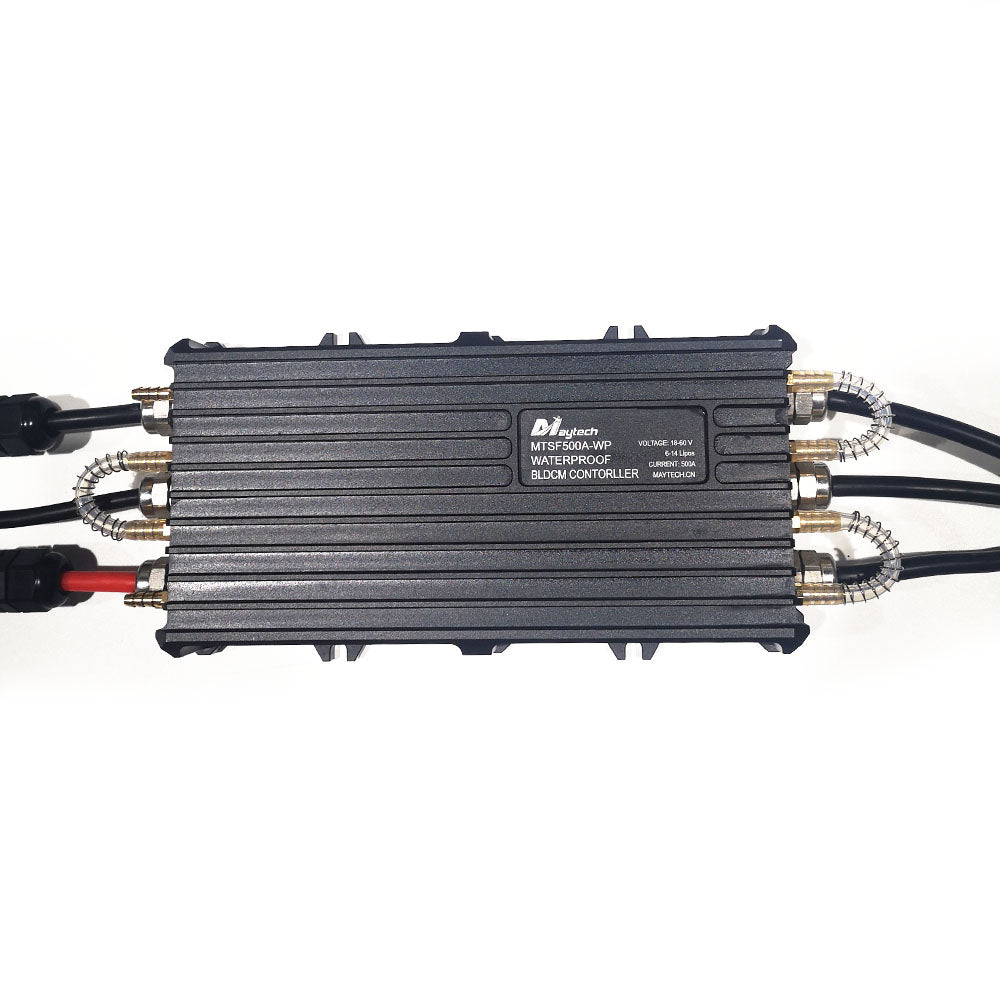

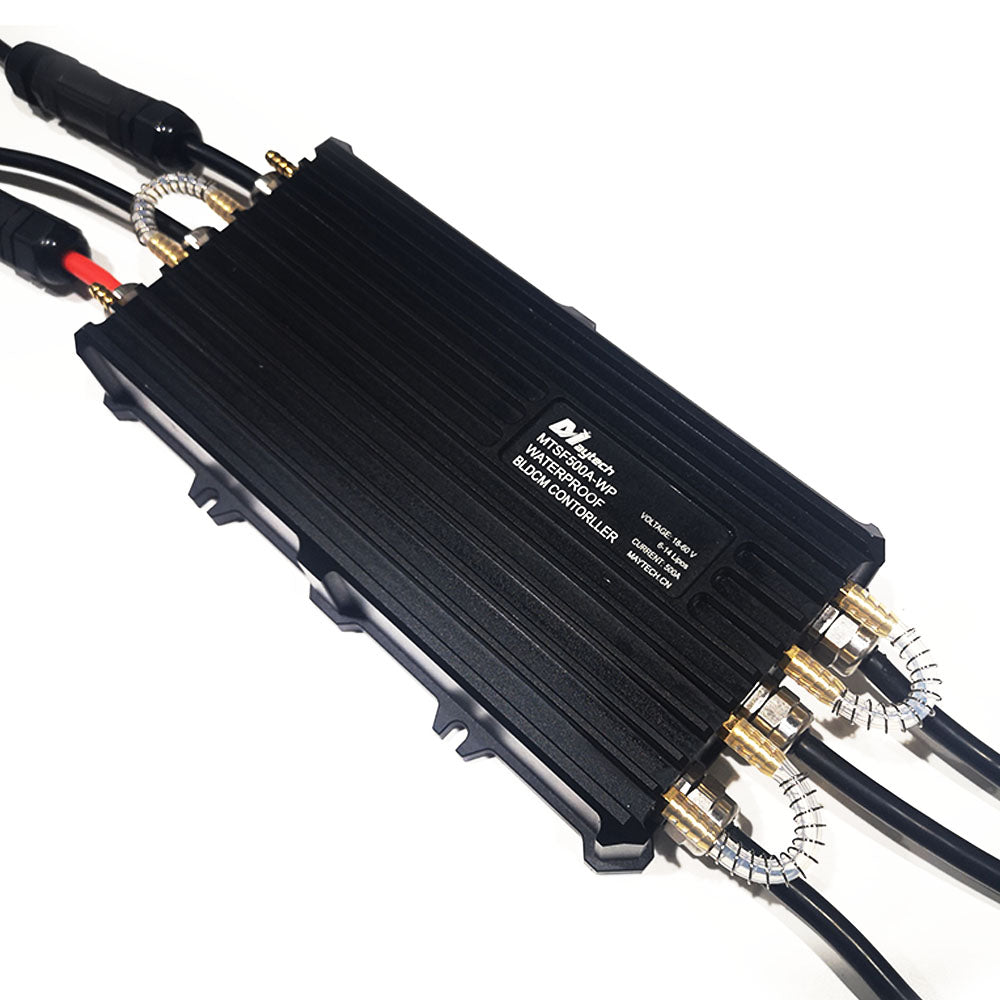

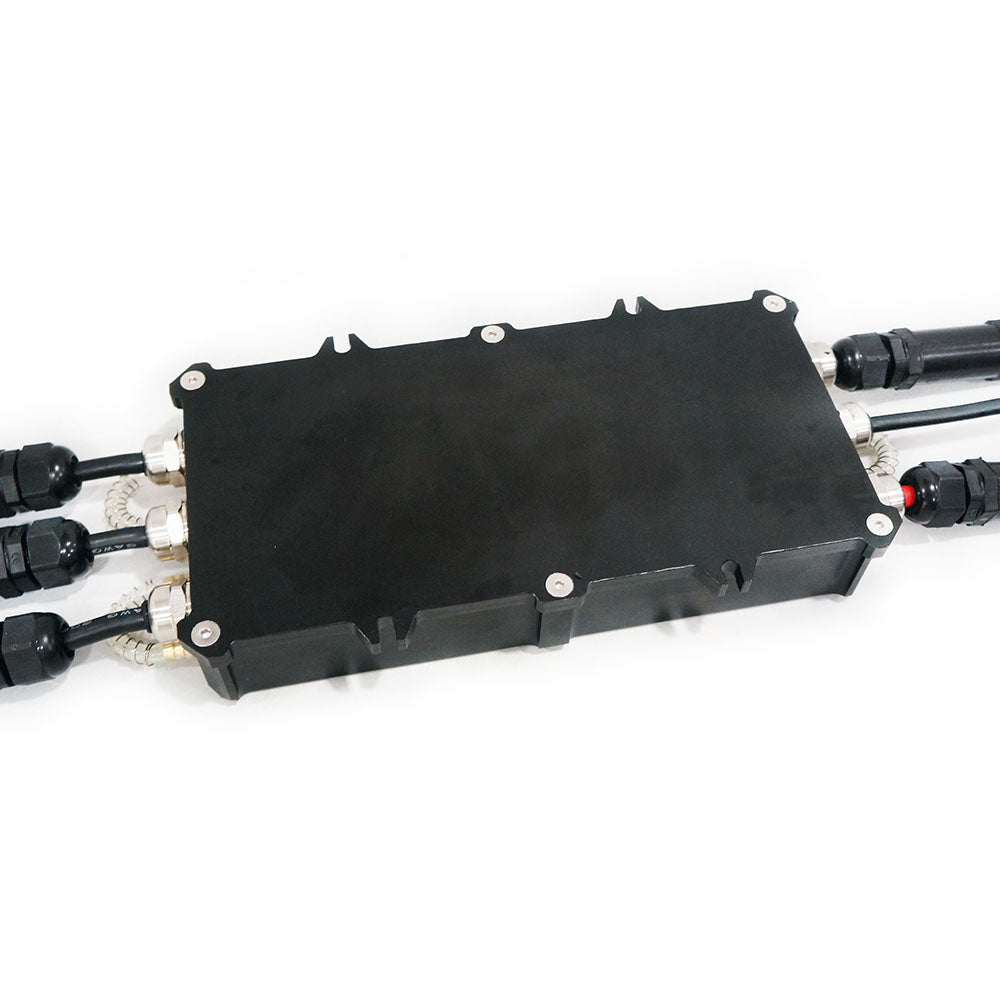

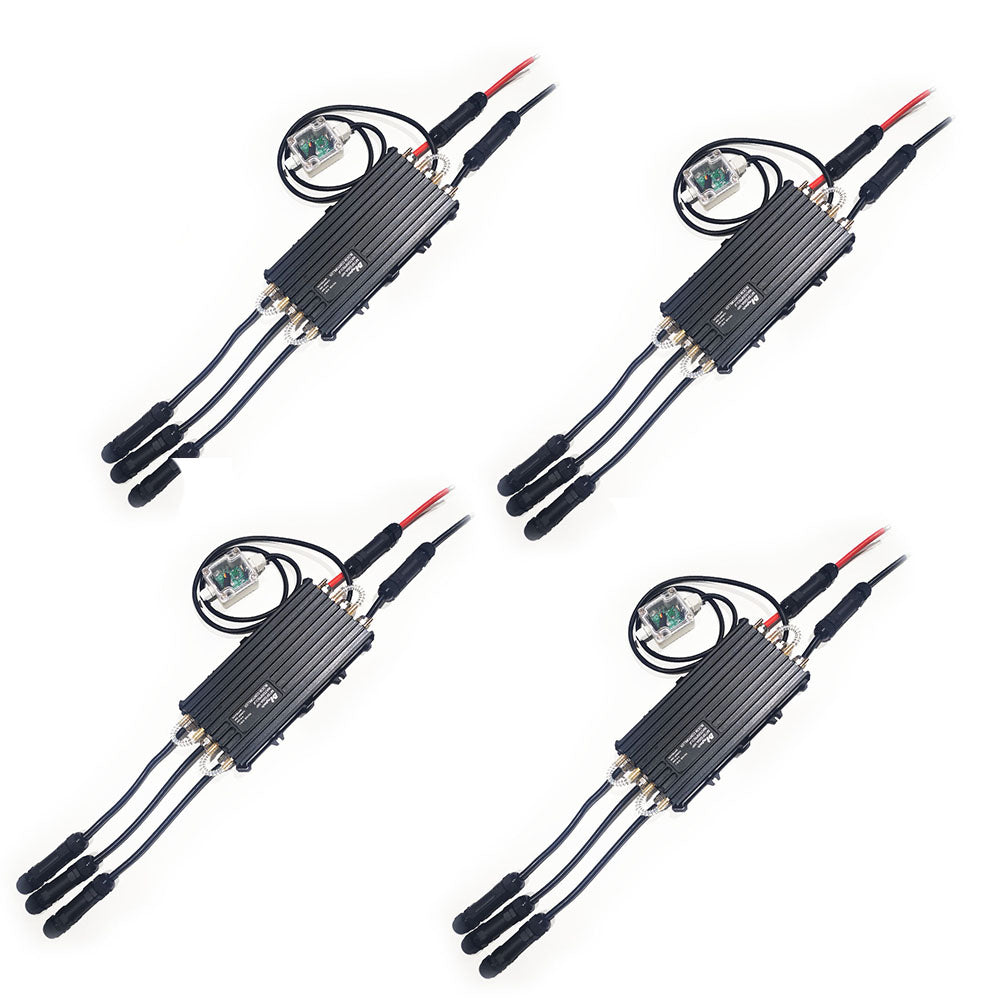

MAYRC 500A IP68 Water-Proof Fully Sealed Speed Controller for DIY Electric Surfboard Sportboats
Specification:
| Model： | MTSF500A-WP |
| Cont. Current： | 500A |
| Max. Current： | 1000A |
| Volt.： | 25-58V |
| Water-cooled： | water-proof version IP68 Can work in 1 meter deep water |

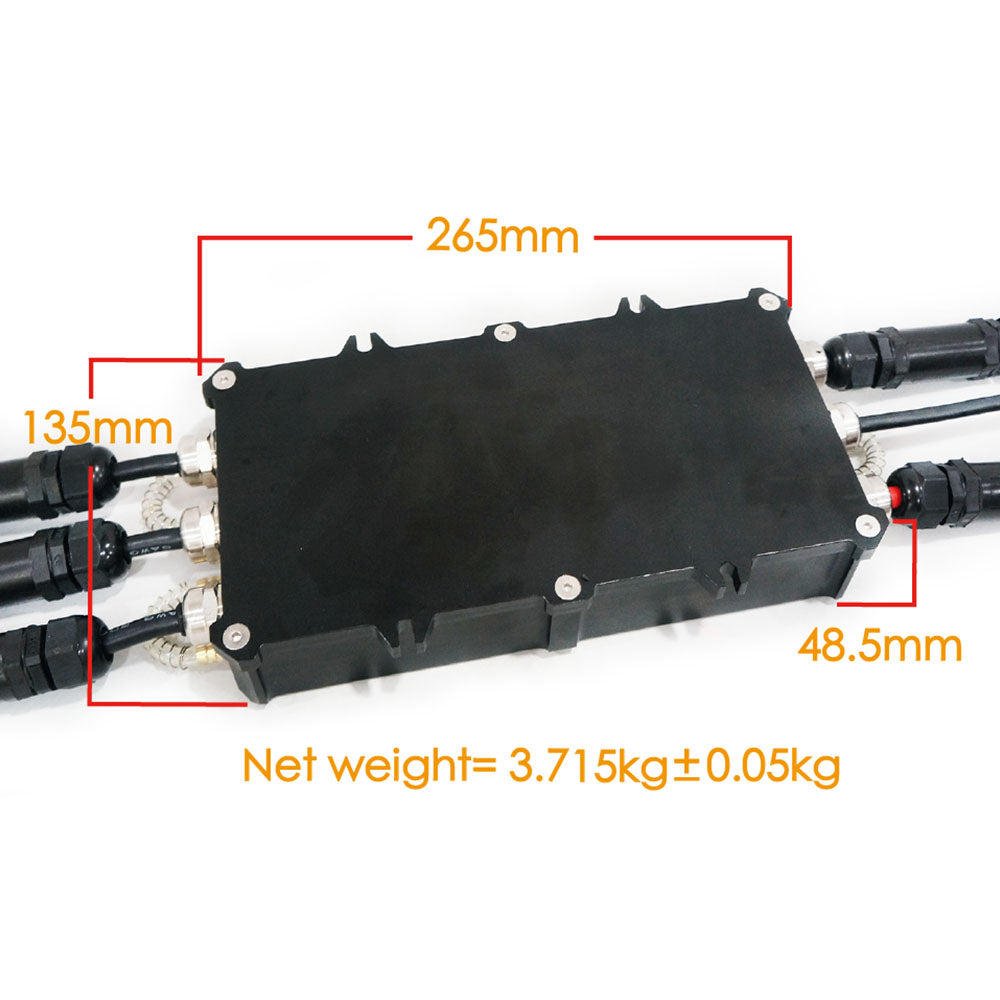

| Size： | PCB size 165*85*35mm |
| Weight： | 1250g |
Features:
1：8BIT Micropprocessor
2： Work with Maytech waterproof remote controller, to display main power voltage, motor rpm.
3： Fully sealed, IP68 water-proof (water-proof version ESC)
4： 8-layer 3oz PCB plate, 3.4mm, support high current
5：Only use geniune US and Japan imported electric components.
Work with Maytech waterproof remote controller, main power voltage and motor rpm.
6：Compact size, high efficiency, low heat.
7：Over-heat, over-voltage, over-current, low voltage protection.
8：100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
Upgrade Notes:

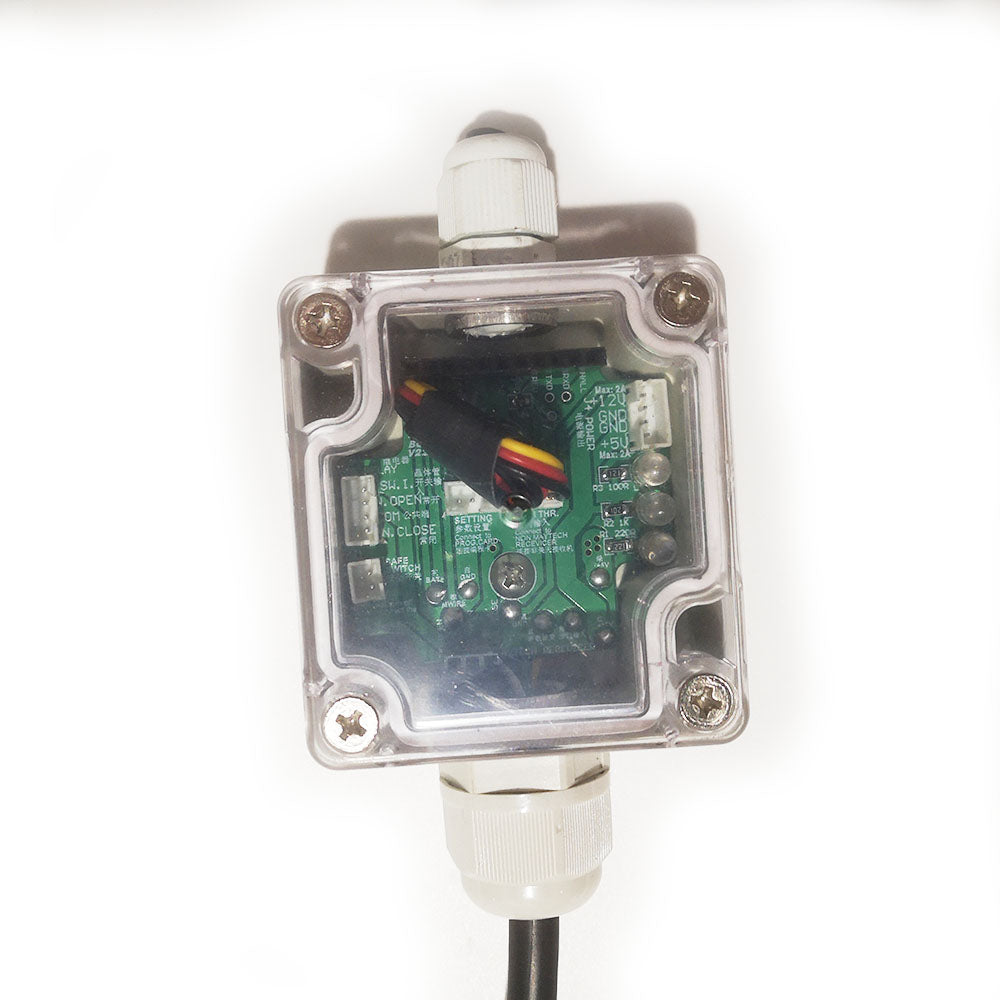

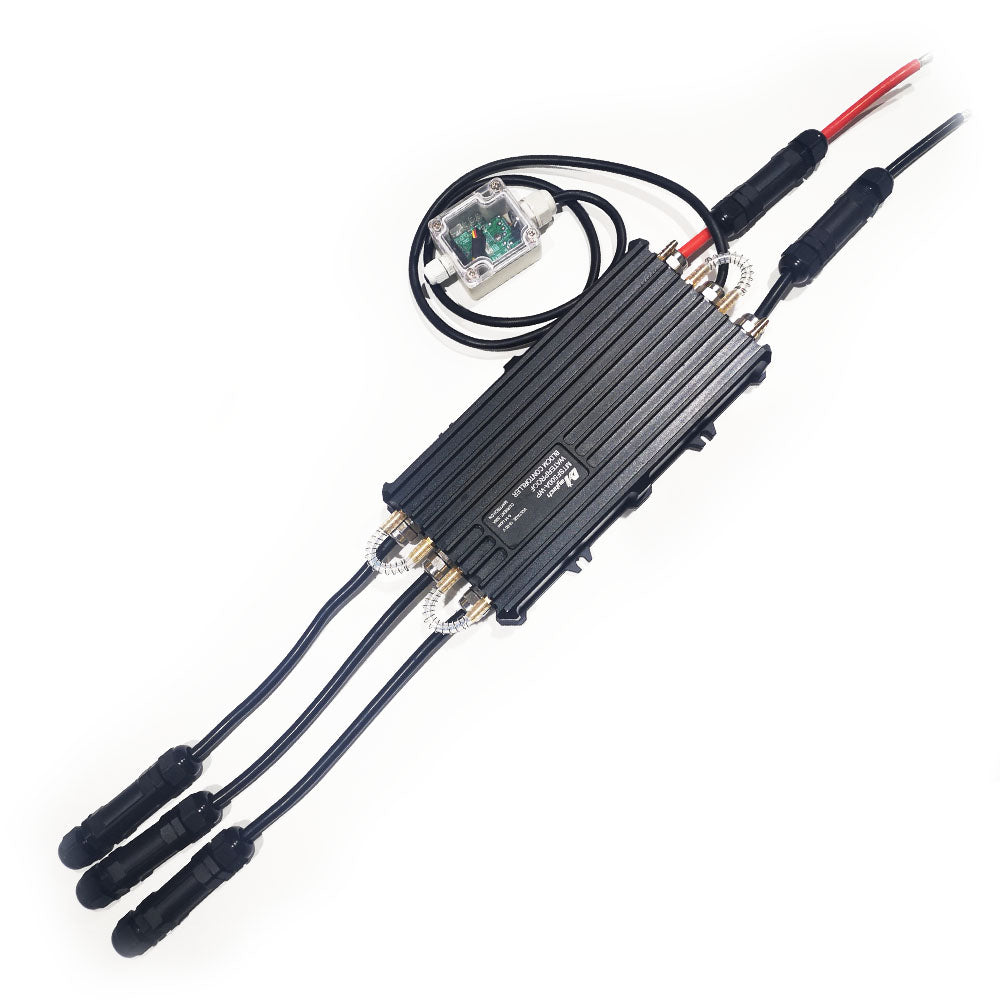

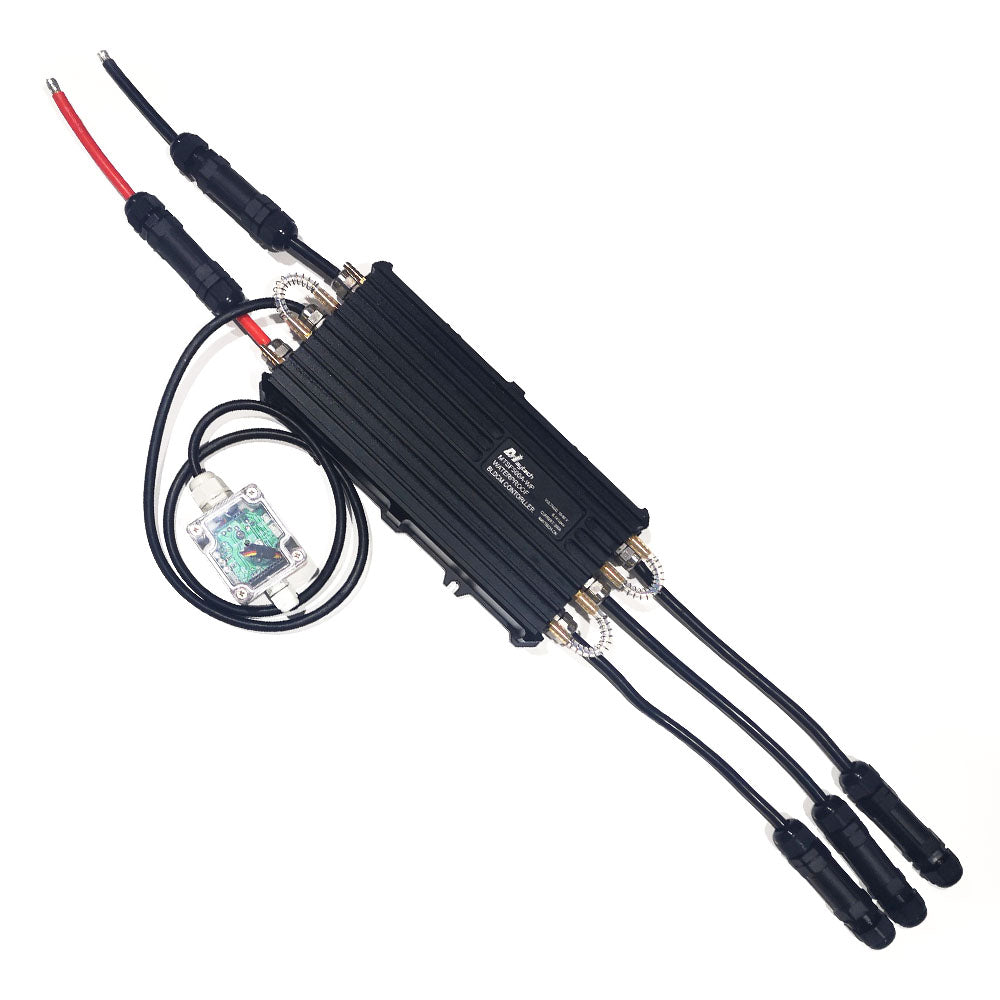

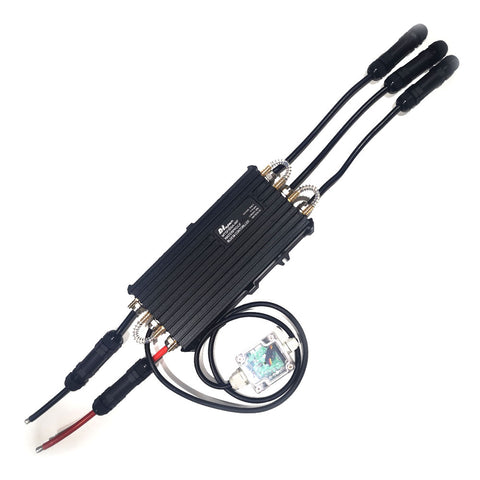

The ESC upgrade with below waterproof junction box for receiver wiring, easier connection for receiver, relay and mosfet switches and receiver can be waterproof, also add indicator light for BEC and throttle signal.
