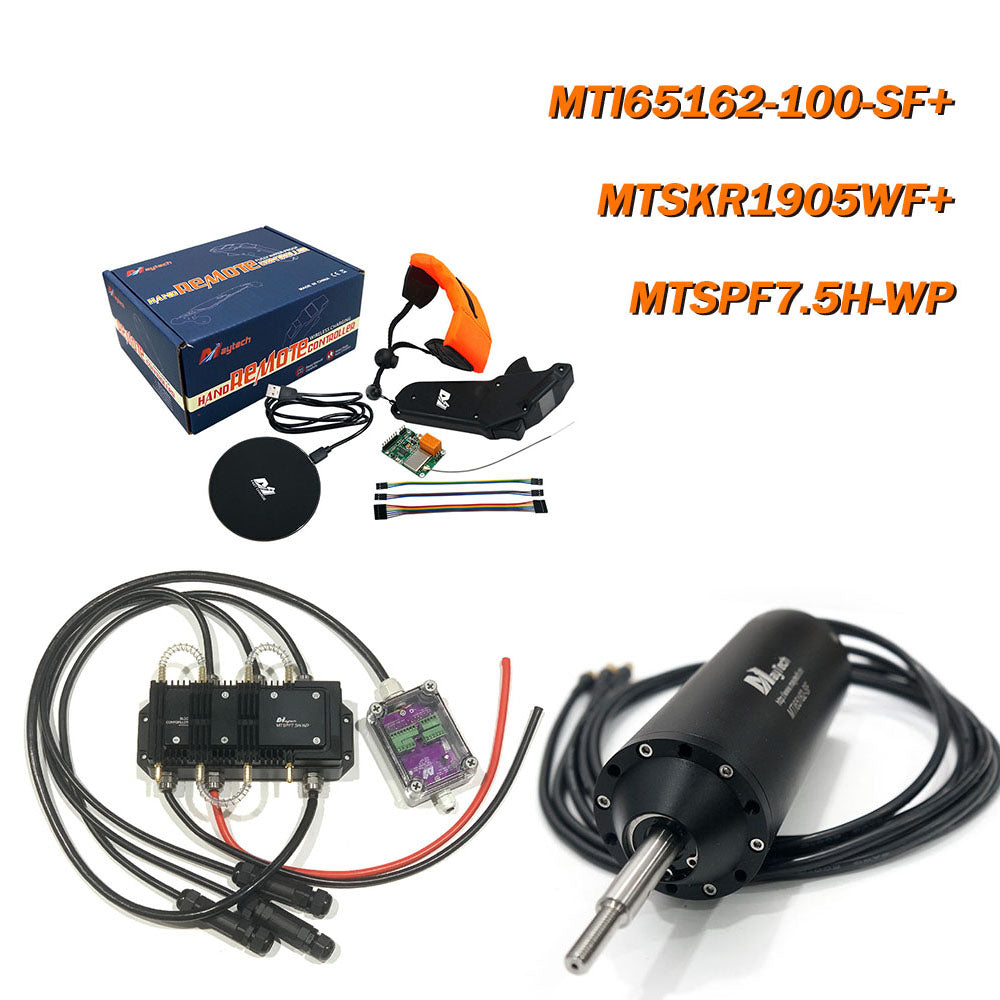

Specifications:

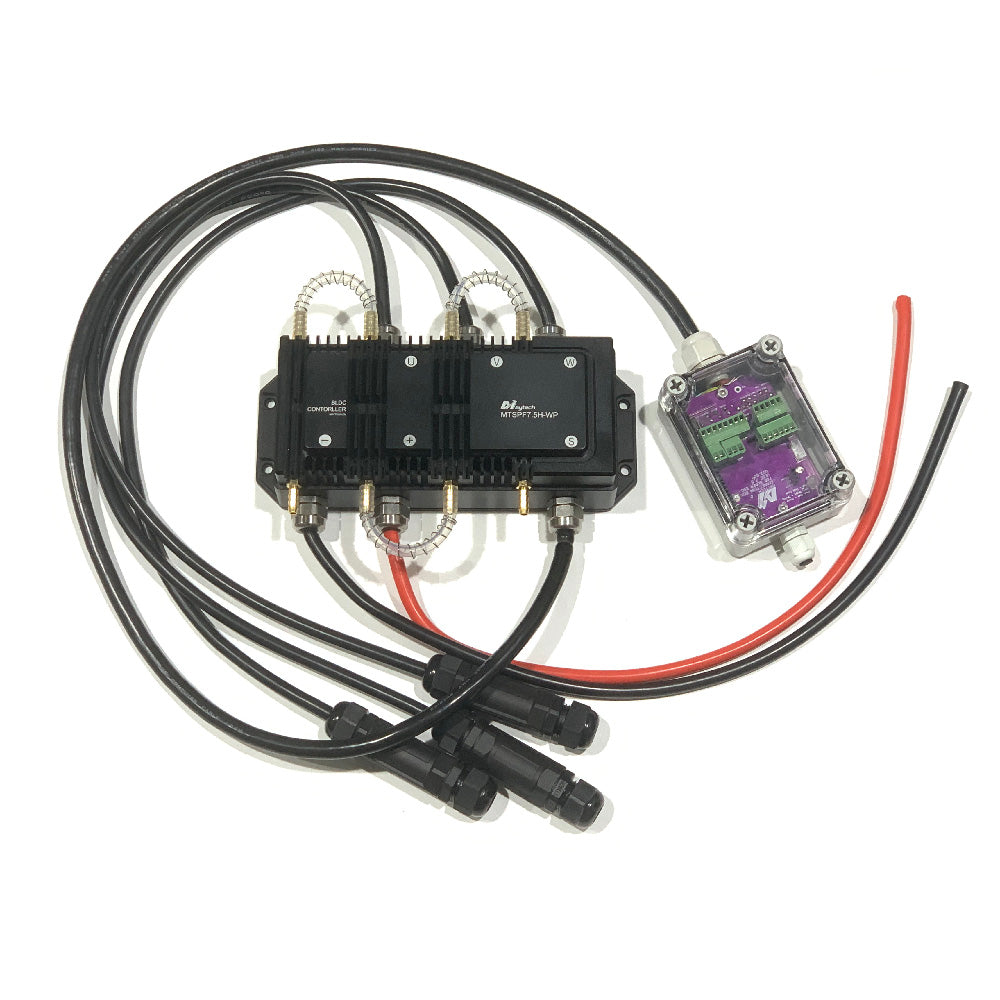

Model 1： MTSPF7.5H-WP
Cont. Current：400A
Max. Current：1000A
Volt.：25-85V
Water-cooled：
【With water-cooled tubes;
【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system；
Size：148*84*56mm with Aluminum case
Weight：900g
Notice：

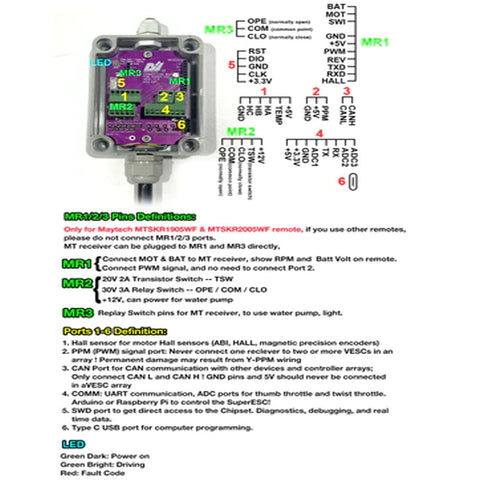

1. Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array!
Permanent damage may result from Y-PPM wiring.
2. Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.

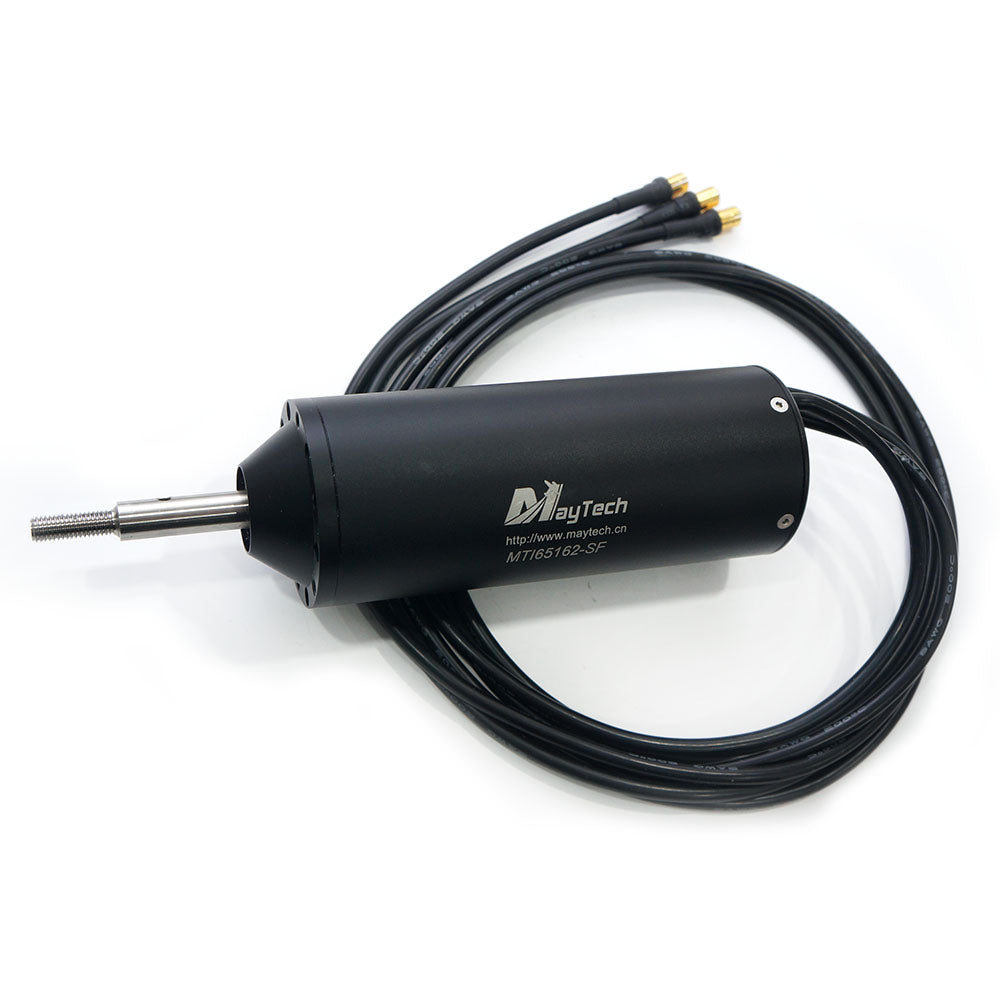

Model 2 ：MTI65162-100-SF
KV: 100
Waterproof: IP68
RPM/V/Max RPM：100/14300
Idle Current：1.6A
Rated Current：240
Max Current (A)：310
Rated/Max Torque(N*M)：7/9.0N*M
Max Power:9.1KW
Winding Turns/Construction：4T/18N/6P
Motor&Shaft Size(mm)：65x 162mm&12mm
Weight：2.1g
Shaft: Threaded shaft
Pole Number: 18N6P
Input Voltage: 25-126V
Cable Length: 1.3m
Connector: 8.0mm gold-plated male connector
Customize: Logo, cable length, connector, cover, shaft, etc., contact us

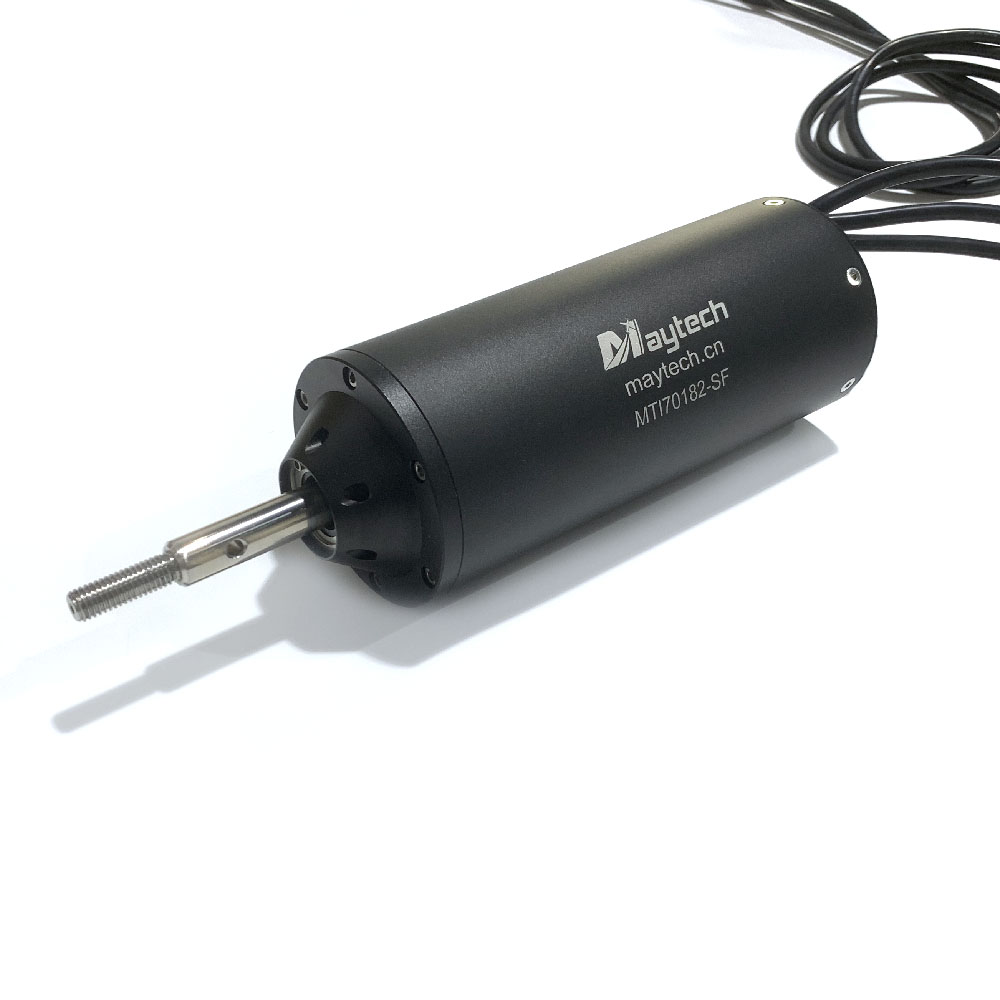

Model 3：MTI70182-100-SF
RPM/V/Max RPM：100/12350
Idle Current@10V：2.0A
Rated Current/Max Current (A)：120A/150
Working Voltage：35-118V
Rated/Max Torque(N*M)：10.8/13.5N*M
Max Power(10S)：9KW
Winding Turns/Construction：3T/12N/10P
Motor&Shaft Size(mm)：Φ70x 182mm&12mm
Net Weight (kg)：3.1

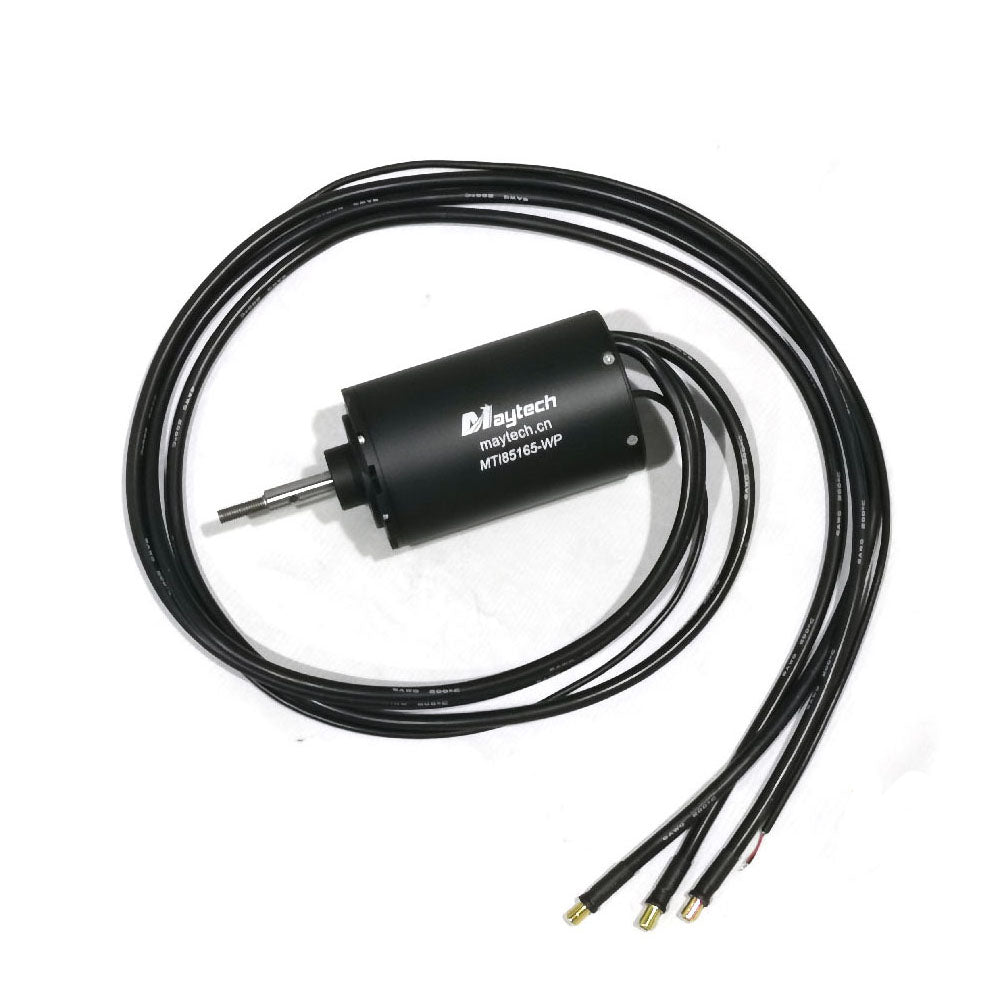

Model 4 : MTI85165
KV : 200KV, KV can be Customized
Product Name: Fully Waterproof Brushless Motor Sensored &Sensorless Motor
Waterproof Rank: IP68 Waterproof
Water-cooled: No
Max Current: 300A
Max Output Watt: 15000W
Rated Power: 9.5KW
Input Volt: 50-84V (8S-16S lipo)
Max Torque: 15.5N.m
Cable Length:1.2m

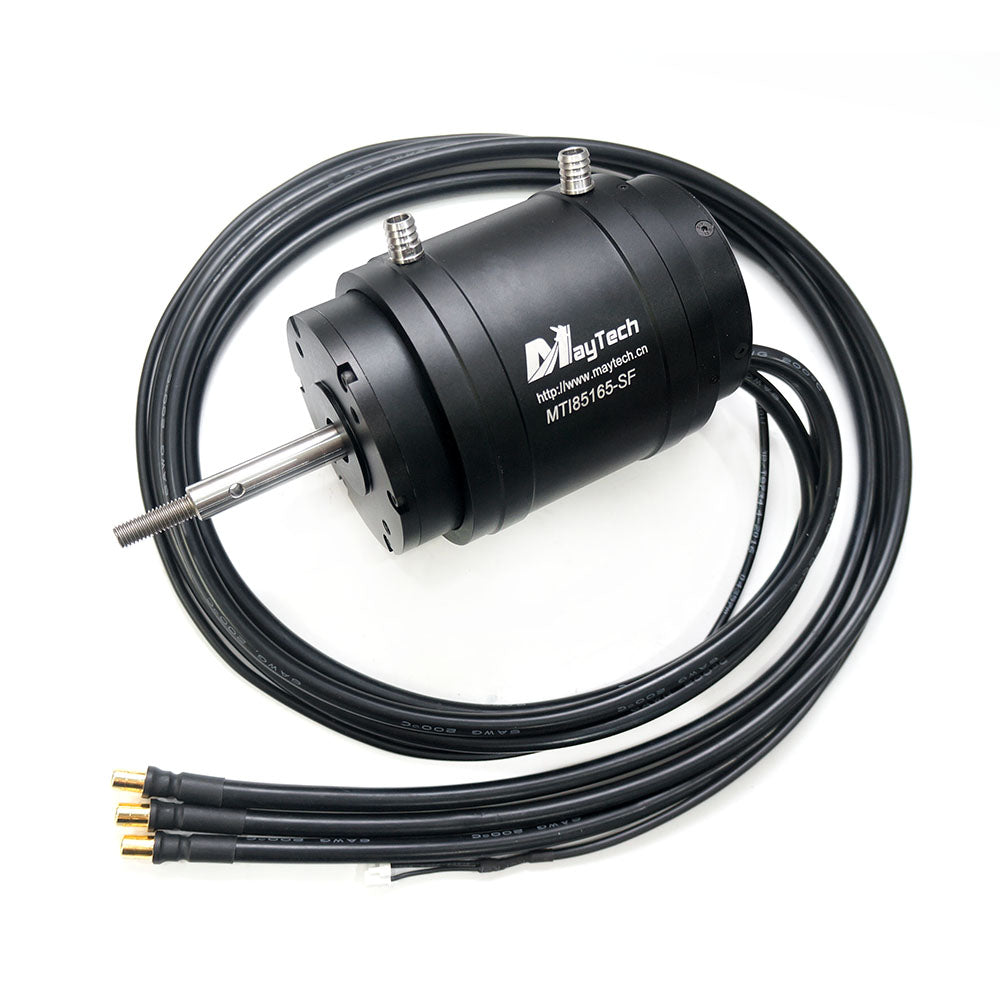

Model 5:MTI85165-200-SF
KV: 200KV, KV can be customized, contact us
Input Voltage: 6-12S Lipo (25V-50V) for 200KV
Max Power: 10.5KW
Waterproof: WP version is waterproof, SF version is watercooled
Hall Sensor: Without
Temp Sensor: With NTC10k Thermistor
Cooling Way:
Waterproof version: by water, the motor need to work directly in water for cooling
Watercooled version: through cooling tube by water pressure or water pump
Shaft: Keyway Shaft (waterproof version); Screw Shaft (watercooled version)

Model 6:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad

Note:

MTSPF7.5H-WP Delivery time: 15 days
Because engineers need to make waterproof treatment, so the delivery time is 15 days。

MTSPF7.5H-WP Features：

1：Firmware upgradable ▶VESCtool compatible speed controller;
2：Soft-switching to reduce the losses in power electronic switches;
3：Adjustable Forward/Backward/Brake;
4：Configurable RPM, Current, Voltage and Power limits;
5：With 5V and 12V external power supply interfaces, no interference caused when powering analog circuits such as twist/thumb throttles.
6：Regenerative Braking Function;
7：Separation of low power electronics from the high power electronics, make it more reliable;
8：Support PPM, Analog (ADC), UART, Canbus input;
【With water-cooled tubes;
【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system;
9：Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
