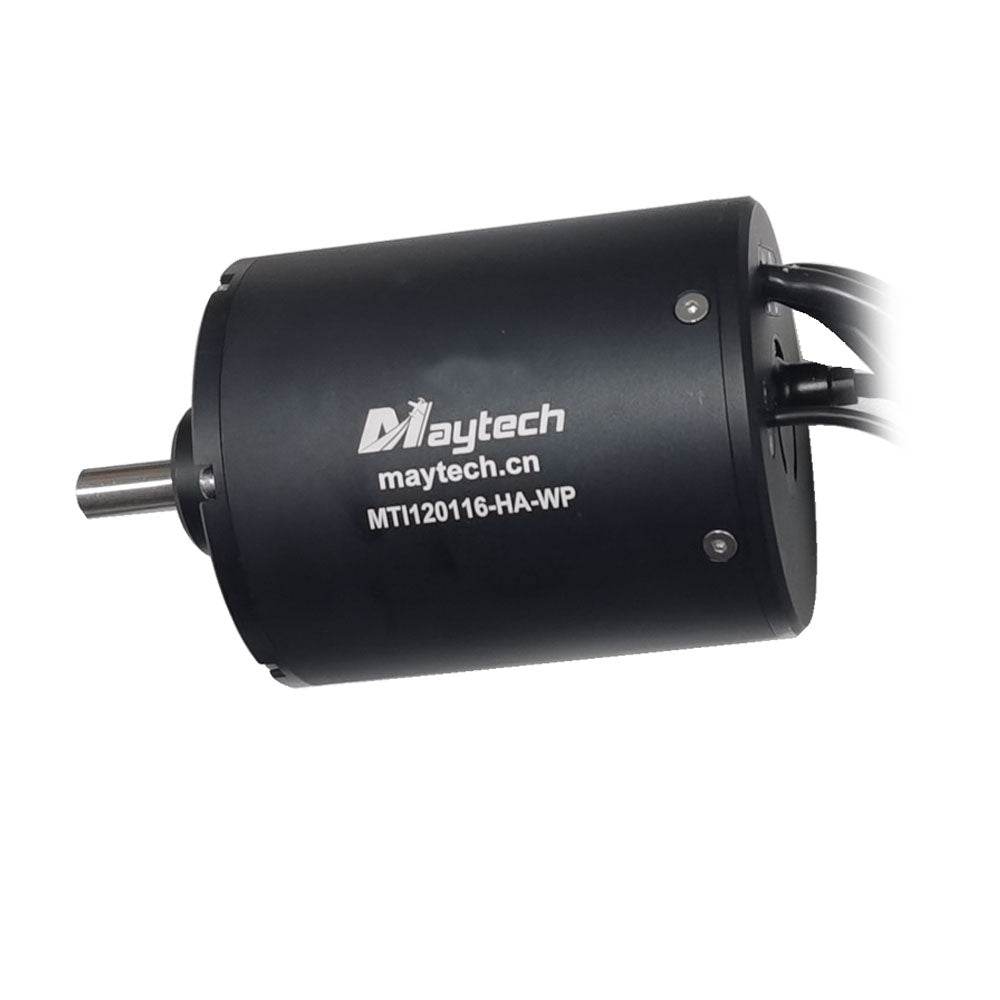

Maytech Fully Waterproof/Watercooled Brushless Inrunner Motor MTI120116 for Eletcirc Surfboard Hydrofoil Efoil Jetsurf Electric RC Boat Jetski
Choose a sensored or sensorless motor?
Sensored version can be used not only for underwater application but also for electric skateboard, fighting robots, electric cars, etc.,
Sensorless version usually be used for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,
Product Details:
1. Main Advantage
- Fully water-proof, IP68 (Water-proof version);
- Rust-prevention, can be used in sea water, salt water, rivers, lakes, etc (Water-proof version);

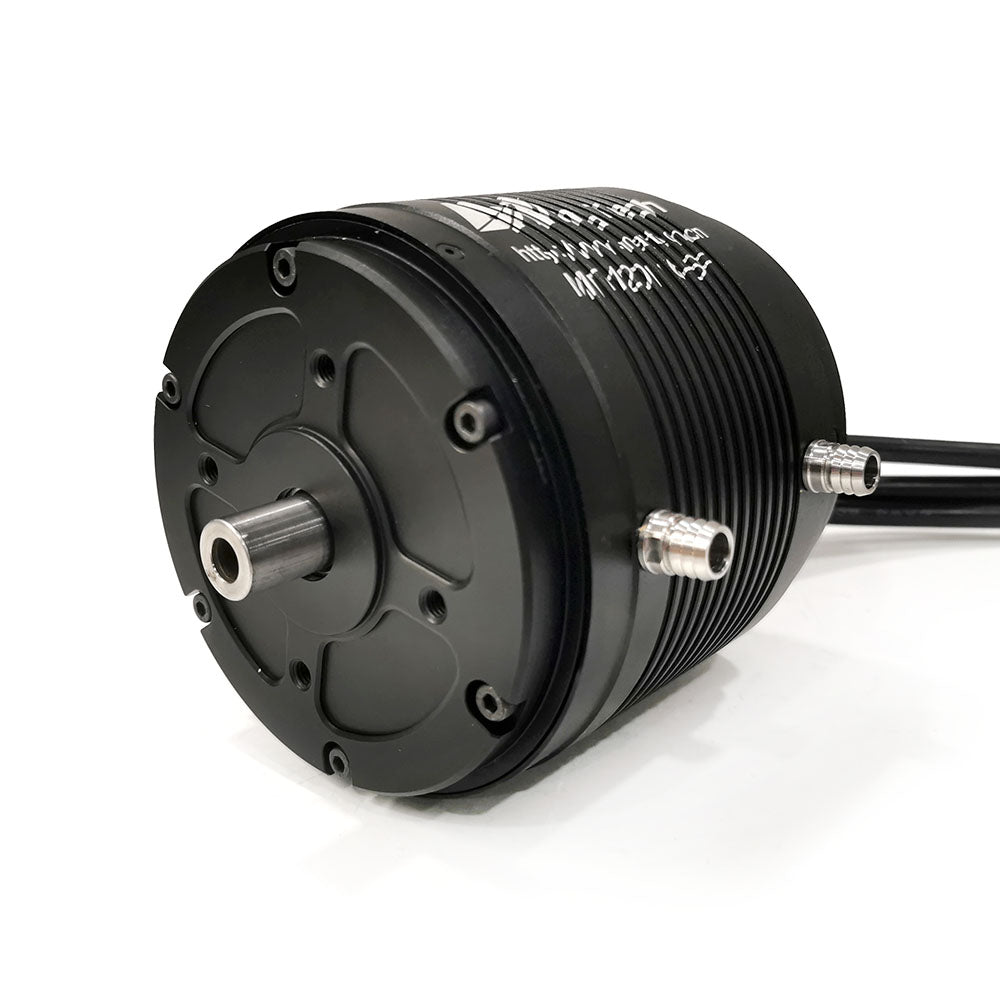

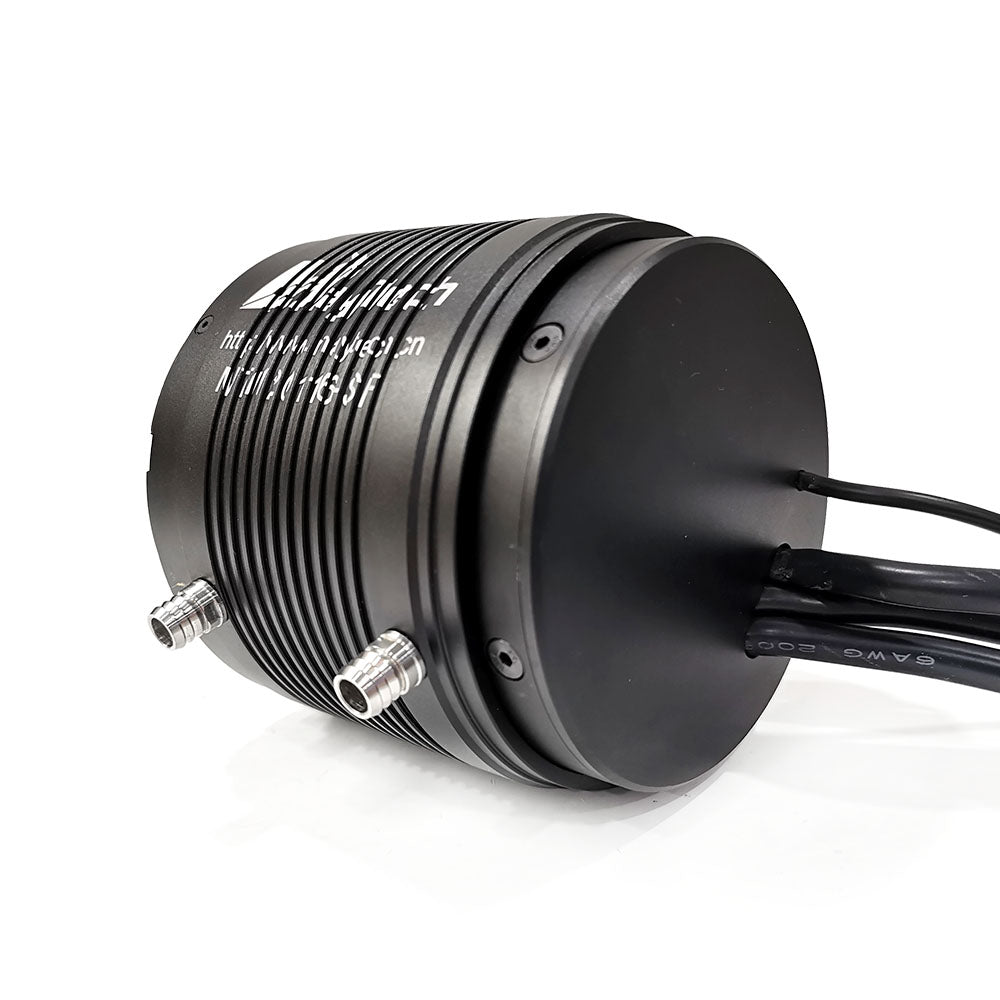

- With solid water-cooling tubes (Water-cooled version);
- With rust-prevention screws;
- Can be customized to use 200-300V high voltage application;
- Shaft, KV, motor cables can be customized.
2. Specification
| Model No. | MTI120116 | Motor Type | Inrunner Motor |
| Hall Sensor | Optional | KV(RPM/V) | 100/200 |
| Max. Current | 380A | Input Volt | 10-16S |
| Max. Output Watt | 18.8KW | Max. Torque at 60% | 20.6N.m |
| Idle Current @8.4V | 2.8A | Internal Resistance | 0.0322Ω |
| Construction | 12N10P | Shaft | 15mm |
| Max Working Temperature | 120℃ | Insulation Volt & Leak Current | AC500V/10MA/3S |
| Shaft Extension | D15*L30 | Brand | Maytech |
3. Motor Drawing
-

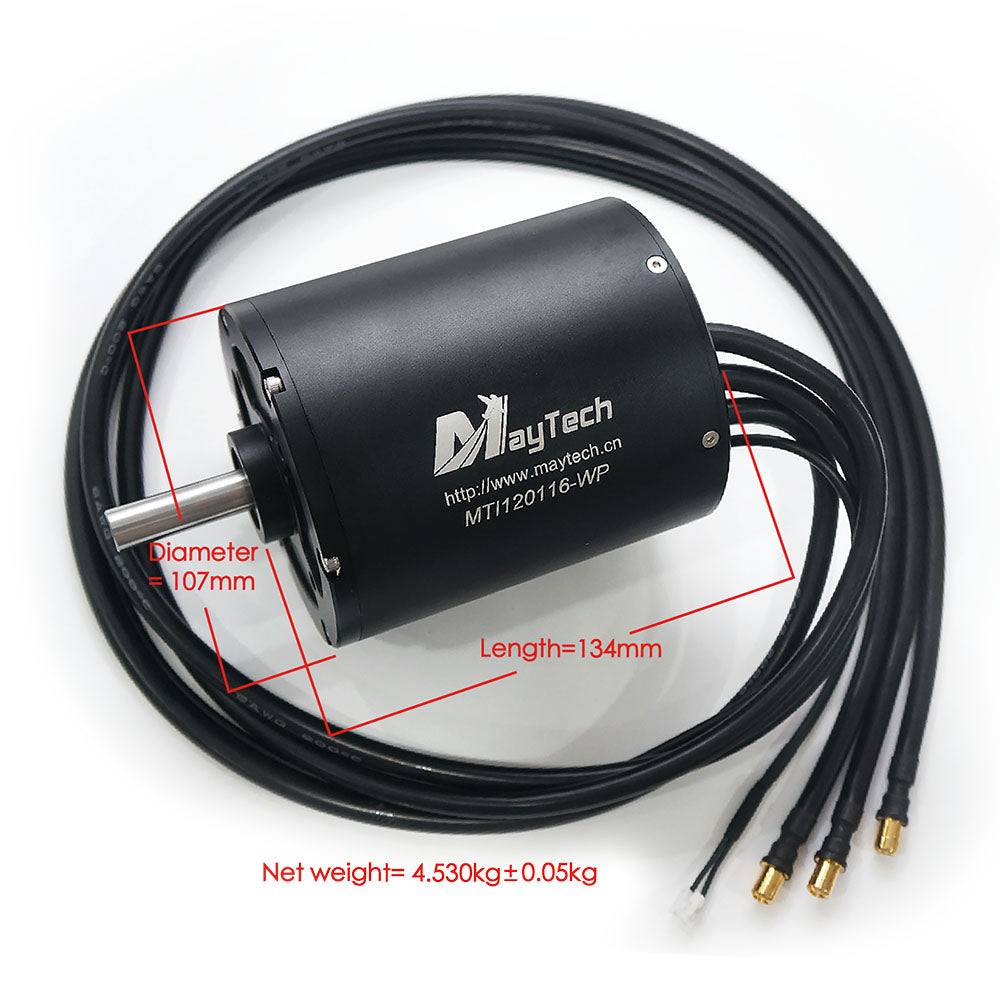

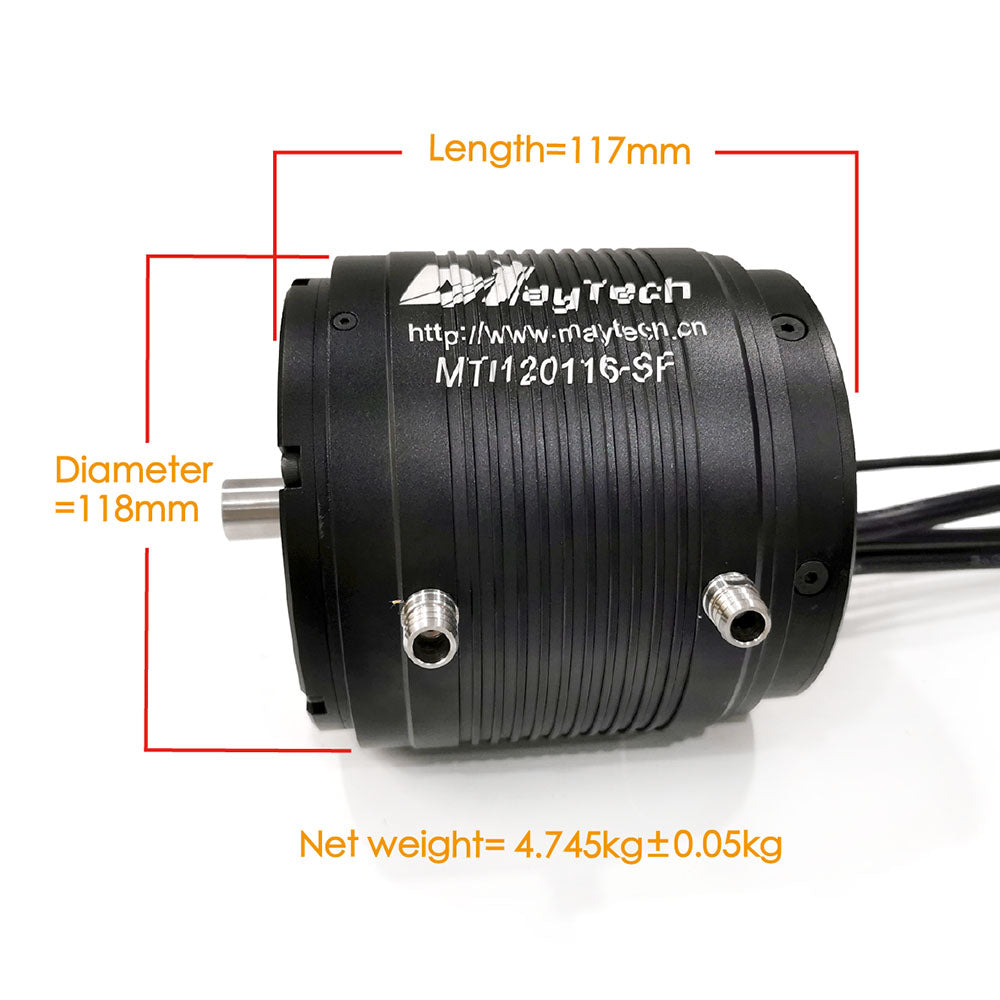

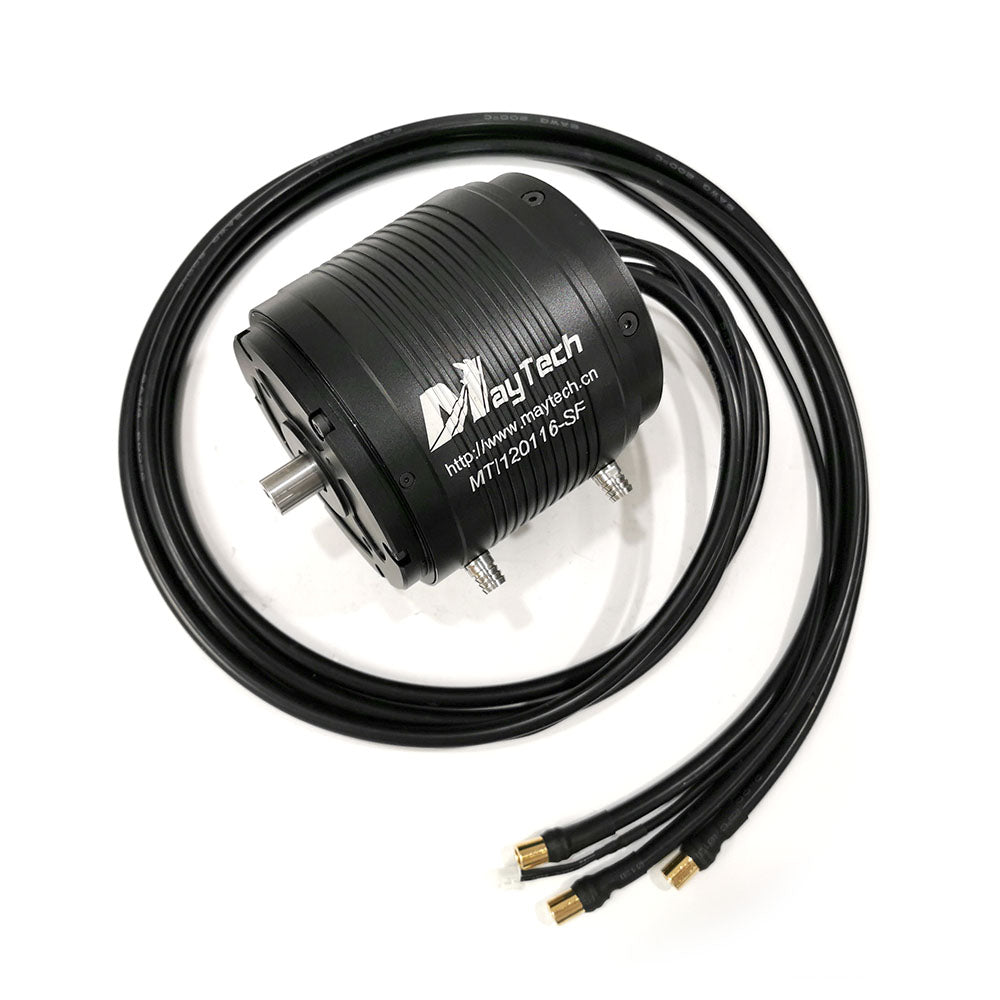

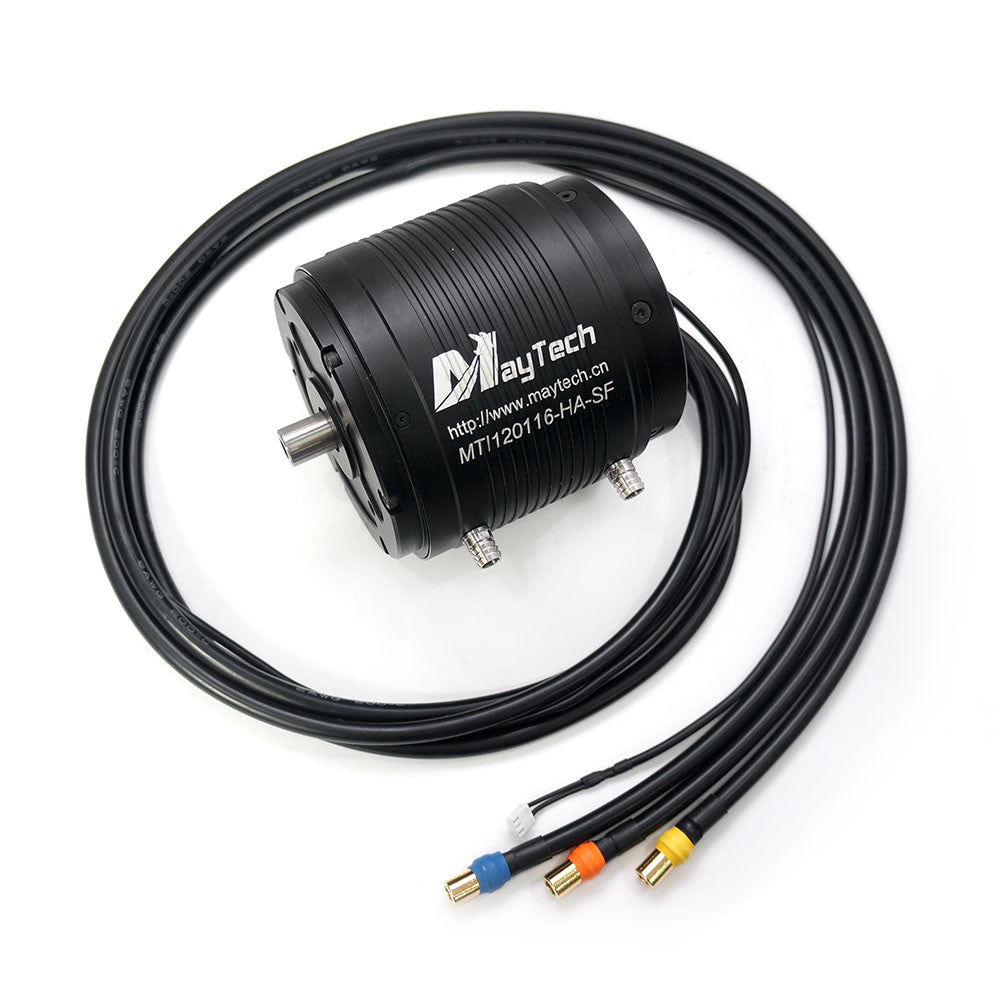

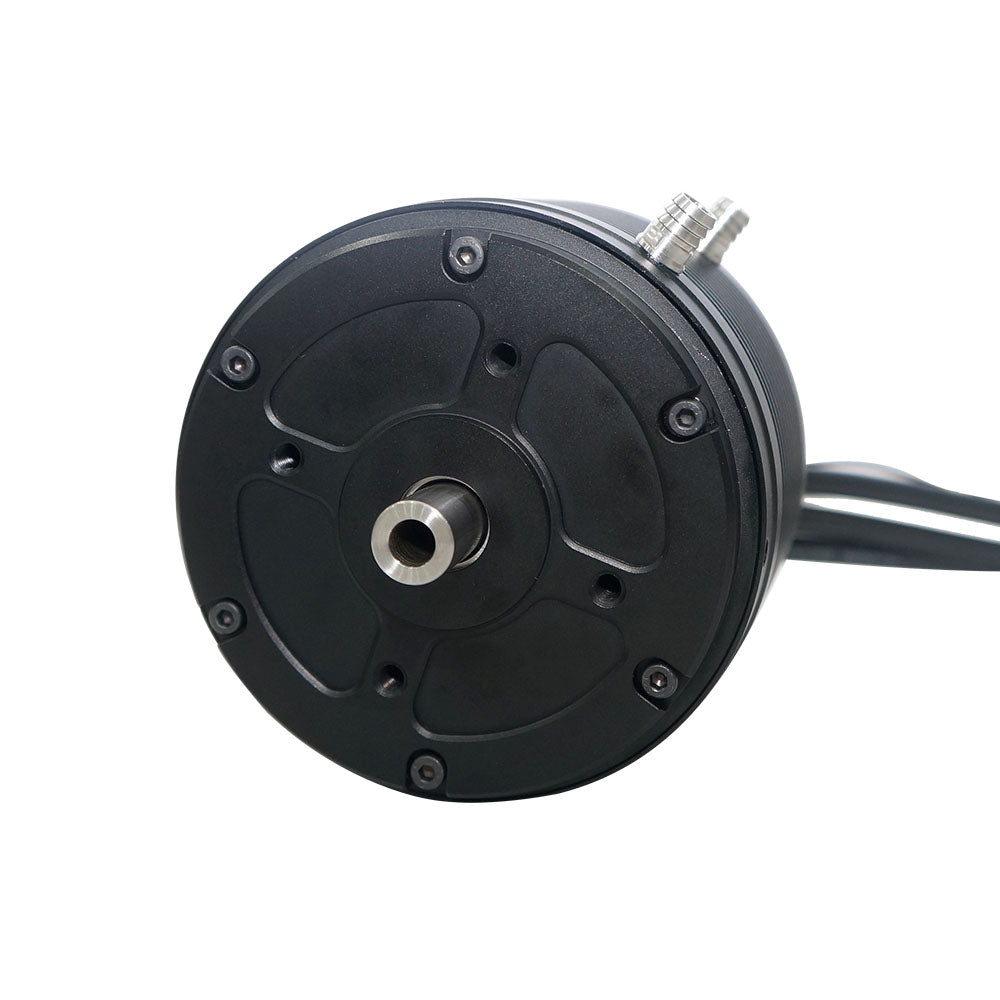

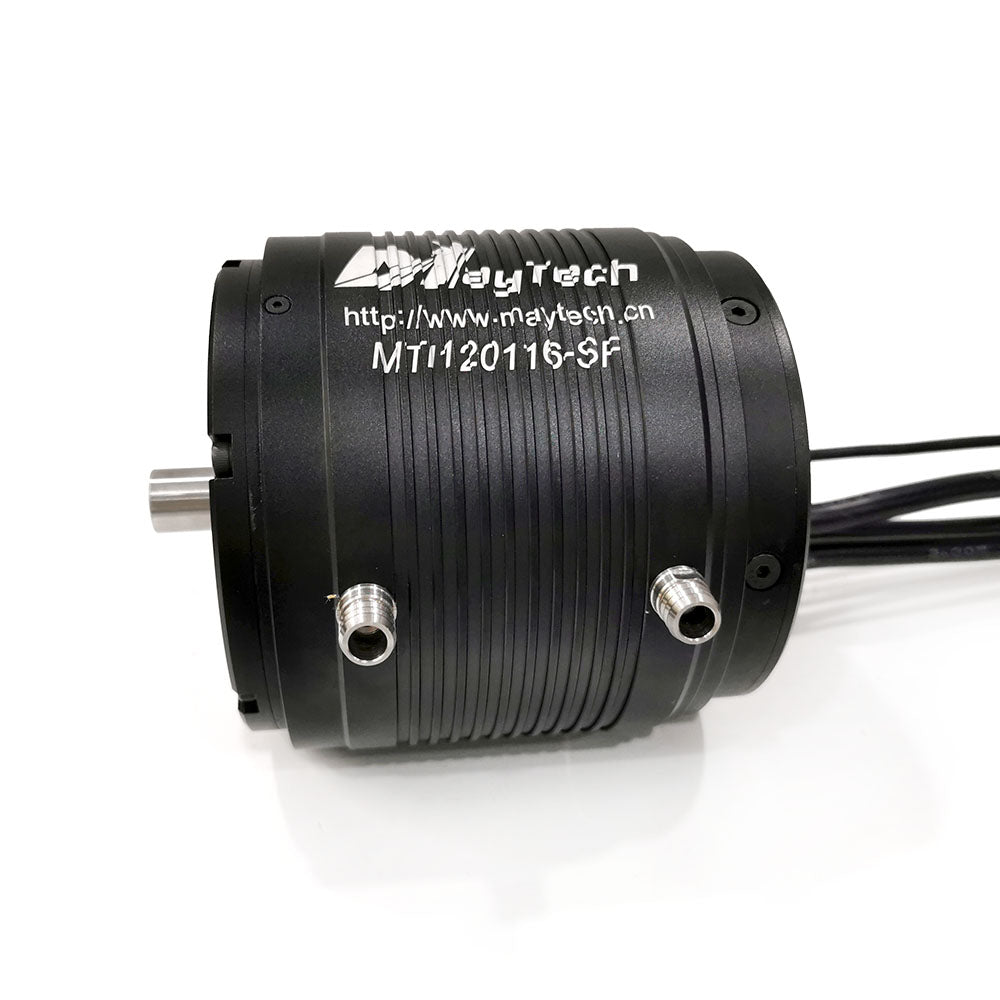

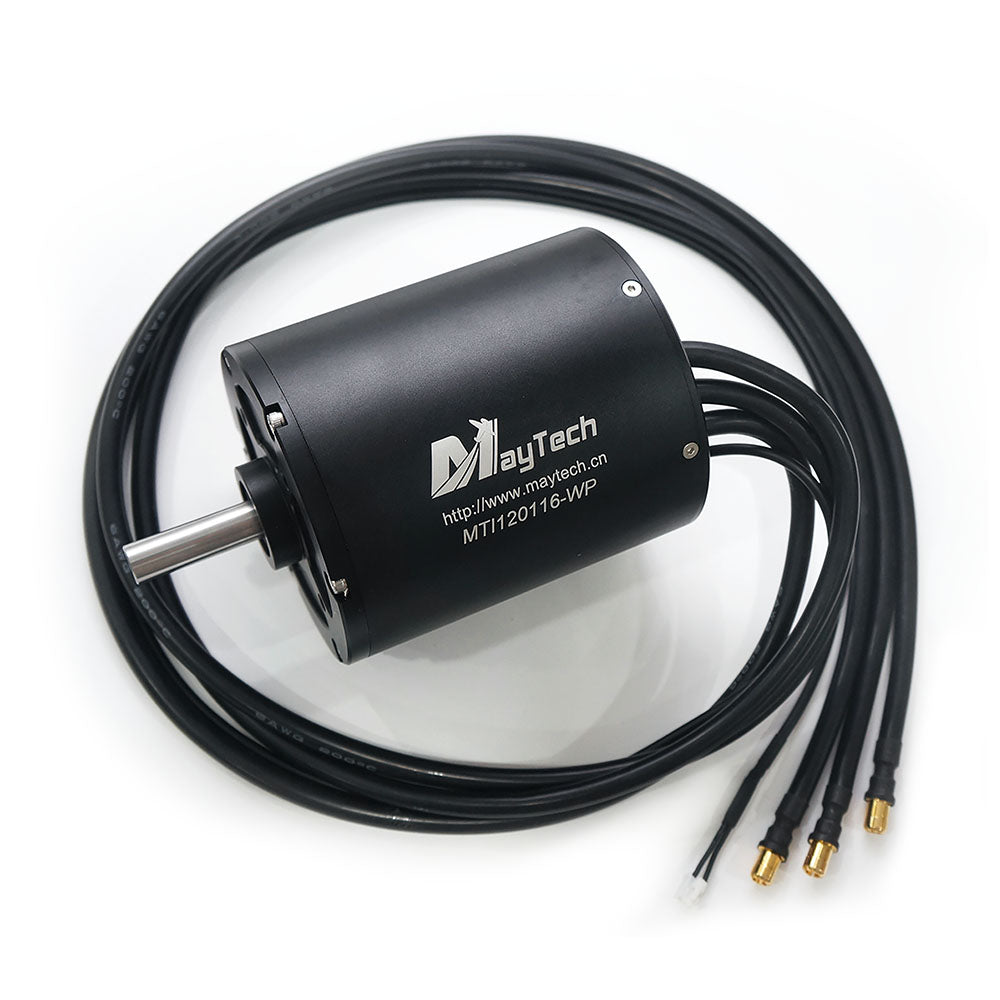

The motor has 2 versions, fully waterproof version and splash proof water-cooled version.
4. Production
Fully waterproof motor has upgraded to water-seal.
5. Application and Feedback
6. Tips
-
Flier ESC is not compatible with Maytech motors. Recommend Maytech ESC.
