Maytech Fully Waterproof Efoil Kit MTI65162 Motor + 300A ESC + MTSKR1905WF V2 Remote Electric Foil Hydrofoil Kit
Maytech Fully Waterproof Efoil Kit MTI65162 Motor + 300A ESC + MTSKR1905WF V2 Remote Electric Foil Hydrofoil Kit
Regular price
$1,273.89 USD
Regular price
$2,015.00 USD
Sale price
$1,273.89 USD
Unit price
/
per
Couldn't load pickup availability

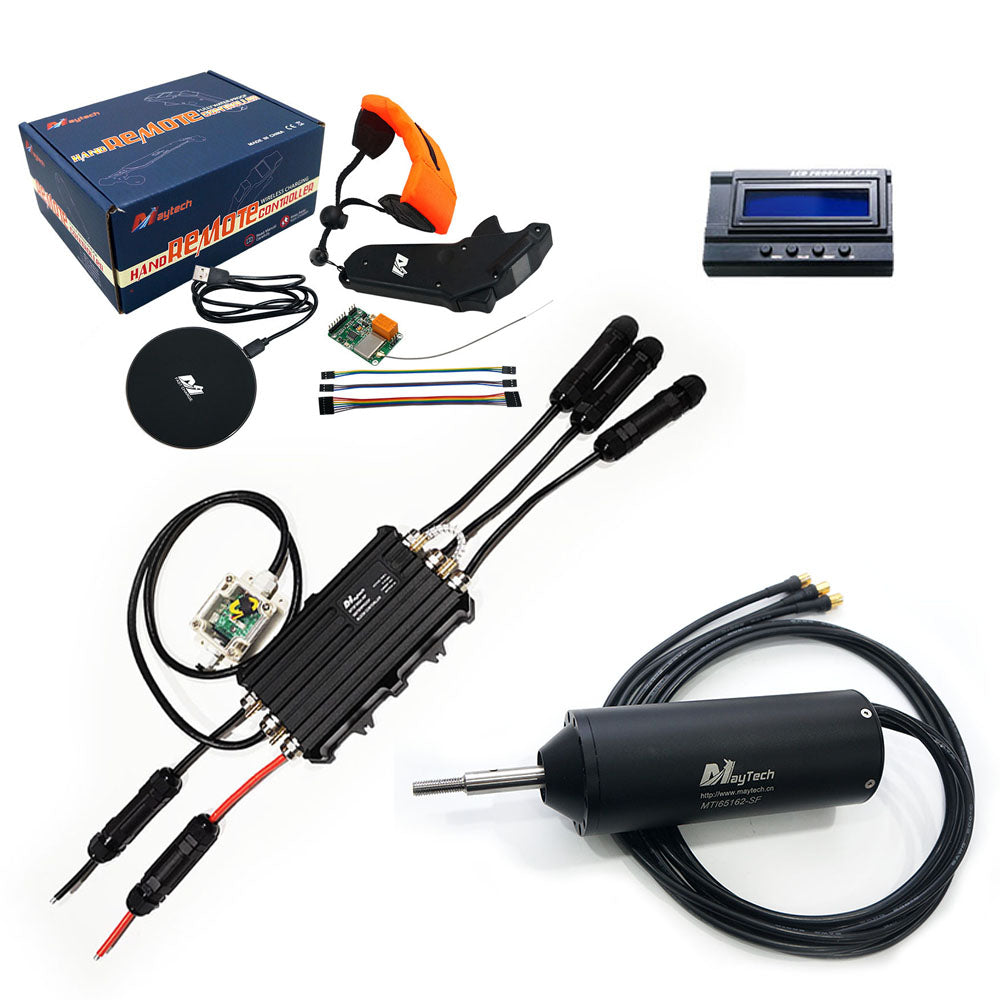

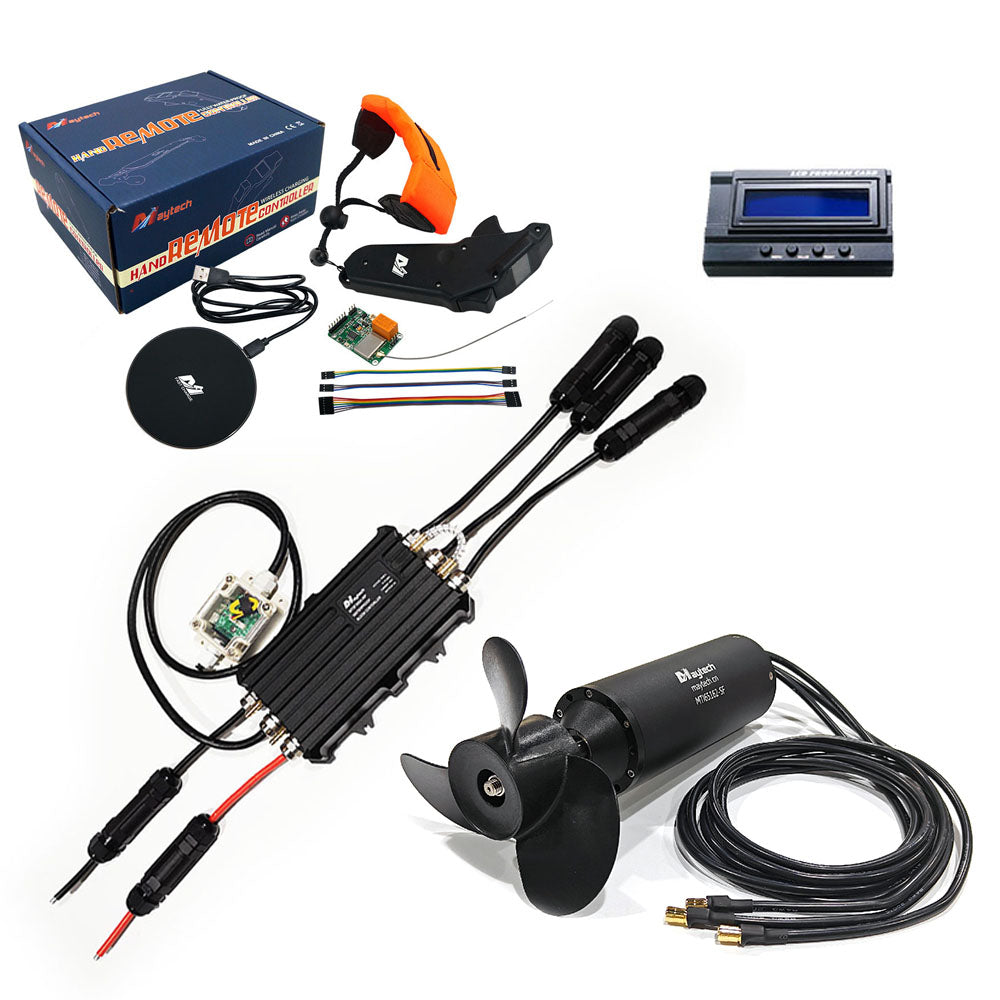

Kit Include:
-
1pcs MTI65162-SF motor with free propeller
-
(Motor can be replaced with: 120KV/190KV screw shaft without propeller)
-
1pcs MTSF300A-WP 300A ESC with progcard
-
1pcs MTSKR1905WF remote
Product Details:

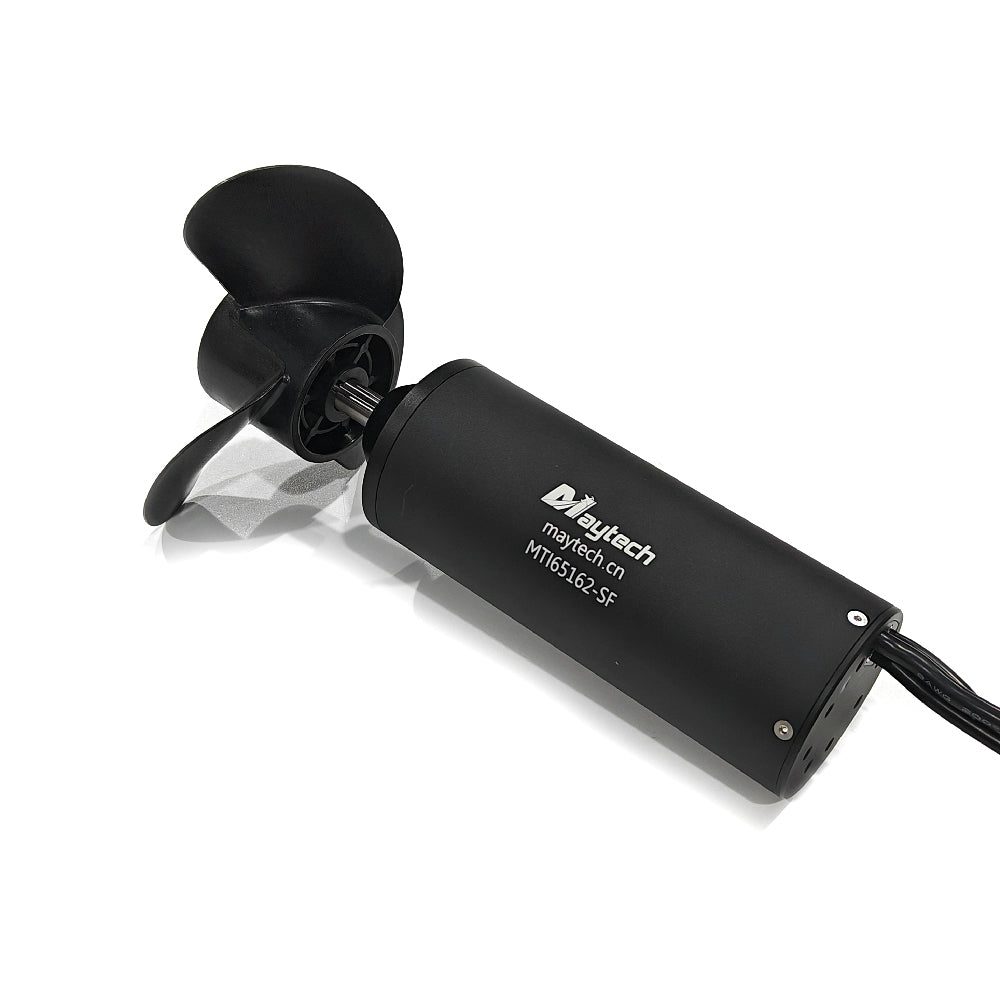

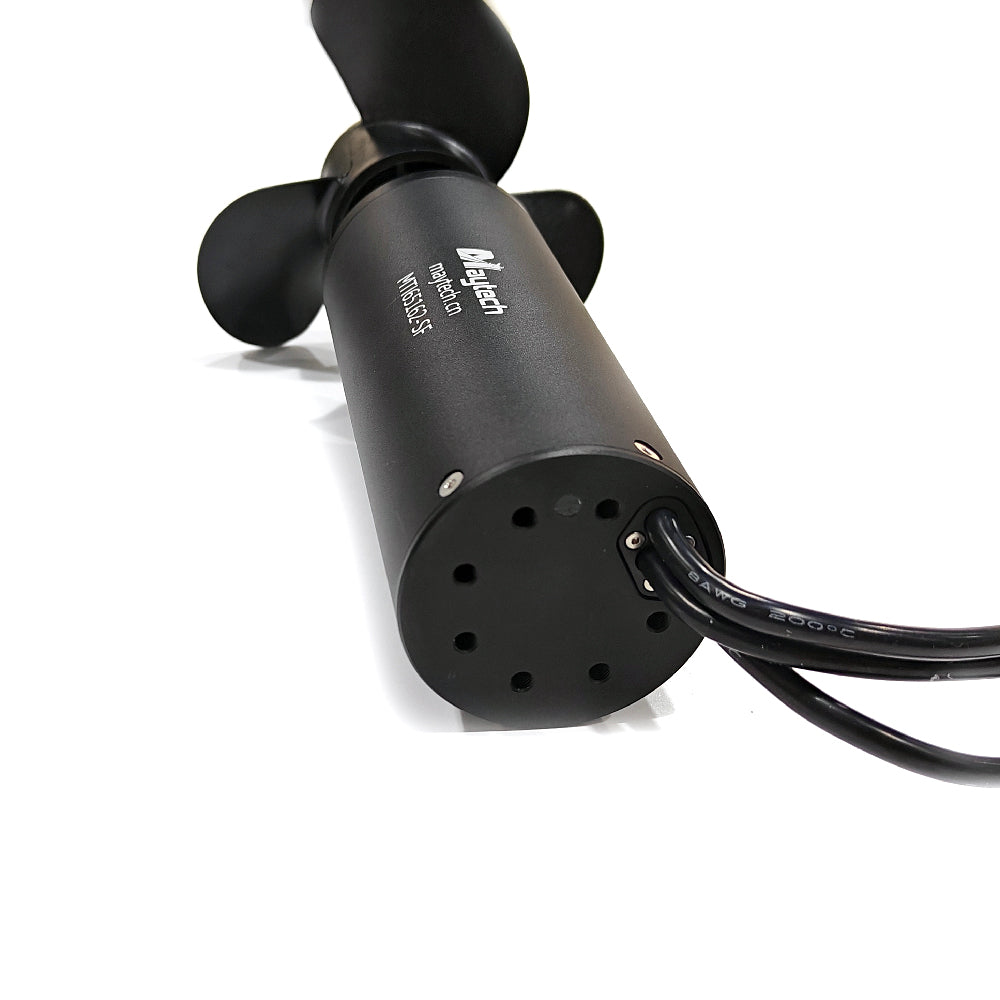

1. Maytech MTI65162-SF Fully Waterproof Motor with Propeller
>Click for more details
1.1 Main Advantage
- Fully water-proof, IP68;
- Rust-prevention, can be used in sea water, salt water, rivers, lakes, etc.;
- With roller bearing for longer life span, more thrust power;
- With ceramic ring waterseal technology, better water-proof performance than oil-sealed;
- Shaft, KV, motor cables can be customized.
1.2 Specification
Model No. | MTI65162-SF | Motor Type | Inrunner Motor |
Waterproof | IP68 | KV(RPM/V) | 100 |
Max. Current | 310A | Input Volt | 25-84V |
Max. Output Watt | 9.1KW | Rated Power | 8.1KW |
Idle Current @8.4V | 1.6A | Max. Torque | 9N.m |
Weight | 2850g | Shaft | 12mm |
Motor Dimension | Φ65x 162mm | Stator Dimension | Φ61x 100mm |
Hall Sensor | No | Propeller | 7.25*6 inch |
1.3 Motor Drawing
-
The motor has 2 types of shaft, splined shaft and screw.
-

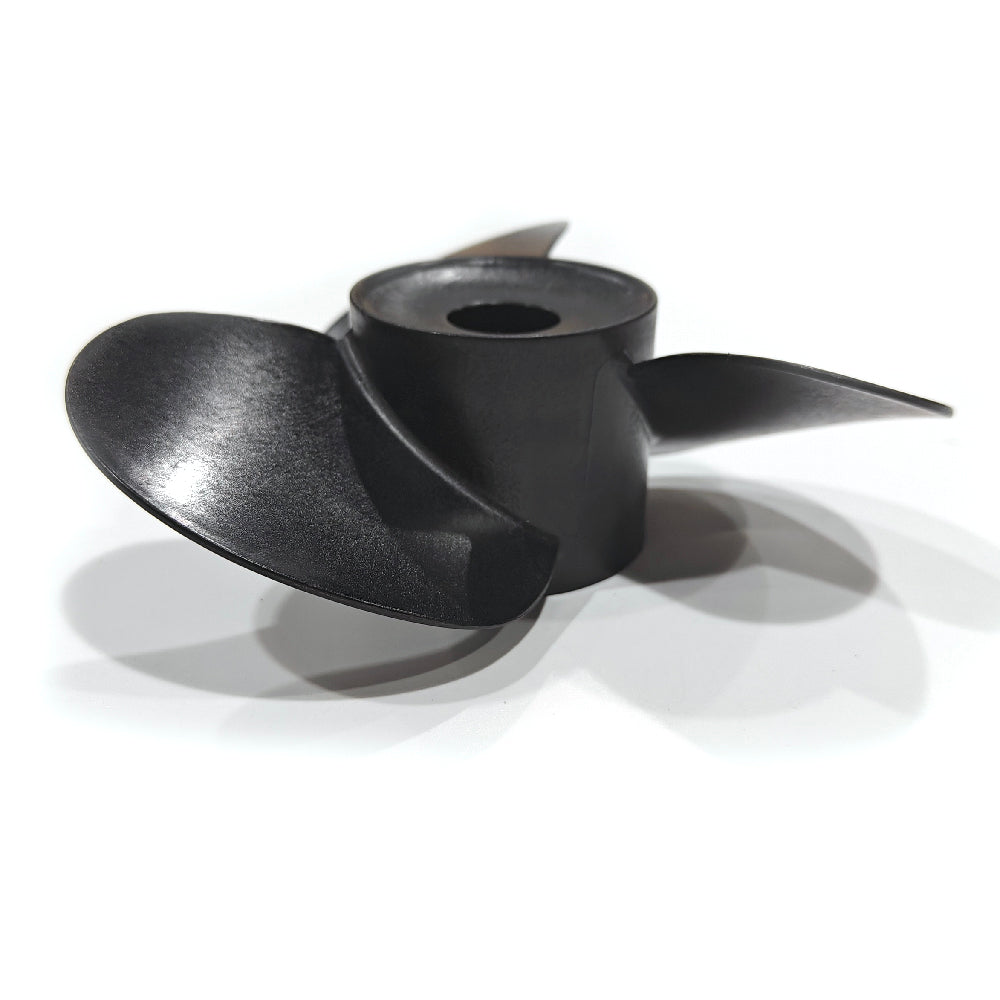

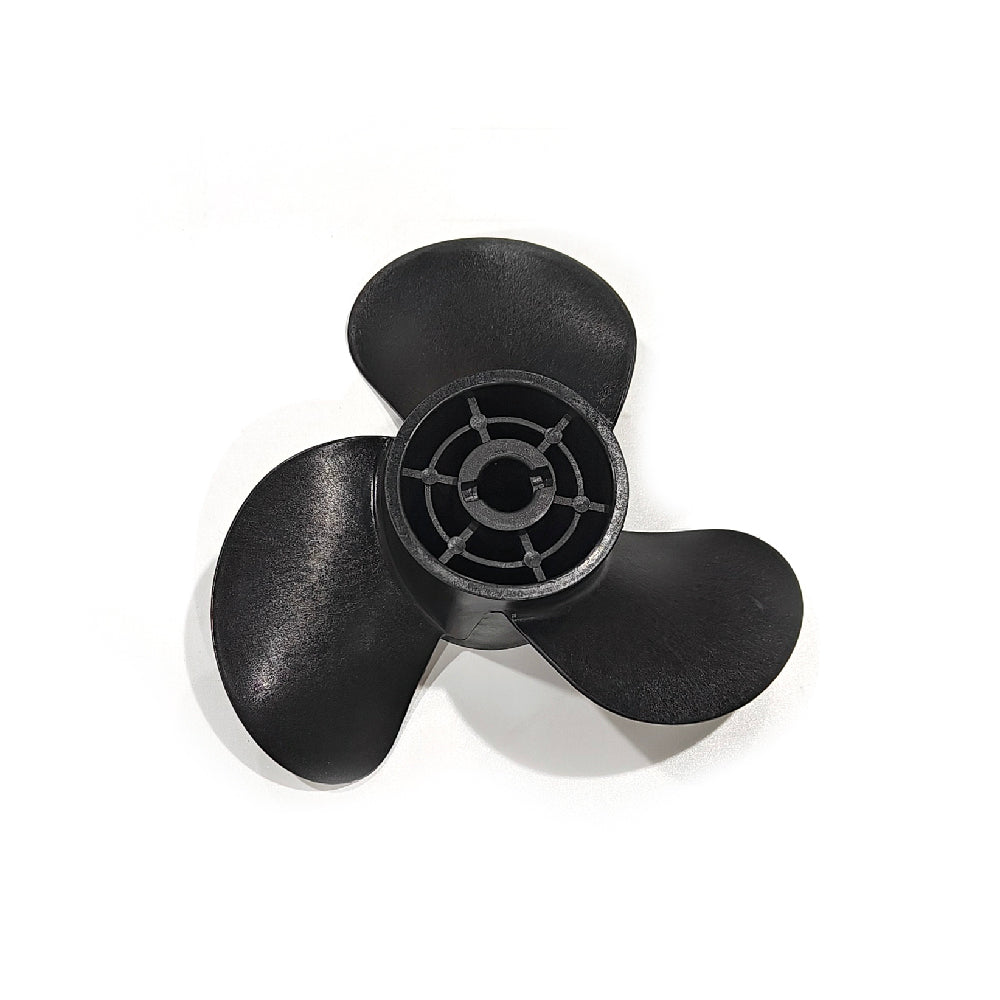

Splined shaft is 100KV with 7.5*7 inch splined propeller.
-
Screw shaft is 120KV and 190KV, propeller is not included.
-
In the Efoil kit is matched with 100KV Splined shaft with Propeller.

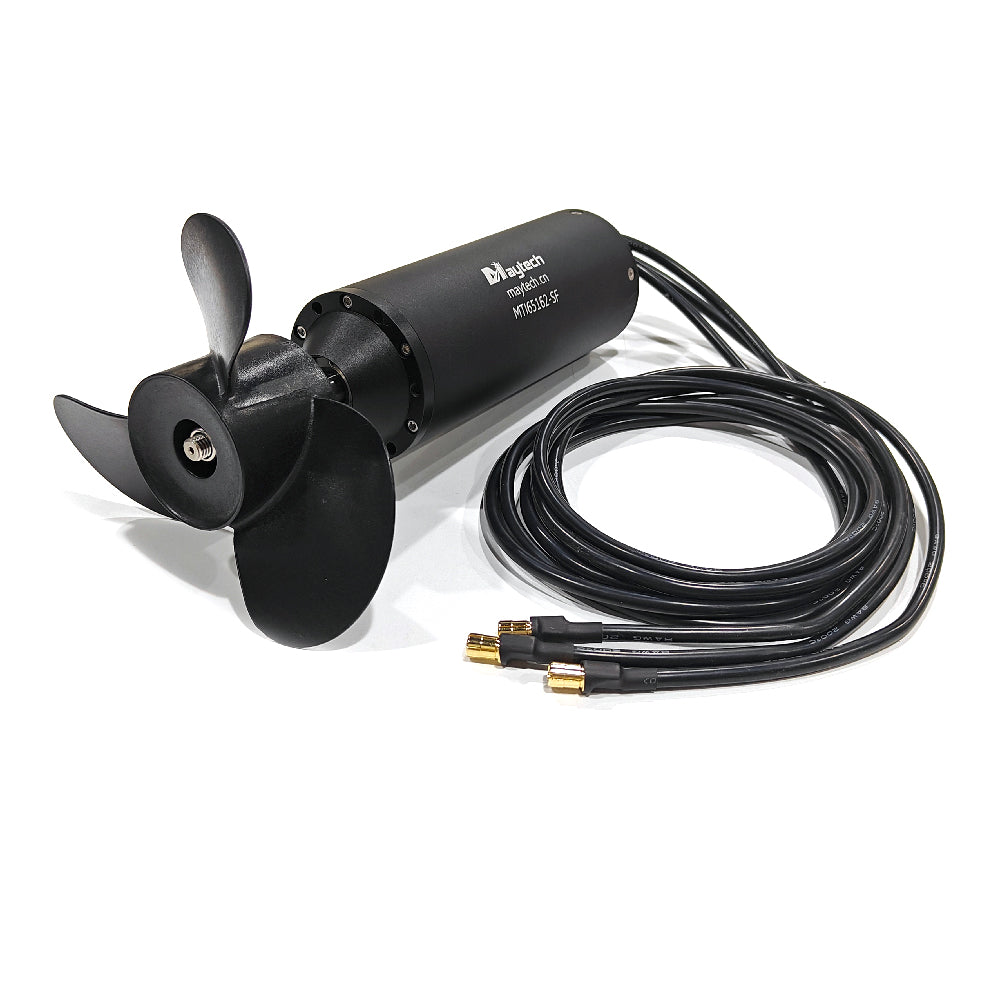

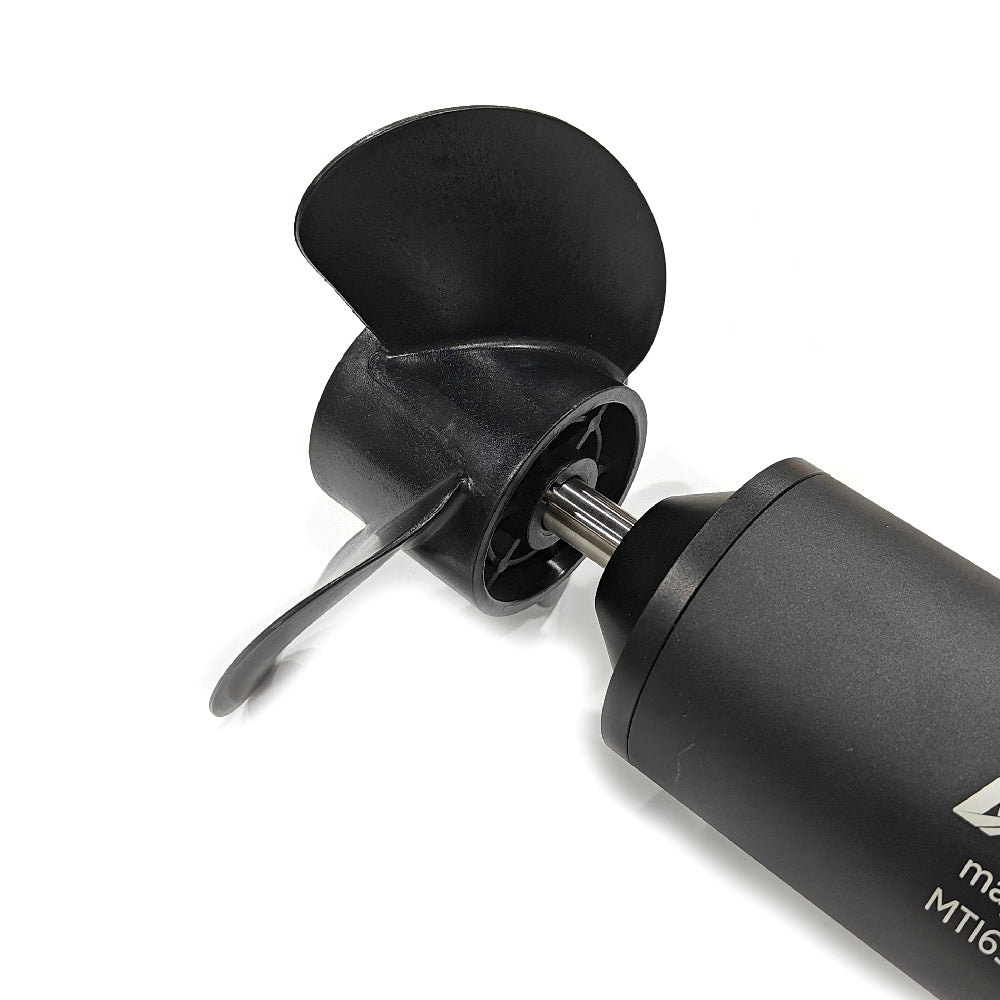

Splind Shaft Motor with Propeller




Screw Shaft Motor without Propeller


2. Maytech MTSF300A-WP Fully Waterproof & Water-cooled 300AESC with Progcard
>Click for more details
2.1 Main Advantages
- Fully water-proof, IP68;
- Can be used in sea water, salt water, rivers, lakes, etc.;
- Receiver can be put inside the water-proof case, make it a water-proof receiver;
- Over-heat protection;
- Lost throttle signal protection;
- Low voltage cut off protection;
- Adjustable parameters: Battery type, Cut off voltage threshold, Motor timing, Motor rotation, Start up strength, Low voltage cut off type.
2.2 Specification
Model No. | MTSF300A-WP | Waterproof | IP68 |
Cont. Current | 300A | Max. Current | 1000A |
Input Volt | 25-58V | UBEC | 1pcs Built-in UBEC-75V |
Water-cooling | With | Rated Power | 8.1KW |
Receiver | Internal/Without | Programmable | Yes, with Progcard |
2.3 ESC Type

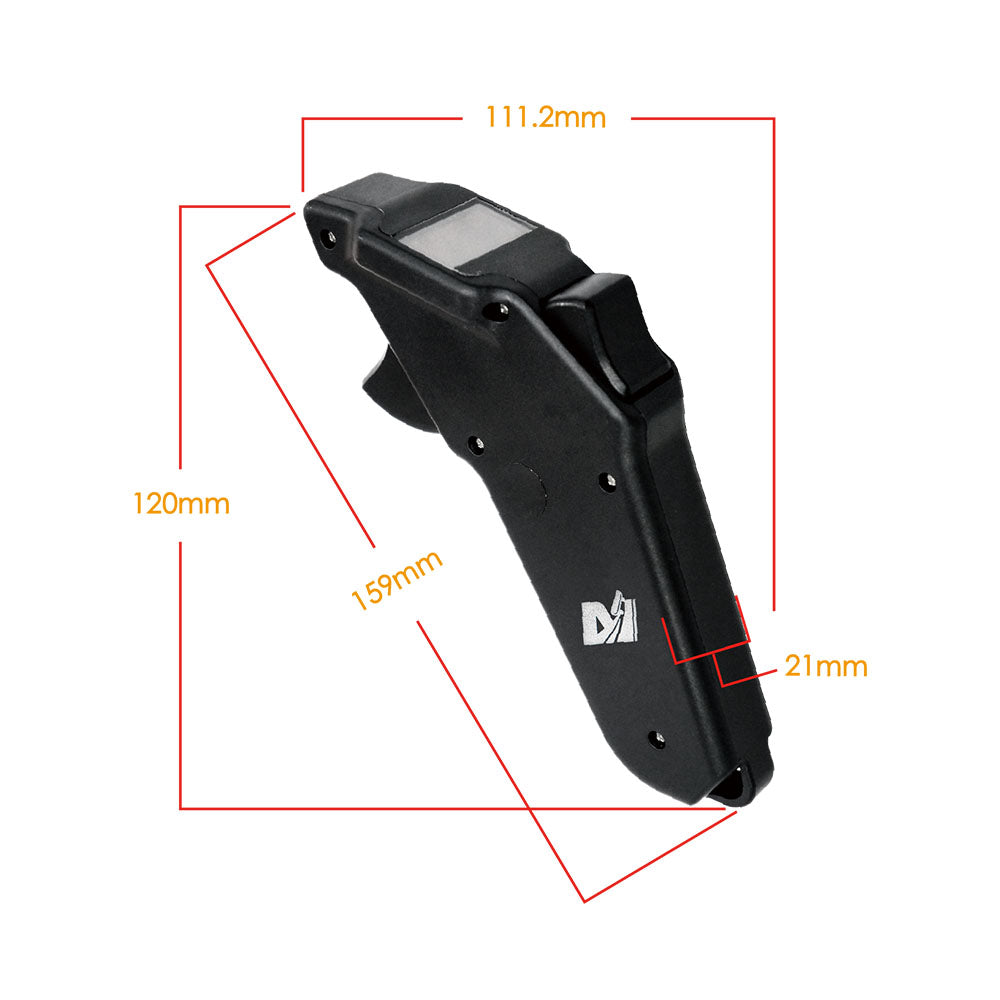

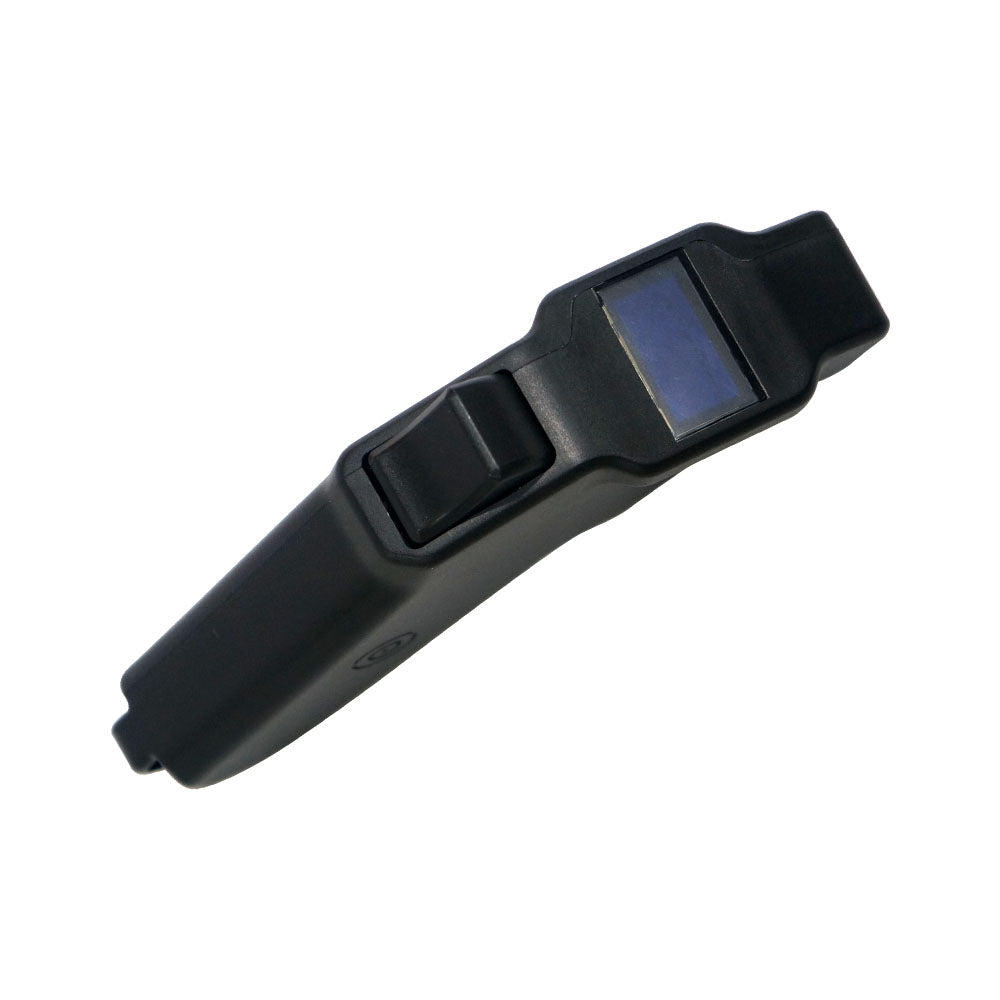

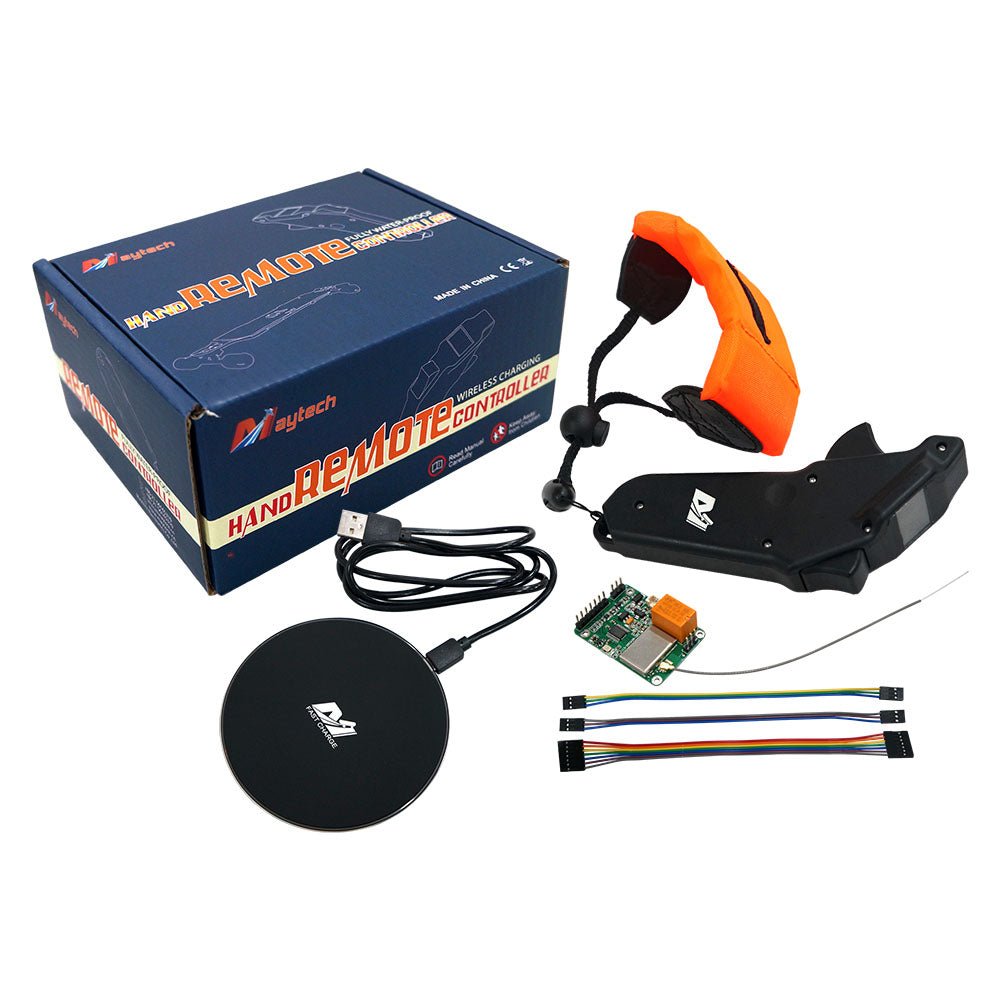

3. Maytech MTSKR1905WF V2 IP67 Fully Waterproof Remote
>Click for More Details
3.1 Main Advantage
- Nano coating waterproof technology; reliable water-proof performance;
- Comptible with V4, V6 and other ESC controllers;
- Display Screen: OLED color;
- Wireless charging;
- Remote display parameters: throttle percentage, remote battery &main battery voltage, motor RPM; if use it with VESC controllers, it can show current, temperature, etc.;
- Solid signal: Remote and receiver signal strength is enhenced to avoid some signal interference nearby;
- Built-in 30V 3A Relay mechanical switch and 20V 2A transistor electronics switch for lights, water pump;
- Firmware is wirelessly upgradable.
3.2 Specification
Model No. | MTSKR1905WF | Waterproof | IP67 |
Charging | Wireless Charging | Display |
128x64 OLED Screen |
Display Parameters | Throttle and Battery Voltage | Relay Mechanical Switch | 30V 3A |
Switch |
Electronic 20V 2A Transistor | Frequency | 2.4 GHz Wireless |
Cruise Control | Yes(Esurf Mode) | Compatible ESC |
V4 $ V6 VESC & Other ESC Controller |
3.3 Details
