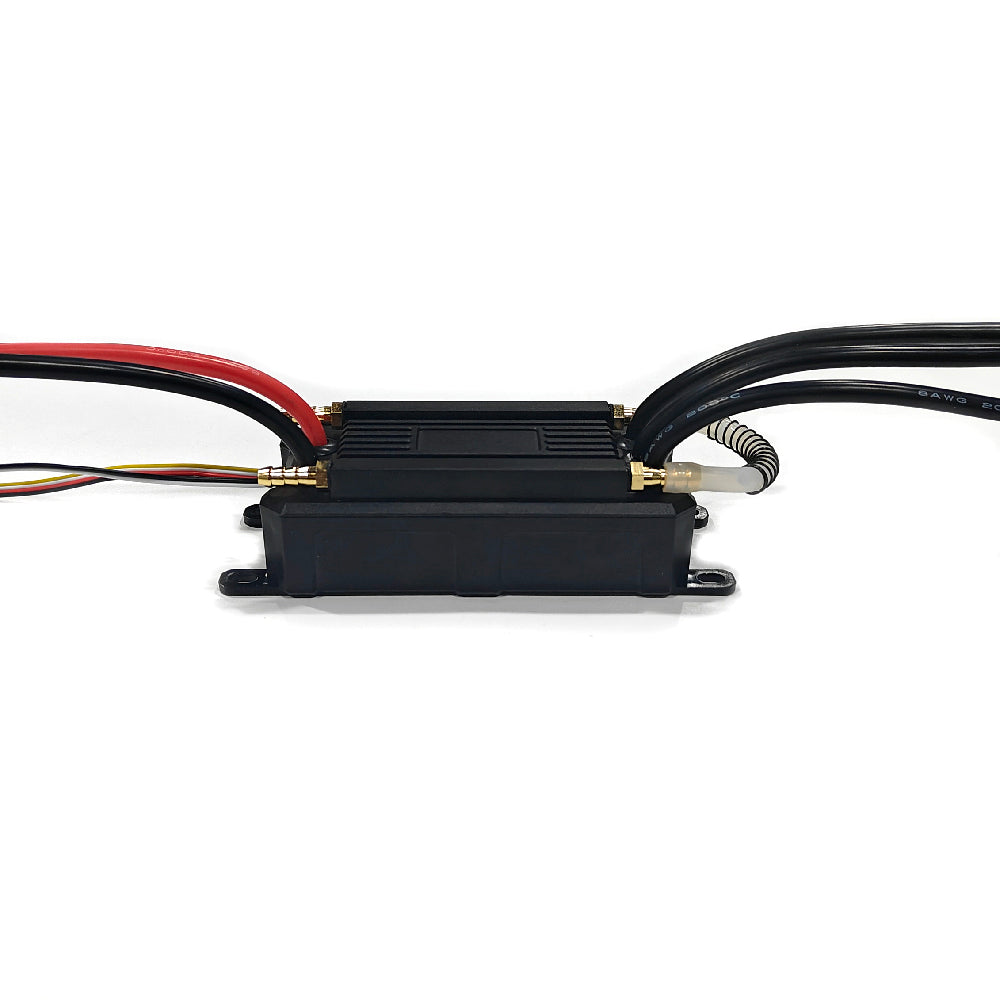

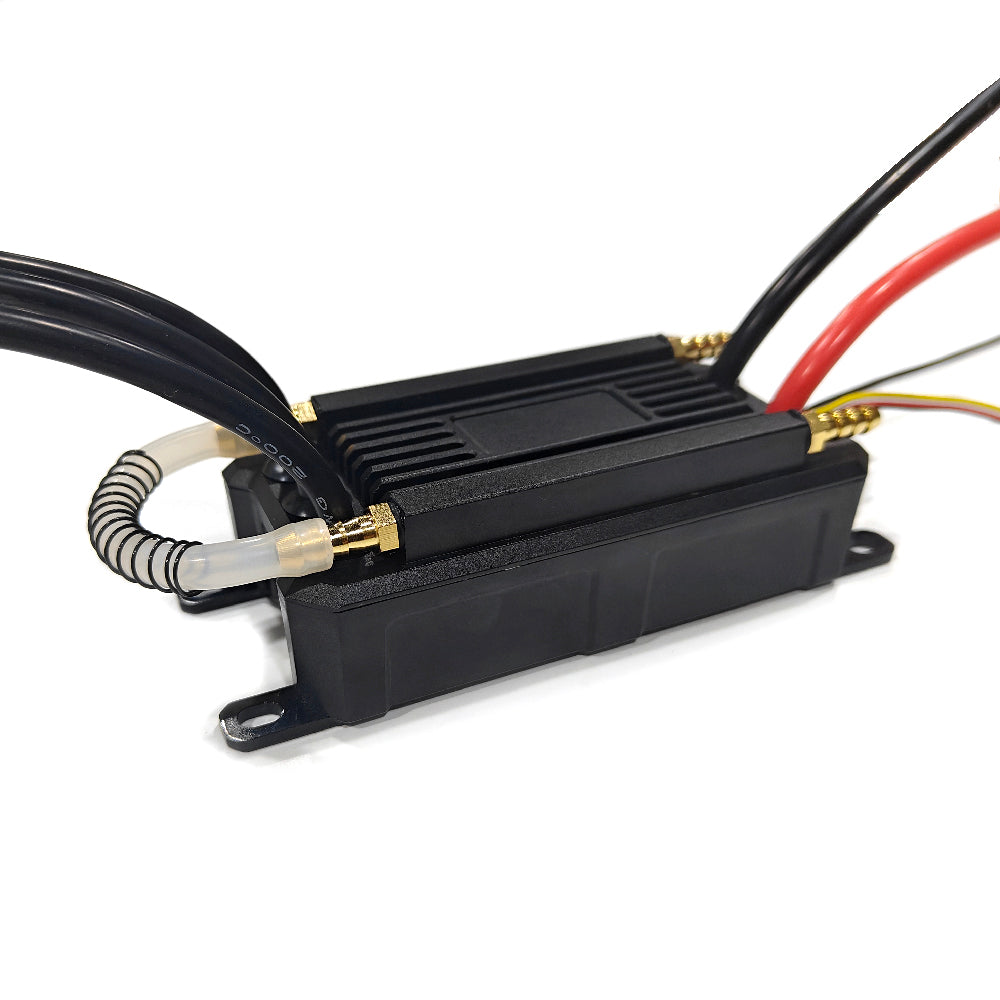

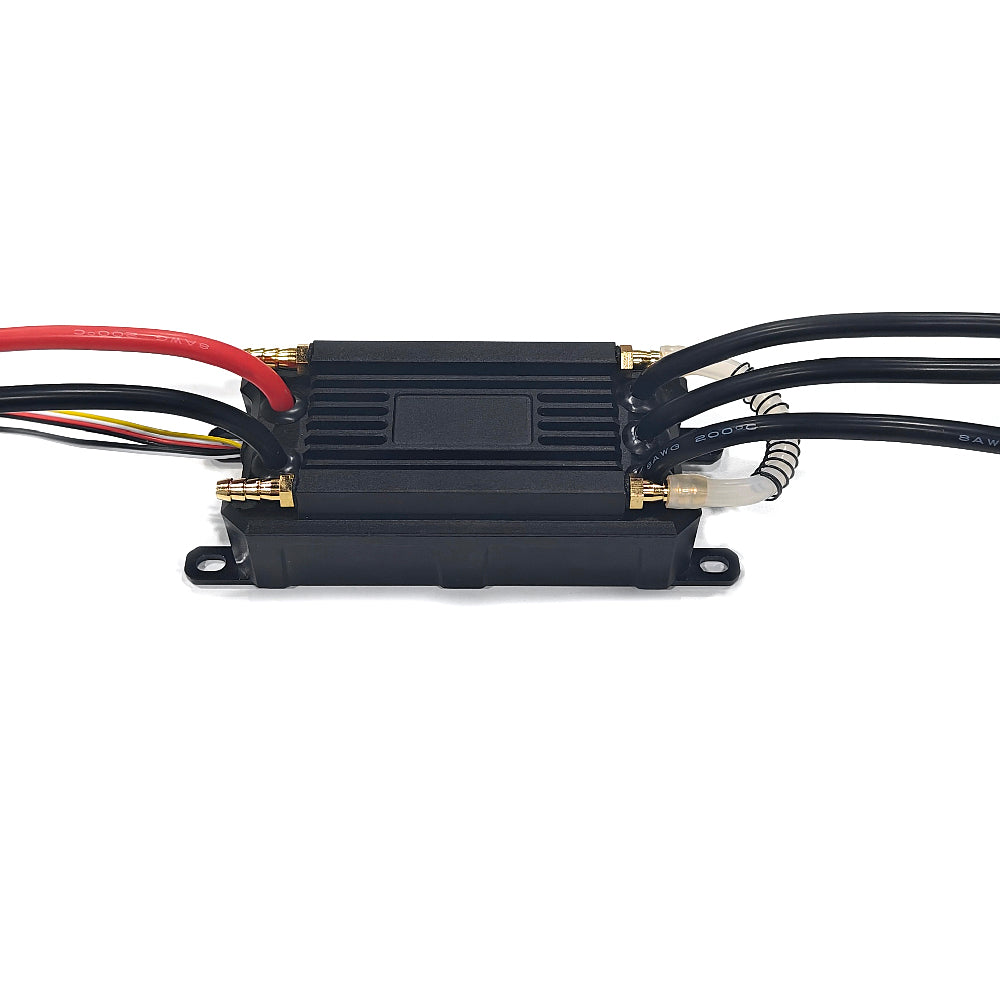

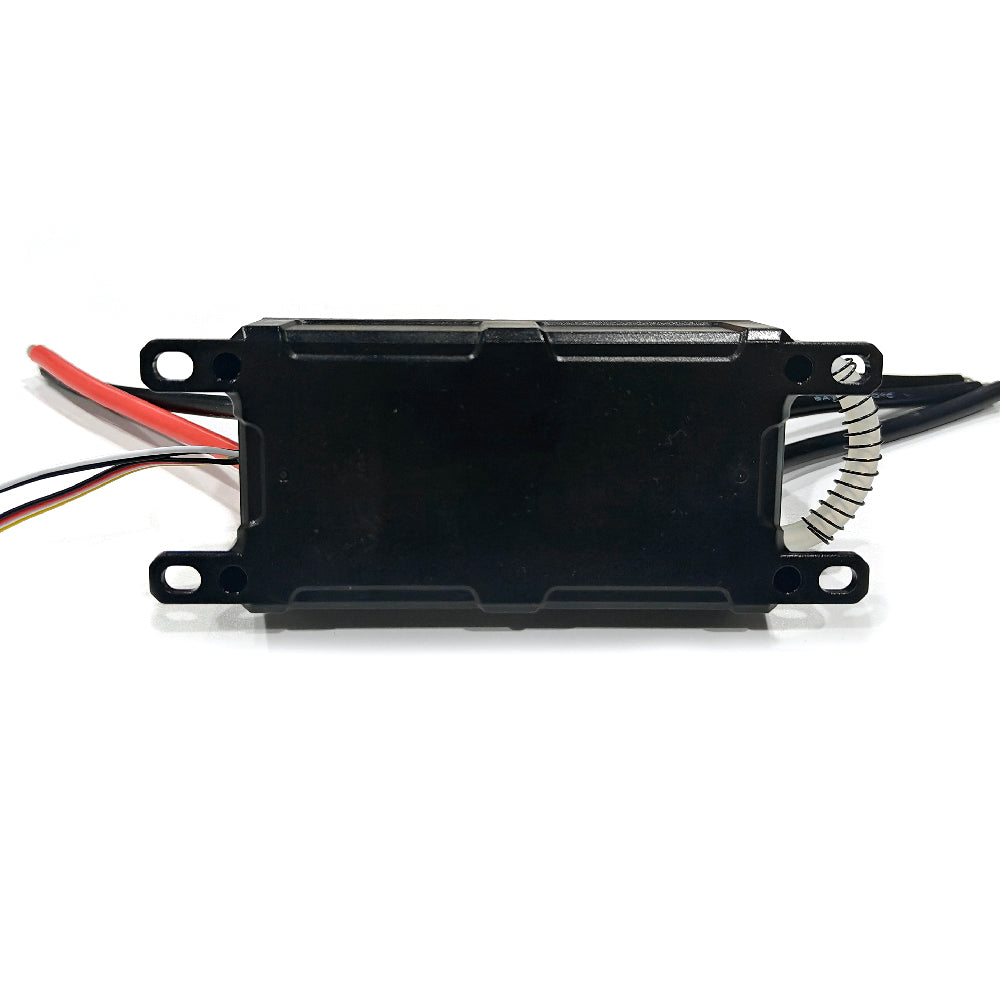

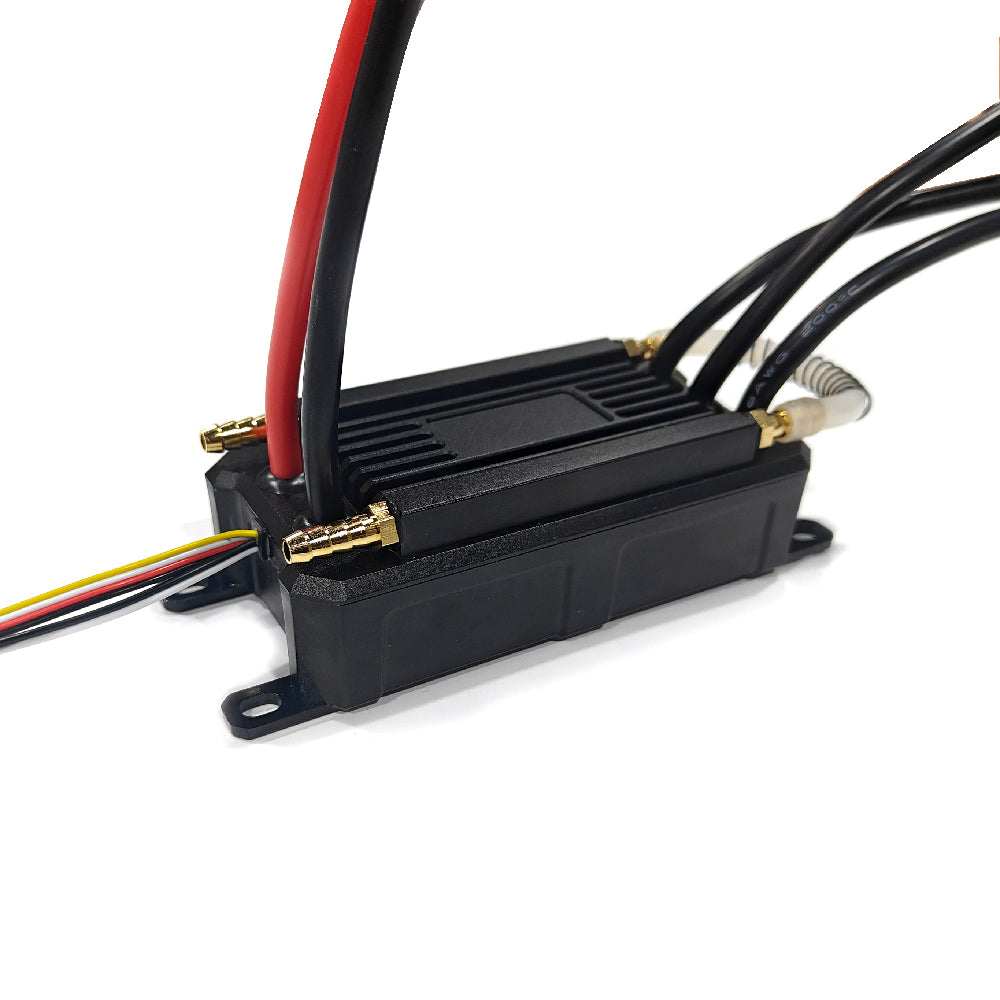

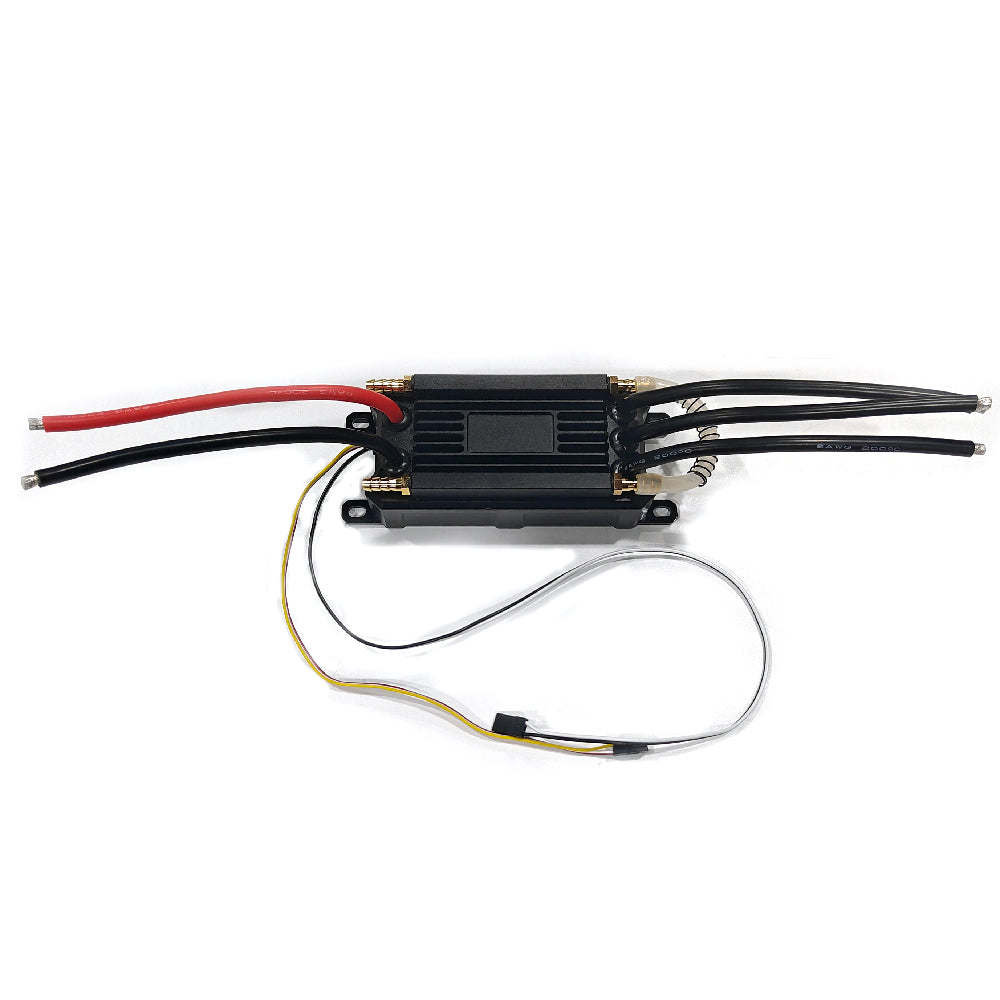

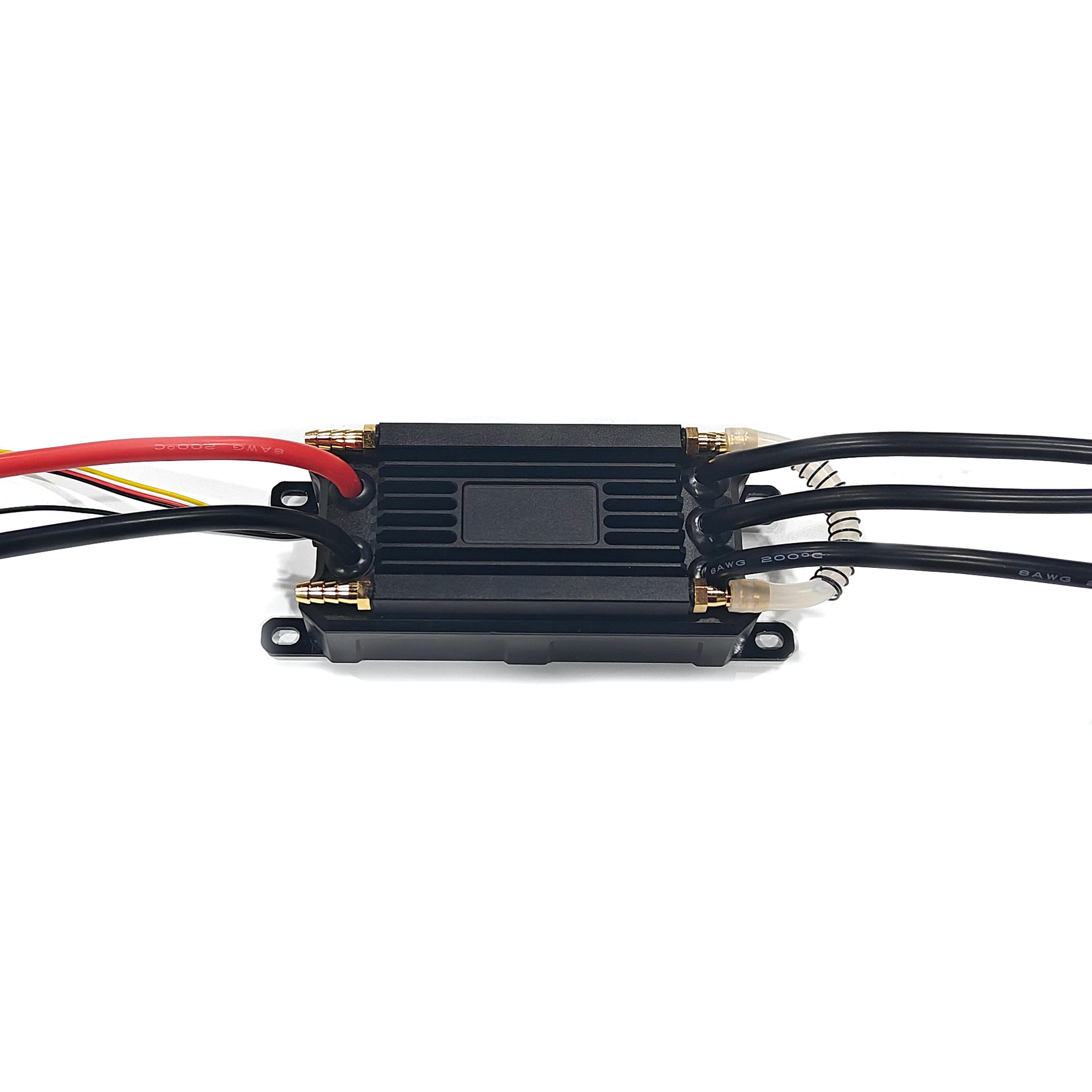

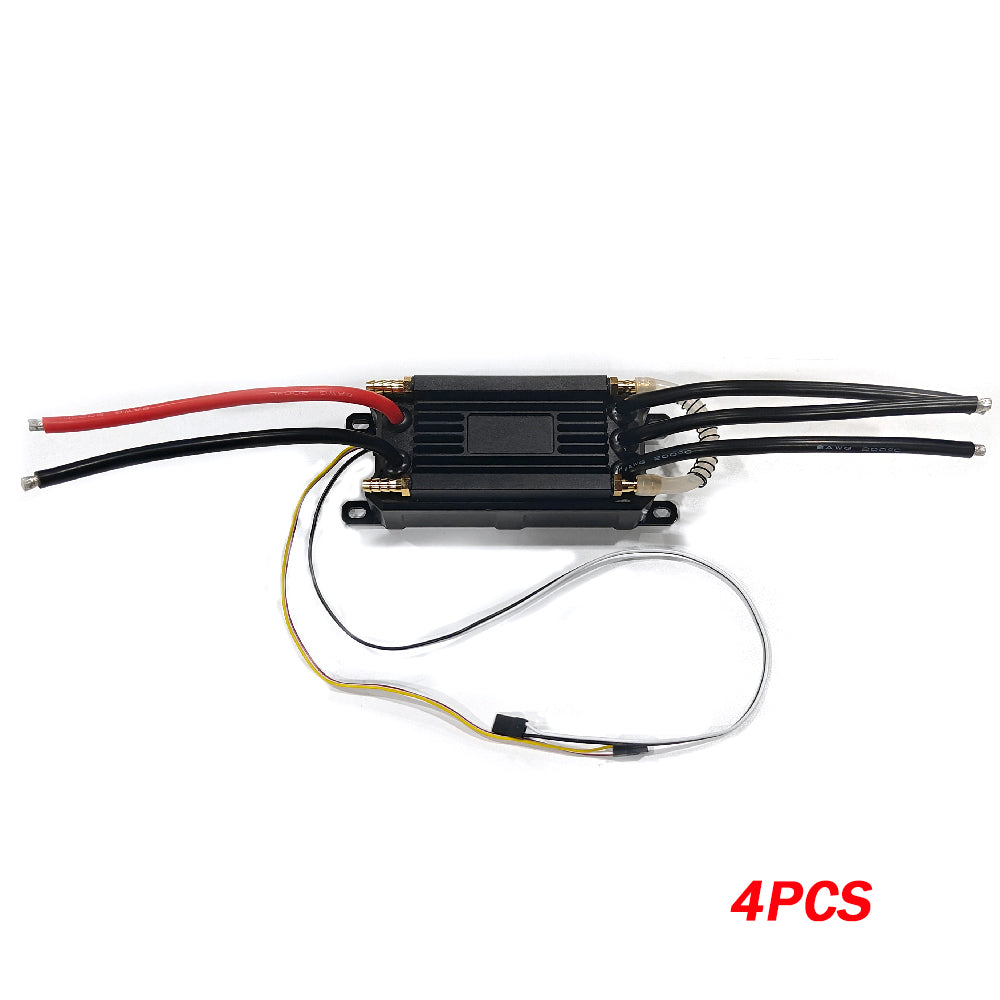

IN STOCK New Arrival MAYRC Waterproof Electric Speed Controller for Foil Surfing 300A High Tension 25-75V Brushless ESC

IN STOCK New Arrival MAYRC Waterproof Electric Speed Controller for Foil Surfing 300A High Tension 25-75V Brushless ESC

Regular price $486.89 USD
Regular price Sale price $486.89 USD
Sale Sold out
PCS

IN STOCK New Arrival MAYRC Waterproof Electric Speed Controller for Foil Surfing 300A High Tension 25-75V Brushless ESC

Specification:

 Model

MTSF300A-WP32-HV

Cont. Current 300A
Max. Current 350A
Volt. 25-75V  6-18S LIPO
Water-cooled water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.

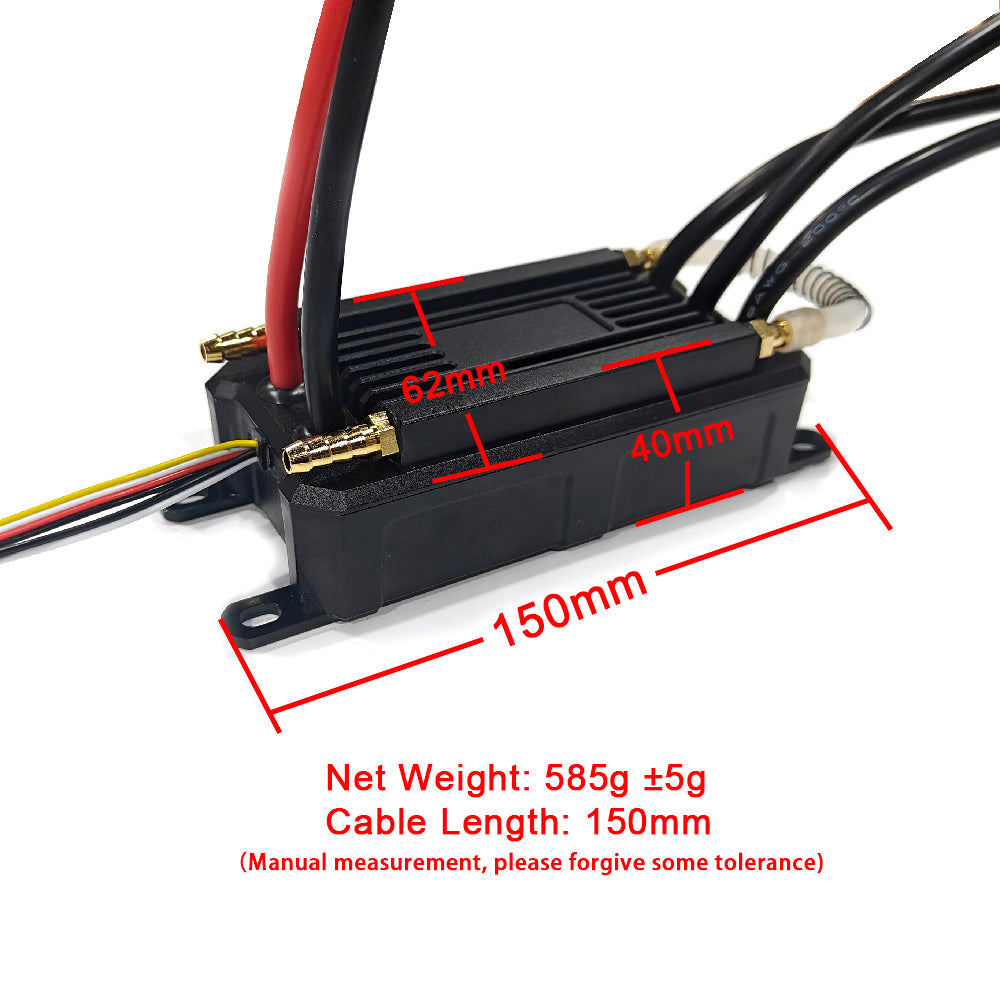

Size PCB size 105*55*18mm
Weight 659g

Main Features:

1:32BIT Micropprocessor

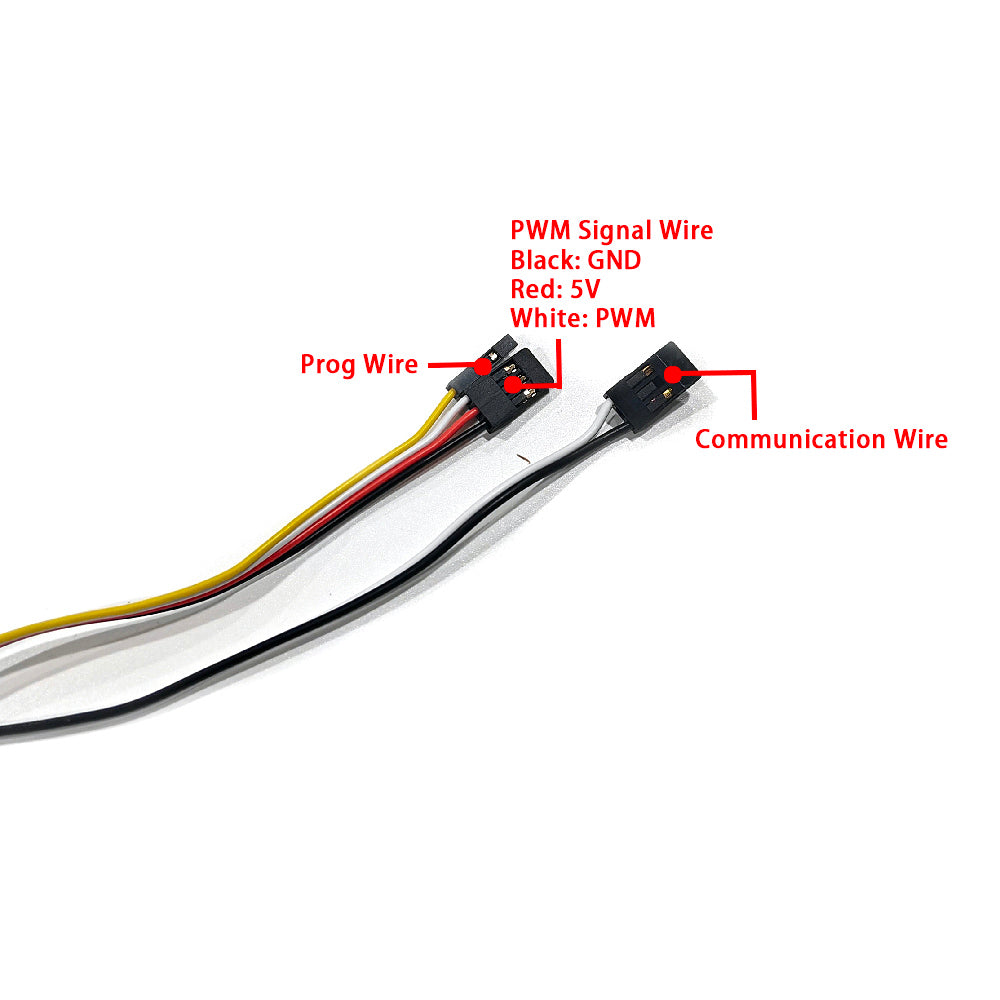

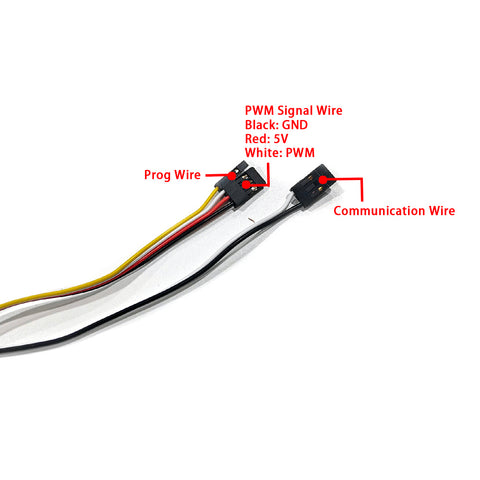

2: Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
3: 8-layer 3oz PCB plate, 3.4mm, support high current
4:Compact size, high efficiency, low heat.
5:Only use geniune US and Japan imported electric components.
6:Over-heat, over-voltage, over-current, low voltage protection.
7:100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Application:

Foil surfing, Jetsurf , Kayak, electric hydrofoil, Electric Jet Board, RC boats, baitboats, Fishing boat ,underwater robots, water sports, Underwater Remotely Operated Vehicles, Subsea Robots, etc.

Customized Service:

Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
email:shelly@mayrc.com
Gmail:mayrcshelly@gmail.com

Warranty Service:

1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.

All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
