Mayrc Industrial
Electric Surfboard 300A 85V Electric Anti-spark Switch Protect VESC Battery & Motors for Hydrofoil Motorcycle Robots RC Car
Electric Surfboard 300A 85V Electric Anti-spark Switch Protect VESC Battery & Motors for Hydrofoil Motorcycle Robots RC Car
Regular price
$99.90 USD
Regular price
$117.50 USD
Sale price
$99.90 USD
Unit price
/
per
Couldn't load pickup availability
Electric Surfboard 300A 85V Electric Anti-spark Switch Protect VESC Battery & Motors for Hydrofoil Motorcycle Robots RC Car
Model No. | MTS2009AS |
Product Name |
300A 85V Anti-spark Switch |

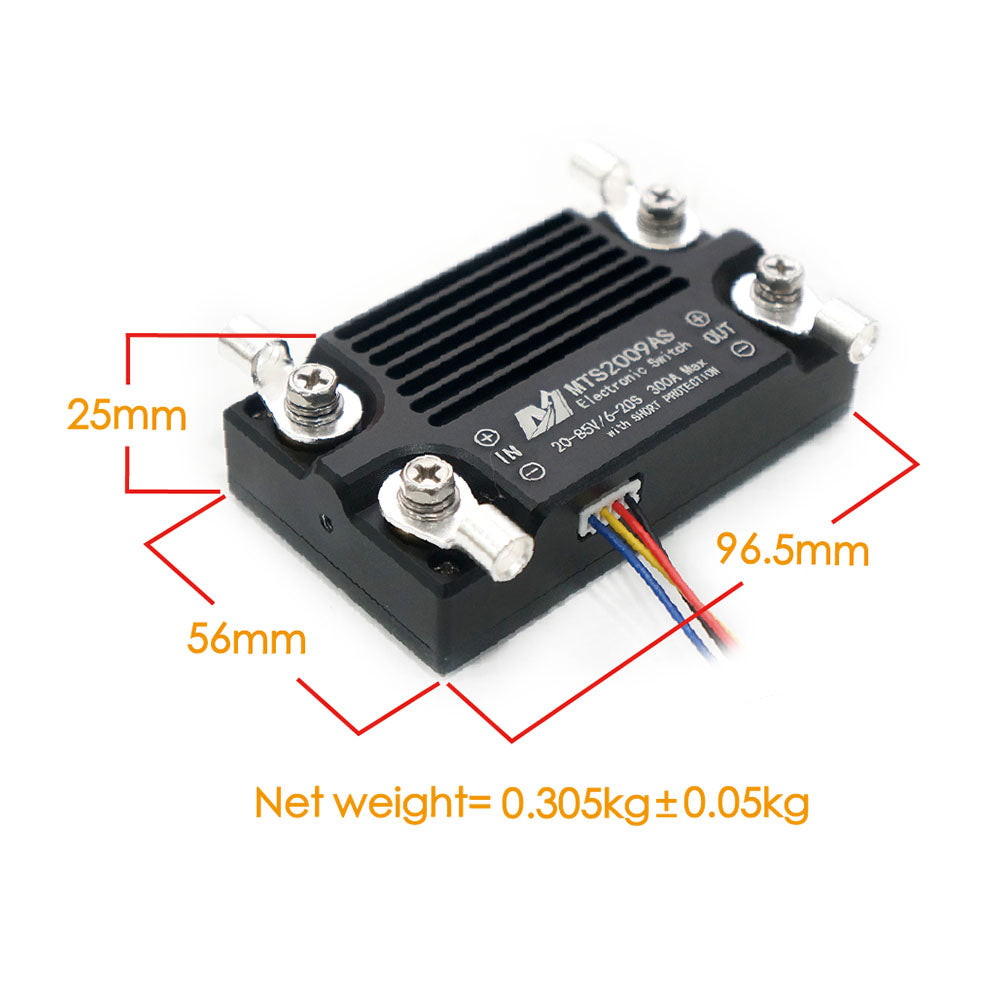

Max. Current | 300A | PCB Size | 96.5 x 56 x 25 (mm) |
Switch Diameter | 12mm |
Connector |
With 4pcs Cold-pressed Terminal Connector |
Application | Electric surfboard, Efoil, jetski, jetboard | Input Volt | 6-20S (25V-85V) |
Cable | Without Cable | Switch Type | Latching Switch |


Featurs:

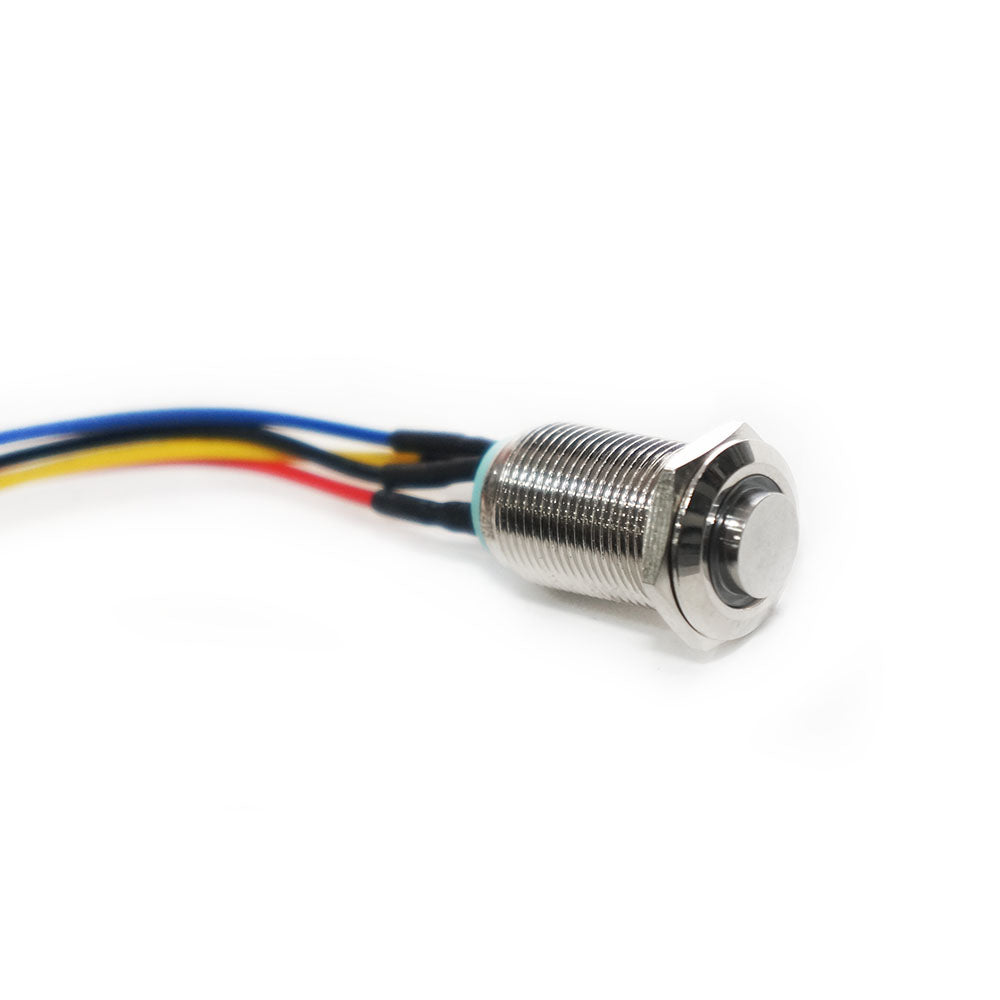

Switch comes with LED light indicator;
Shutdown current less than 1uA;
Suitable for load: three phase motor speed controller;
Boot soft start;
Automatic short circuit protection when boot;
Automatic short circuit protection when work.
Notice when use with VESCs controllers:
Because VESC has regenerative brake function, when use it with 56V and above battery, recommend to use current mode, no brake. (Duty cycle mode or current mode with brake are not recommended for 56V and above voltage).
(This is only for reference according to our engineer experience. Different ESCs/ applications may be different. )
