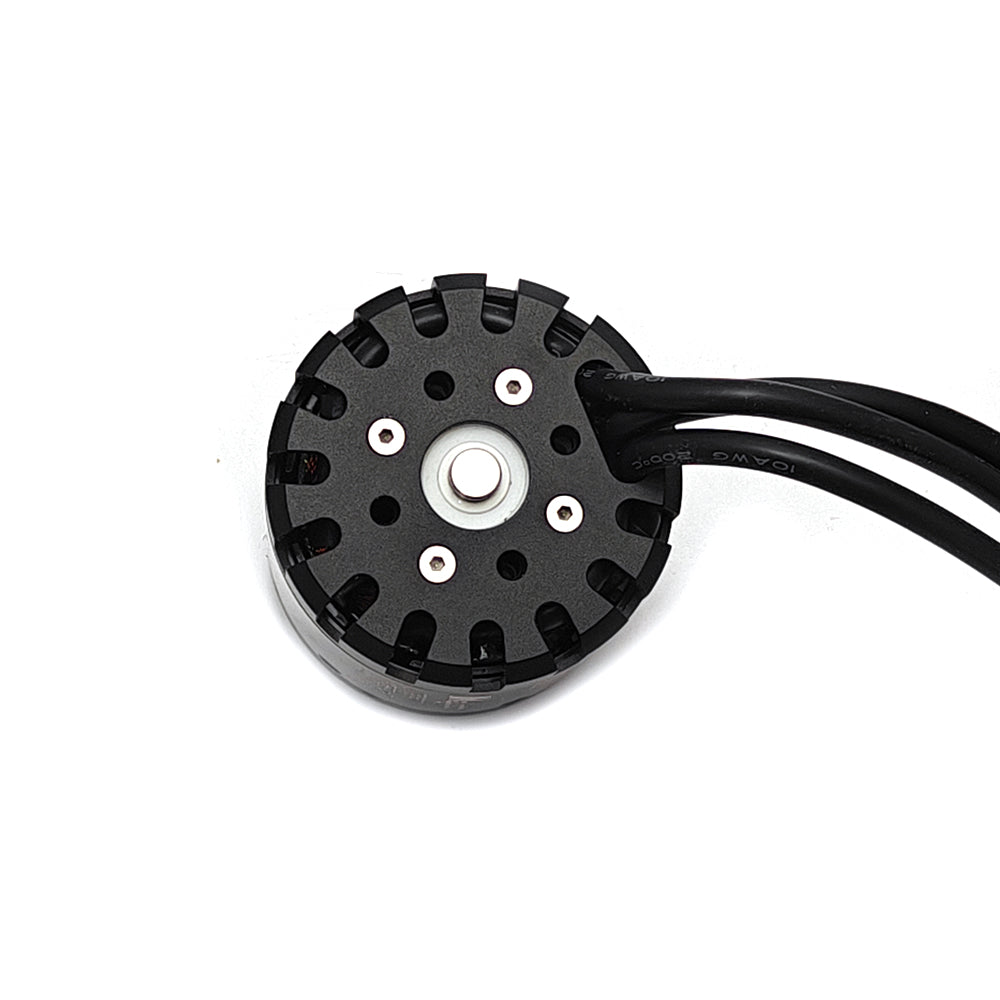

In Stock Pro Foil Assist Motor 6579 Outrunner Waterproof Motor 5.5KW 41kg Thruster for Tow Boogie Efoil
In Stock Pro Foil Assist Motor 6579 Outrunner Waterproof Motor 5.5KW 41kg Thruster for Tow Boogie Efoil
Couldn't load pickup availability

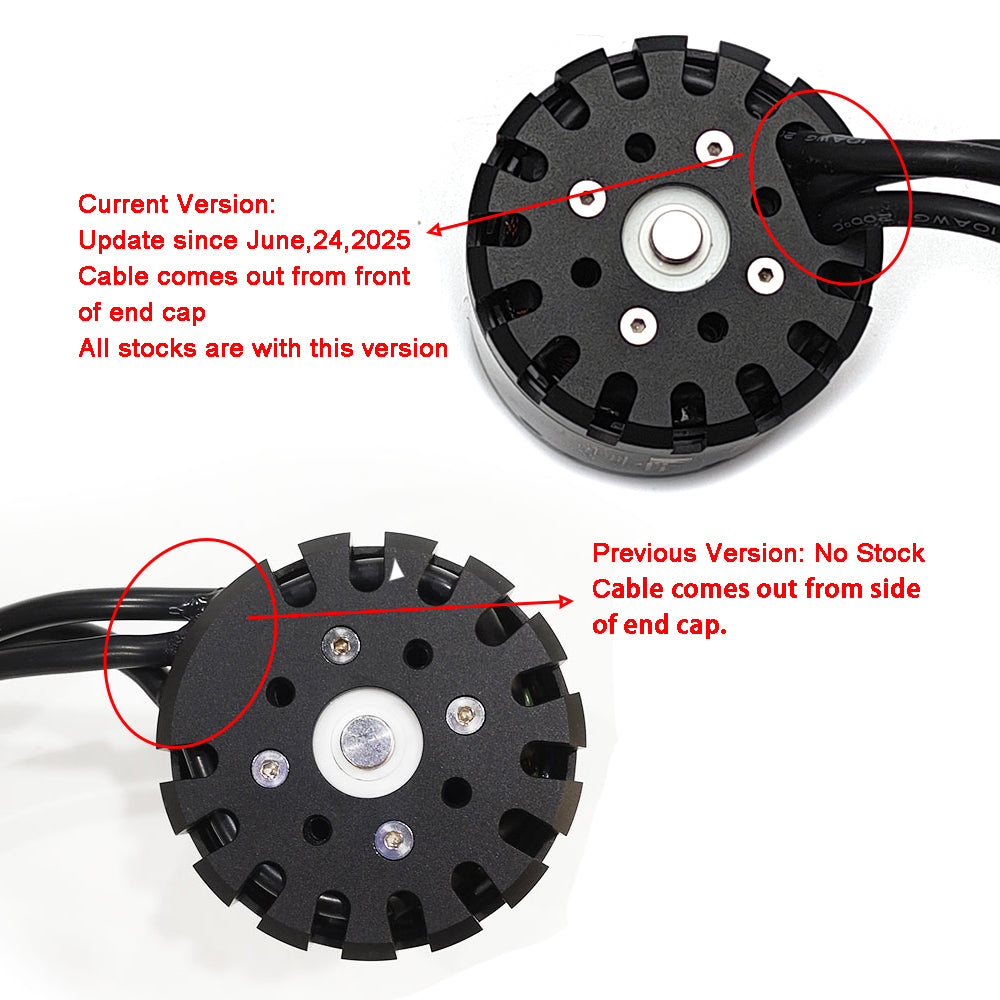

Notice:
The motor actual apperance is a little different from the picture, please subject to drawing and actual motor you receive.
In Stock Pro Foil Assist Motor 6579 Outrunner Waterproof Motor 5.5KW 41kg Thruster for Tow Boogie Efoil
Application:
Efoil, electric outboard, winch foil, electric boat, foil assist board, kite foil, underwater thruster, tow boogie, downwind foil, underwater ROV, underwater cleaning robot, countercurrent swimming machine, electric surfboard, electric outboard, tow boogie, etc.,
Tips of usage:

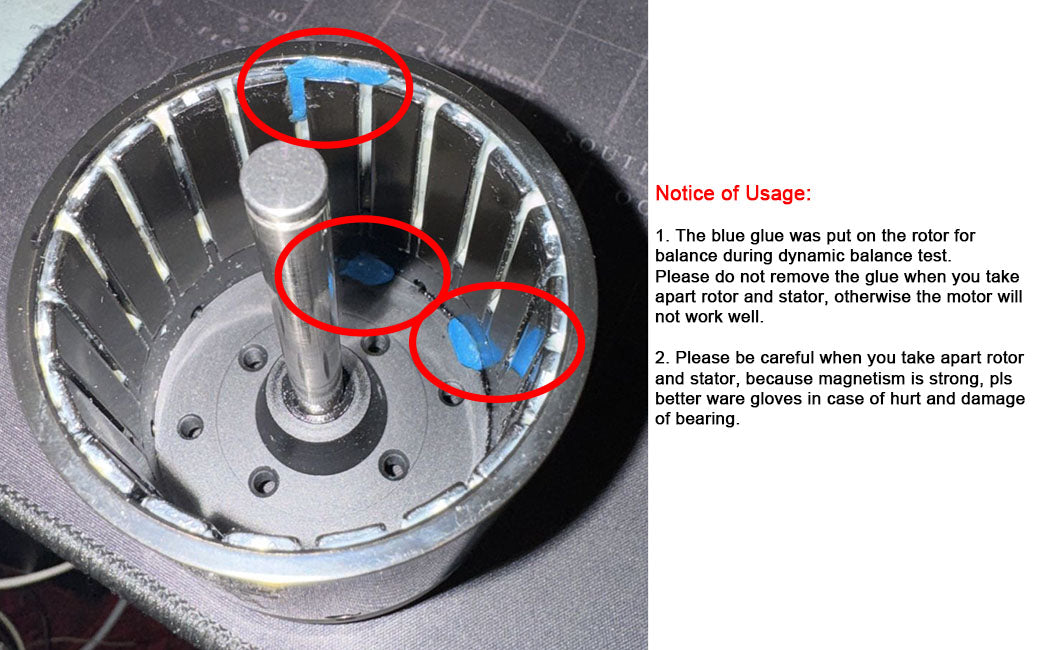

In order to increase the motor lifespan, please take apart the rotor and stator, clean stator and rotor with fresh water after every time use, must remove salt on the surface of magnets and lamination, then keep them all dry, after all dried, please apply anti-rust paint or anti-corrossion protection on rotor and stator for maintainence.
>Check customer feedback video 1 get 70lbs pulls
>Check customer feedback video 2 Really Fast
>How to Maintain the 6579 motor ?
> Check Test Datasheet
>How to Install Prop on Motor
> Check Test Curve

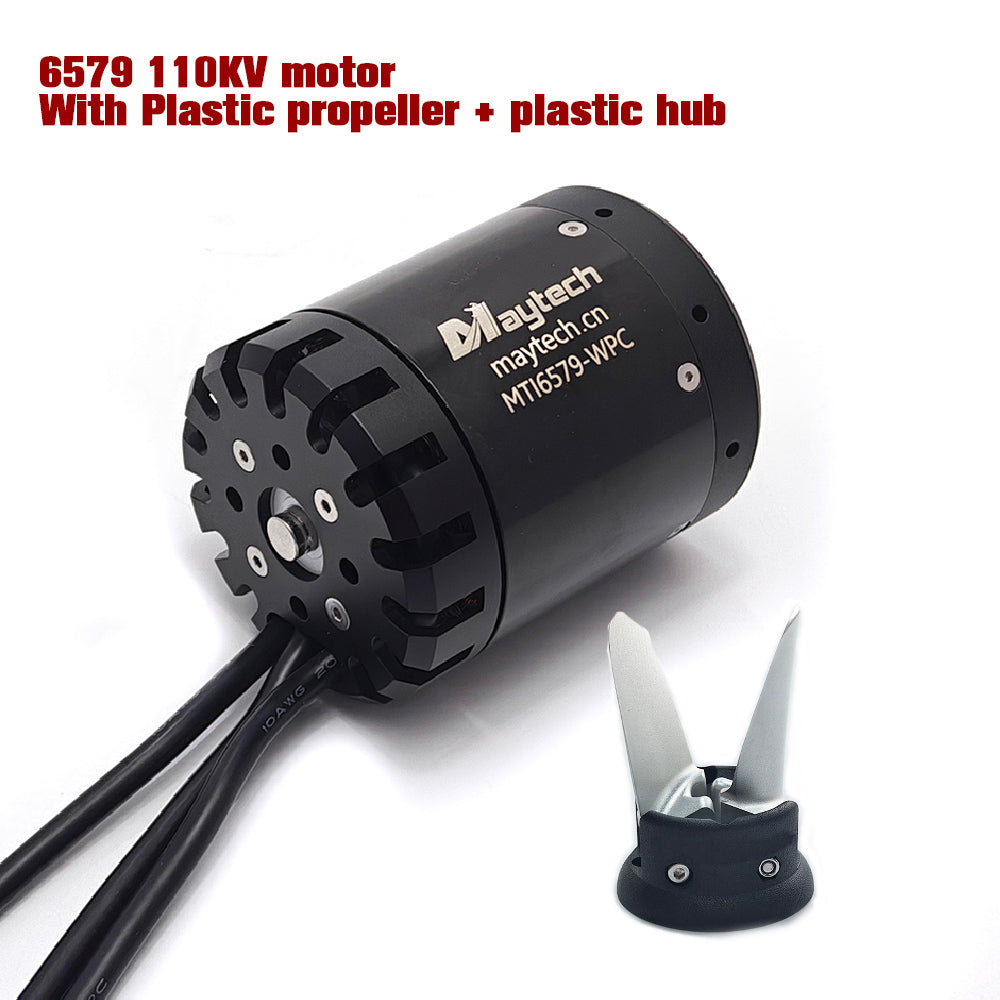

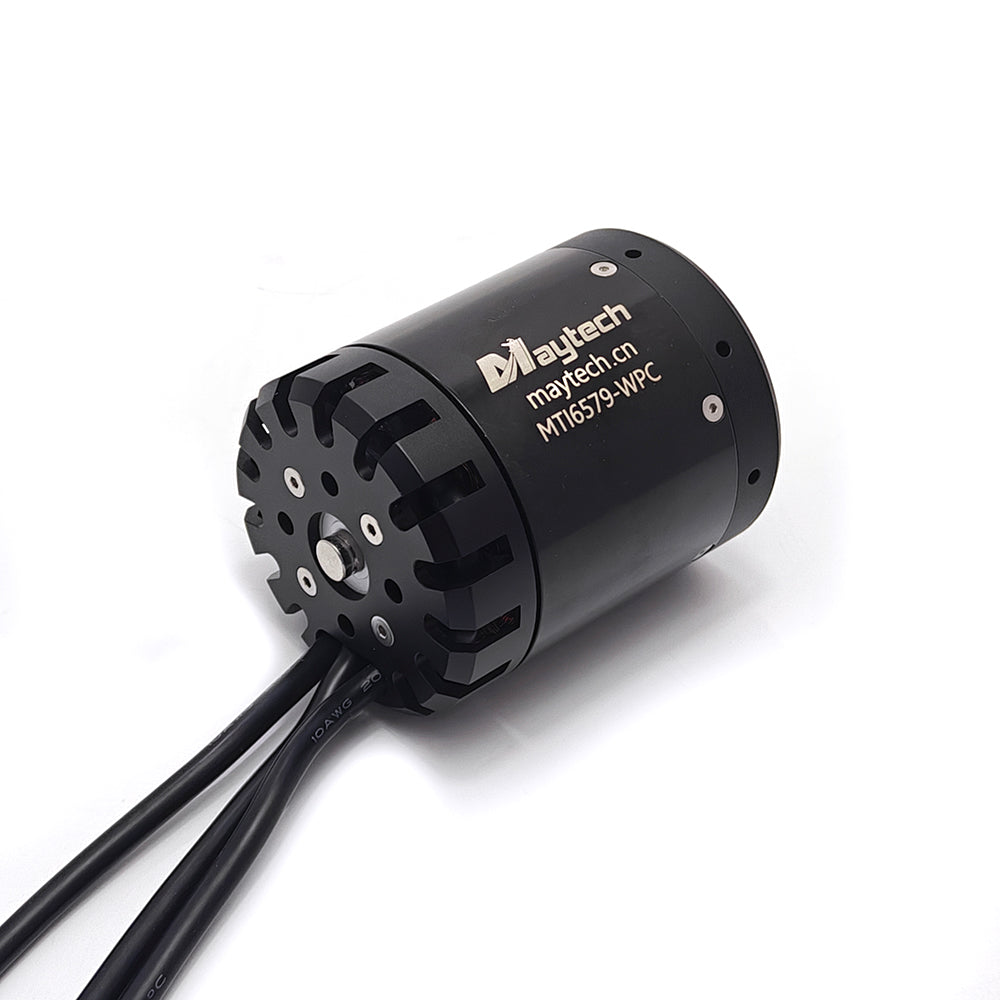

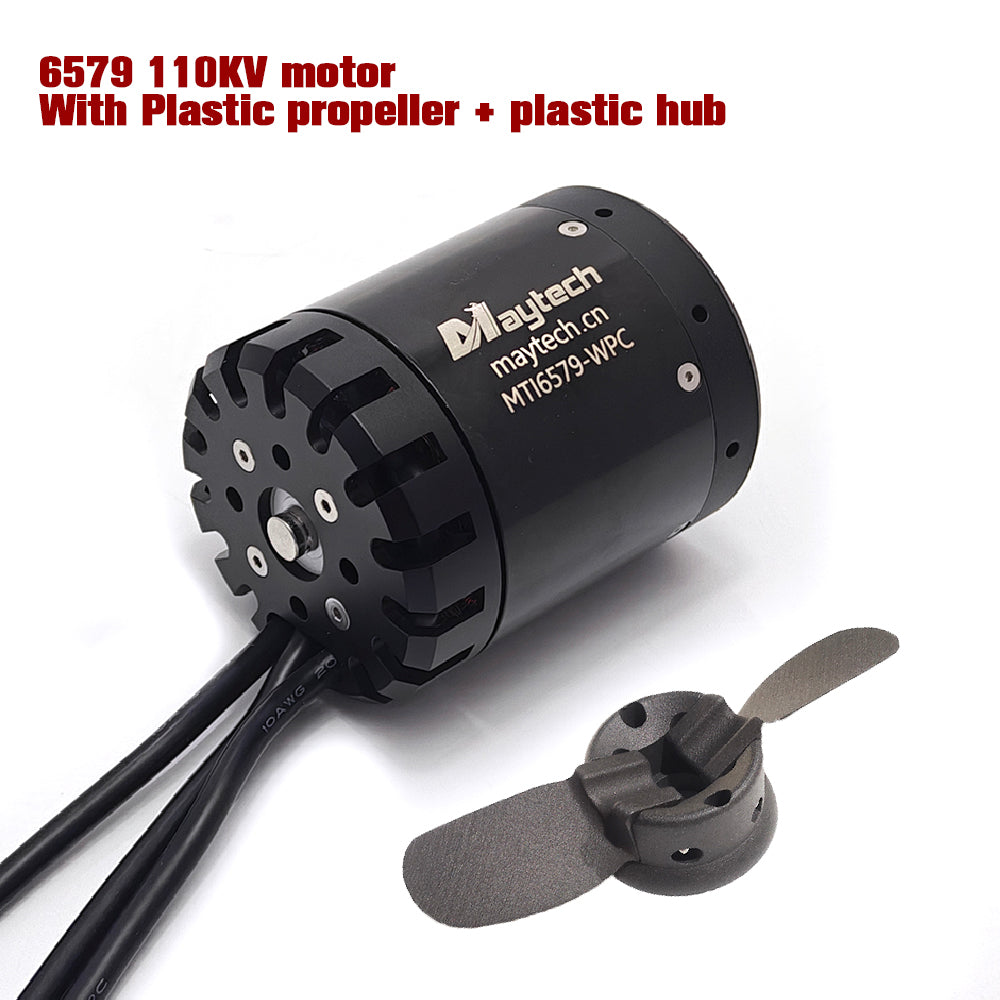

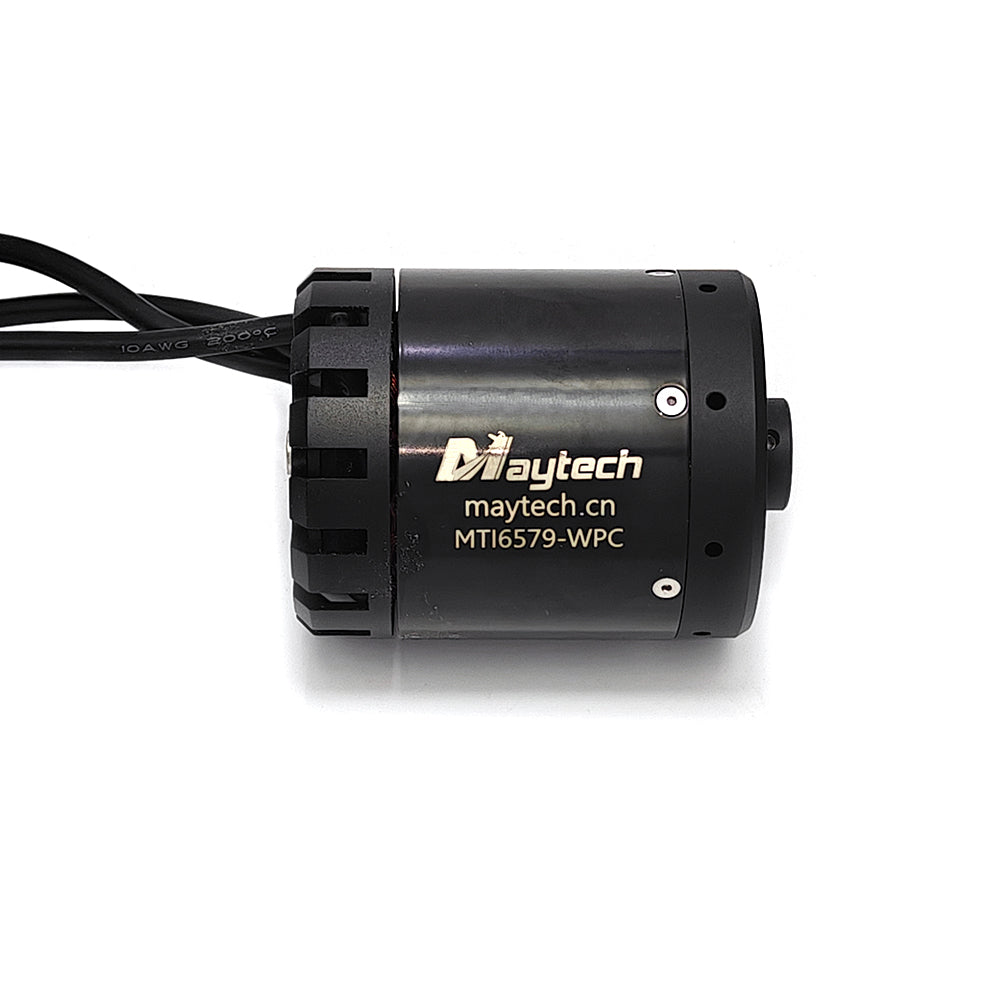

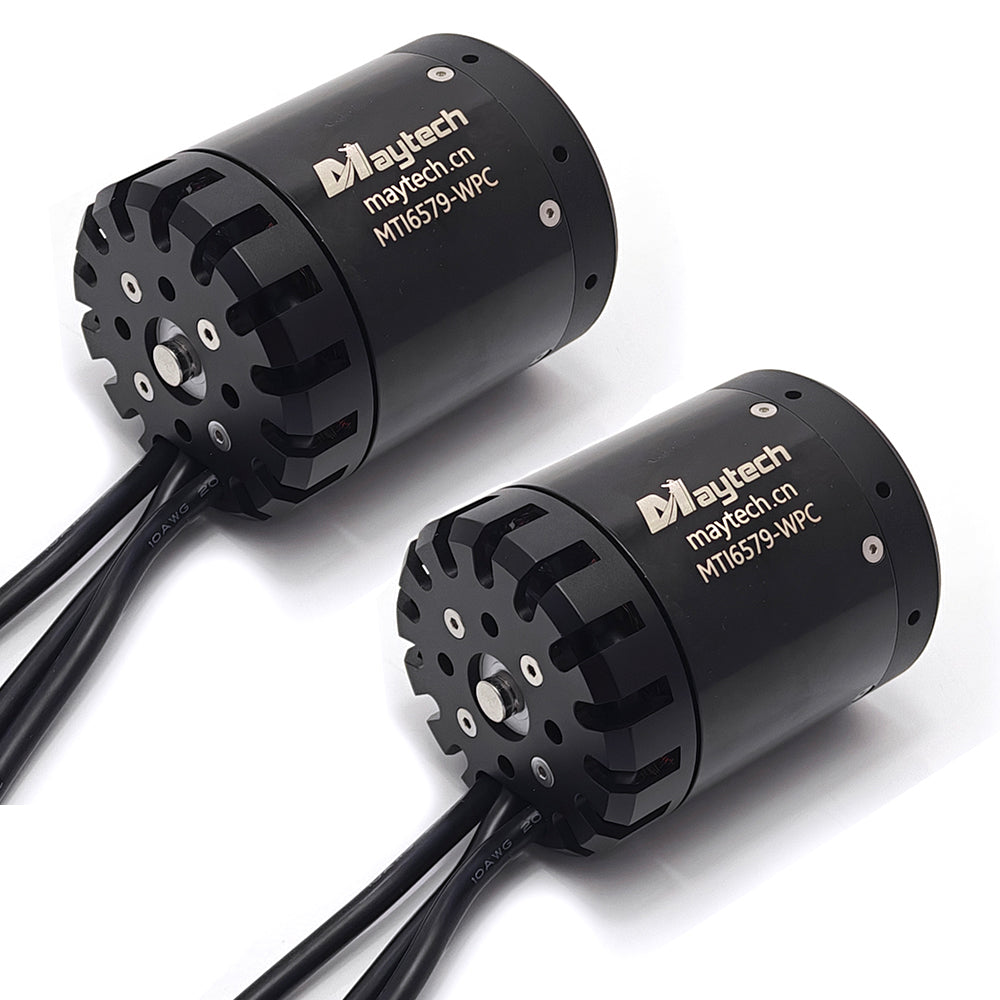

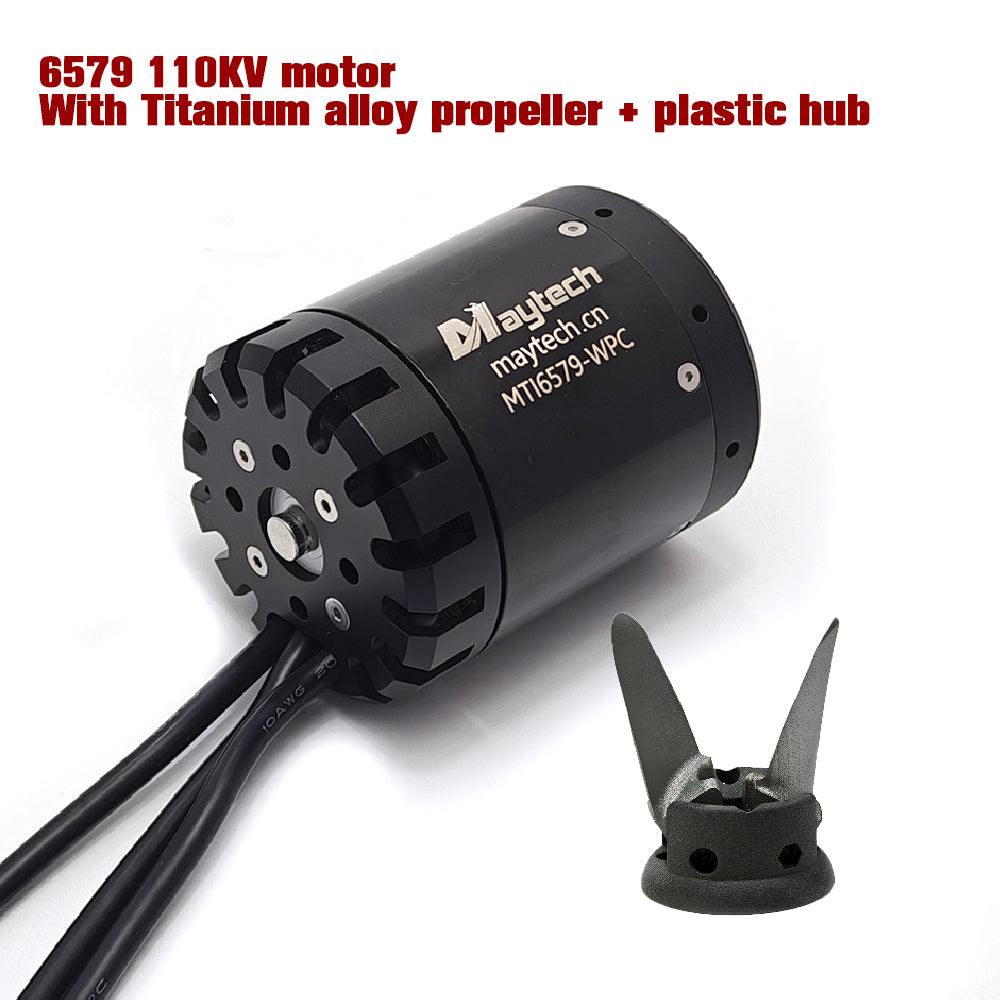

1. 6579 110KV Waterproof Motor
| Model No | MTO6579-110-WPC |
| KV | 110KV, can be customized, contact shelly@mayrc.com |
| Idle Current | 1A |
| Max Current | 160A |
| Input Voltage |
24-48V when work with MICP27F / MICP27FM propeller 20-60V if you match smaller propeller |
| Max Output Watt | 5.5KW |
| Shaft | No output shaft |
| Hall Sensor | Without |
| Waterproof Rank | IPX8 |

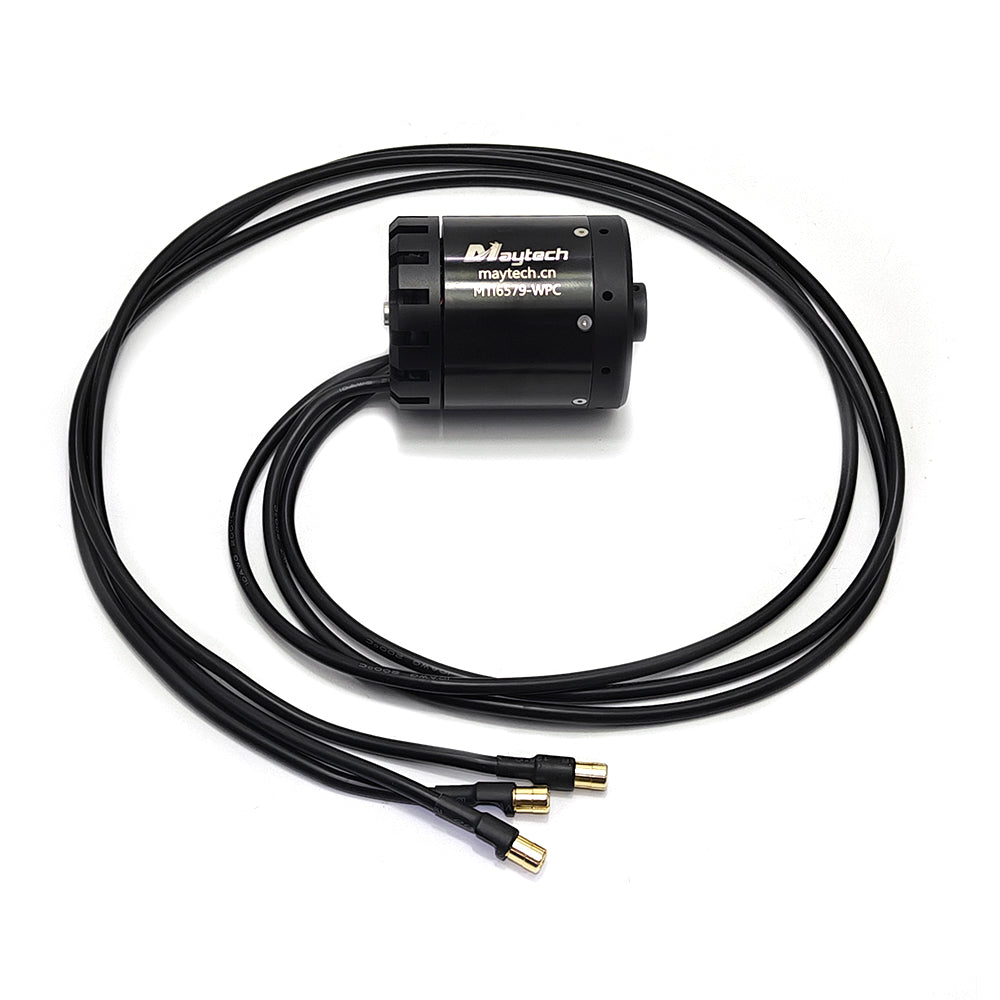

| Cable Length | 1m |
| Cable Guage | 3x 10AWG |
| N and P | 24N20P |
| Connector | 8.0mm Male bullet connector |
| Bearing | Ceramic bearing |
| Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact shelly@mayrc.com |

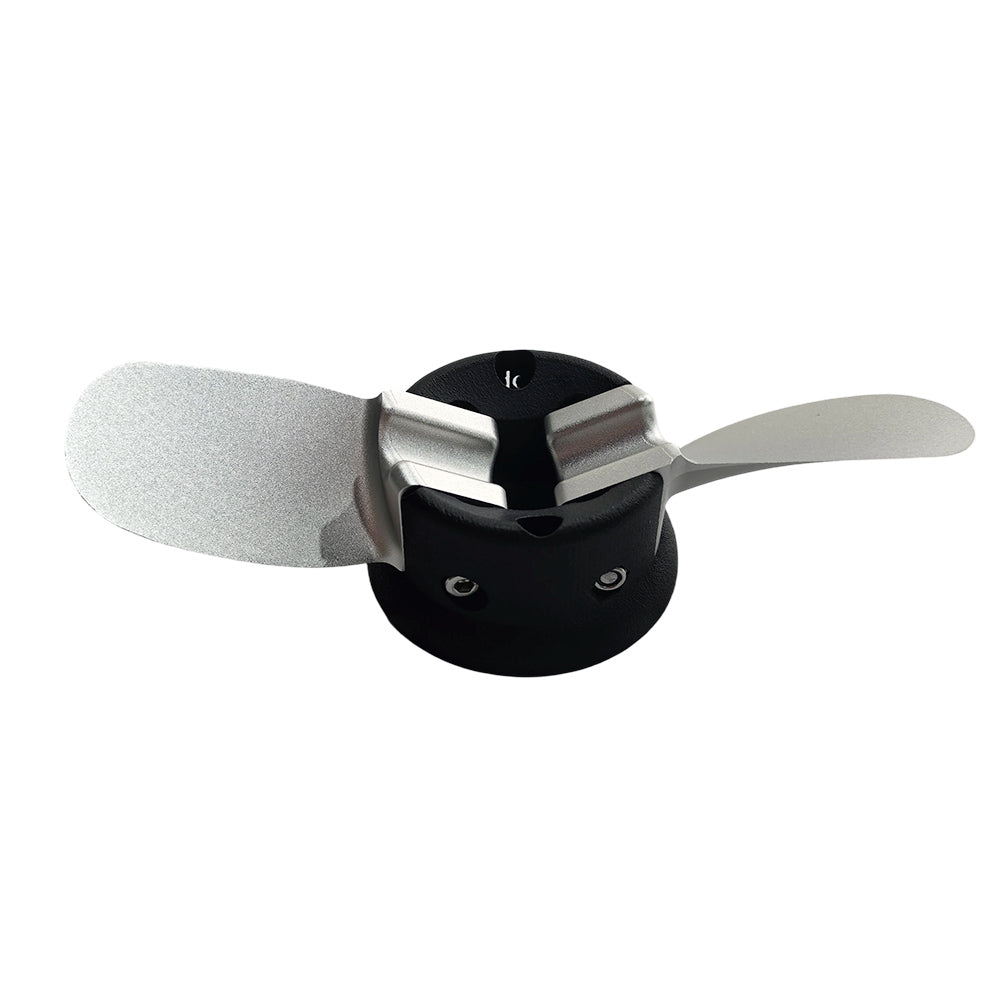

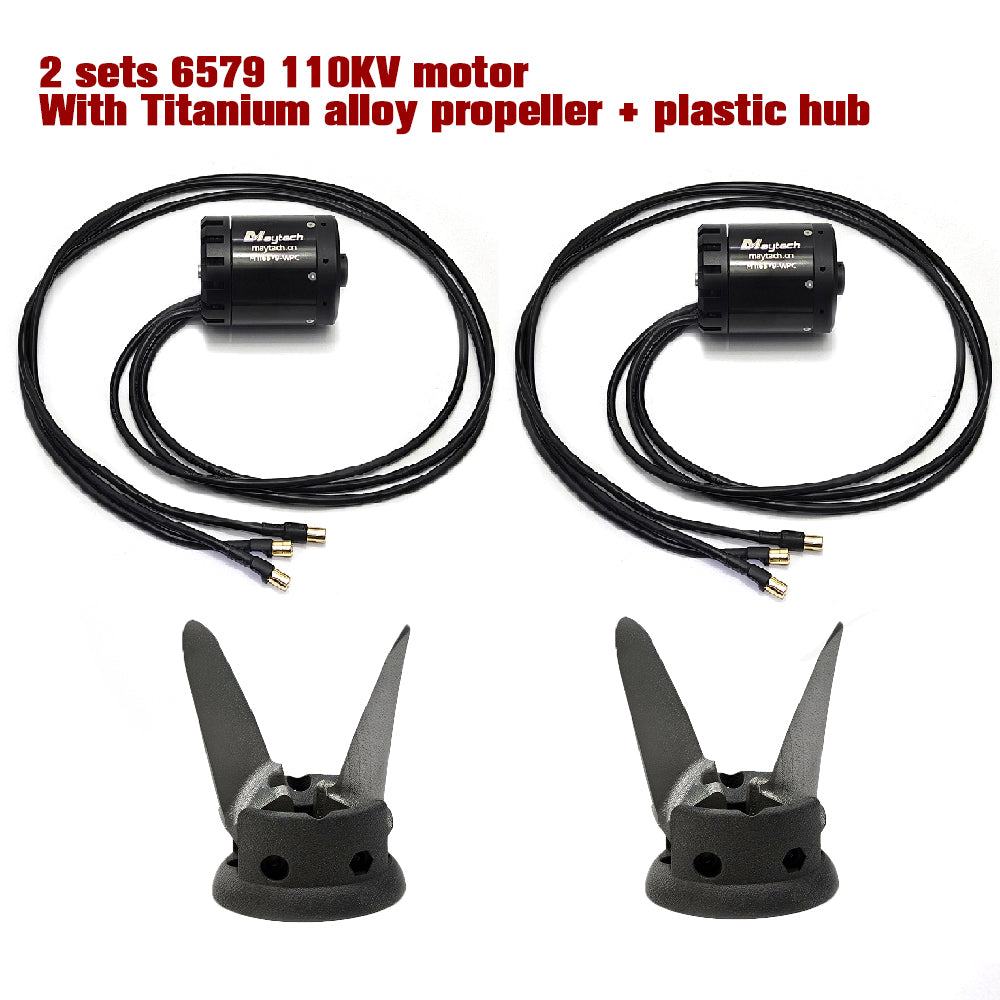

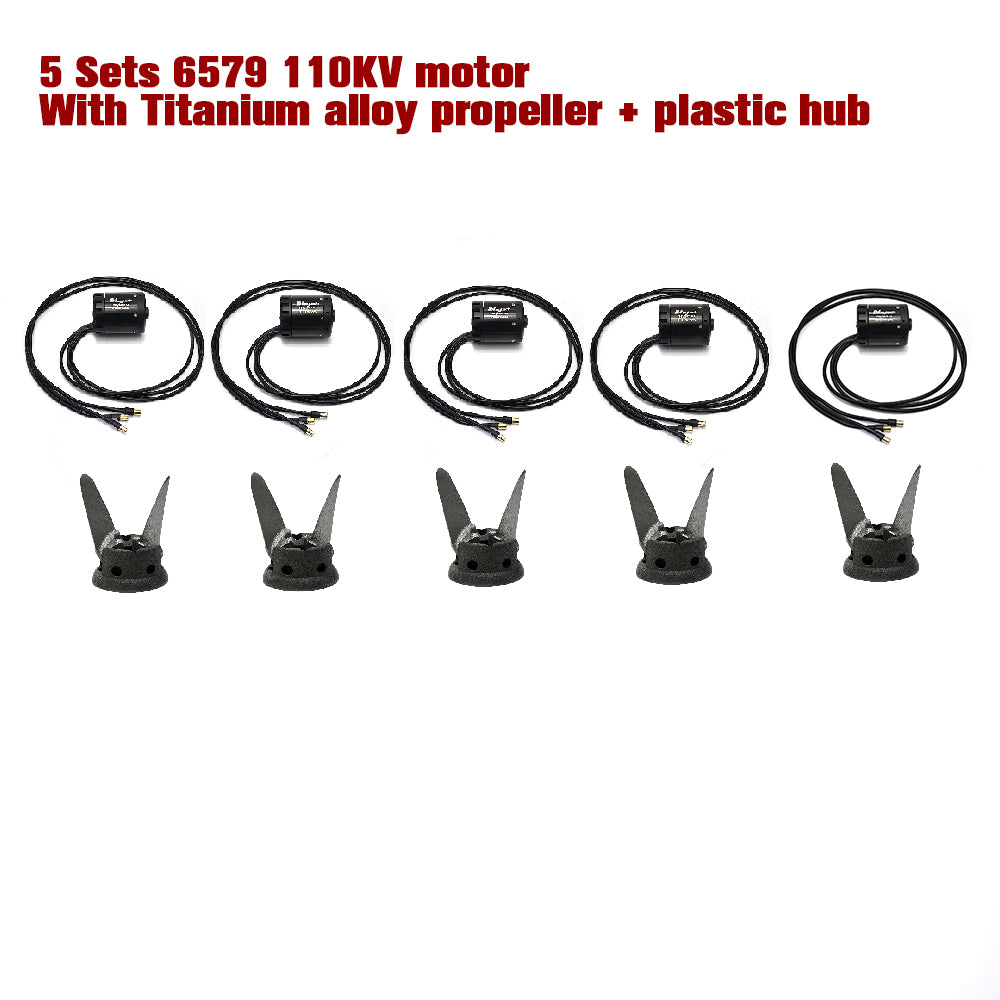

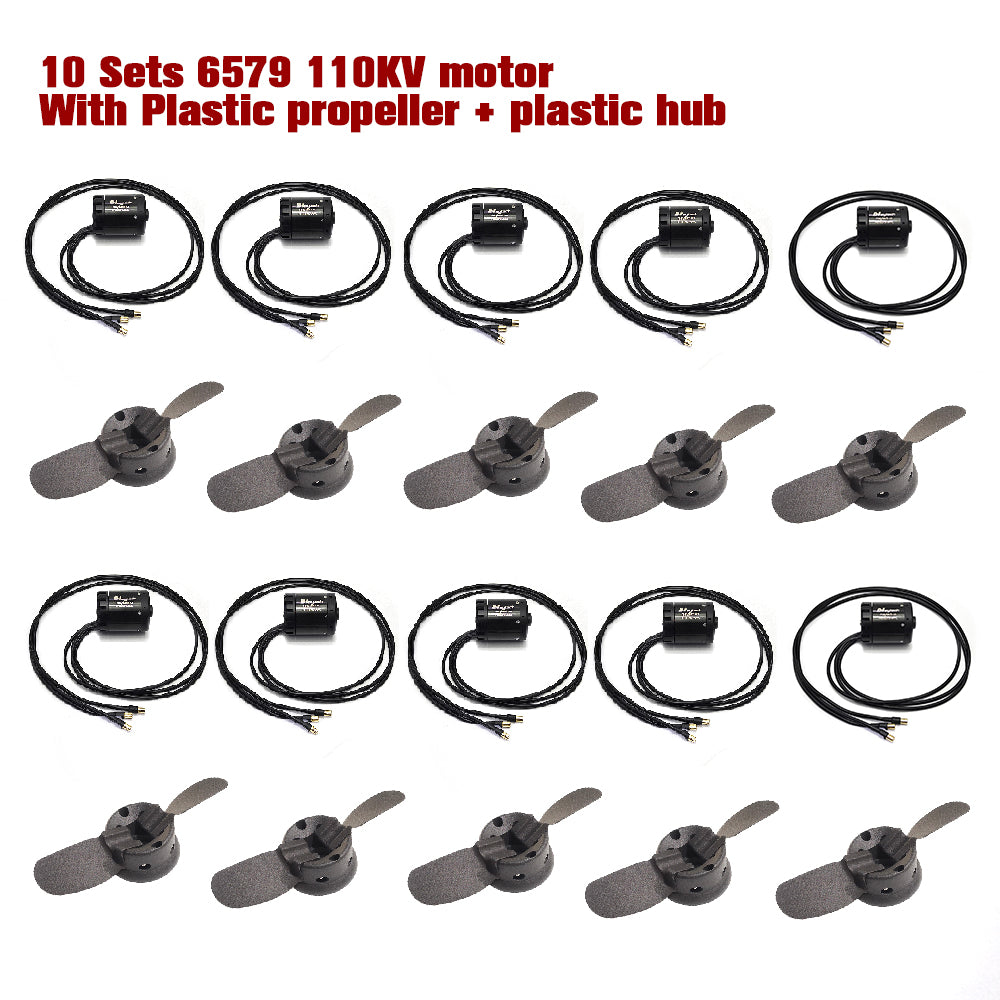

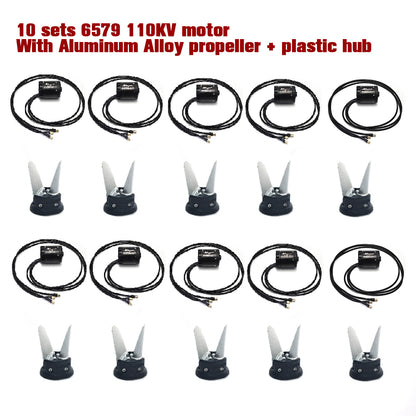

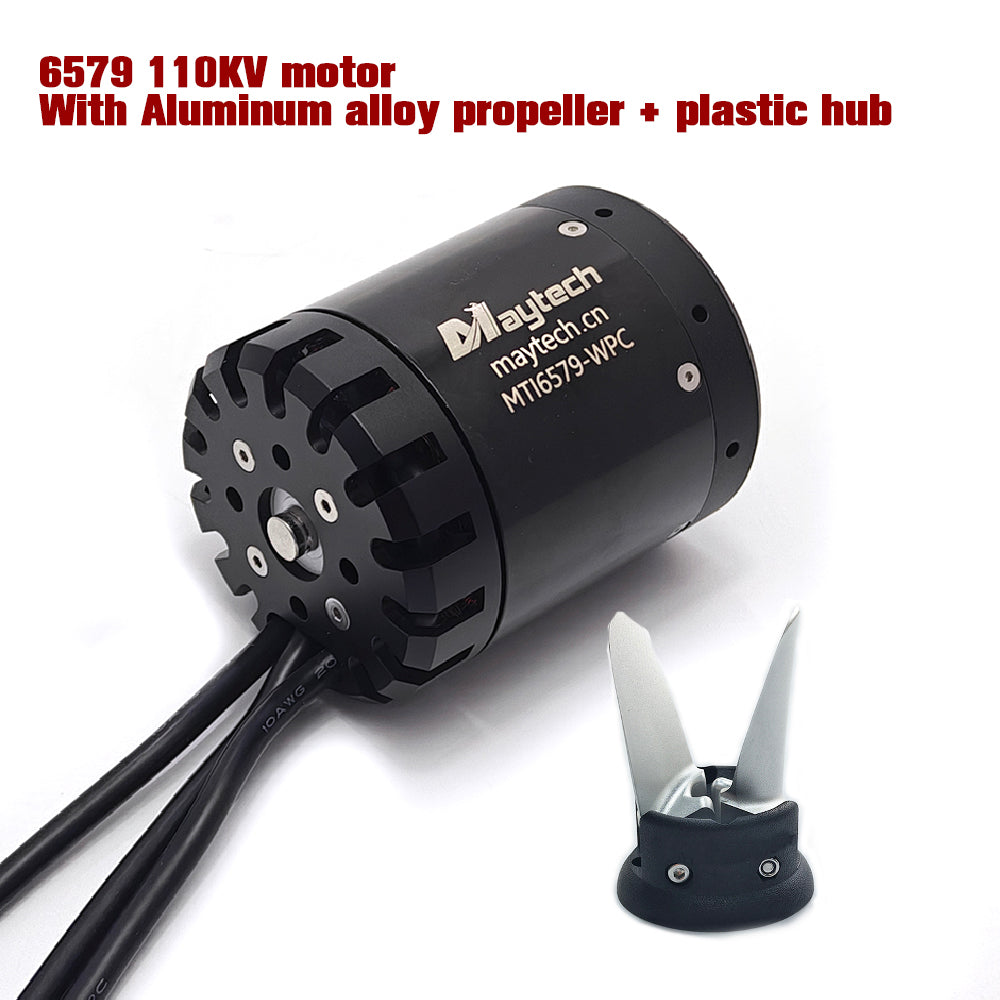

Propeller Options: All with plastic hub and same size, just different blades material

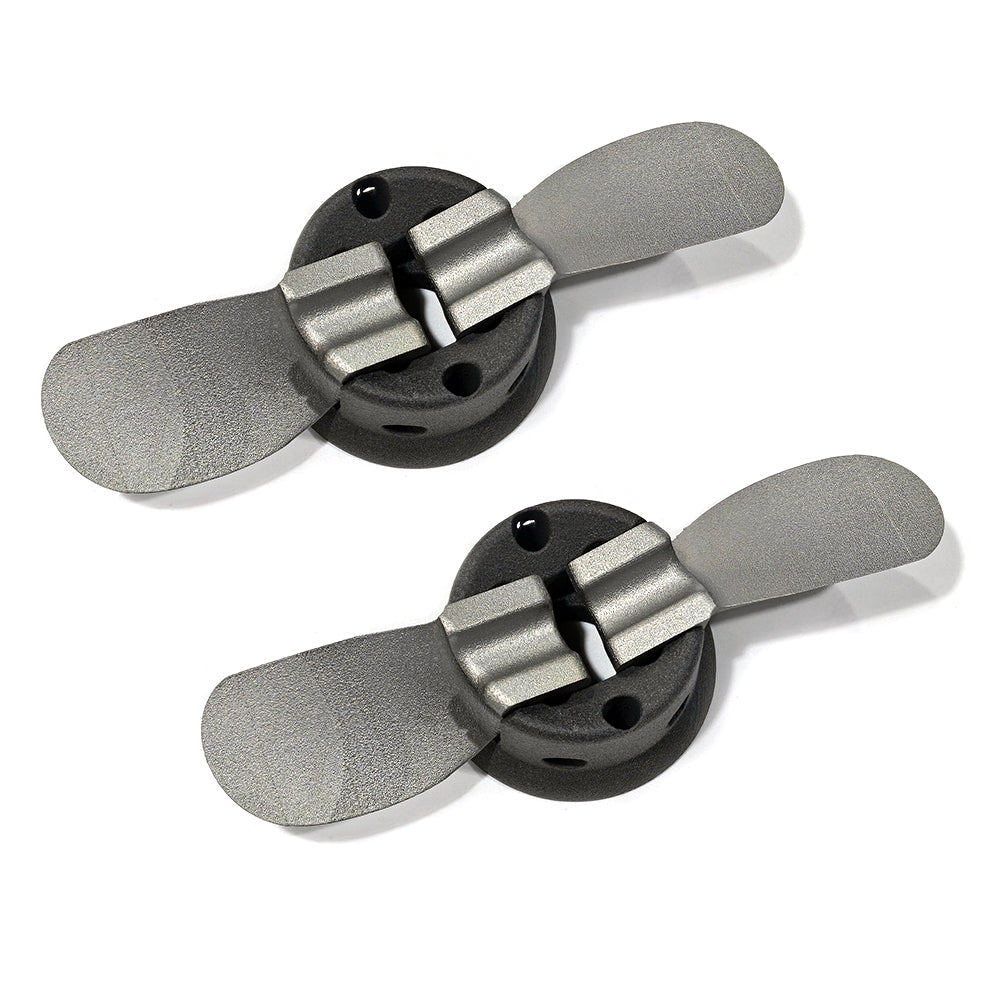

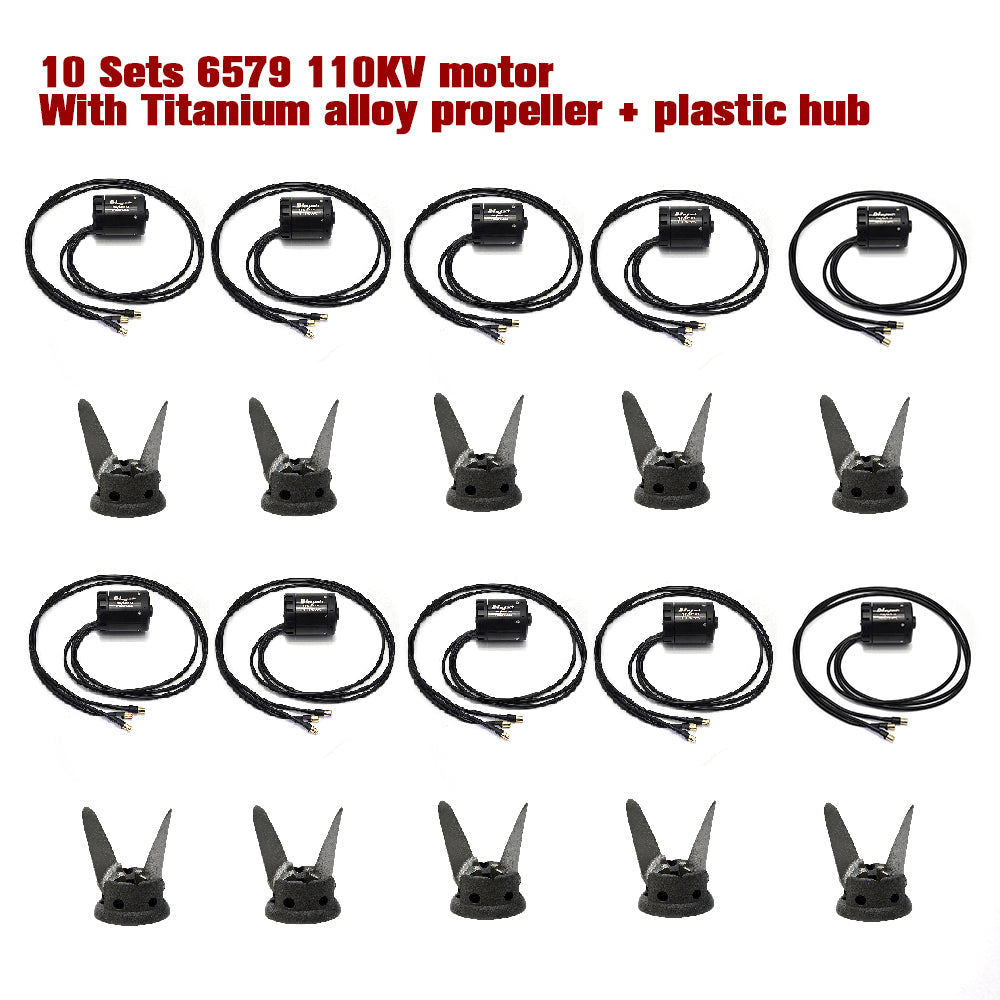

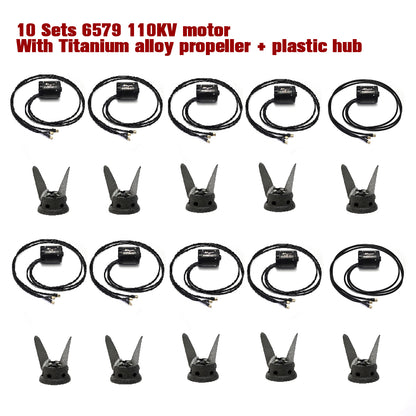

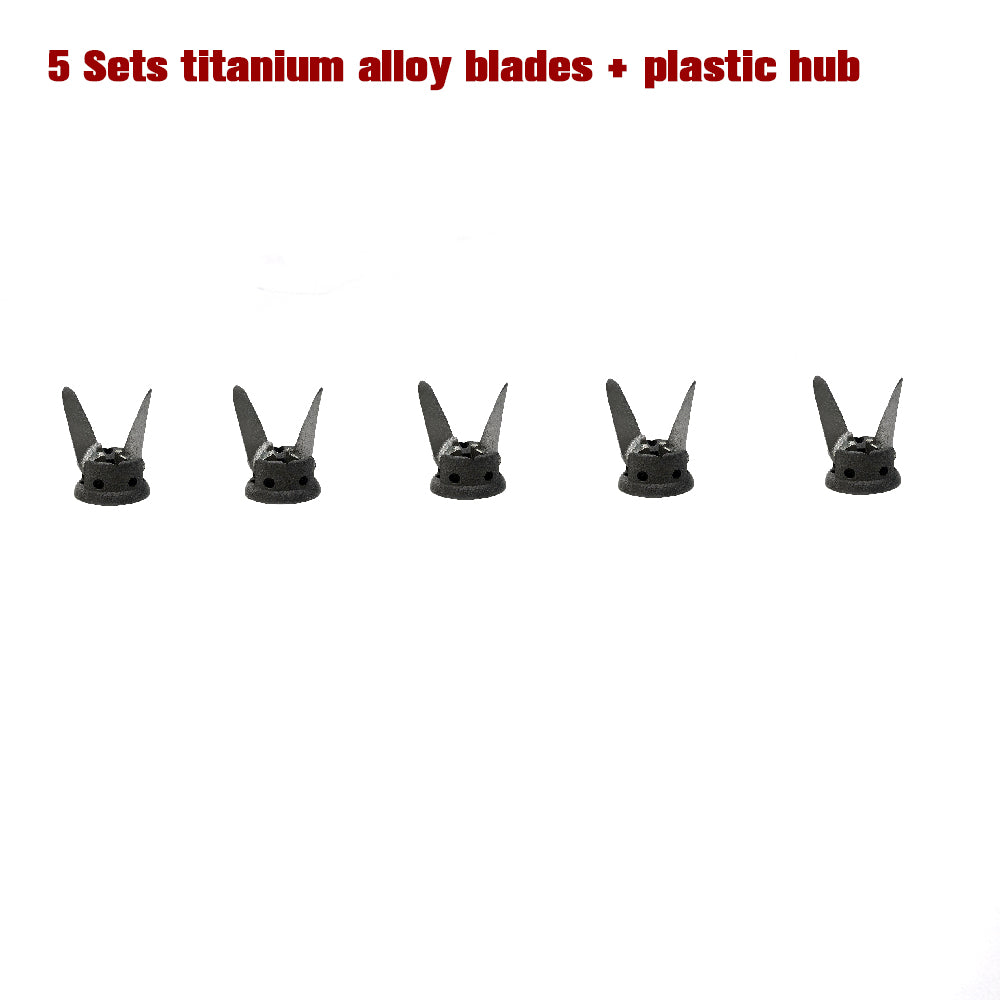

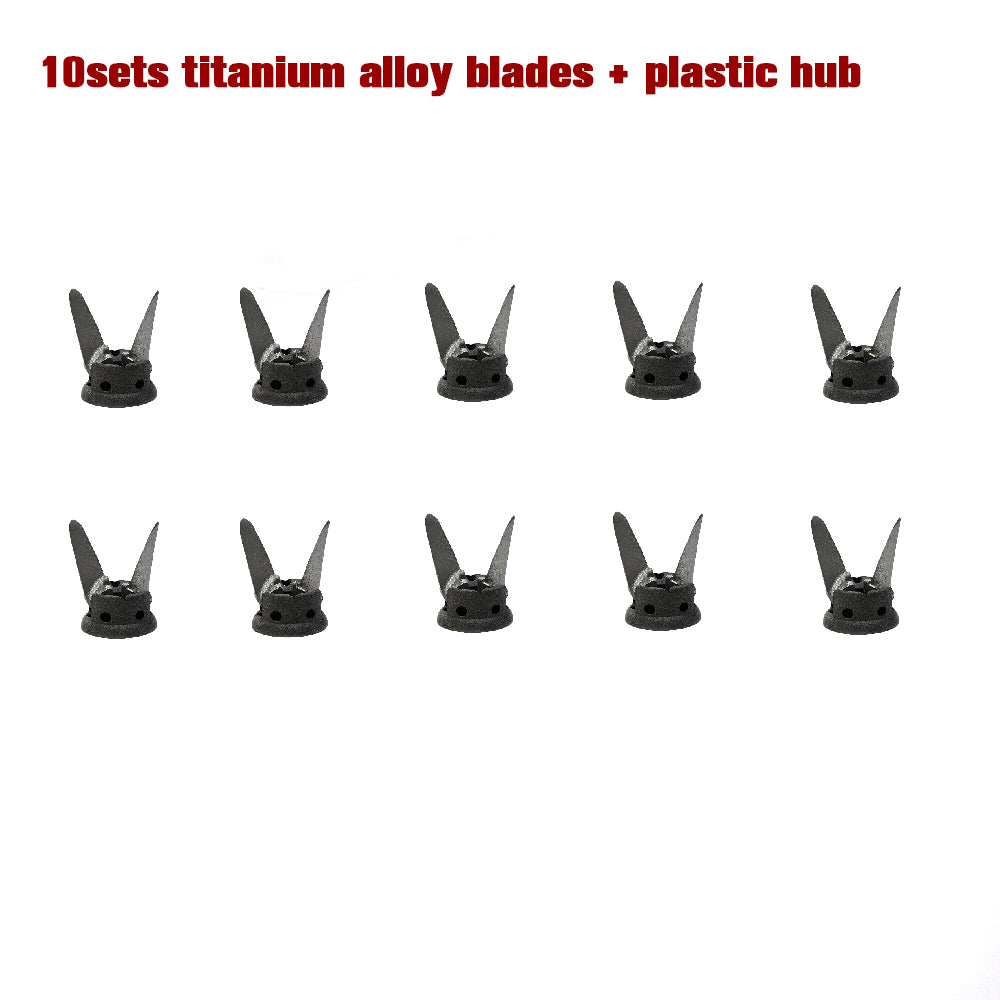

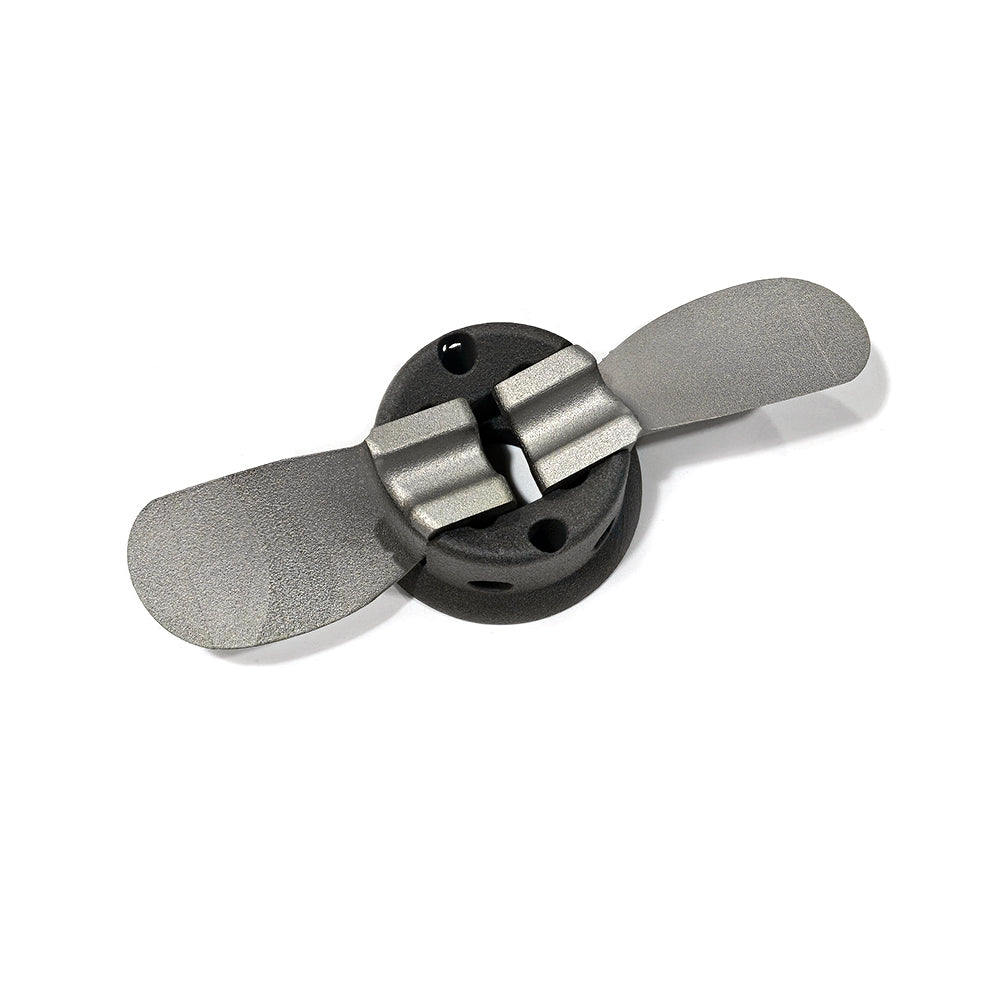

1. Titanium alloy baldes: great performance on corrosion resistance, thrust and efficiency, high impact resistance

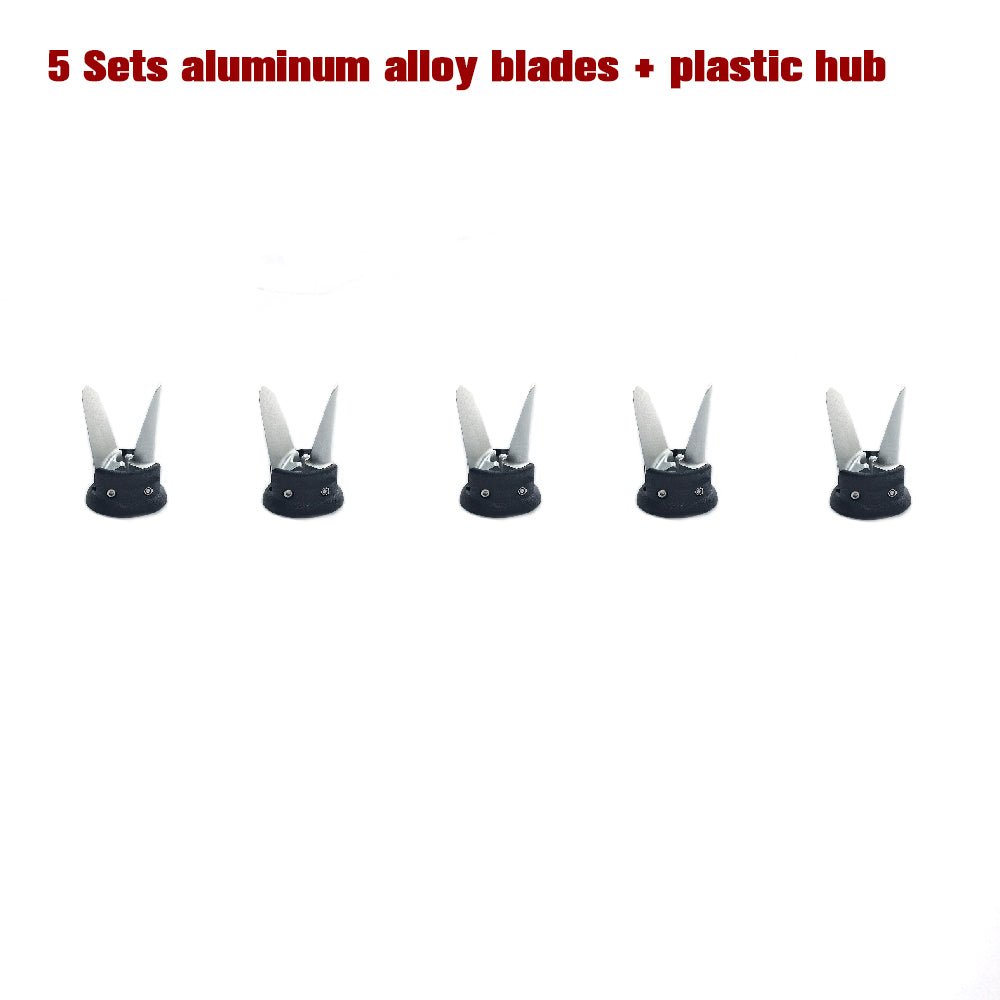

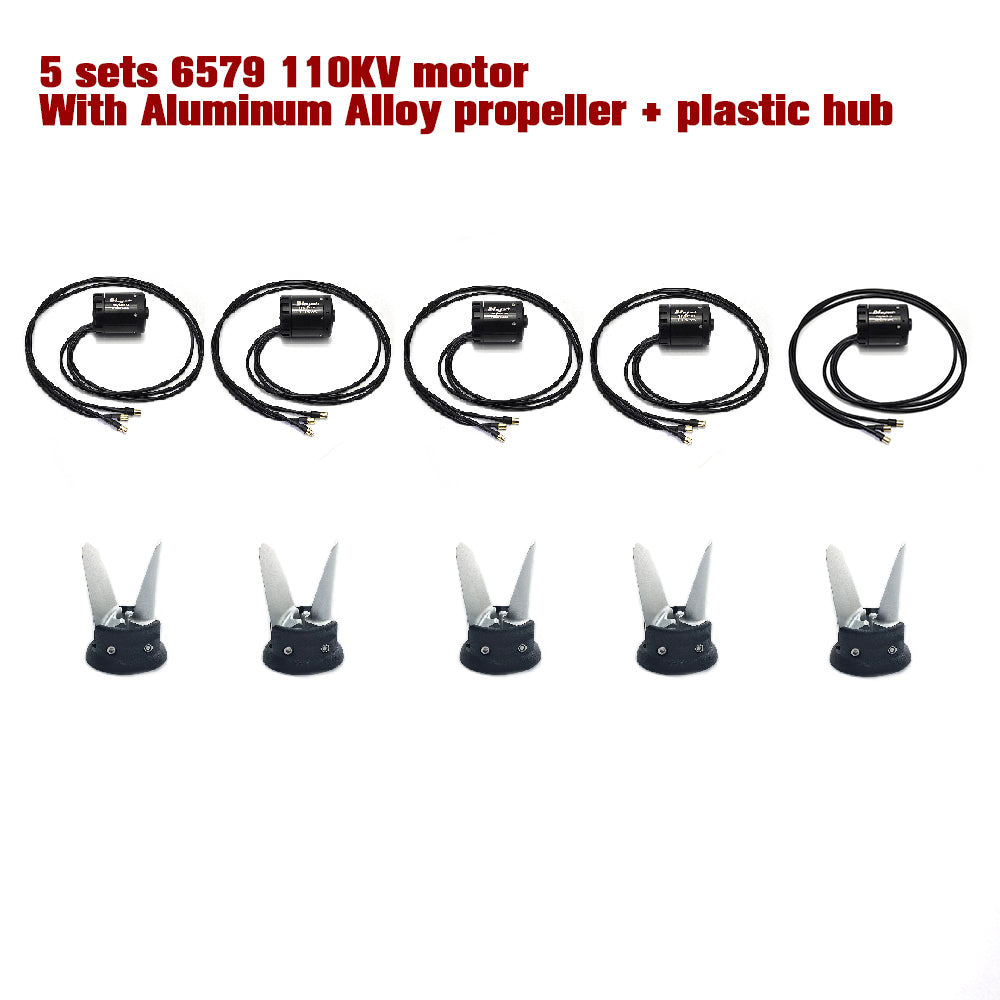

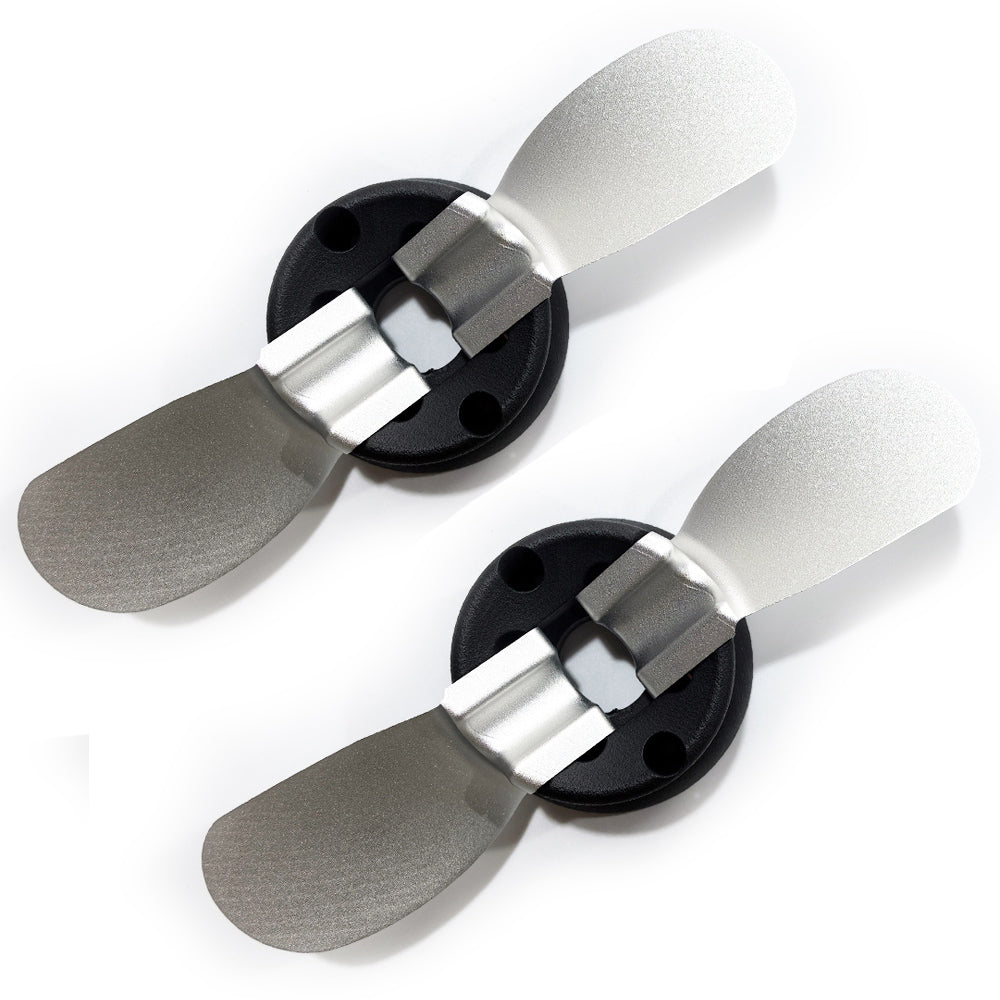

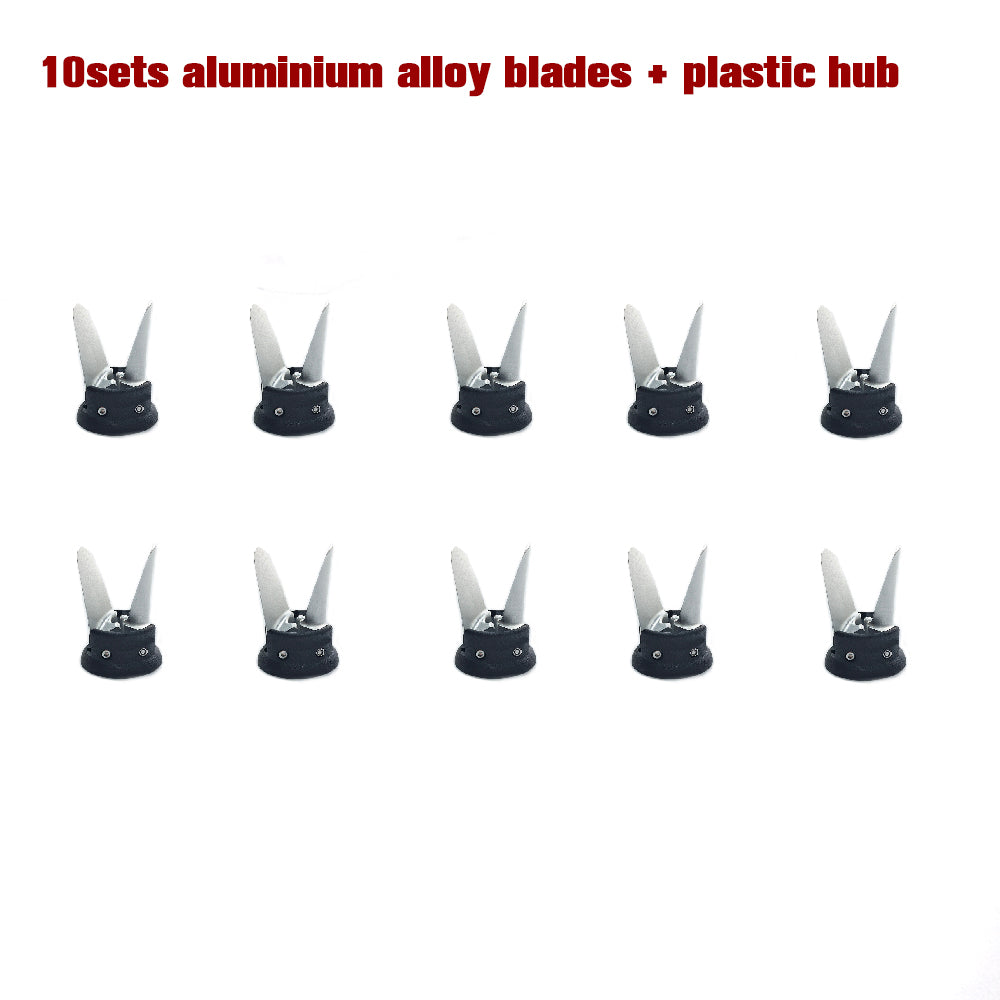

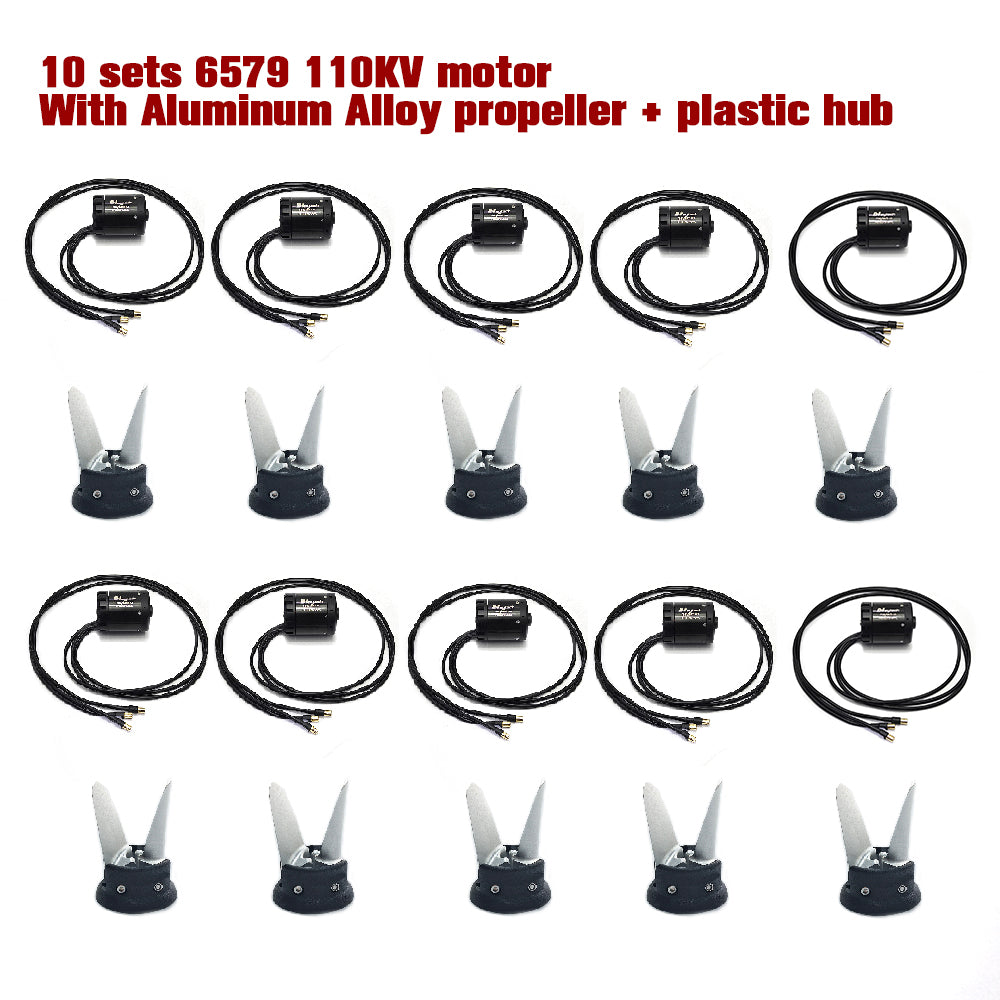

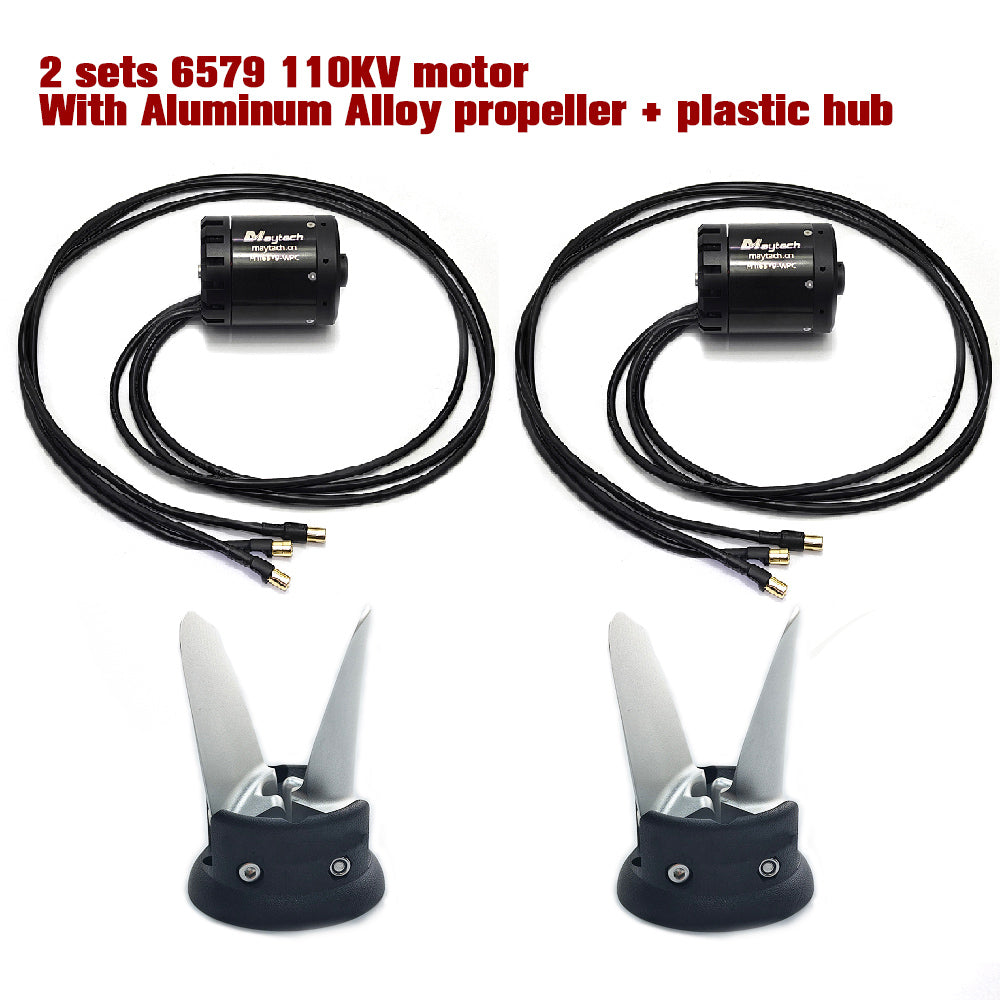

2. Aluminum alloy baldes: good performance on corrosion resistance, thrust and efficiency, lighter than titanium alloy

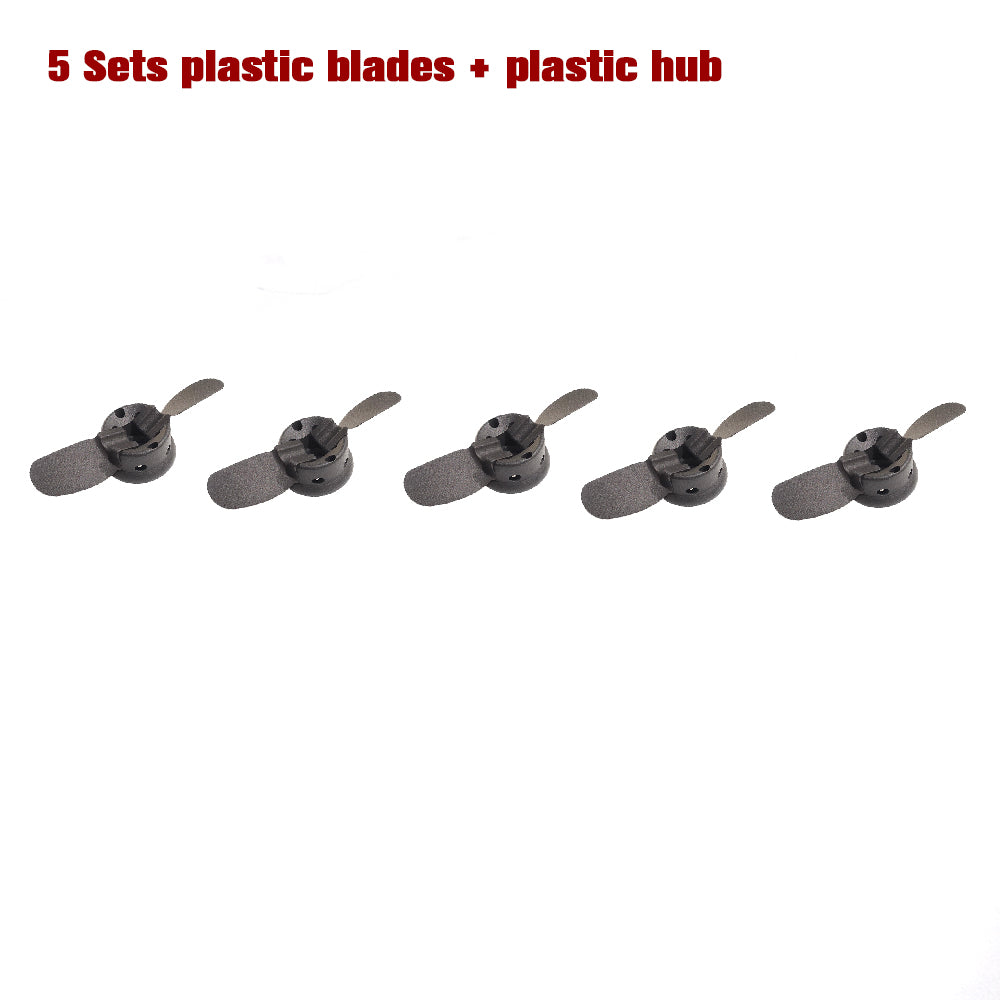

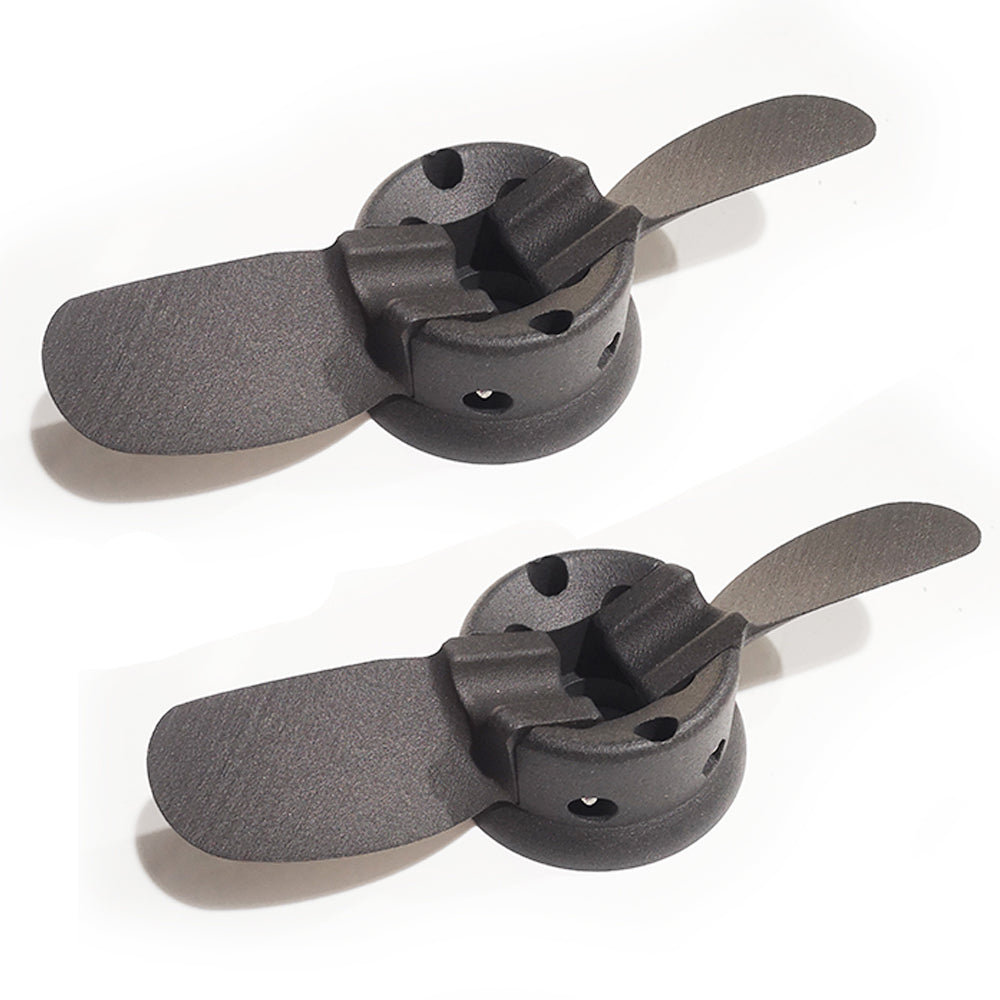

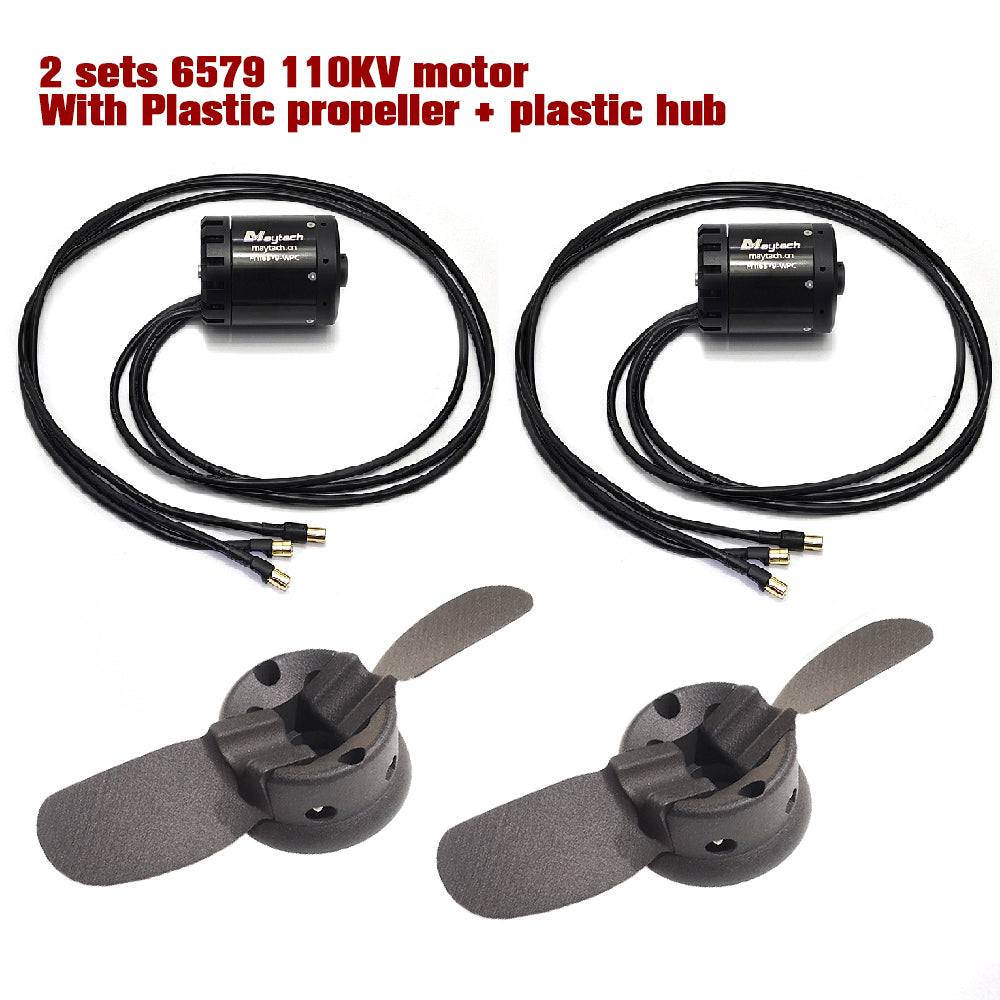

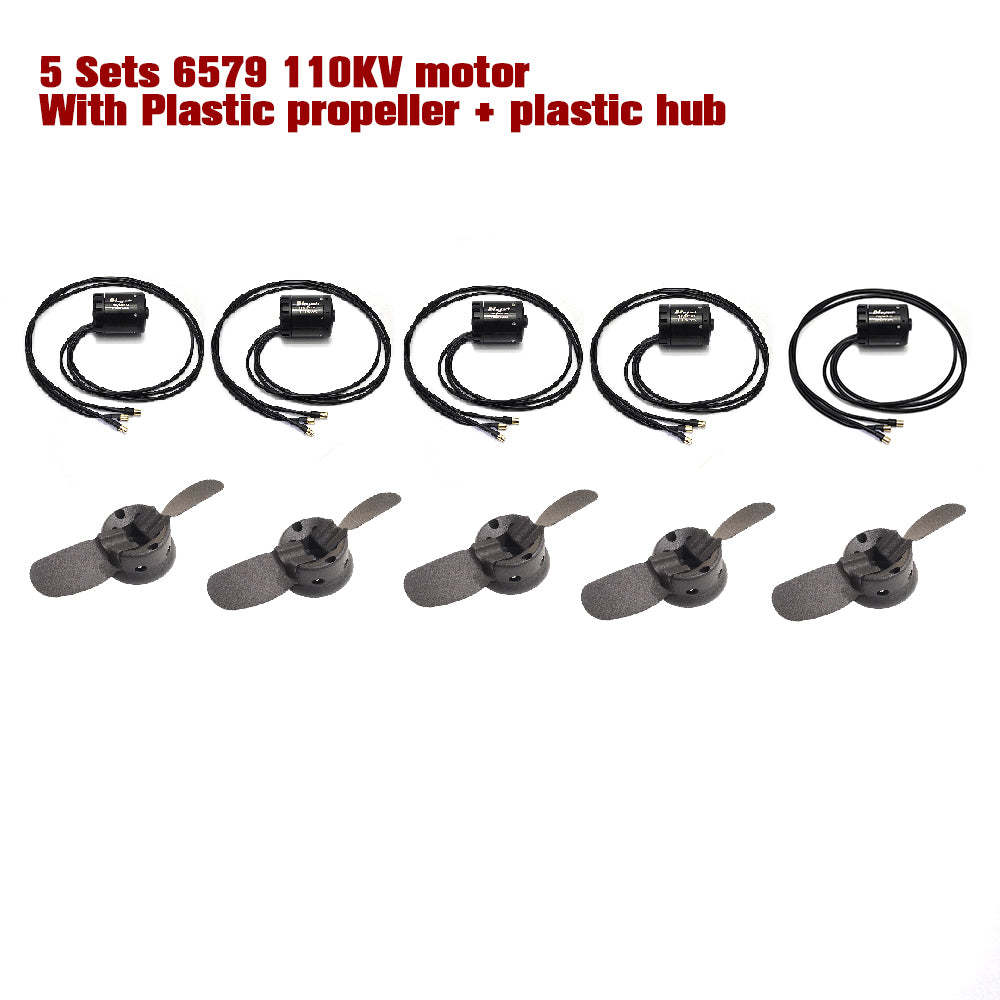

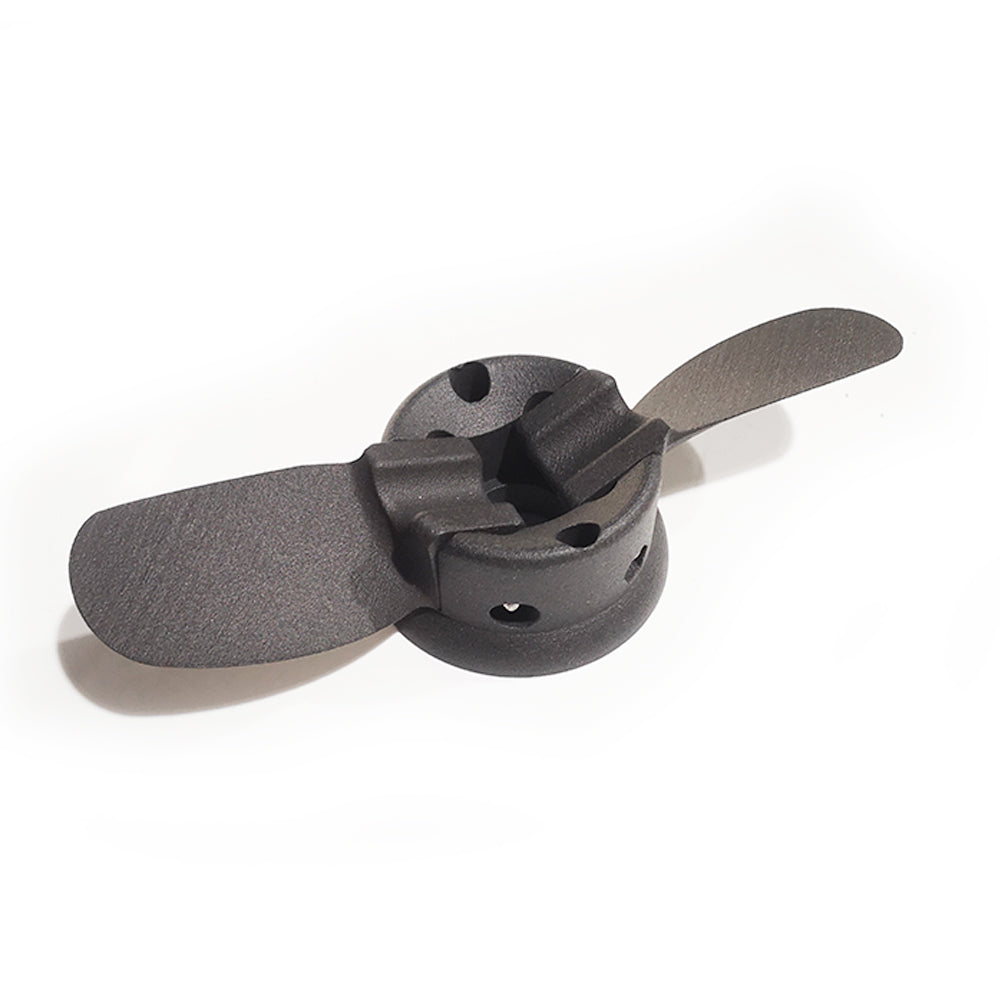

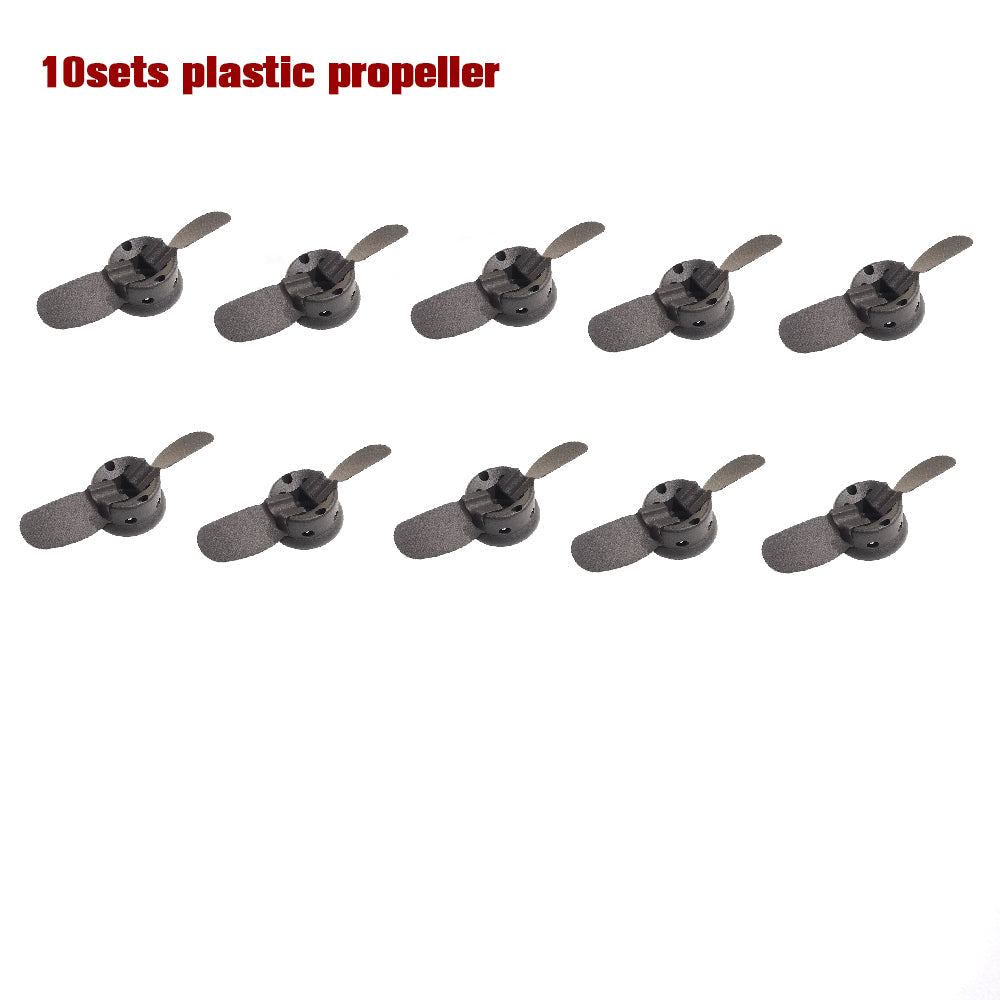

3. Nylon baldes: light weight, cost-effective
Customers Feedbacks:
Stock Notice Before Place Order:

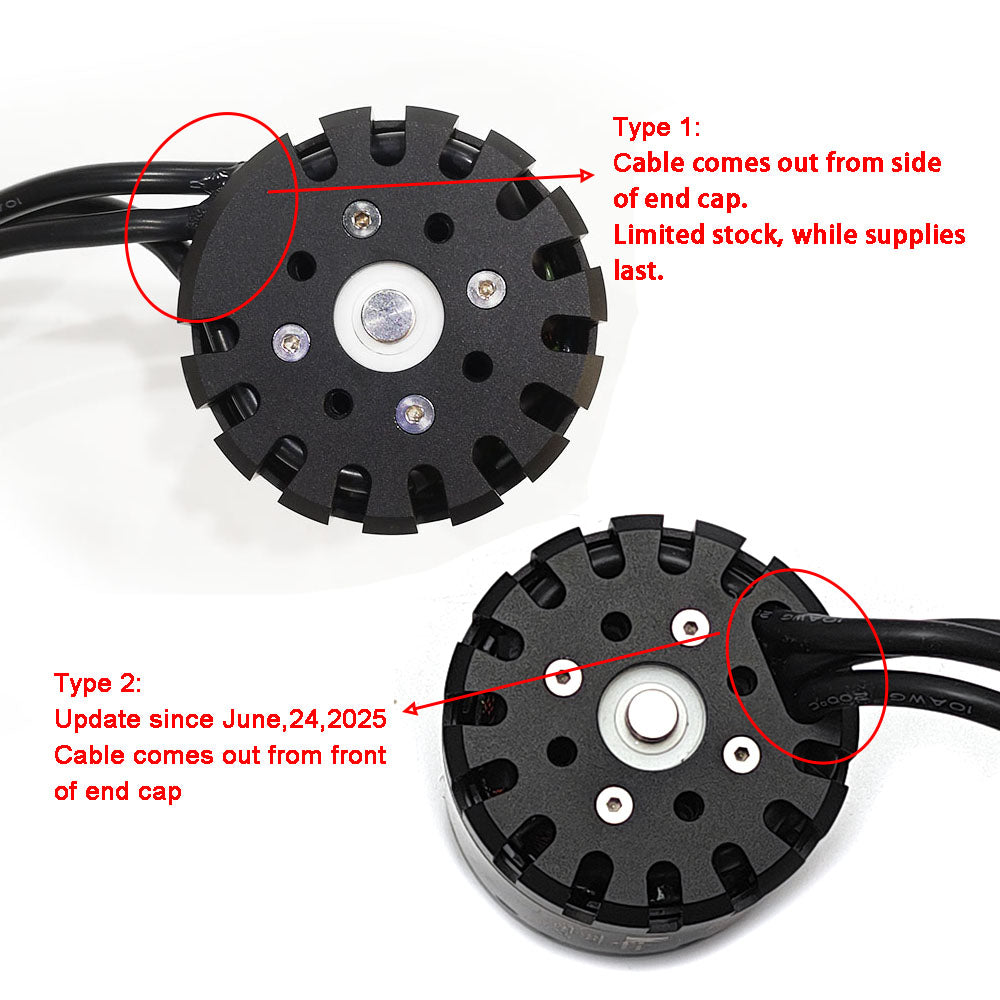

2. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Stock Notice before Place Order:
The motor stock is limited, please email to shelly@mayrc.com if you're interested.
