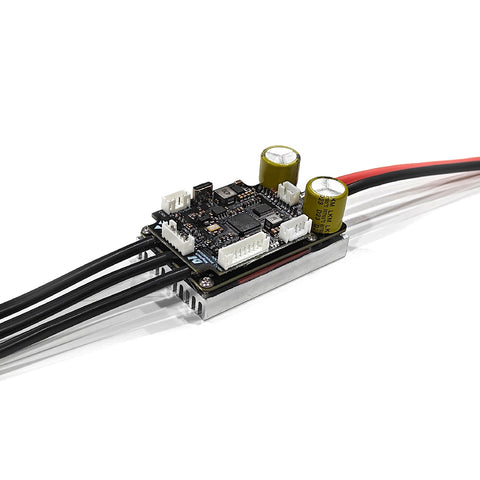

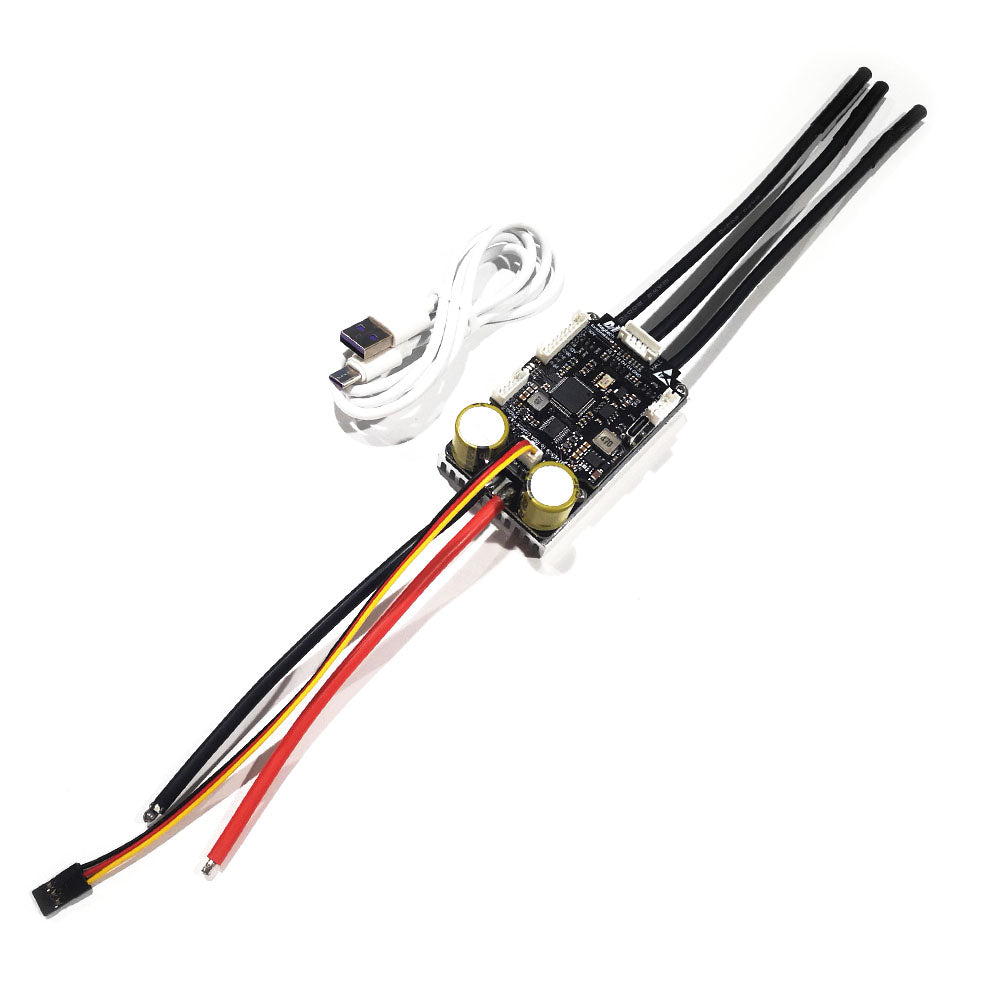

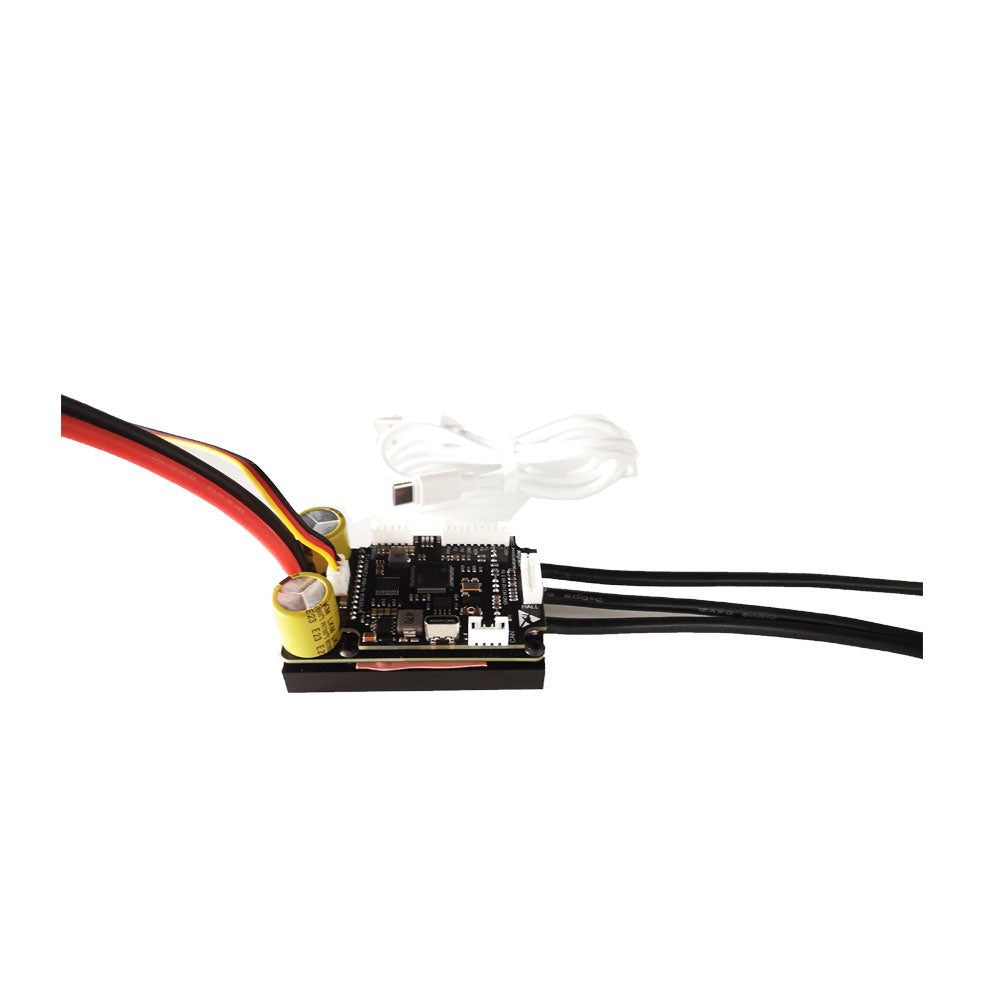

IN STOCK MAYRC 100A V6.0 VESCTOOL Speed Controller With Heatsink Fin for Electric Skateboard Foil Surfing E Foiling

IN STOCK MAYRC 100A V6.0 VESCTOOL Speed Controller With Heatsink Fin for Electric Skateboard Foil Surfing E Foiling

Regular price $141.90 USD
Regular price Sale price $141.90 USD
Sale Sold out
MTSPF60100

IN STOCK MAYRC 100A V6.0 VESCTOOL Speed Controller With Heatsink Fin for Electric Skateboard Foil Surfing E Foiling

Specification:

Model: MTSPF60100

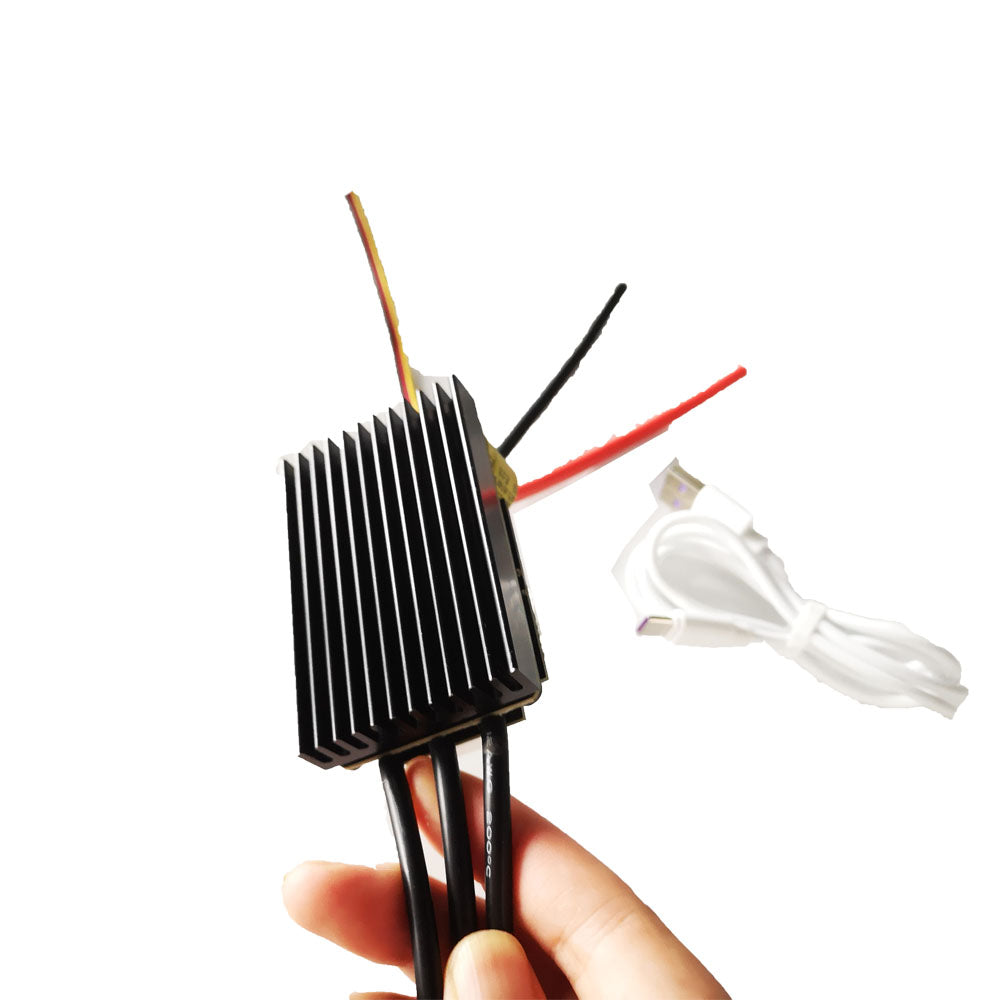

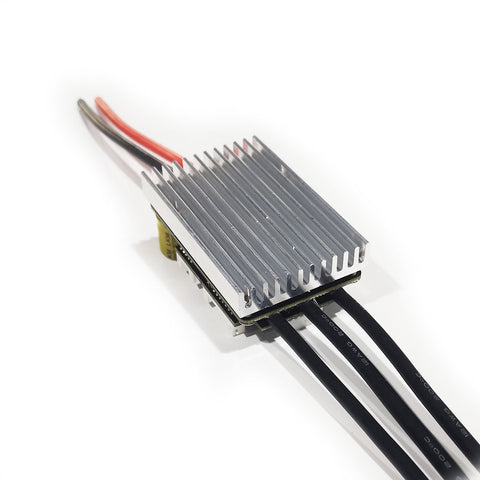

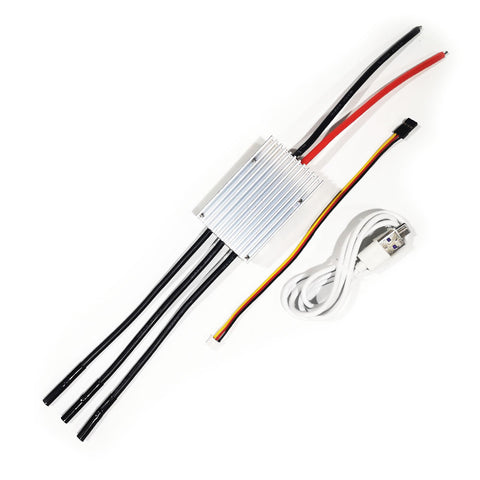

With Aluminum Case: Heatsink Fin
Cont. Current: 100A
Input Volt.: 11.1-50V
Hardware: Based on V6.0
Firmware:  Upgradable
Software: VESCTOOL Compatible
FOC: YES; Better than V4.12
Compatible motor: Sensor or sensorless
Weight: 100g


MTSPF60100 Main Features:

1:Firmware upgradable ▶VESCtool compatible speed controller;
2:Soft-switching to reduce the losses in power electronic switches;
3:Adjustable Forward/Backward/Brake;
4:Configurable RPM, Current, Voltage and Power limits;
5:With 5V and 12V external power supply interfaces, no interference caused when powering analog circuits such as twist/thumb throttles.
6:Regenerative Braking Function;
7:Separation of low power electronics from the high power electronics, make it more reliable;
8:Support PPM, Analog (ADC), UART, Canbus input;
【With water-cooled tubes;

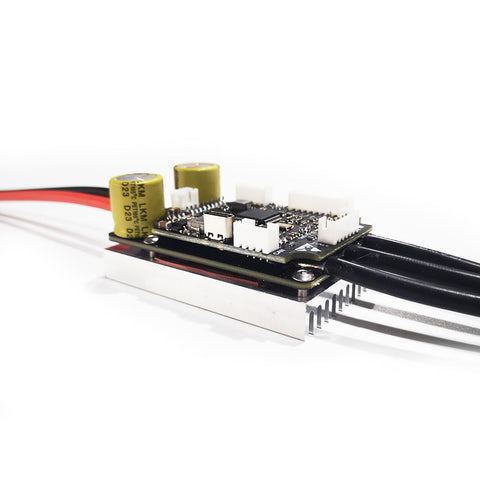

【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system;
9:Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.

Application:

Electric Skateboard, Fighting Robots, AGV Car, Gaint Robots, Robot Arm, Robot Dog, Electric Motorcycle, Electric Scooter, etc.
