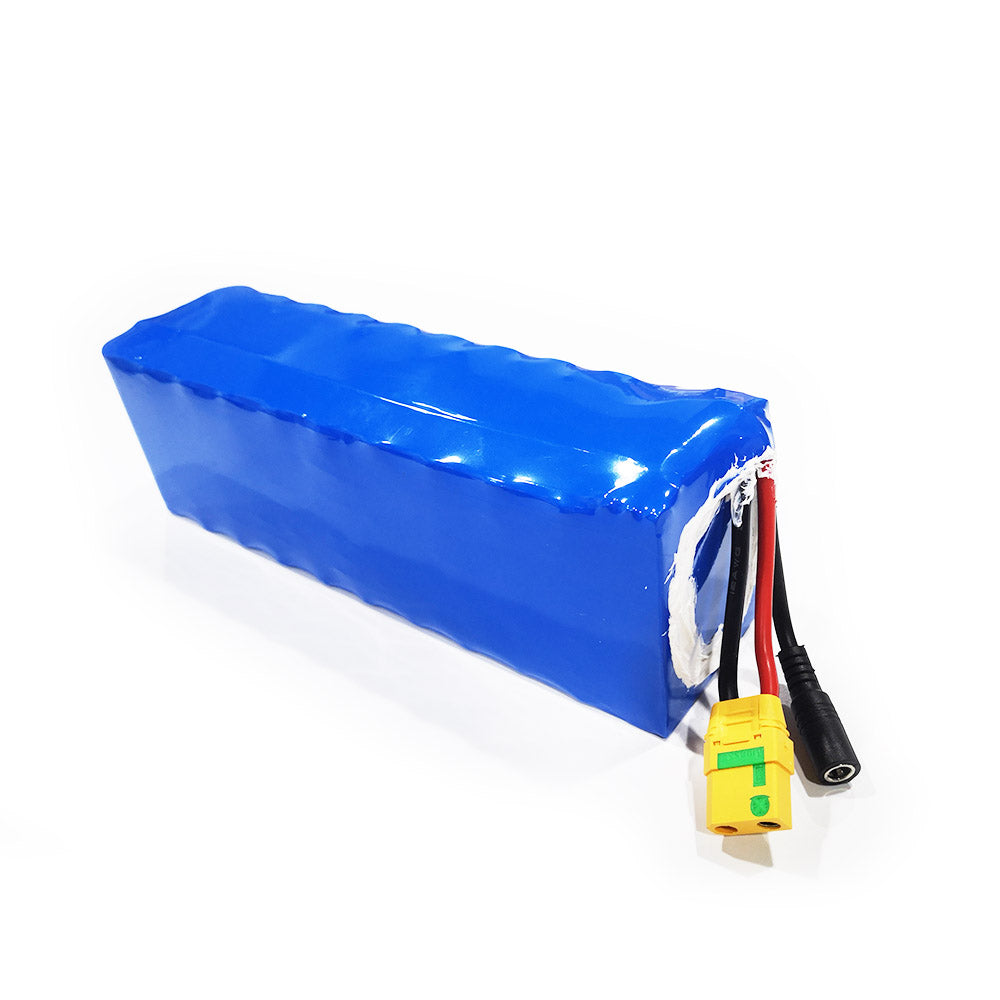

MAYRC Kit Brushless 6384 140KV Waterproof Motor 100A Speed Controller IP68 Remote Controller and Battery
MAYRC Kit Brushless 6384 140KV Waterproof Motor 100A Speed Controller IP68 Remote Controller and Battery
Couldn't load pickup availability
MAYRC Kit Brushless 6384 140KV Waterproof Motor 100A Speed Controller IP68 Remote Controller and Battery
Specification:

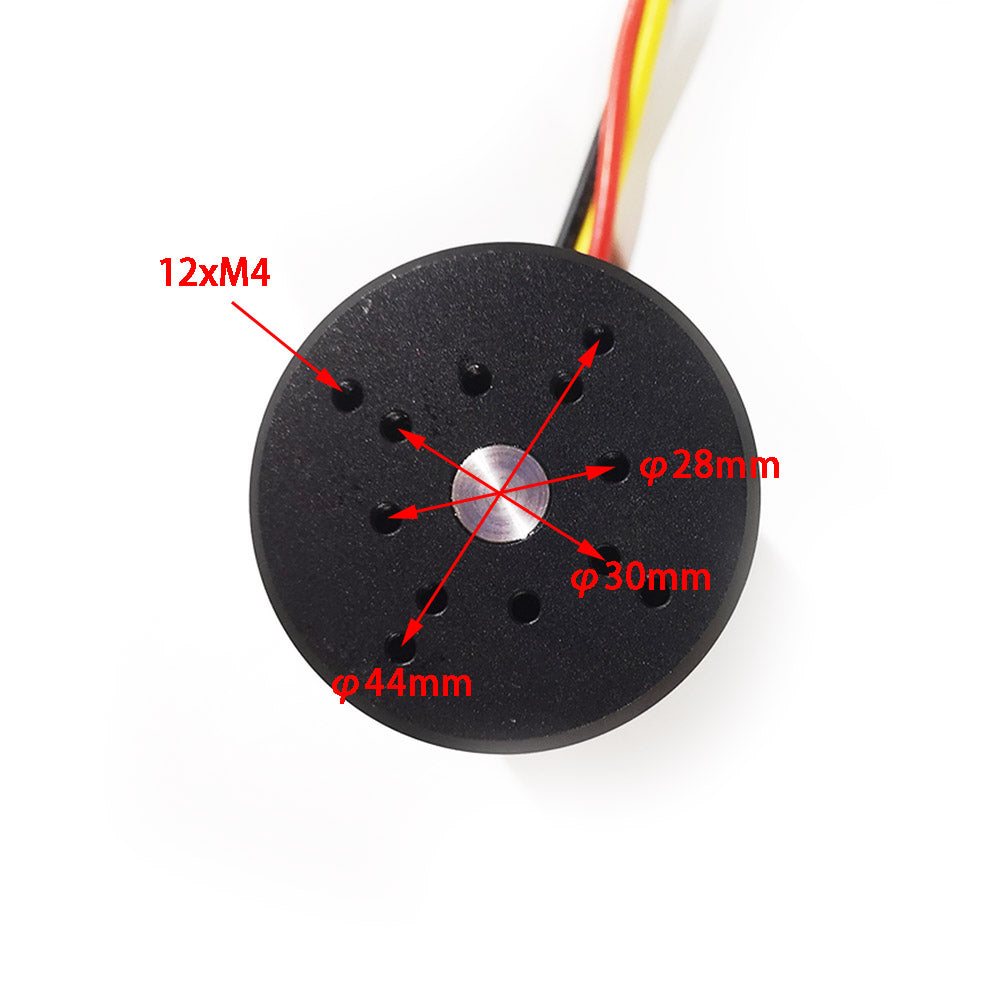

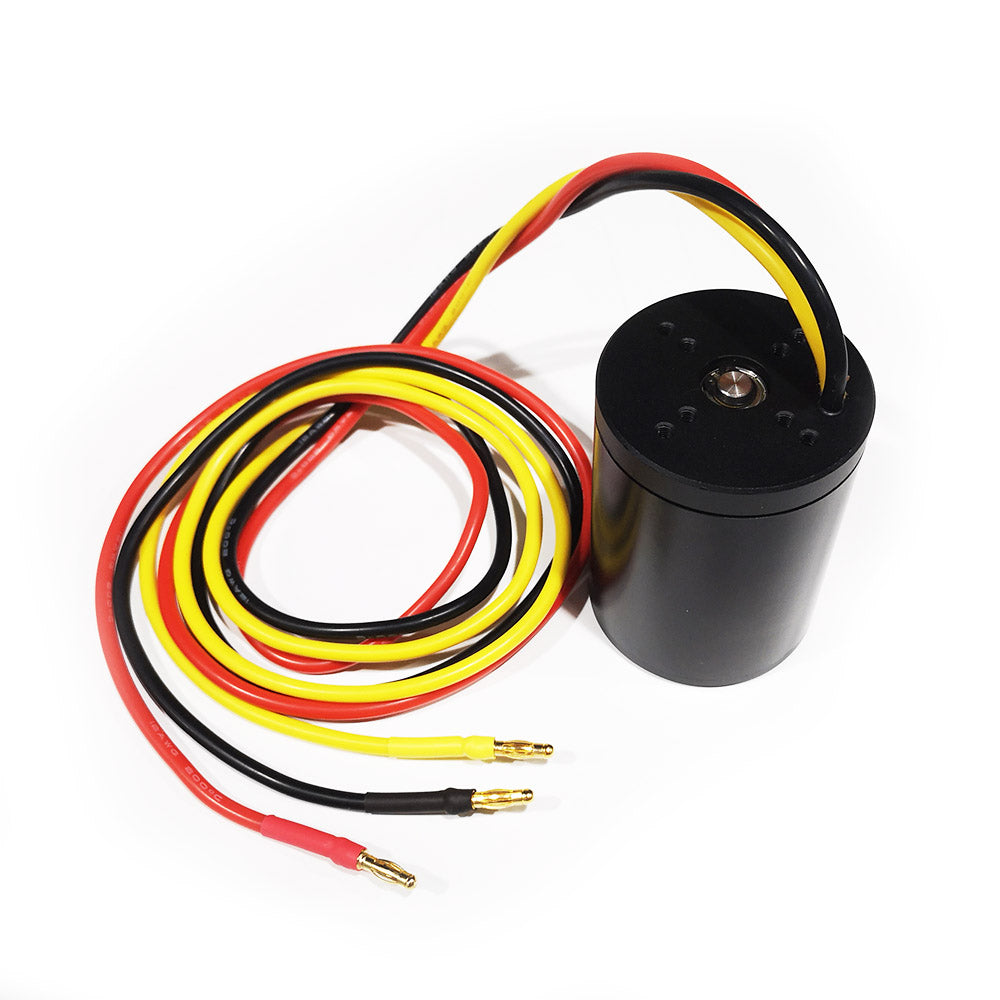

| Model 1. | MTO6384-140-WPC |
| RPM/V/Max RPM | 150/8000 |
| Idle Current @10V |
0.8A |
| Rated Current/Max Current (A) | 70A/100A |
| Working Voltage |
20-50V |
| Rated/ Max Torque(N*M) |
4/8.8N.m |
| Max Power (10S) |
5KW |
| Winding Turns/Construction |
12N/14P |

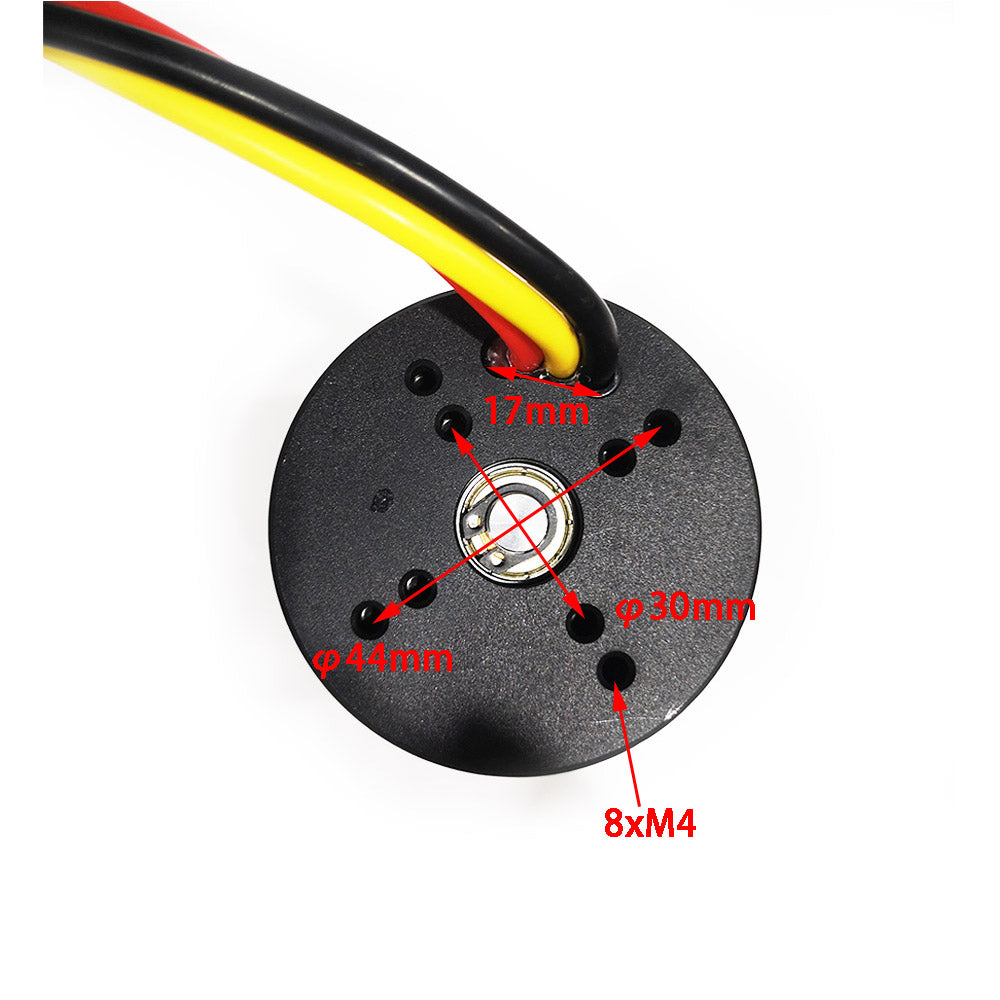

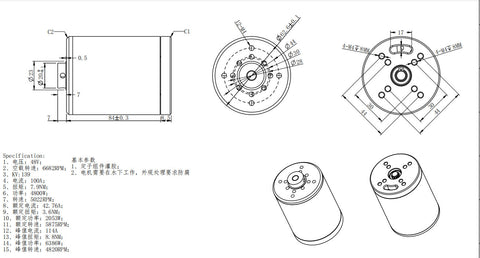

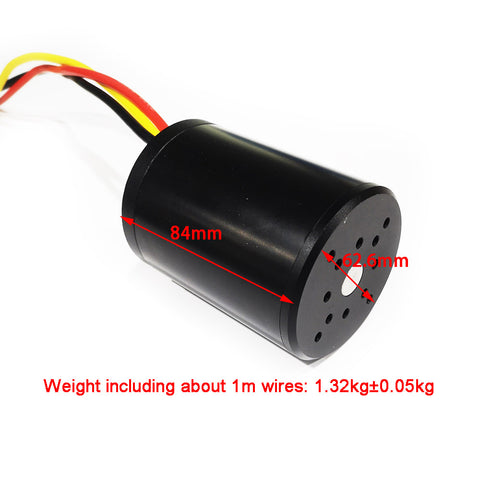

| Motor& Shaft Size(mm) |
63x84mm |
| Net Weight (kg) |
0.93 |

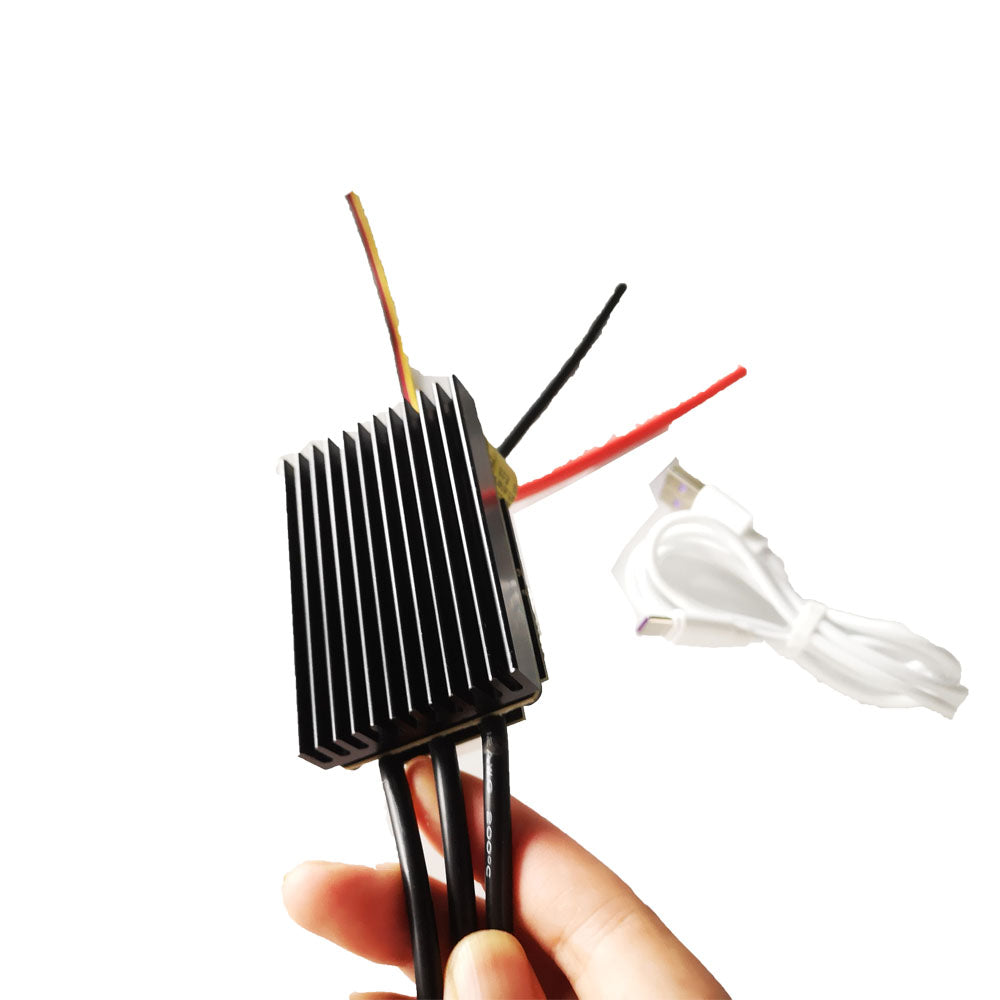

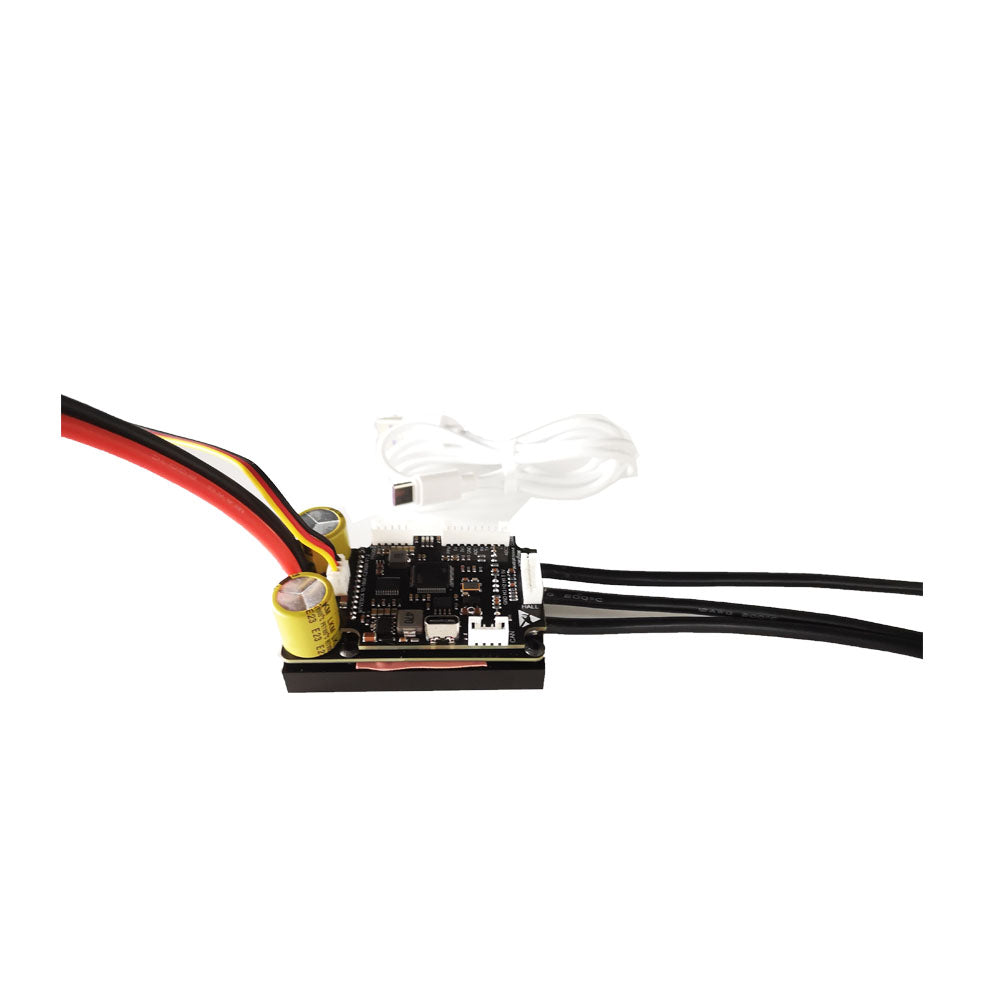

| Model 2： | MTSPF60100 |
| With Aluminum Case： | Heatsink Fin |
| Cont. Current： | 100A |
| Input Volt.： | 11.1-50V |
| Hardware： | Based on V6.0 |
| Firmware： | Upgradable |
| Software： | VESCTOOL Compatible |
| FOC： | YES; Better than V4.12 |
| Compatible motor： | Sensor or sensorless |
| Weight： | 100g |

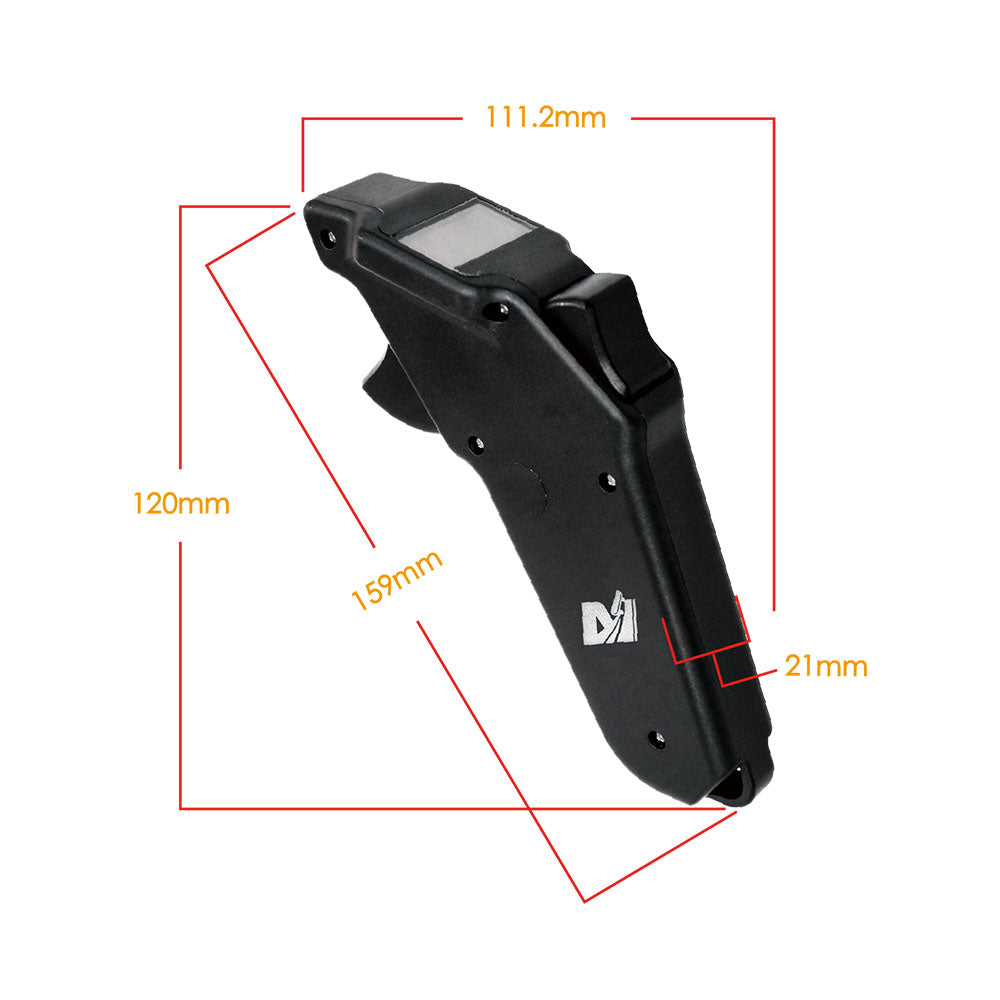

| Model 3： | MTSKR1905WF |
| Application: |
Mountainboard, Esurf, Efoil,boat, etc. Max Voltage detection range: 5-80V ±5% Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay |
| Switch Max current: | 3A; |
| Transistor switch max current: | 2A; VESC communication protocol |
| Fully Waterproof: | Yes |
| Display Screen: | Yes |
| Display Parameters: | Voltage, remote & battery power, signal strength, distance,RPM |
| Frequency: | 2.4GHZ |
| Mode: | Esk8/Esurf |
| Wireless Charging: | Yes |

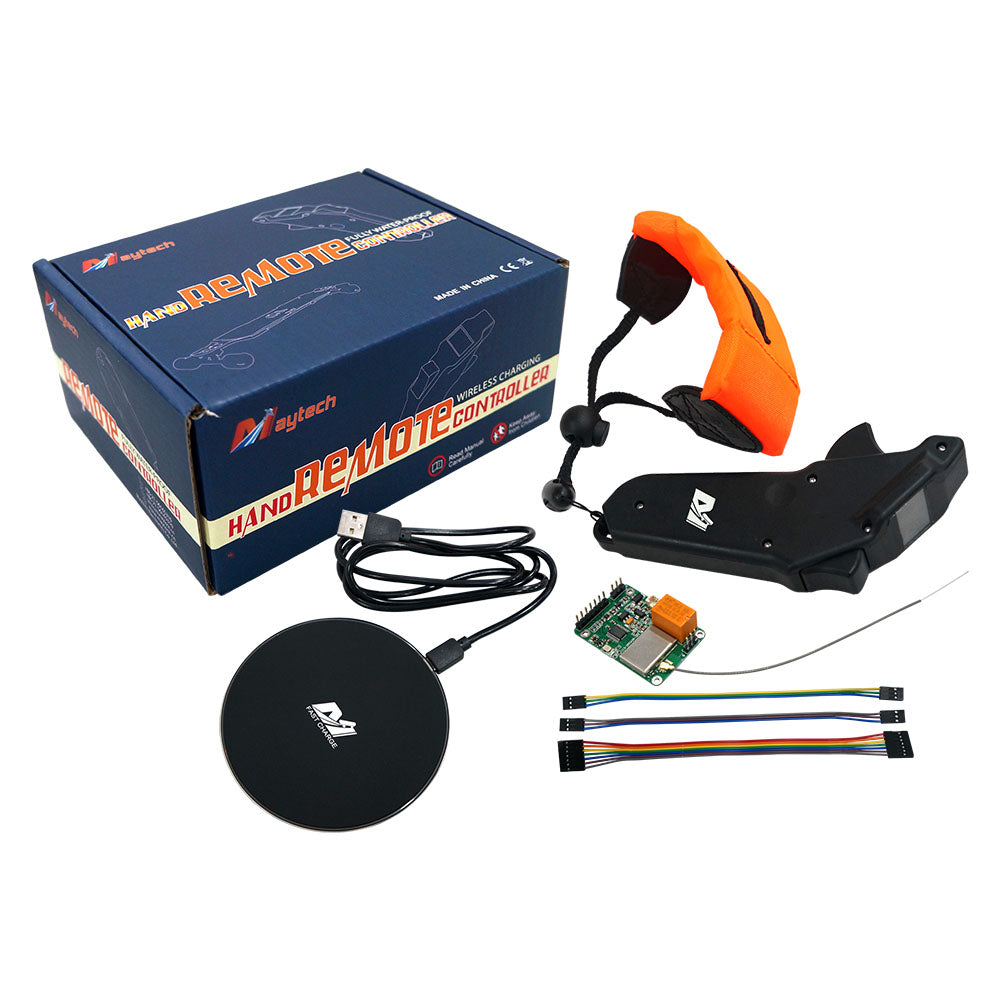

| Accessories: | Receiver, strape, 3pcs Dupont cable, Wireless charging pad |

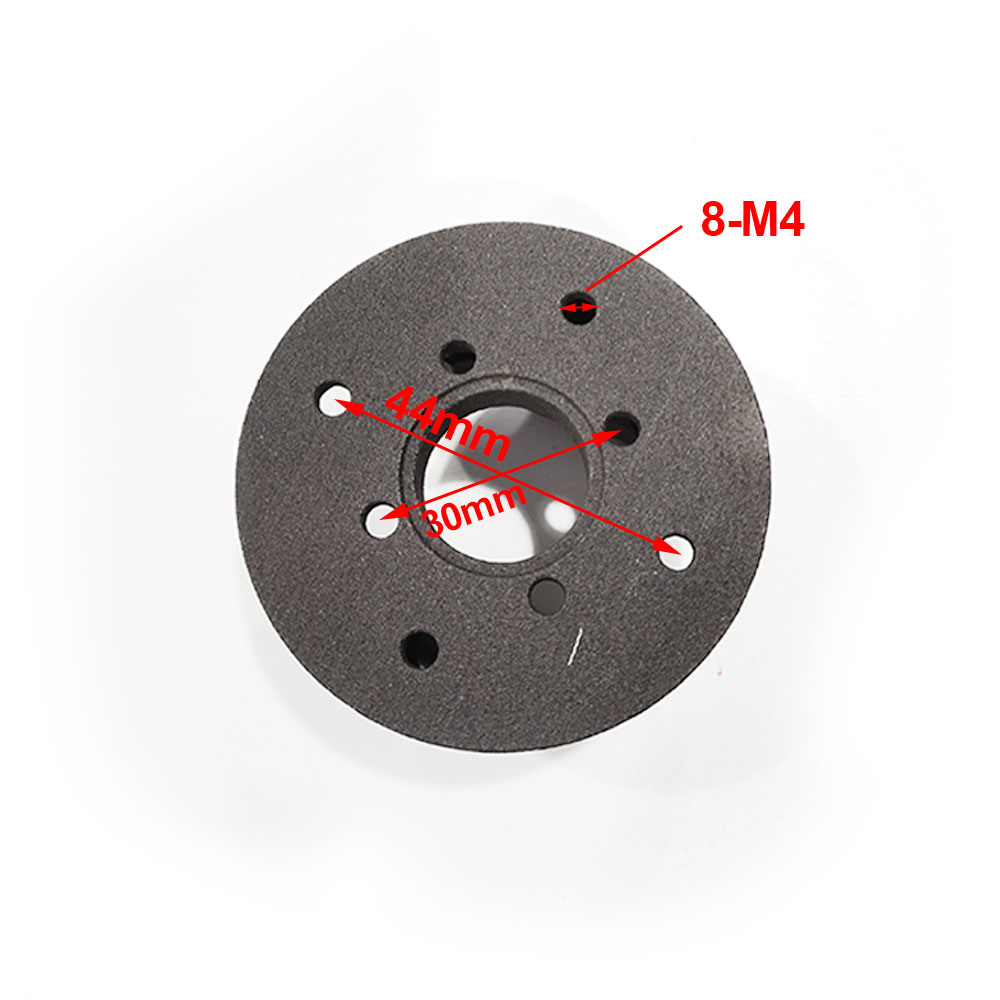

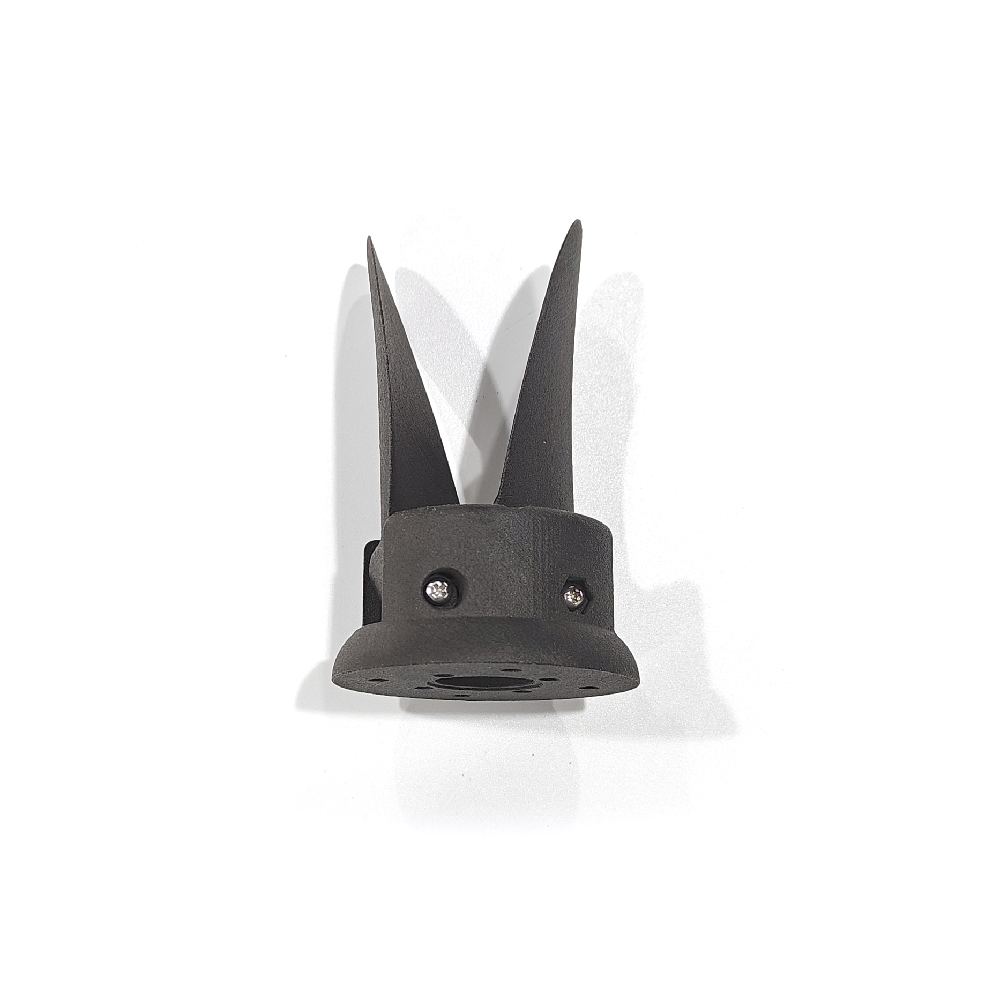

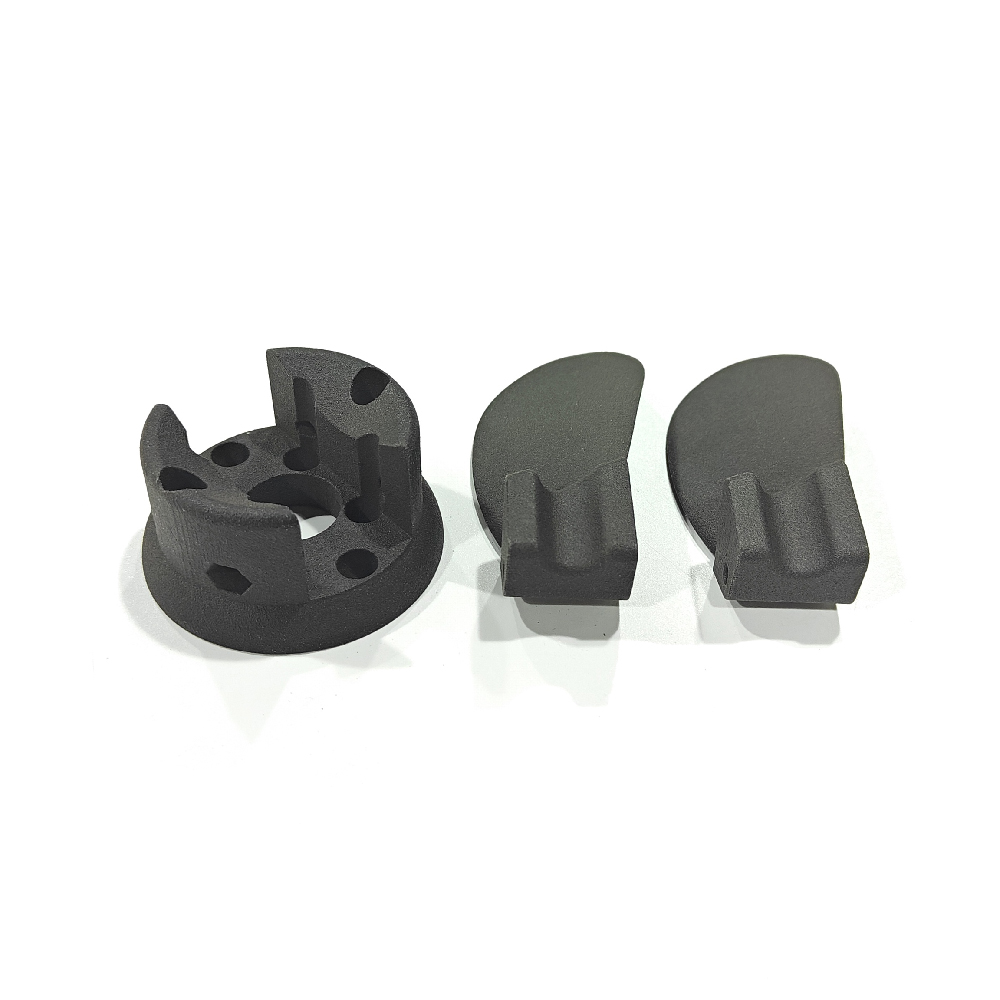

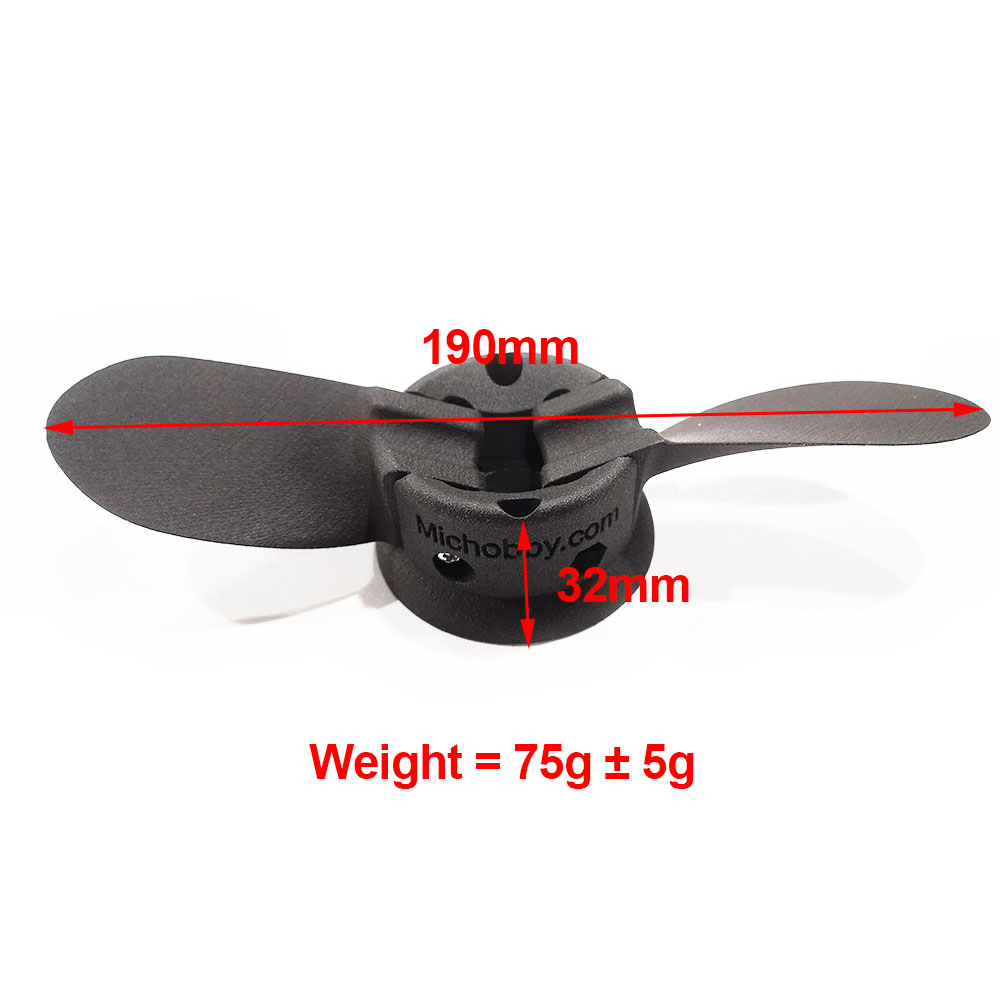

| Model 4： | MICP27F |
| Blades: | 2 blades |
| Type: | 3D printed foling prop |
| Size: | as picture |
| Compatible Motor: | MTO6374-150-WPC and MTO6384-130-WPC |
| Application: | Foil assist system, electric outboard, wing foil, retrofit efoil, sup foil, sup board, etc. |
Application：
Foil surfing, Jetsurf , electric outboard, electric skateboard, Kayak, electric hydrofoil, Electric Jet Board, RC boats, baitboats, Fishing boat ,underwater robots, water sports, Underwater Remotely Operated Vehicles, Subsea Robots, etc.
Customized Service：
Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com
MTSPF60100 Main Features：
1：Firmware upgradable ▶VESCtool compatible speed controller;
2：Soft-switching to reduce the losses in power electronic switches;
3：Adjustable Forward/Backward/Brake;
4：Configurable RPM, Current, Voltage and Power limits;
5：With 5V and 12V external power supply interfaces, no interference caused when powering analog circuits such as twist/thumb throttles.
6：Regenerative Braking Function;
7：Separation of low power electronics from the high power electronics, make it more reliable;
8：Support PPM, Analog (ADC), UART, Canbus input;
【With water-cooled tubes;
【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system;
9：Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
Warranty Service:
1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
