MAYRC 150KV 6396 Sealed Brushless Hall Sensor Motor with Fan for Robot Dog Rc Car Street Skateboard

MAYRC 150KV 6396 Sealed Brushless Hall Sensor Motor with Fan for Robot Dog Rc Car Street Skateboard

Regular price $169.98 USD
Regular price $198.45 USD Sale price $169.98 USD
Sale Sold out
MTO6396-150-HA-C5

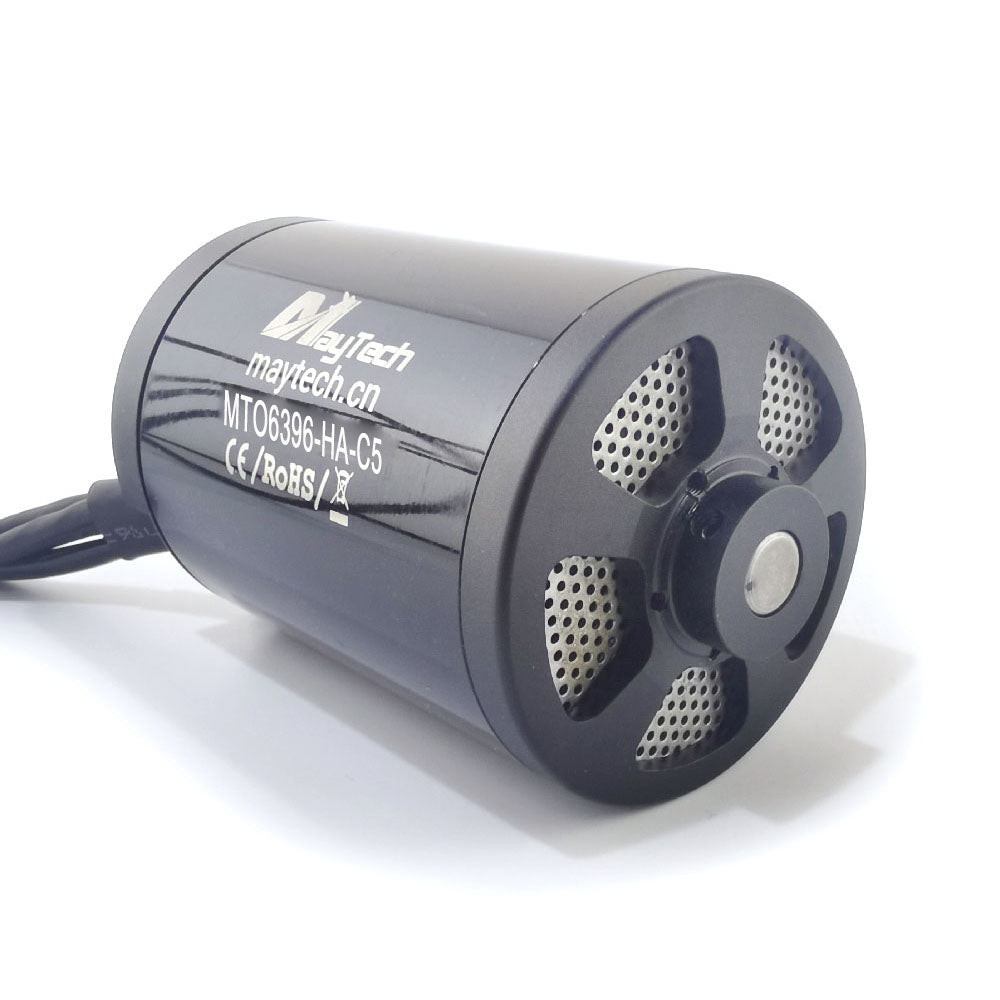

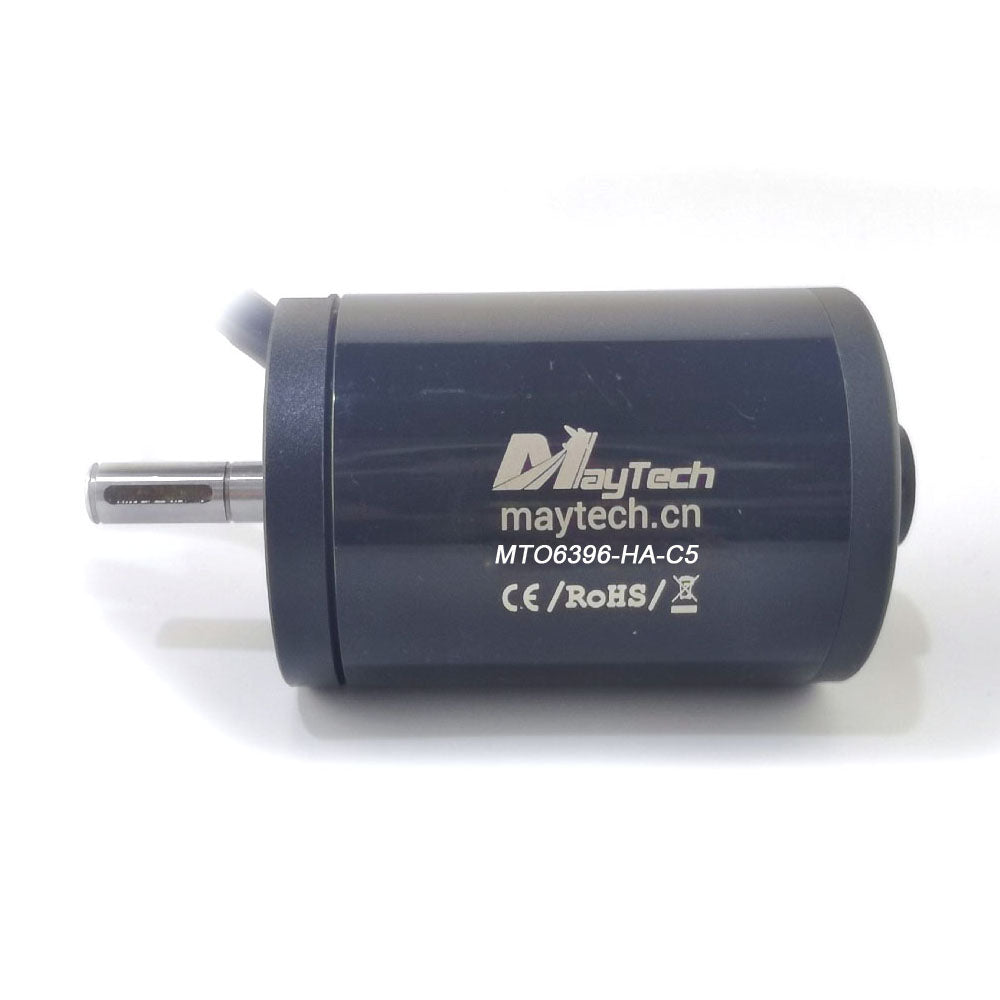

MAYRC 150KV 6396 Sealed Brushless Hall Sensor Motor with Fan for Robot Dog Rc Car Street Skateboard

Specification:

Model MTO6396-150-HA-C5
KV 150
Idle Current 2.0A
Rated Current 65A
Max. Current 80A
Input Volt. 11.1-50V
Max. Output Watt 4550W
Max. Pull  13500g
Resistance 0.02
Weight 1280g

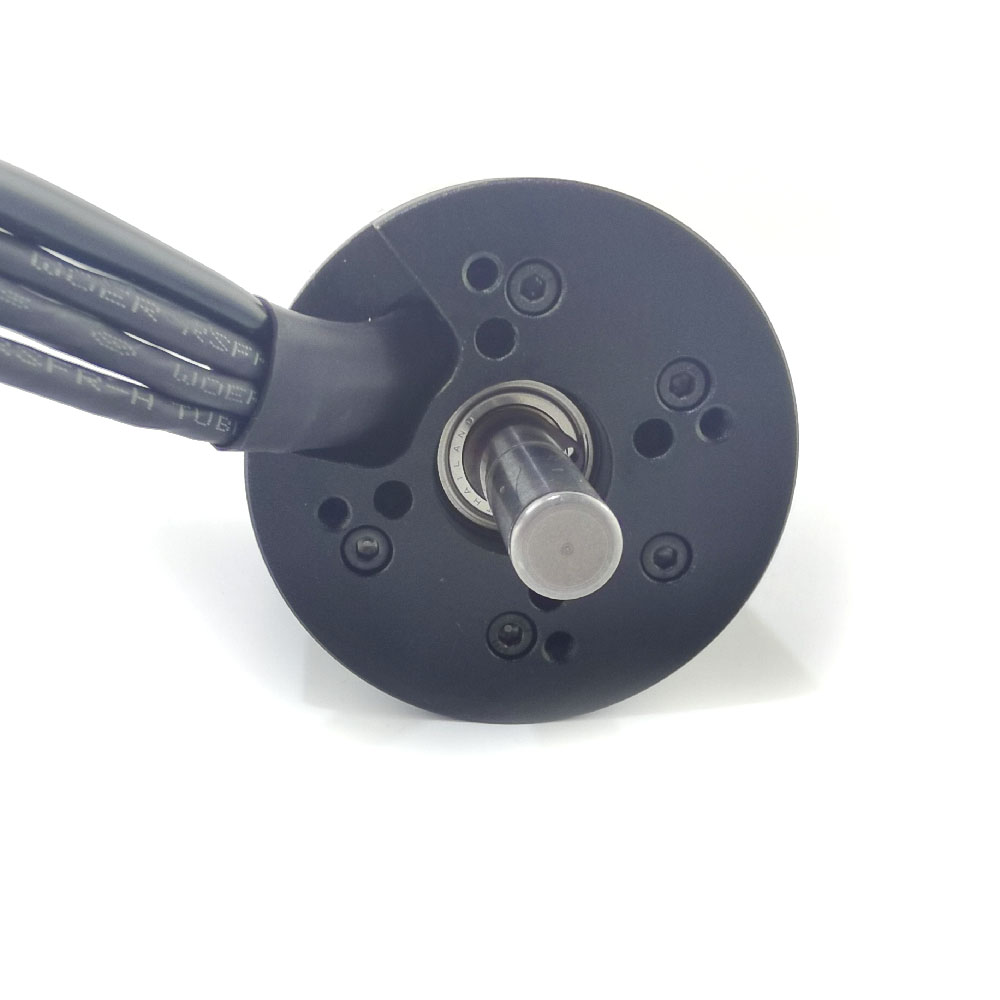

Shaft 10mm with 3mm keyway,output 45.5mm

Application:

Electric skateboard, mountainboard, elongboard, all terrain skateboard, fighting robots, combat robots, walking robots, ROV, etc.

Customize Acceptable:

KV, logo, Color, shaft, case, etc.

Upgraded Parts:

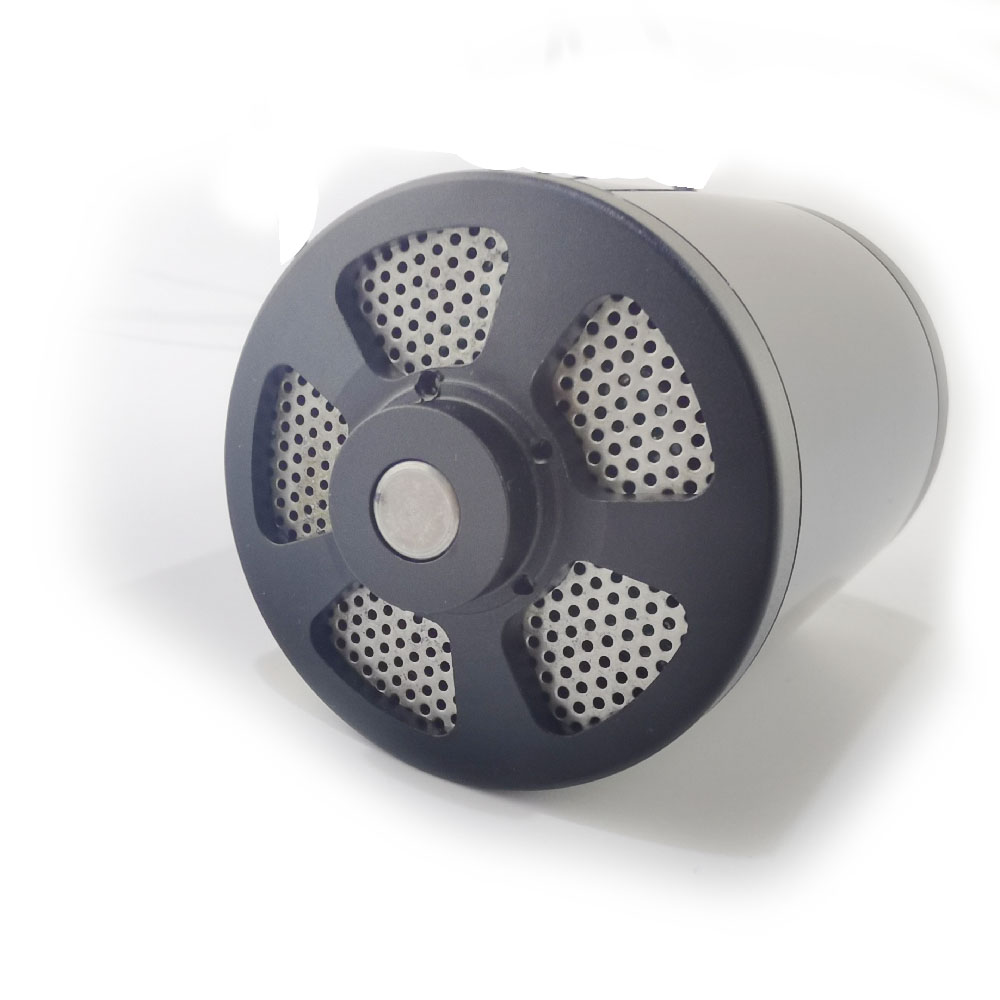

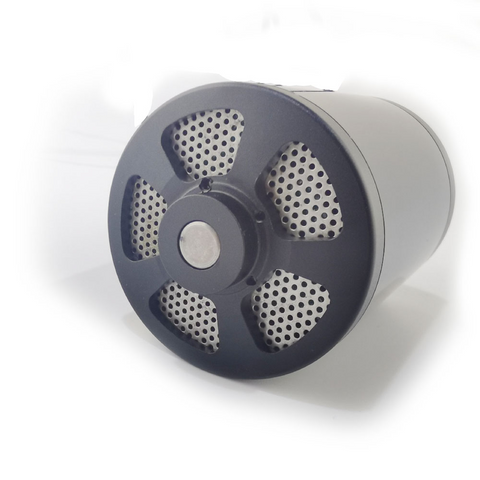

1. With cooling mesh on back cover, better heat dissipation, while still sealed cover, dustproof
2. With curved magnets, decrease air gap between magnets and stator end, produce less vibration at high speed, give you more stable riding experience.
3. Battle Harended.

Main Advantages:

1. Tileshaped magnets, reliable in use, low in copper consumption, and energy consumption. Higher speed, a large output torque, and a large power, and the motor has higher efficiency.
2. Silicon sheet: 0.2mm, more efficiency, less heat;
3. With Fan radiation, cool the motor faster;

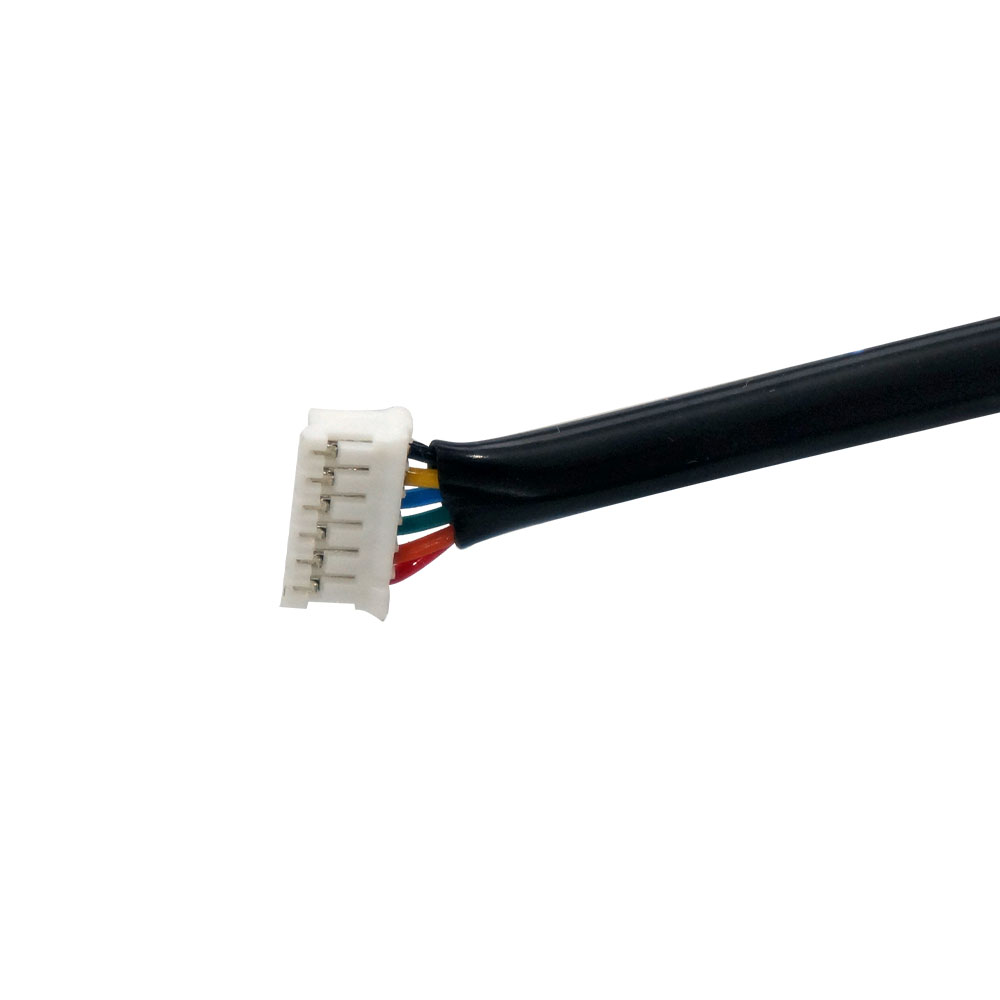

4. Hall sensor:Inserted in stator, more accurate and stable in function;

These MTO6396-150-HA-C5 Electric motors are the bigger version of MTO6374-HA-C5, the super popular and are great for those that want more torque from the longer magnets and don't worry about the increased weight if ripping it on off road boards. They are reasonably priced and reliable motors. They have been refined over the time and are now called "Battle Hardened" this means the magnets are epoxy glued to the case for extra durability from impacts and vibration. The bearings on the motor shaft have grown bigger to be stronger. The sensors are fixed securely and the temp sensor gives a good accurate reading for low temps for a almost sealed motor.

All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.

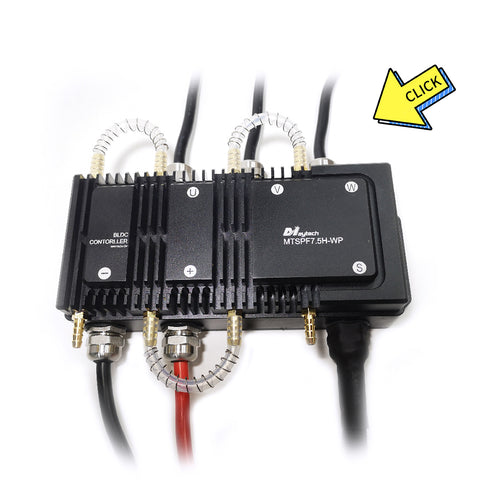

Products that can be used together (Click the following pictures to check more products)
