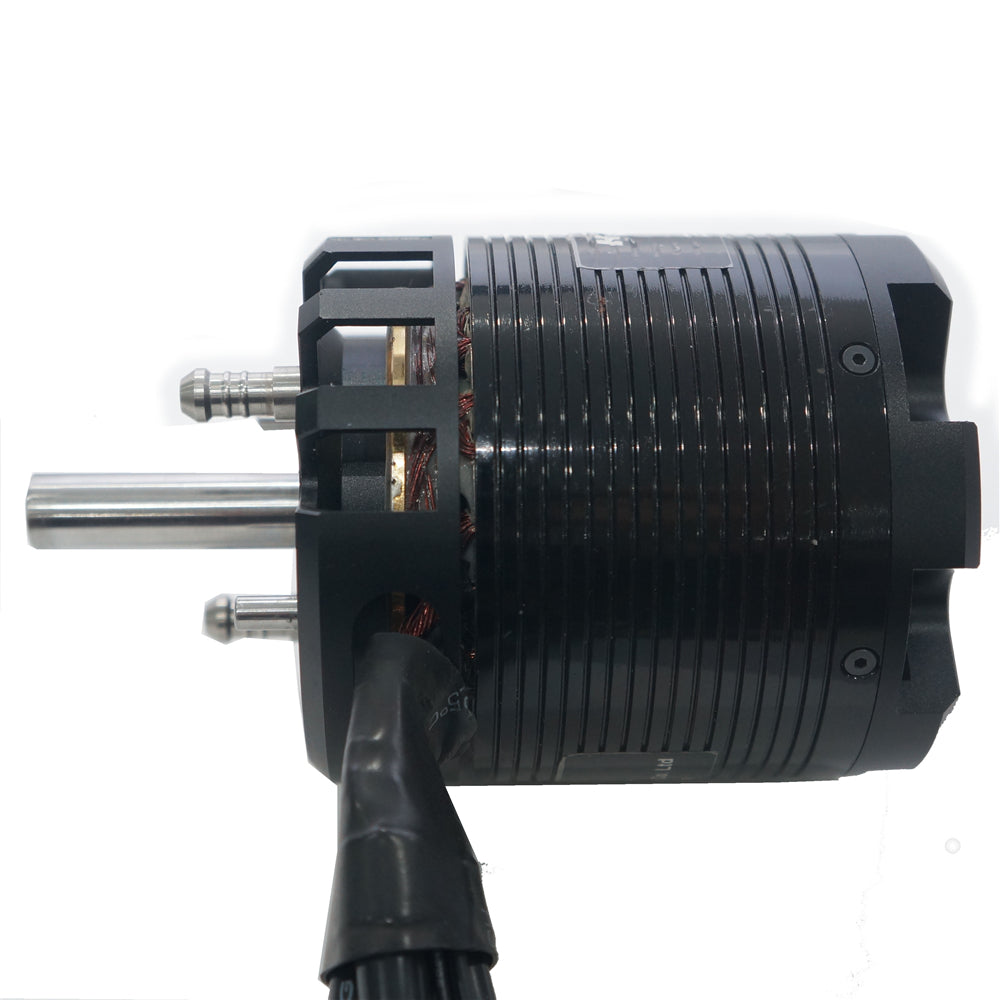

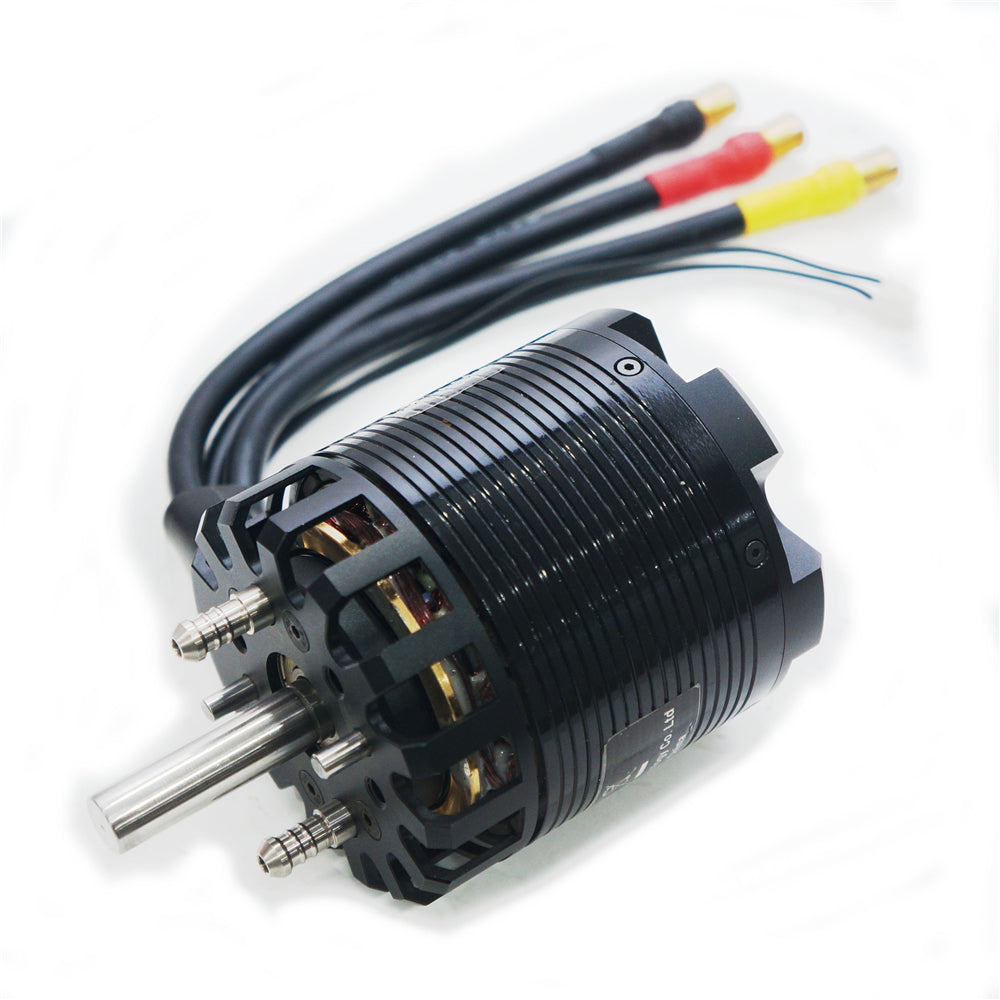

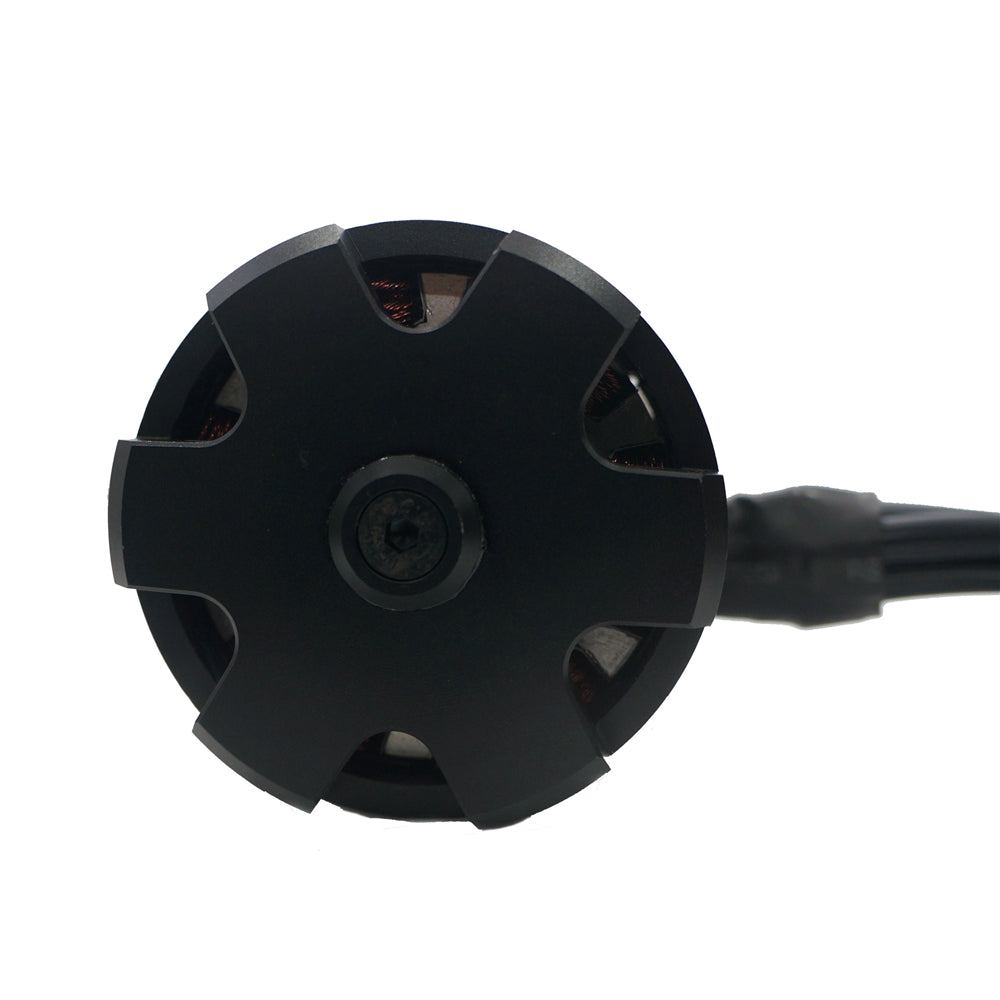

MAYRC 8392 200KV Brushless Motor with Water-cooling for Electric Hydrofoil Surfboard Water Sport Kayak

MAYRC 8392 200KV Brushless Motor with Water-cooling for Electric Hydrofoil Surfboard Water Sport Kayak

Regular price $552.20 USD
Regular price Sale price $552.20 USD
Sale Sold out
MTO8392-200-WC (Water-cooling)

MAYRC 8392 200KV Brushless Motor with Water-cooling for Electric Hydrofoil Surfboard Water Sport Kayak

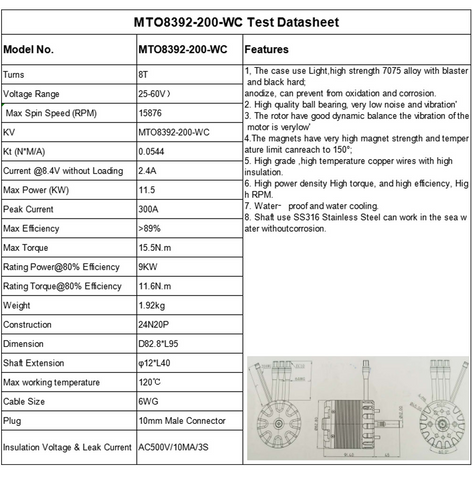

Specification:

Model MTO8392-200-WC
RPM/V/Max RPM 200/15870
Idle Current @10V 2.4A
Rated Current/Max Current (A) 240A/300A
Working Voltage 37-76V
Rated/Max Torque(N*M) 12.5/15.5N.m
Max Power(10S) 11.5KW
Winding Turns/Construction 8T/24N/20P
Motor&Shaft Size(mm) 82.8x91.5mm&D12mm
Net Weight (kg)  1.9



Customize Acceptable:

KV, Color, shaft, case, logo, etc.

Application:

Electric skateboard, mountainboard, elongboard, all terrain skateboard, fighting robots, combat robots, walking robots, etc.

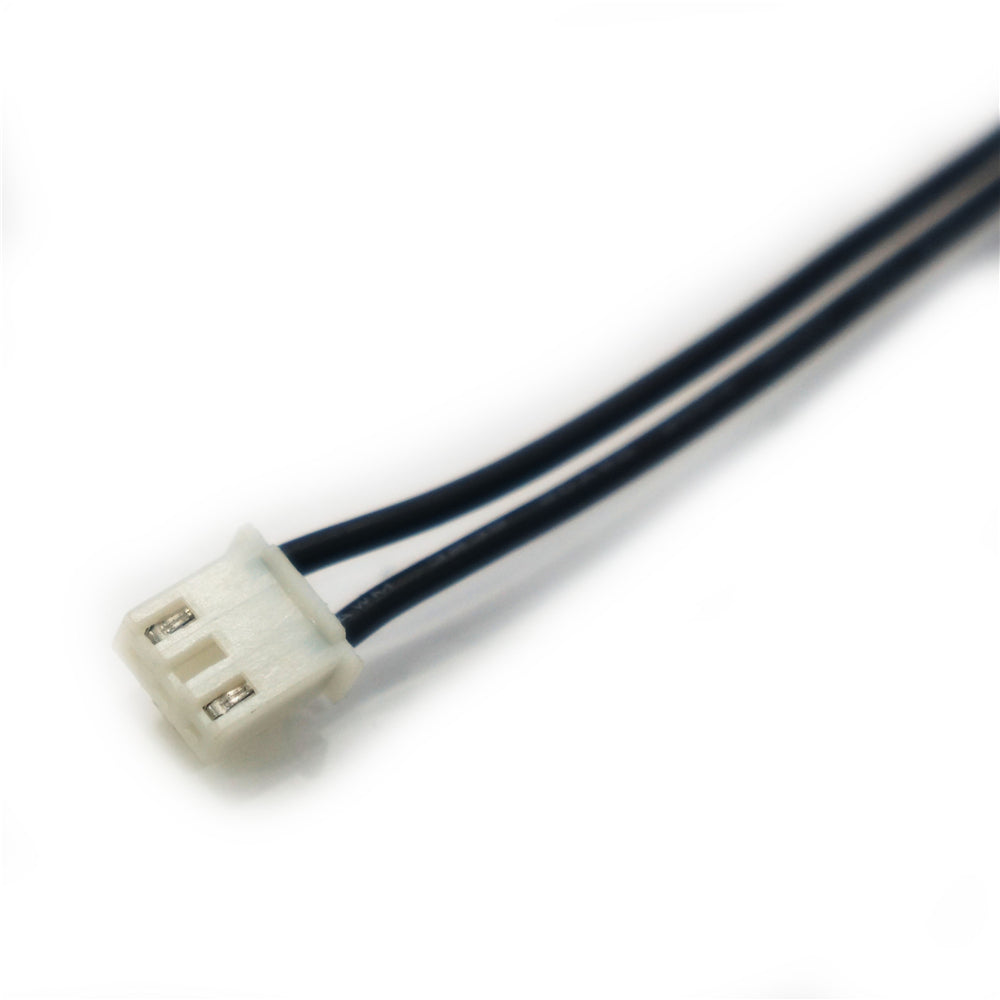

These MTO8392-200-WC Electric motors are the bigger version of MTO6575-200-WC, the super popular and are great for those that want more torque from the longer magnets and don't worry about the increased weight if ripping it on off road boards. They are reasonably priced and reliable motors. They have been refined over the time and are now called "Battle Hardened" this means the magnets are epoxy glued to the case for extra durability from impacts and vibration. The bearings on the motor shaft have grown bigger to be stronger. The sensors are fixed securely and the temp sensor gives a good accurate reading for low temps for a almost sealed motor.

All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
