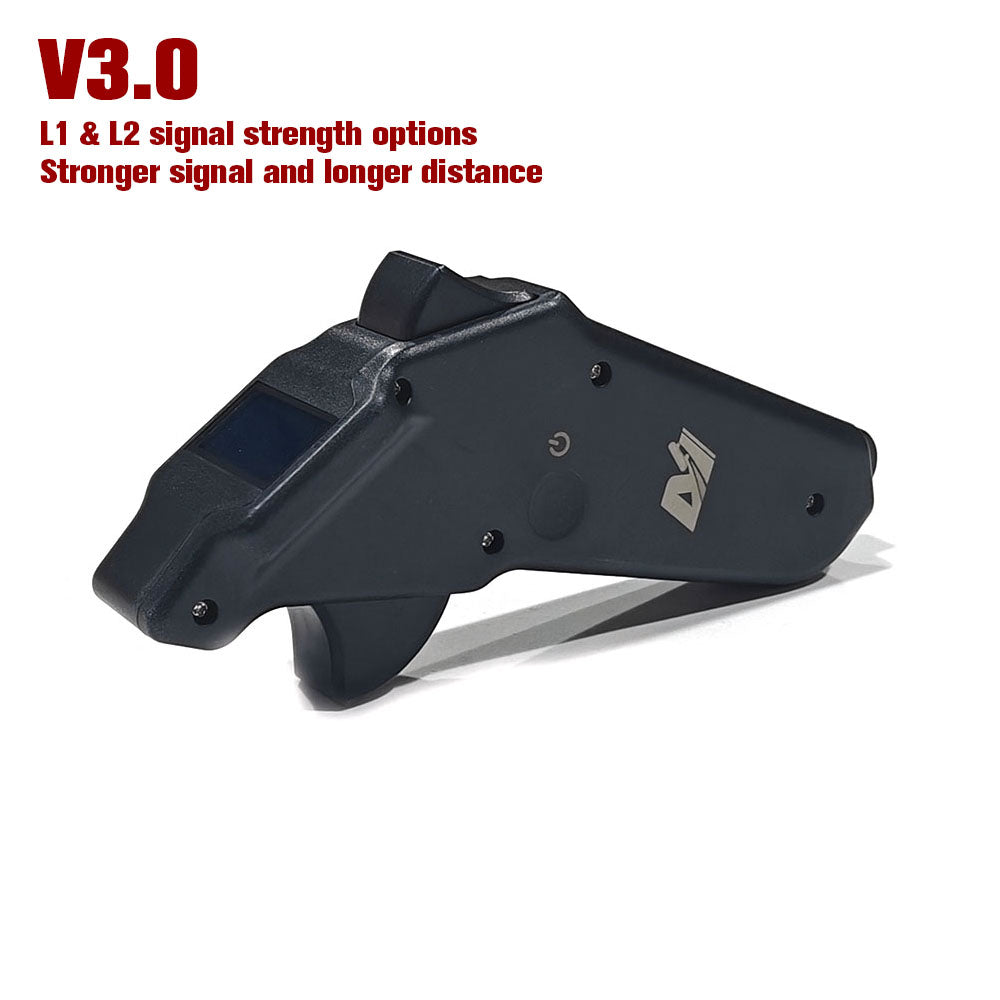

Maytech MTSKR1905WF Updated V3 IP68 Waterproof IP68 Remote Control for Efoil DIY Foil Assist Jetboard
Maytech MTSKR1905WF Updated V3 IP68 Waterproof IP68 Remote Control for Efoil DIY Foil Assist Jetboard
Regular price
$98.80 USD
Regular price
$129.29 USD
Sale price
$98.80 USD
Unit price
per
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact shelly@mayrc.com
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Specification:
| Model No | MTSKR1905WF V3.0 |
| Waterproof Rank | IP67 double waterproof |
| Thr Mode | ESURF (SF) and ESK8 (SK) |
| 3 Speed Modes | With, adjust throttle % from 20-100% |
| Power Modes | 2 levels, Eco (Level 1) < Pro (Level 2) |
| Throttle Lock | Yes, 10-30S optional |
| Signal Format | Support Standard PWM (PPM) and UART, output range from 10%-20%, which correspond to ESC/VESCTOOL Compatible controller throttle output range from 0%-100%. |
| PWM Signal Output Range | 1ms-2ms for throttle no brake in Esurf mode; 1.5ms-2ms for throttle, 1.5ms-1ms for brake in Esk8 mode. |
| Double Source Power Supply | Accept 5V power by ESC built-in BEC or extra 5V power |
| Output Signal | Max 3.3V |
| Display Parameters |
Current, voltage, temperature only when work with VESC or Maytech MTSF300A-WP32 ESC; |
| Control Pump | Yes (Relay Switch) |
| Control Light | Yes (Transistor Switch) |
| Safety Button | Support |
| Cruise Control | With in Esurf Mode |
| Brake | With in Esk8 Mode |

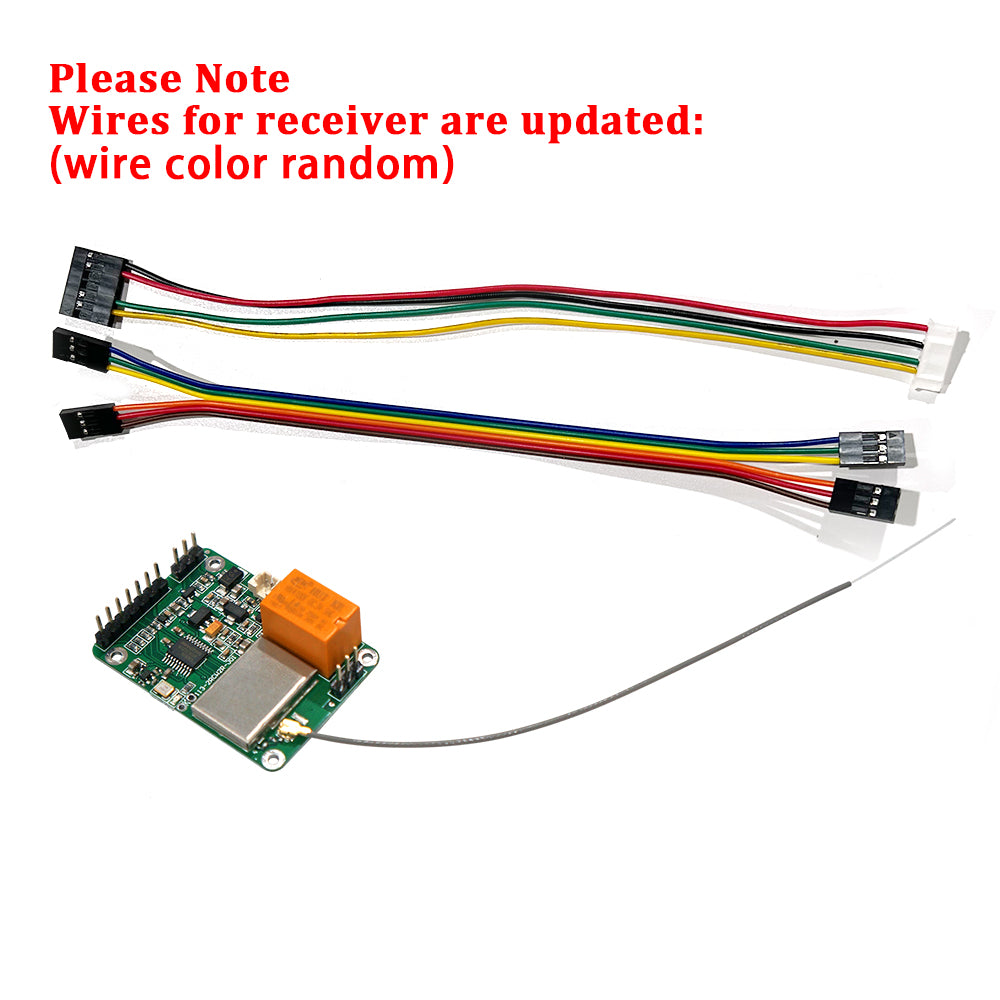

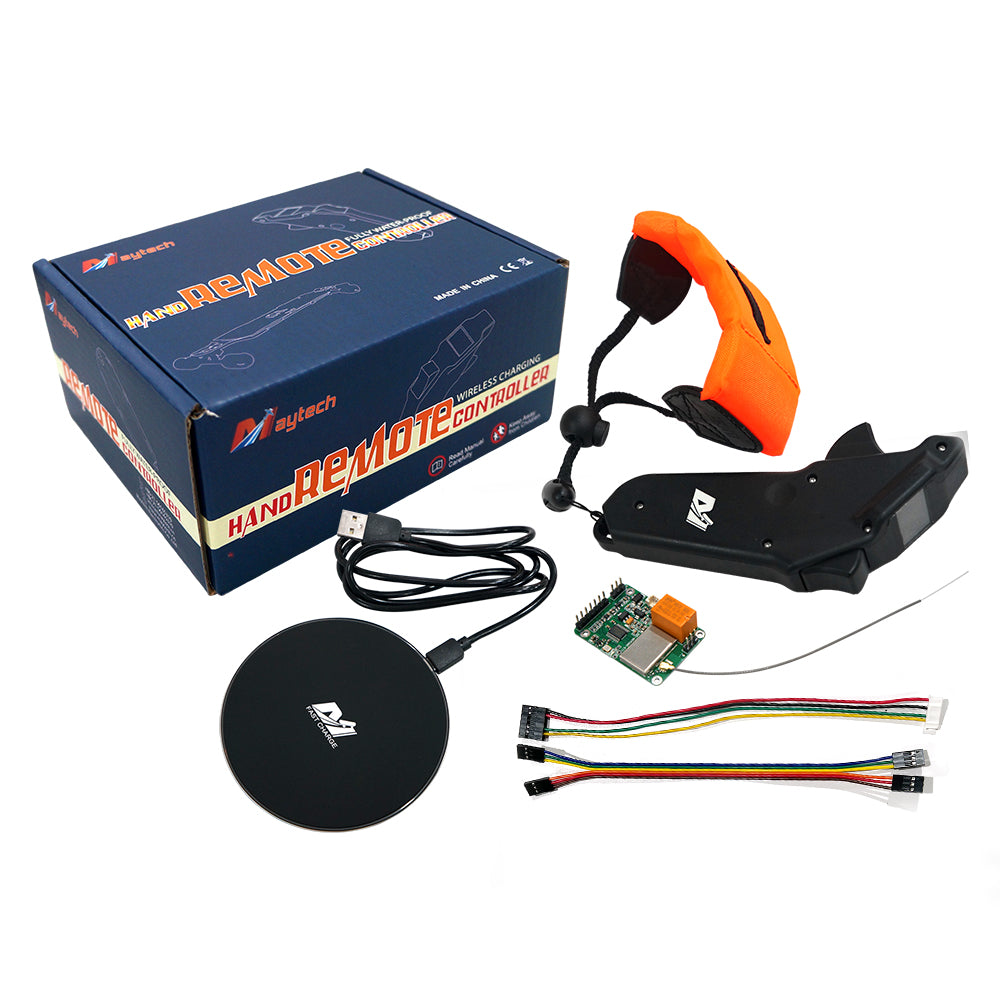

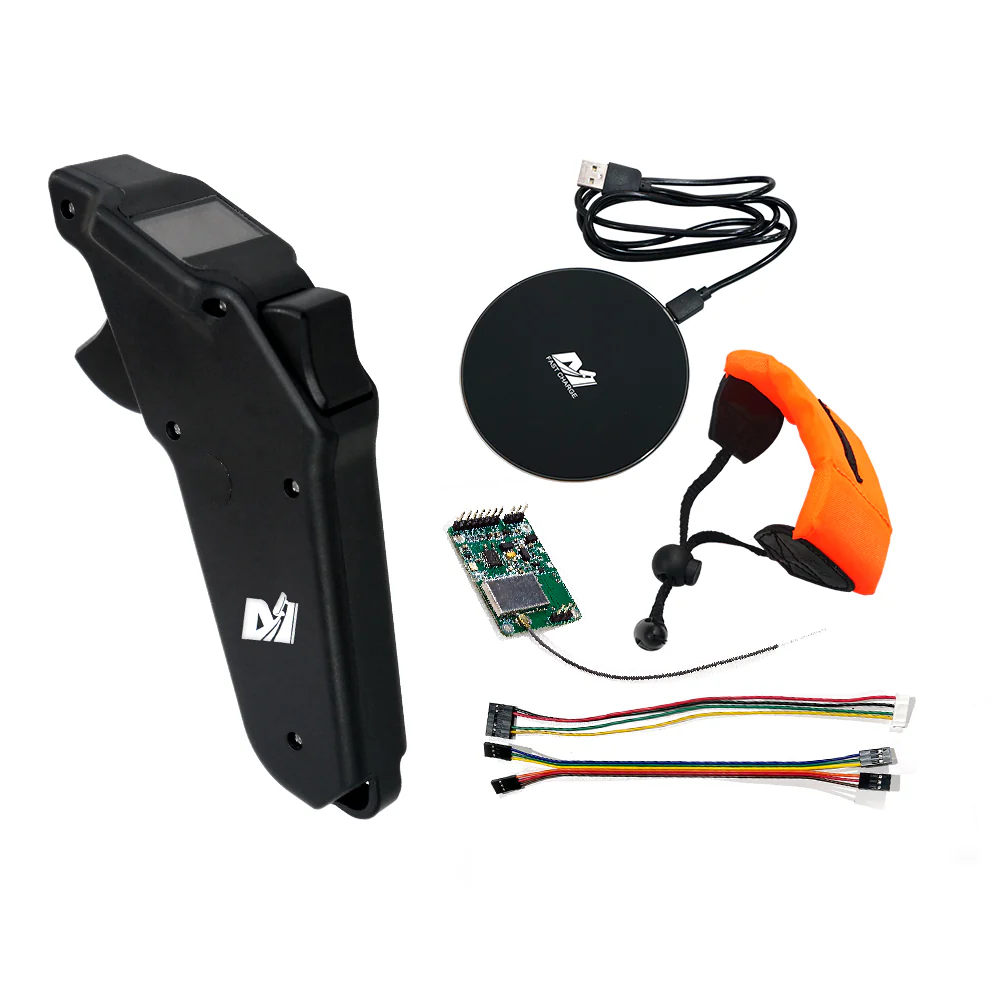

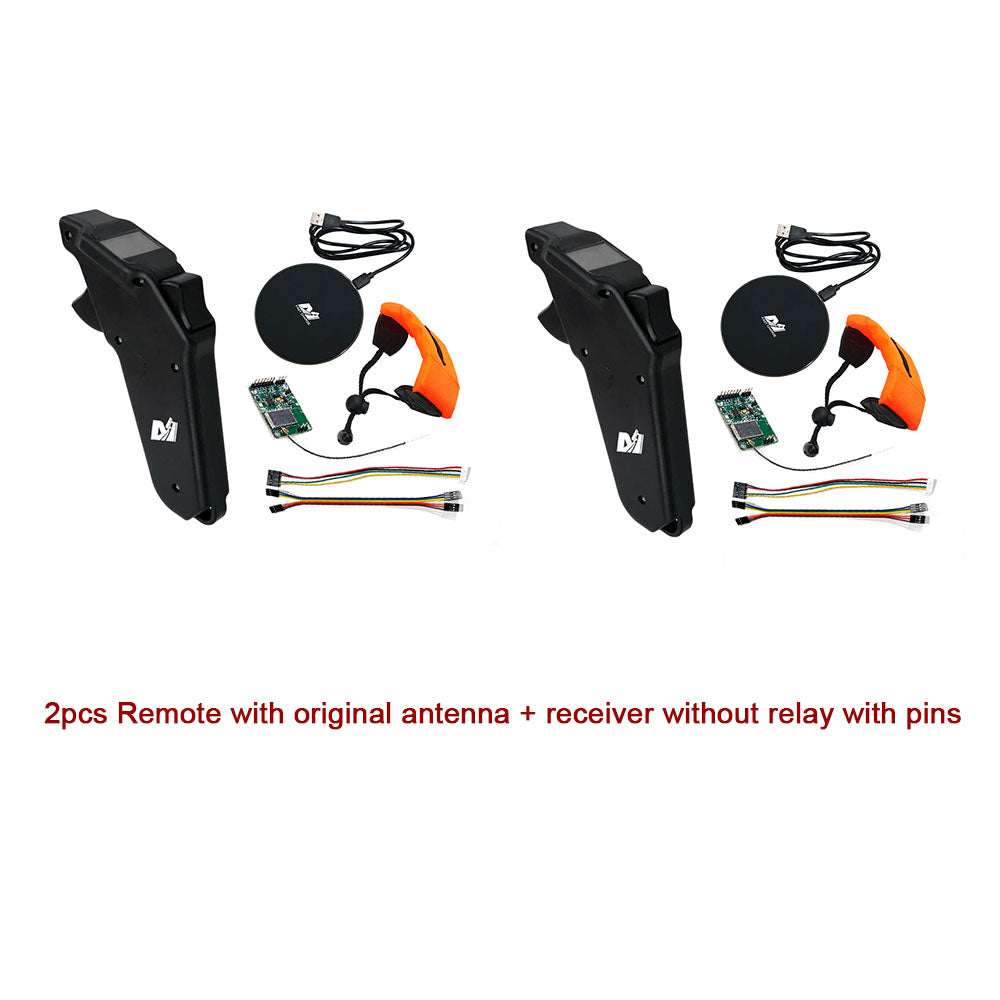

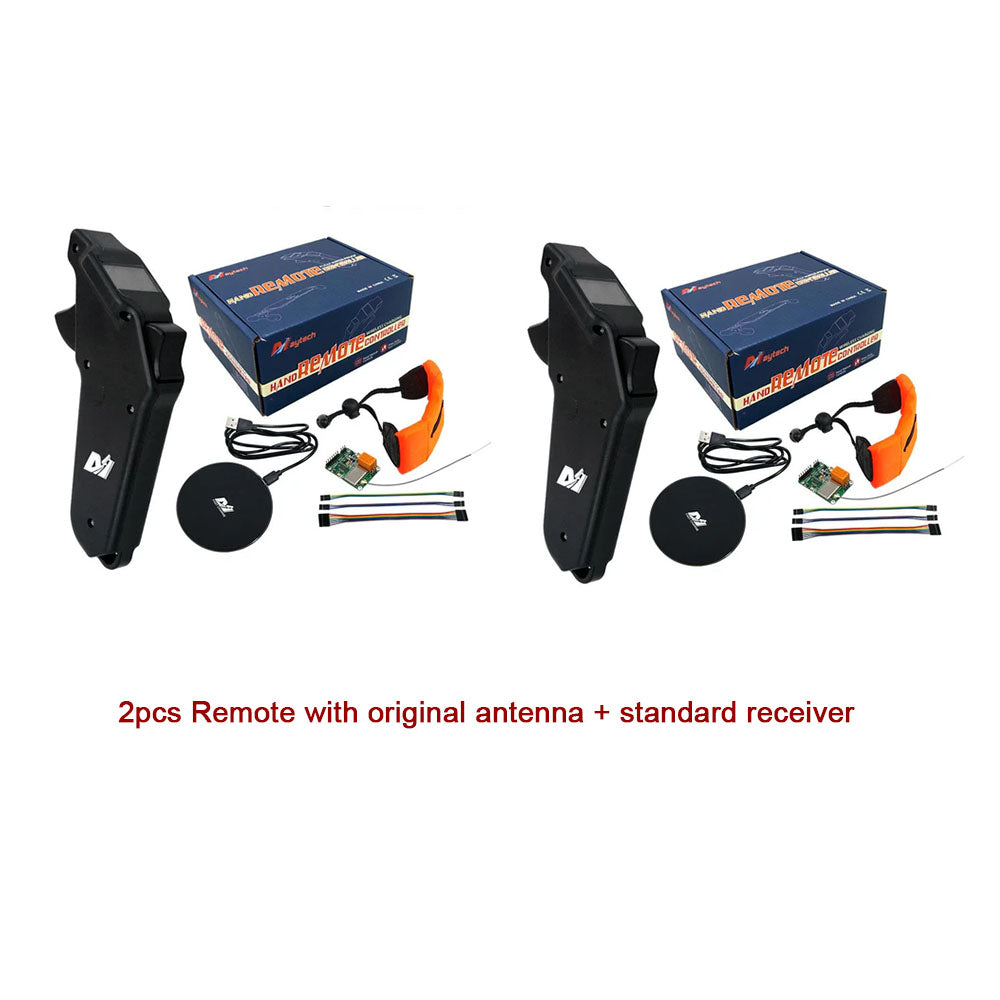

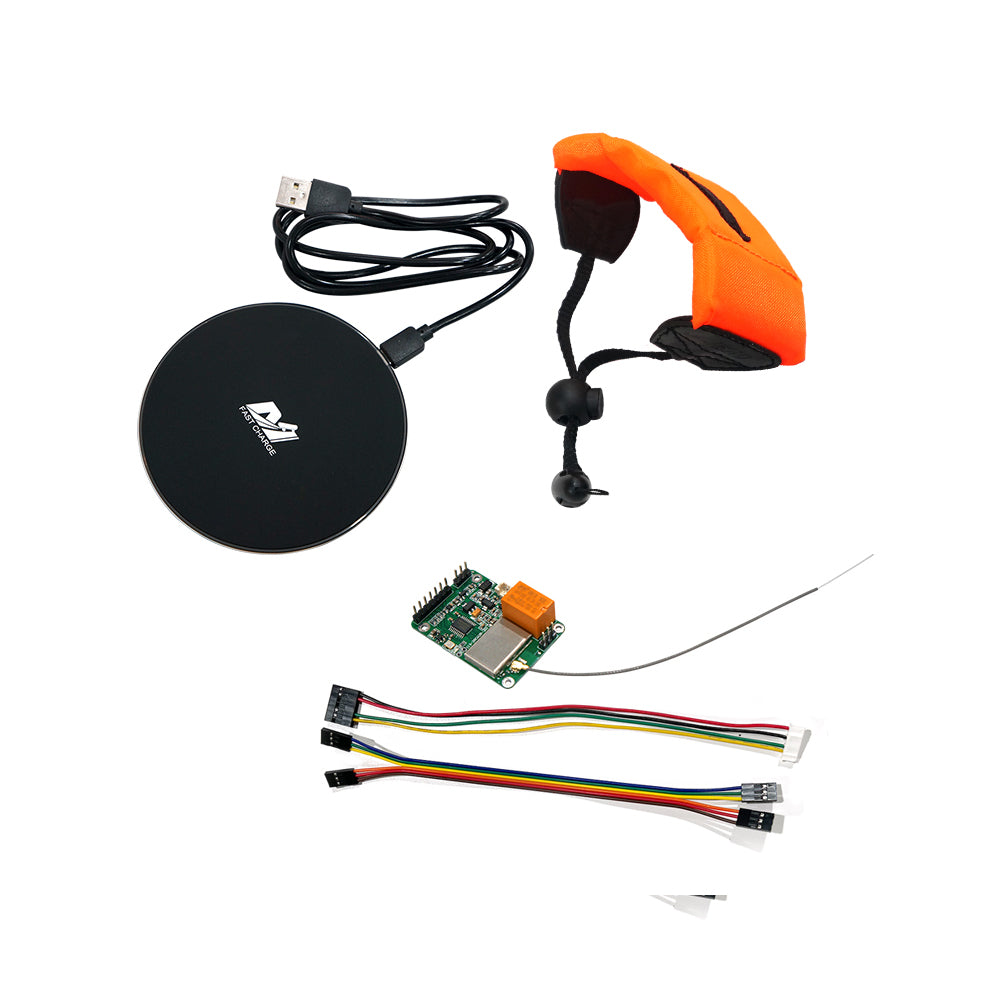

| Accessories | Wirelss charging pad / Receiver / USB cable / Wristband / 3pcs Dupond cable |
| Compatible Controllers | VESC/ Focbox/ Other PWM ESCs that has same signal output range with the remote. |
| Application | foil assist system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard/ elongboard/ mountainboard, electric paraglider, etc., |
Updated functions:
- Add 3 speed modes options: you can adjust max throttle % from 20%-100%, good option for beginners.
- Stronger signal and strength optional: Remote and receiver signal strength is enhenced to avoid some signal interference nearby. With 2 levels signal strength: ECO and PRO. ECO signal is better emergy saving, can work longer time for each full charing. PRO is stronger signal.
- Better waterproof performance.
- Compatible with Maytech new MTSF300A-WP32 ESC: Could compatible with Maytech new small MTSF300A-WP32 ESC and can display voltage, current, temperature, etc parameters

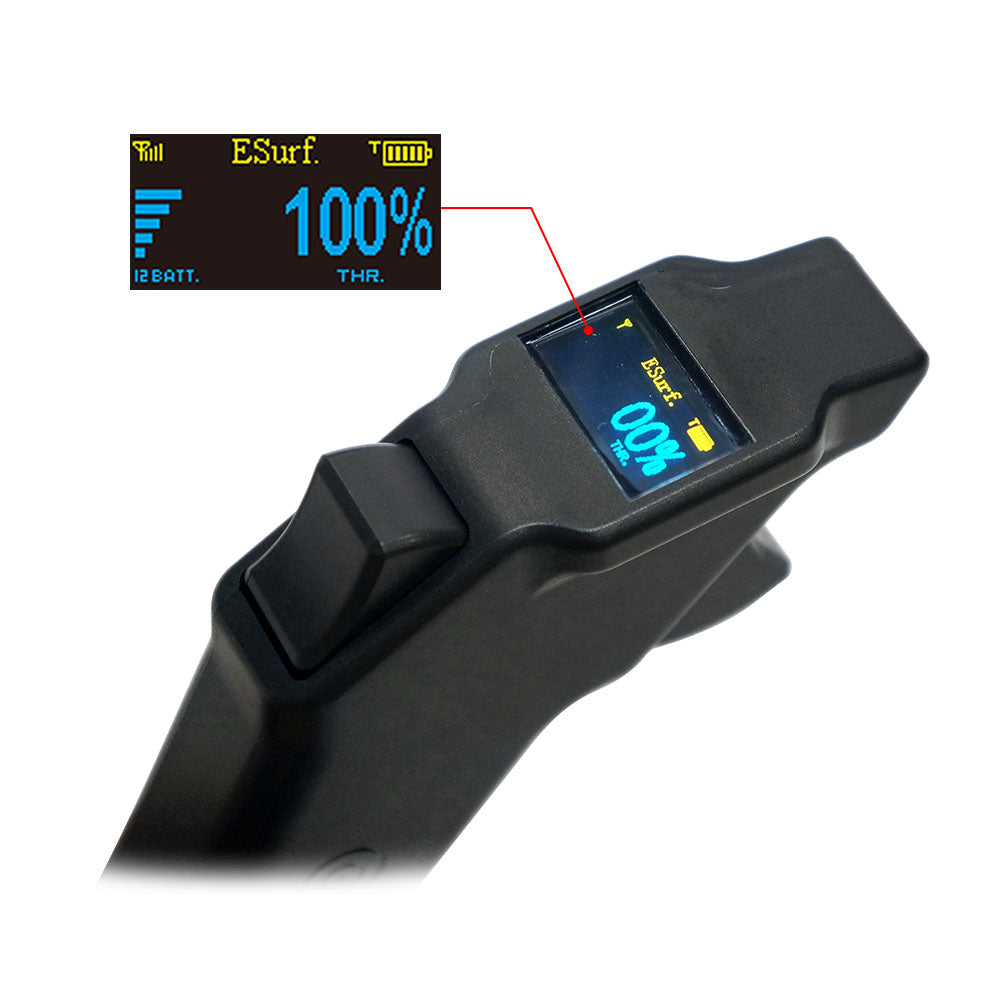

- Display Voltage in %
- Throttle Lock Function: you can set lock time from 10-120s, safer to use.
> Get E-Manual: Remote Manual and Instruction
> Check Video Using Instruction
Click Here: How to Display Volt, Current, RPM with TX and RX?
Parameters display in different Data Source and Throttle Mode:

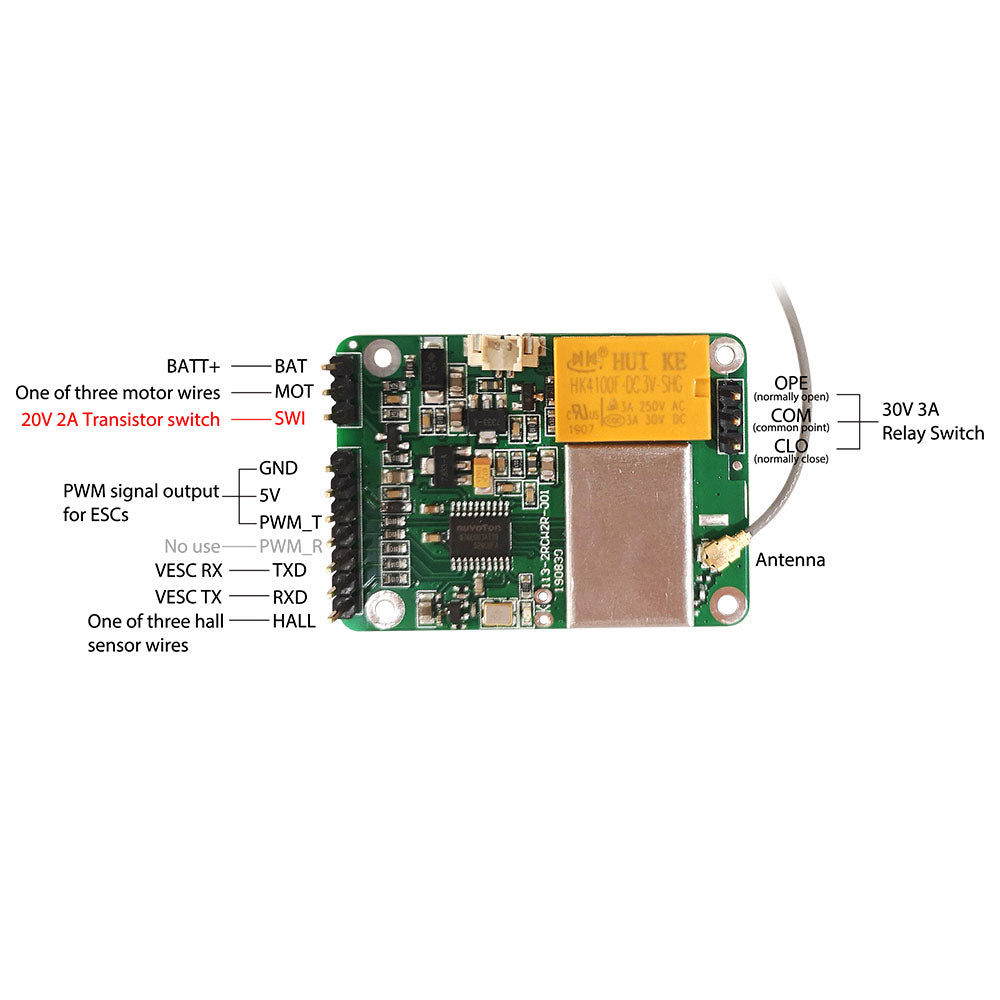

If you use MTSF160A-WP32/ MTSF300A-WP32 / MTSF300A-WP32-HV ESC, please refer to below wiring diagram:
If you use VESC controllers based on V4.12 / V6 / V75_300, please refer to below wiring diagram:
If you use MTSF130A-WP32 / MTSF300A-WP / MTSF500A-WP or other ESCs, refer to this diagram:
The remote has 2 Modes, signal output pulse width is different in 2 modes:
- Esurf Mode is 1ms-2ms, no stop no brake, if you use Esurf mode to work with VESCTOOL compatible controller, please use below settings in VESCTOOL and to match with the remote:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
Or you can use wizard mode to detect compatible value.
- Esk8 Mode is 1.5ms-1ms (Brake), 1.5ms-2ms (Speed up), 1.5ms is stop position.
Please noted to match compatible parameters for different modes in VESC_TOOL.

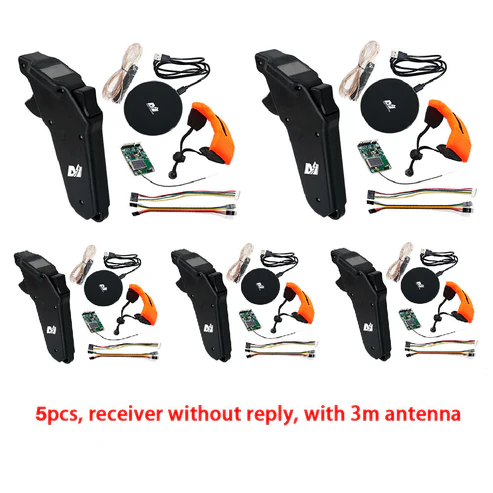

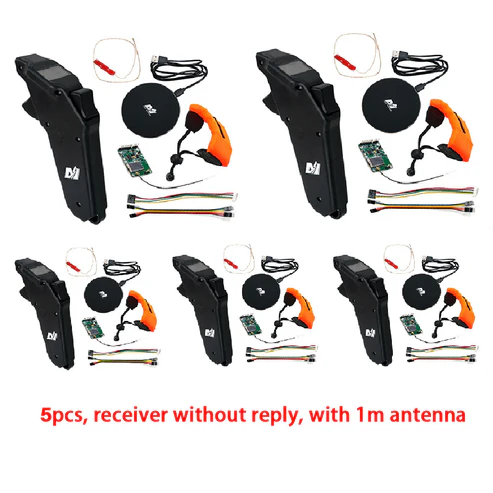

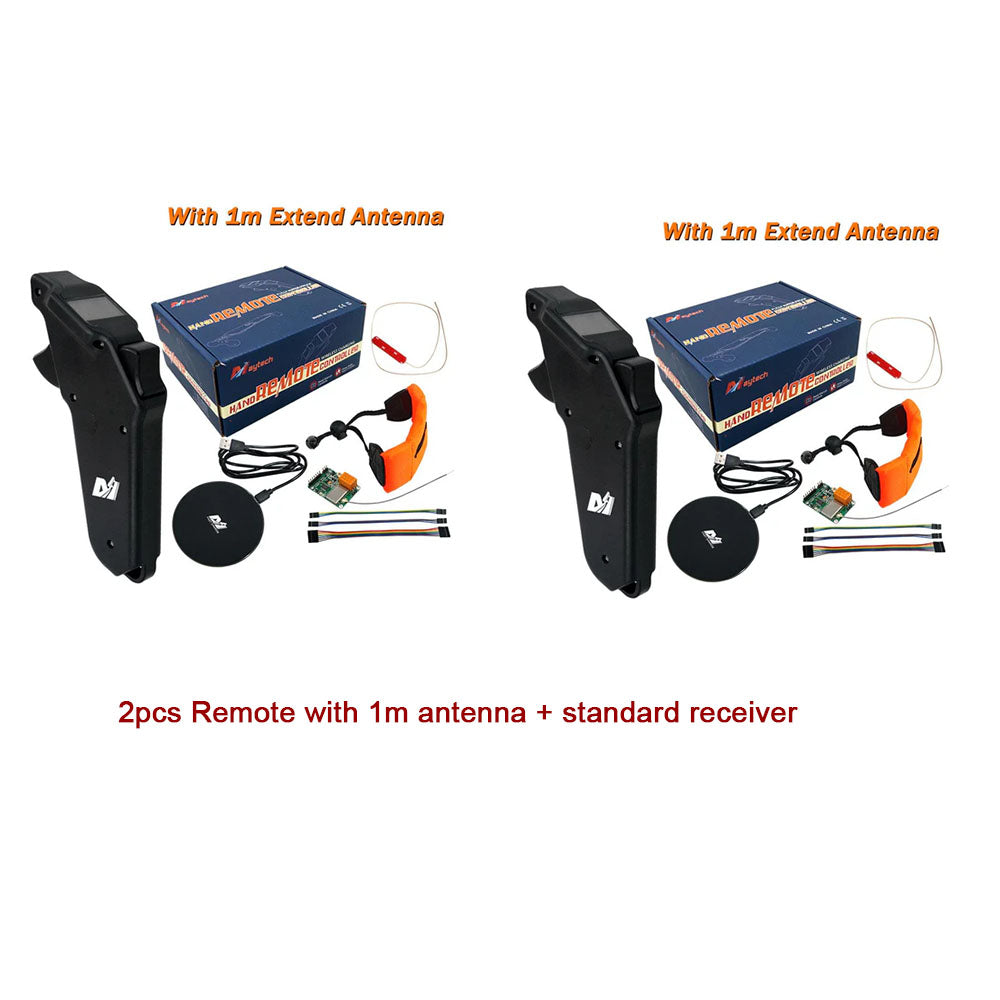

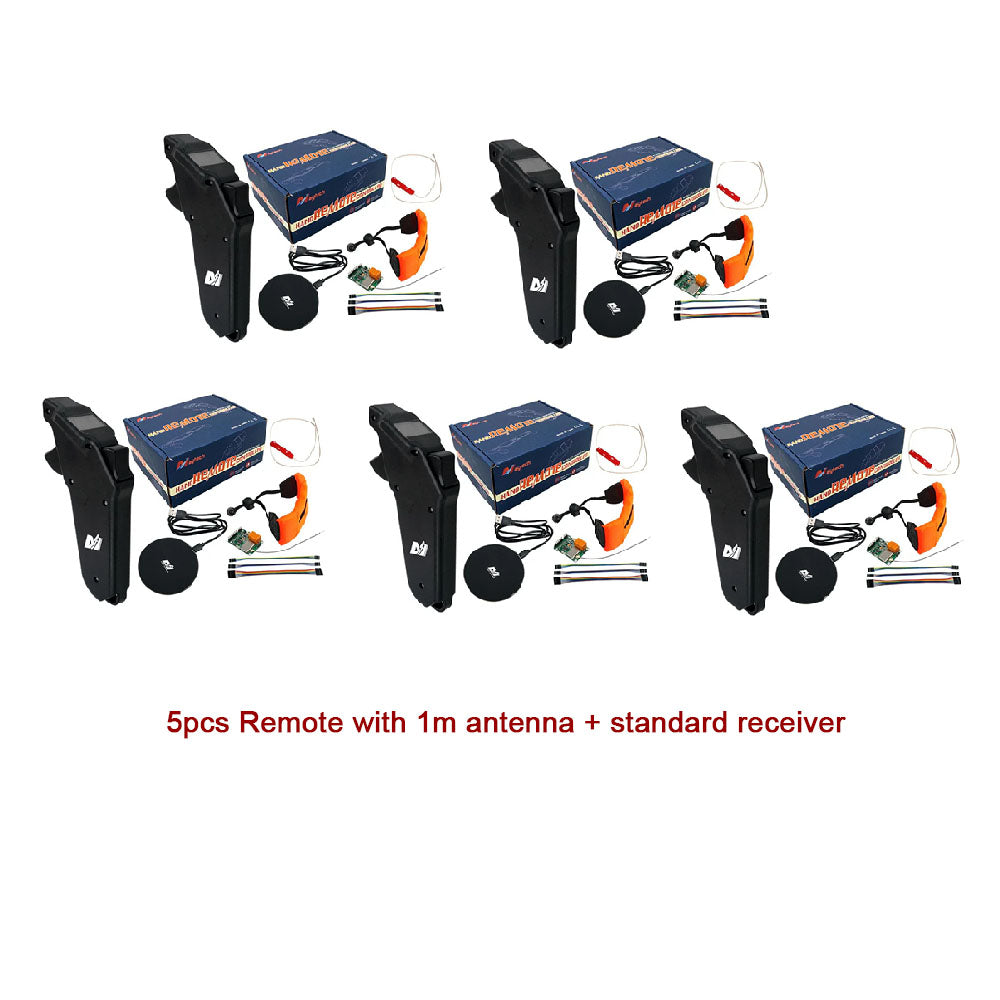

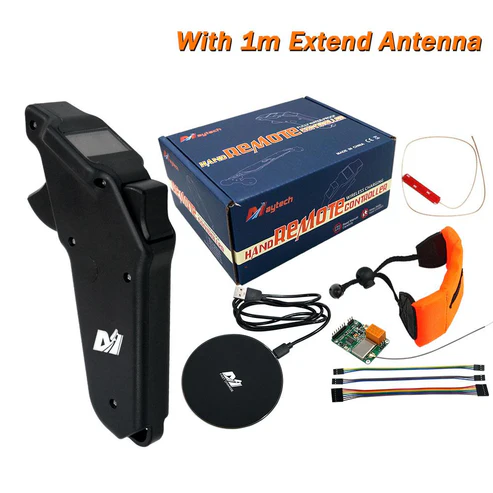

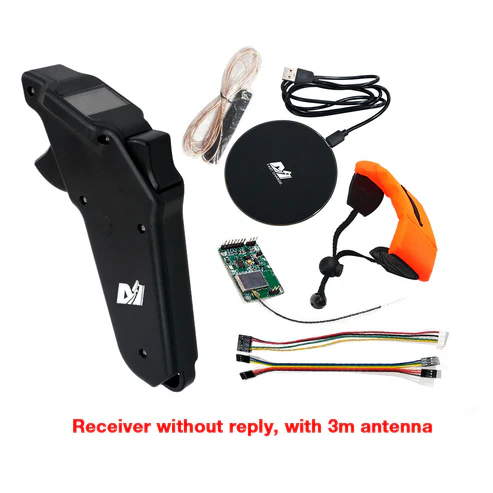

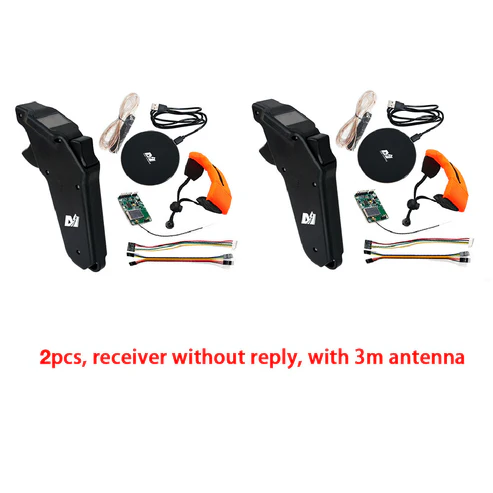

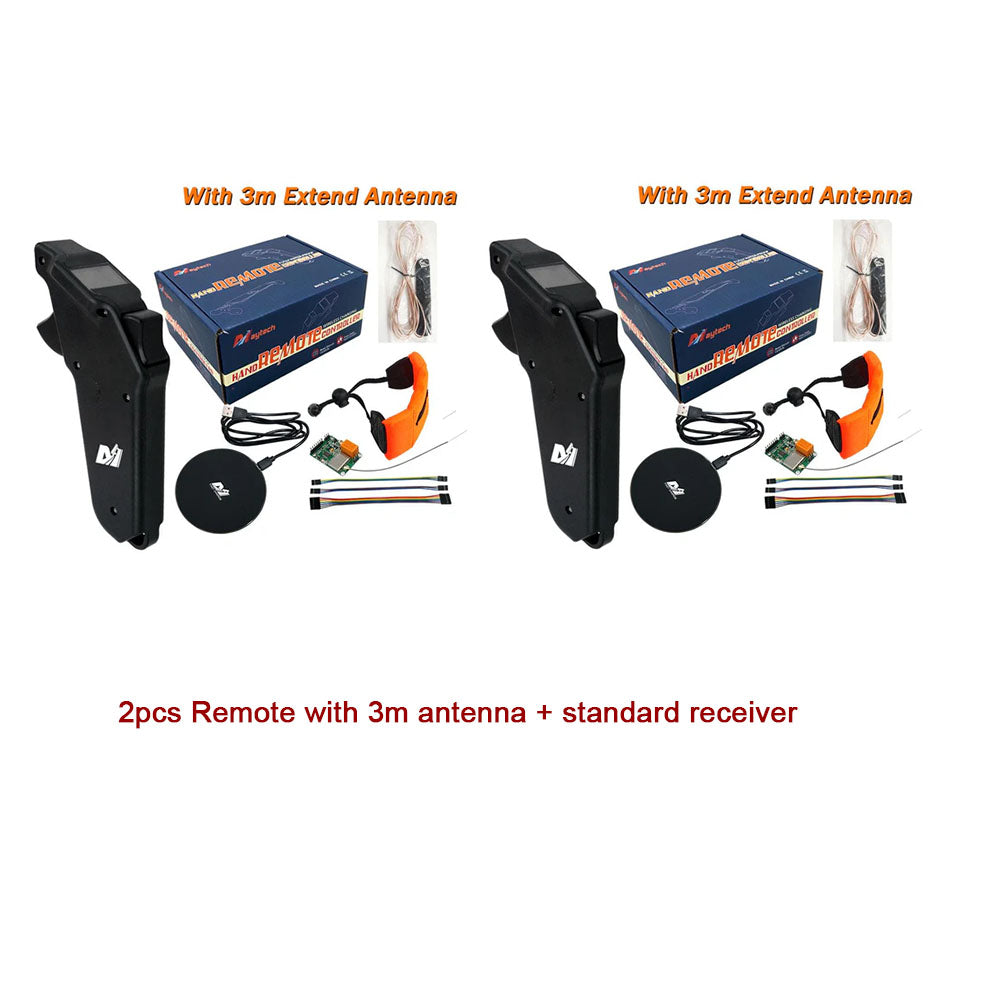

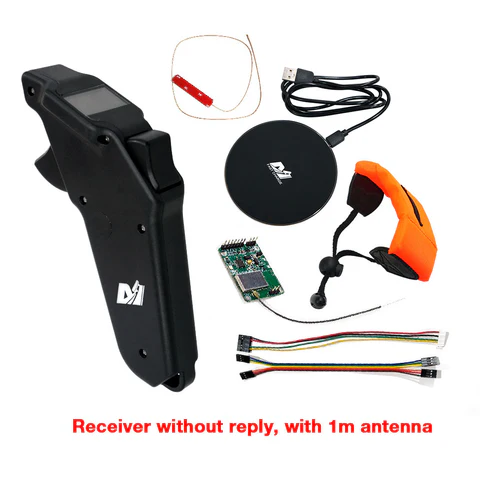

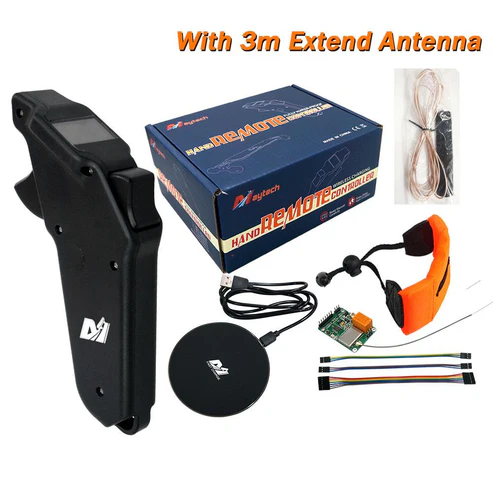

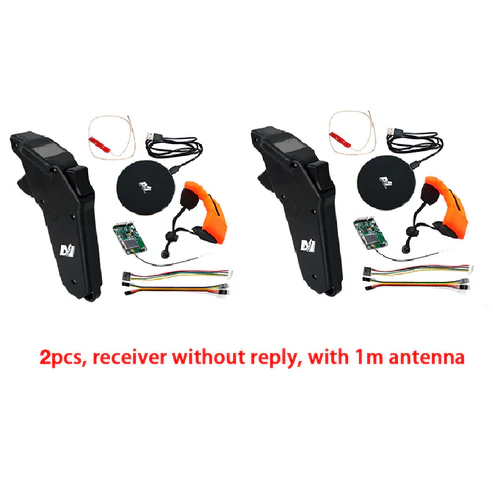

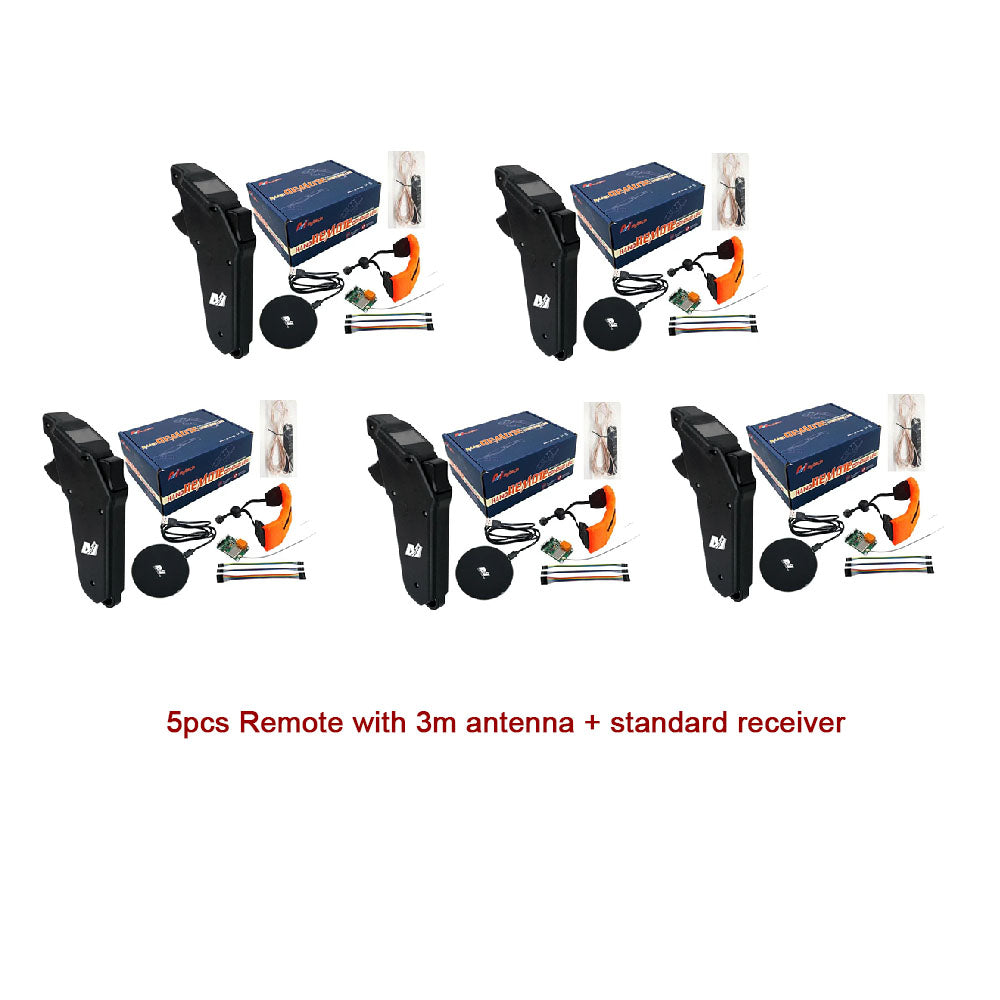

If your surrounded has strong magnetic interference, the signal might easy get lost, suggest you order the version with 1m or 3m extend antenna.
Tips After Using:
In order to avoid being corroded by sea water and to extend the remote life, please wash the remote in fresh water after using; Also please charge when the remote all dry.
