MAYRC Kit 200A VESC Controller 6396 8085 160KV 190KV Hall Motor Wireless Remote Controller for Electric Skate Board
MAYRC Kit 200A VESC Controller 6396 8085 160KV 190KV Hall Motor Wireless Remote Controller for Electric Skate Board
MAYRC Kit 200A VESC Controller 6396 8085 160KV 190KV Hall Motor Wireless Remote Controller for Electric Skate Board
Specifications:

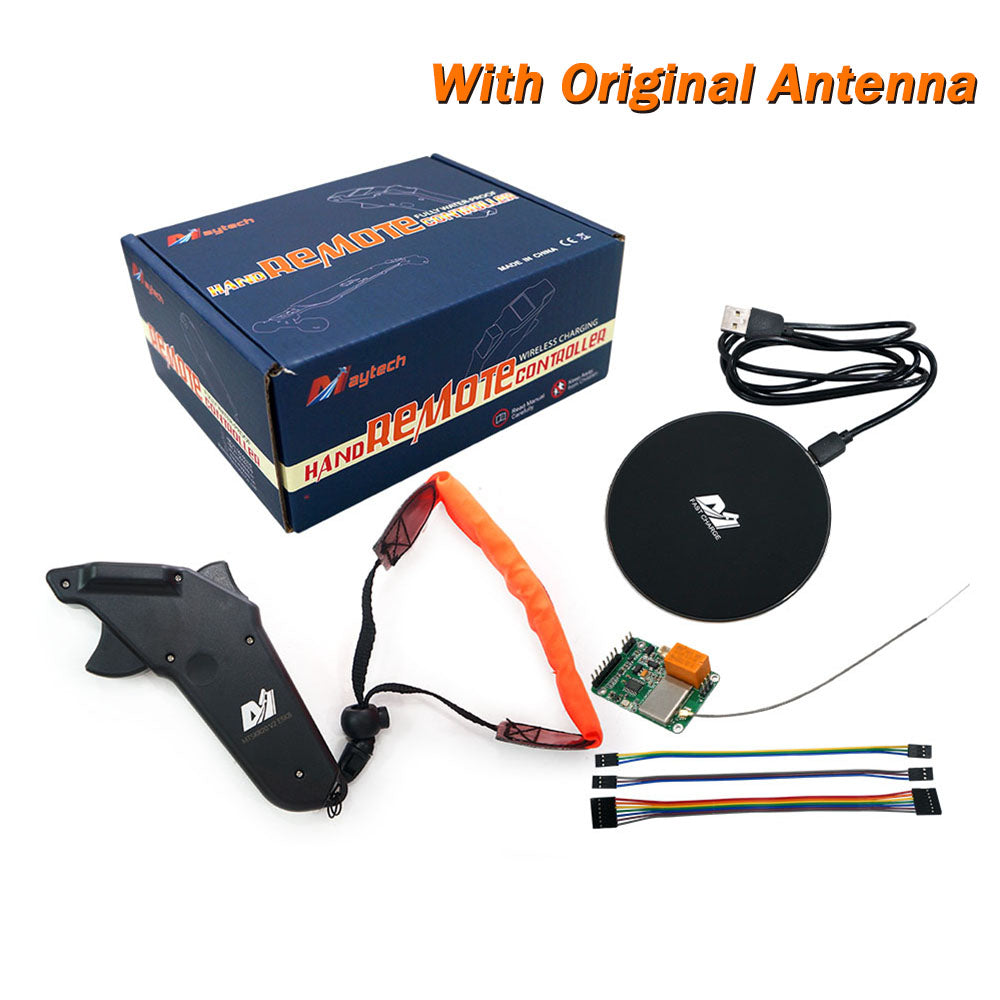

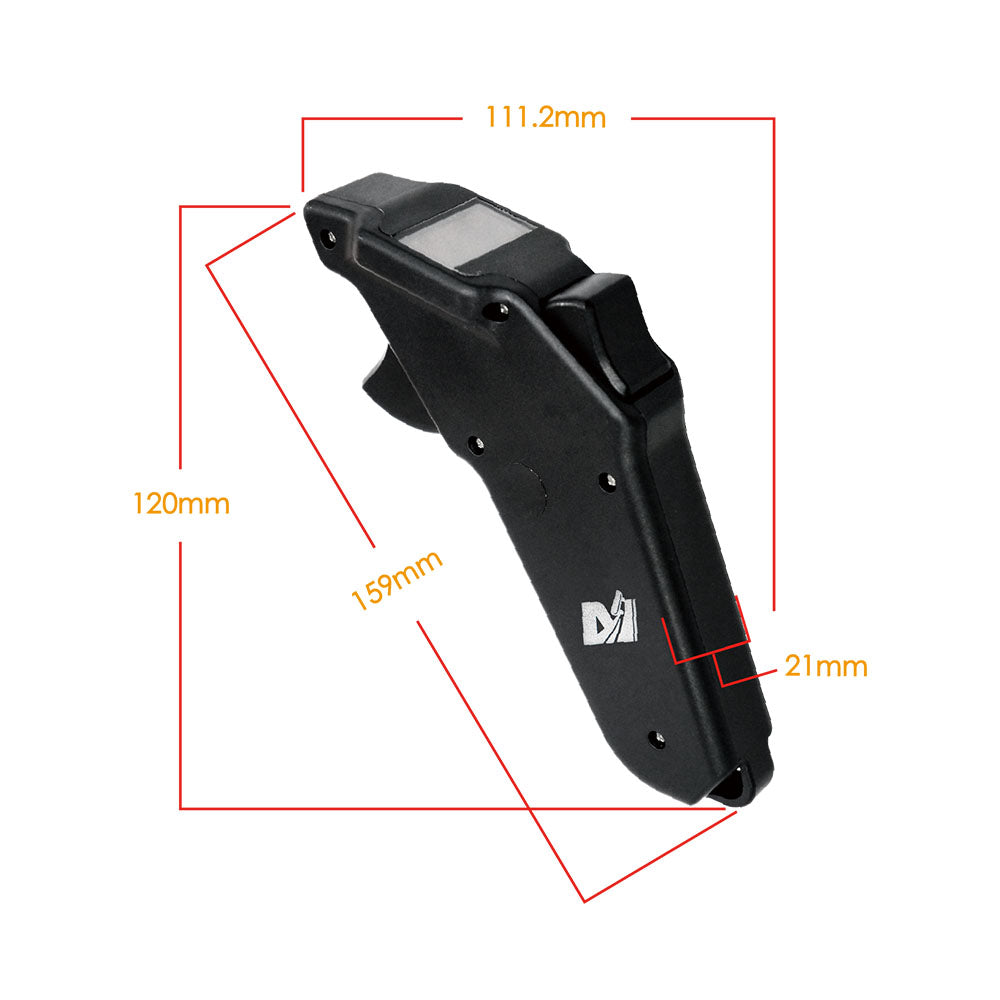

Model 1:MTSKR2005WF
Waterproof:With glue inside, IP66
Signal Format:PWM
Feature:With 3 speed mode, speed display, distance display, etc.
Working time:>5 hours
Transmission distance:Air 10M
Built-in Relay switch:mechanical 30V 3A
Display screen: 128x64 OLED, yellow and blue

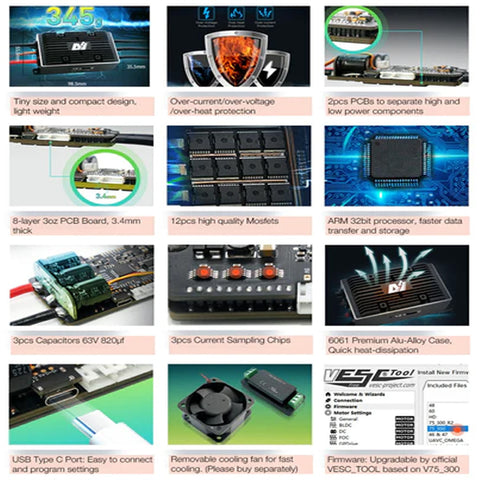

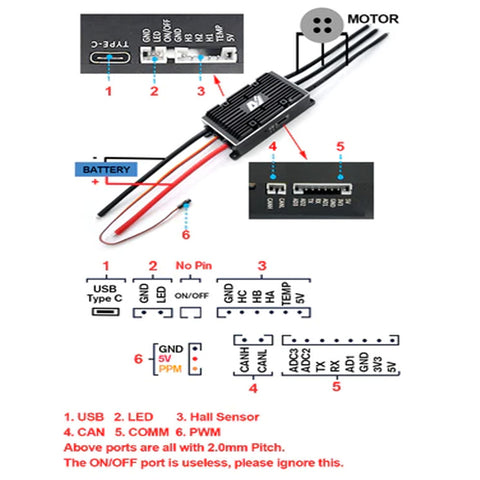

Model 2:MTSPF7.12K
With Aluminum Case:YES;more compact size
Cont. Current:200A
Input Volt.:75V
Hardware:Based on V7.5
Firmware:Upgradable
Software:VESCTOOL Compatible
FOC:YES; Better than V4.12
Compatible motor:Sensor or sensorless
Weight:300g

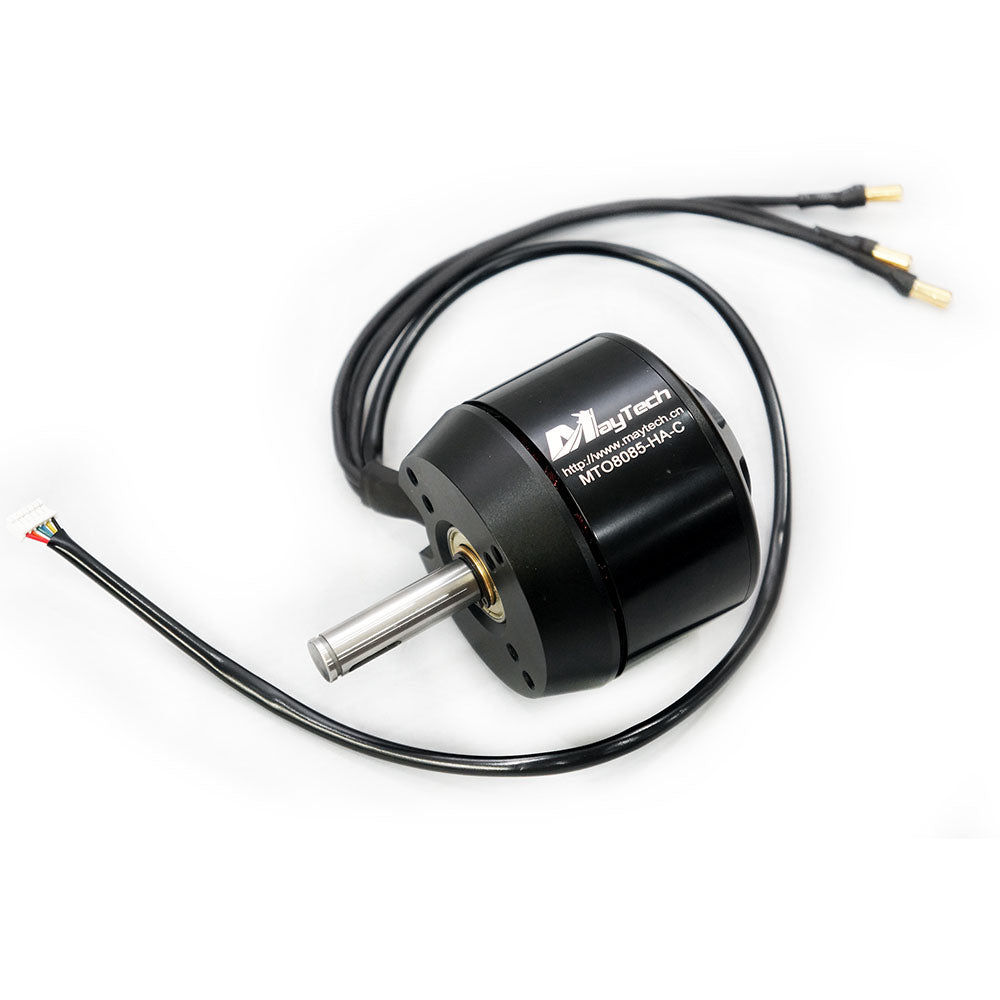

Model 3:MTO8085-160-HA-C
KV:160
Idle Current:0.8A
Rated Current:90A
Max. Current:64A
Input Volt.:11.1-60V
Max. Output Watt:5330W
Max. Pull:15500g
Resistance:0.028
Weight:1115g
Shaft:12mm with 3mm keyway,output 44mm

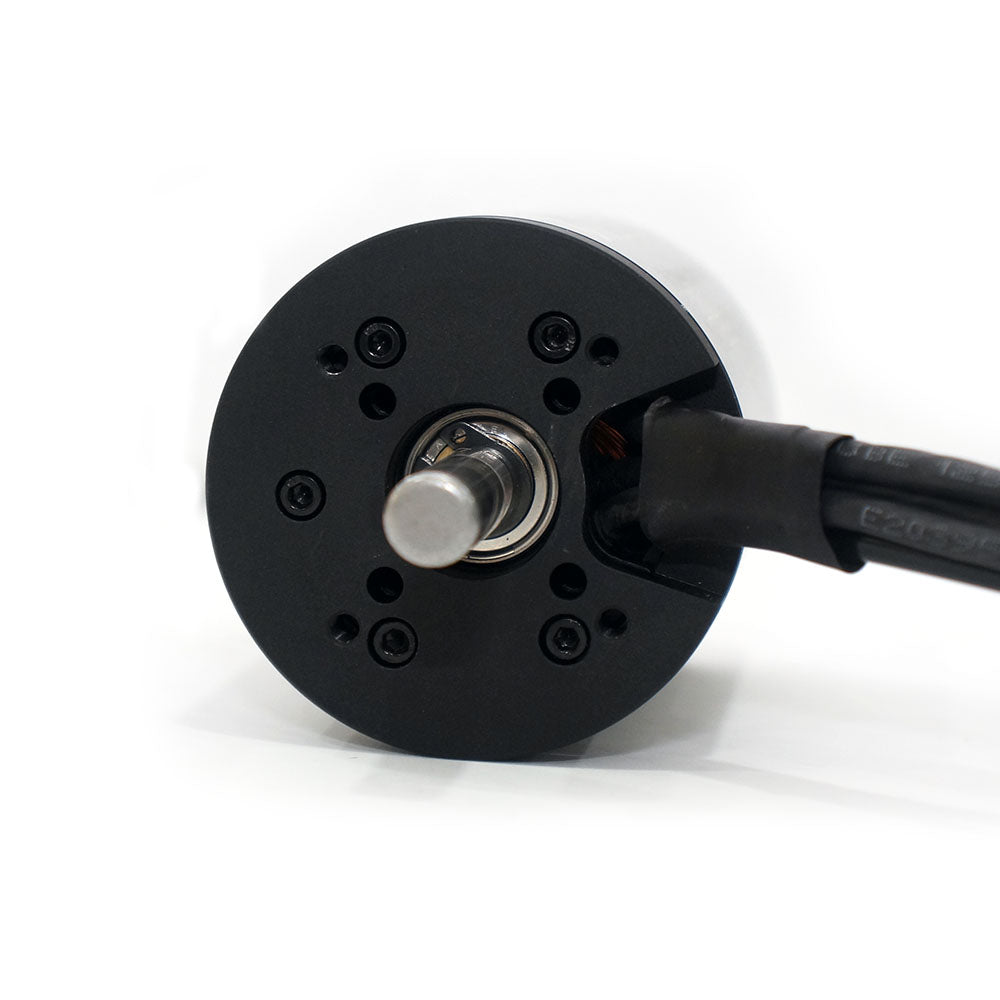

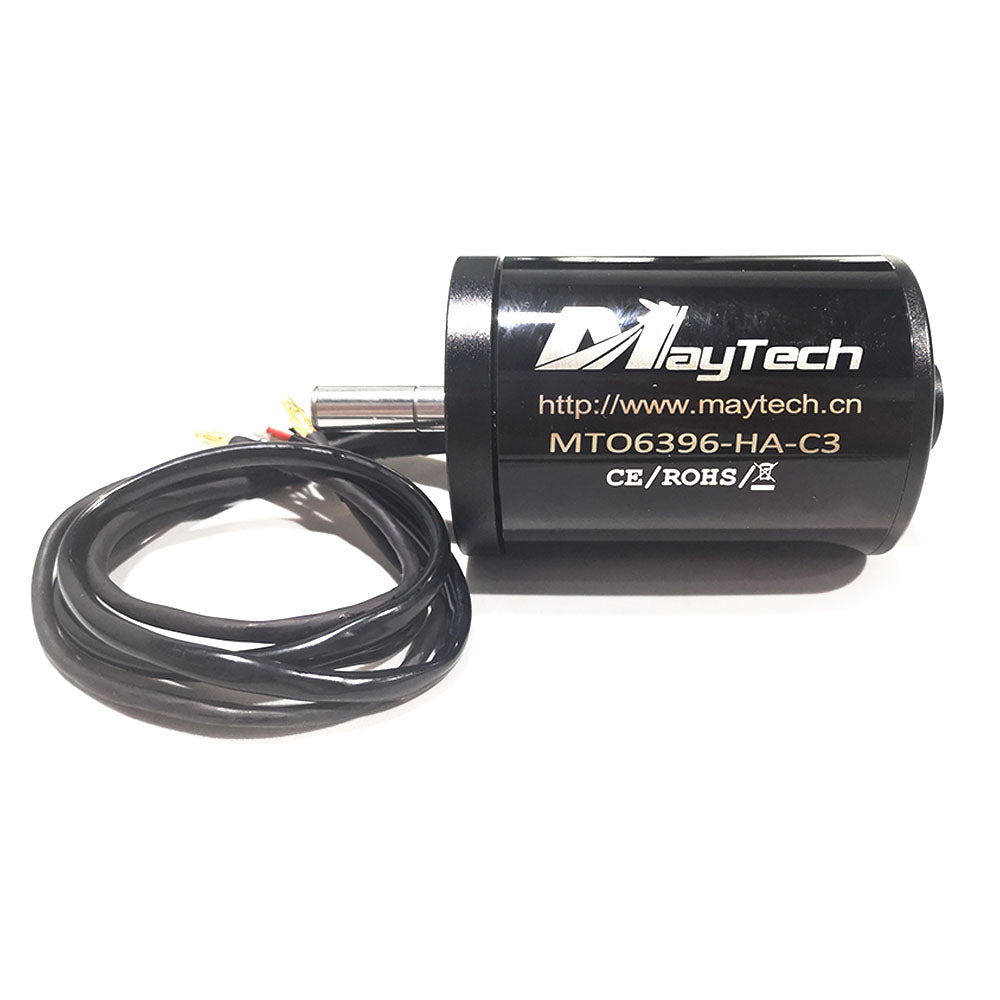

Model 4:MTO6396-190-HA-C3
KV:190
Idle Current:0.8A
Rated Current:65A
Max. Current:80A
Input Volt.:11.1-50V
Max. Output Watt:4550W
Max. Pull:13500g
Resistance:0.02
Weight:1280g
Shaft:10mm with 3mm keyway,output 45.5mm
MTSKR2005WF Notice before place order:
This MTSKR2005WF is IP66 splashproof, can only use for electric skateboard, please do not use for water sports.
If your surrounded has signal interference, suggest to choose the version with extend antenna, the longer the antenna the stable the signal.
MTSKR2005WF Tips for Usage:
1. This remote only has Esk8 mode, and it's just normal waterproof, can only work for electric skateboard, please do not use for Esurf.
2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit
3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.
If you want to use the remote for Electric surfboard/ Efoil, please choose MTSKR1905WF
MTSKR2005WF Go to the following Youtube Links to check the remote instruction videos:
1. 3 Speed Mode Setting: https://youtu.be/bSyG4k-D76U
2. Remote Main Battery Display Setting: https://youtu.be/ibd0431_NSg
3. Sub-menu 7-14 Settings:
https://youtu.be/O8IgYdbT2-A
Suggestion about Extend Antenna;
