Mayrc Industrial

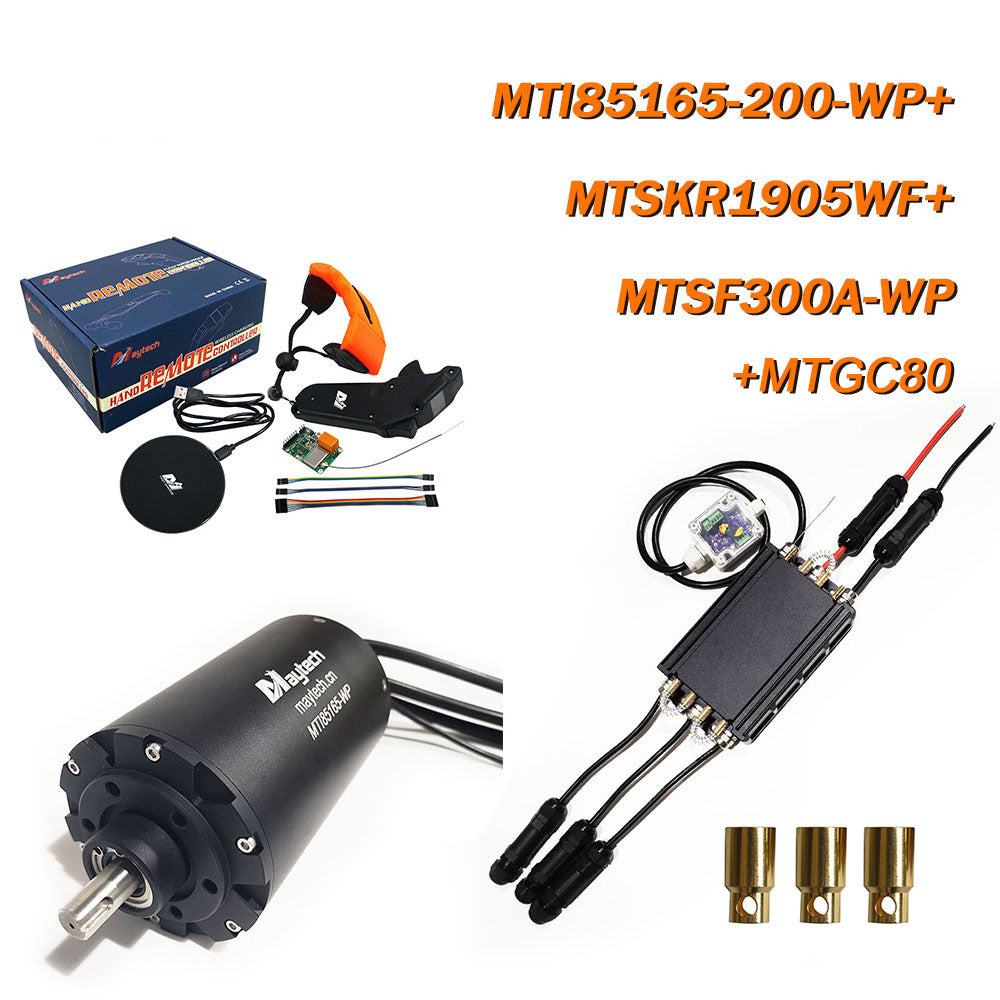

MAYRC Kit 300A VESC 65162 70182 85165 100KV 200KV Waterproof Motor IP68 Wireless Remote for E Foiling Eletric Foil Assist

MAYRC Kit 300A VESC 65162 70182 85165 100KV 200KV Waterproof Motor IP68 Wireless Remote for E Foiling Eletric Foil Assist

Regular price $1,237.95 USD
Regular price $1,262.71 USD Sale price $1,237.95 USD
Sale Sold out
Combination set

MAYRC Kit 300A VESC 65162 70182 85165 100KV 200KV Waterproof Motor IP68 Wireless Remote for E Foiling Eletric Foil Assist

Specification:

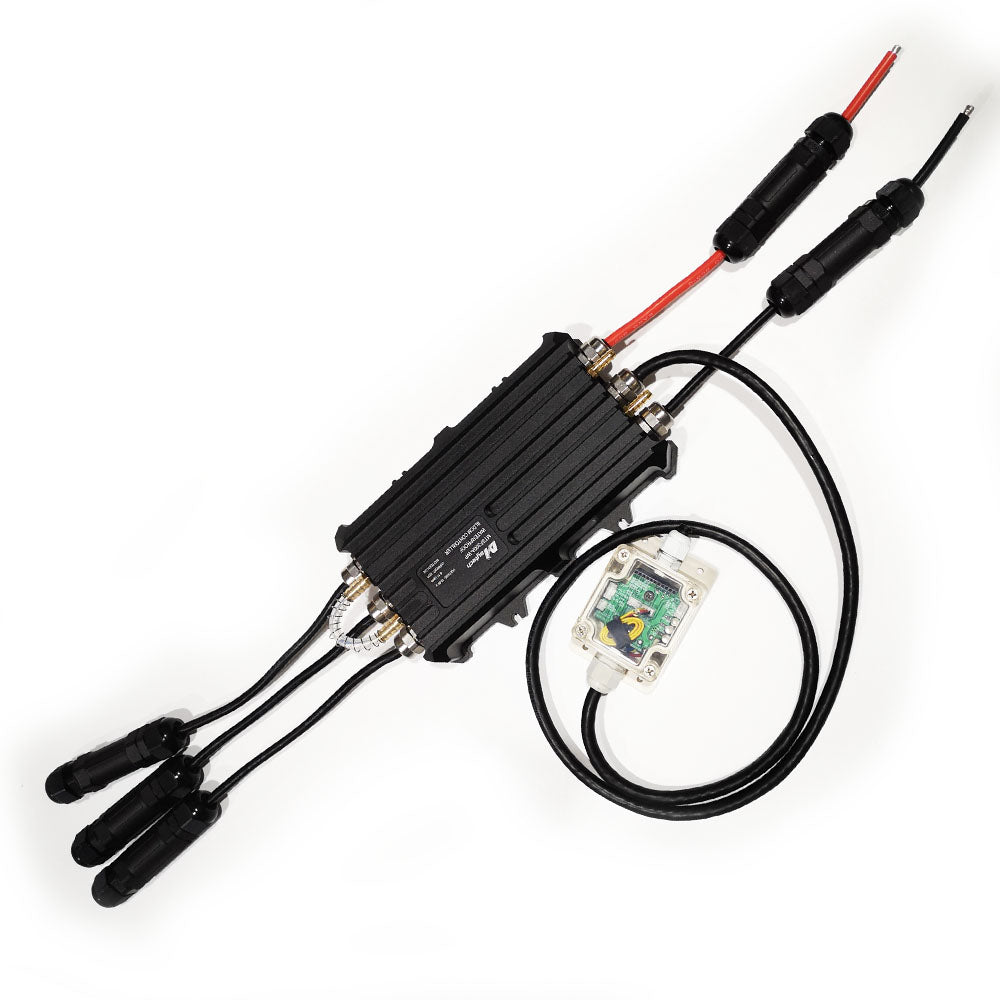

Model 1 :MTSF300A-WP
Cont. Current:300A
Max. Current:1000A
Volt.:25-58V
Water-cooled:water-proof version IP68
Can work in water
Size:PCB size 138*80*30mm
Weight:1440g

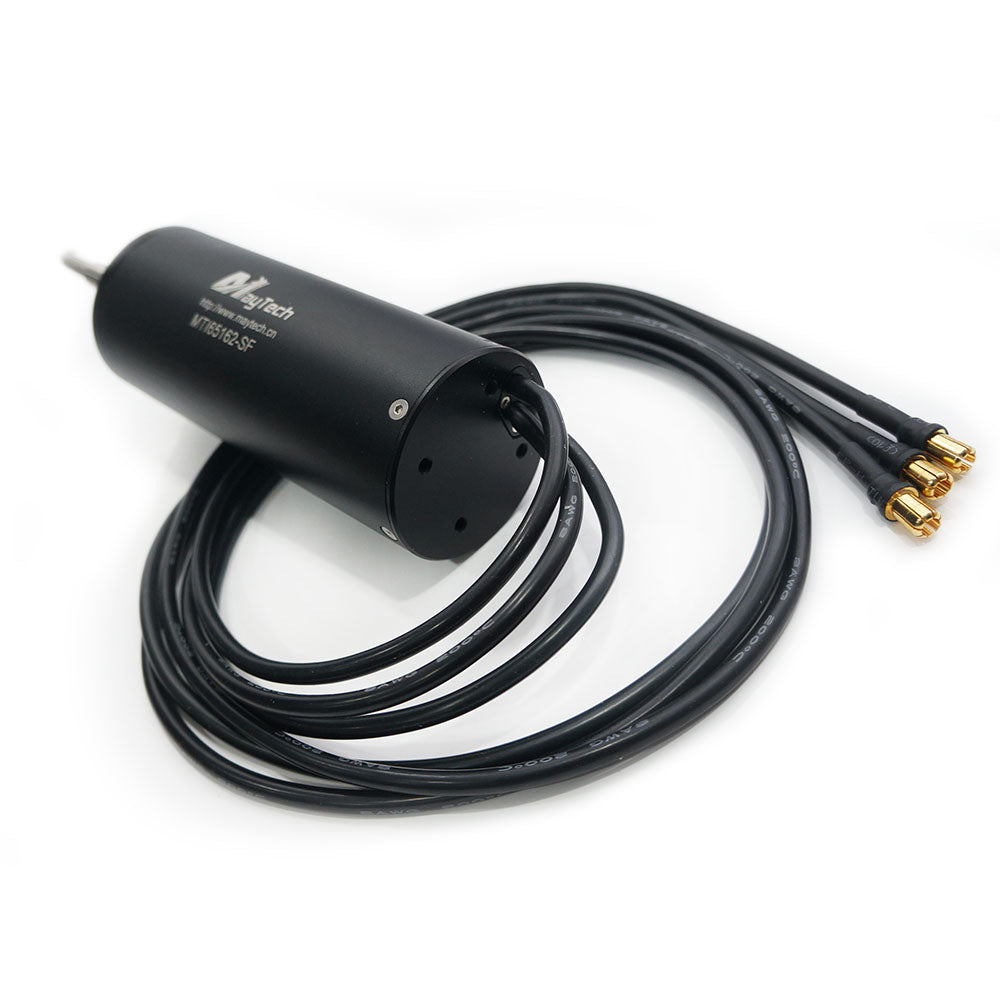

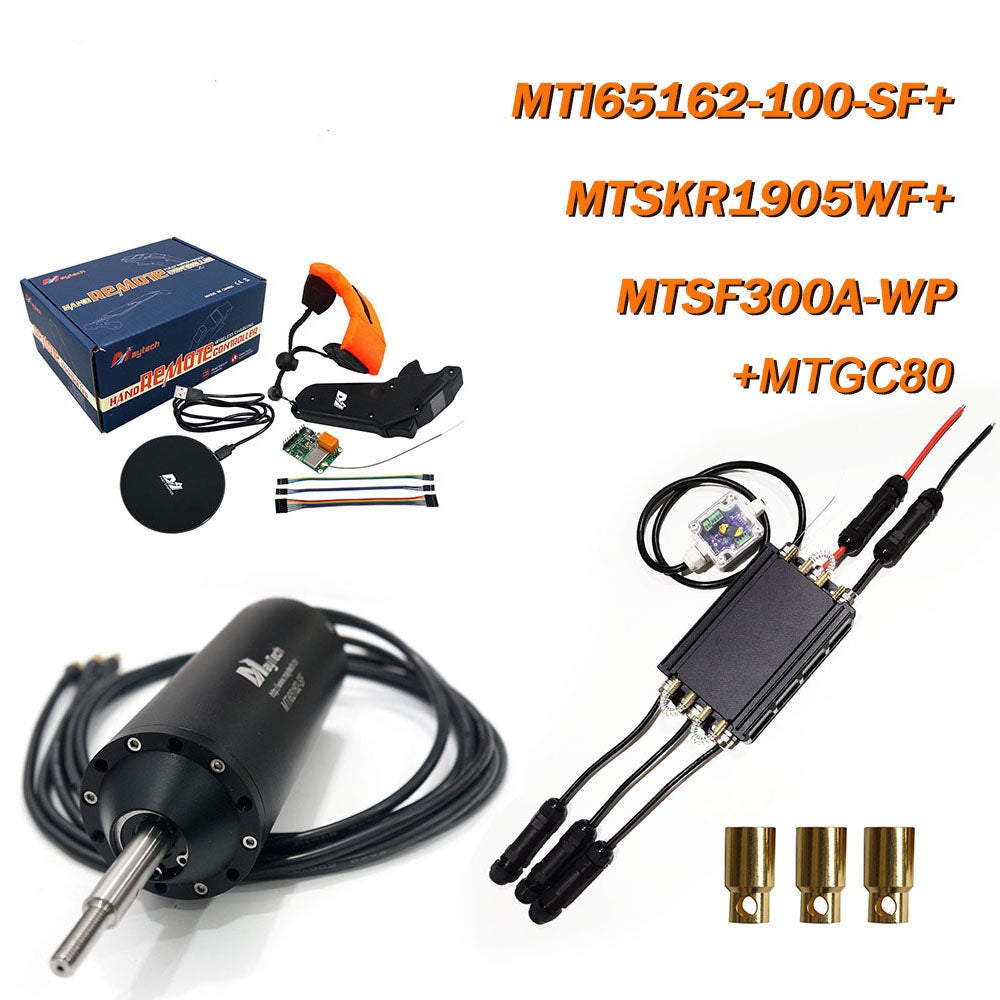

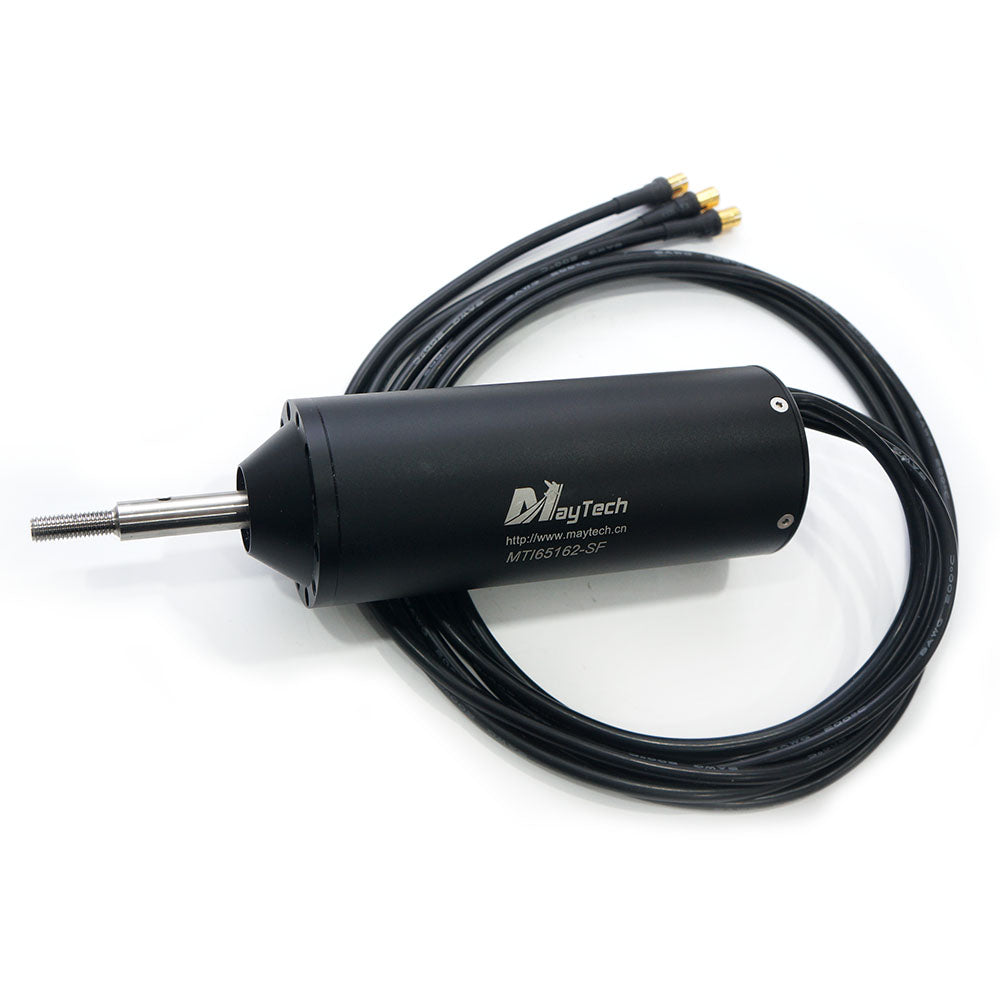

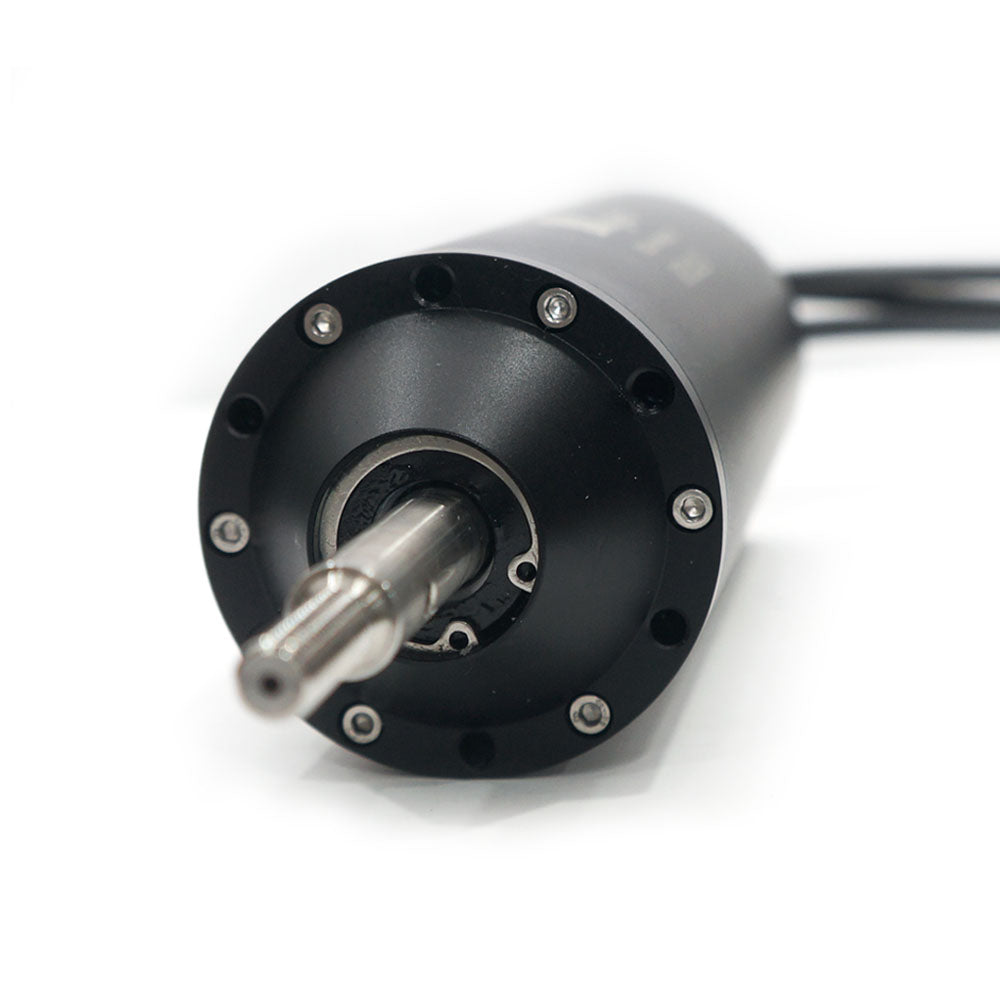

Model 2 :MTI65162-100-SF
KV: 100
Waterproof: IP68
RPM/V/Max RPM:100/14300
Idle Current:1.6A
Rated Current:240
Max Current (A):310
Rated/Max Torque(N*M):7/9.0N*M
Max Power:9.1KW
Winding Turns/Construction:4T/18N/6P
Motor&Shaft Size(mm):65x 162mm&12mm
Weight:2.1g
Shaft: Threaded shaft
Pole Number: 18N6P
Input Voltage: 25-126V
Cable Length: 1.3m

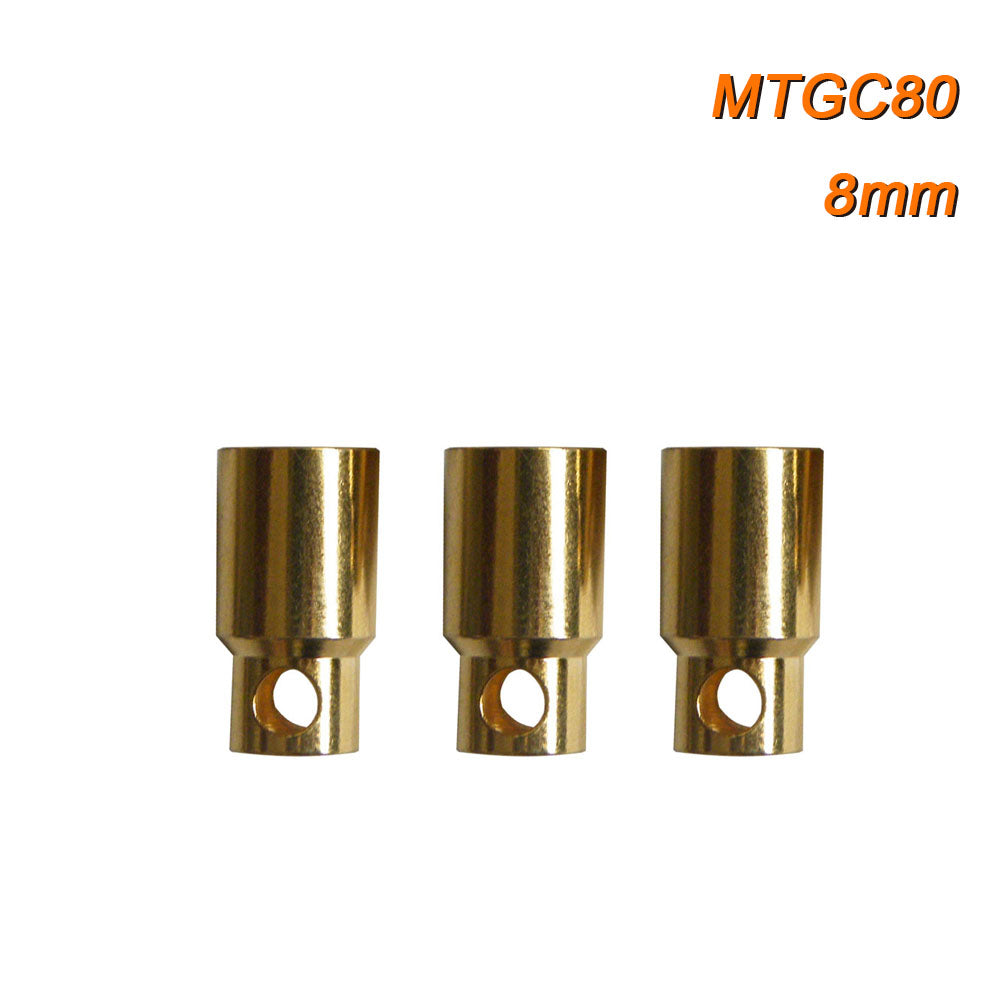

Connector: 8.0mm gold-plated male connector
Customize: Logo, cable length, connector, cover, shaft, etc., contact us

Model 3:MTI70182-100-SF
RPM/V/Max RPM:100/12350
Idle Current@10V:2.0A
Rated Current/Max Current (A):120A/150
Working Voltage:35-118V
Rated/Max Torque(N*M):10.8/13.5N*M
Max Power(10S):9KW
Winding Turns/Construction:3T/12N/10P
Motor&Shaft Size(mm):Φ70x 182mm&12mm
Net Weight (kg):3.1

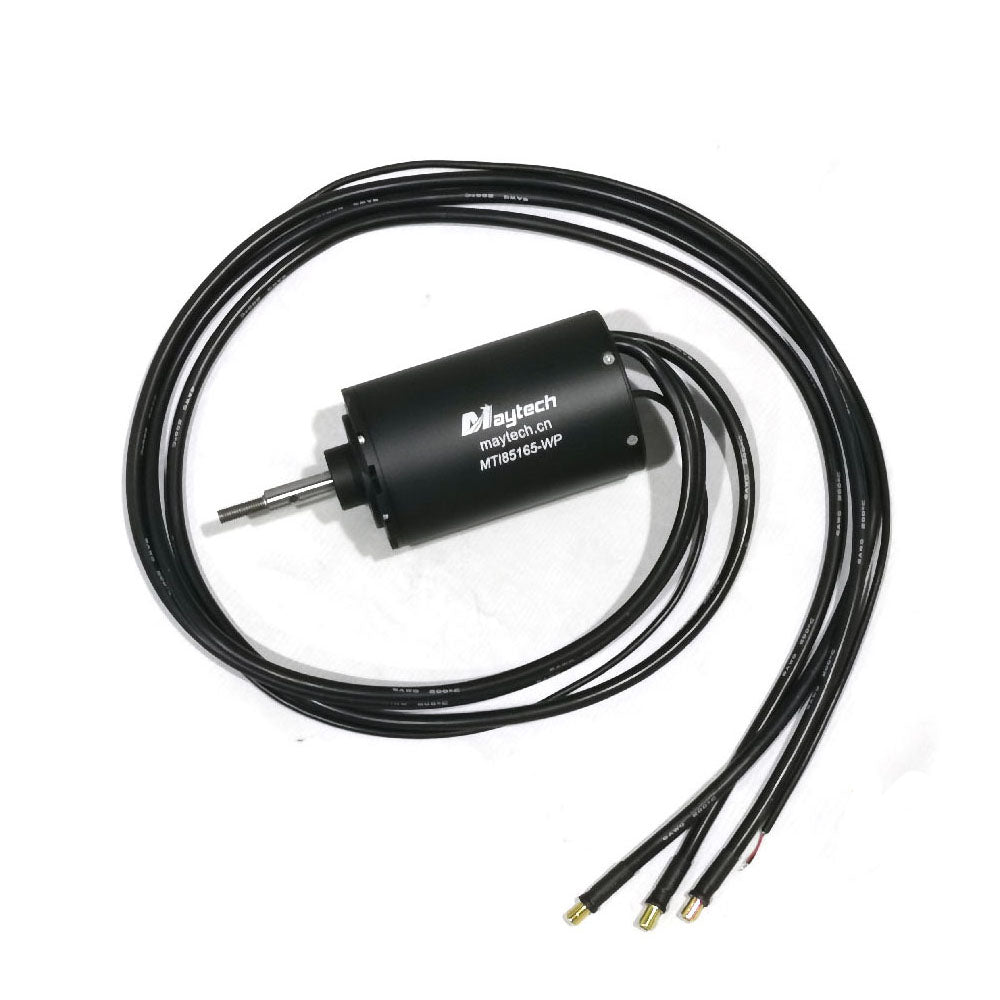

Model 4 : MTI85165-200-WP
KV : 200KV, KV can be Customized
Product Name: Fully Waterproof Brushless Motor Sensored &Sensorless Motor
Waterproof Rank: IP68 Waterproof
Water-cooled: No
Max Current: 300A
Max Output Watt: 15000W
Rated Power: 9.5KW
Input Volt: 50-84V (8S-16S lipo)
Max Torque: 15.5N.m
Cable Length:1.2m

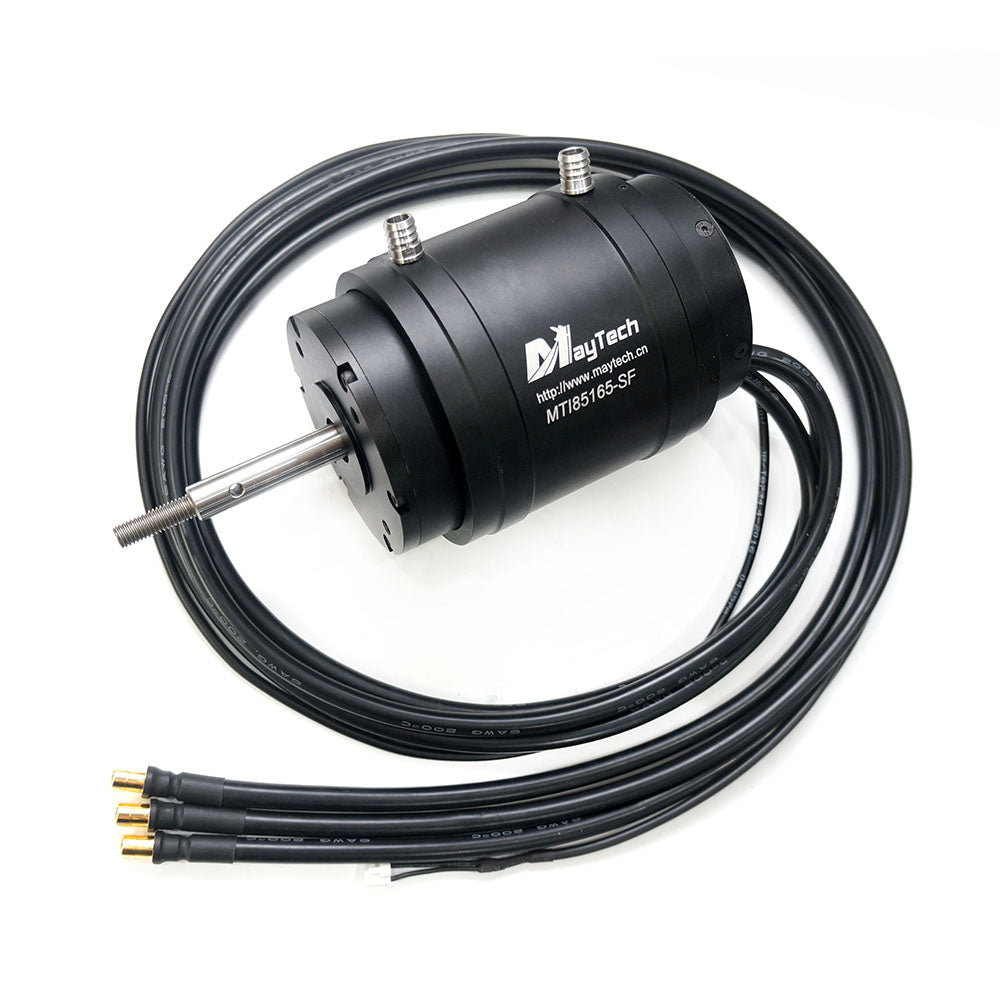

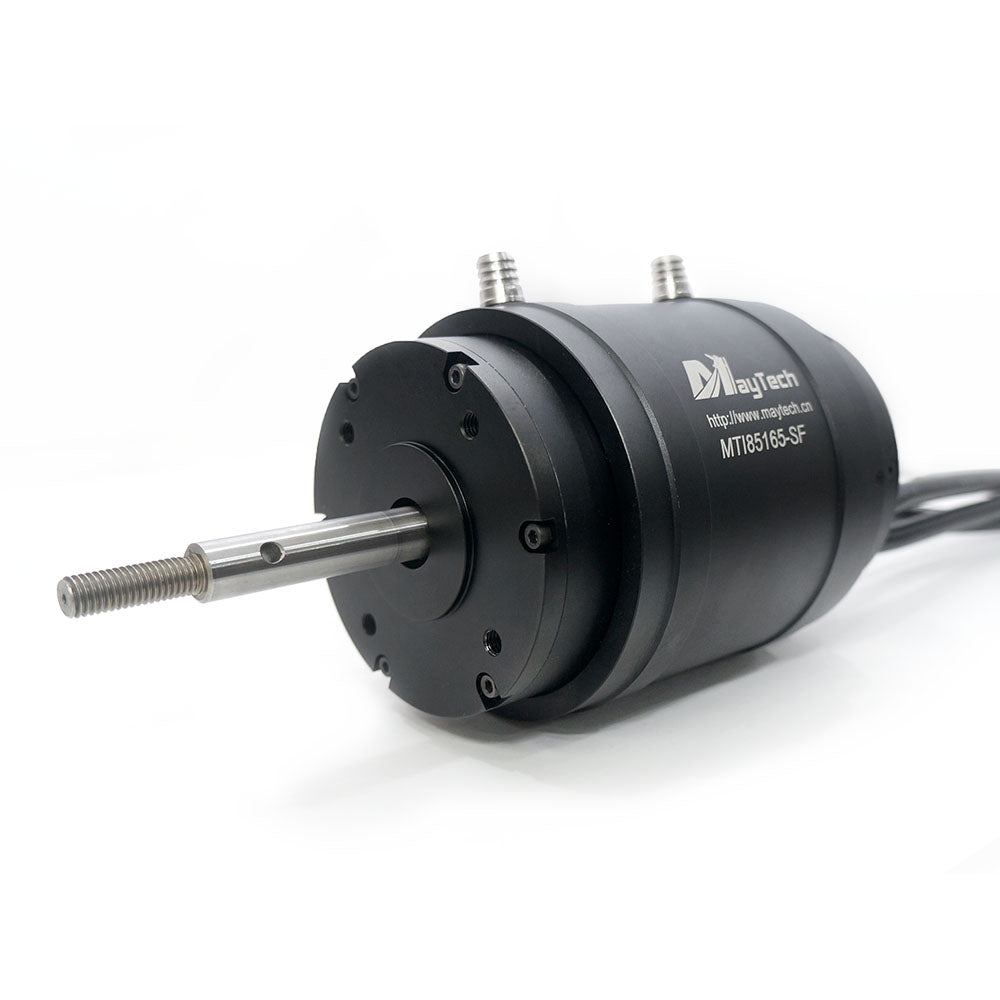

Model 5:MTI85165-200-SF
KV: 200KV, KV can be customized, contact us
Input Voltage: 6-12S Lipo (25V-50V) for 200KV
Max Power: 10.5KW
Waterproof: WP version is waterproof, SF version is watercooled
Hall Sensor: Without
Temp Sensor: With NTC10k Thermistor
Cooling Way:
Waterproof version: by water, the motor need to work directly in water for cooling
Watercooled version: through cooling tube by water pressure or water pump
Shaft: Keyway Shaft (waterproof version); Screw Shaft (watercooled version)

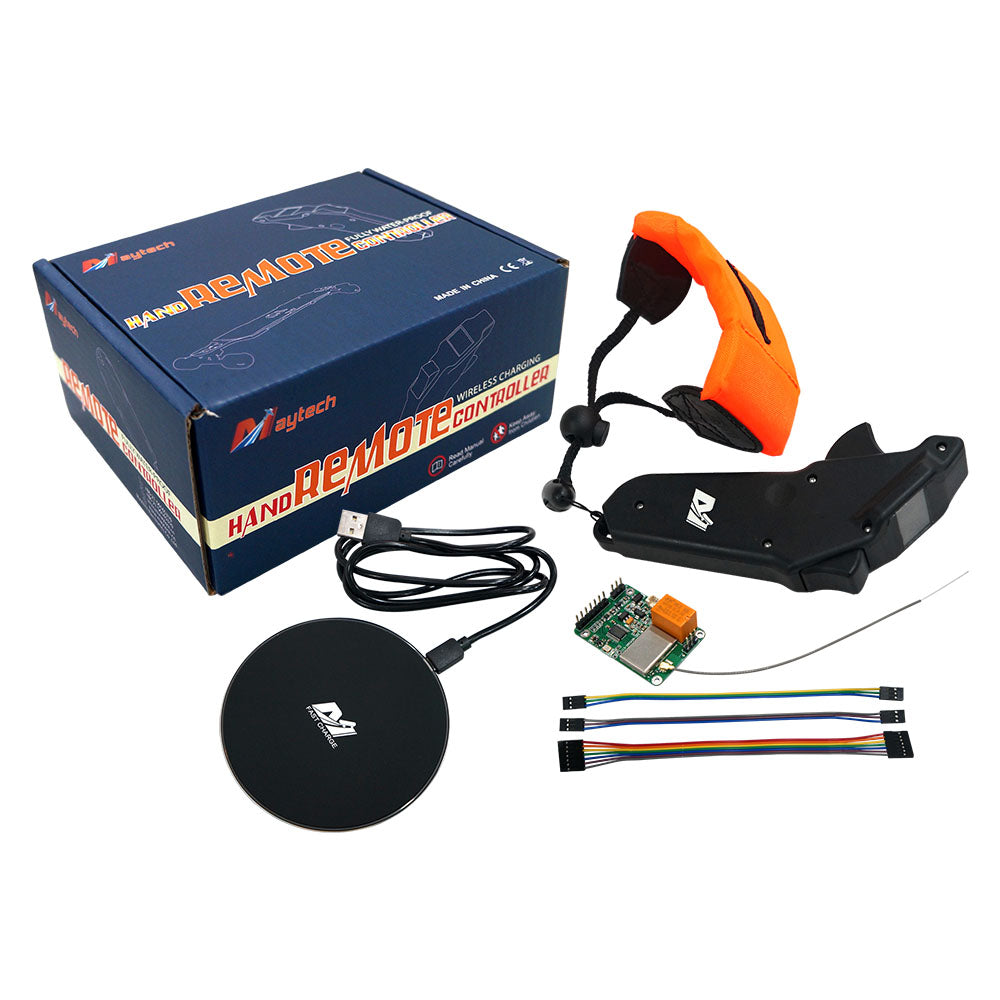

Model 6:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad



MTSF300A-WP Main Features:

1:8-layer 3oz PCB plate, 3.4mm, support high current;
2:Fully sealed, IP68 water-proof (water-proof version ESC);
3:Only use geniune US and Japan imported electric components;
4:Compact size, high efficiency, low heat;
5:Over-heat, over-voltage, over-current, low voltage protection;
6:100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

MTSKR1905WF PWM signal Range:

1. Esurf mode:
Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.

2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.

MTSKR1905WF Tips of Usage:

1. Wash the remote in freshwater after using in salt water.
2. The remote PCB is sealed by waterproof nano-coating and double protected by glue. The remote screen is sealed by waterproof nano-coating, not glue. When use it in water, water will get in between the outside and inside screens. It won't influence using. When you don't use it, please put it in dry place and it will dry slowly.
3. When charge the remote, please keep remote dry.
4. Receiver is not waterproof. Please put receiver in dry place.
5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your board for better signal.
6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.
7. The extended antenna 1m and 3m PCBs are not waterproof.



MTSKR1905WF Note:

Now on sale is the MTSKR1905 remote control upgrade
Advantages of upgrade:
1:The signal of the upgraded version will be more stable.
2:The upgraded version uses magnetic filling glue, which can prevent rust and corrosion.
