MAYRC Kit 300A VESC 6396 8085 160KV 190KV Dustproof Sealved Motor Remote Controller for Skateboard Trucks

Name: MAYRC Kit 300A VESC 6396 8085 160KV 190KV Dustproof Sealved Motor Remote Controller for Skateboard Trucks
Brand: Mayrc Industrial
SKU: MTO8085-160-HA-C+MTSPF7.5H+MTSKR2005WF
Price: 724.82 USD
Availability: InStock

$724.82 USD

~~$832.39 USD~~ $724.82 USD

Sale Sold out

Combination set MTO8085-160-HA-C+MTSPF7.5H+MTSKR2005WF MTO6396-190-HA-C3+MTSPF7.5H+MTSKR2005WF

Product variants

Quantity

MAYRC Kit 300A VESC 6396 8085 160KV 190KV Dustproof Sealved Motor Remote Controller for Skateboard Trucks

Specification：

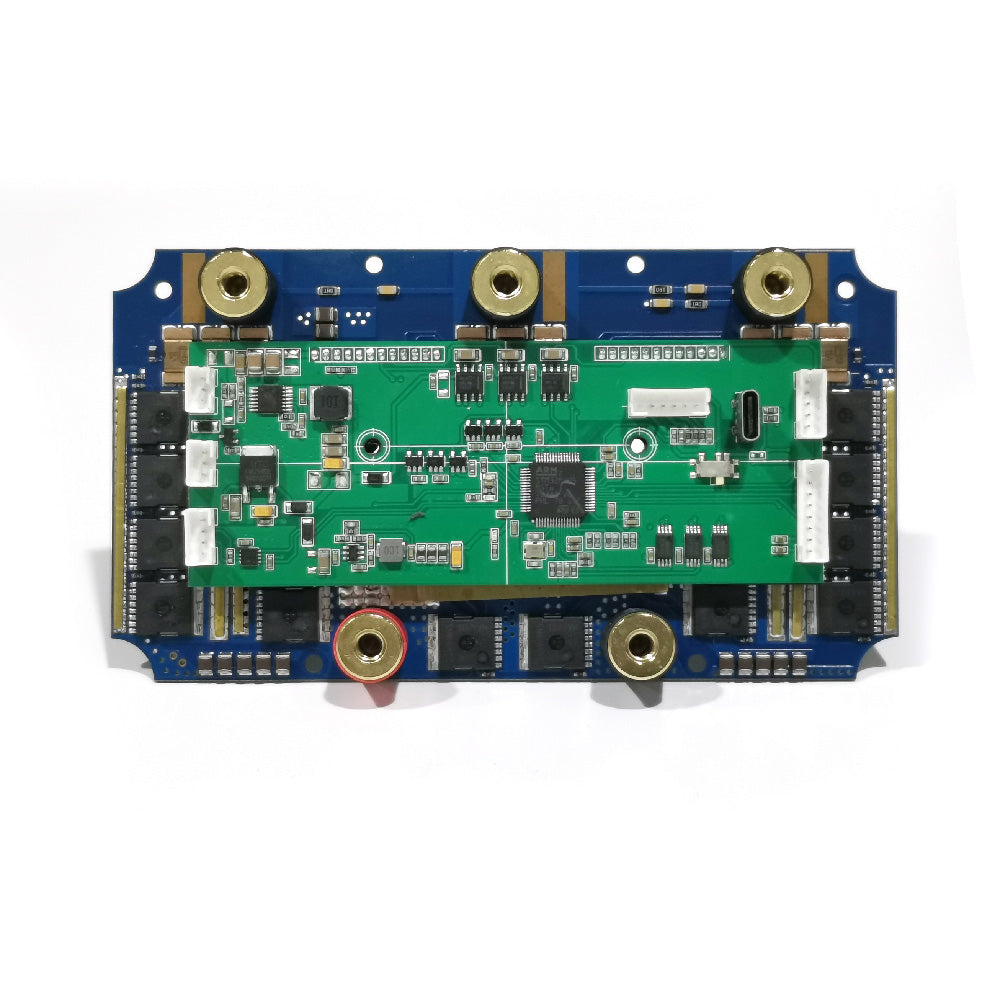

Model 1：MTSPF7.5H
With Aluminum Case：NO
Cont. Current：300A-400A
Input Volt：75V
Hardware：Based on V7.5 High voltage
Firmware：Upgradable
Software：VESCTOOL Compatible
FOC：YES; Better than V4.12
Compatible motor：Sensor or sensorless
Weight：380g

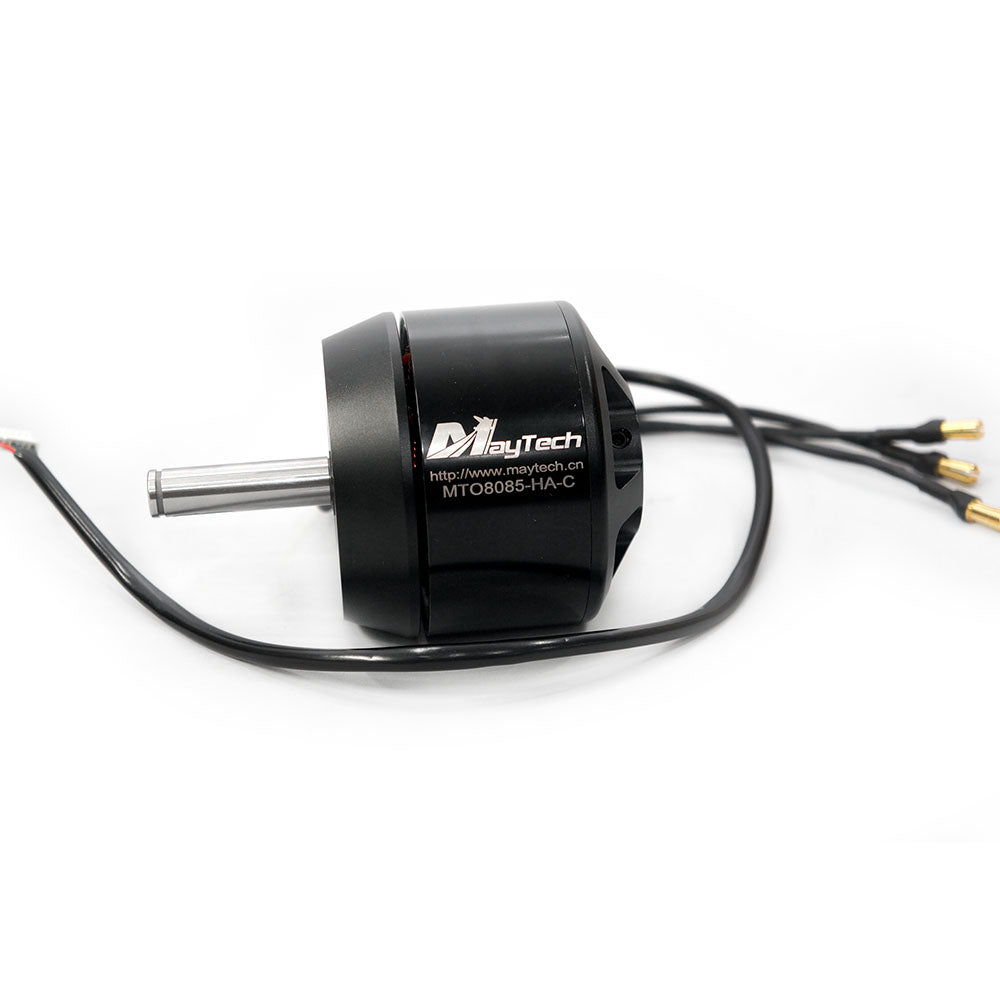

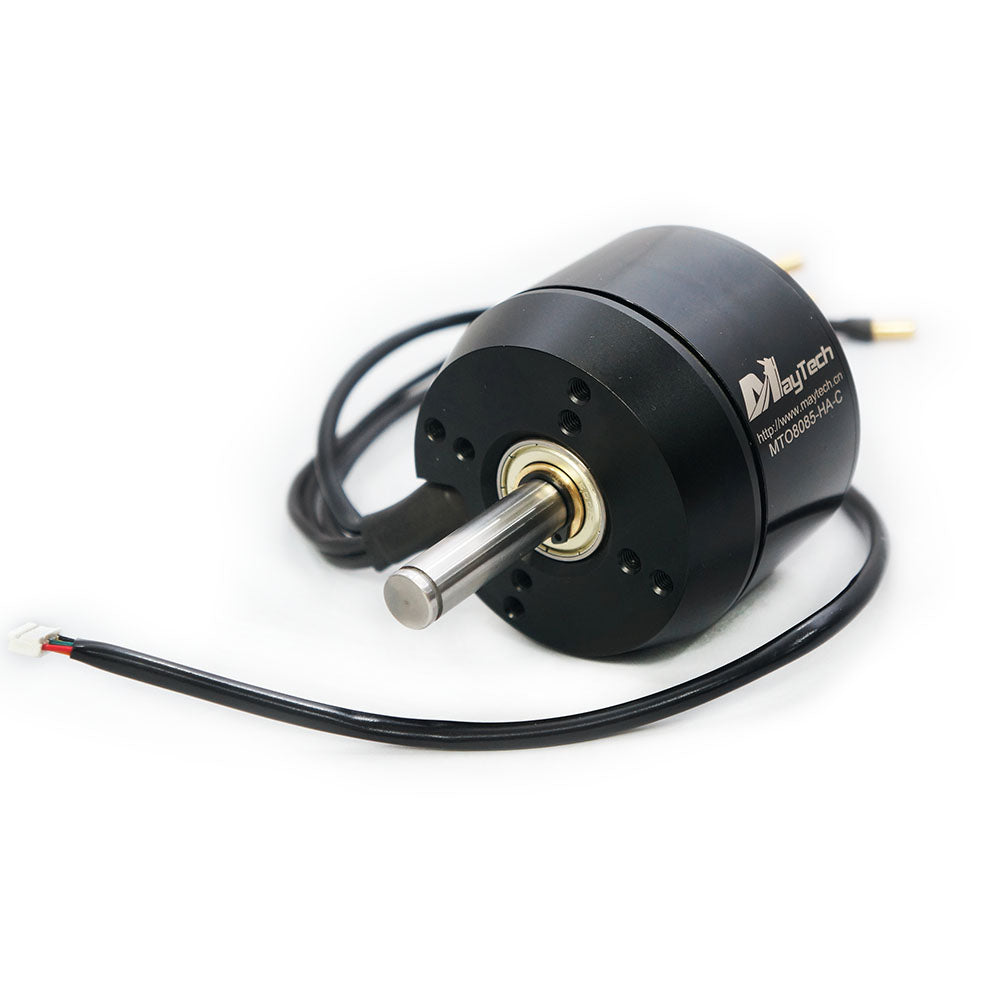

Model 2：MTO8085-160-HA-C
KV：160
Idle Current：0.8A
Rated Current：90A
Max. Current：64A
Input Volt.：11.1-60V
Max. Output Watt：5330W
Max. Pull：15500g
Resistance：0.028
Weight：1115g
Shaft：12mm with 3mm keyway,output 44mm

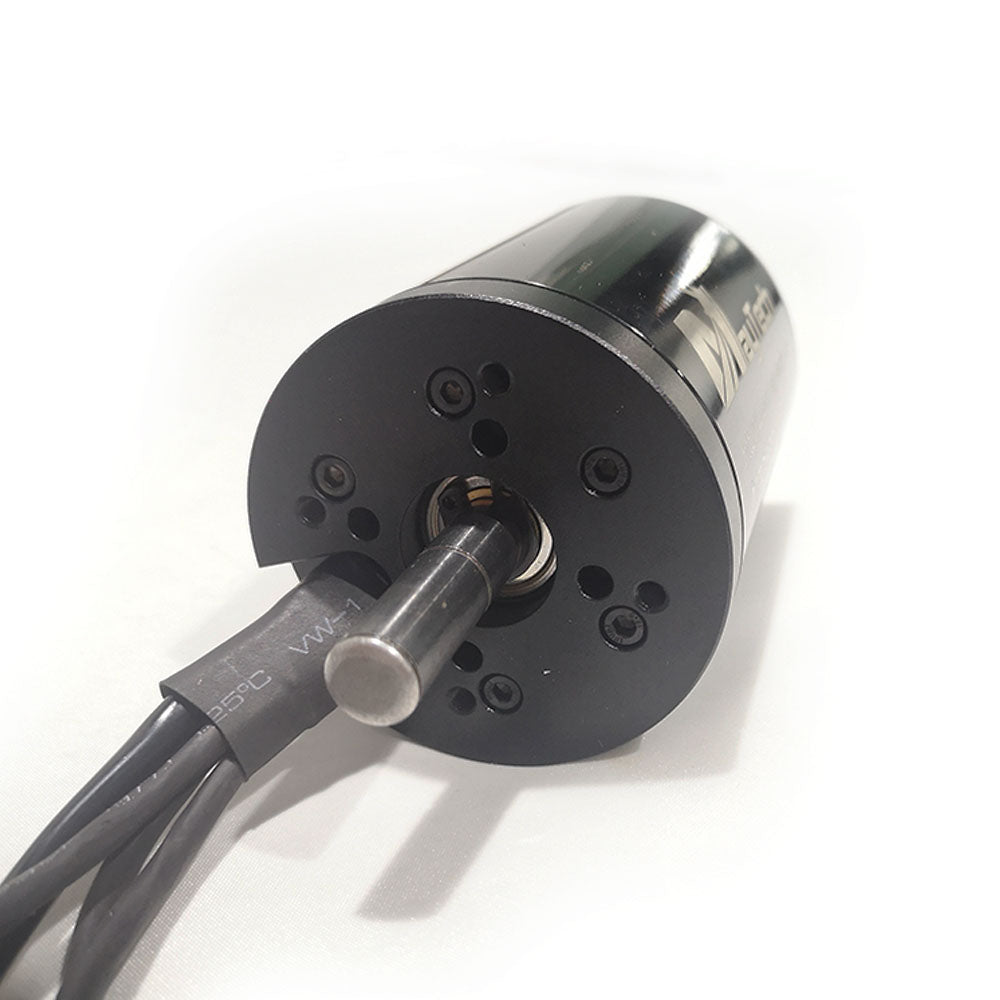

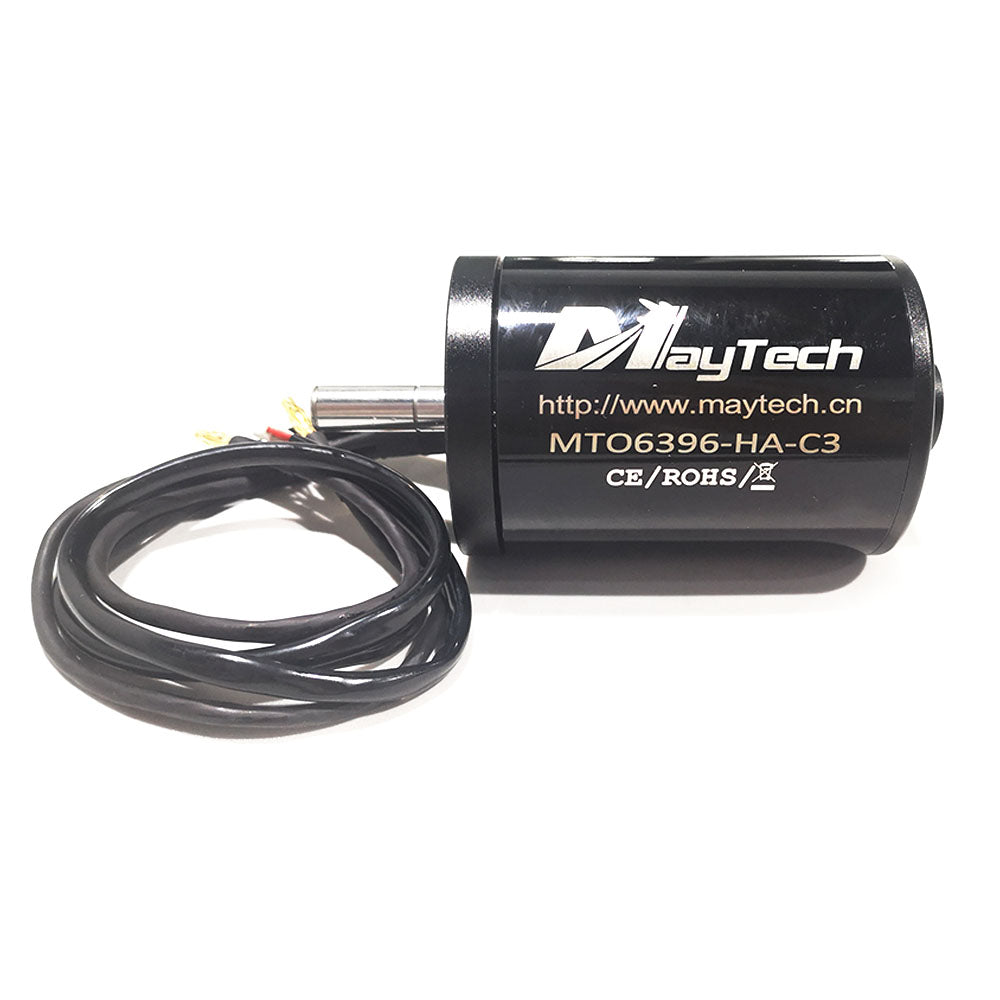

Model 3：MTO6396-190-HA-C3
KV：190
Idle Current：0.8A
Rated Current：65A
Max. Current：80A
Input Volt.：11.1-50V
Max. Output Watt：4550W
Max. Pull：13500g
Resistance：0.02
Weight：1280g
Shaft：10mm with 3mm keyway,output 45.5mm

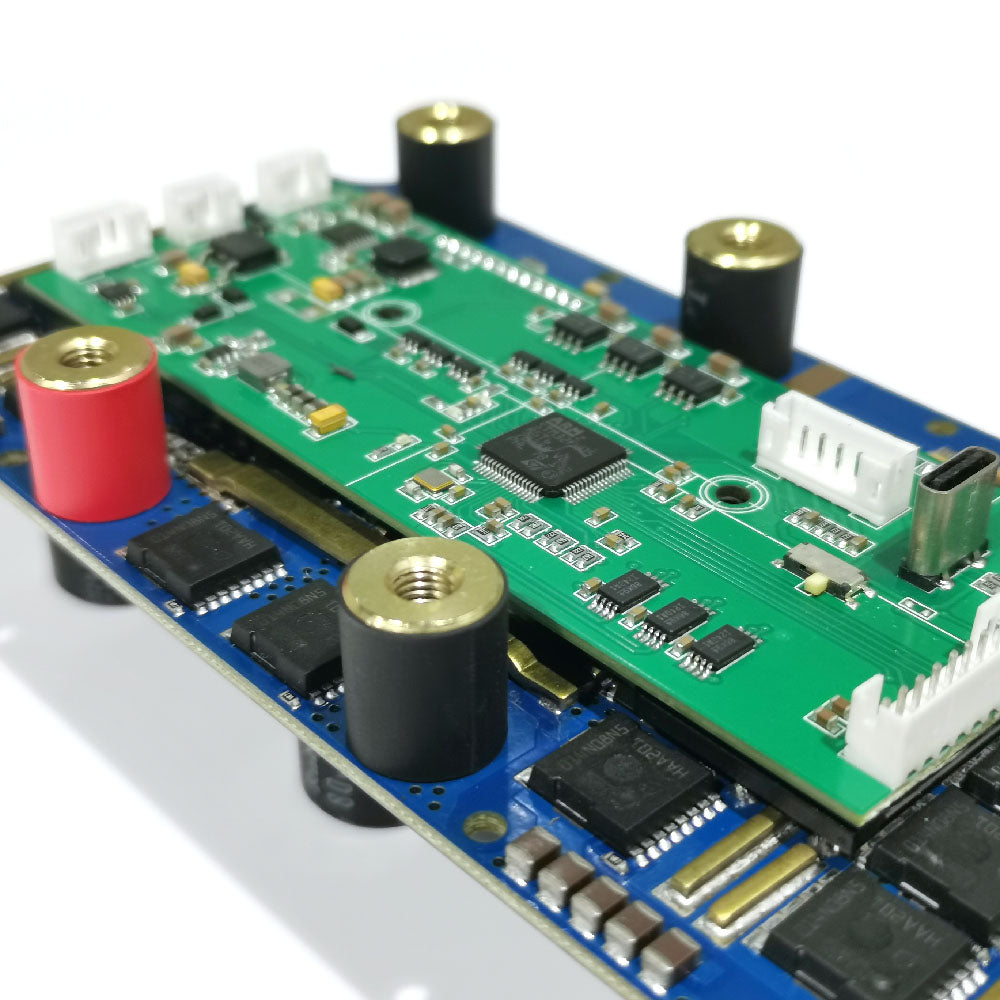

MTSPF7.5H Features:

1：This new controller can work to highest 75V voltage, can use for electric skateboard, surfboard, motorcycle, ATV, etc., fixed the problem of high voltage and compatible with VESC_TOOL that most controller can't do in the current market.
2：Compatible with VESC_TOOL, programmable;
3：Use High voltage components, more stable, better performance;
4：With 24pcs mosfets;
5：With Great heat dissipation for high voltage and high current applications;
6：Compatible with brushed and brushless Motor, intrunner and outrunner motors；
7：Sensored or Sensorless operation + Hybrid mode；
8：Adjustable Forward/Backward/Brake；
9：Regenerative Braking Function；
10：Configurable RPM, Current, Voltage and Power limits；
11：Support PPM, Analog (ADC), UART, Canbus input；
12：Support BLDC square wave mode control and FOC sine wave mode；
13：Communication ports: USB, CAN, UART.

Ports definitions:

1. AUX port to supply 12V and 5V to external device;
2. PPM port to connect PPM transceivers; Never connect one reclever to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
3. CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a VESC array.
4. Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
5. SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
6. COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!

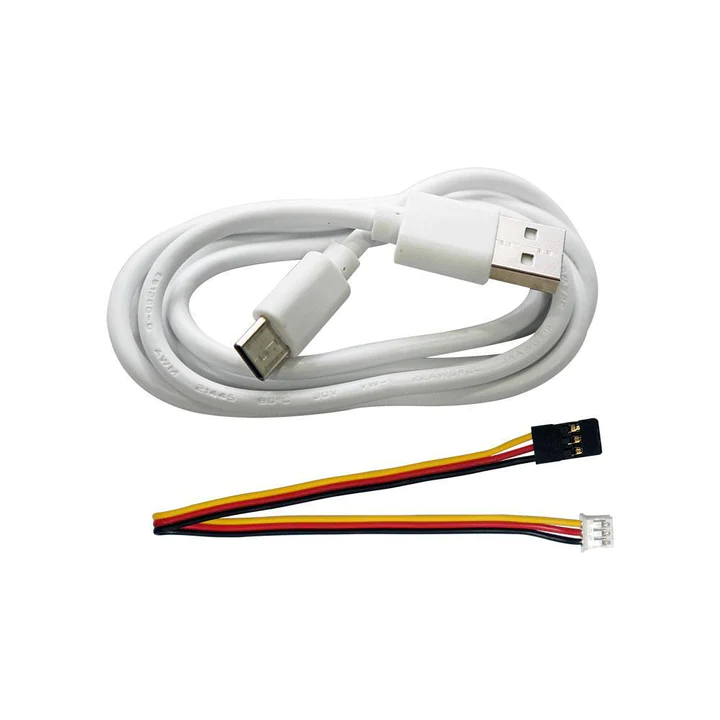

7. USB port for programming.

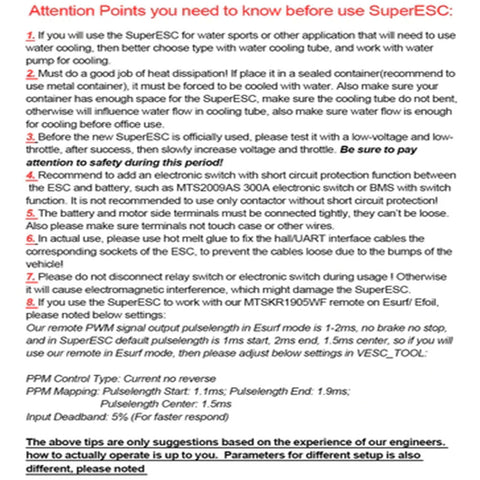

Notice：

1. Never connect one reclever to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array!
Permanent damage may result from Y-PPM wiring.
2. Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.

PLS Notice：

Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email：shelly@mayrc.com

Warranty Service:

1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.

All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
