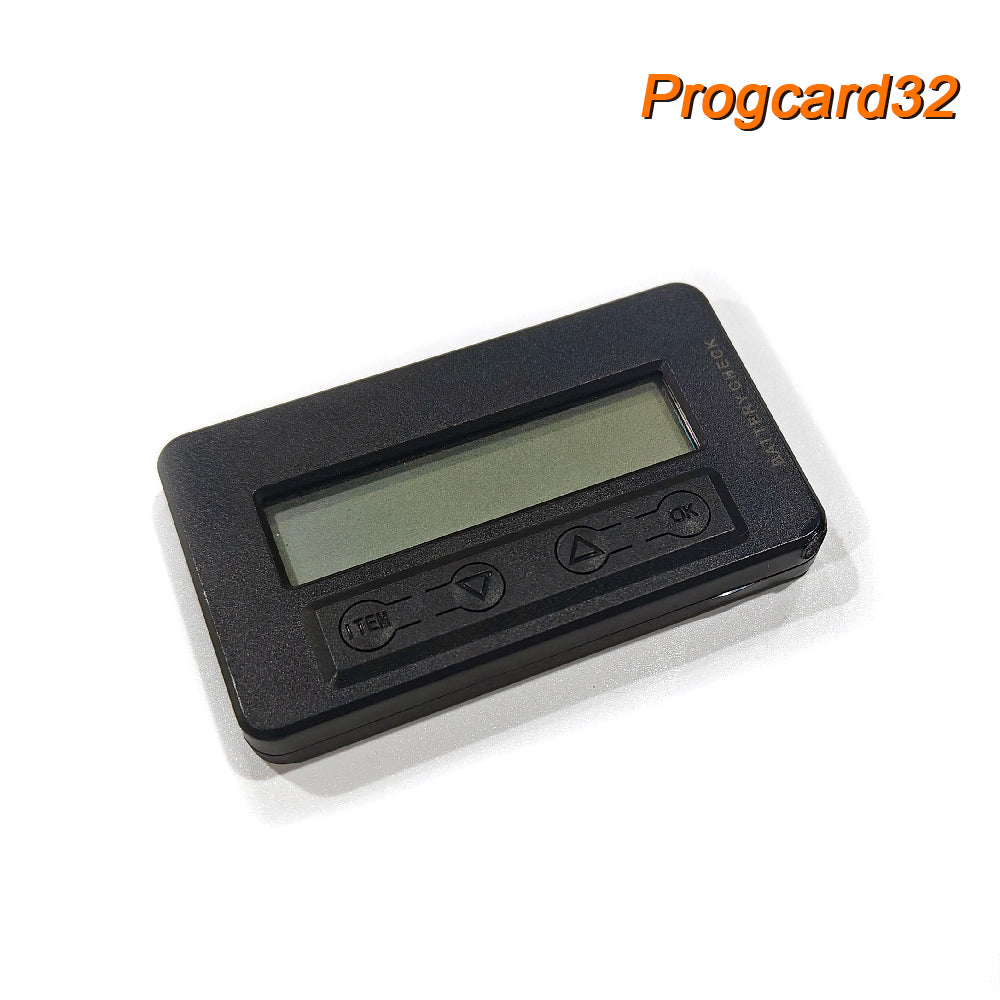

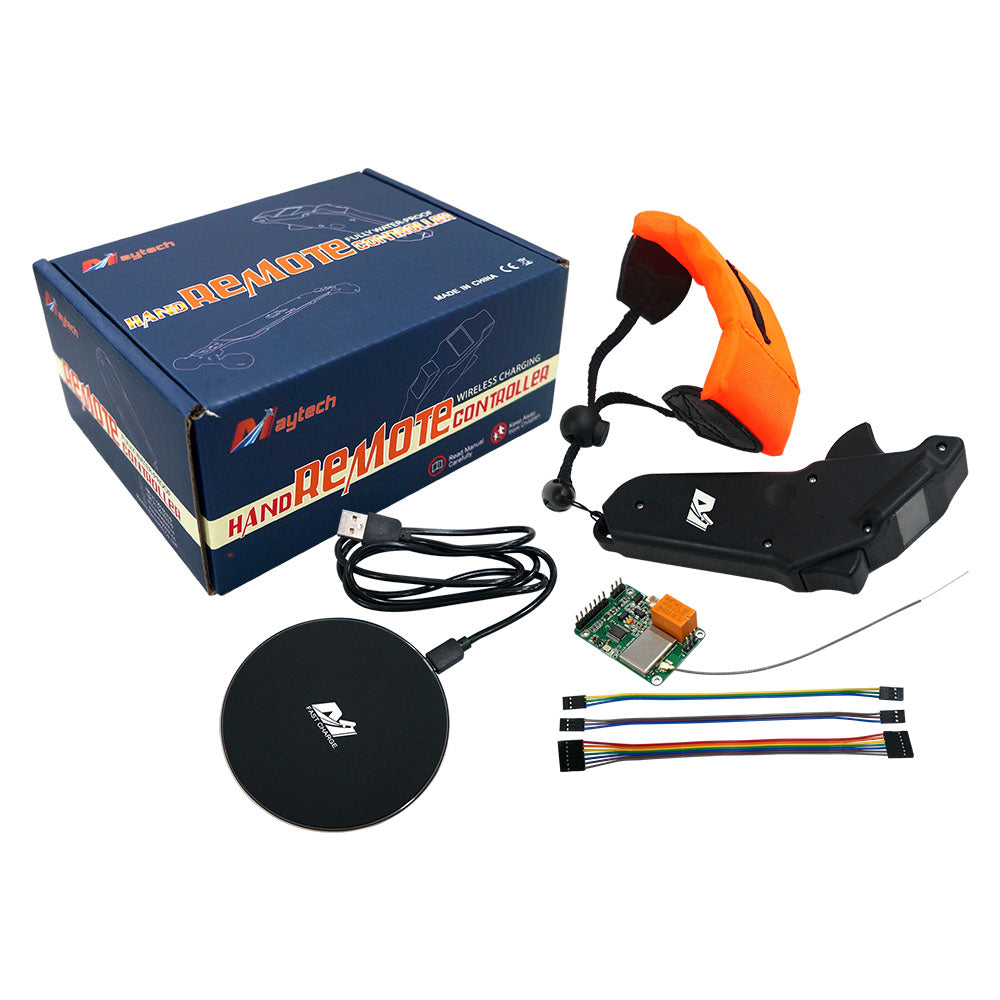

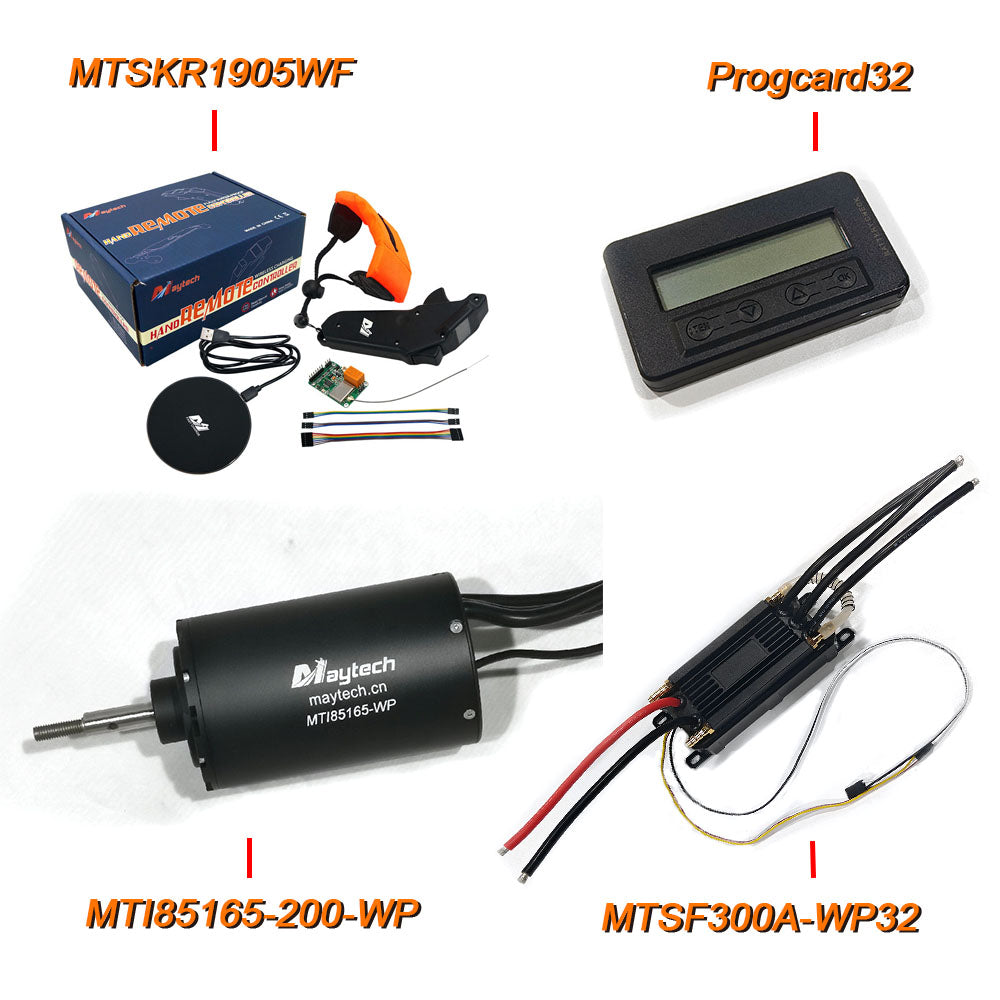

MAYRC Efoil Kayak Kit 300A 32Bit ESC+85165 200KV Brushelss Motor +Remote+Programming card for Hydrofoil Boards
MAYRC Efoil Kayak Kit 300A 32Bit ESC+85165 200KV Brushelss Motor +Remote+Programming card for Hydrofoil Boards
Regular price
$935.66 USD
Regular price
Sale price
$935.66 USD
Unit price
per
Couldn't load pickup availability
MAYRC Efoil Kayak Kit 300A 32Bit ESC+85165 200KV Brushelss Motor +Remote+Programming card for Hydrofoil Boards
Specification:

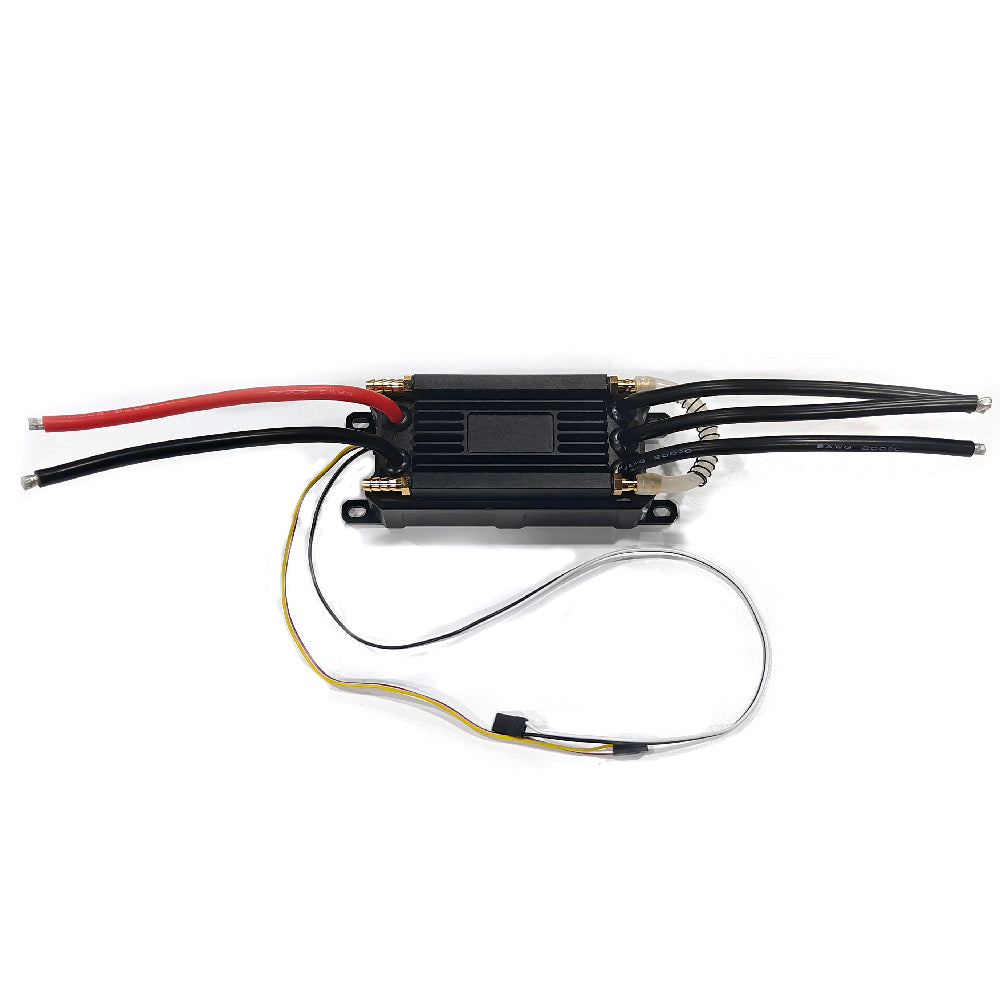

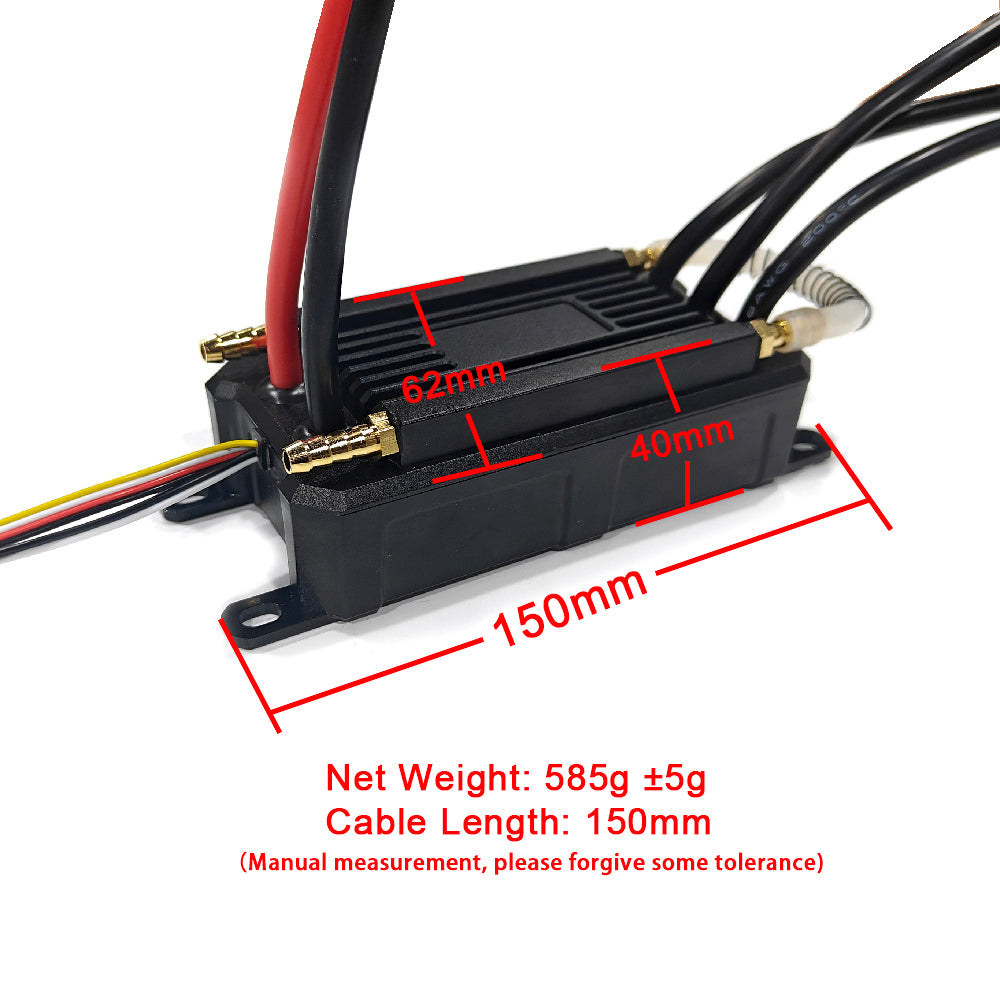

| Model 1. |
MTSF300A-WP32 |
| Cont. Current | 300A |
| Max. Current | 350A |
| Volt. | 25-60V 6-14S LIPO |
| Water-cooled |
water-proof version IP68 |
| Size | PCB size 105*55*18mm |
| Weight | 585g |

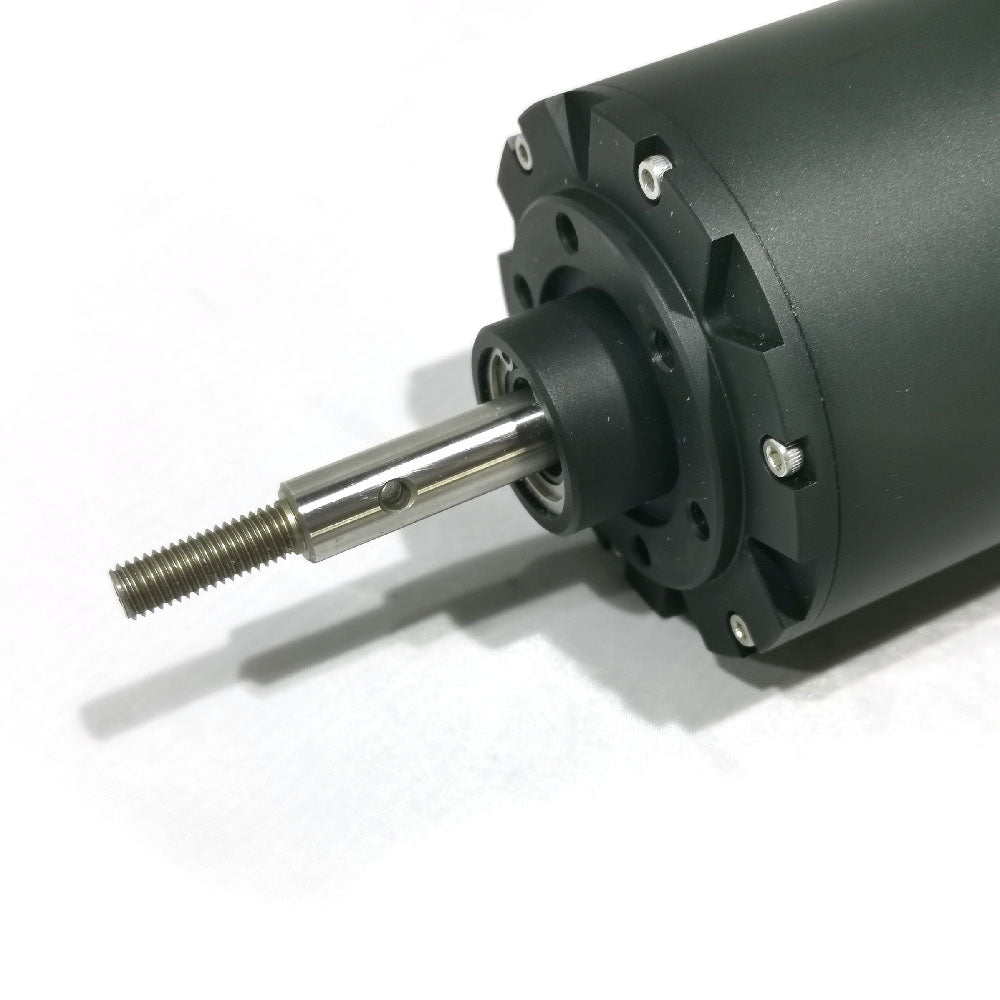

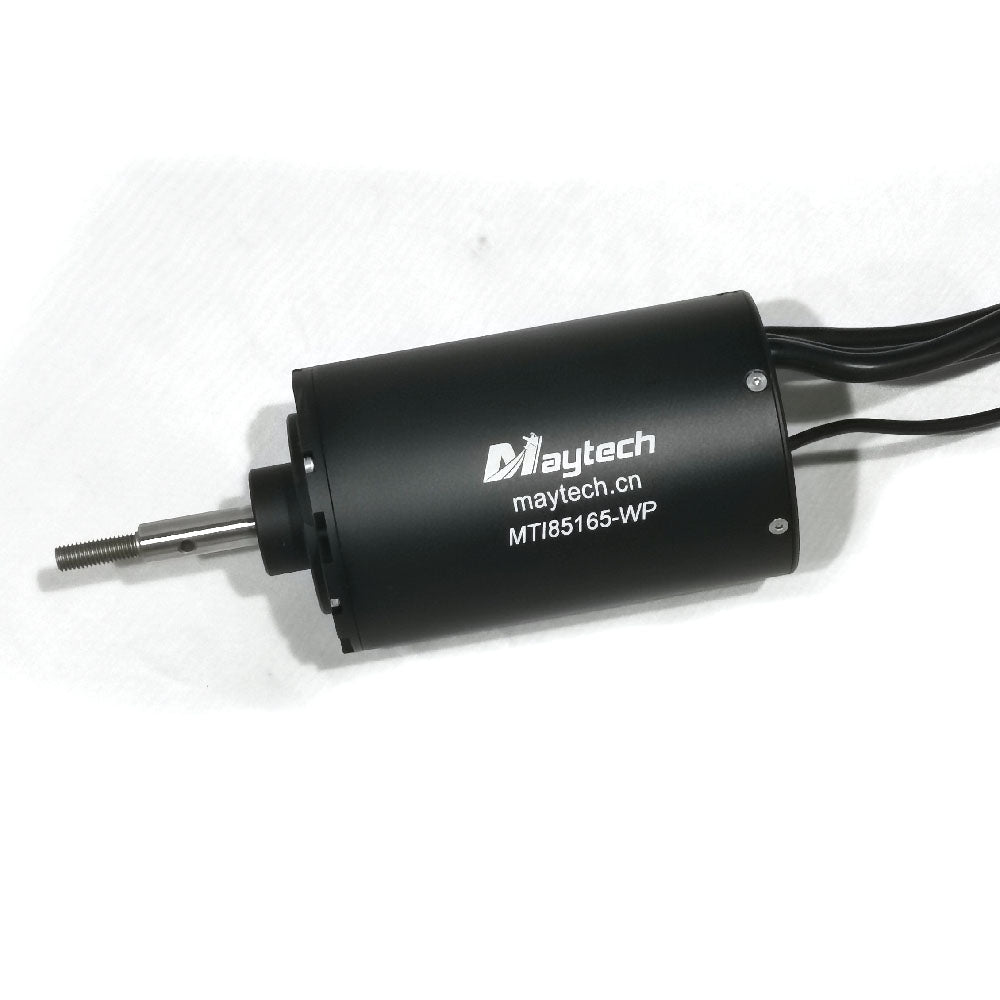

| Model 2. | MTI85165-200-WP（ Fully water-proof） |
| KV |
200 |
| RPM/V/Max RPM | 200/12096 |
| Idle Current@10V | 2.1A |
| Rated Current/Max Current (A) | 190A/300A |
| Working Voltage | 50-84V |
| Rated/ Max Torque(N*M) |
17.5/21.5N.M |
| Max Power(10S) | 10.5KW |
| Winding Turns/Construction | 7T/12N/10P |
| Motor&Shaft Size(mm) | Φ85x152mm&12mm |

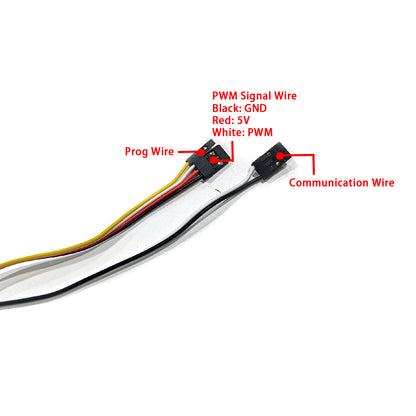

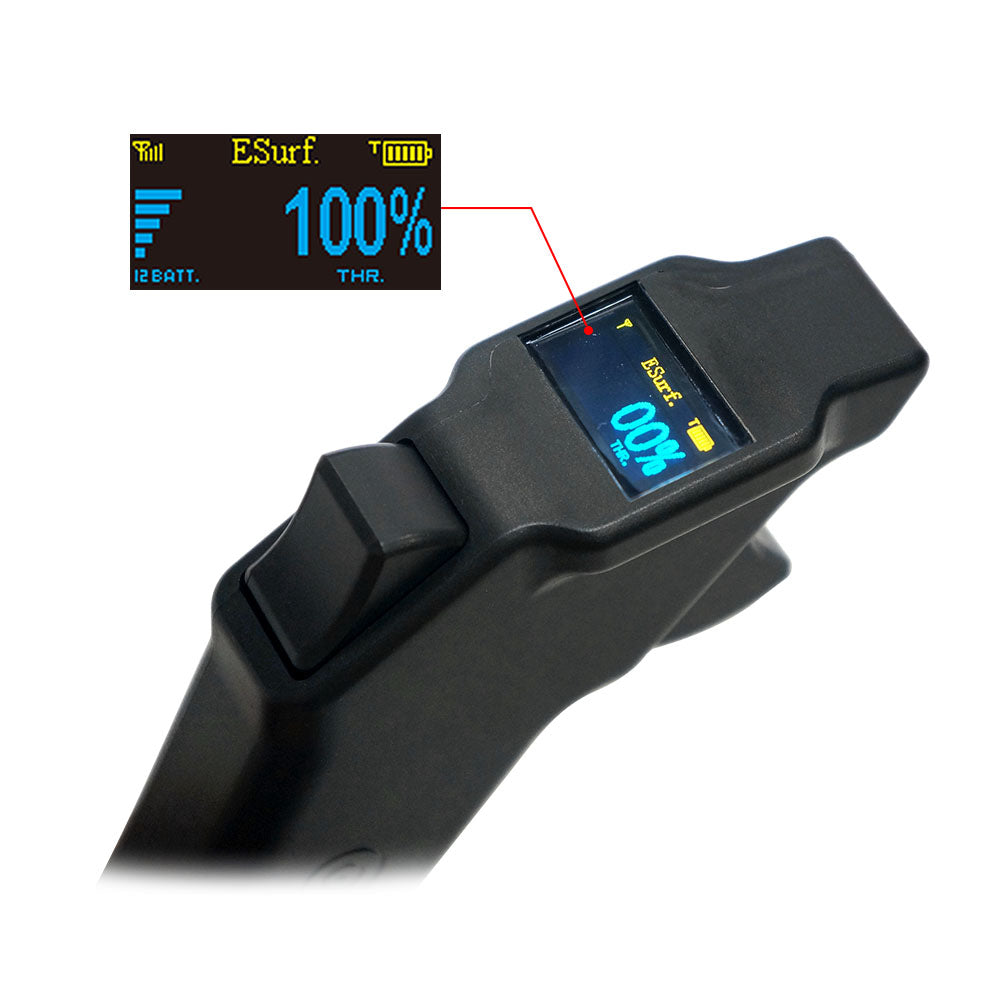

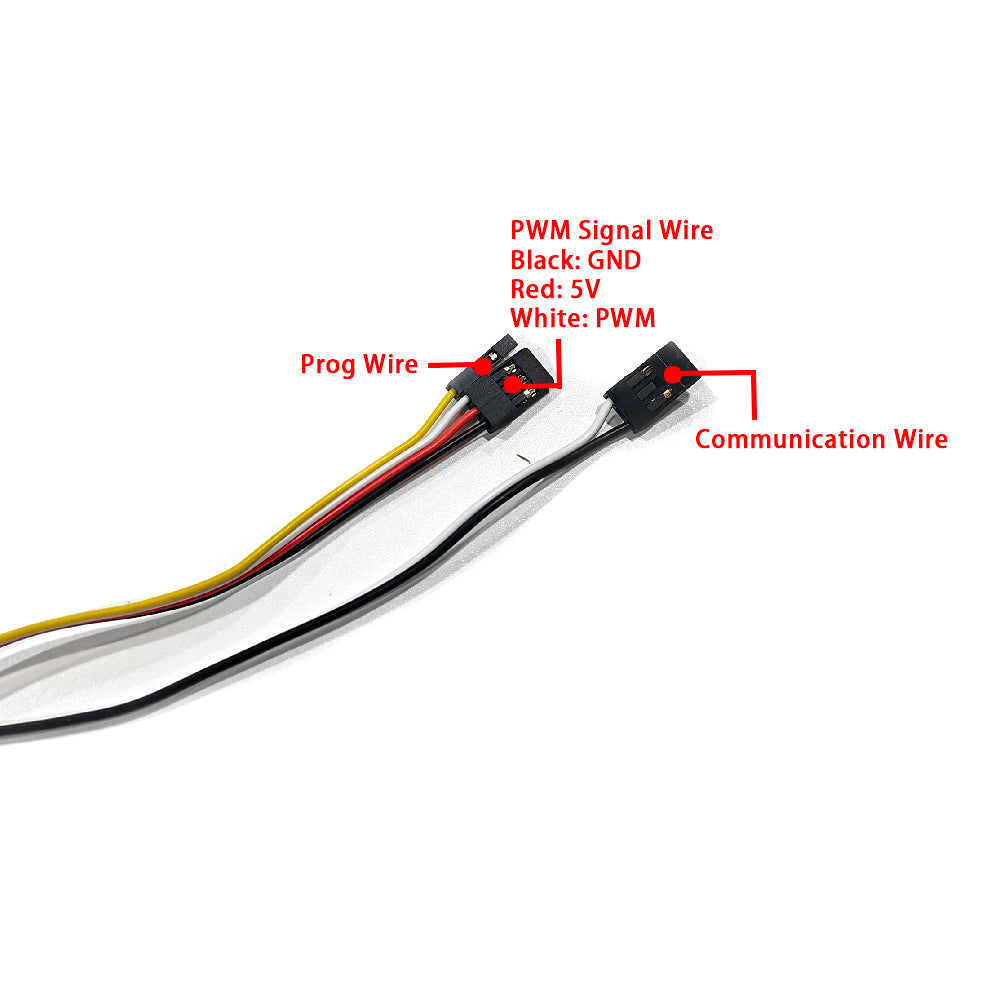

| ESC Main Features | ▶ 32BIT Micropprocessor ▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver. ▶ 160A-300A Fully sealed, IP68 water-proof (water-proof version ESC) ▶ 8-layer 3oz PCB plate, 3.4mm, support high current ▶ MTSF105AA32 with BEC output 6.0,7.4,8.4V adjustable /8A ▶Compact size, high efficiency, low heat. ▶Only use geniune US and Japan imported electric components. ▶Over-heat, over-voltage, over-current, low voltage protection. ▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery. |
Customized Service：
Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com
Warranty Service:
1: 6 months Free warranty;
2: Need to send product damage test video or photor. If it can be repaired, please send it to MAYRC store engineer for repair. Shipping costs for damaged products to MAYRC store are borne by the Buyer and shipping costs of damaged products to the Buyer shall be borne by MAYRC store.
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
