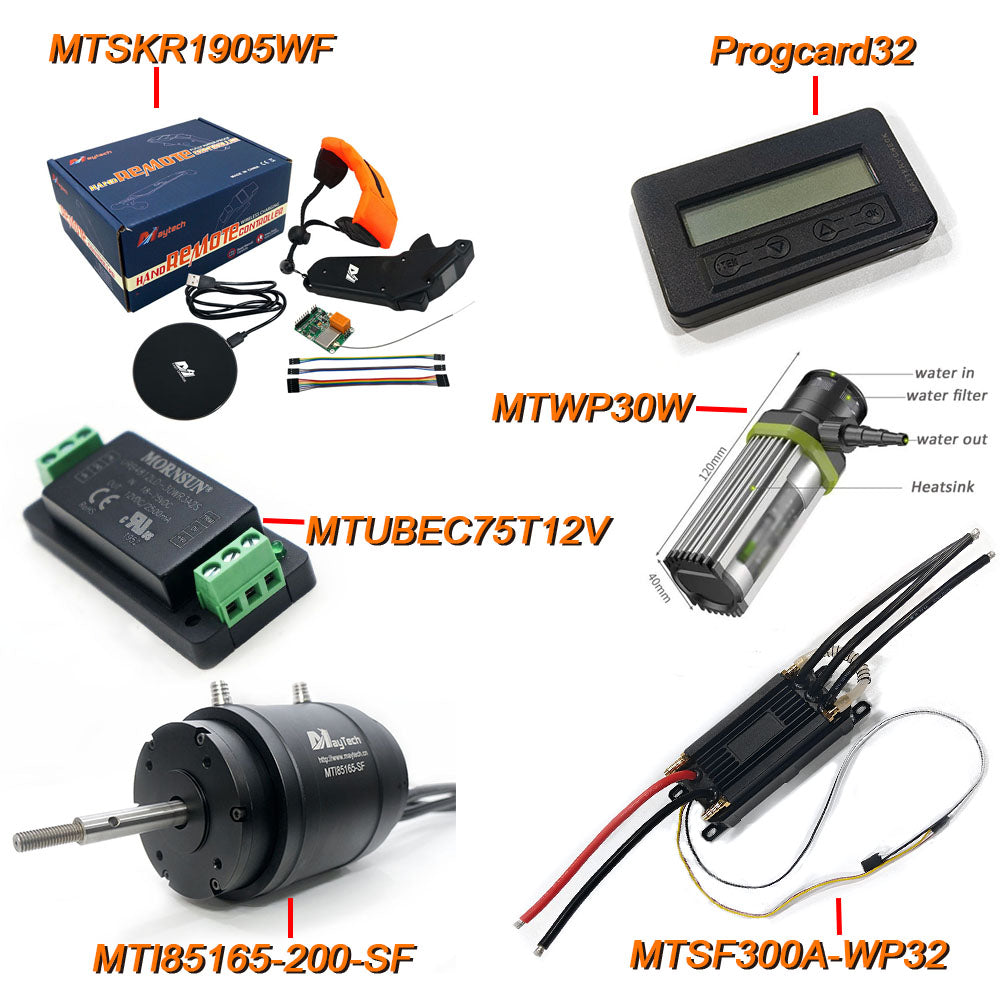

MAYRC Efoil Kit 32Bit 300A ESC 85165 200KV Brushless Motor with Watercool-ed IP68 Remote for Electric Kayak

MAYRC Efoil Kit 32Bit 300A ESC 85165 200KV Brushless Motor with Watercool-ed IP68 Remote for Electric Kayak

Regular price $972.83 USD
Regular price $1,017.77 USD Sale price $972.83 USD
Sale Sold out
Specification

MAYRC Efoil Kit 32Bit 300A ESC 85165 200KV Brushless Motor with Watercool-ed IP68 Remote for Electric Kayak

Specification:

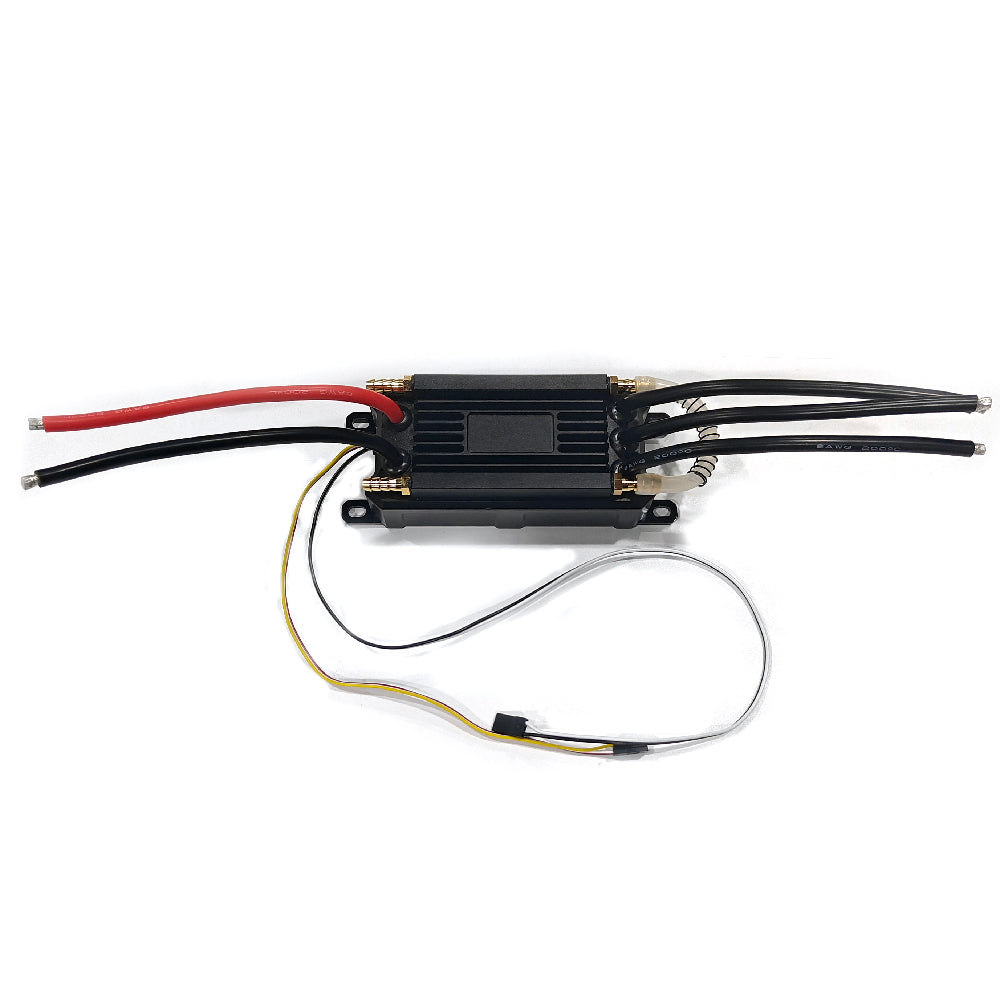

 Model 1.

MTSF300A-WP32

Cont. Current 300A
Max. Current 350A
Volt. 25-60V
6-14S LIPO
Water-cooled

water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.

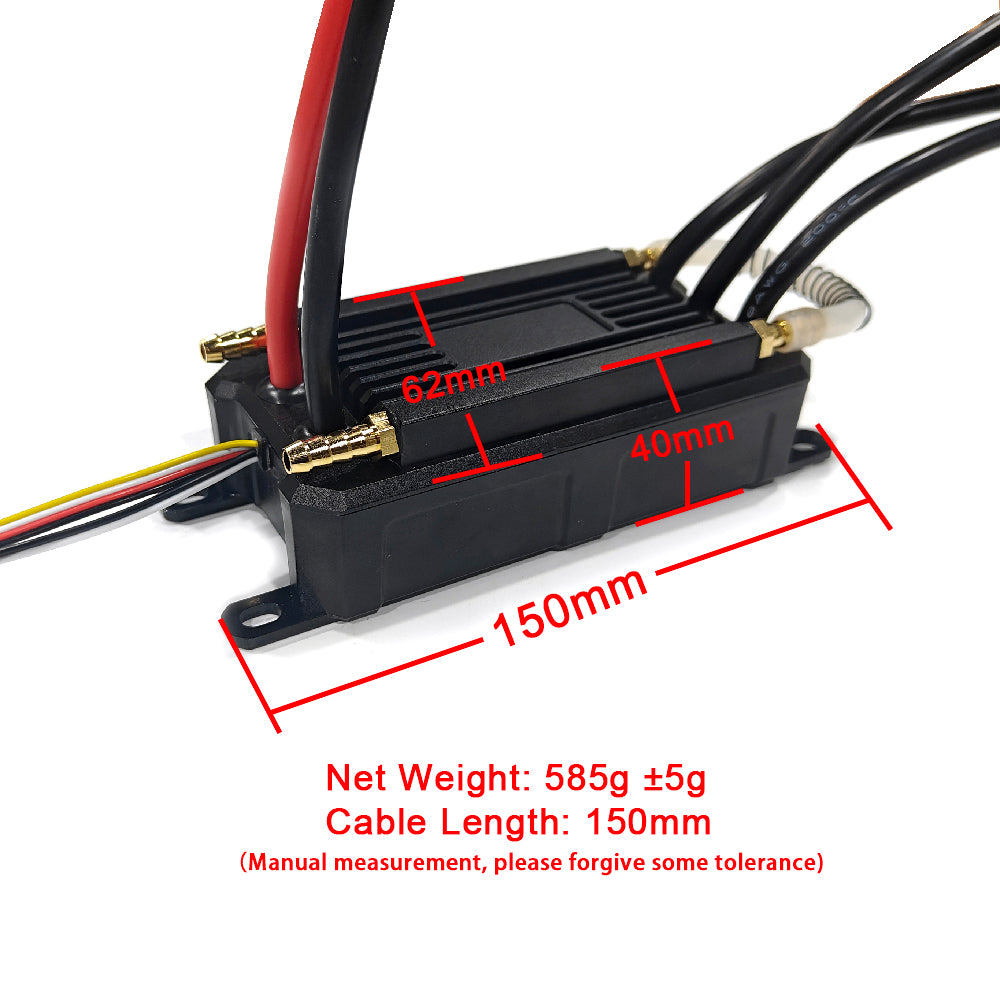

Size PCB size 105*55*18mm
Weight 585g

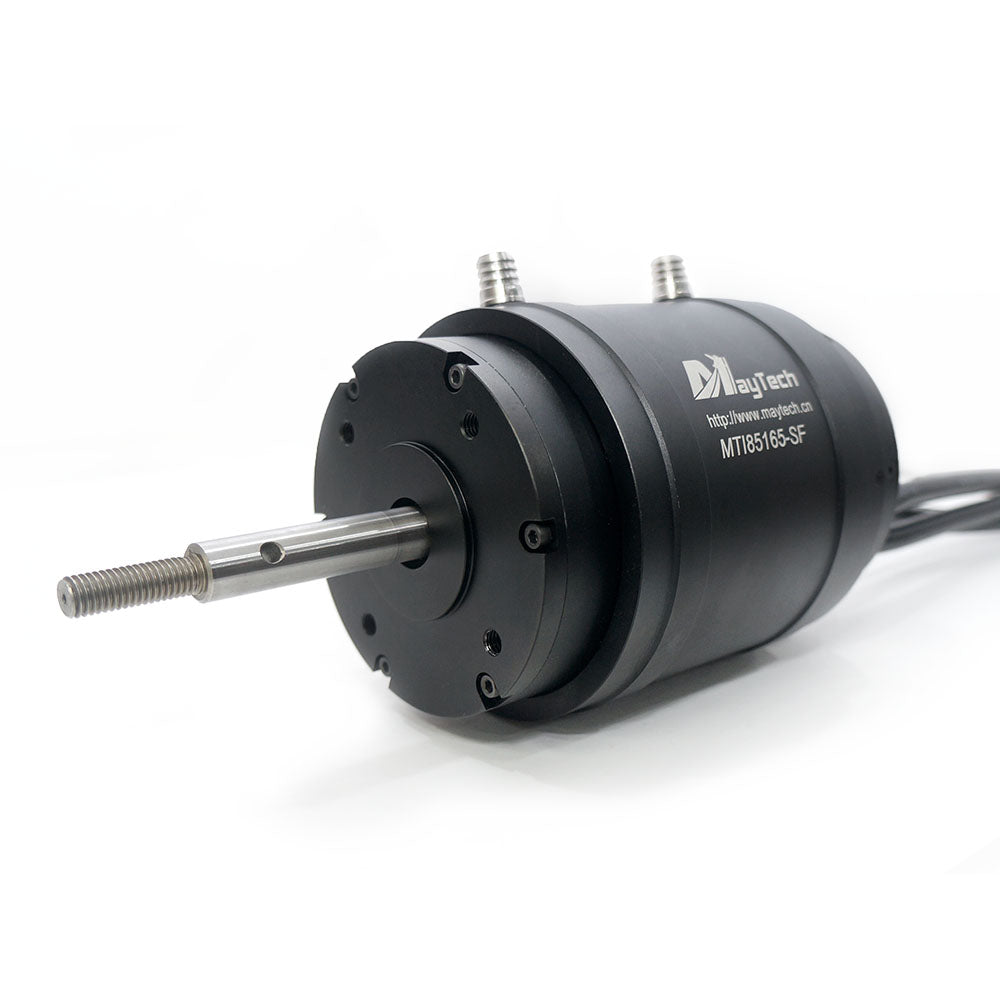

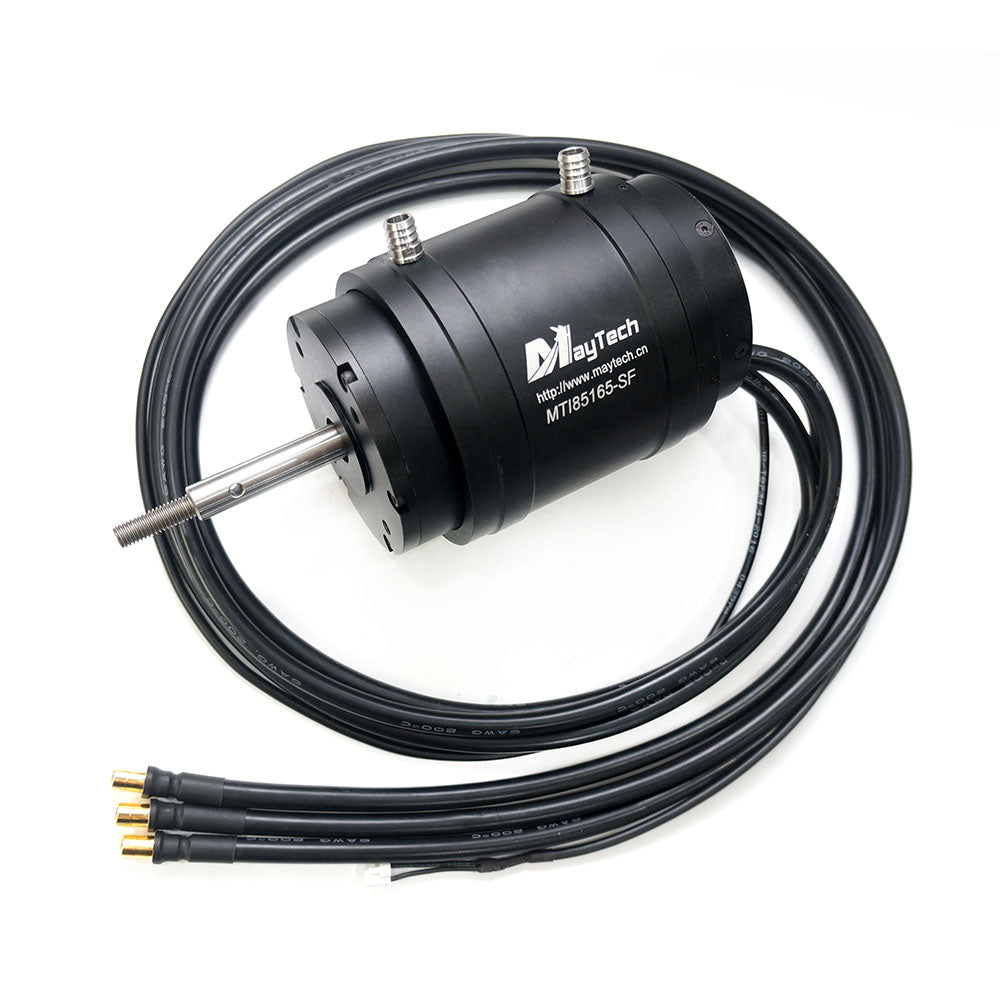

 Model 2. MTI85165-200-SF(
Water-cooling)
KV
200
RPM/V/Max RPM 200/12096
Idle Current@10V 2.1A
Rated Current/Max Current (A) 190A/300A
Working Voltage 50-84V
Rated/
Max Torque(N*M)
17.5/21.5N.M
Max Power(10S) 10.5KW
Winding Turns/Construction 7T/12N/10P

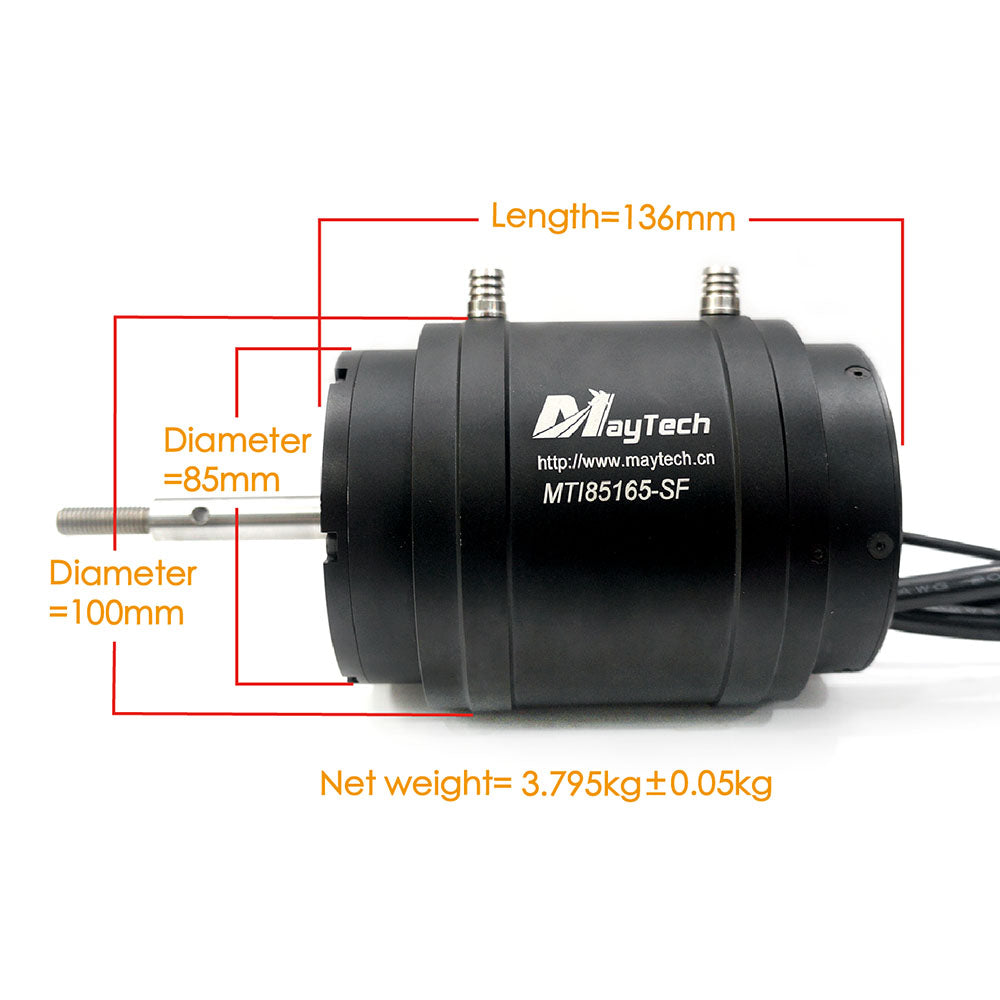

Motor&Shaft Size(mm) Φ85x152mm&12mm


MTSF300A-WP32 ESC Main Features:

1: 8-layer 3oz PCB plate, 3.4mm, support high current;
2: Fully sealed, IP68 water-proof (waterproof version ESC);
3:32BIT Micropprocessor;
4:Only use geniune US and Japan imported electric components;
5:Compact size, high efficiency, low heat;
6:Over-heat, over-voltage, over-current, low voltage protection;

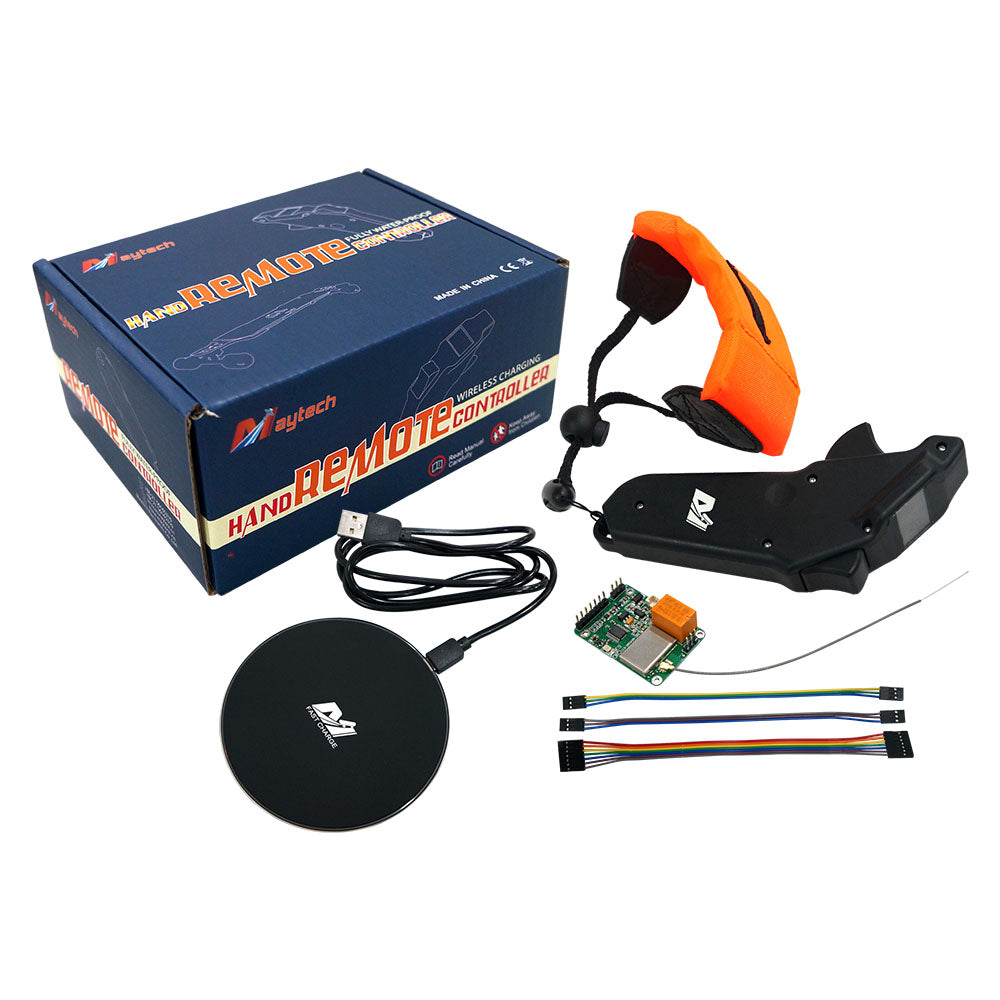

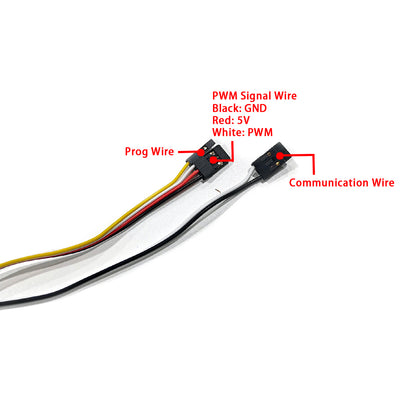

7:Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
8:100% QC test and performance test beforedeliver. Only qualified ESCs are arranged fordelivery.

Customized Service:

Customize : Yes,
logo,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
