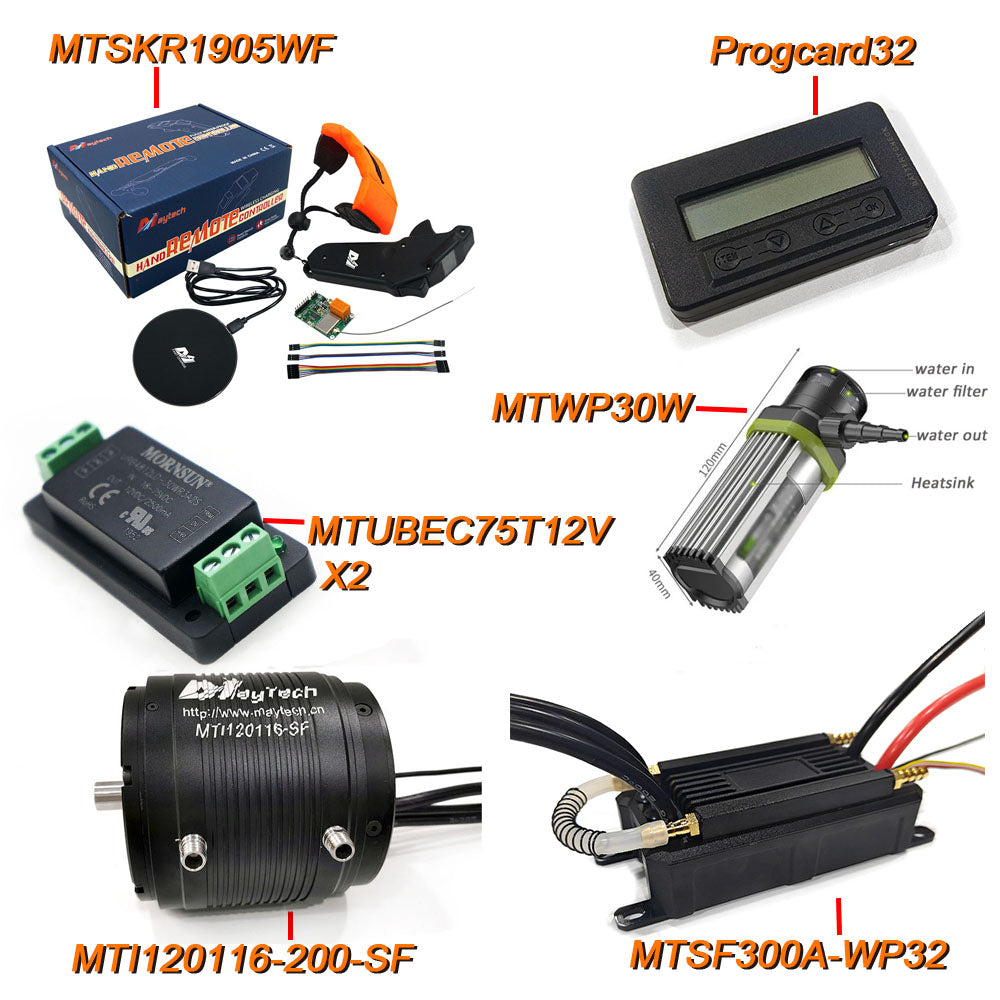

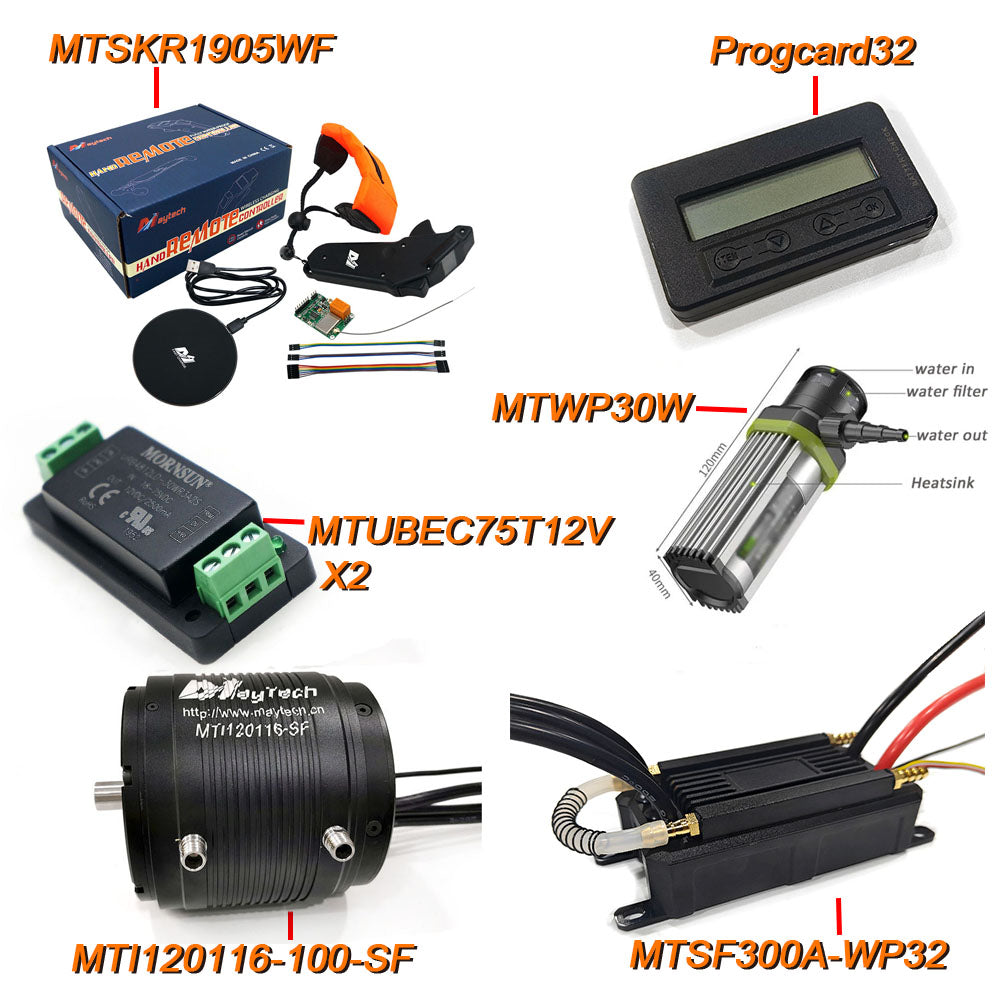

MAYRC Efoil Kit(300A 32BIT ESC+120116 100KV/200KV water-cooled Motor+IP68 Remote+ Water pump+Voltage Regulator+Program card)

MAYRC Efoil Kit(300A 32BIT ESC+120116 100KV/200KV water-cooled Motor+IP68 Remote+ Water pump+Voltage Regulator+Program card)

$1,109.80 USD
$1,121.00 USD $1,109.80 USD
Sale Sold out
Type

MAYRC Efoil Kit(300A 32BIT ESC+120116 100KV/200KV water-cooled Motor+IP68 Remote+ Water pump+Voltage Regulator+Program card)

Please contact me for customized parameters: shelly@mayrc.com/mayrcshelly@gmail.com

Specification:

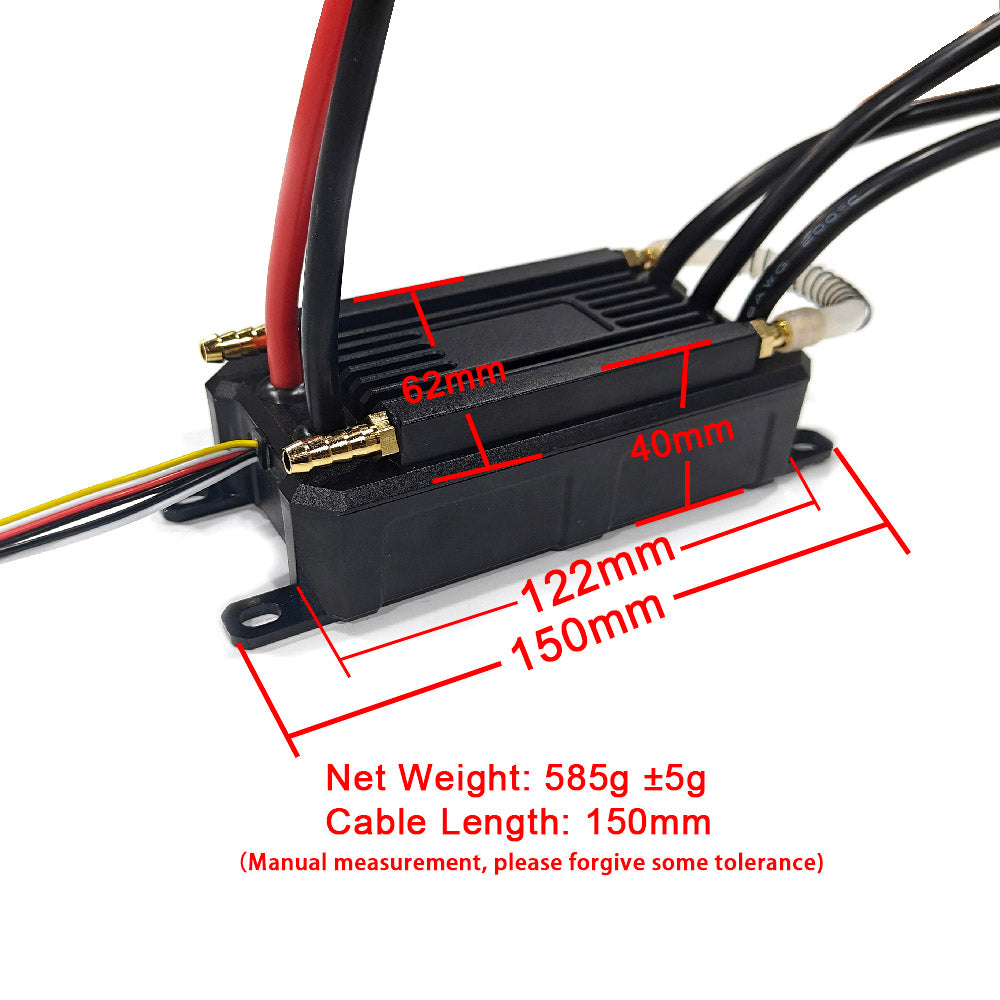

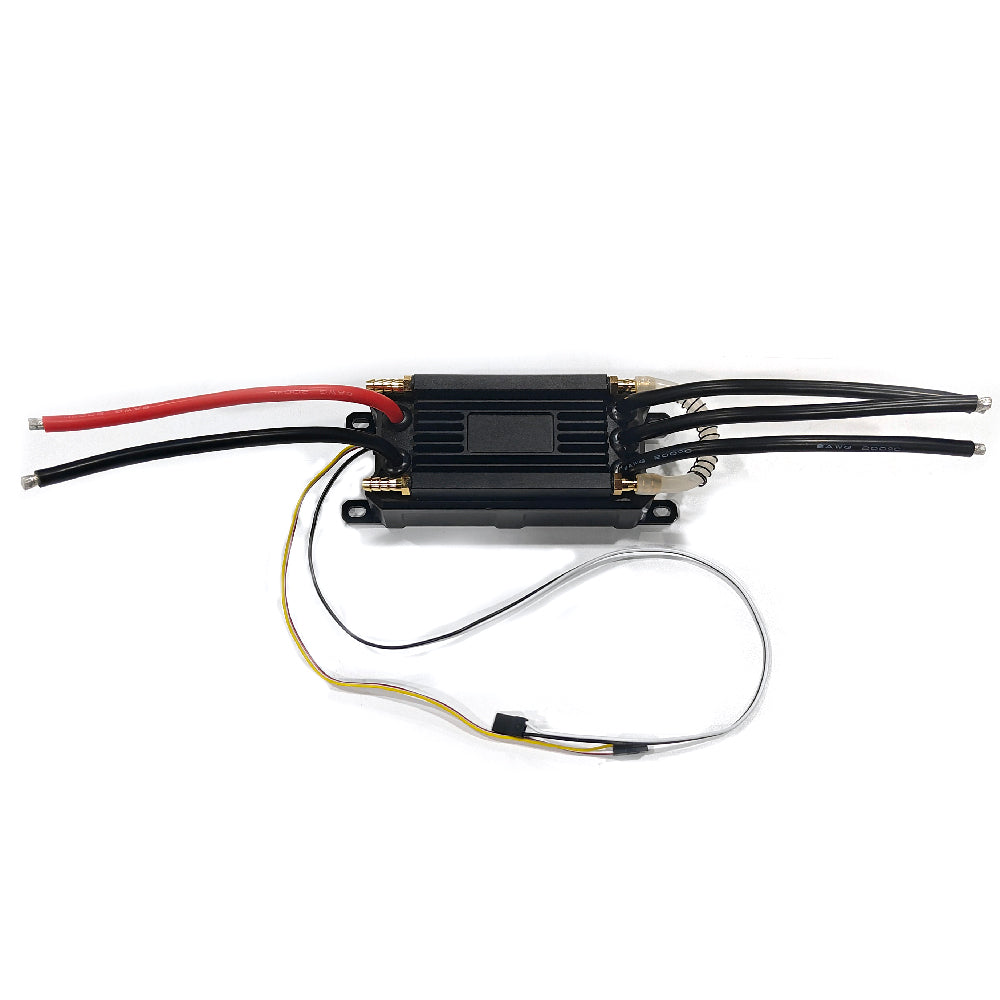

 Model 1.

MTSF300A-WP32
Cont. Current 300A
Max. Current 350A
Volt. 25-60V
6-14S LIPO
Water-cooled

water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.
Size PCB size 105*55*18mm
Weight 585g

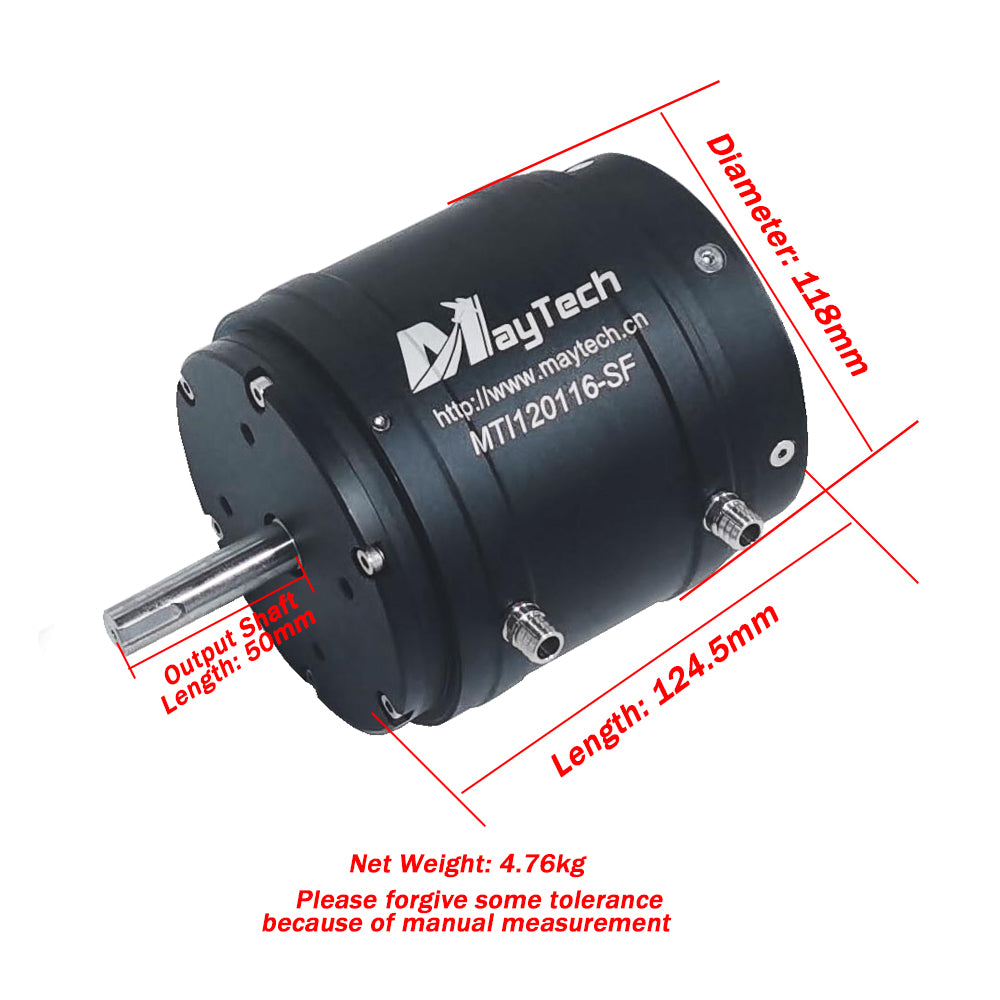

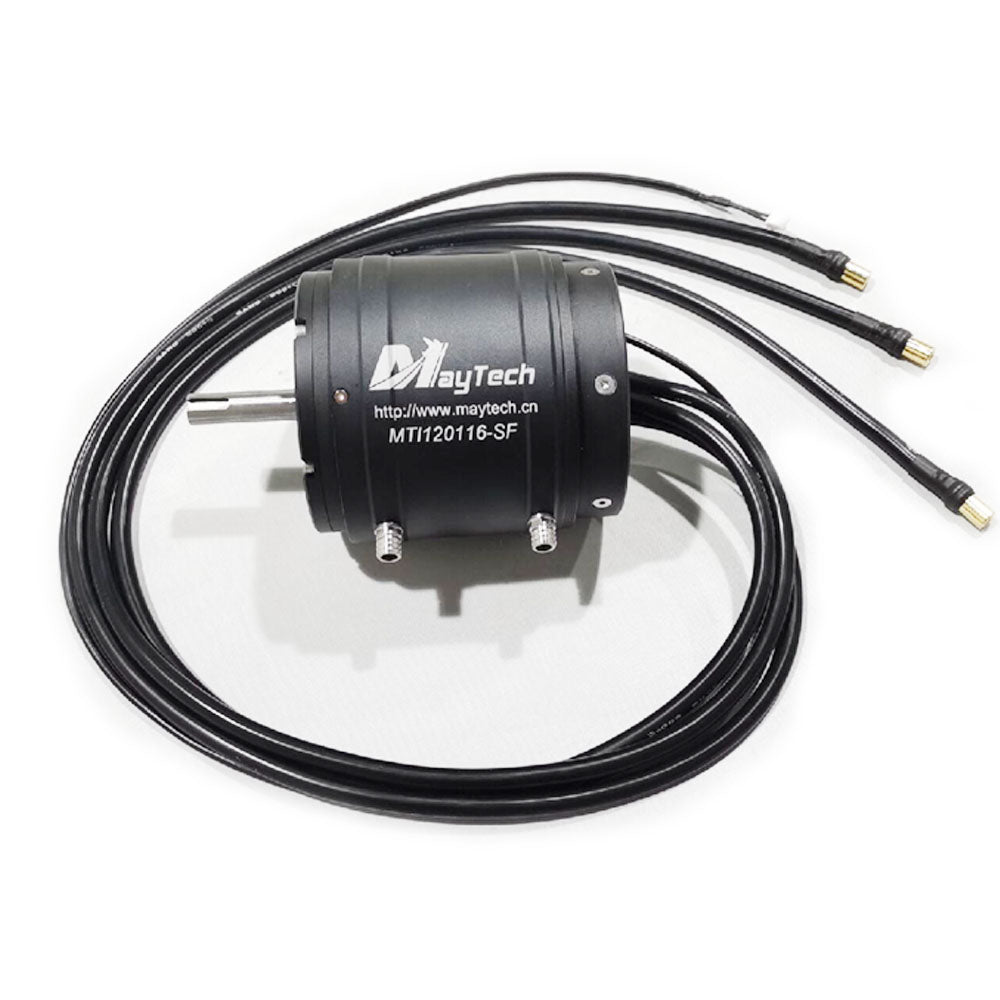

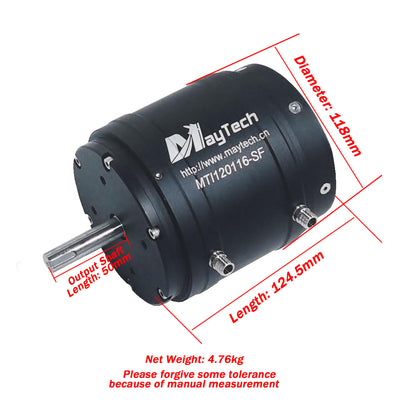

Model MTI120116-100-SF/MTI120116-200-SF
KV 100KV/200KV
RPM/V/Max RPM 200/13440
Idle Current @10V 2.8A
Rated Current/Max Current (A) 300A/380A
Working Voltage 50-84V
Rated/Max Torque(N*M) 13.6/20.6 N.m
Max Power(10S) 18.8KW
Winding Turns/Construction 3.5T/12N/10P
Motor&Shaft Size(mm) Φ118x 116mm
&D15mm
Net Weight (kg)
 4.4



All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.

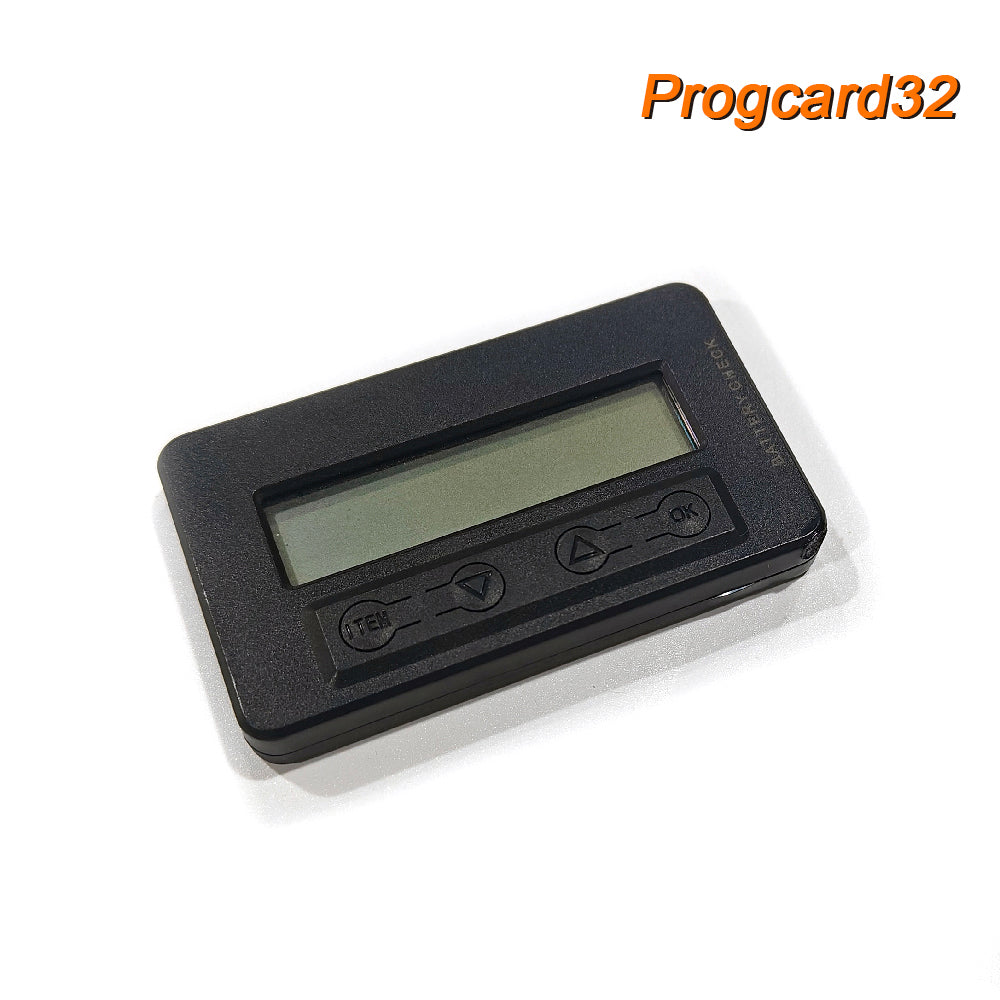

Model 3：Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.
Net weight：50g

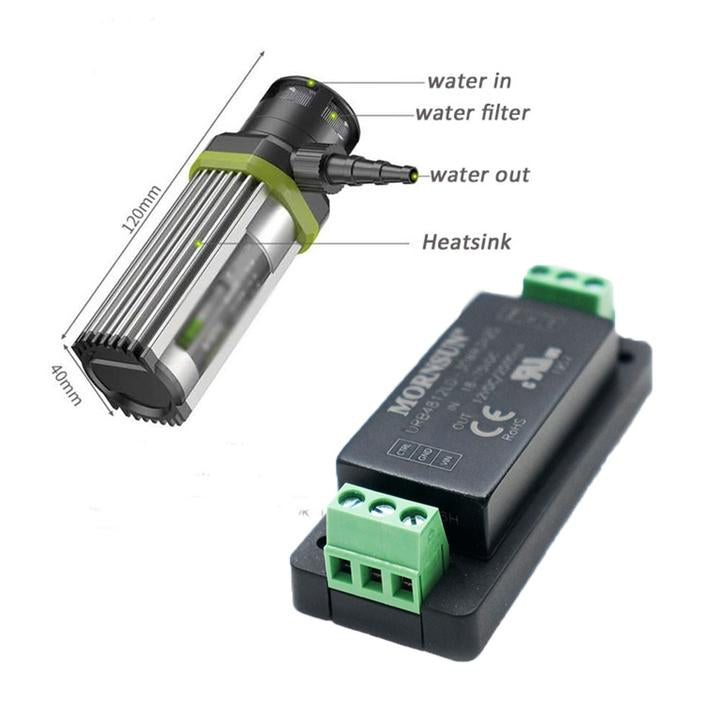

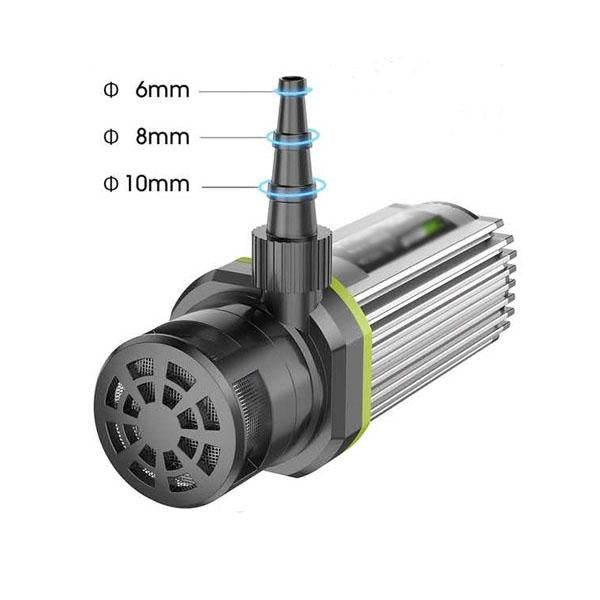

Model 4：MTWP30W（Water pump）
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight：50g

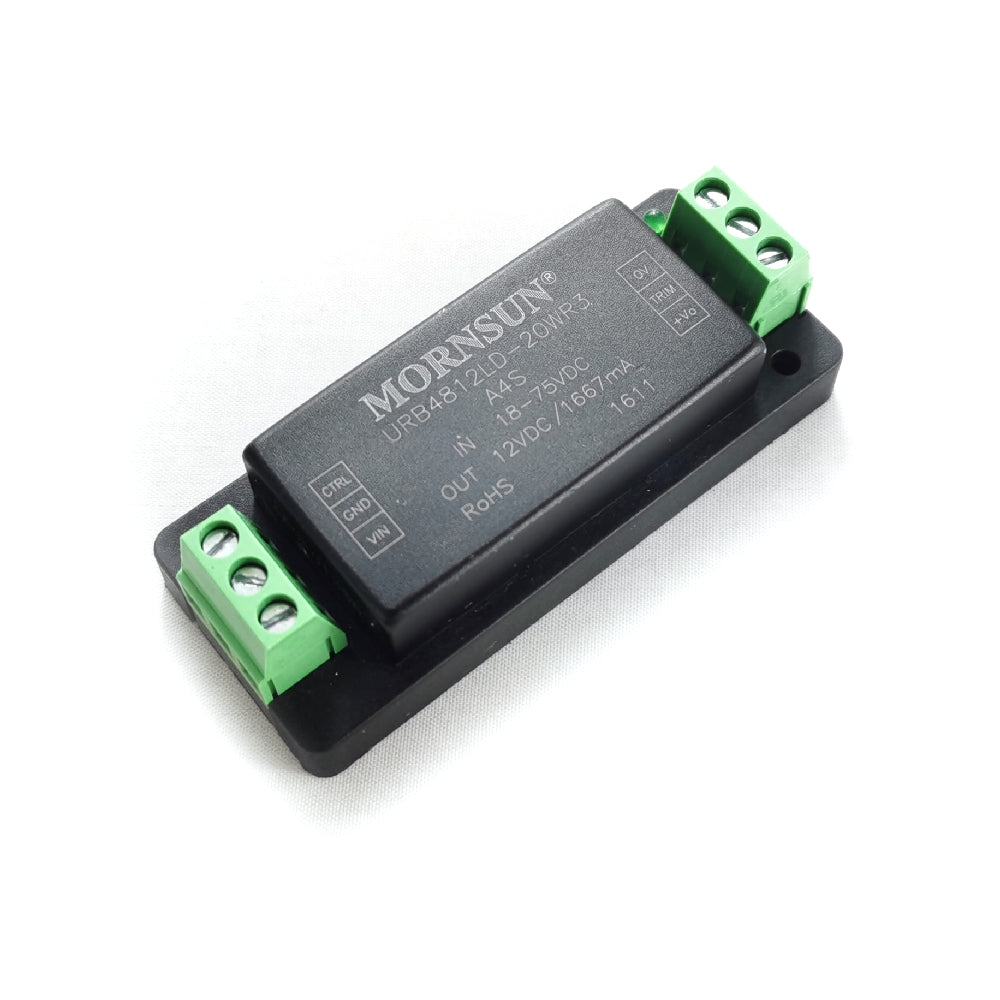

Model 5：MTUBEC75T12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump

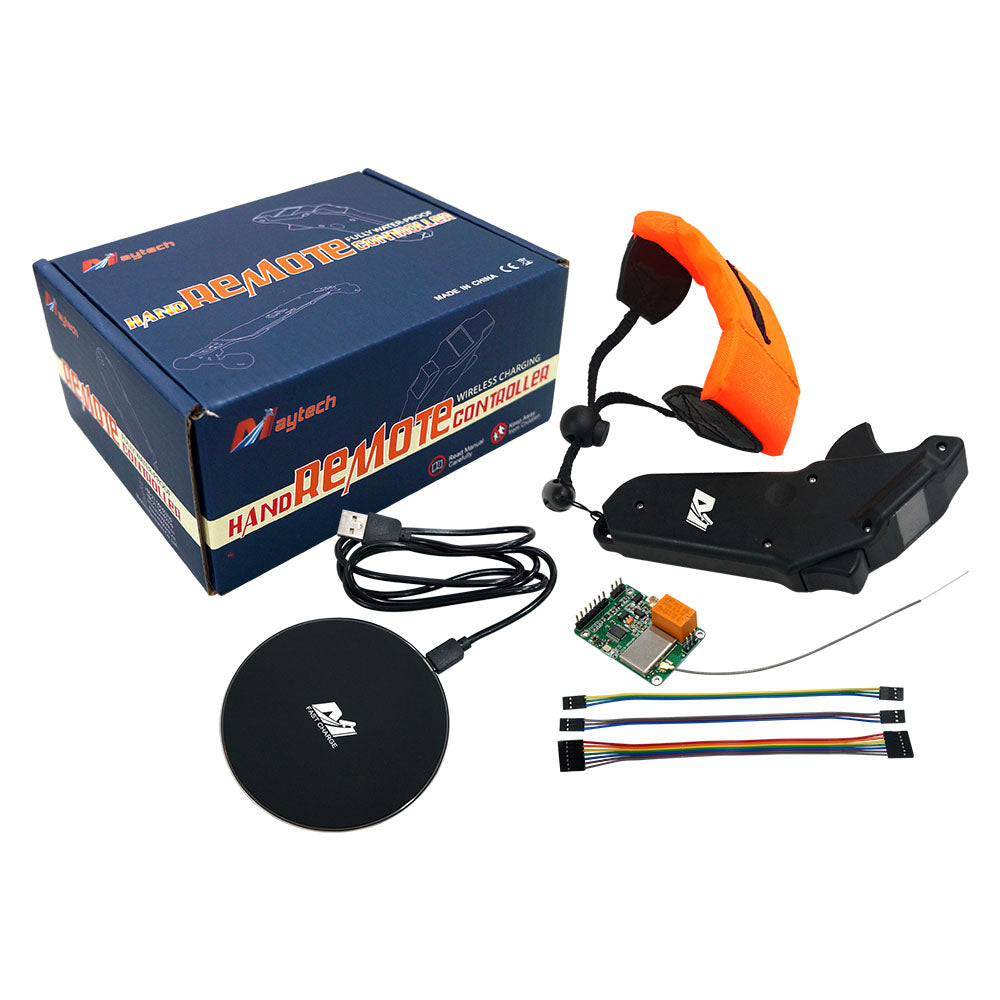

MAYRC Updated V3.0 IP68 Full Waterproof Remote Controller for Esurf Efoil Ehydrofoil

Note :
MTSKR1905WF PWM signal Range:
1. Esurf mode:
 Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.

2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.

Main Advantages
*Nano coating waterproof technology;
*Reliable water-proof performance;
*Comptible with V4, V6 and other ESC controllers;
*Display screen: OLED color;
*Wireless charging;
*Remote display parameters: throttle percentage, remote battery &main battery voltage, motor RPM; if use it with VESC controllers, it can show current, temperature, etc.
*Solid signal: Remote and receiver signal strength is enhenced to avoid some signal interference nearby;
*built-in 30V 3A Relay mechanical switch and 20V 2A transistor electronics switch for lights, water pump;

  1. *Firmware is wirelessly upgradable.
