MAYRC Efoils Kit 100A VESC Based on V6.0 & 150KV Motor 6374 6384 Waterproof Engine with Propellers for Sportboats

MAYRC Efoils Kit 100A VESC Based on V6.0 & 150KV Motor 6374 6384 Waterproof Engine with Propellers for Sportboats

Regular price $491.93 USD
Regular price $496.92 USD Sale price $491.93 USD
Sale Sold out
Type

MAYRC Efoils Kit 100A VESC Based on V6.0 & 150KV Motor 6374 6384 Waterproof Engine with Propellers for Sportboats

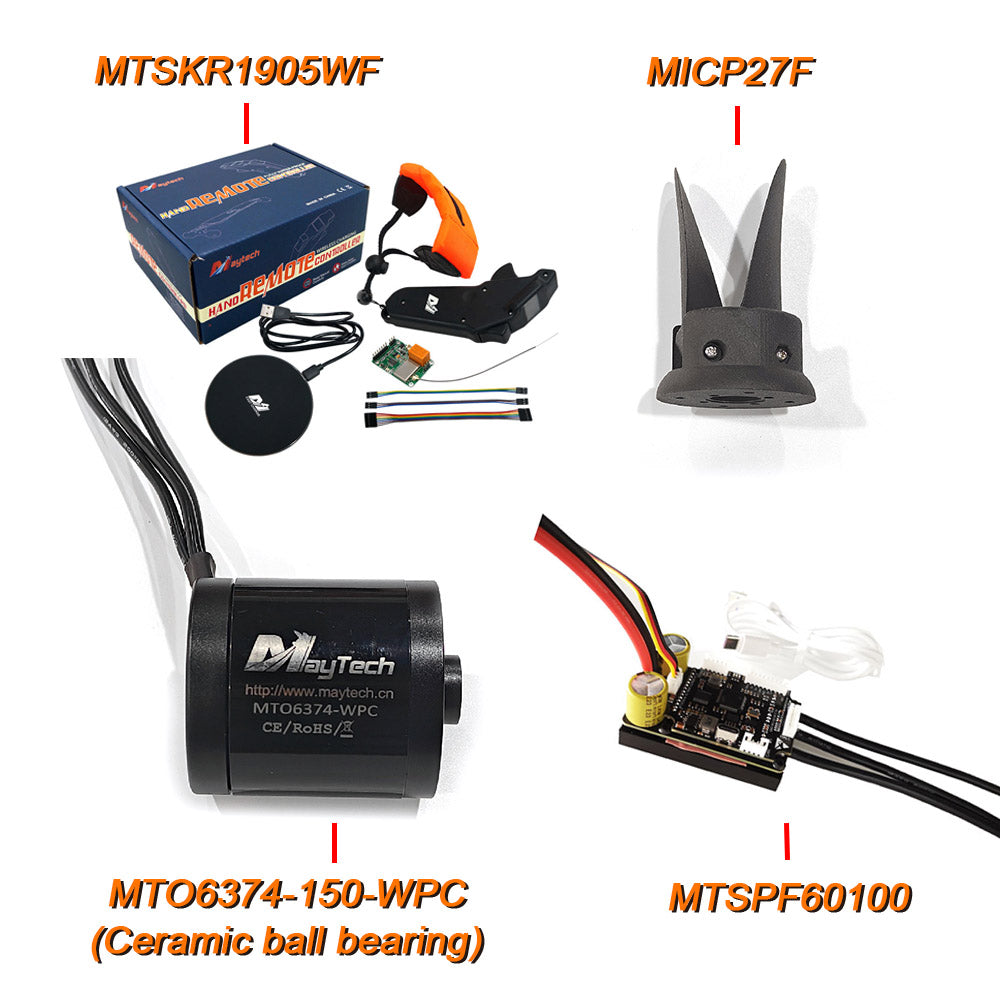

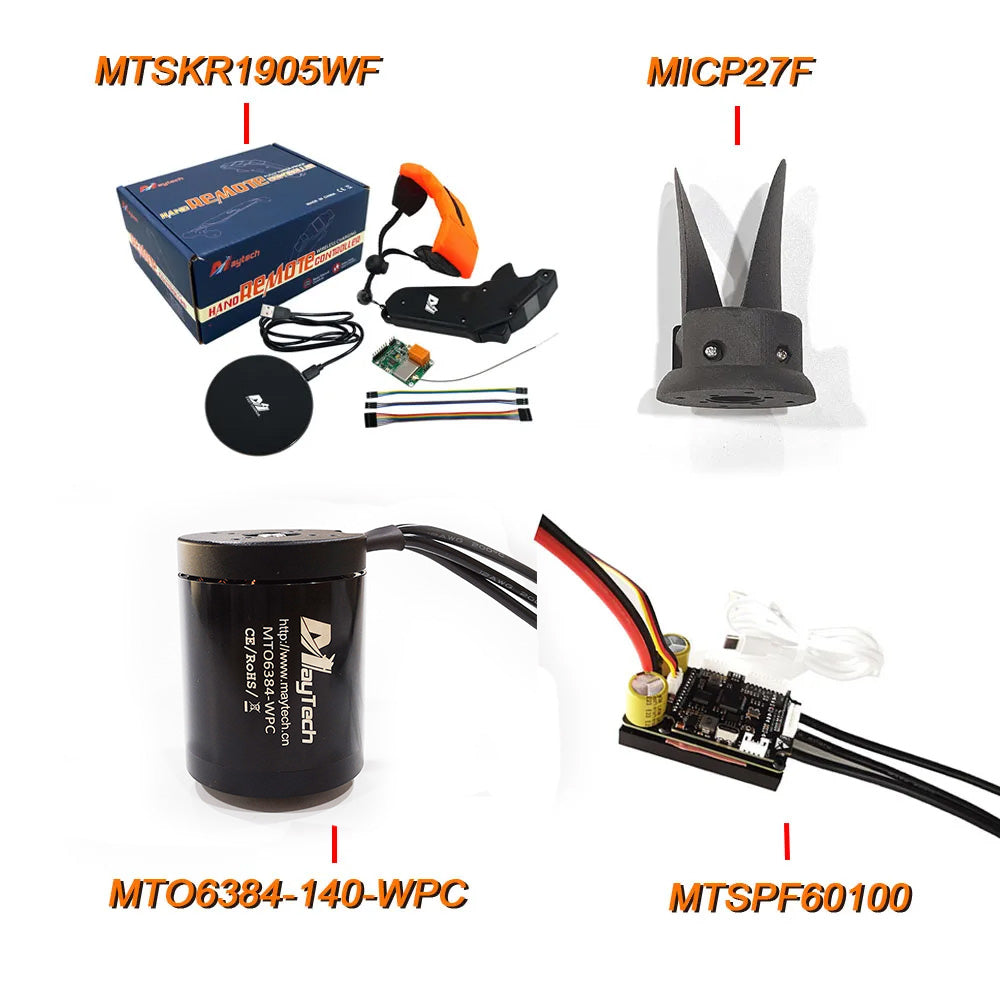

Specification:

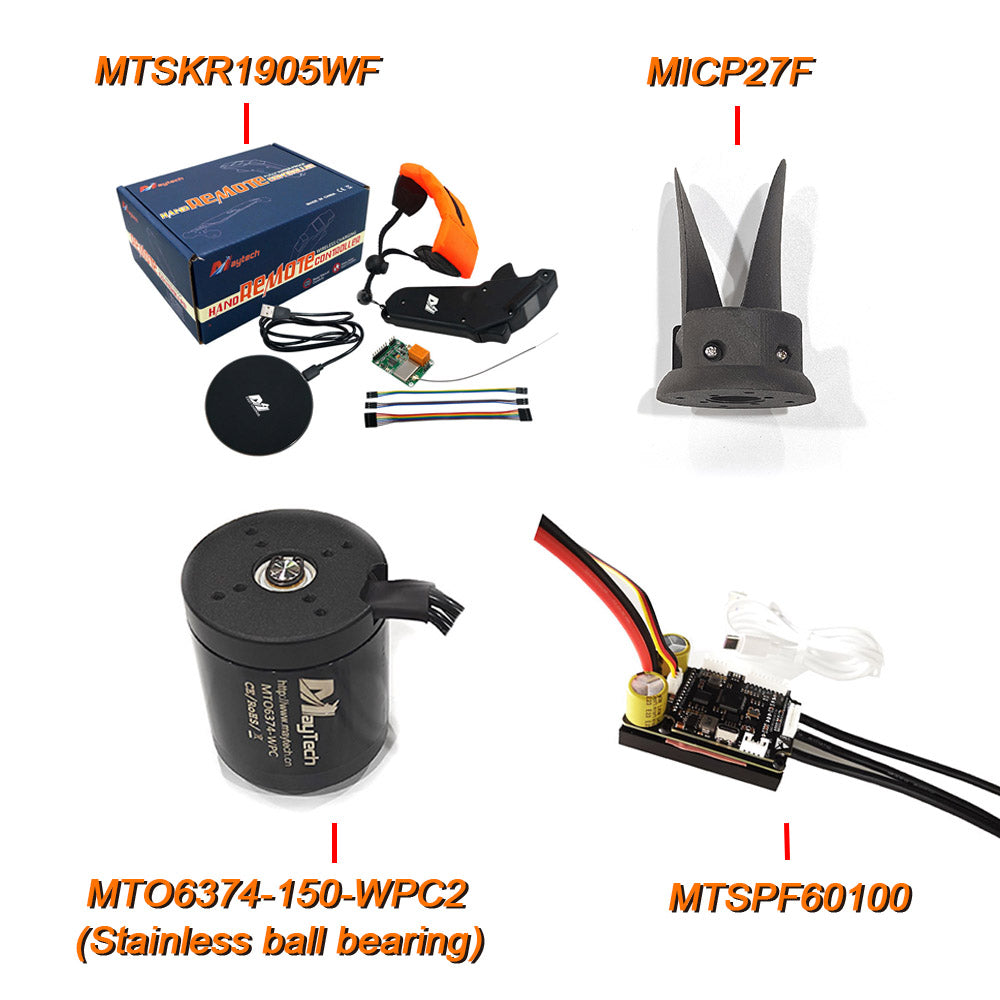

Model 1:MTSPF60100
With Aluminum Case:Heatsink Fin
Cont. Current:100A
Input Volt.:11.1-50V
Hardware:Based on V6.0
Firmware: Upgradable
Software:VESCTOOL Compatible
FOC:YES; Better than V4.12
Compatible motor:Sensor or sensorless
Weight:100g

Model 2:MTO6374-150-WPC
RPM/V/Max RPM:150/8000
Idle Current@10V:0.8A
Rated Current/Max Current (A):60A/70A
Working Voltage:20-50V
Rated/Max Torque(N*M):3/4N.m
Max Power(10S):3.5KW
Winding Turns/Construction:12N/14P

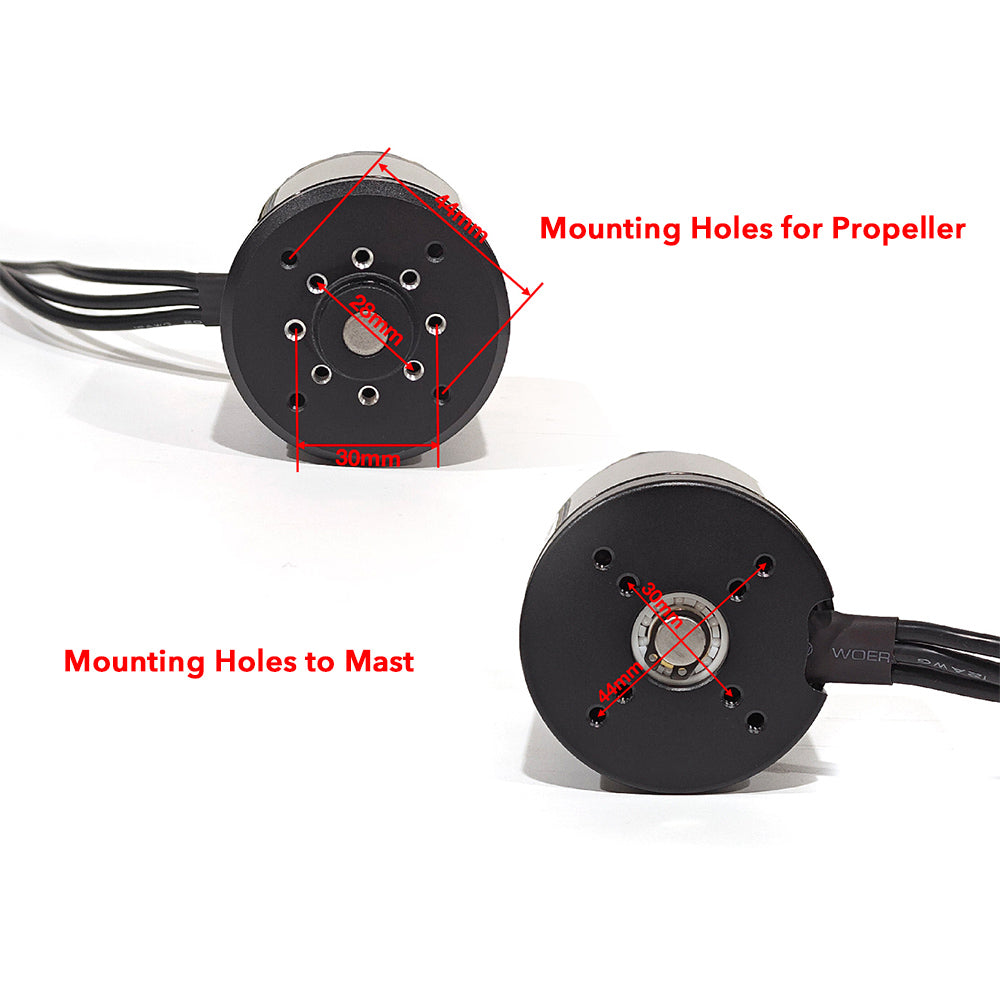

Motor&Shaft Size(mm):63x 74mm (Ceramic shaft)
Net Weight (kg):0.86

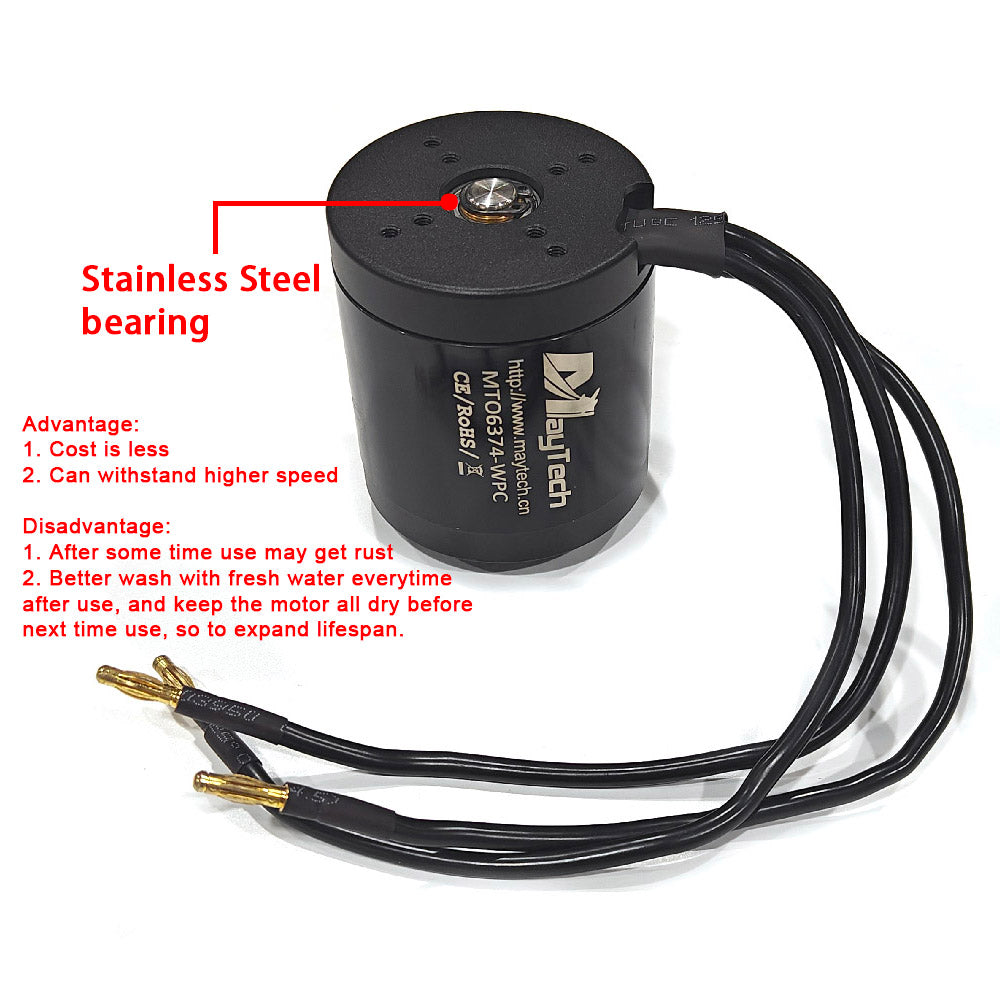

Model 3:MTO6374-150-WPC2
RPM/V/Max RPM:150/8000
Idle Current@10V:0.8A
Rated Current/Max Current (A):60A/70A
Working Voltage:20-50V
Rated/Max Torque(N*M):3/4N.m
Max Power(10S):3.5KW
Winding Turns/Construction:12N/14P
Motor&Shaft Size(mm):63x74mm(Stainless ball bearing )
Net Weight (kg):0.86

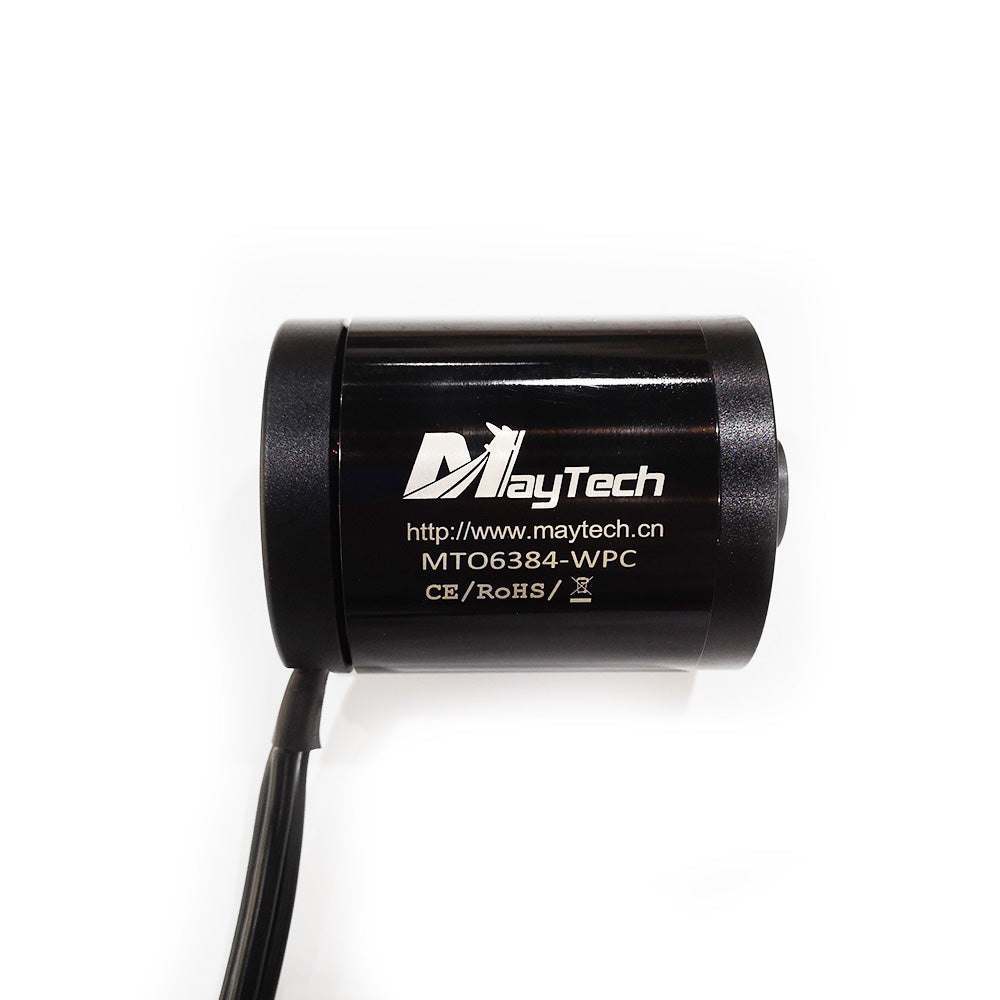

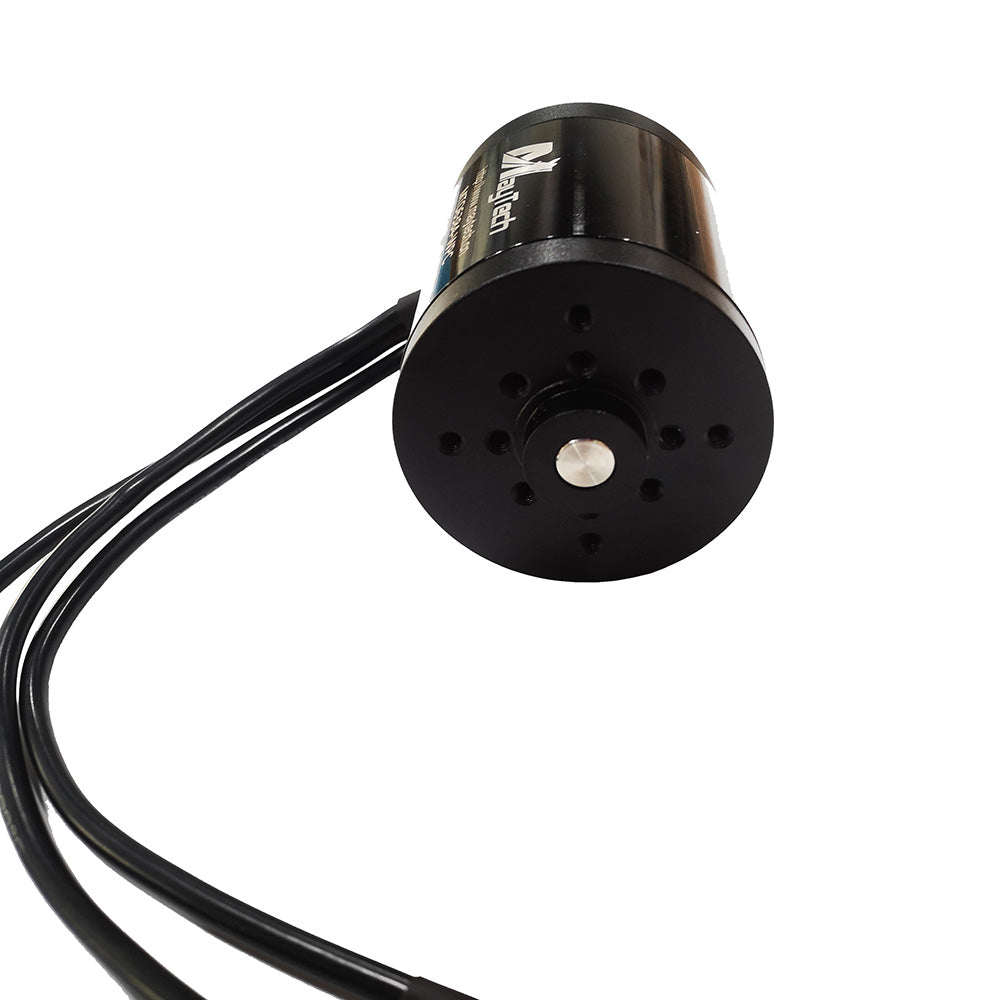

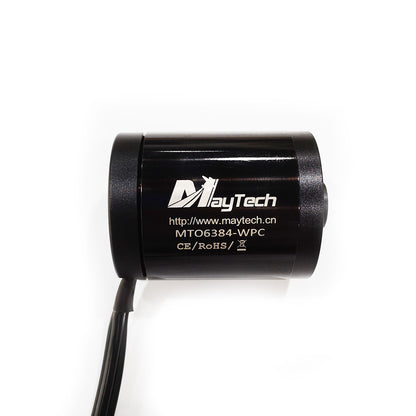

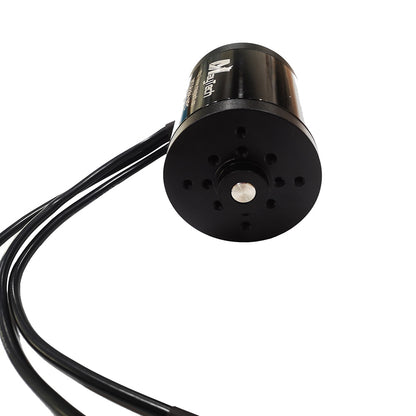

Model 4:MTO6384-140-WPC
RPM/V/Max RPM:150/8000
Idle Current @10V:0.8A
Rated Current/Max Current (A):70A/100A
Working Voltage:20-50V
Rated/Max Torque(N*M):4/8.8N.m
Max Power(10S):5KW
Winding Turns/Construction:12N/14P
Motor&Shaft Size(mm):63x84mm
Net Weight (kg):0.93

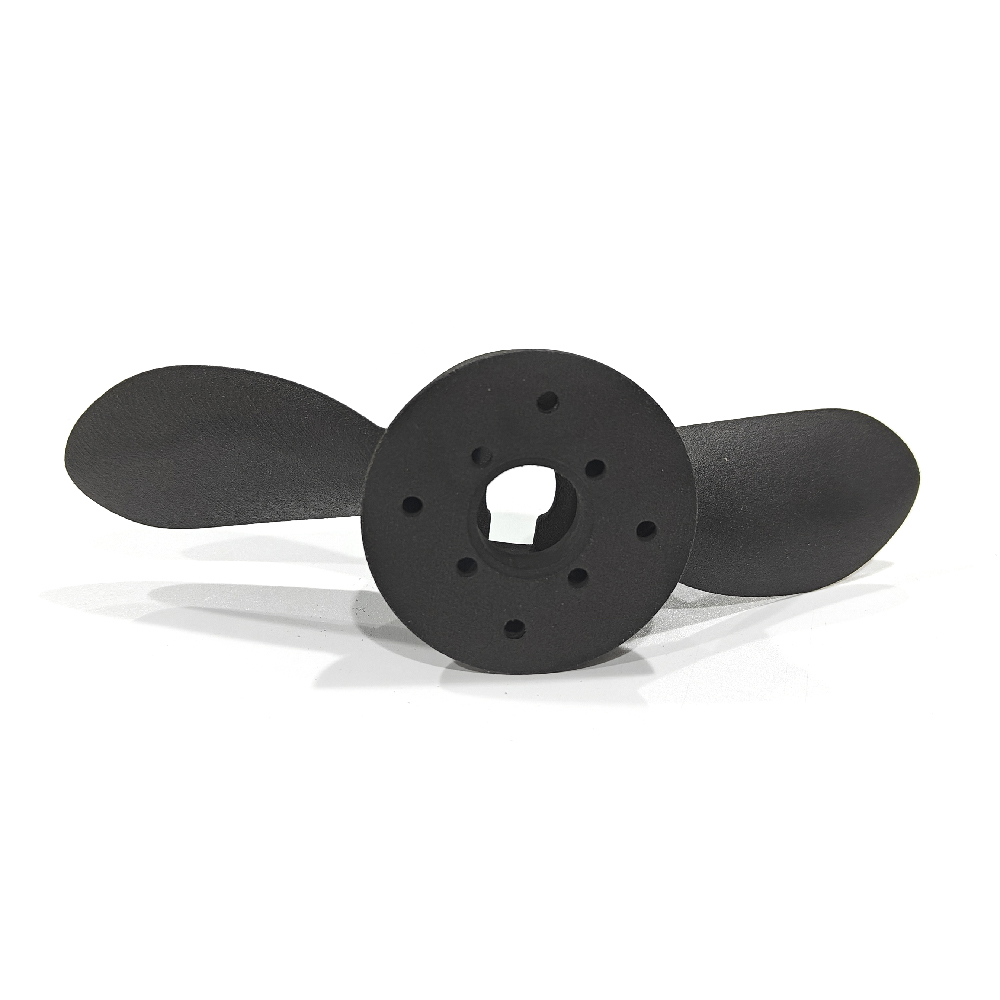

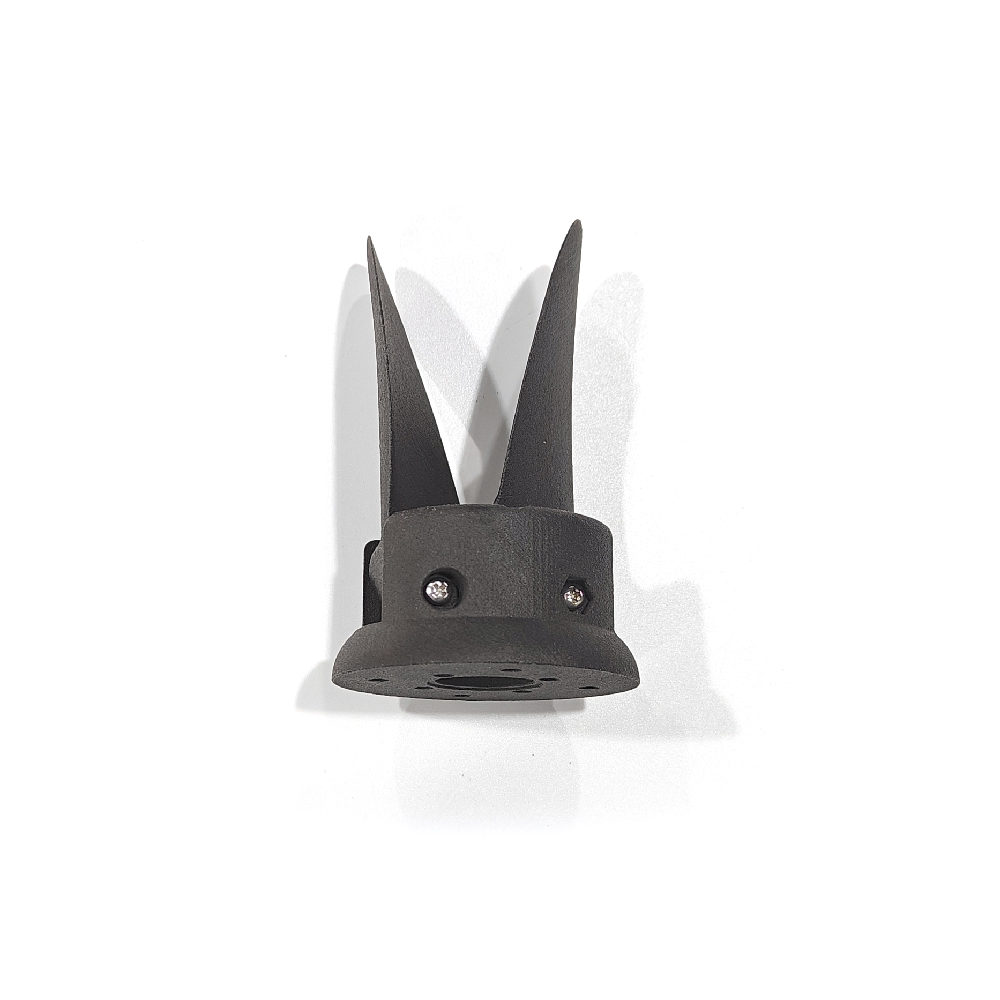

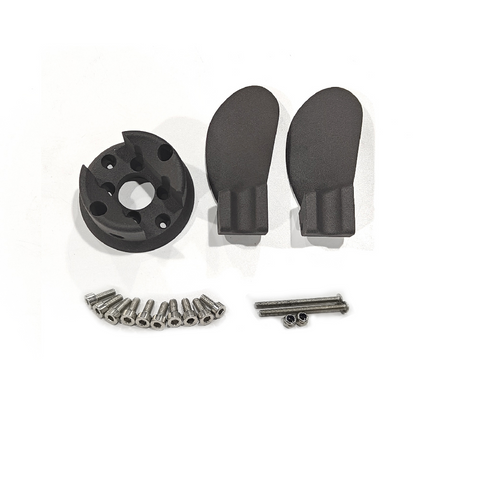

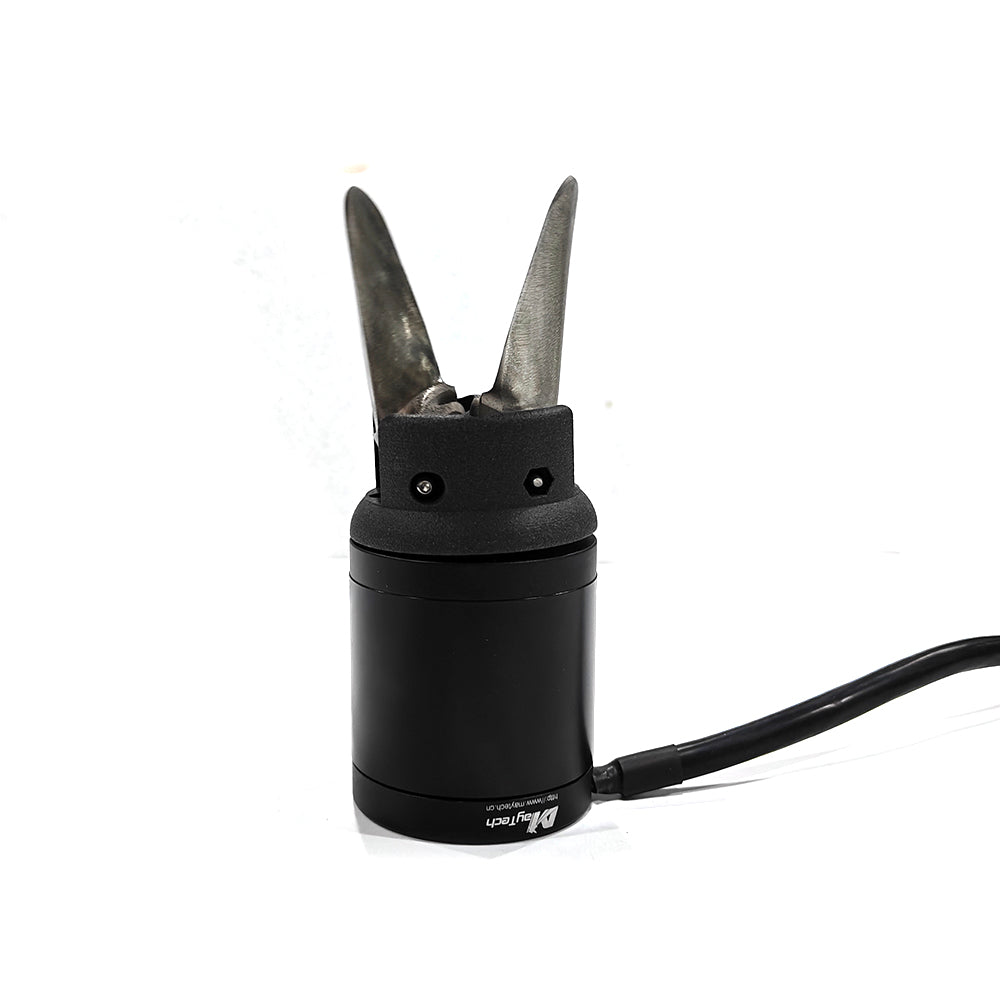

Model 5:MICP27F
Blades: 2 blades
Type: 3D printed foling prop
Size: as picture
Compatible Motor: MTO6374-150-WPC
Package: 2 blades, prop hub, screws
Recommend Compatible Motor:MTO6374-150-WPC and MTO6384-130-WPC waterproof motor for foil assist
Application:Foil assist system, electric outboard, wing foil, retrofit efoil, sup foil, sup board, etc.

MTO6374-150-WPC(Stainless ball bearing )

MTO6374-150-WPC2(Stainless ball bearing)

MTO6384-140-WPC

Model 6:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad
