Specification:

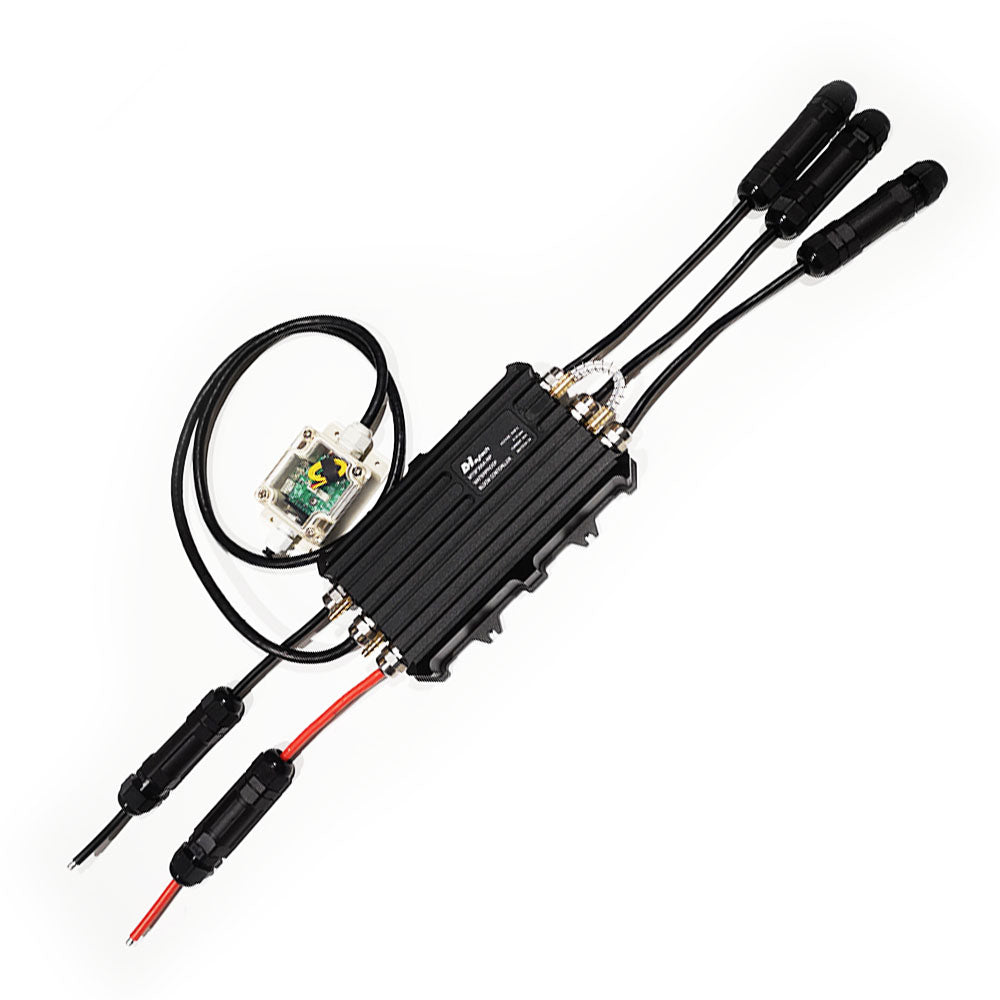

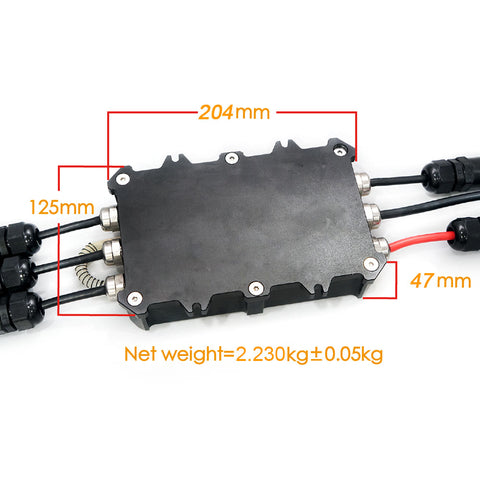

Model 1：MTSF300A-WP
Cont. Current：300A
Max. Current：350A
Volt.：25-60V 6-14S LIPO
Water-cooled ：water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.
Size：PCB size 138*80*30mm
Weight：1440g

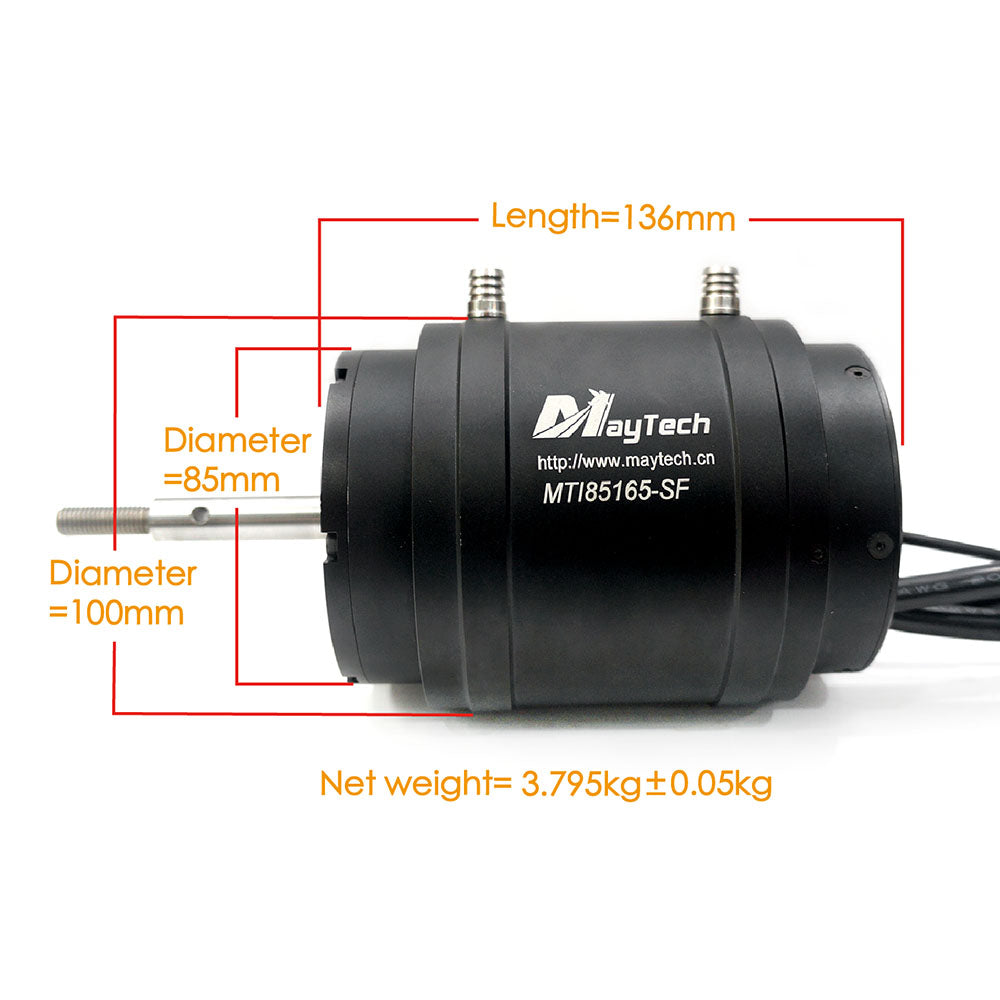

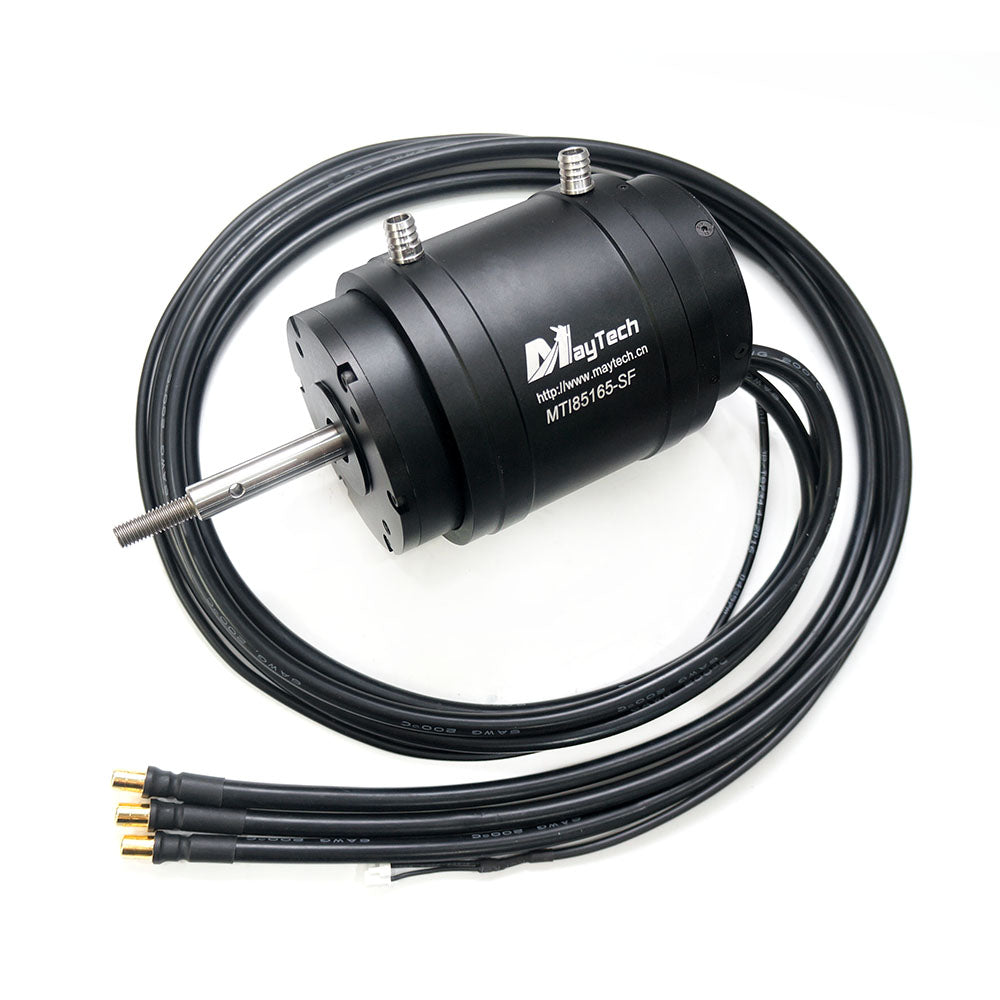

Model 2：MTI85165-200-SF(with Water-cooling)
KV: 200
RPM/V/Max RPM: 200/12096
Idle Current@10V：2.1A
Rated Current/Max Current(A)：190A/300A
Working Voltage：50-84V
Rated/Max Torque(N*M)：17.5/21.5N.M
Max Power(10S)：10.5KW
Winding Turns/Construction：7T/12N/10P
Motor&Shaft Size(mm)：Φ85x134mm&12mm
Net Weight (kg)：2.8

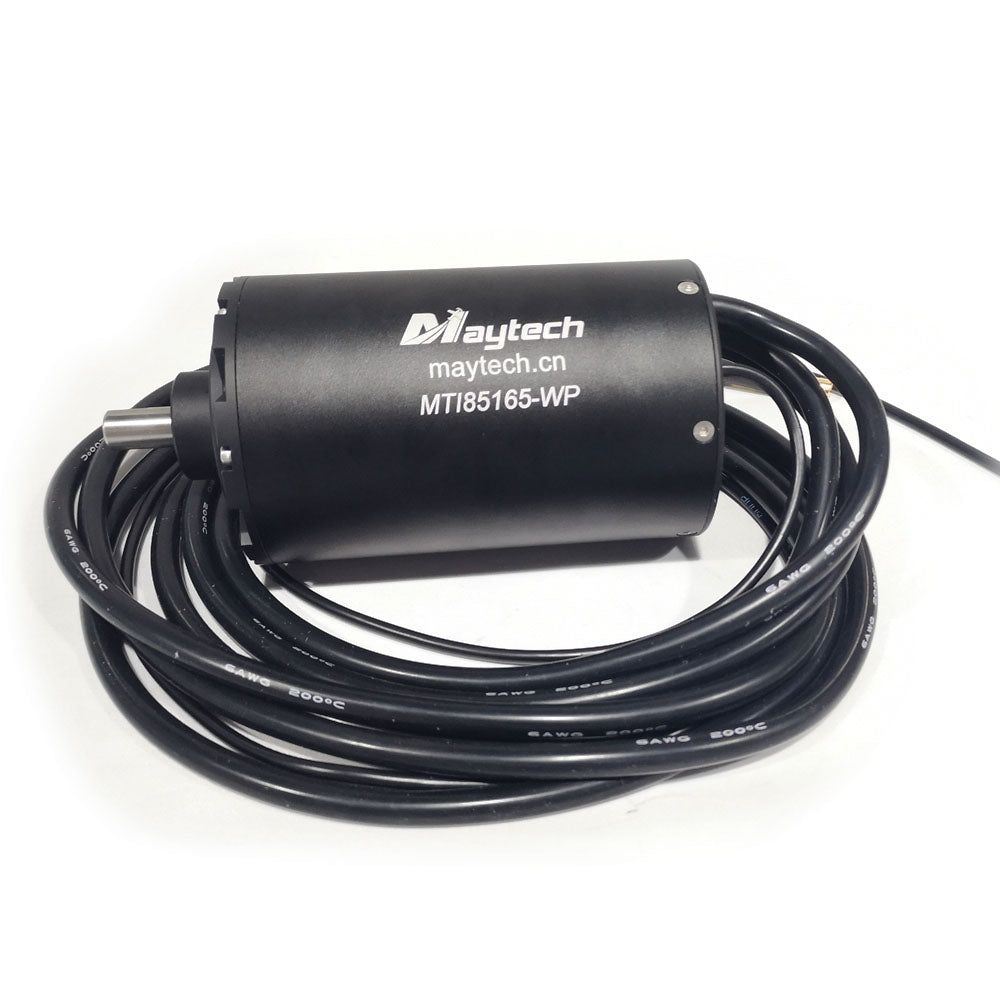

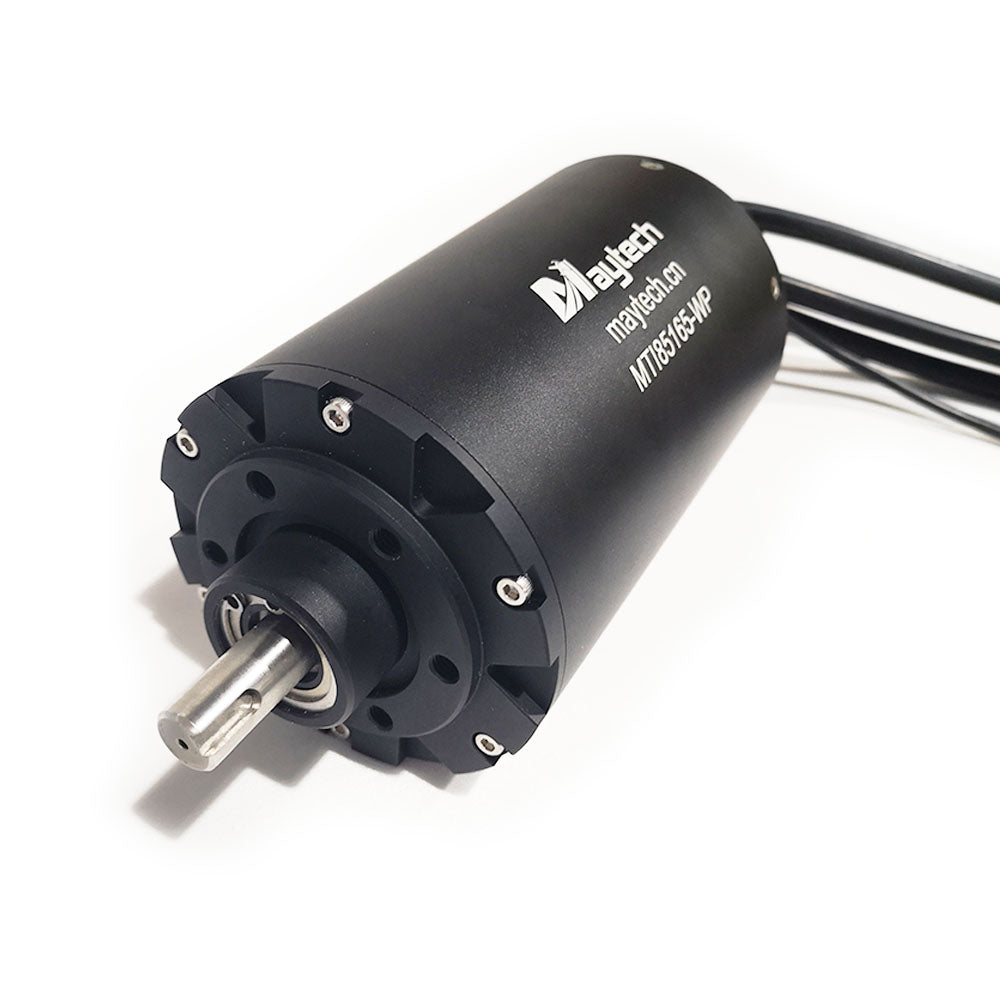

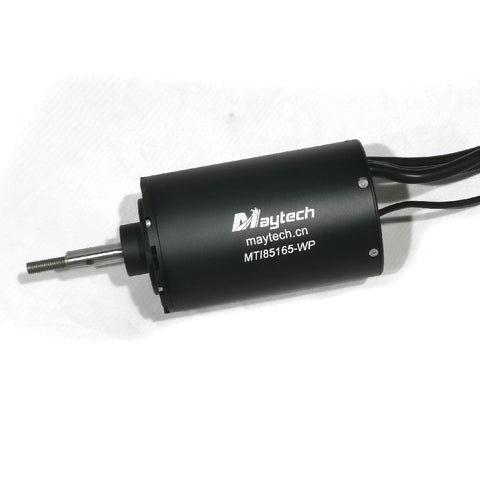

Model 3：MTI85165-200-WP(Fully water-proof)
KV: 200
RPM/V/Max RPM: 200/12096
Idle Current@10V：2.1A
Rated Current/Max Current(A)：190A/300A
Working Voltage：50-84V
Rated/Max Torque(N*M)：17.5/21.5N.M
Max Power(10S)：10.5KW
Winding Turns/Construction：7T/12N/10P
Motor&Shaft Size(mm)：Φ85x134mm&12mm
Net Weight (kg)：2.8

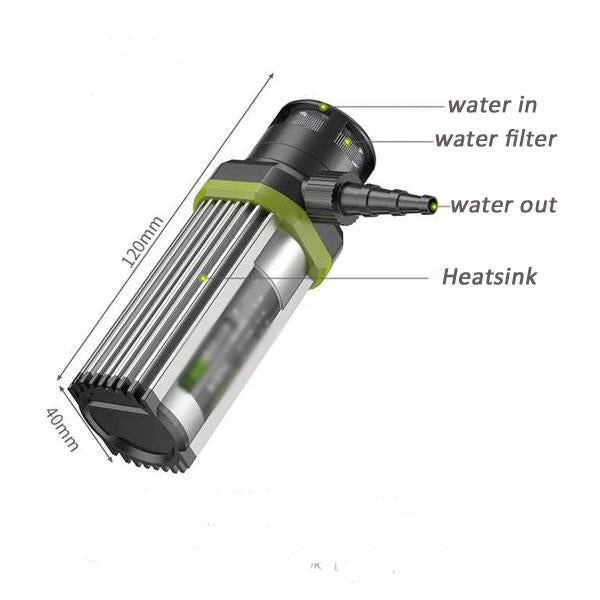

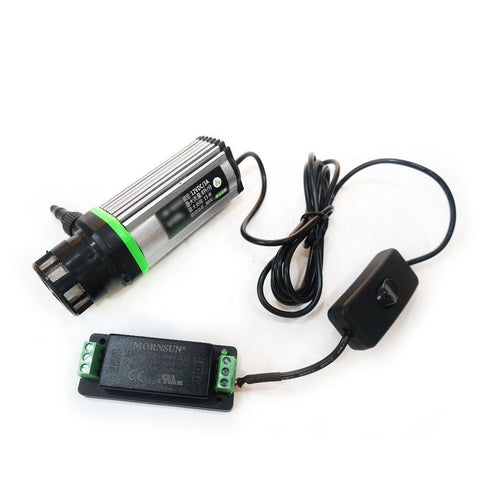

Model 4：MTWP30W（Water pump）
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight：50g

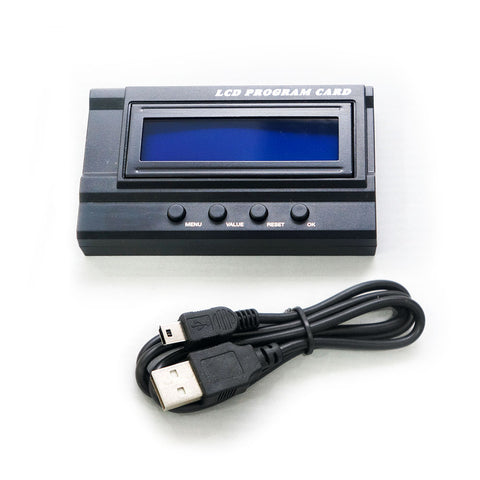

Model 5：Progcard-HA
Program MTSF300A-OPTO, MTSF300A-WP and MTSF500A-WP ESCs settings.
Net weight：30g

Model 6：MTUBEC75T5V
Voltage Regulator, convert 75V voltage to 5V. An optional accessory to 300A controller, supply power to receiver.
Net weight：80g

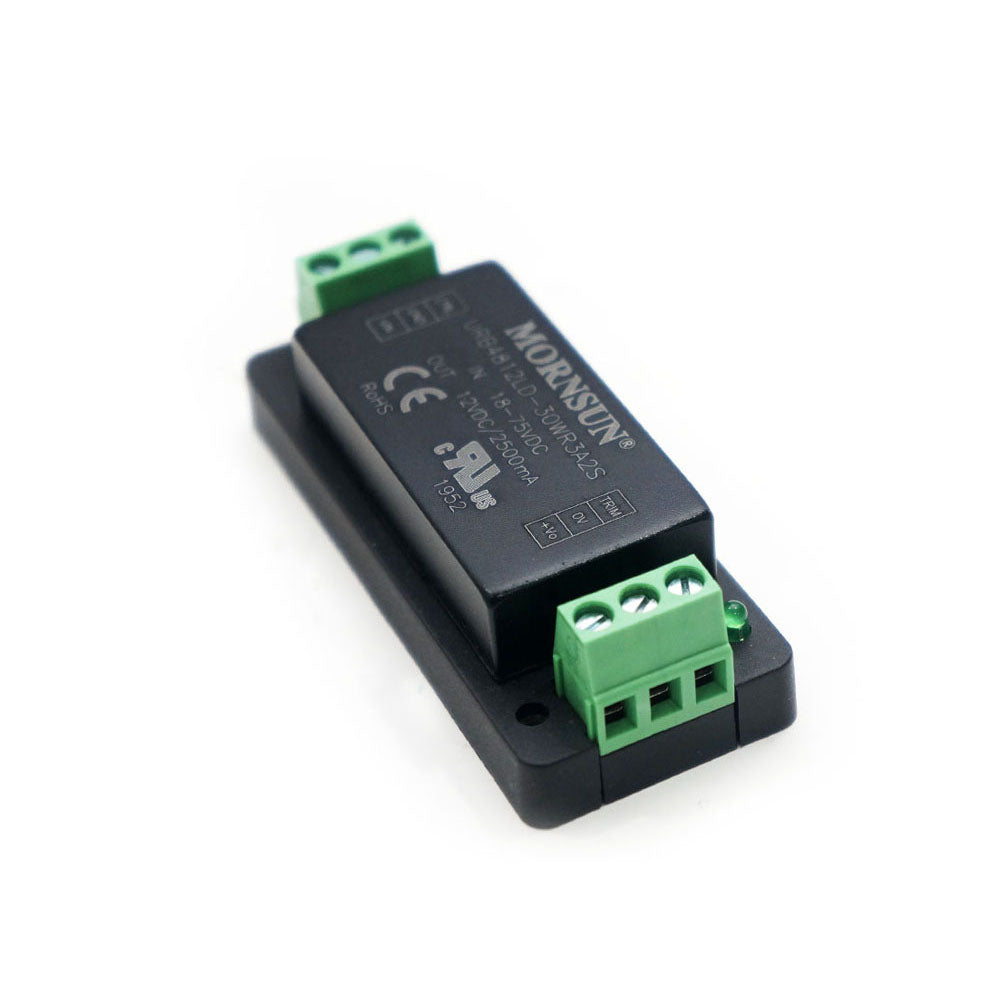

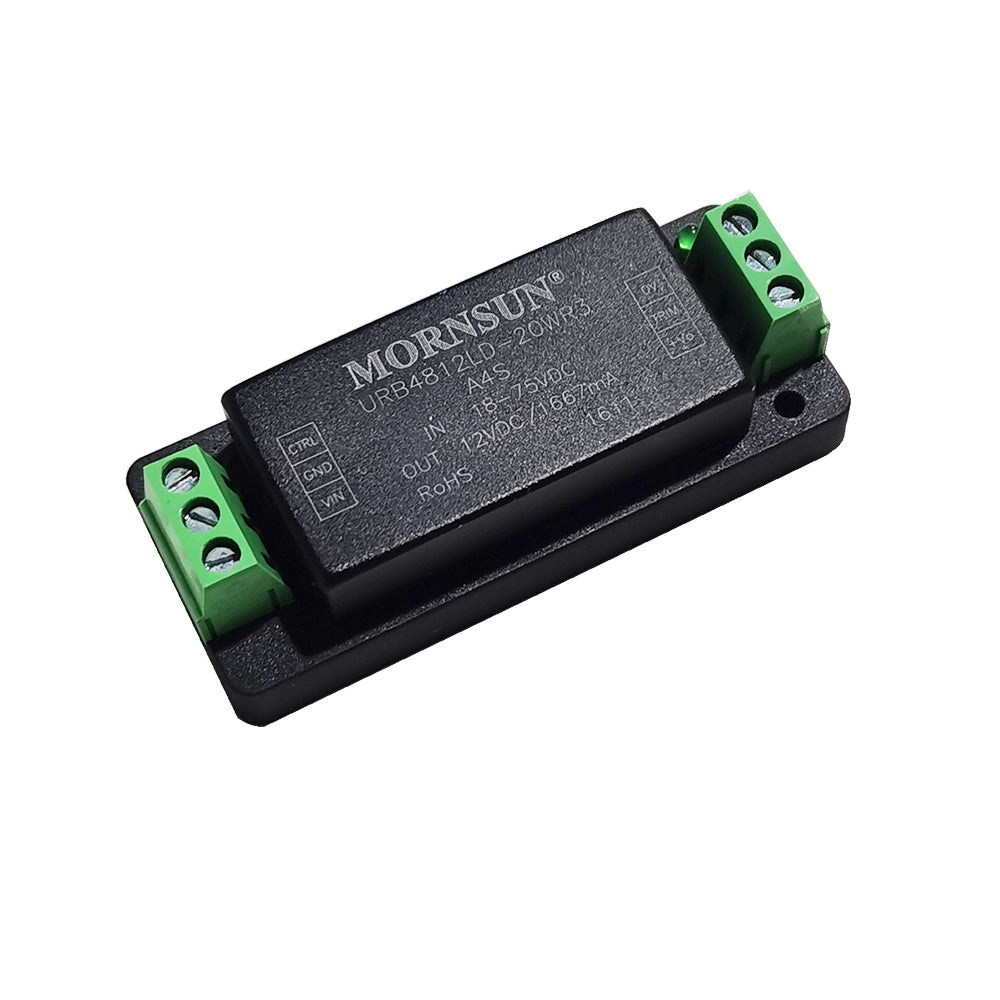

Model 7：MTUBEC75T12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump
Net weight：80g

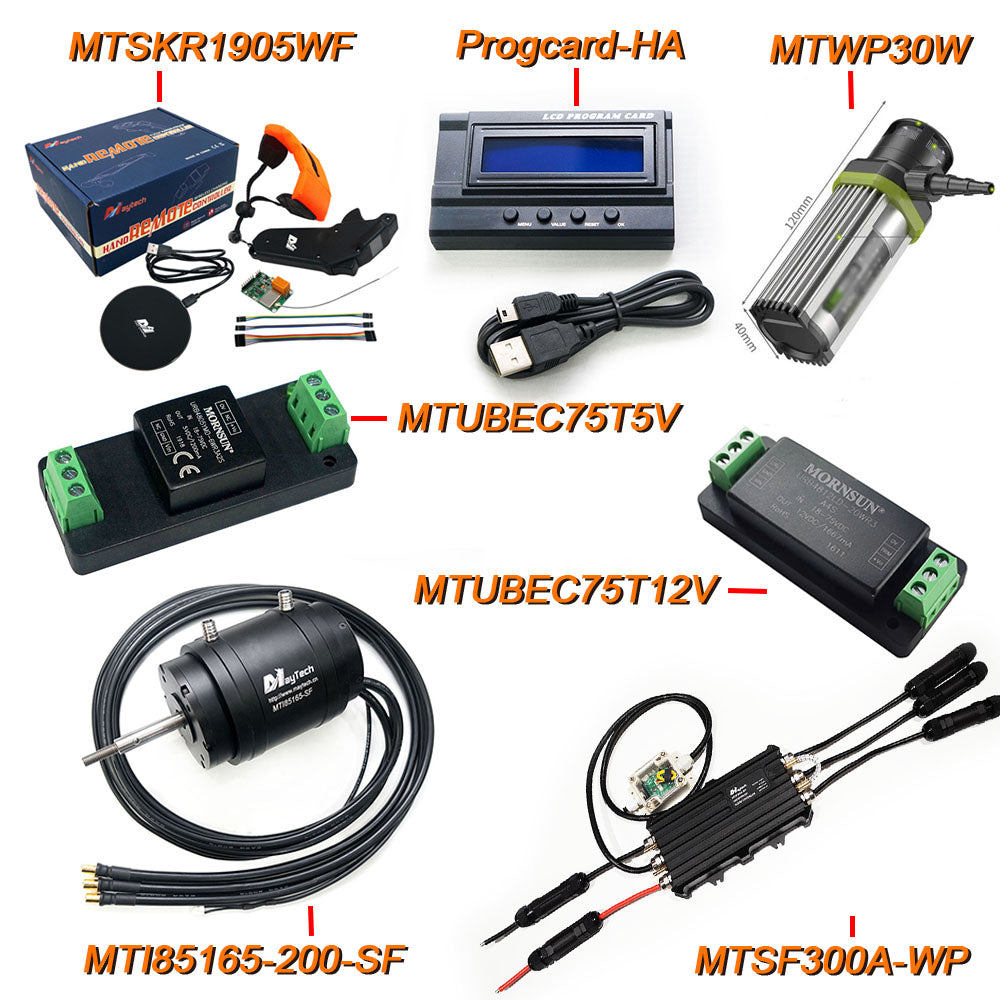

Remark:

1pcs MTSF300A-WP ESC+
1pcs MTI85165-200-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

Type B it is include
1pcs MTSF300A-WP ESC+
1pcs MTI85165-200-WP Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

Customize Service：

Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com

Note:

1:If the water pump and UBEC need to be soldered, please remark. If no remarks are provided, welding is not required by default.

2:Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV,so each motor might has ±5%-10% tolerance, this is normal.

MTI85165-200-WP

MTI85165-200-SF
