MAYRC Foil Assist Kit 160A 32BIT ESC 140KV 150KV 6374 6384 Motor with Water-cooled and Propeller for Foil Drive Boat

MAYRC Foil Assist Kit 160A 32BIT ESC 140KV 150KV 6374 6384 Motor with Water-cooled and Propeller for Foil Drive Boat

Regular price $502.95 USD
Regular price $513.09 USD Sale price $502.95 USD
Sale Sold out
Type

MAYRC Foil Assist Kit 160A 32BIT ESC 140KV 150KV 6374 6384 Motor with Water-cooled and Propeller for Foil Drive Boat

Specification:

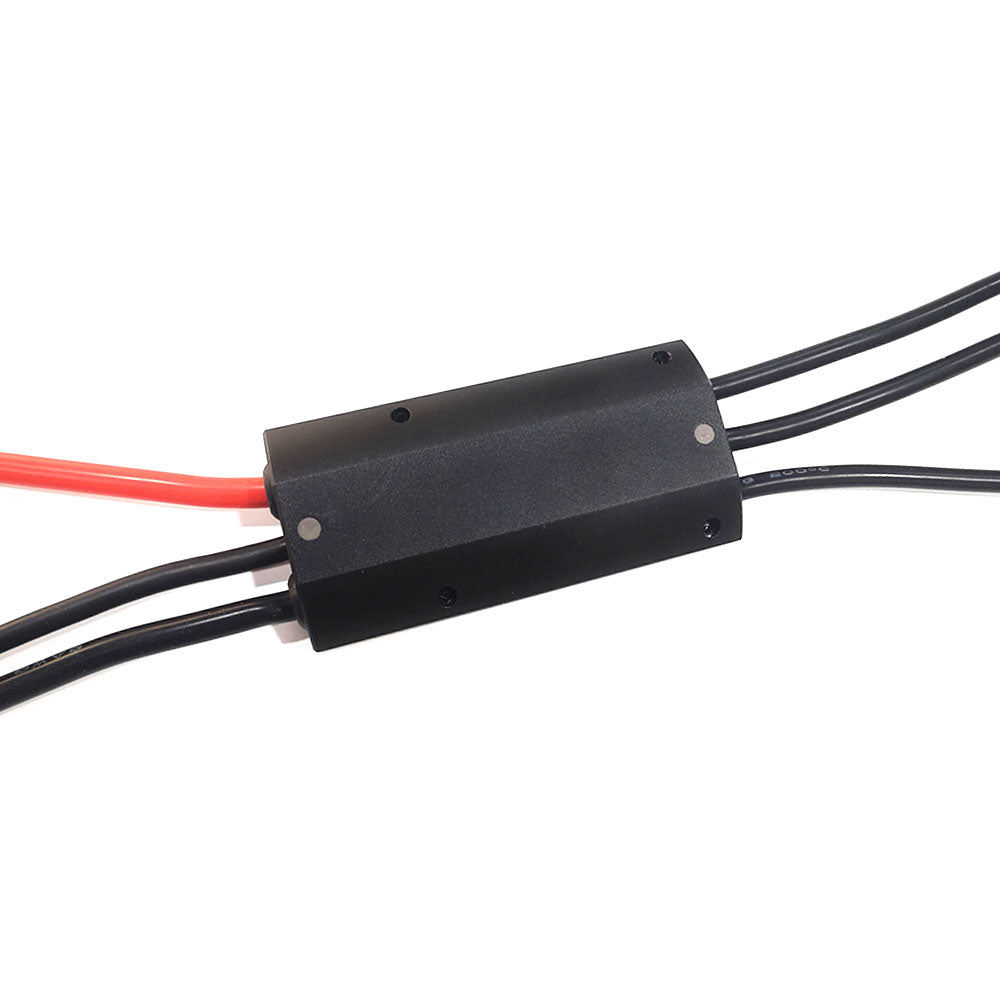

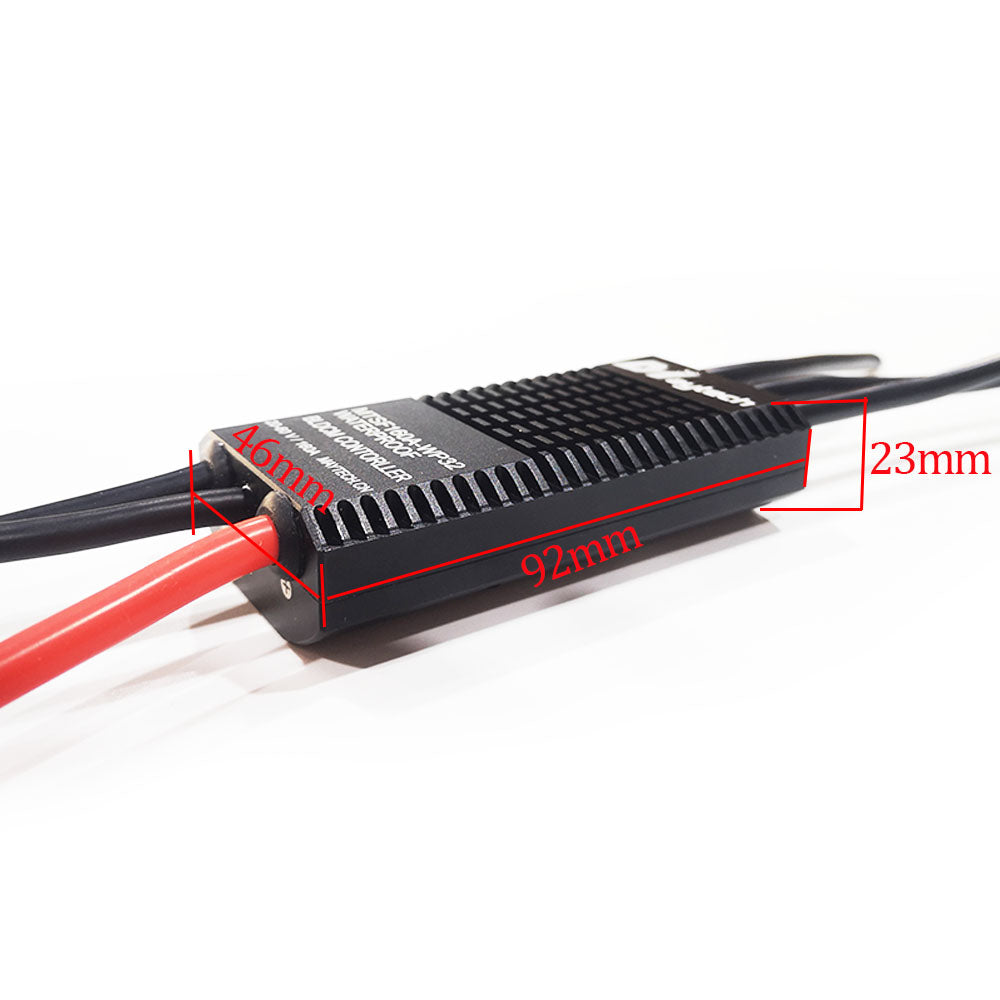

Model 1:MTSF160A-WP32
Cont. Current:160A
Max. Current:180A
Volt.:25-60V 6-14S LIPO
Water-cooled :water-proof version IP68
Can work in 1 meter deep water; Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.
Size:95*46*23mm
Weight:180g

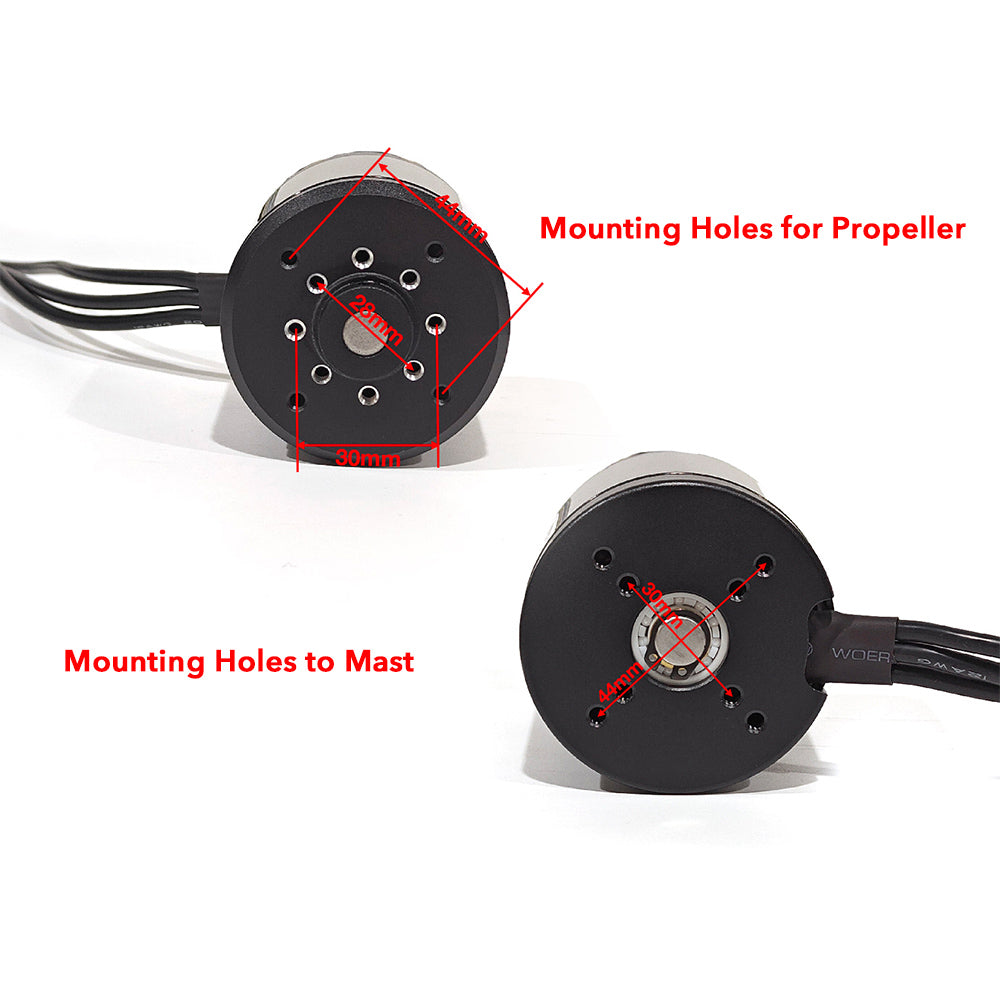

Model 2:MTO6374-150-WPC
KV: 150
RPM/V/Max RPM: 150/8000
Idle Current@10V:0.8A
Rated Current/Max Current(A):60A/70A
Working Voltage:20-50V
Rated/Max Torque(N*M):3/4N.m
Max Power(10S):3.5KW
Winding Turns/Construction:12N/14P

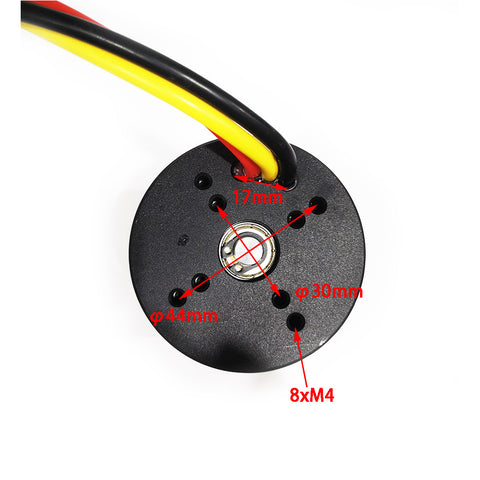

Motor&Shaft Size(mm):63x74mm Ceramic ball bearing
Net Weight (kg):0.86

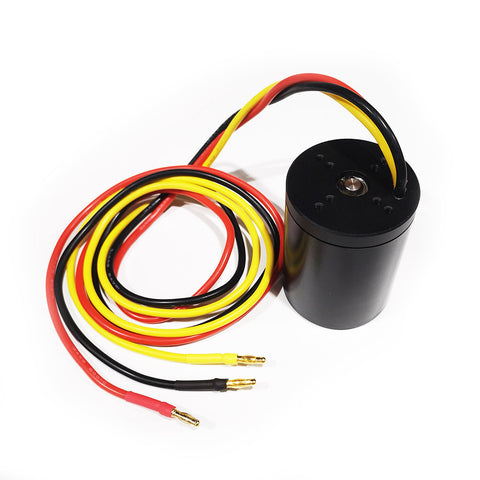

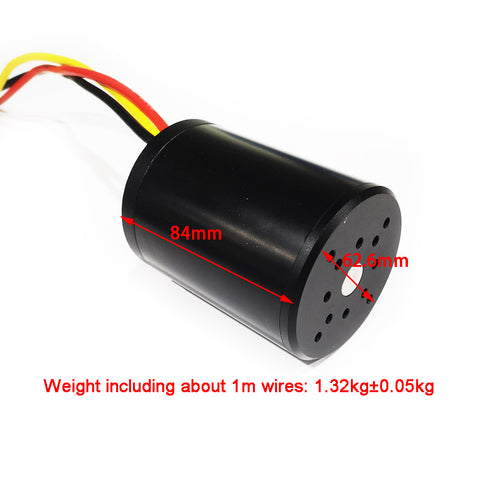

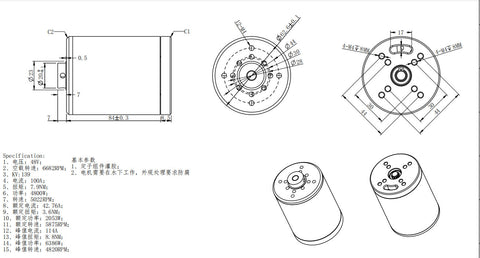

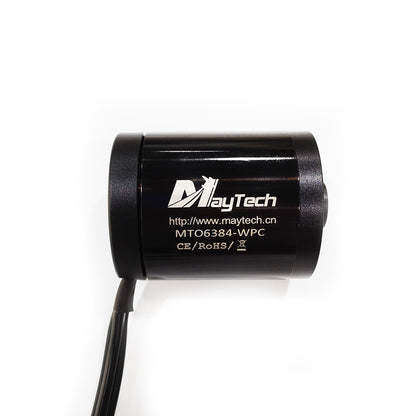

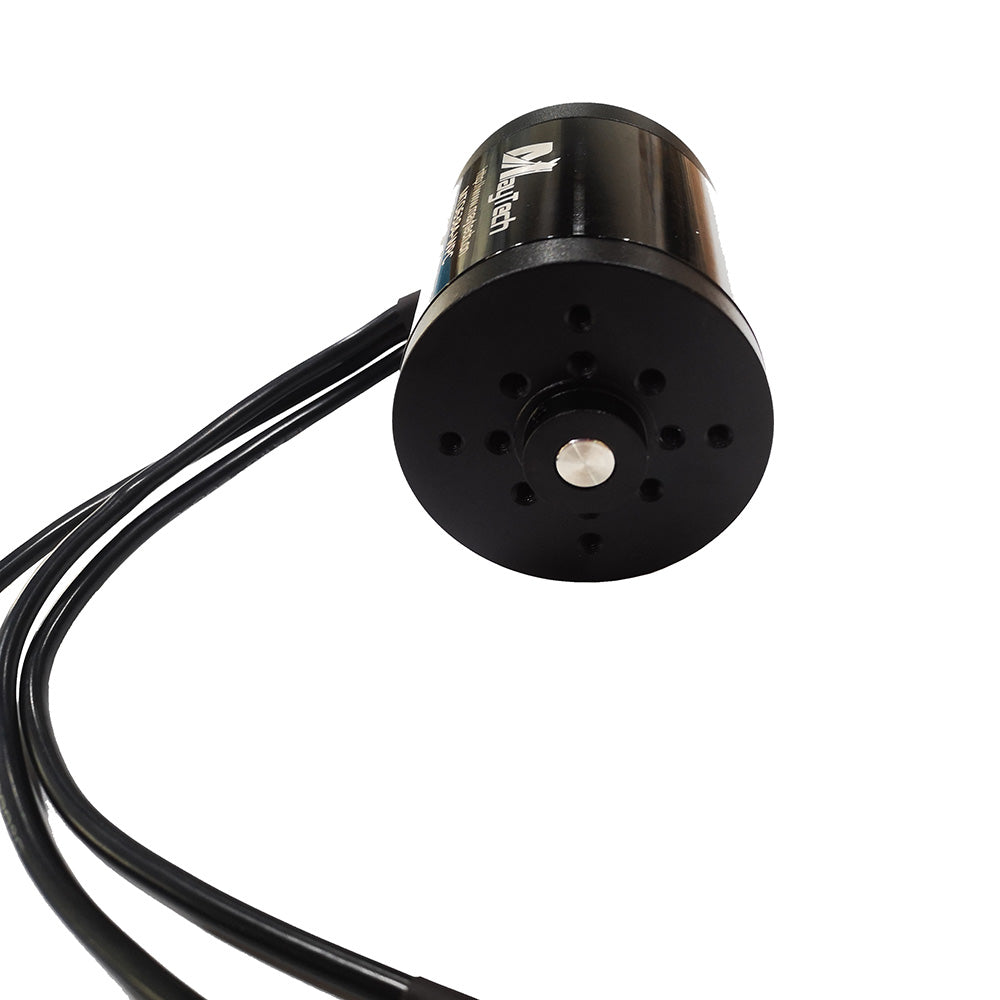

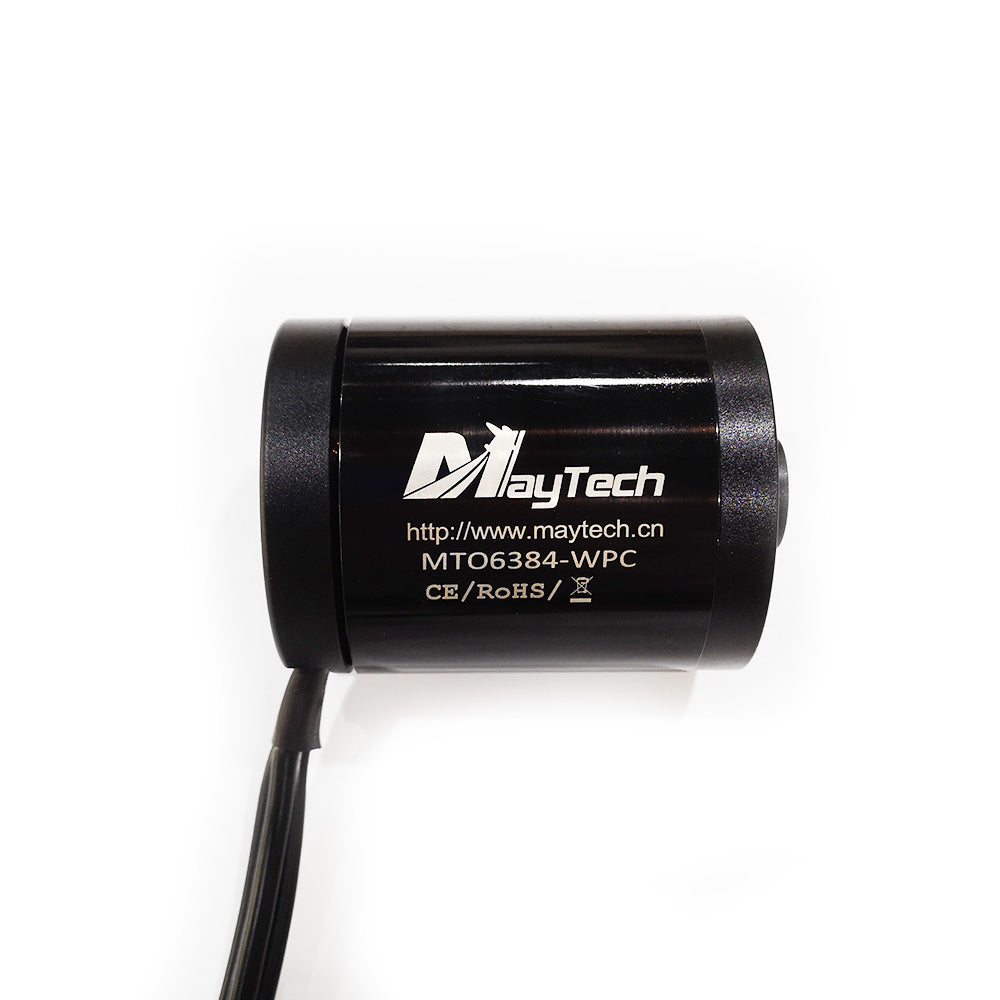

Model 2:MTO6384-140-WPC
KV: 140
RPM/V/Max RPM: 150/8000
Idle Current@10V:0.8A
Rated Current/Max Current(A):70A/100A
Working Voltage:20-50V
Rated/Max Torque(N*M):4/8.8N.m
Max Power(10S):5KW
Winding Turns/Construction:12N/14P
Motor&Shaft Size(mm):63x84mm
Net Weight (kg):0.93

Model 4:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad

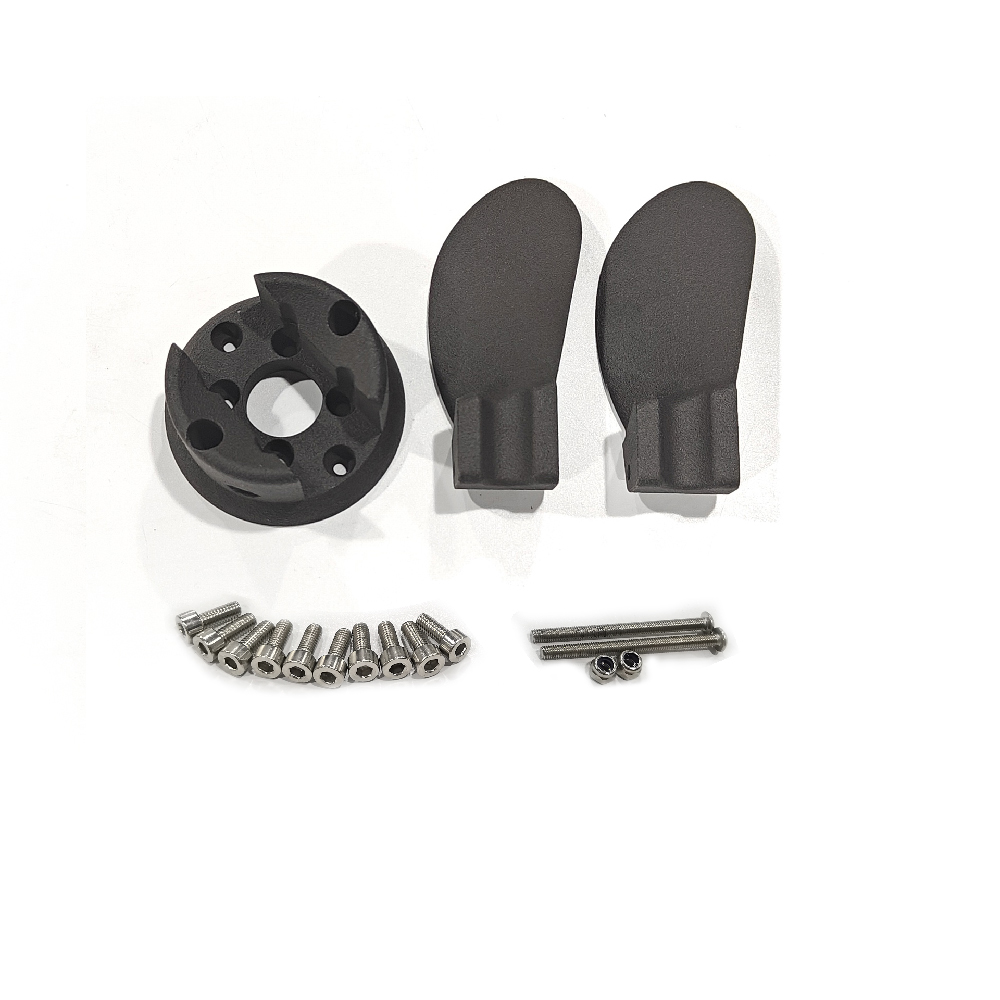

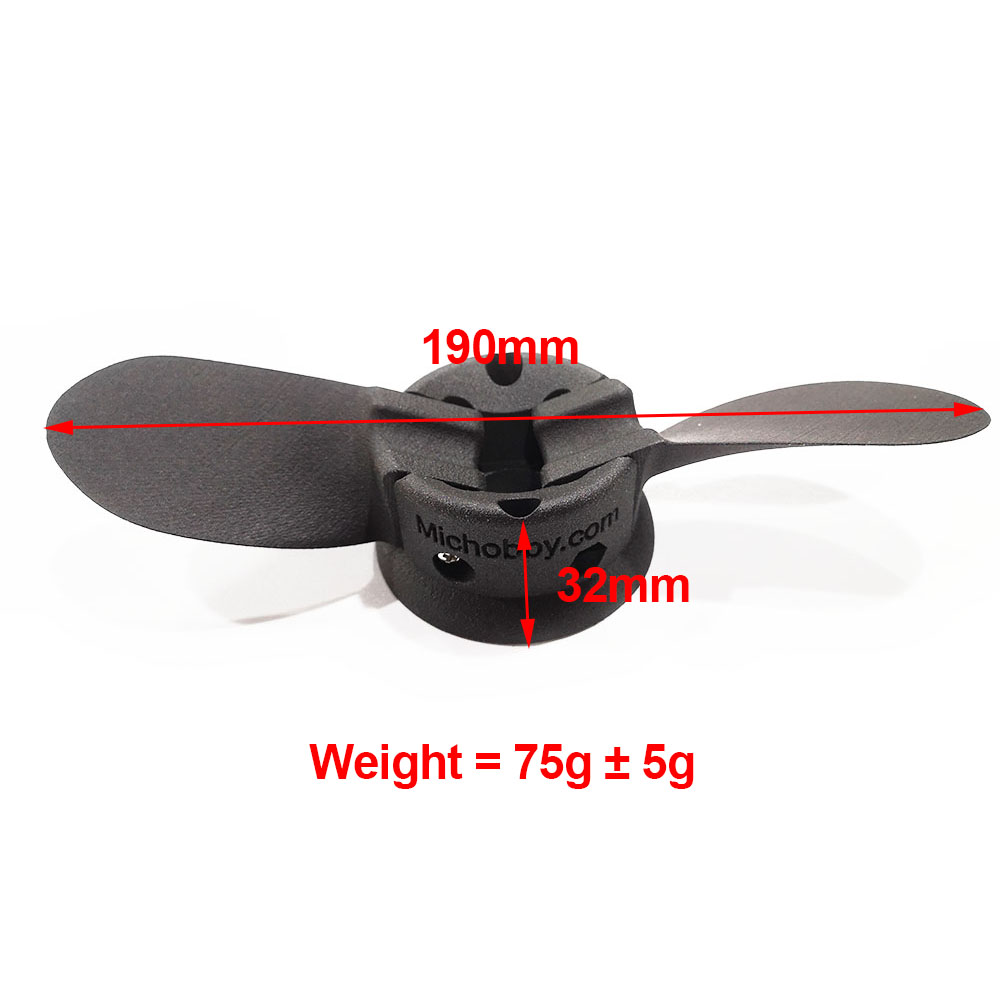

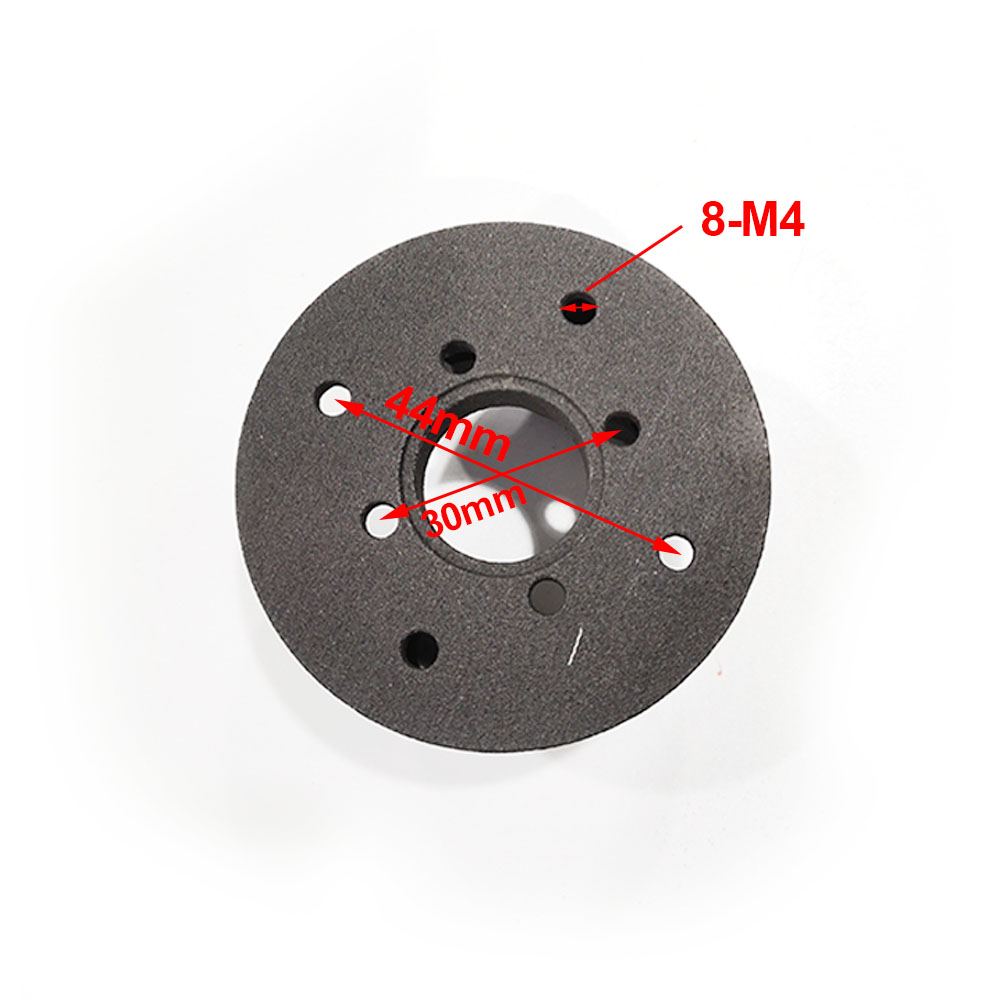

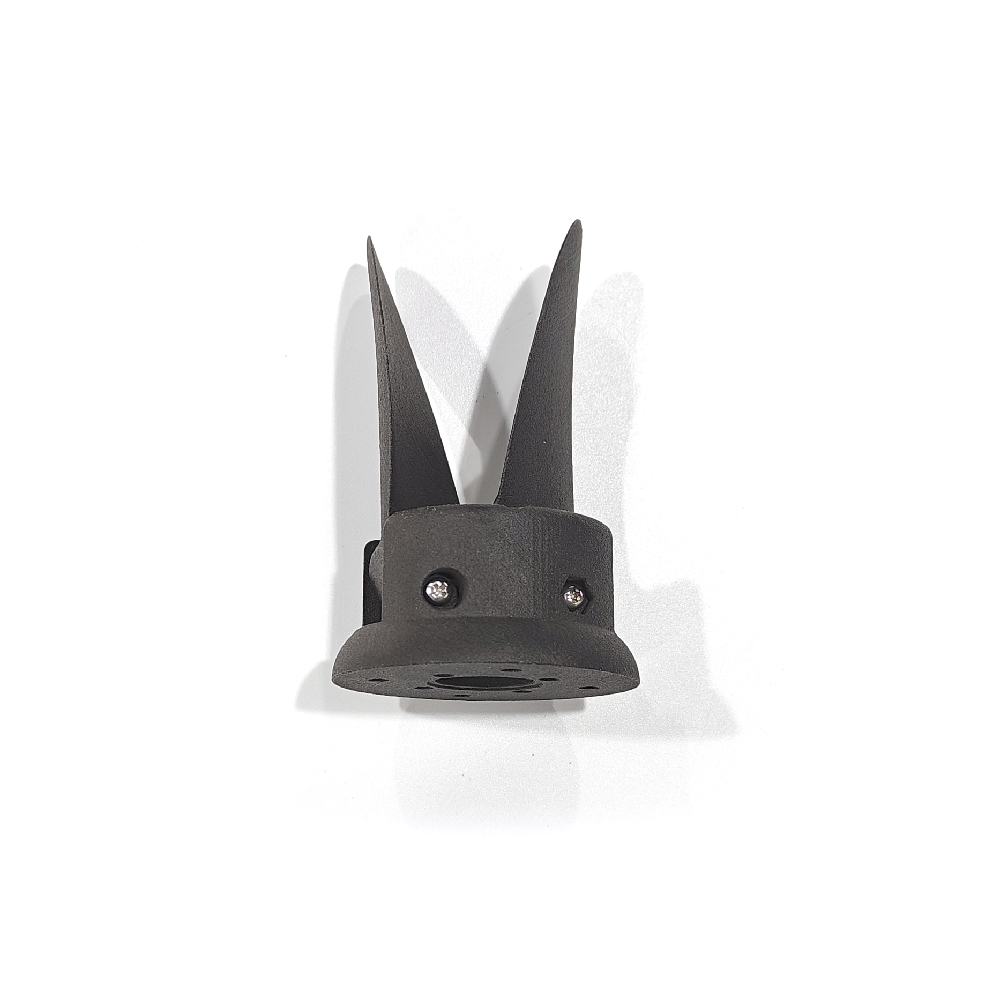

Model 5:MICP27F(Propeller)
SPECS:FOLD-blade, 1 set includes 2 blades& 1pcs hub.

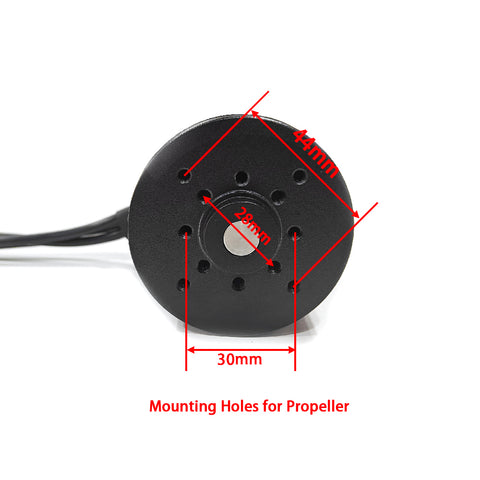

Propeller for MTO6374-WPC and MTO6384-WPC motors

Model 6:Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.

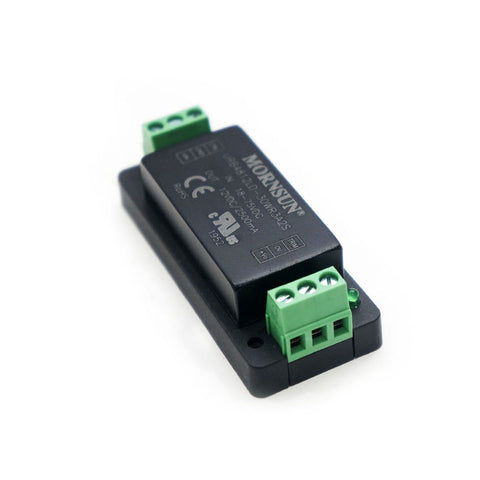

Model 7:MTUBEC75VT12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump

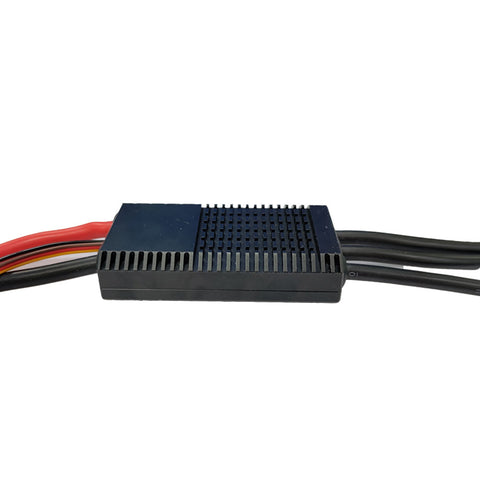

MTSF160A-WP32 ESC Main Features:

▶ 32BIT Micropprocessor
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ 160A-300A Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶ MTSF105AA32 with BEC output 6.0,7.4,8.4V adjustable /8A
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Note:

MTO6374-150-WPC motor wire length 240mm

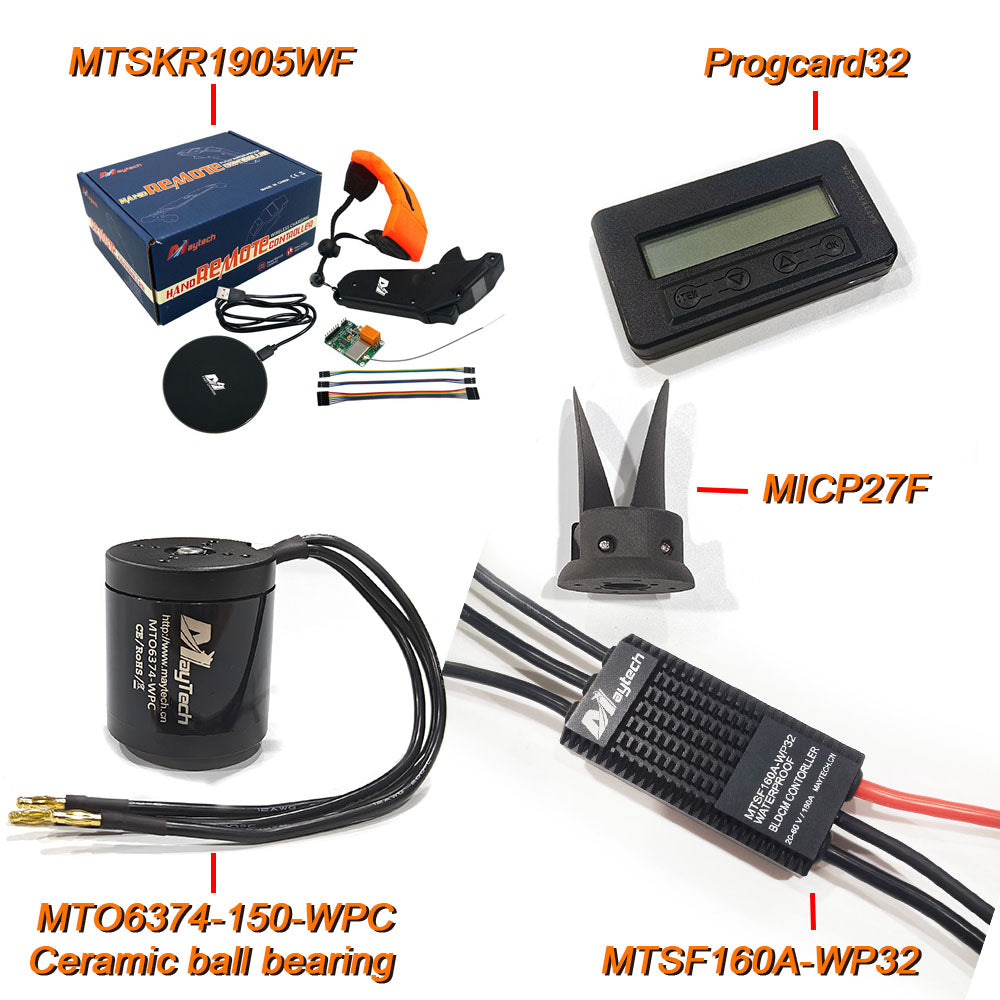

Type A it is include 1pcs MTSF160A-WP32 ESC+
1pcs MTO6374-150-WPC Motor+
1pcs MTSKR1905WF Remote+
1pcs MICP27F Propeller+
1pcs Progcard32 Program

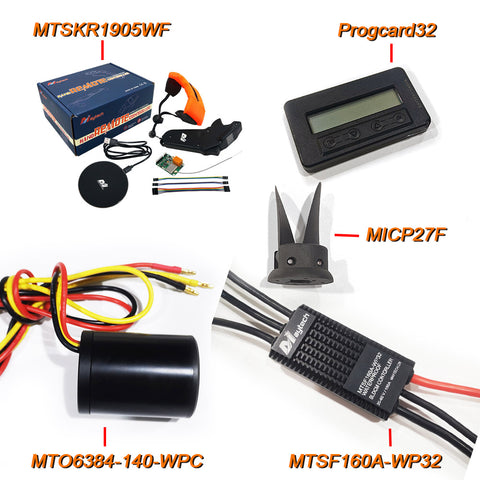

Type B it is include 1pcs MTSF160A-WP32 ESC+
1pcs MTO6384-140-WPC Motor+
1pcs MTSKR1905WF Remote+
1pcs MICP27F Propeller+
1pcs Progcard32 Program

Customized service:

Customize : Yes,
logo,size,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
