MAYRC Fully Waterproof Kit 6-18S LIPO 300A ESC 200KV Motor with Water Cooling 2.5A Regulator and Water Pump
MAYRC Fully Waterproof Kit 6-18S LIPO 300A ESC 200KV Motor with Water Cooling 2.5A Regulator and Water Pump
MAYRC Fully Waterproof Kit 6-18S LIPO 300A ESC 200KV Motor with Water Cooling 2.5A Regulator and Water Pump
Specification:

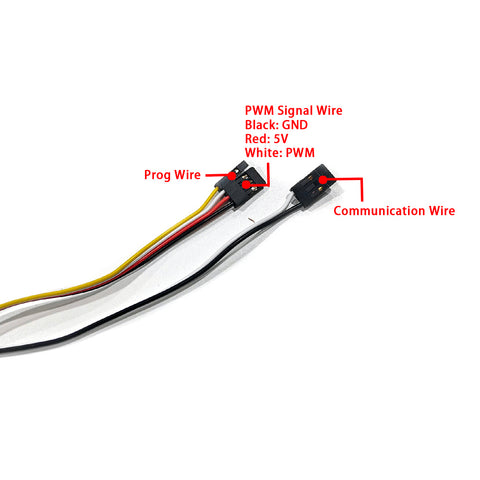

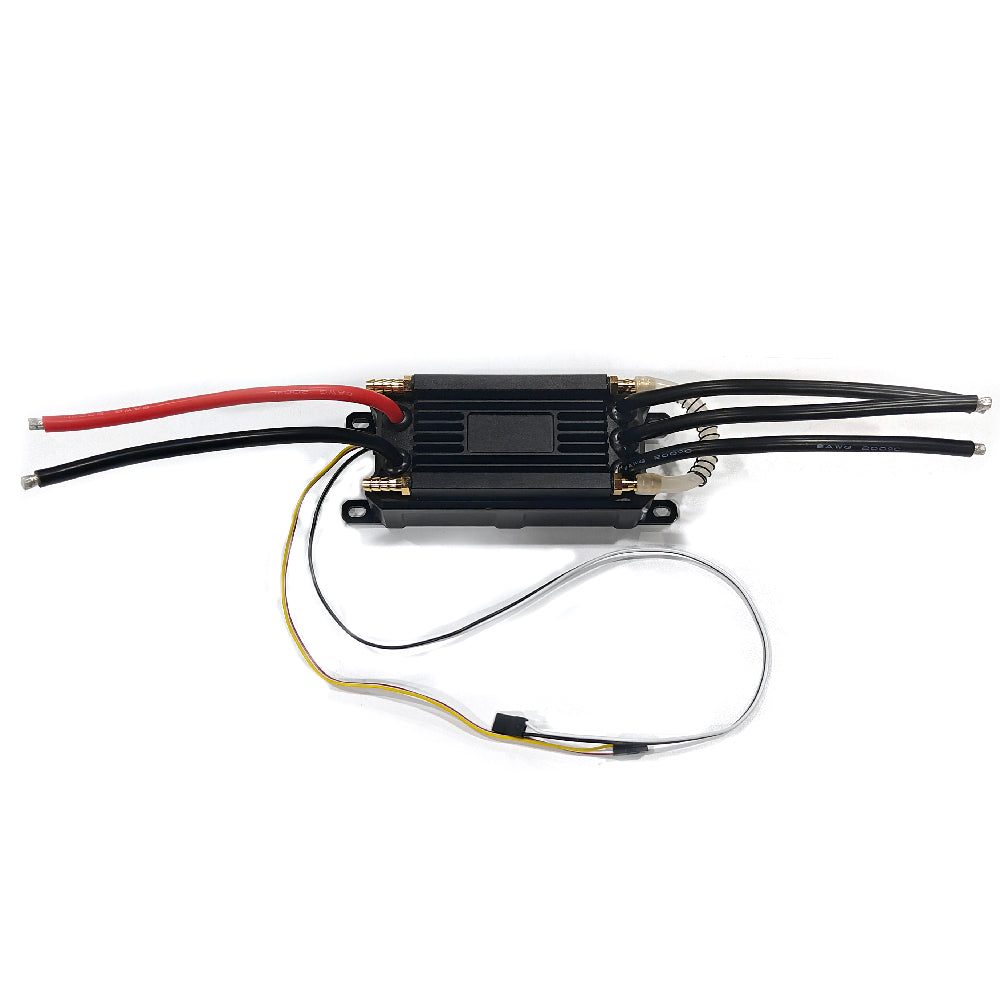

Model 1:MTSF300A-WP32-HV
Cont. Current:300A
Max. Current:350A
Volt.:25-75V 6-18S LIPO
Water-cooled :water-proof version IP68 Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.

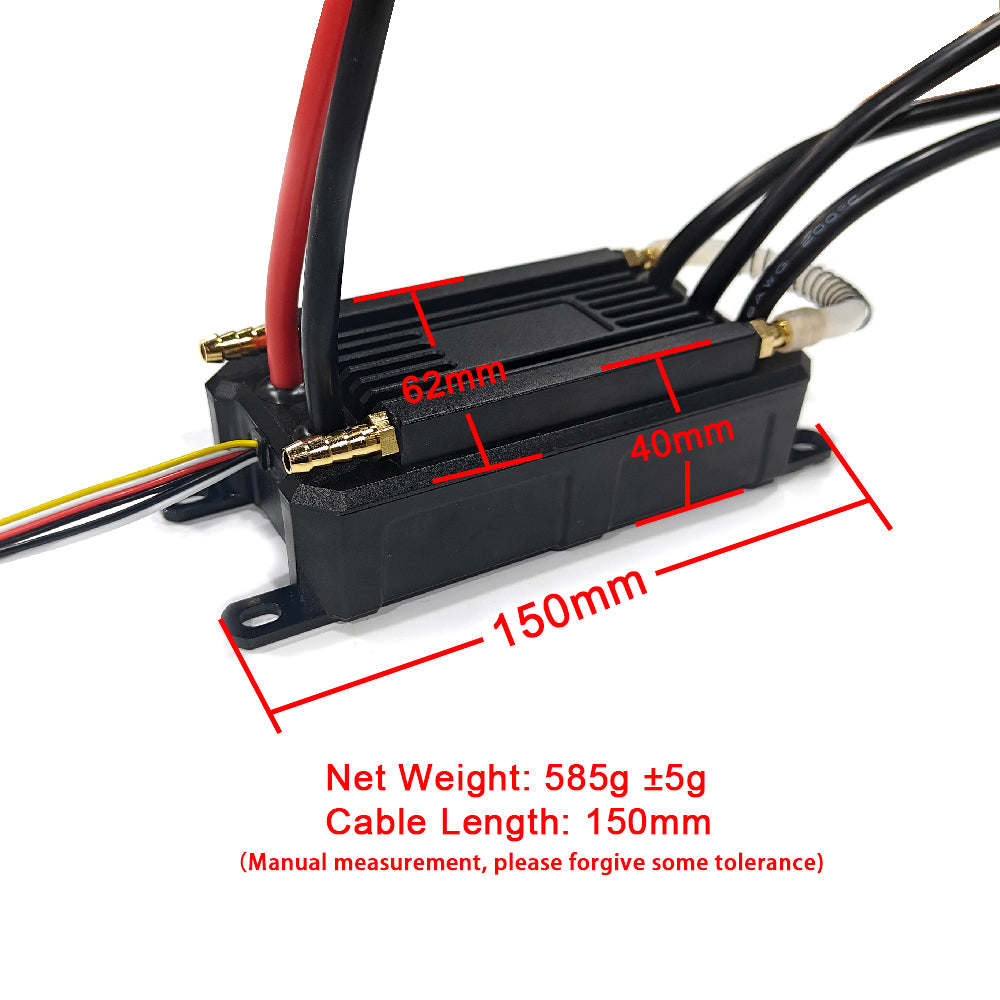

Size:PCB size 105*55*18mm
Weight:659g

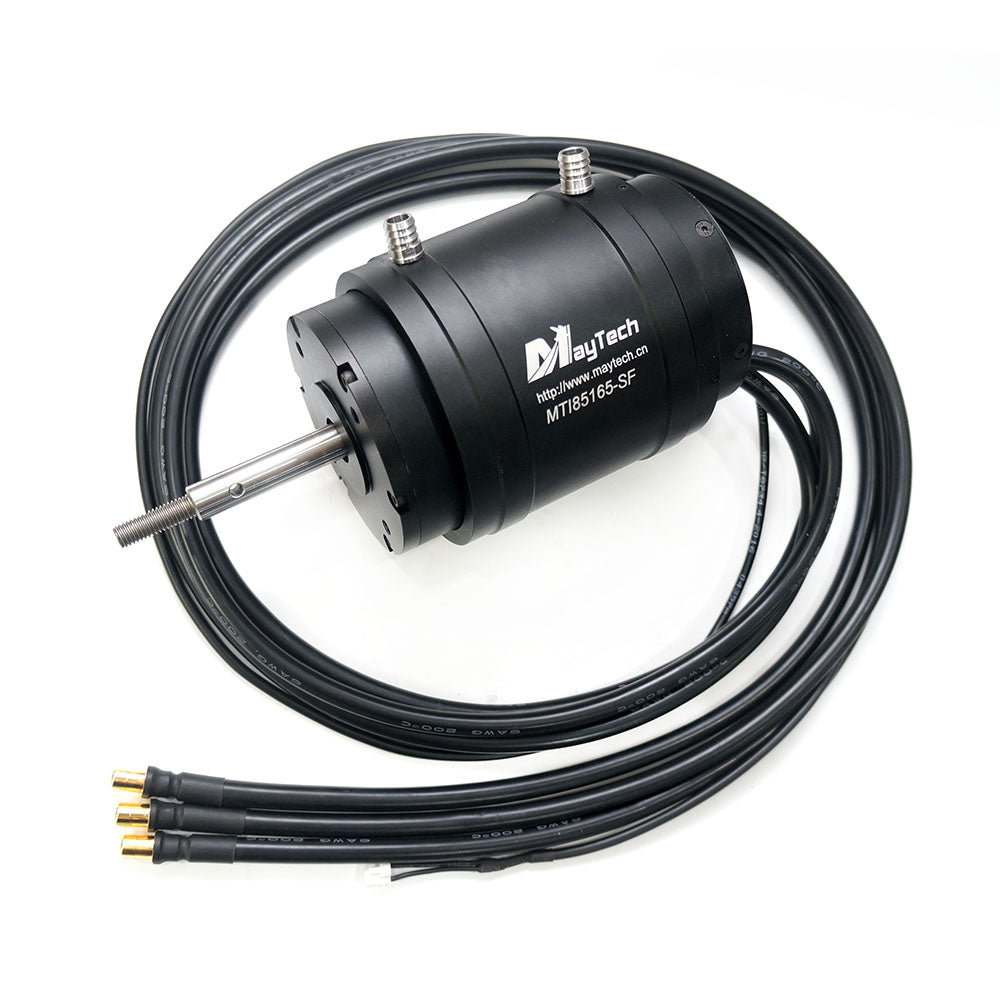

Model 2:MTI85165-200-SF(with Water-cooling)
KV: 200
RPM/V/Max RPM: 200/12096
Idle Current@10V:2.1A
Rated Current/Max Current(A):190A/300A
Working Voltage:50-84V
Rated/Max Torque(N*M):17.5/21.5N.M
Max Power(10S):10.5KW
Winding Turns/Construction:7T/12N/10P

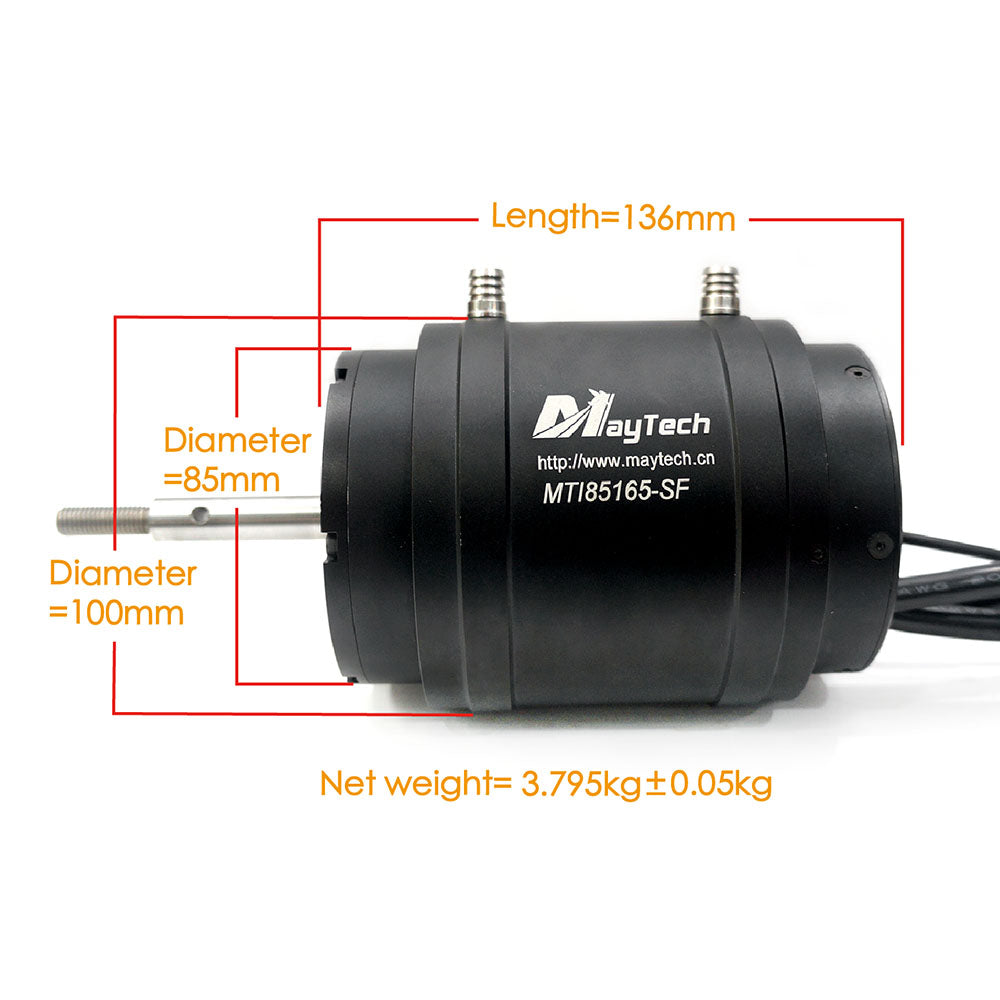

Motor&Shaft Size(mm):Φ85x134mm&12mm
Net Weight (kg):2.8

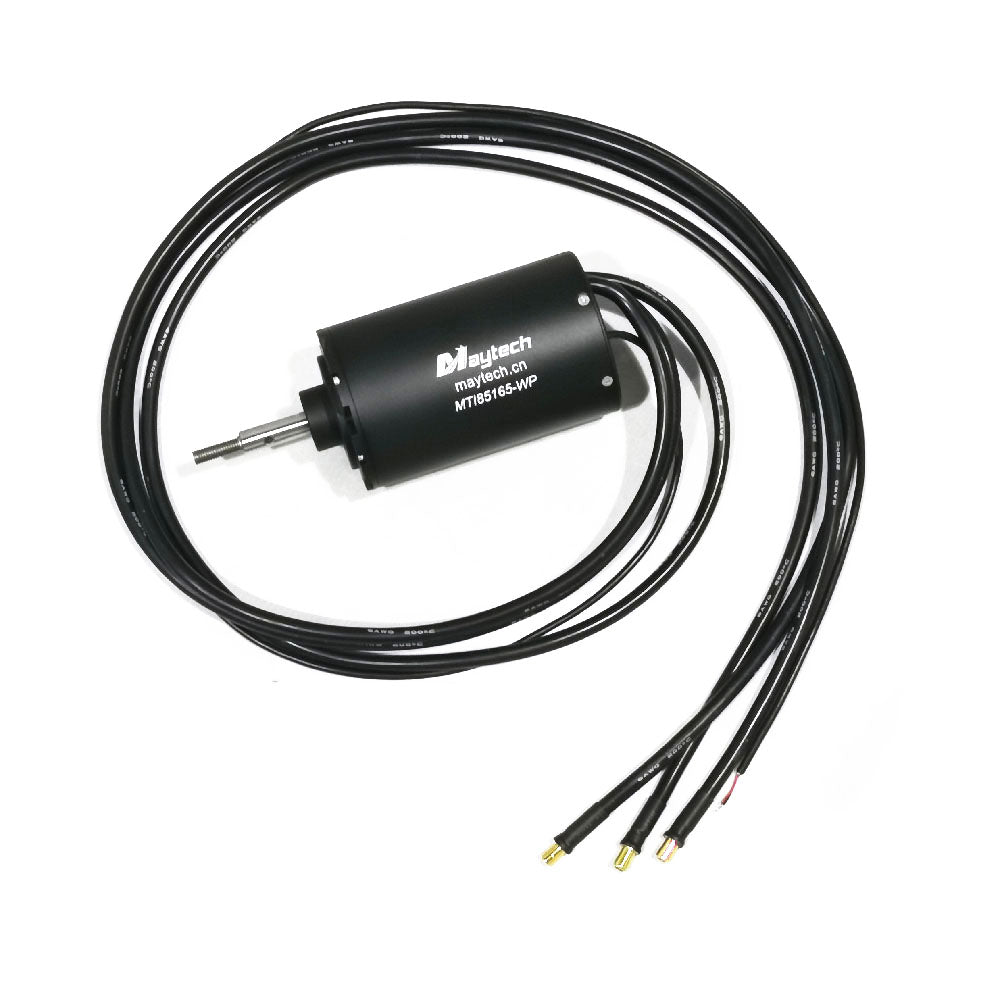

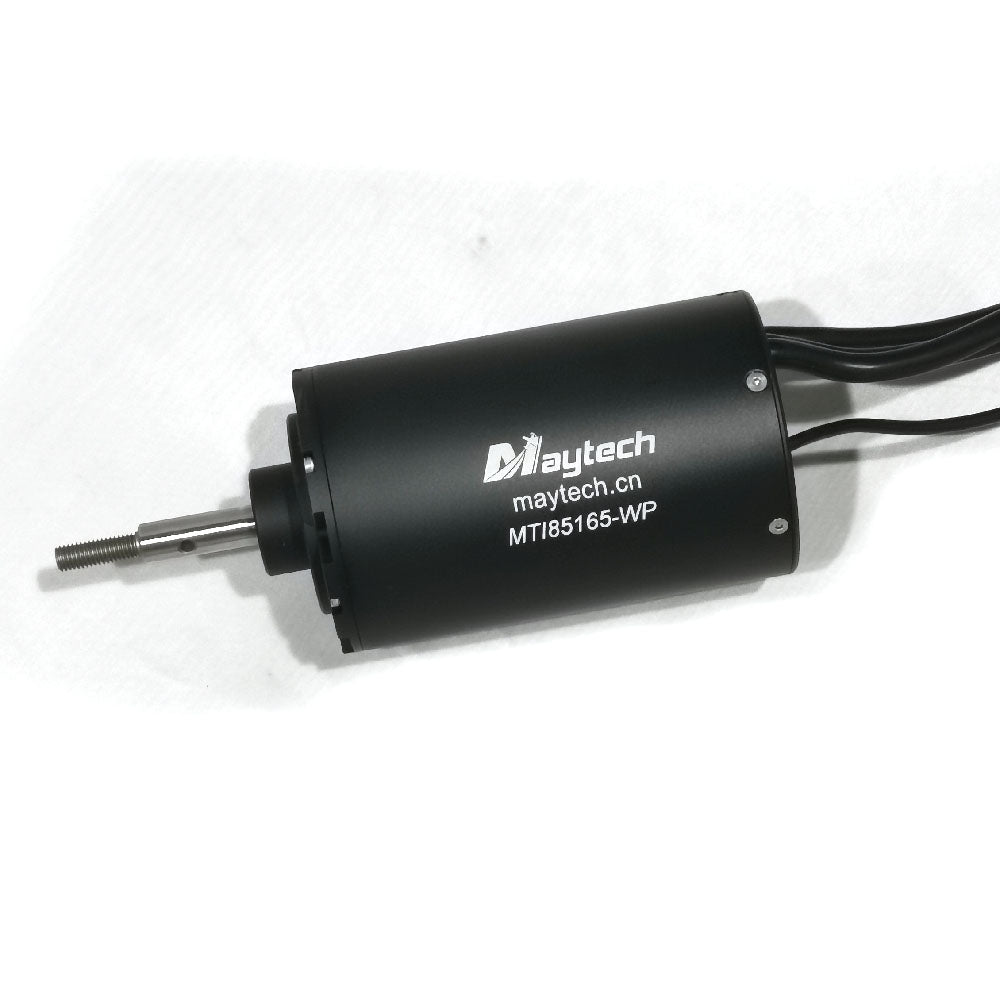

Model 3:MTI85165-200-WP(Fully water-proof)
KV: 200
RPM/V/Max RPM: 200/12096
Idle Current@10V:2.1A
Rated Current/Max Current(A):190A/300A
Working Voltage:50-84V
Rated/Max Torque(N*M):17.5/21.5N.M
Max Power(10S):10.5KW
Winding Turns/Construction:7T/12N/10P
Motor&Shaft Size(mm):Φ85x134mm&12mm
Net Weight (kg):2.8

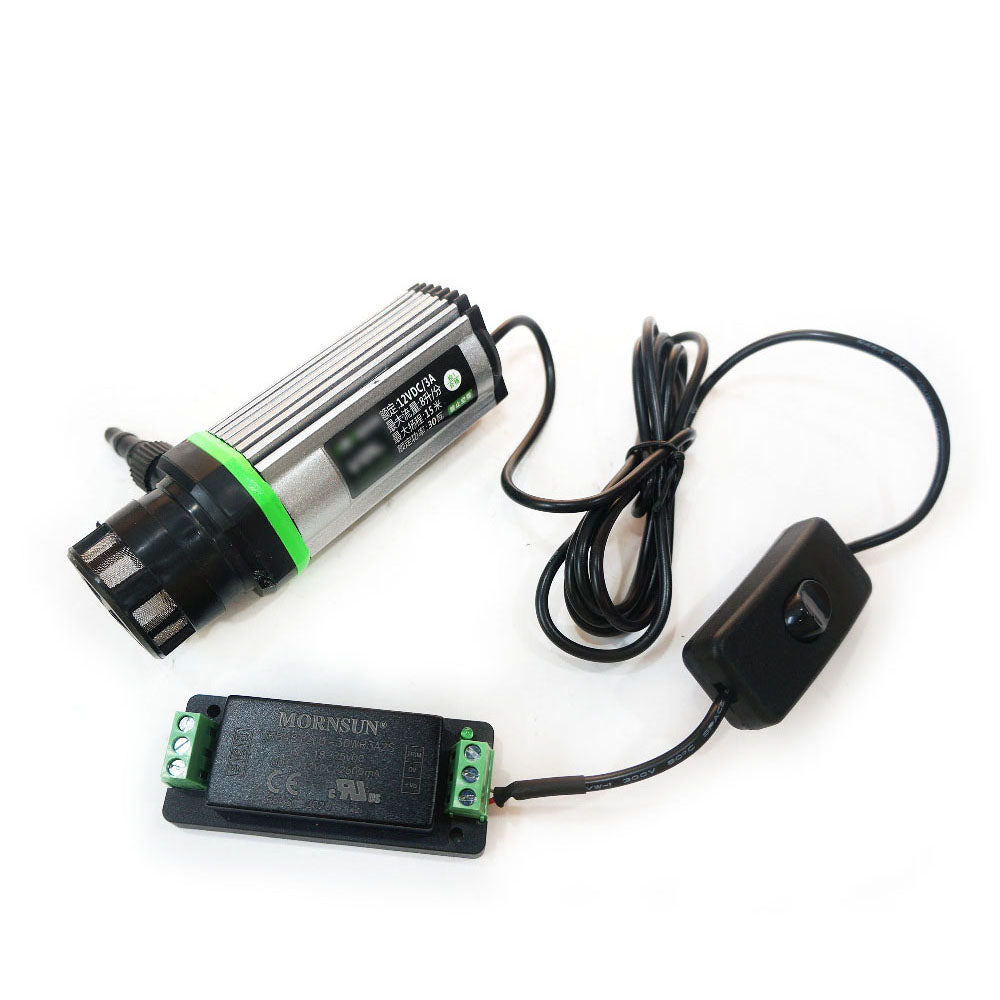

Model 4:MTWP30W(Water pump)
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight:50g

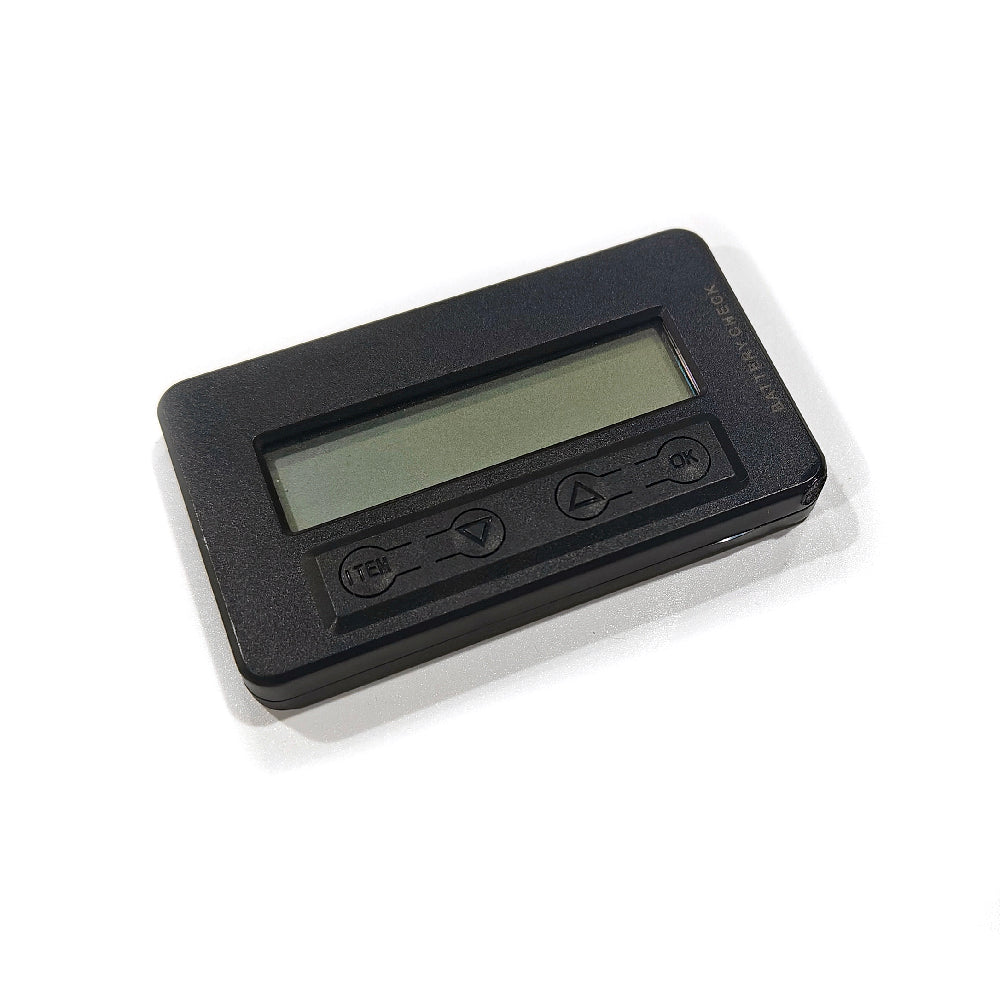

Model 5:Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.
Net weight:50g
Model 6:MTUBEC75T12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump
Net weight:80g

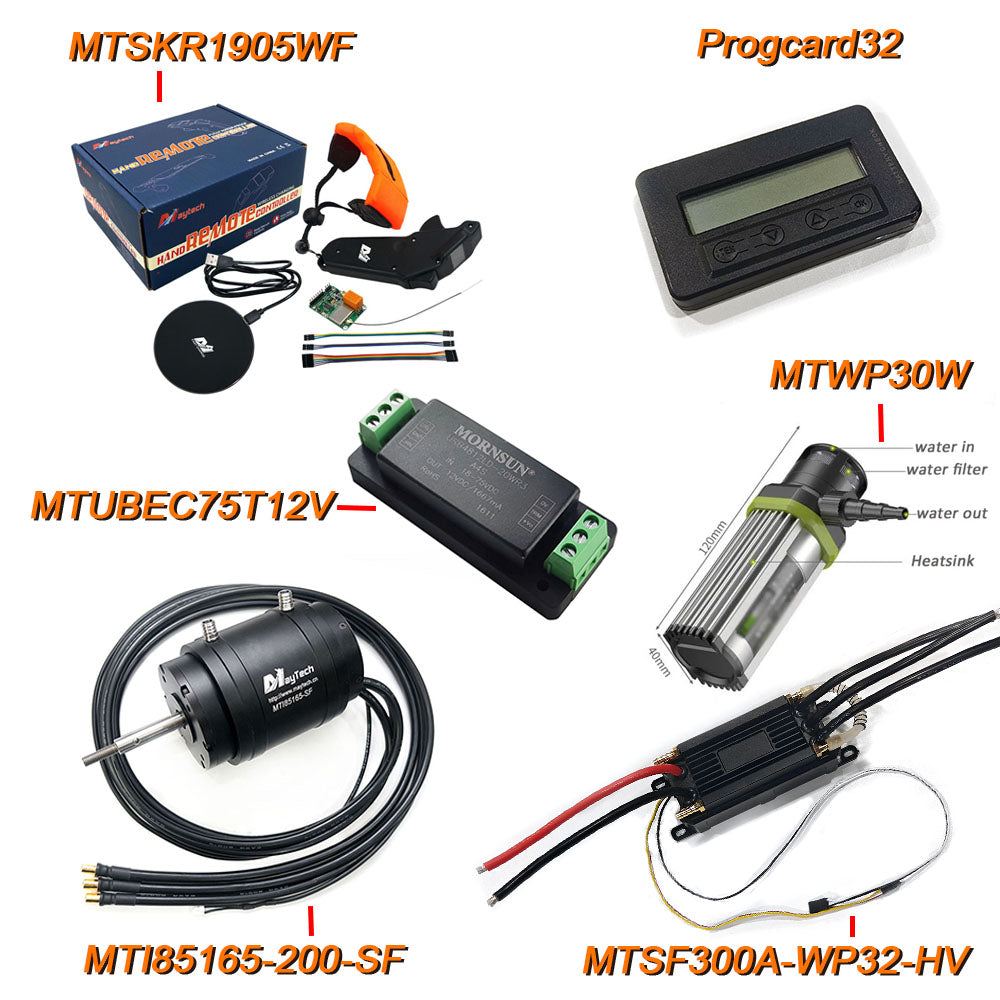

Remark:
Type A it is include
1pcs MTSF300A-WP32-HV ESC+
1pcs MTI85165-200-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard32 Program+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator
Type B it is include
1pcs MTSF300A-WP32-HV ESC+
1pcs MTI85165-200-WP Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard32 Program+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator
Customize Service:
Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email:shelly@mayrc.com
Gmail:mayrcshelly@gmail.com
Note:

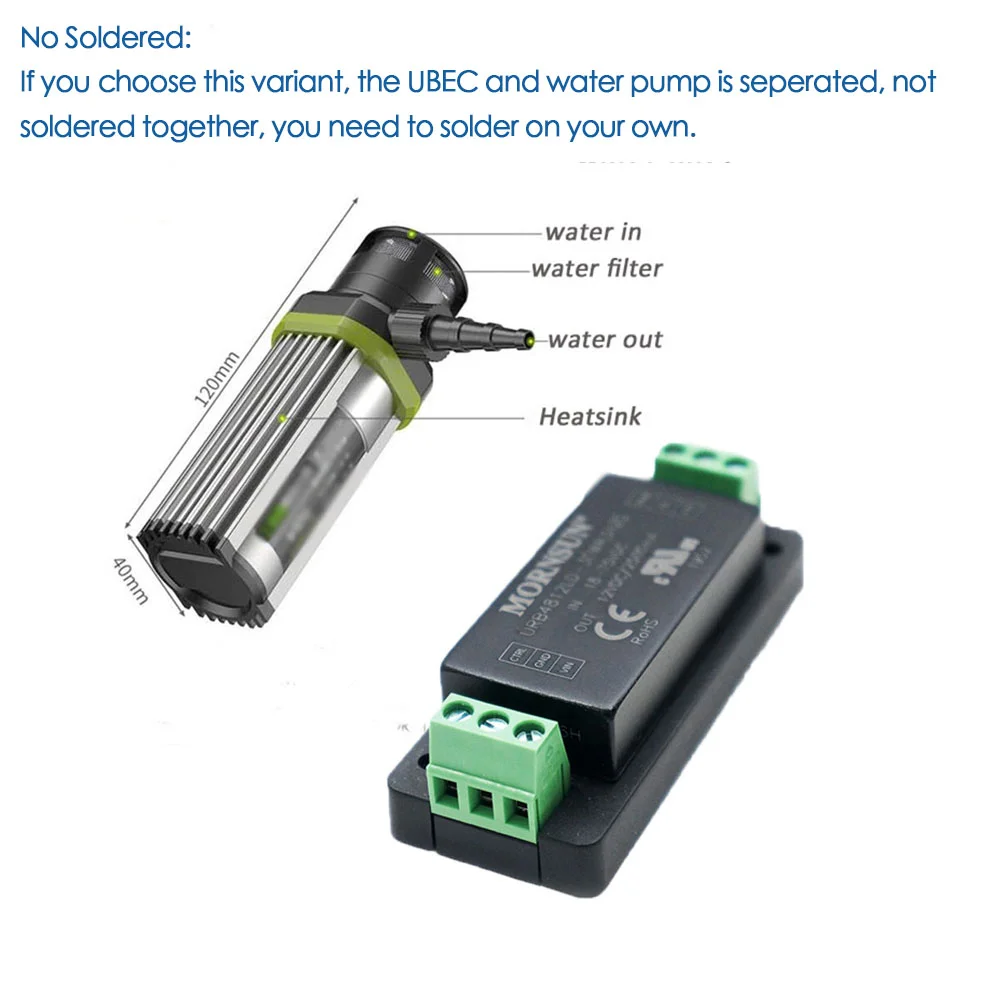

1:If the water pump and UBEC need to be soldered, please remark. If no remarks are provided, welding is not required by default.
2:Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV,so each motor might has ±5%-10% tolerance, this is normal.
MTI85165-200-SF(with Water-cooling)
MTI85165-200-WP(Fully water-proof)
Model 7:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad
