MAYRC Fully Waterproof Kit(300A 32BIT HV ESC+120116 100KV/200KV Brushless Motor+IP68 Remote+Program Card)
MAYRC Fully Waterproof Kit(300A 32BIT HV ESC+120116 100KV/200KV Brushless Motor+IP68 Remote+Program Card)
Couldn't load pickup availability

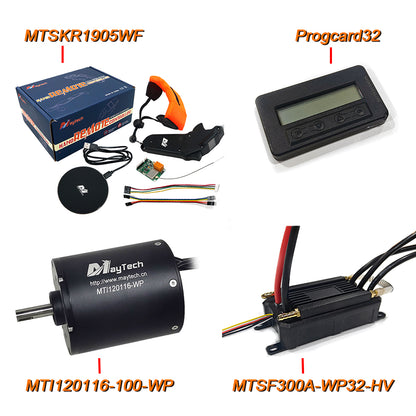

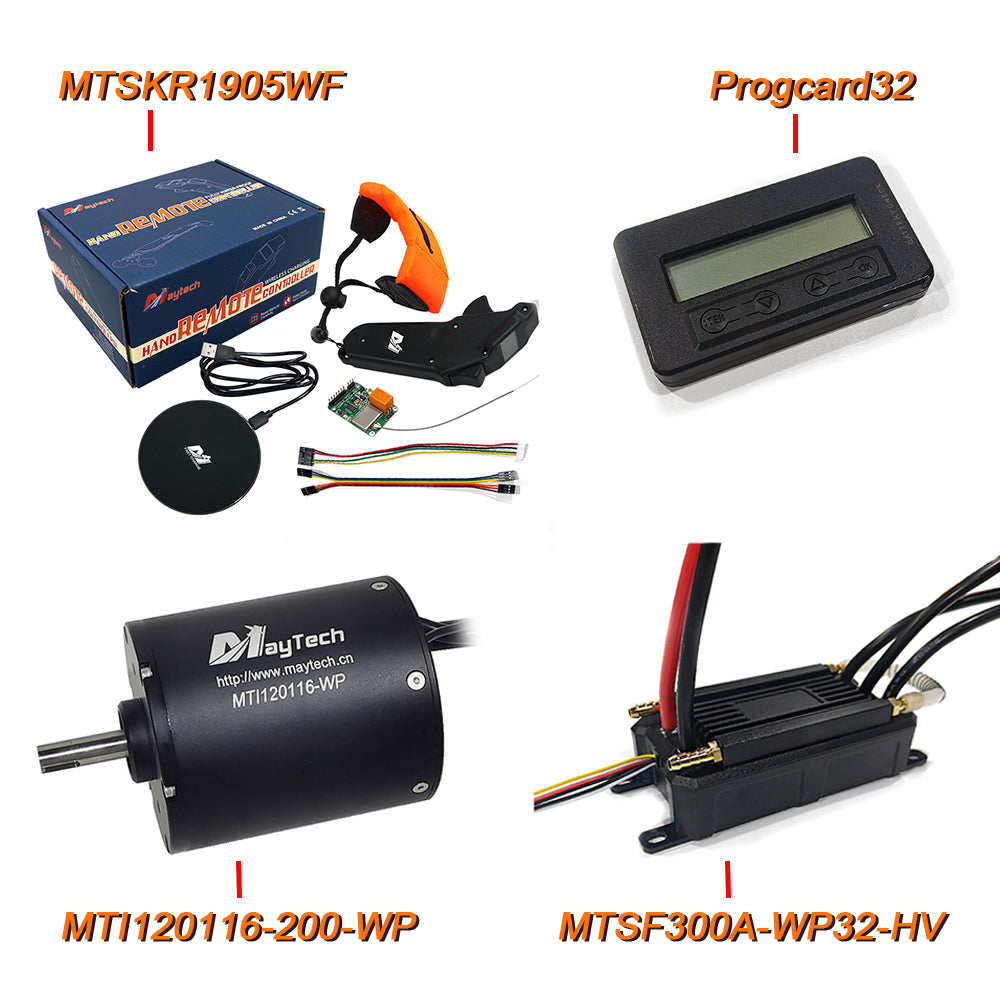

MAYRC Fully Waterproof Kit(300A 32BIT HV ESC+120116 100KV/200KV Brushless Motor+IP68 Remote+Program Card)for Foil Surfing Electric Boat
Please contact me for customized parameters: shelly@mayrc.com/mayrcshelly@gmail.com
The details page has detailed parameter information of the products included in the set, please read it patiently.

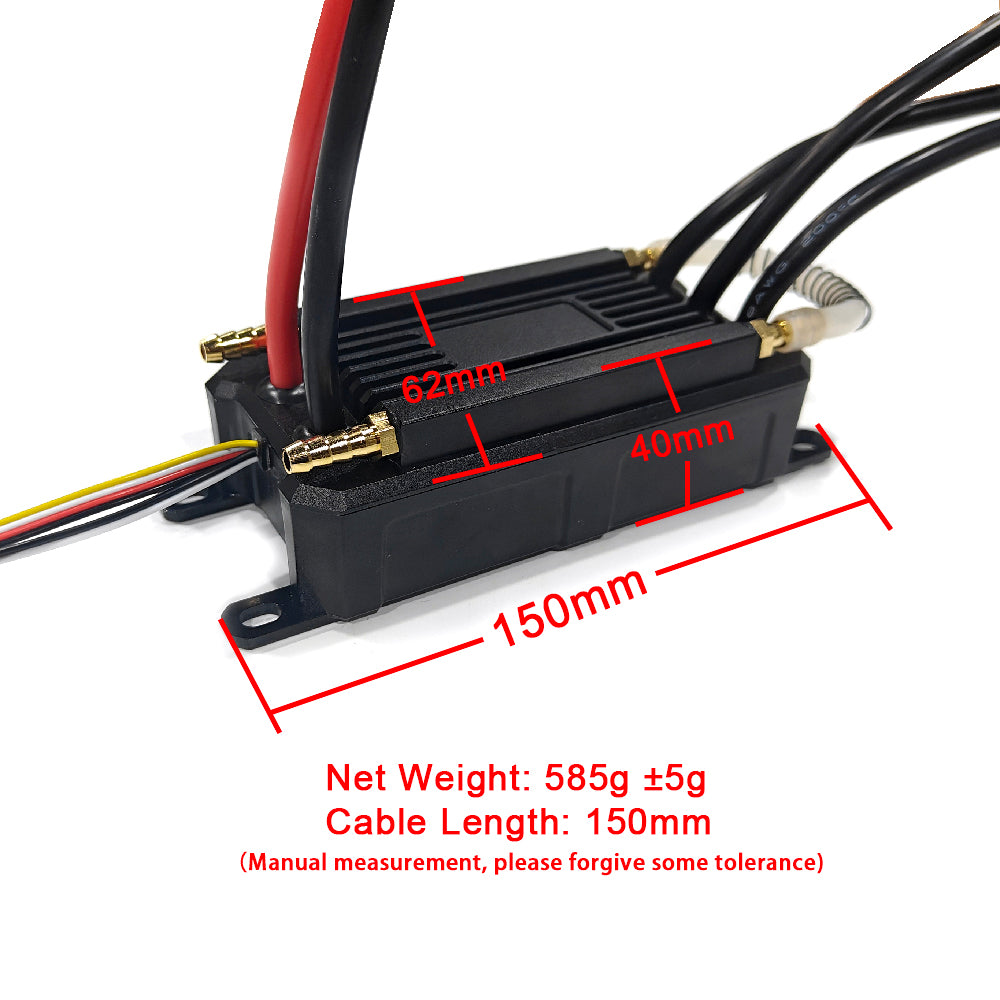

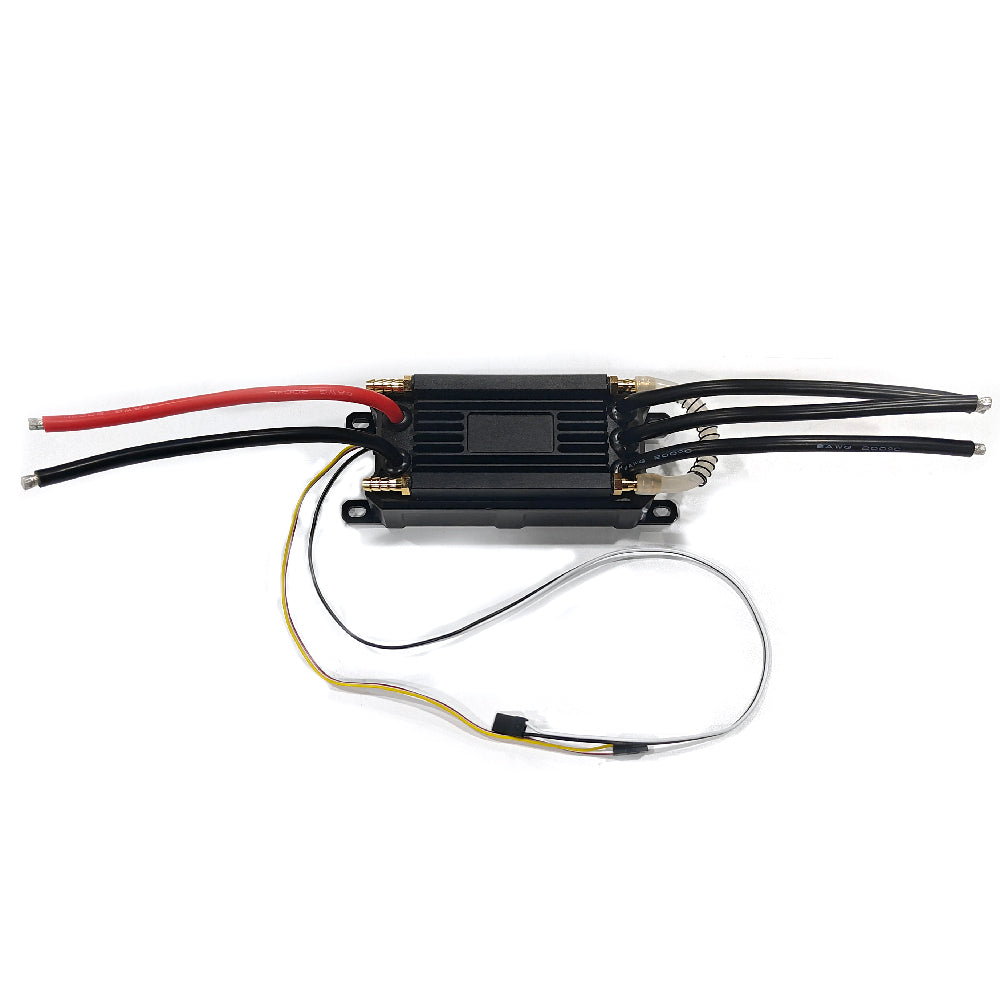

Specification:
| Model |
MTSF300A-WP32-HV |
| Cont. Current | 300A |
| Max. Current | 350A |
| Volt. | 25-75V 6-18S LIPO |
| Water-cooled | water-proof version IP68 Can work in 1 meter deep water; Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc. |
| Size | PCB size 105*55*18mm |
| Weight | 659g |
Main Features：
1：32BIT Micropprocessor

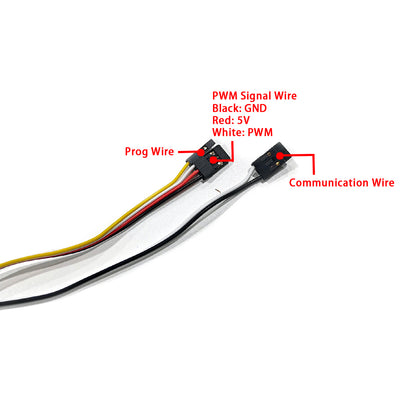

2： Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
3： 8-layer 3oz PCB plate, 3.4mm, support high current
4：Compact size, high efficiency, low heat.
5：Only use geniune US and Japan imported electric components.
6：Over-heat, over-voltage, over-current, low voltage protection.
7：100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.

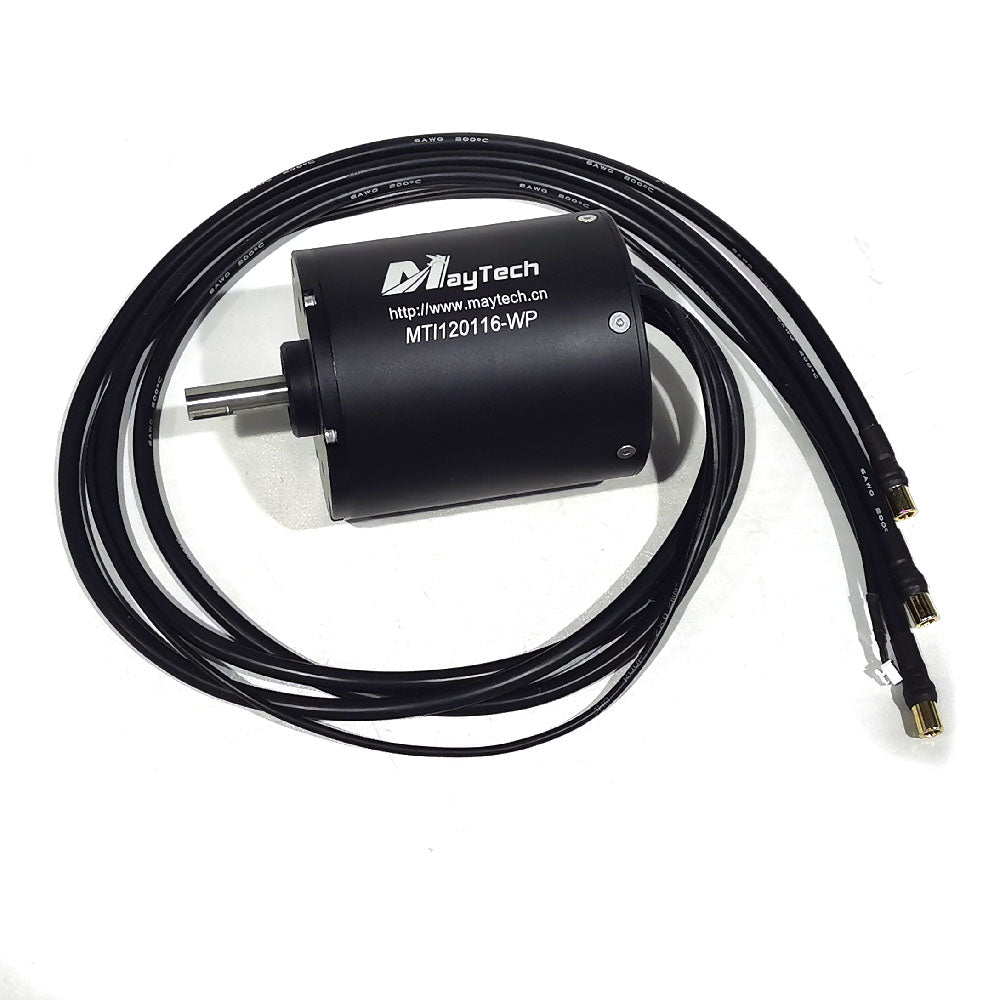

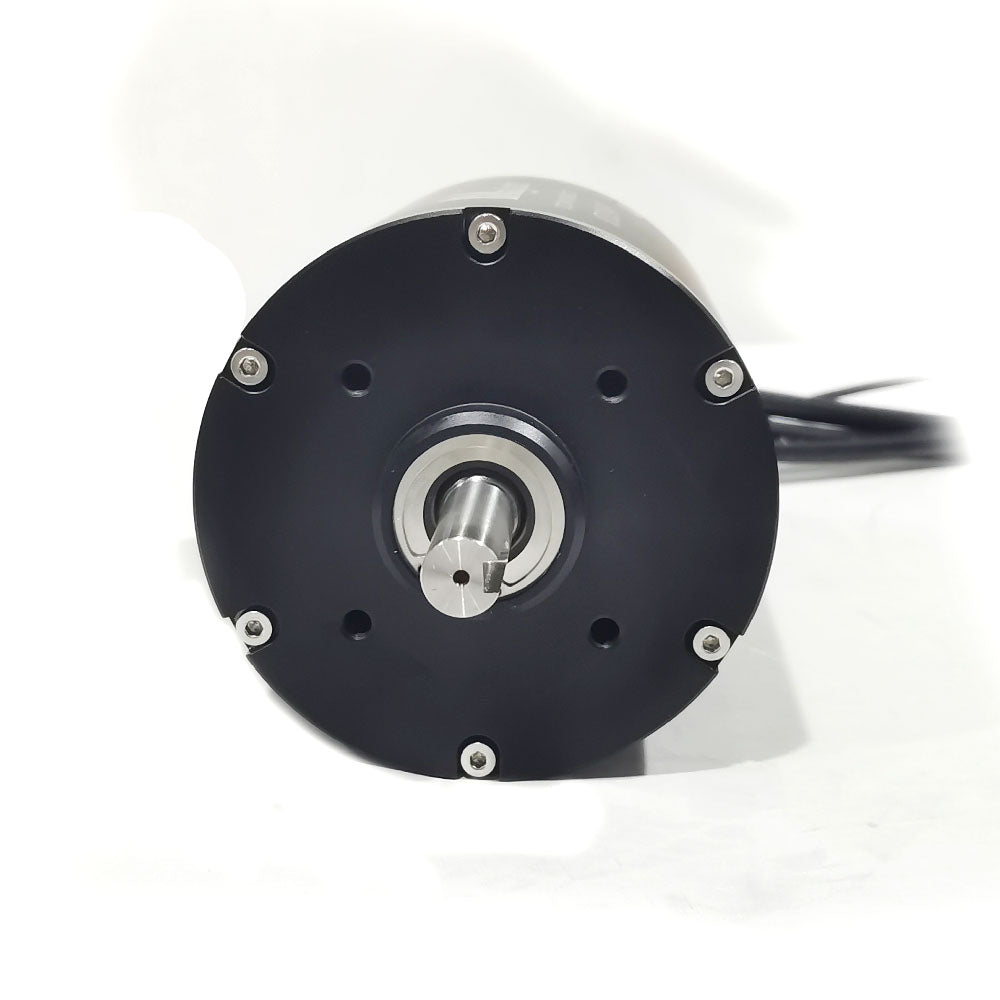

| Model | MTI120116-100-WP；MTI120116-200-WP |
| KV | 100KV；200KV |
| RPM/V/Max RPM | 100/13440；200/13440 |
| Idle Current @10V | 2.8A |
| Rated Current/Max Current (A) | 300A/380A |
| Working Voltage | 50-84V |
| Rated/Max Torque(N*M) | 13.6/20.6 N.m |
| Max Power(10S) | 18.8KW |
| Winding Turns/Construction | 3.5T/12N/10P |
| Motor&Shaft Size(mm) | Φ107x 125mm&D15mm；Φ118x 116mm &D15mm |
| Net Weight (kg) |
4.4 |
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.

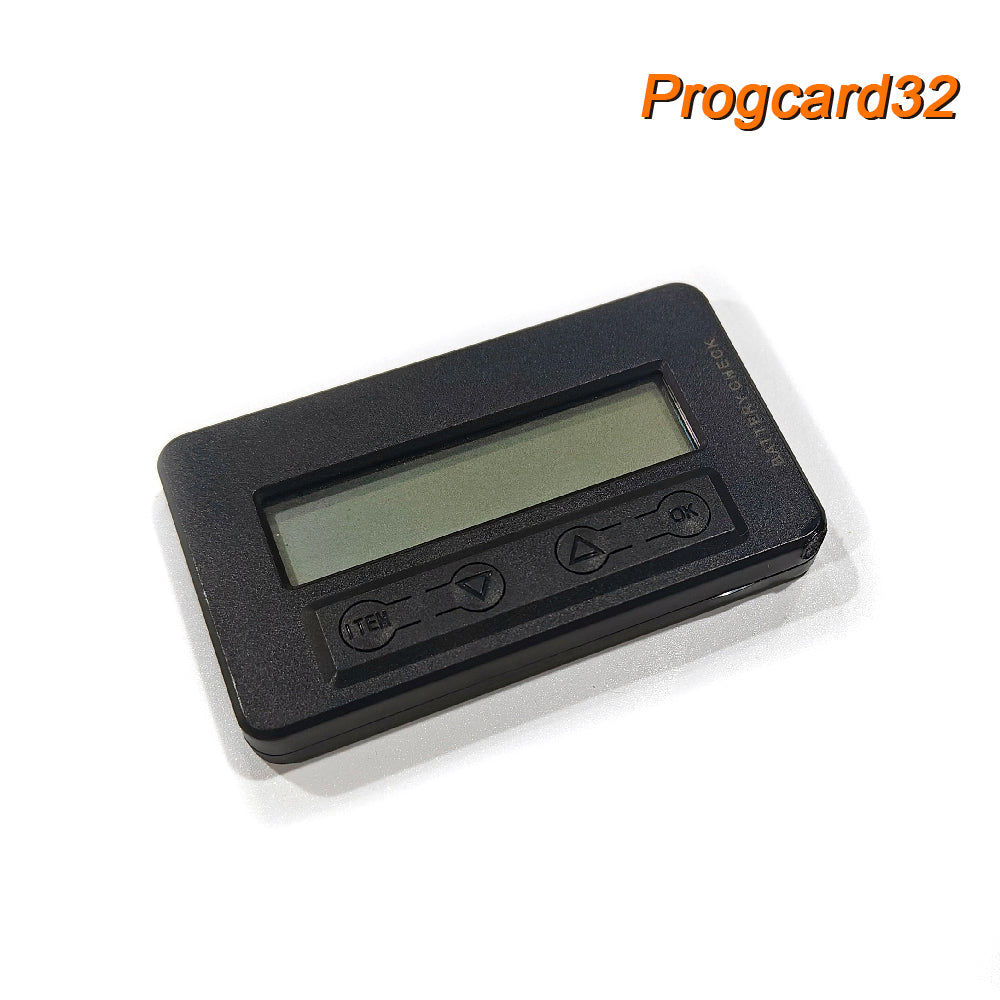

Model 3：Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.
Net weight：50g

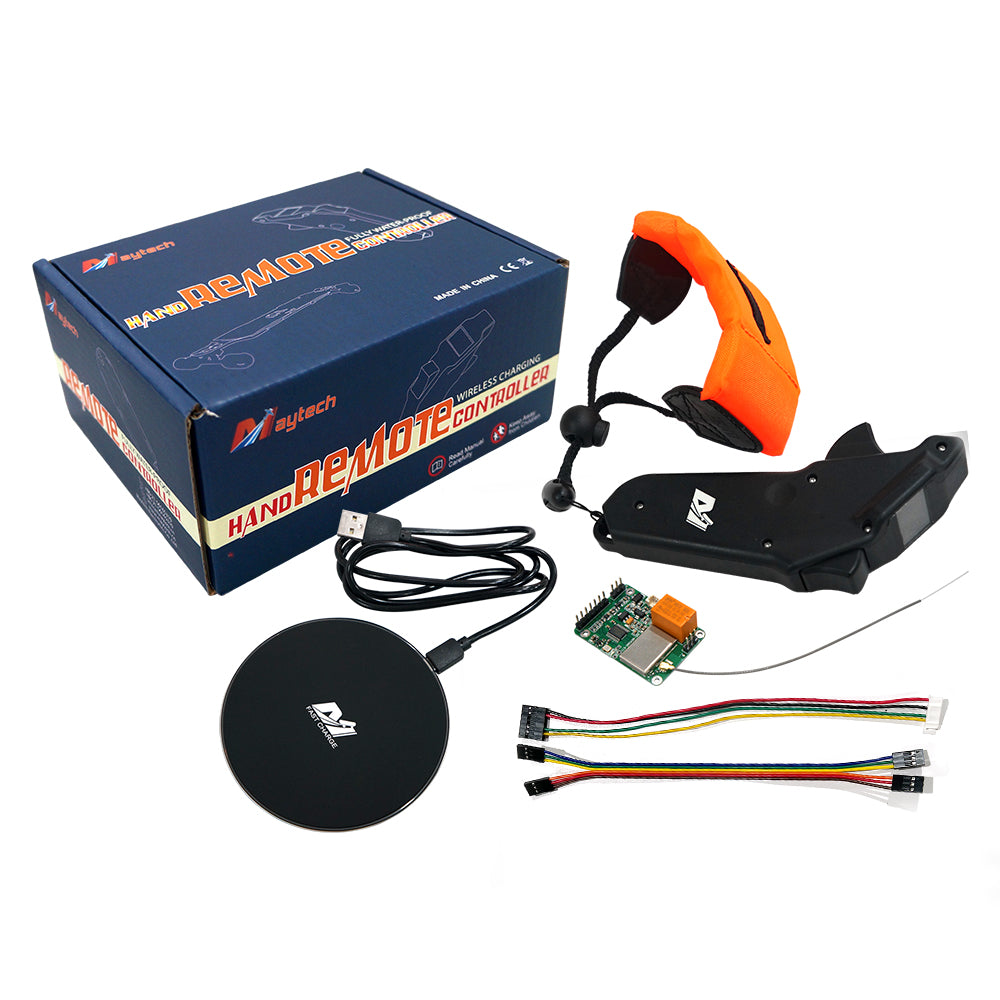

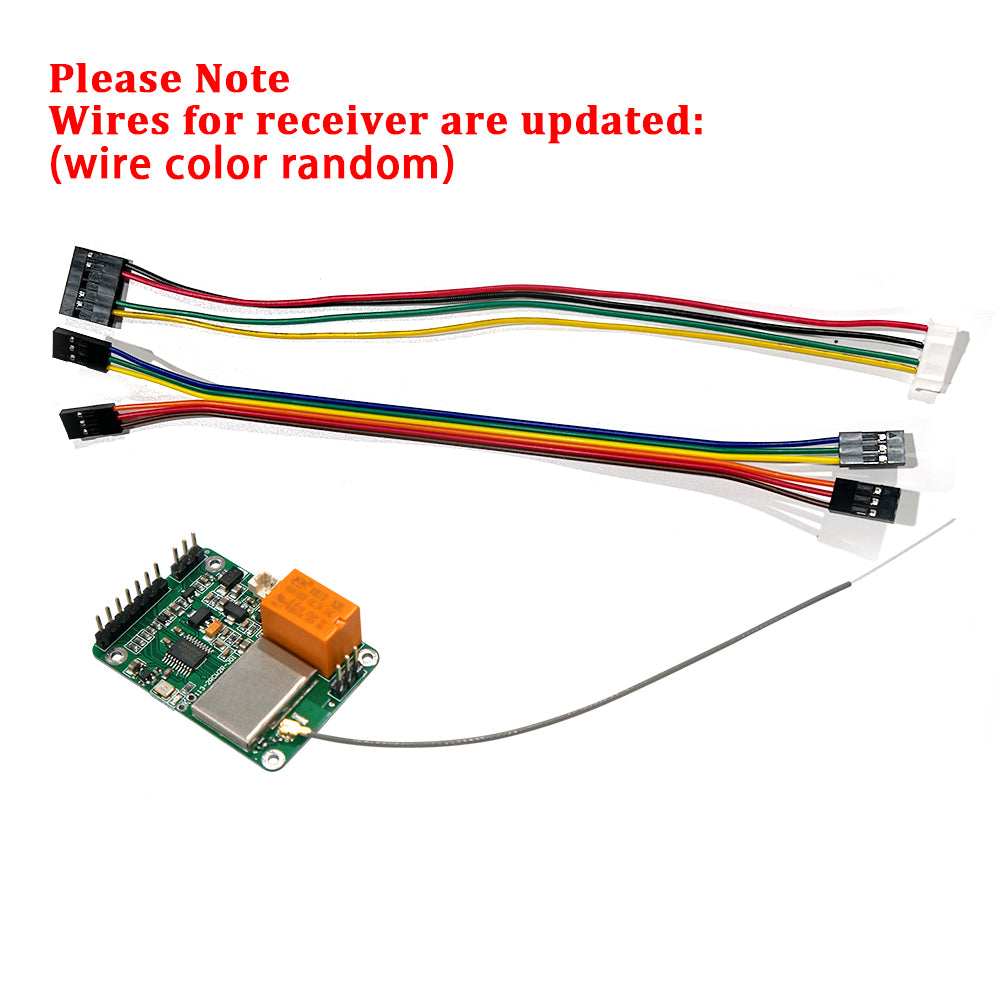

MAYRC MTSKR1905WF Updated V3.0 IP68 Full Waterproof Remote Controller for Esurf Efoil Ehydrofoil
Note :
MTSKR1905WF PWM signal Range:
1. Esurf mode:
Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.
2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.
Main Advantages
*Nano coating waterproof technology;
*Reliable water-proof performance;
*Comptible with V4, V6 and other ESC controllers;

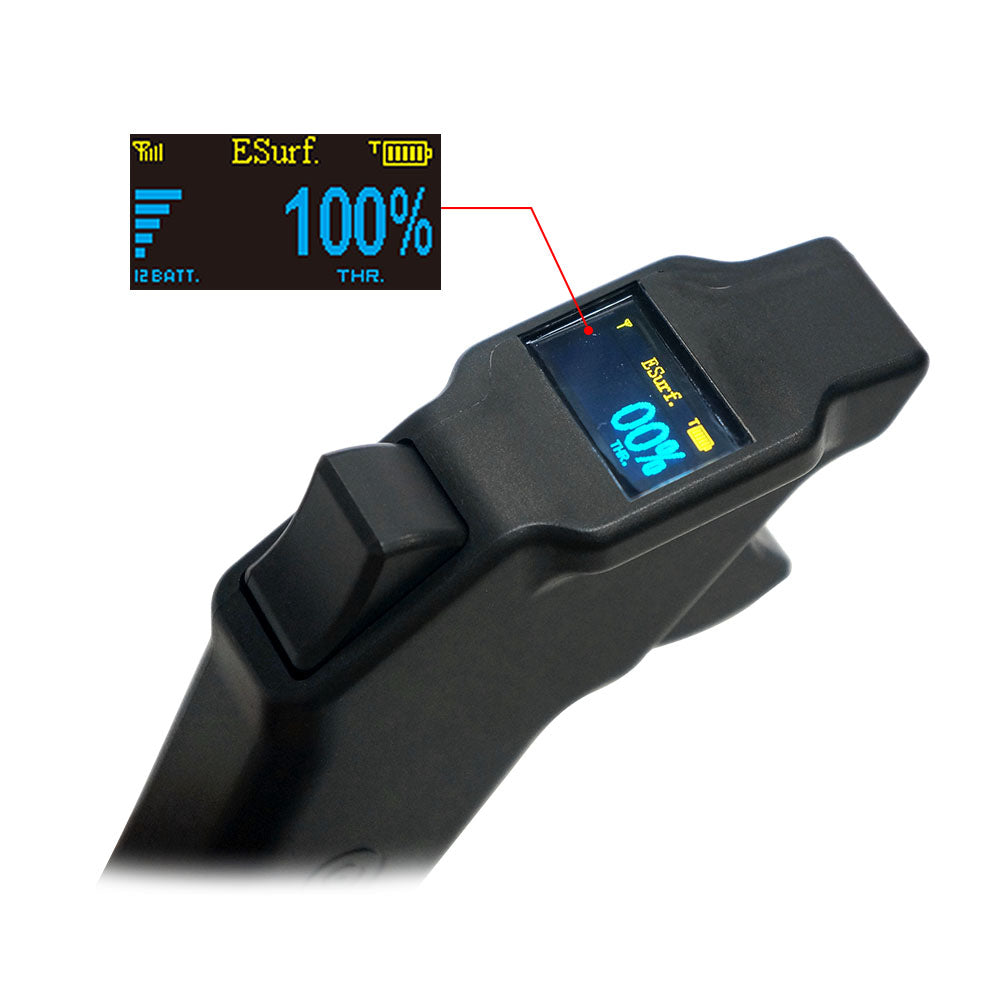

*Display screen: OLED color;
*Wireless charging;
*Remote display parameters: throttle percentage, remote battery &main battery voltage, motor RPM; if use it with VESC controllers, it can show current, temperature, etc.
*Solid signal: Remote and receiver signal strength is enhenced to avoid some signal interference nearby;
*built-in 30V 3A Relay mechanical switch and 20V 2A transistor electronics switch for lights, water pump;
- *Firmware is wirelessly upgradable.
