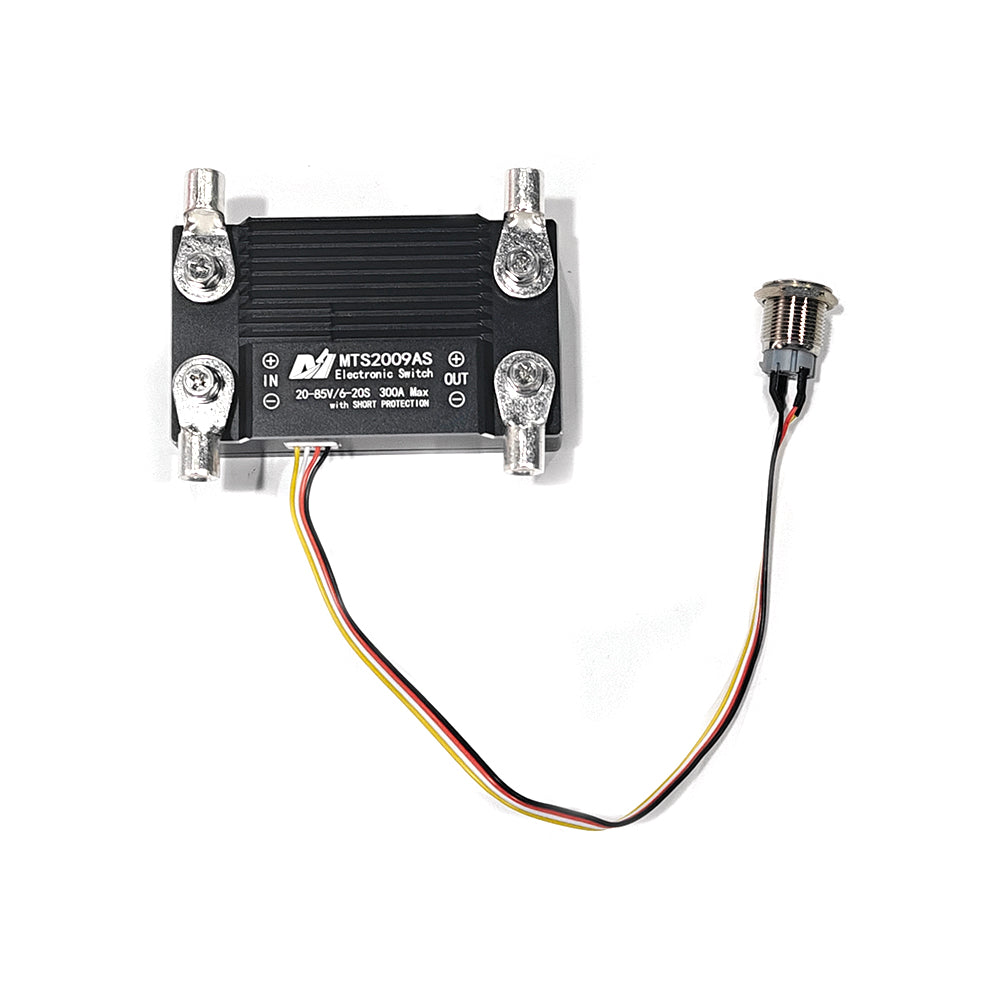

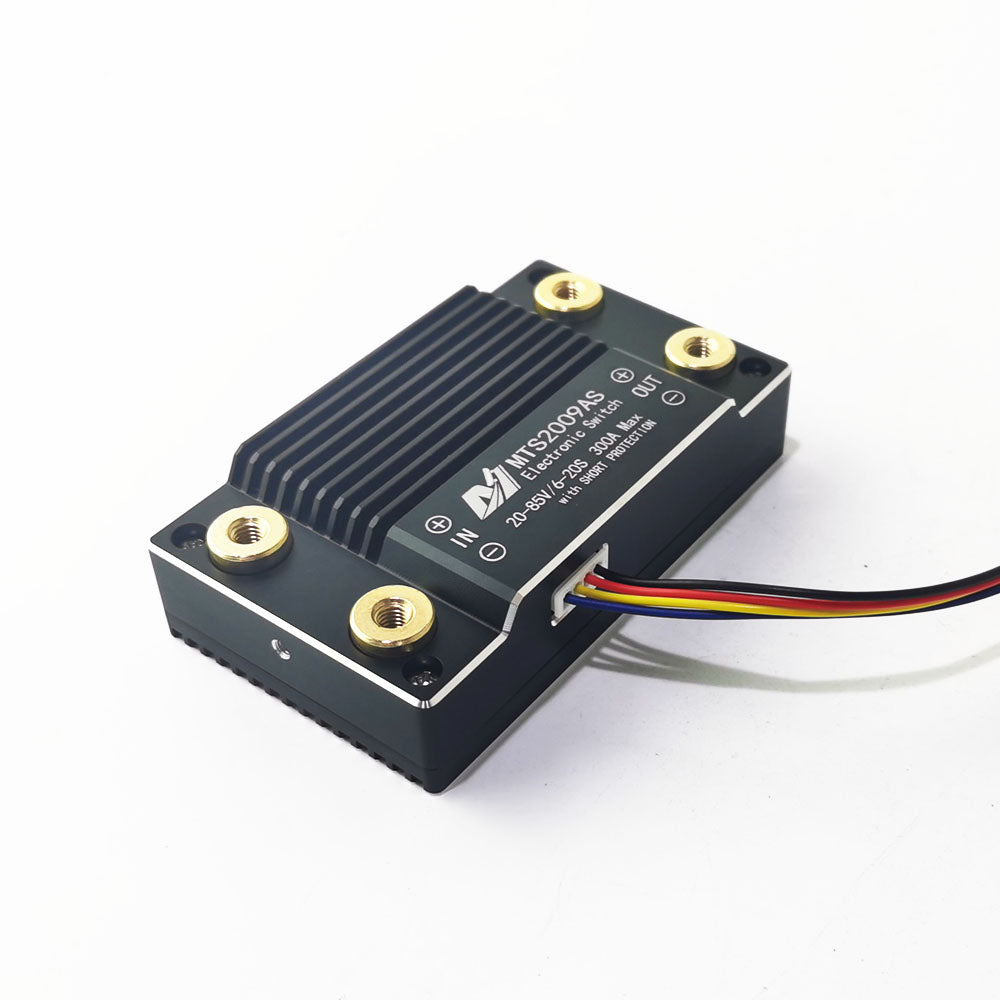

MAYRC MTS2009AS 300A 85V Anti-spark Switch Protection Controller and Power Supply System for Hydrofoil Board

Specification:

Model: MTS2009AS
Max Current: 300A
Max Volt.: 85V

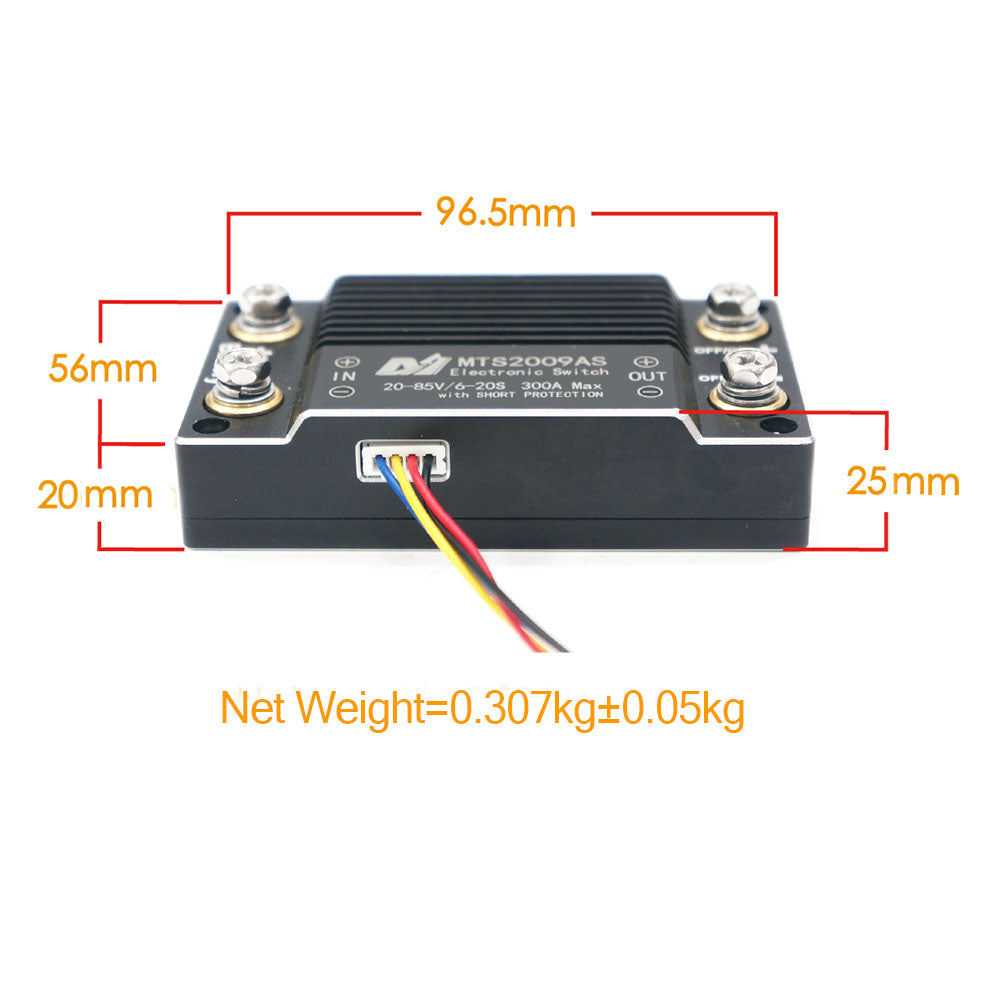

Size: 96.5*56*25.5mm
Cable: No cable

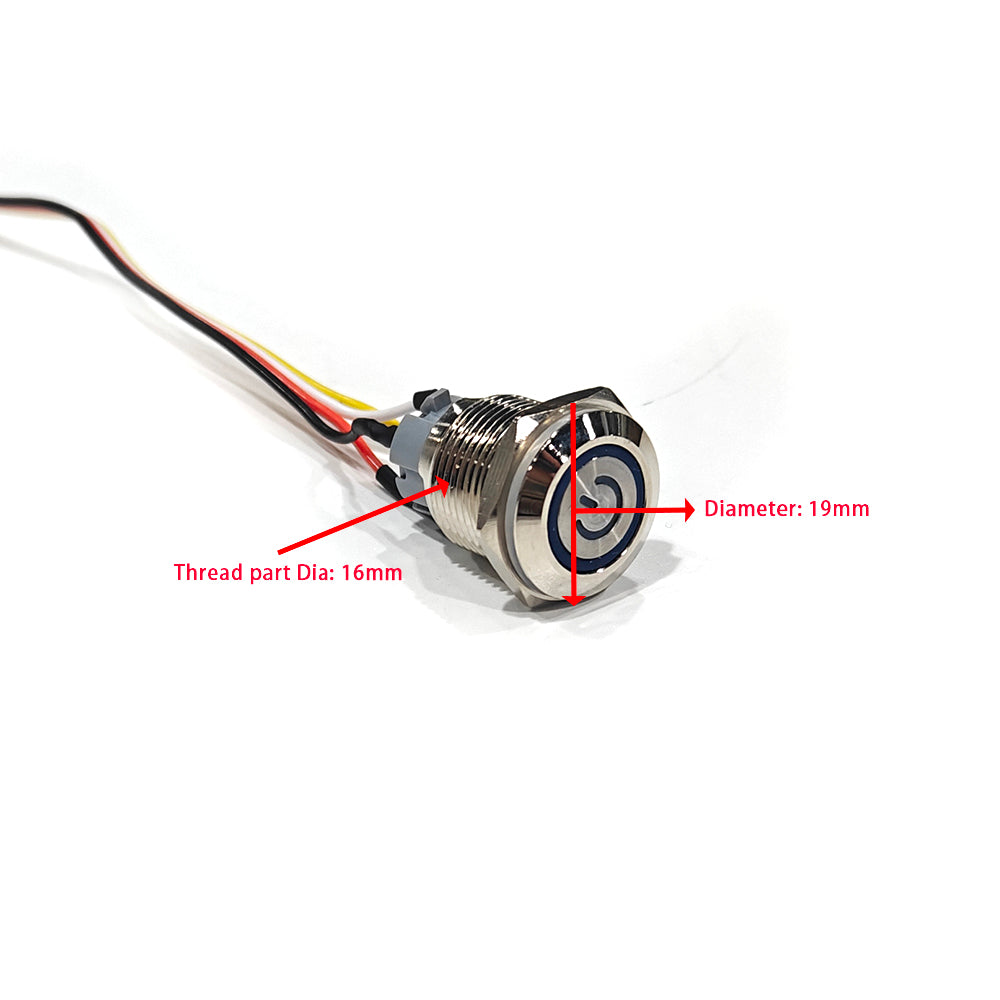

Description: Switch diameter:12mm
Switch type:Latching switch
Function: Protect your controller and power supply system when brake or startup
Weight: 275g



Application:

Electric surfboard, efoil, foilboard, jetski, jetboard, jetsurf, motorized hydrofoil, motorcycle, fighting robots, lawnmower robot, Electric mountainboard, ATV, motor bike, etc.

Features:

1:First Switch that can cut off positive pole power in the market;

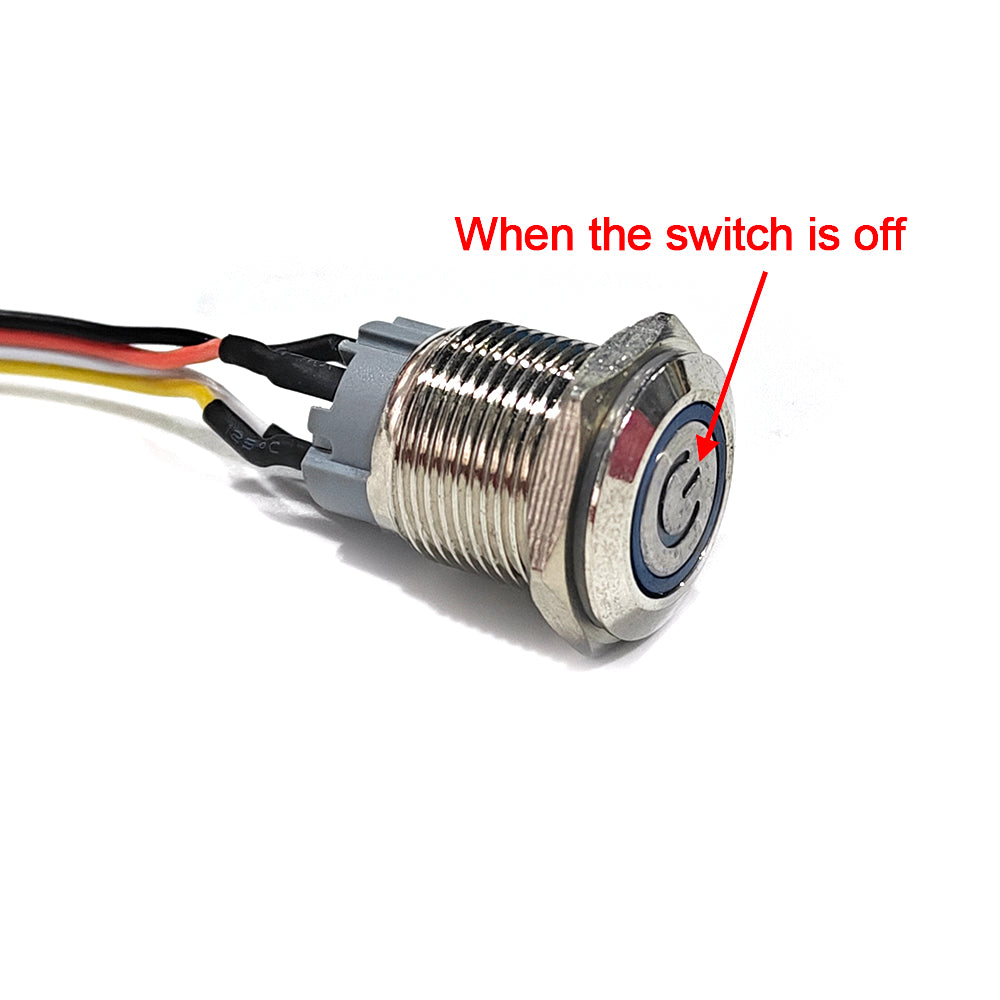

2:Switch comes with LED light indicator;
3:Shutdown current less than 1uA;
4:Suitable for load: three phase motor speed controller;
5:Boot soft start
6:Automatic short circuit protection when boot;
7:Automatic short circuit protection when work.

Notice when use with VESCTOOL compatible controllers:

Because VESCTOOL compatible controllers has regenerative brake function, when use it with 56V and above battery, recommend to use current mode, no brake. (Duty cycle mode or current mode with brake are not recommended for 56V and above voltage).

(This is only for reference according to our engineer experience. Different ESCs/ applications may be different.
