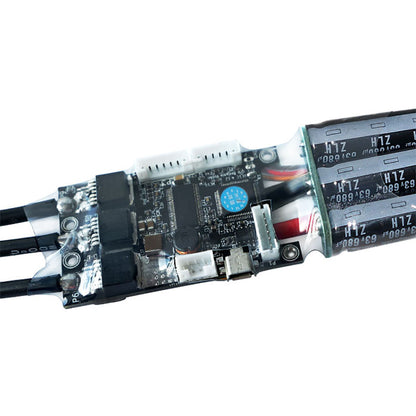

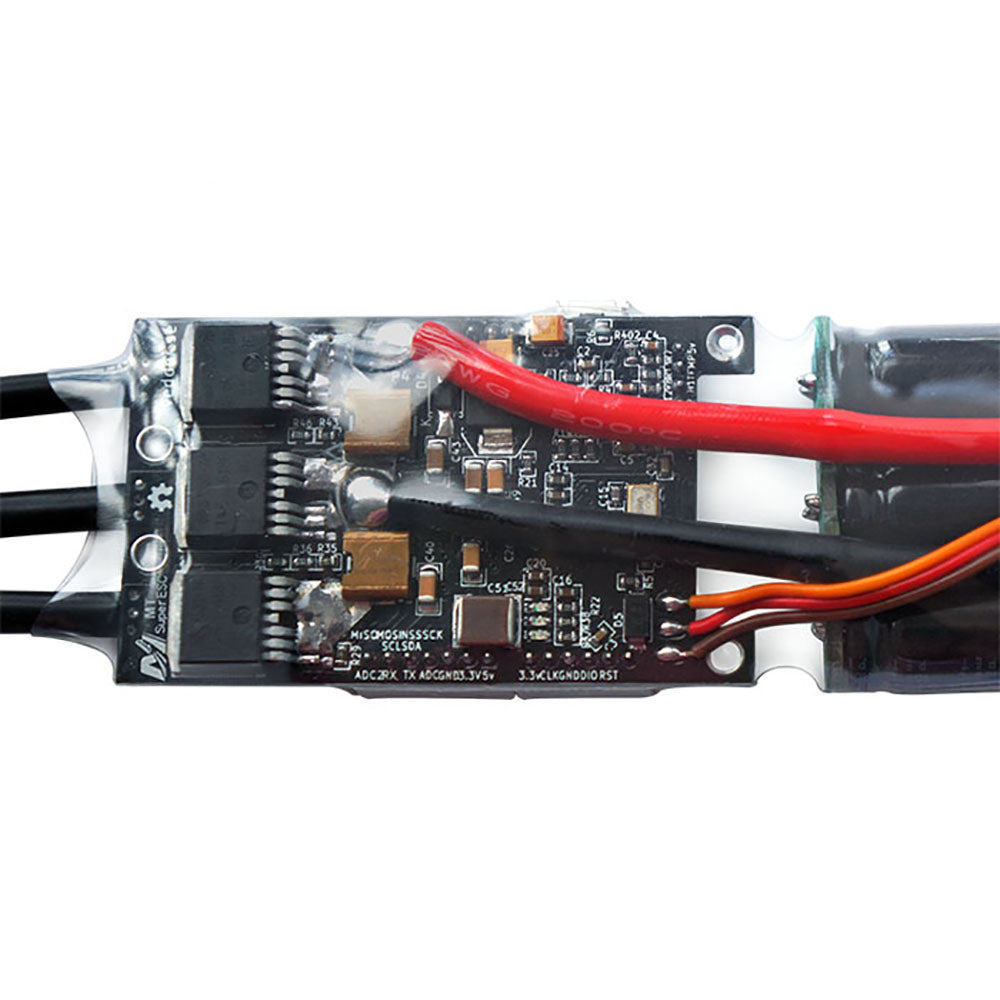

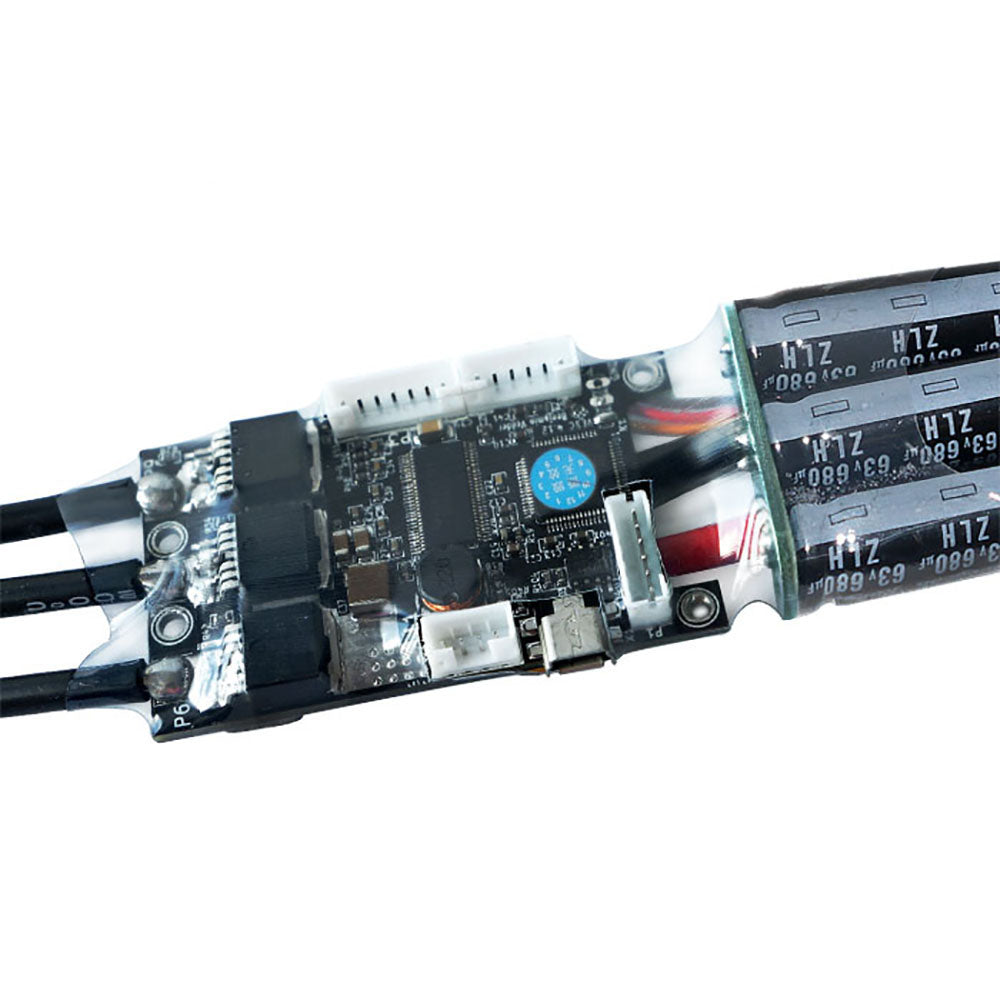

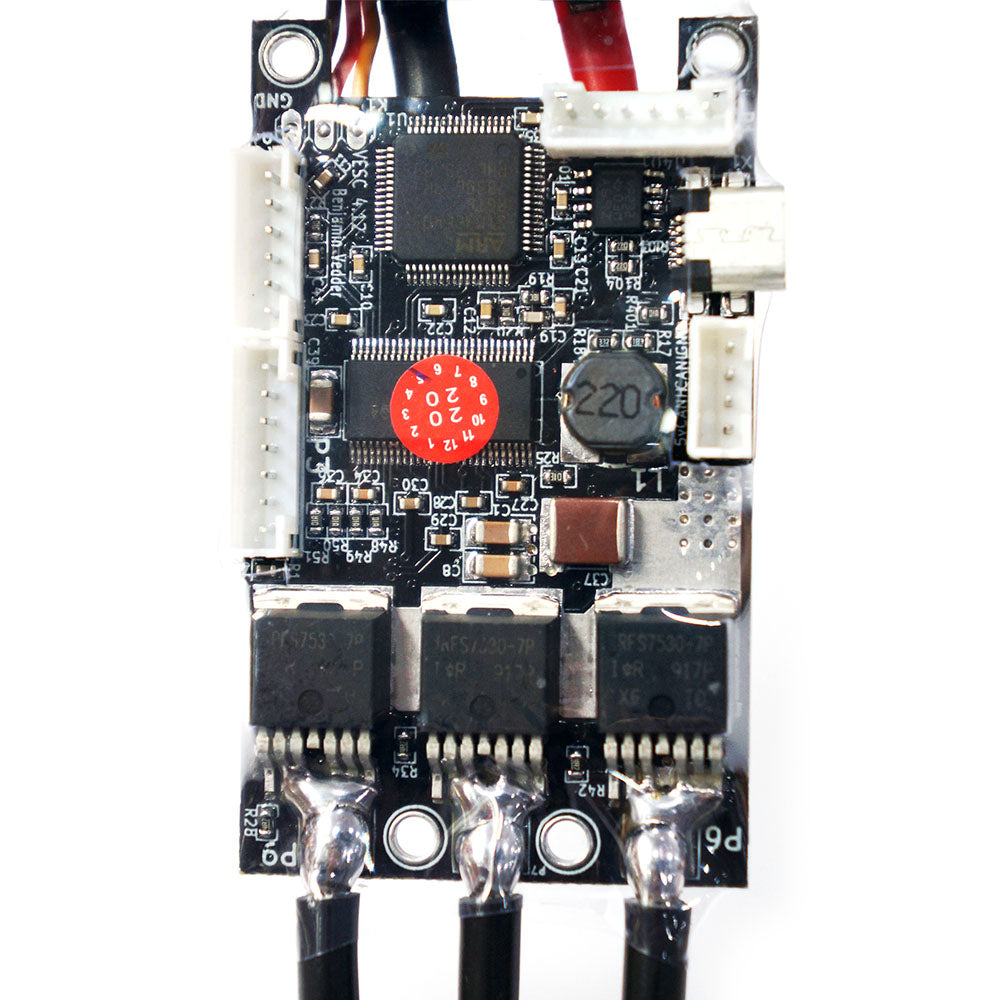

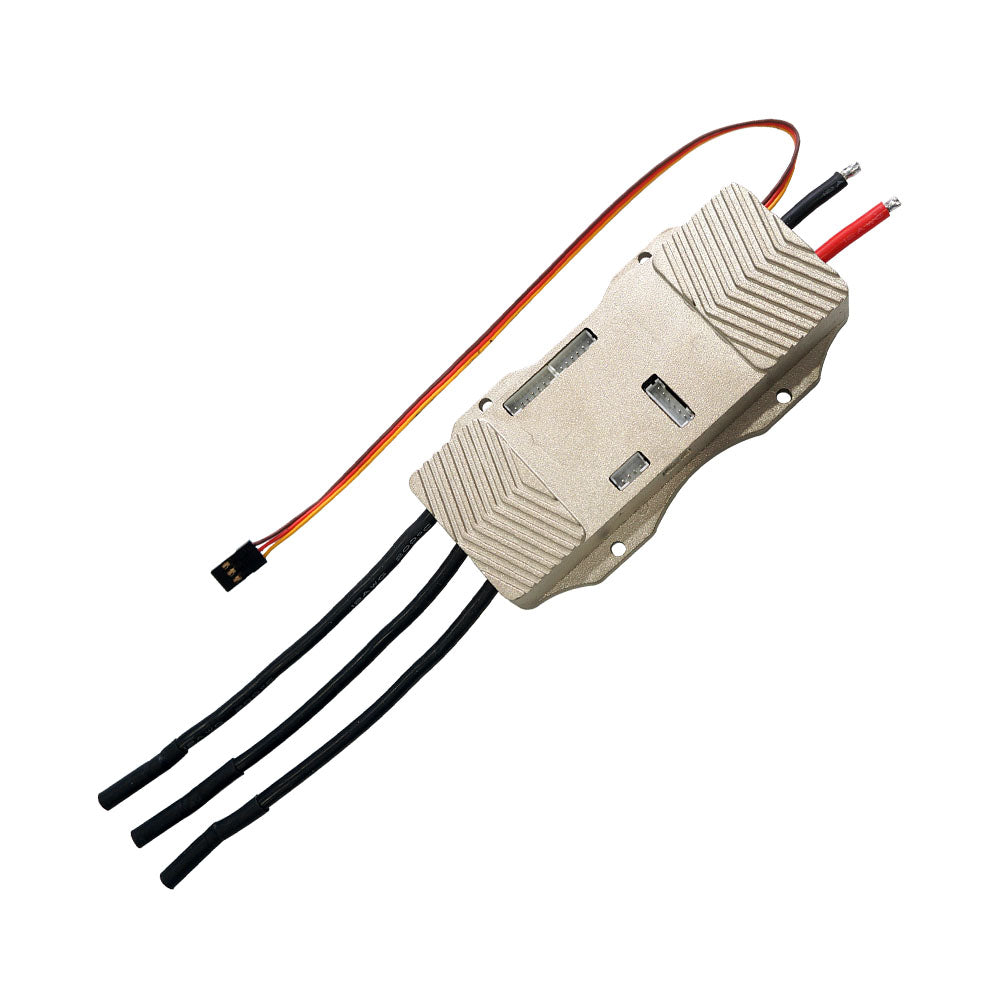

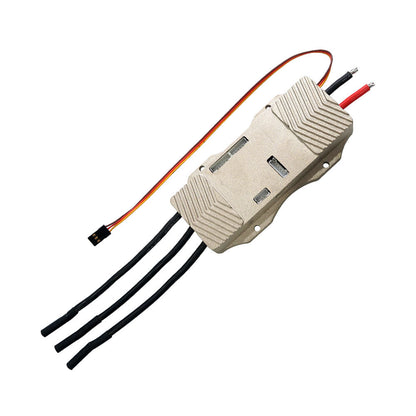

Mayrc 50A ESC Electric Speed Controller for Exercise Bike E-Bike
|Cont. Current||50A||Max. Current||240A|

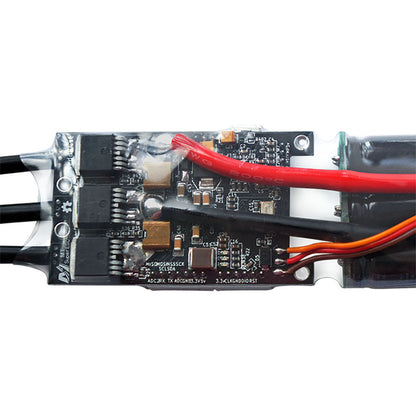

|Input Volt||3-12S||PCB Size||60mm*40mm|
|BEC||5V/1.5A||Compatible Motor||Sensored & Sensorless|

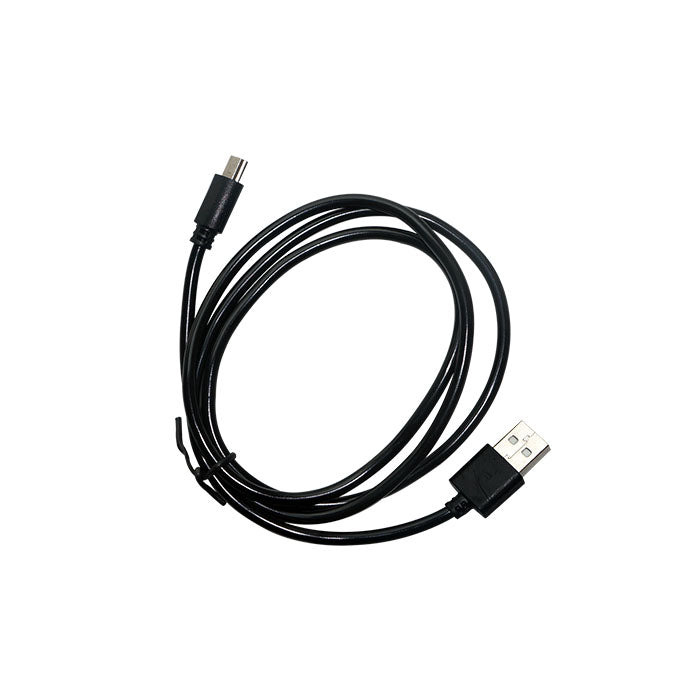

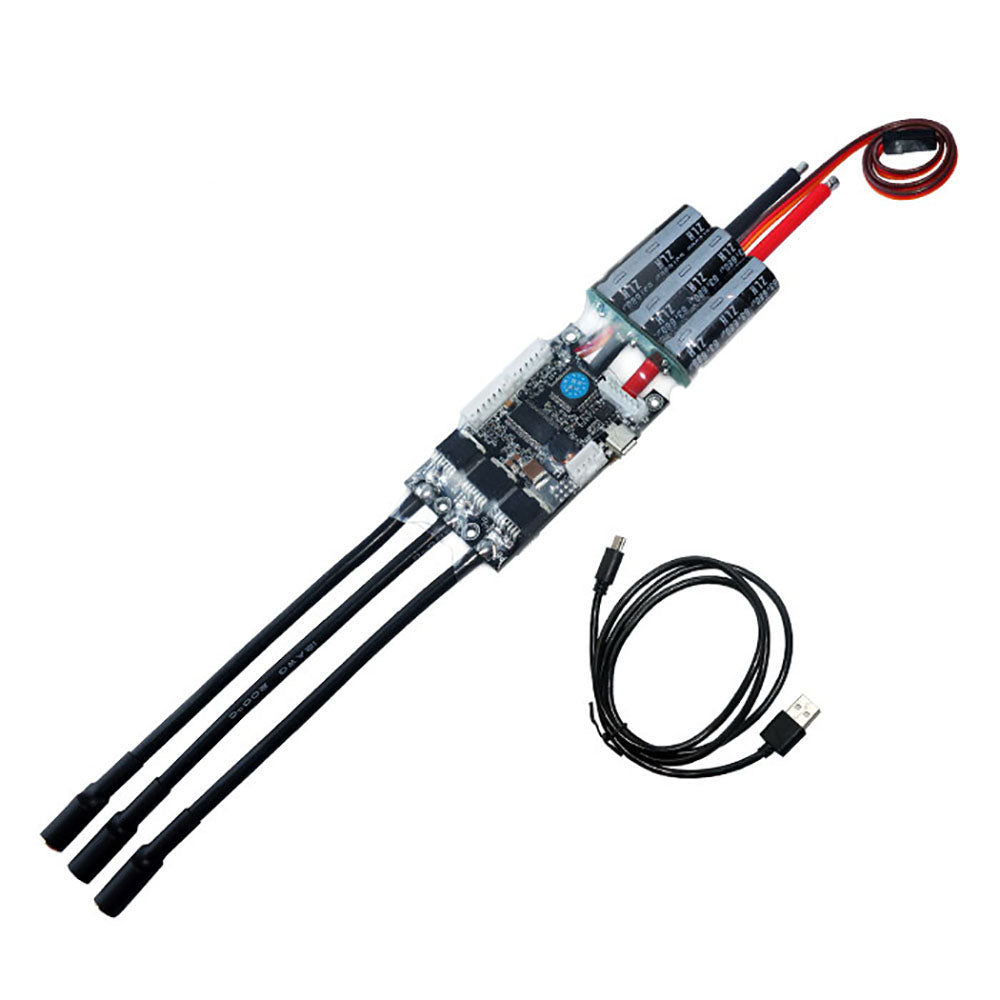

|Accessory||With USB Cable||Capacitors||3pcs 680μf 63V|
Application: E-bike, Electric Exercise Bike, etc.
- When you receive the ESC, please test without load and do not connect motor, first check if the ESC can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to ESC is very high, which would easy damage the ESC.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the ESC.
- Please must remember to change to corresponding modes when you adjust parameters. For example, the ESC default mode is BLDC mode.If you want to detect FOC mode and adjusted FOC parameters, please change to FOC mode. Or the ESC would easy to burn.
For V6 in FOC mode, ERPM can't over 50000, otherwise driver IC would easy to be damaged.
ERPM= motor pole pairs number * KV * Voltage
- If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
