MAYRC VESC 400A & 120KV 200KV Waterproof Brushless Motor 85165 120116 120180 Engine & 30W Water Pump
MAYRC VESC 400A & 120KV 200KV Waterproof Brushless Motor 85165 120116 120180 Engine & 30W Water Pump
Couldn't load pickup availability
MAYRC VESC 400A & 120KV 200KV Waterproof Brushless Motor 85165 120116 120180 Engine & 30W Water Pump
Customize Service:
Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email:shelly@mayrc.com
Gmail:mayrcshelly@gmail.com
Note:
1:If the water pump and UBEC need to be soldered, please remark. If no remarks are provided, welding is not required by default.
2:Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV,so each motor might has ±5%-10% tolerance, this is normal.
Specification:

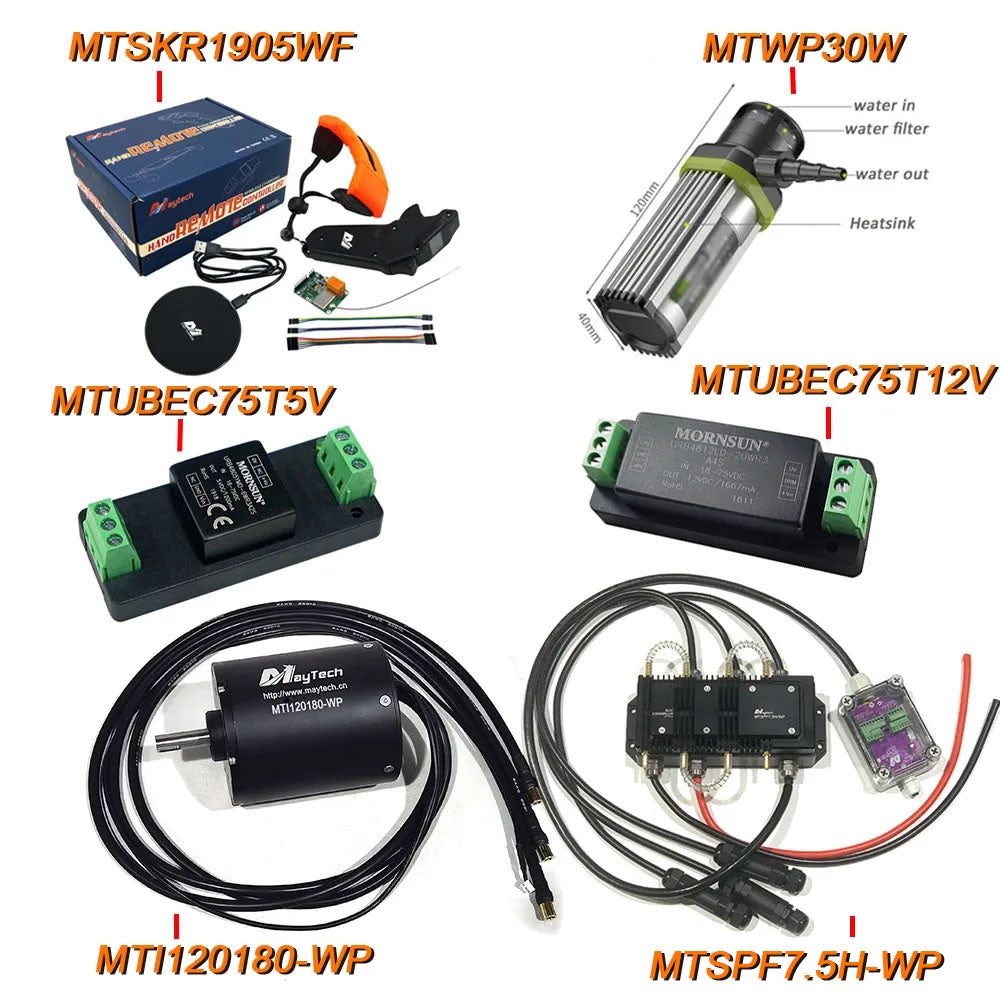

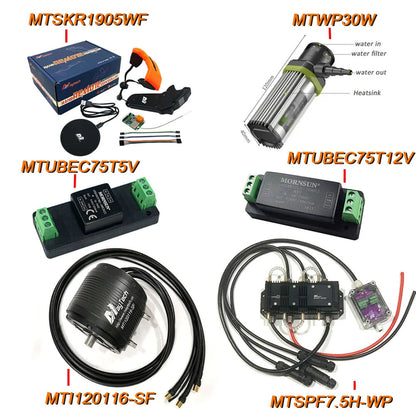

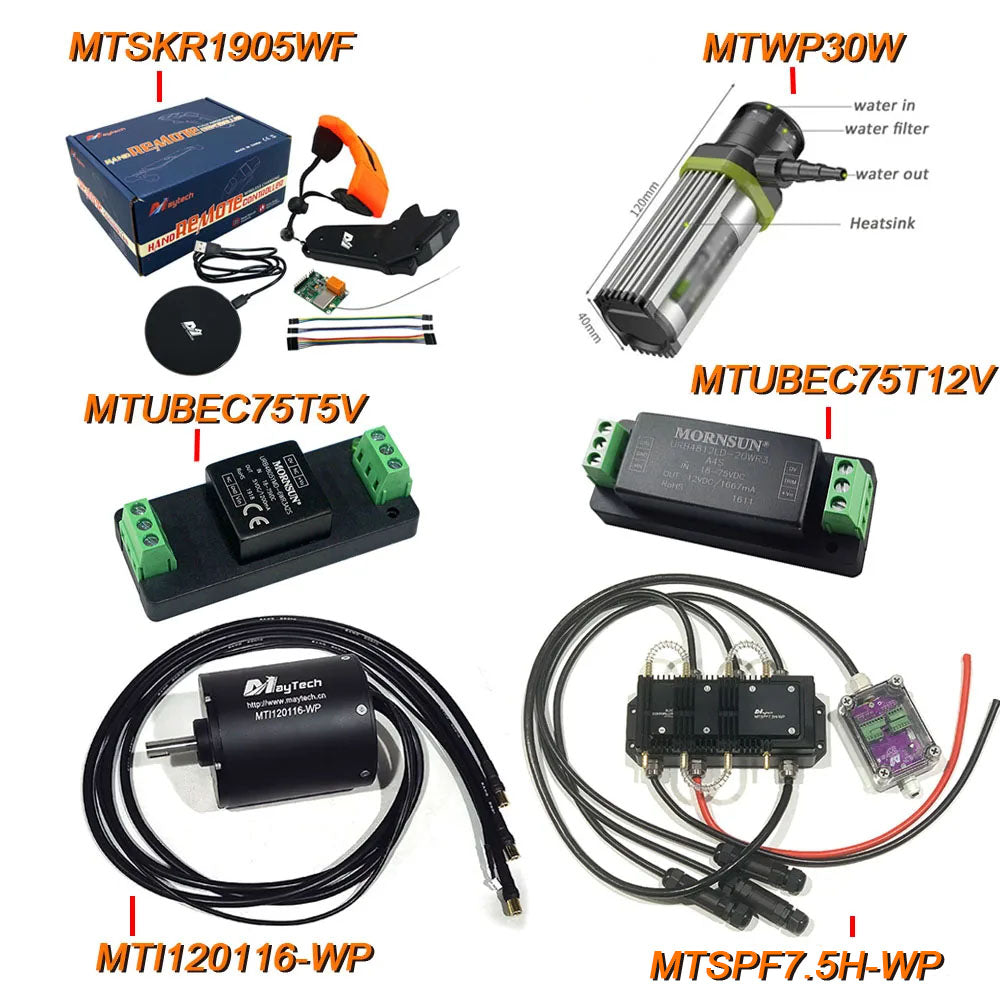

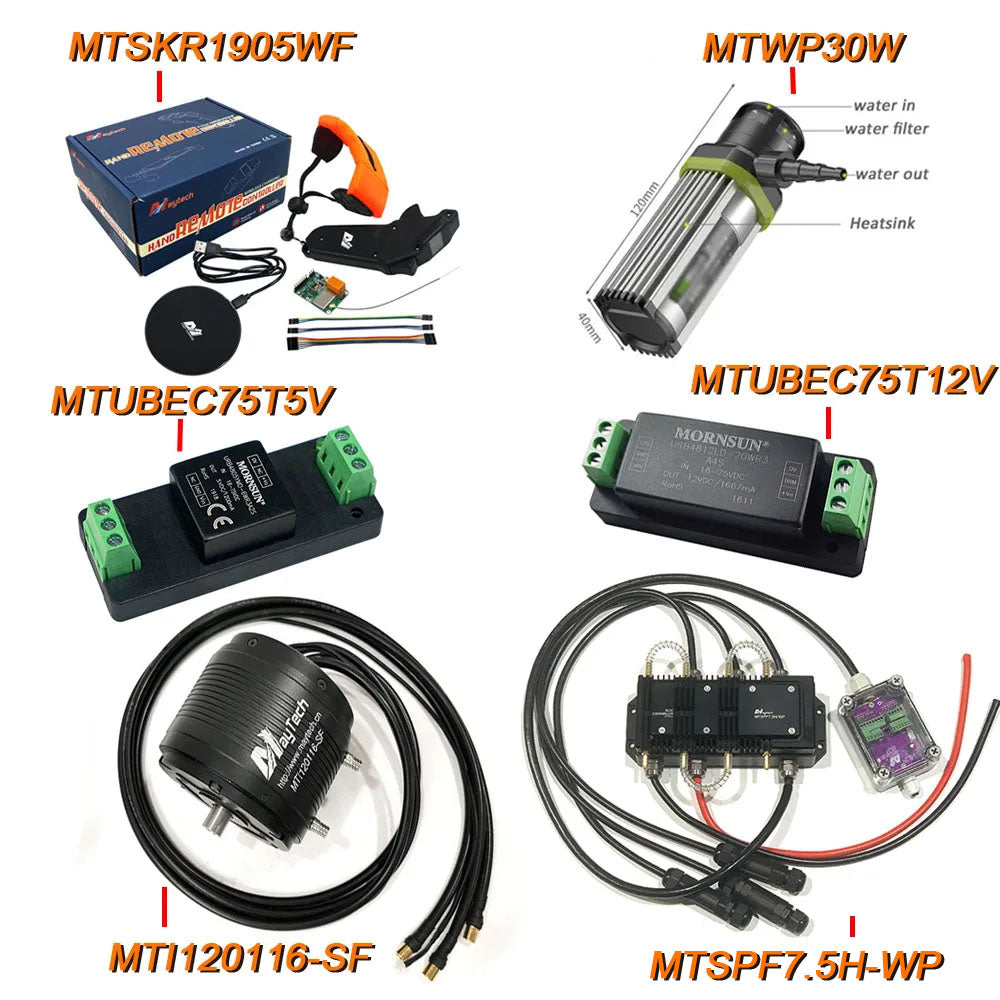

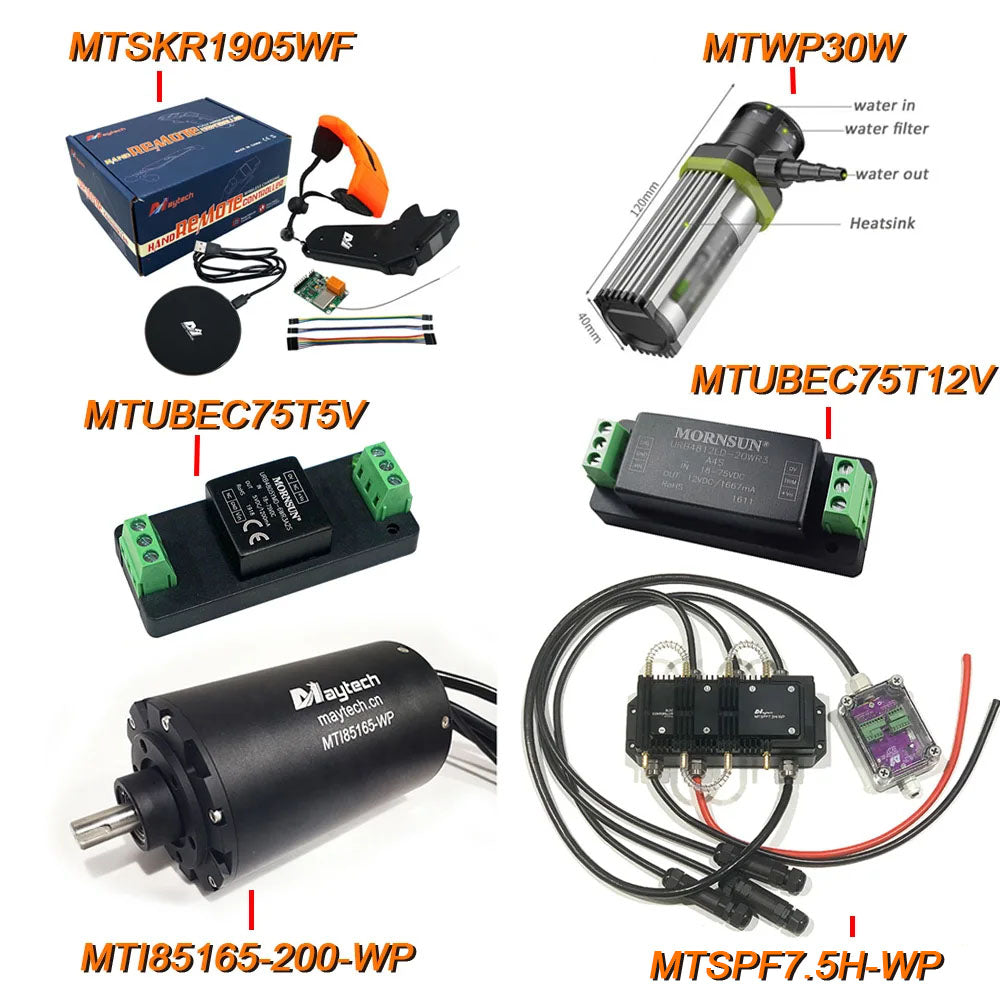

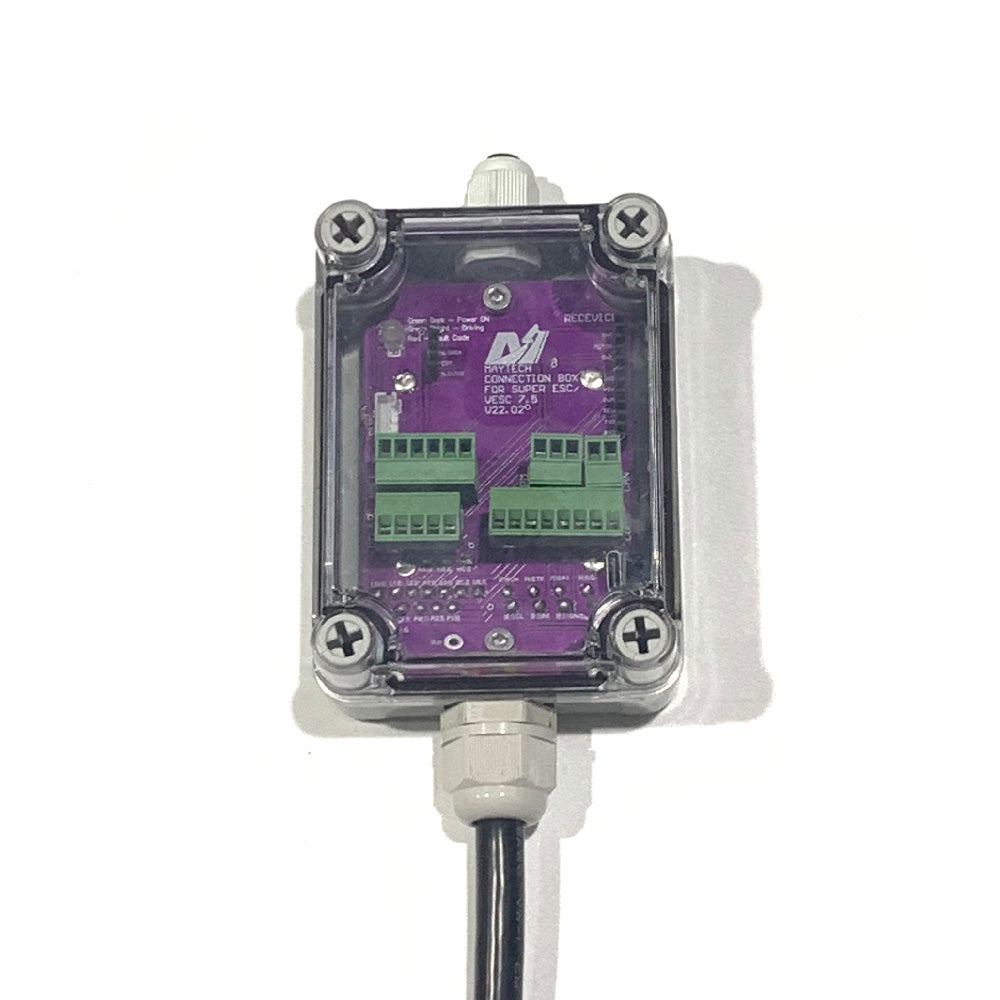

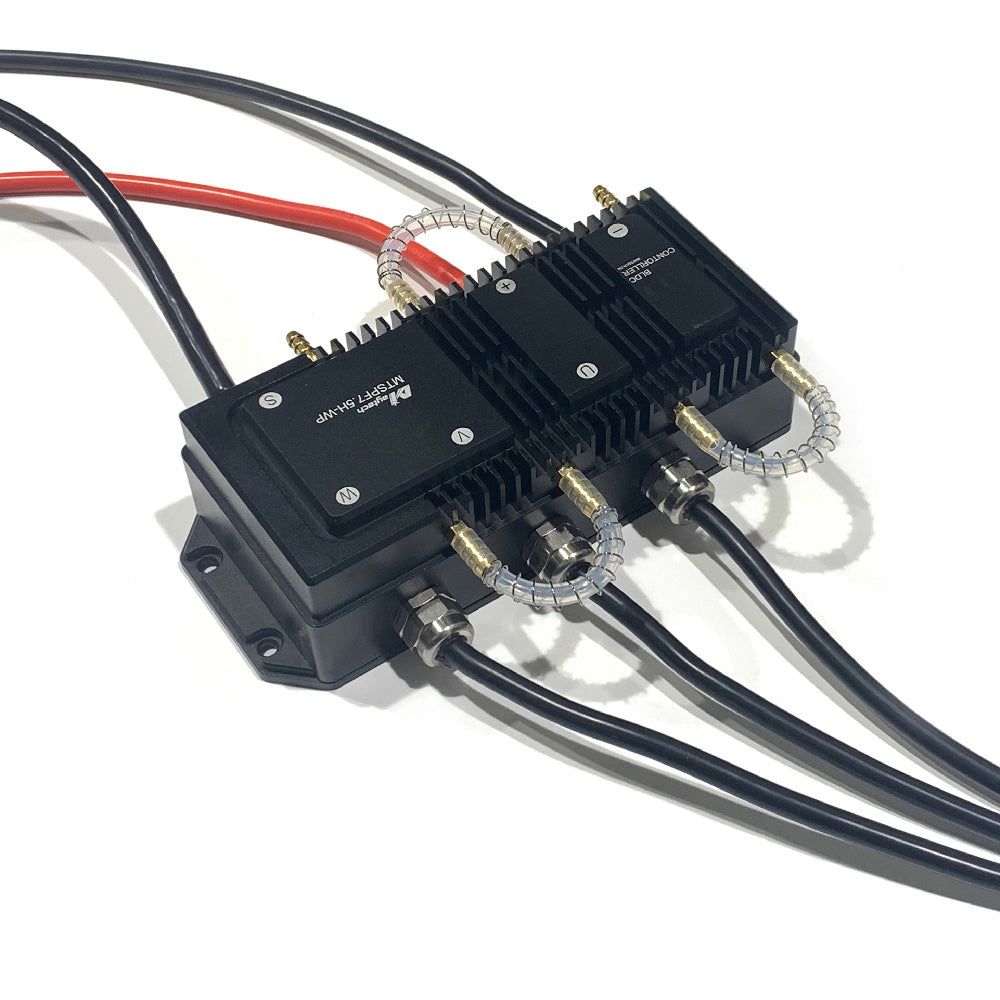

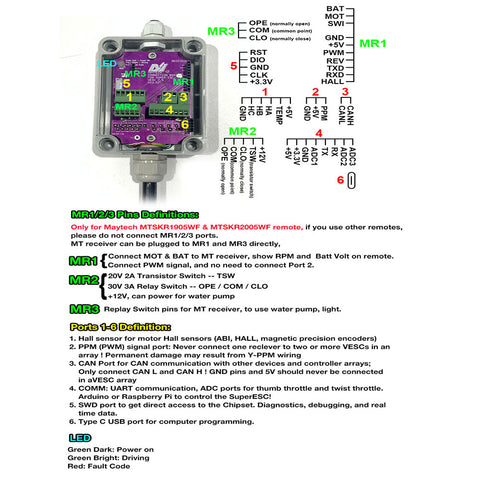

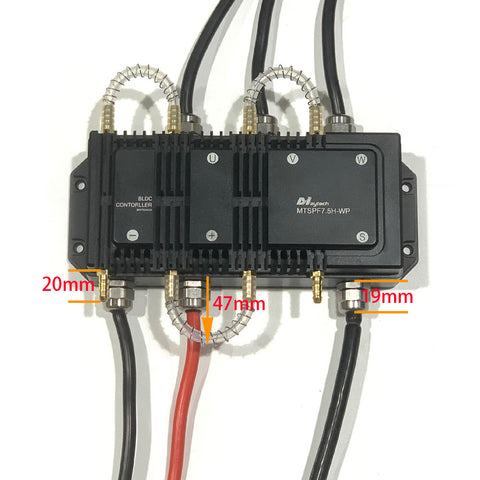

Model 1:MTSPF7.5H-WP
Cont. Current:400A
Max. Current:1000A
Volt.:25-85V
Water-cooled:【With water-cooled tubes;
【CNC aluminum alloy heat dissipation case with fin, optional water cooling system and forced air cooling system;
Size:148*84*56mm with Aluminum case
Weight:900g
Main Features:▶VESC-based firmware
▶VESCtool compatible speed controller;
▶Soft-switching to reduce the losses in power electronic switches;
▶Adjustable Forward/Backward/Brake;
▶Configurable RPM, Current, Voltage and Power limits;
▶With 5V and 12V external power supply interfaces, no interference caused when powering analog circuits such as twist/thumb throttles.;
▶Regenerative Braking Function;
▶Separation of low power electronics from the high power electronics, make it more reliable;
▶Support PPM, Analog (ADC), UART, Canbus input;

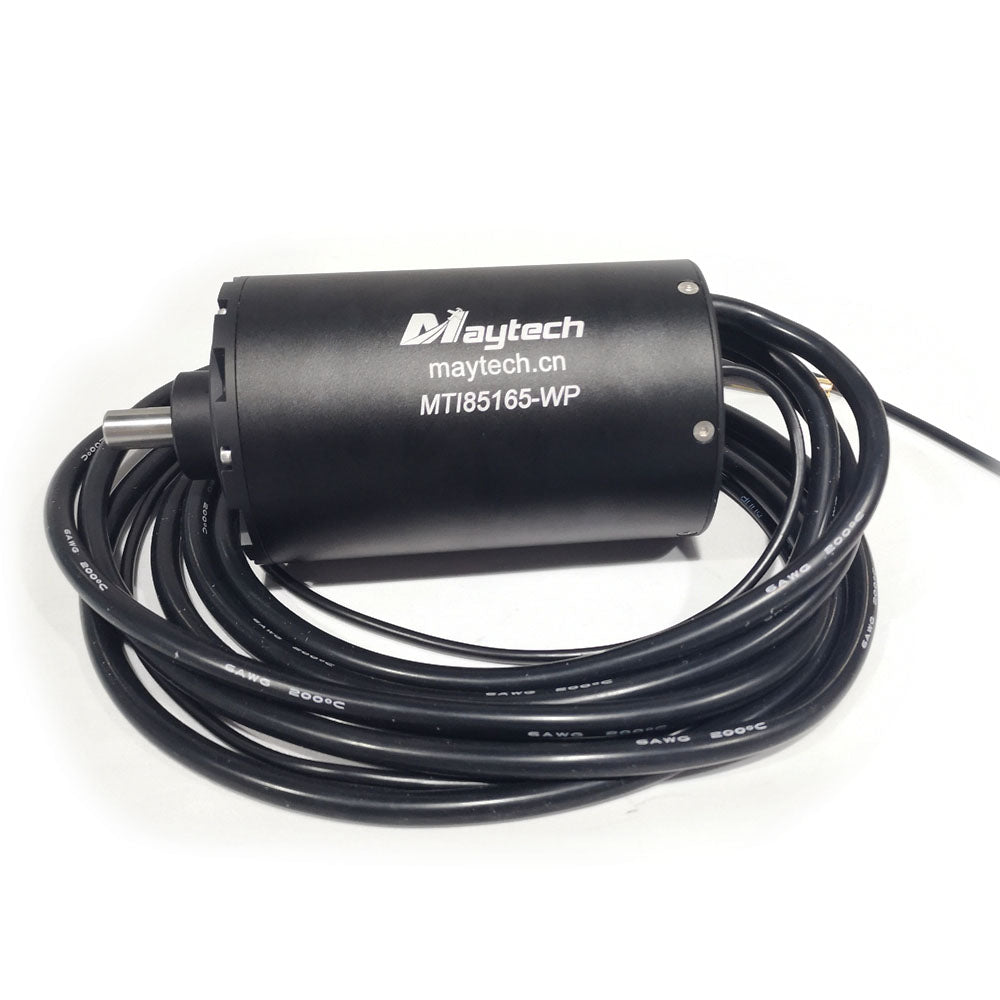

Model 2:MTI85165-200-WP(Fully water-proof)
KV: 200KV
RPM/V/Max RPM: 200/12096
Idle Current@10V:2.1A
Rated Current/Max Current(A):190A/300A
Working Voltage:50-84V
Rated/Max Torque(N*M):17.5/21.5N.M
Max Power(10S):10.5KW
Winding Turns/Construction:7T/12N/10P
Motor&Shaft Size(mm):Φ85x134mm&12mm
Net Weight (kg):2.8

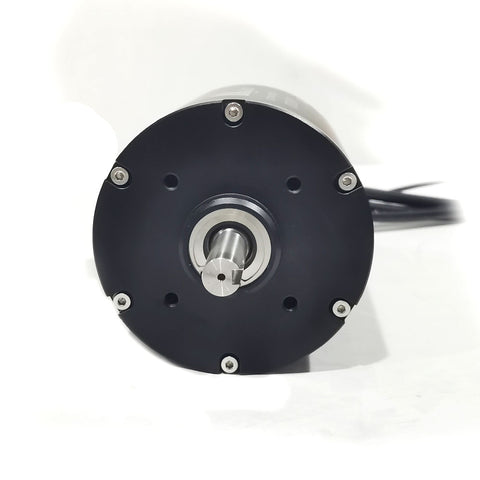

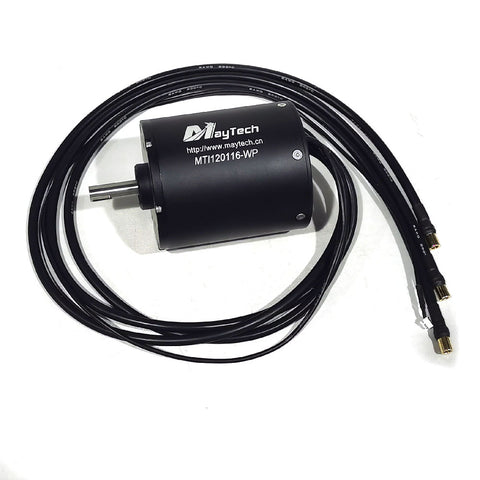

Model 3:MTI120116-100-WP(Fully water-proof)
KV: 100KV
RPM/V/Max RPM: 100/13440
Idle Current@10V:2.8A
Rated Current/Max Current(A):300A/380A
Working Voltage:50-84V
Rated/Max Torque(N*M):13.6/20.6 N.m
Max Power(10S):18.8KW
Winding Turns/Construction:3.5T/12N/10P
Motor&Shaft Size(mm):Φ107x 125mm&D15mm
Net Weight (kg):4.4

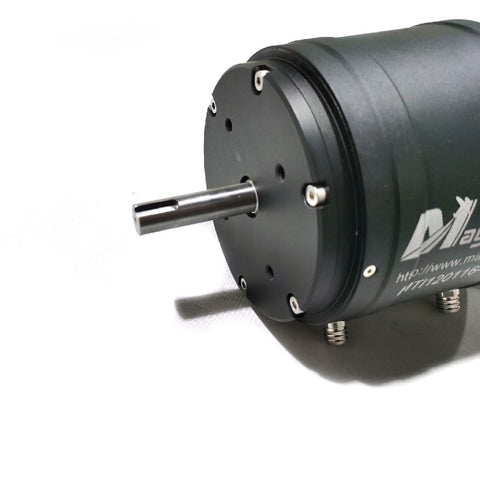

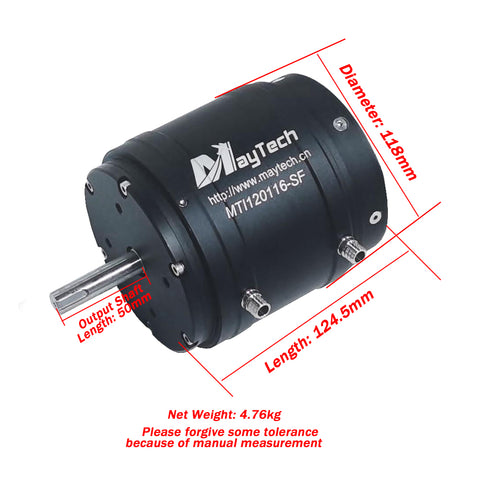

Model 4:MTI120116-200-SF(Water-cooling)
KV: 200KV
RPM/V/Max RPM: 200/13440
Idle Current@10V:2.8A
Rated Current/Max Current(A):300A/380A
Working Voltage:50-84V
Rated/Max Torque(N*M):13.6/20.6 N.m
Max Power(10S):18.8KW
Winding Turns/Construction:3.5T/12N/10P
Motor&Shaft Size(mm):Φ118x 116mm&D15mm
Net Weight (kg):4.4

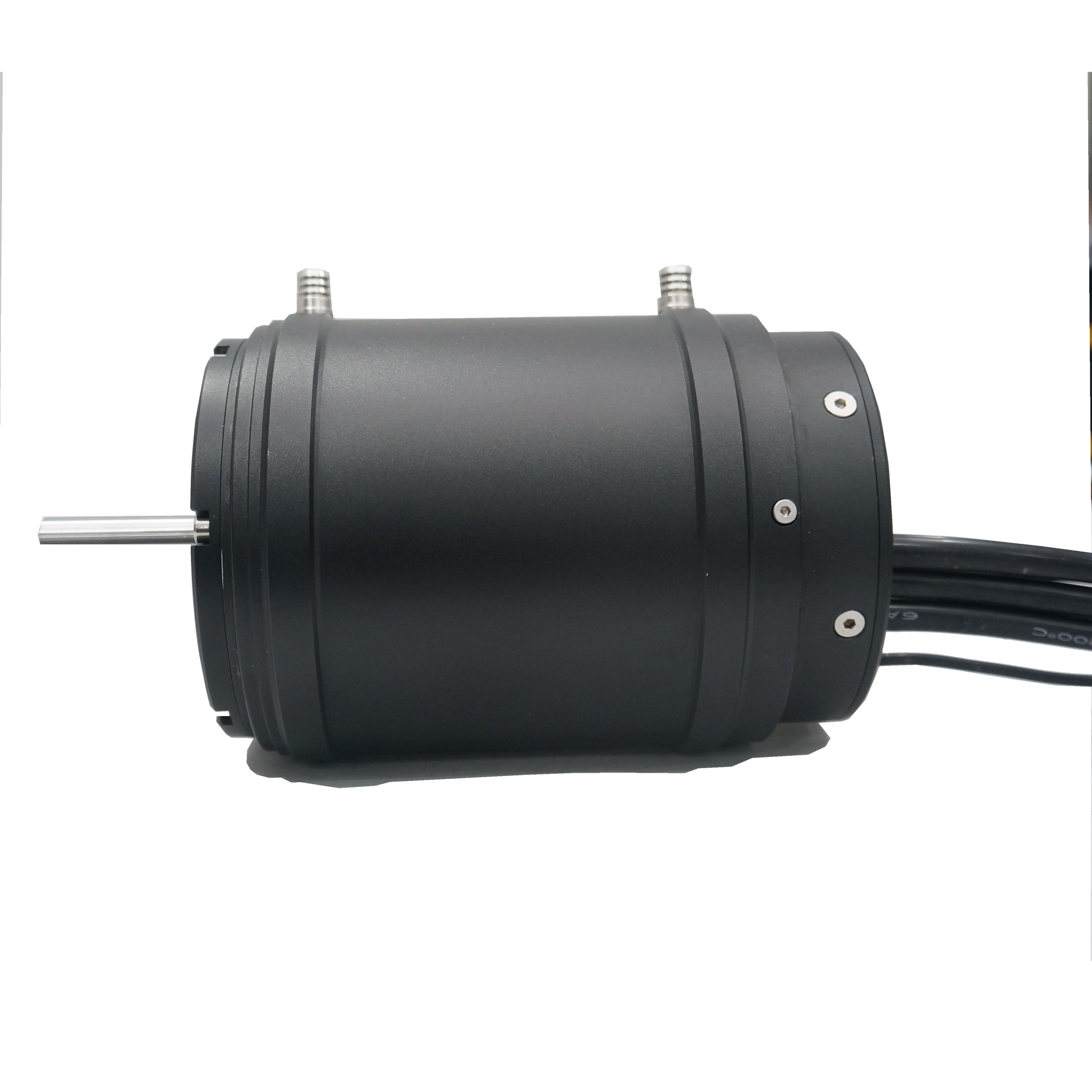

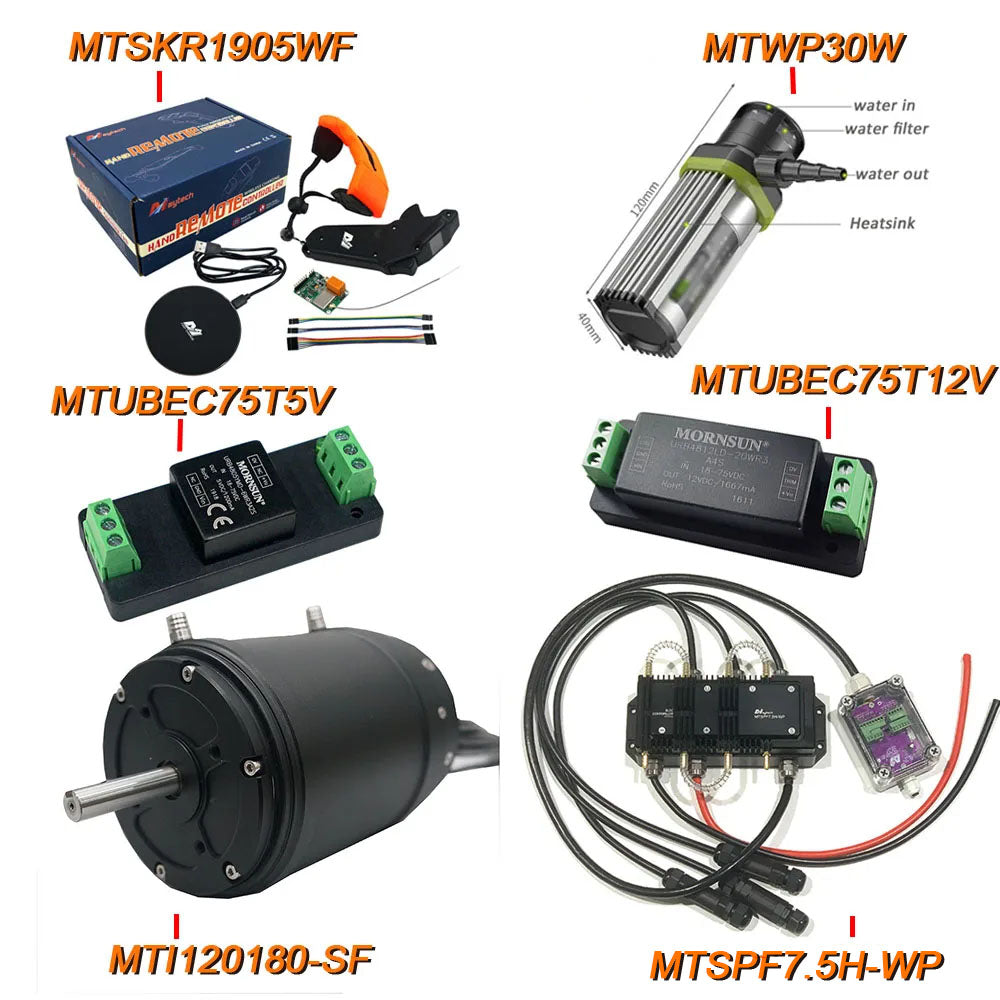

Model 5:MTI120180-120-SF(Water-cooling)
KV: 120KV
RPM/V/Max RPM: 120/9072
Idle Current@10V:3.2A
Rated Current/Max Current(A):270A/340A
Working Voltage:25-76V
Rated/Max Torque(N*M):18.8/28.8 N.m
Max Power(10S):23.5KW
Winding Turns/Construction:4T/12N/10P
Motor&Shaft Size(mm):Φ120x 180mm&D15mm
Net Weight (kg):6.5

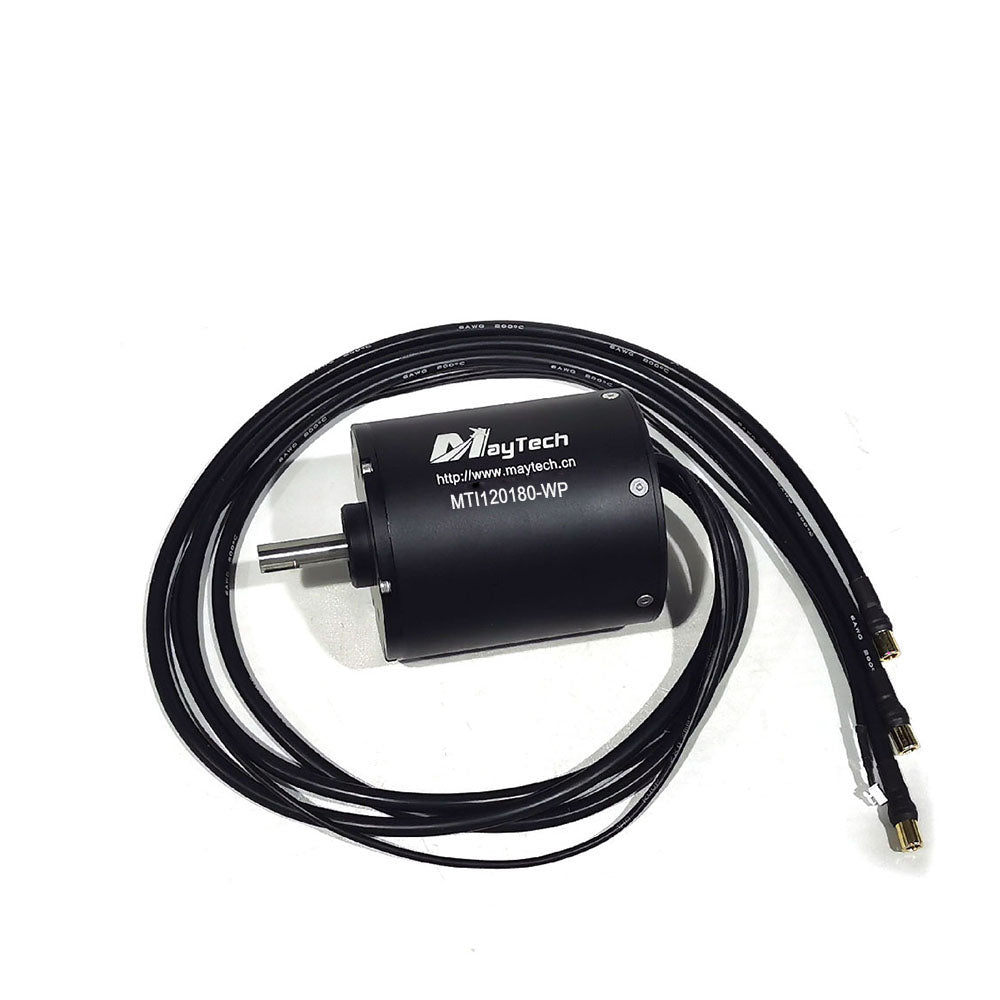

Model 6:MTI120180-120-WP(water-proof)
KV: 120KV
RPM/V/Max RPM: 120/9072
Idle Current@10V:3.2A
Rated Current/Max Current(A):270A/340A
Working Voltage:25-76V
Rated/Max Torque(N*M):18.8/28.8 N.m
Max Power(10S):23.5KW
Winding Turns/Construction:4T/12N/10P
Motor&Shaft Size(mm):Φ120x 180mm&D15mm
Net Weight (kg):6.5

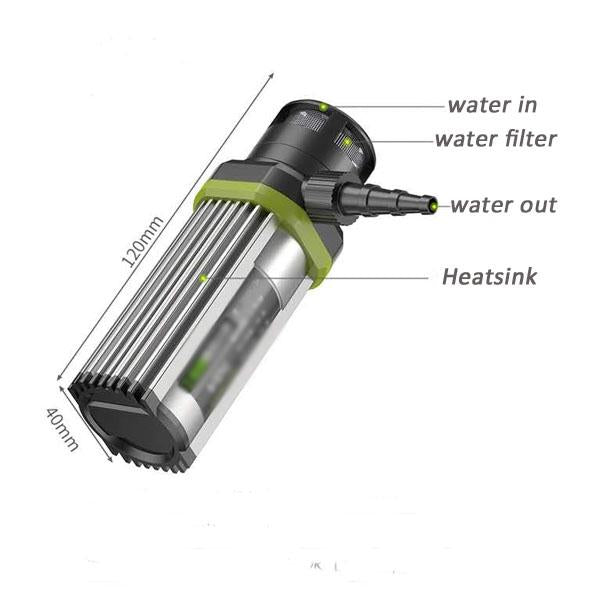

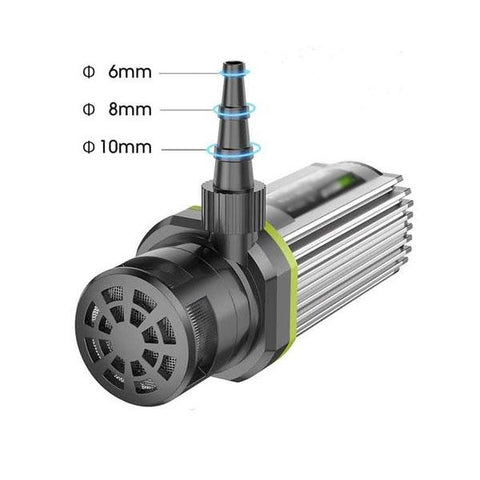

Model 7:MTWP30W(Water pump)
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight:50g

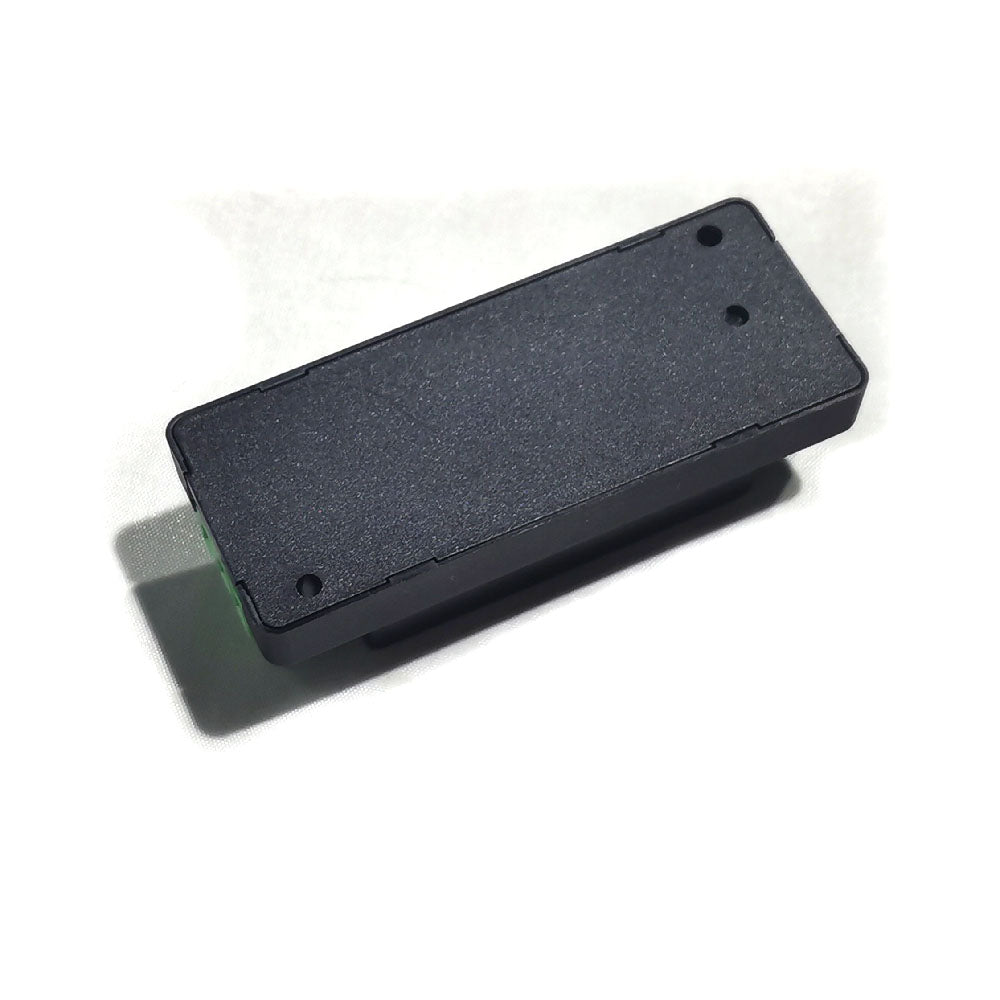

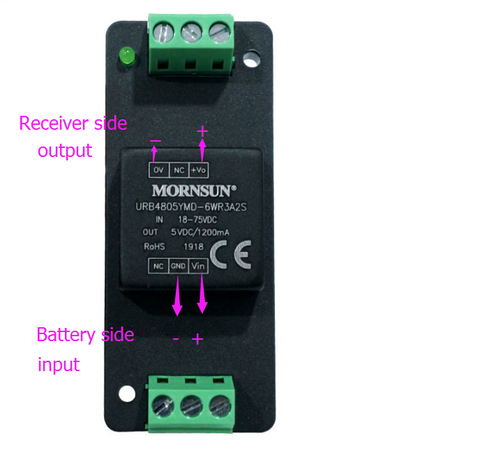

Model 8:MTUBEC75T5V

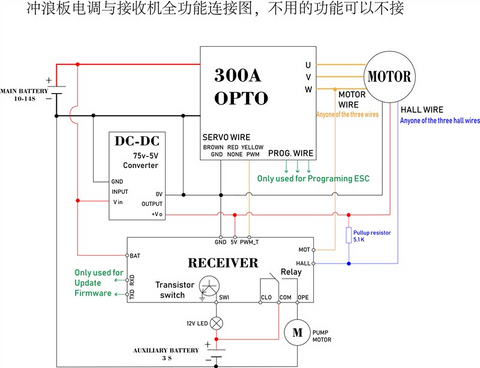

Voltage Regulator, convert 75V voltage to 5V. An optional accessory to 300A controller, supply power to receiver.
Net weight:80g
Model 9:MTUBEC75T12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump
Net weight:80g
Model 11:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad
