Specification:

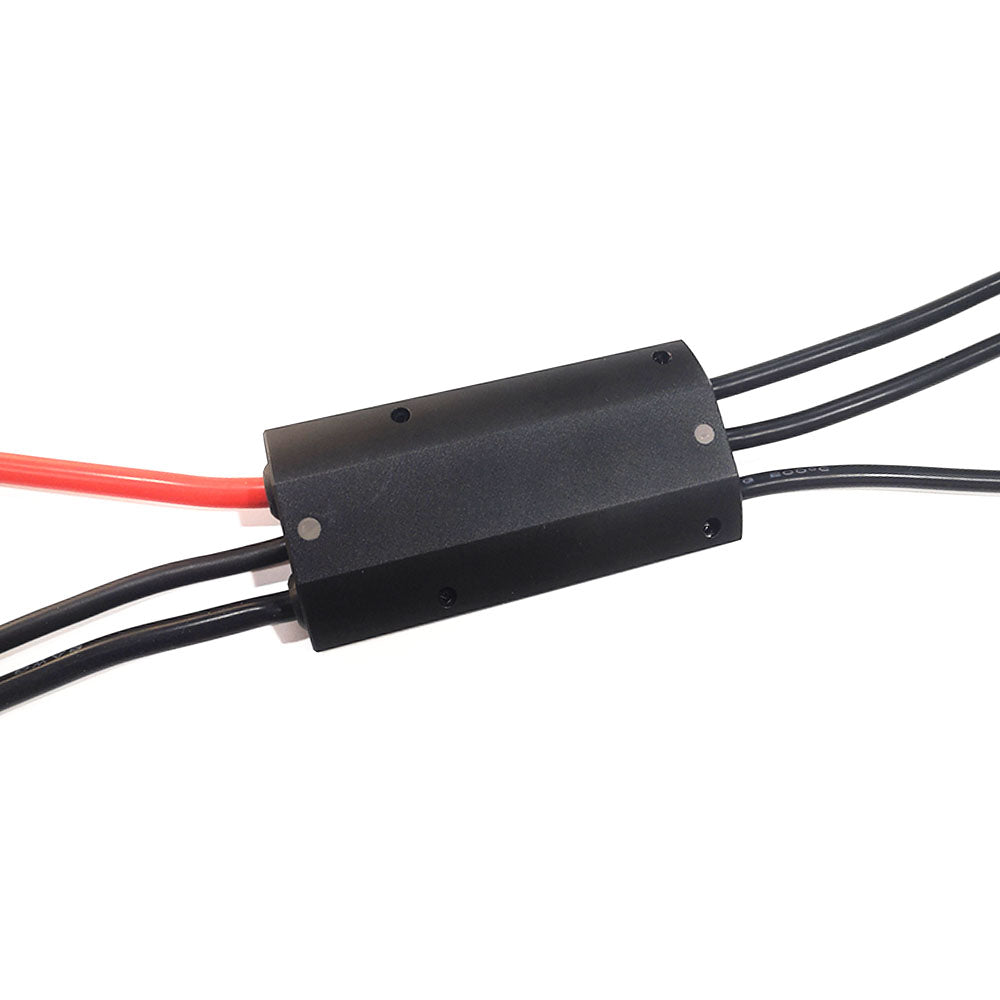

Model 1:MTSF160A-WP32
Cont. Current:160A
Max. Current:180A
Volt.:25-60V 6-14S LIPO
Water-cooled :water-proof version IP68
Can work in 1 meter deep water; Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.

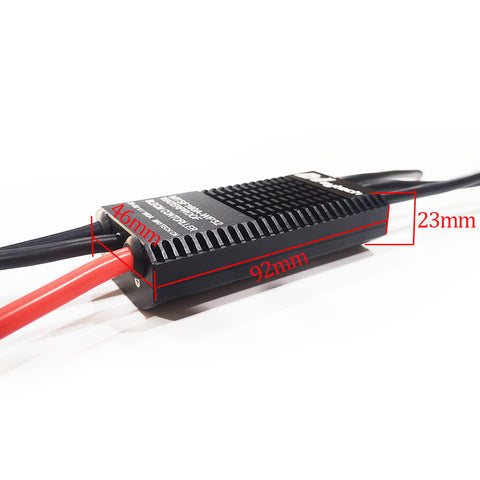

Size:95*46*23mm
Weight:180g

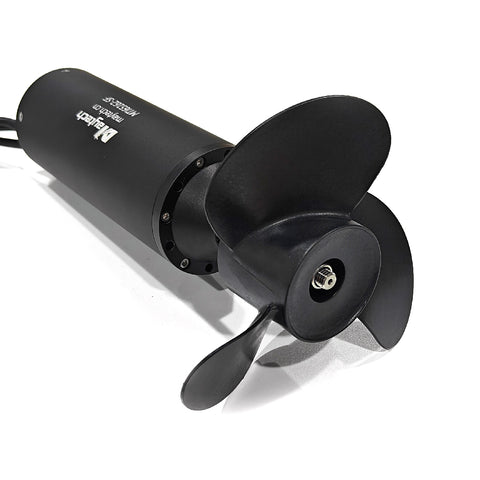

Model 2:MTI65162-120-SF
KV: 120
RPM/V/Max RPM: 130/14300
Idle Current@10V:1.6A
Rated Current/Max Current(A):240/310
Working Voltage:25-84V
Rated/Max Torque(N*M):7/9.0N*M
Max Power(10S):9.1KW
Winding Turns/Construction:4T/18N/6P
Motor&Shaft Size(mm):Φ65x 162mm&12mm
Net Weight (kg):2.1

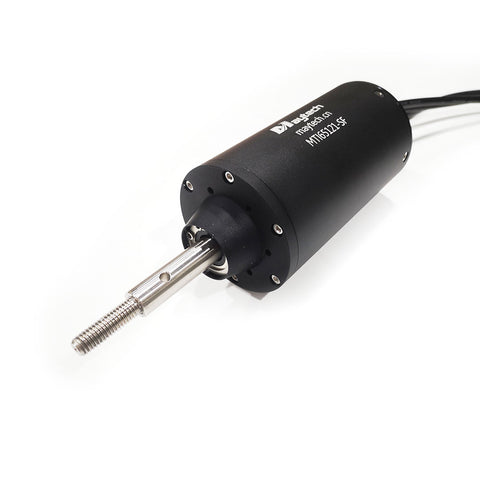

Model 3:MTI65121-130-SF

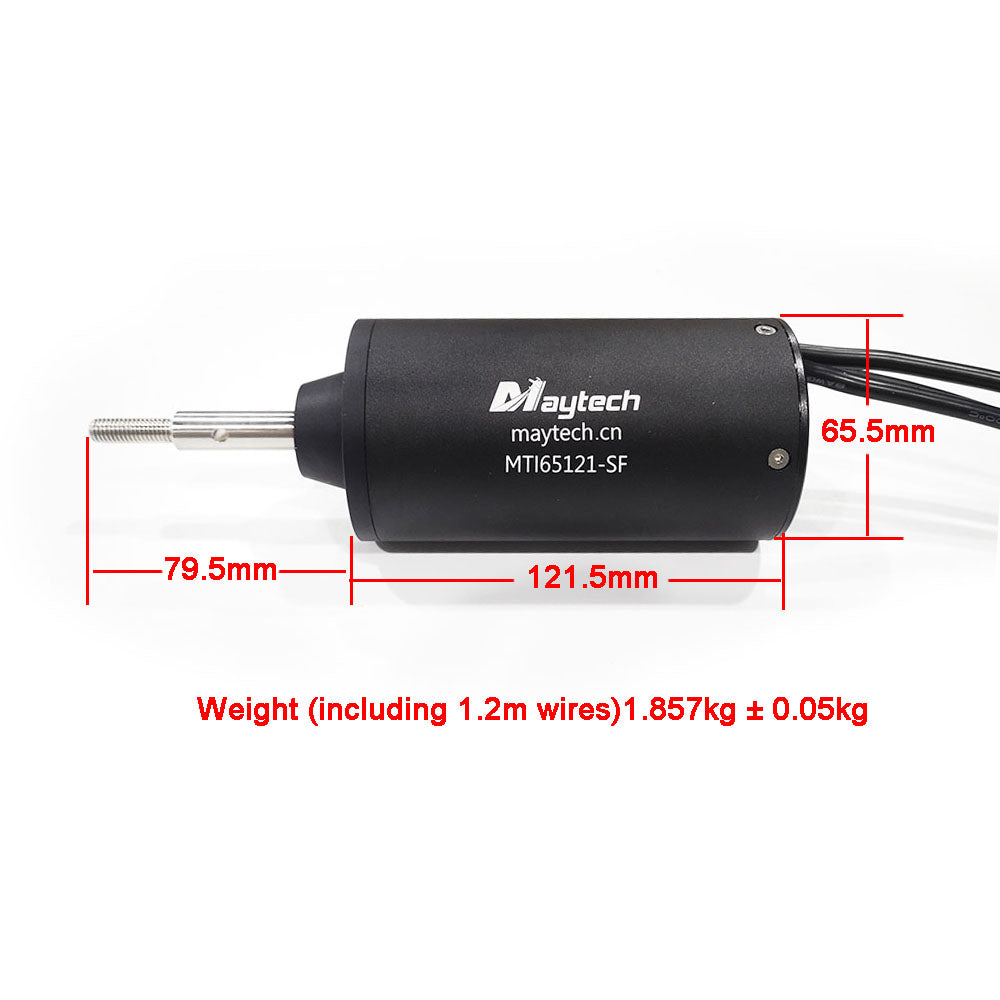

Demension (mm):D65.5XL121.5
Construction:18N/6P
Shaft diameter (mm):Φ12*M8
KV (RPM/V):130KV
Operation Voltage:6-20S (22.2- 84V)
Max current (A):100A
Max Power (W):3700W
Efficiency:>89%
Weight :1.62kg
Waterproof Rank :IP68
Model 4:MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad

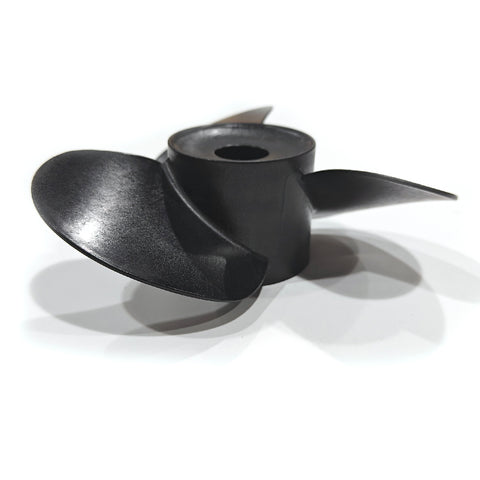

Model 5:MTEP150(Propeller)
SPECS:3-blade, Diameter 150mm, 108g
Propeller for MTI65162, MTI70182 motors
Model 6:Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.
MTSF160A-WP32 ESC Main Features:
▶ 32BIT Micropprocessor
▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ 160A-300A Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶ MTSF105AA32 with BEC output 6.0,7.4,8.4V adjustable /8A
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
Note:

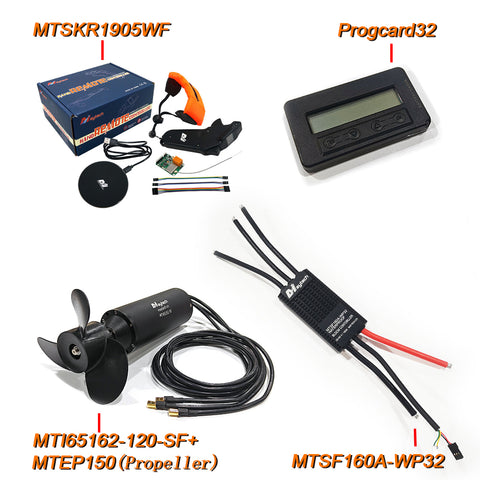

Type A it is include 1pcs MTSF160A-WP32 ESC+
1pcs MTI65162-120-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs MTEP150 Propeller+
1pcs Progcard32 Program

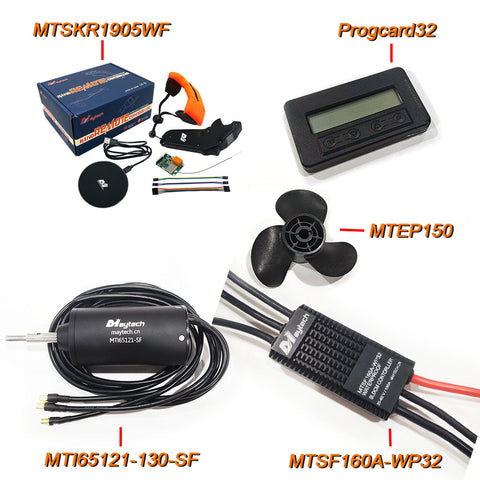

Type B it is include 1pcs MTSF160A-WP32 ESC+
1pcs MTI65121-130-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs MTEP150 Propeller+
1pcs Progcard32 Program
Customized service:
Customize : Yes,
logo,size,kv,cover,shaft,cable,connector,case, etc, all can be customized,contact us for more details.
