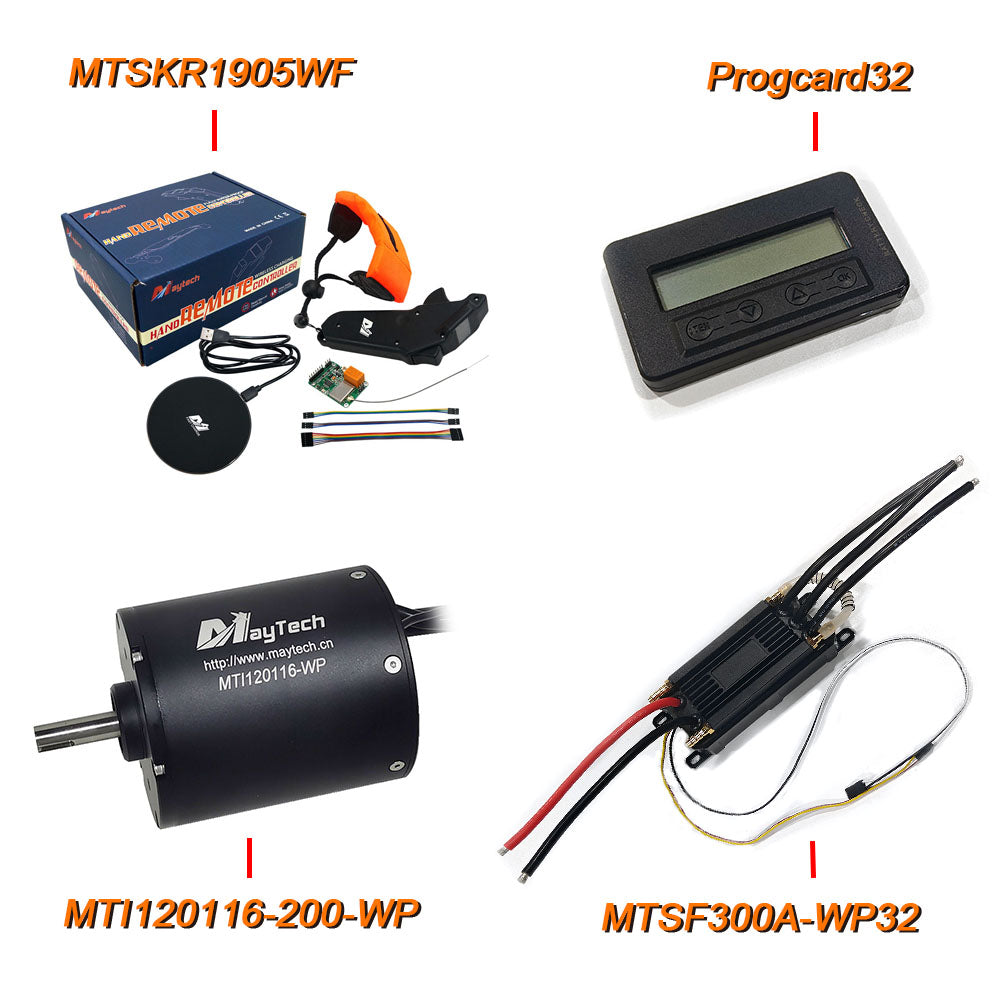

MAYRC Water Sports Kit 32-Bit 300A ESC&120116 100KV/200KV Waterproof Motor&IP68 Remote Controller for DIY VeFoil Kit

MAYRC Water Sports Kit 32-Bit 300A ESC&120116 100KV/200KV Waterproof Motor&IP68 Remote Controller for DIY VeFoil Kit

$1,566.82 USD
$1,589.82 USD $1,566.82 USD
Sale Sold out
Type

MAYRC Water Sports Kit 32-Bit 300A ESC&120116 100KV/200KV Waterproof Motor&IP68 Remote Controller for DIY VeFoil Kit

Specification:

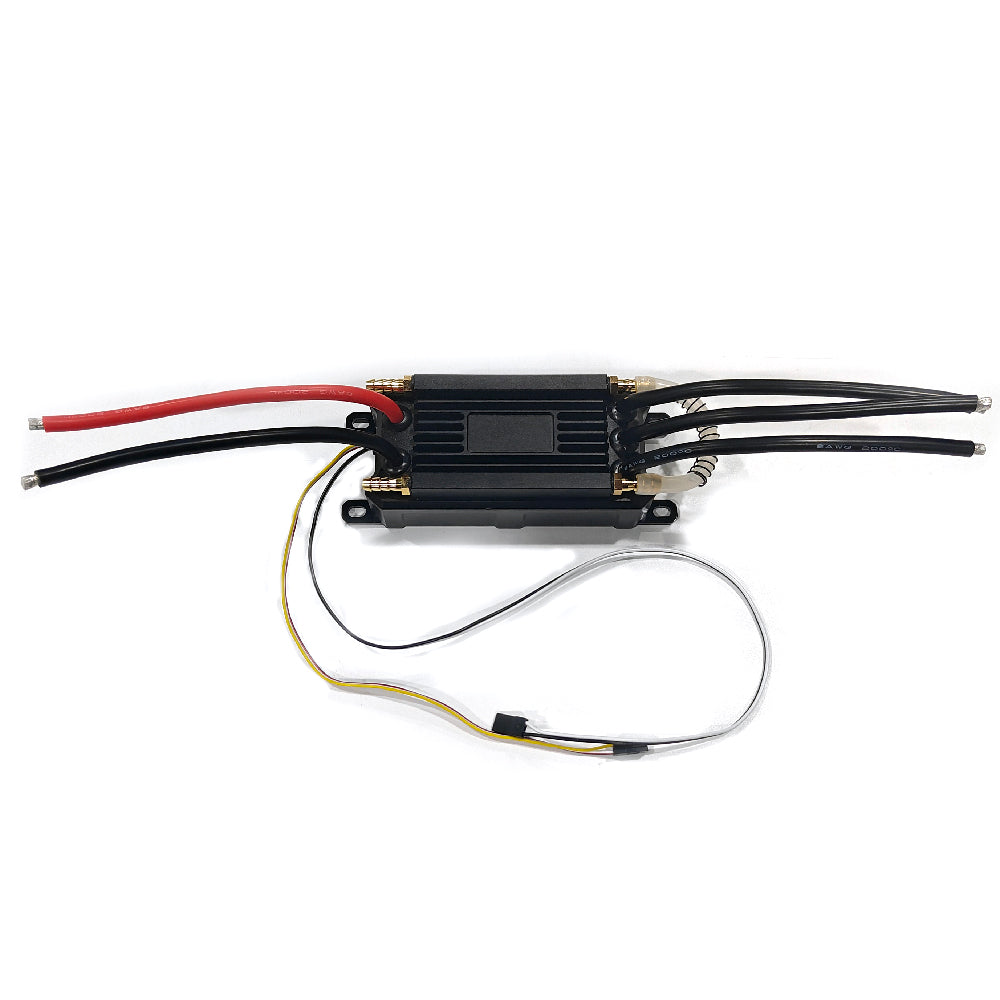

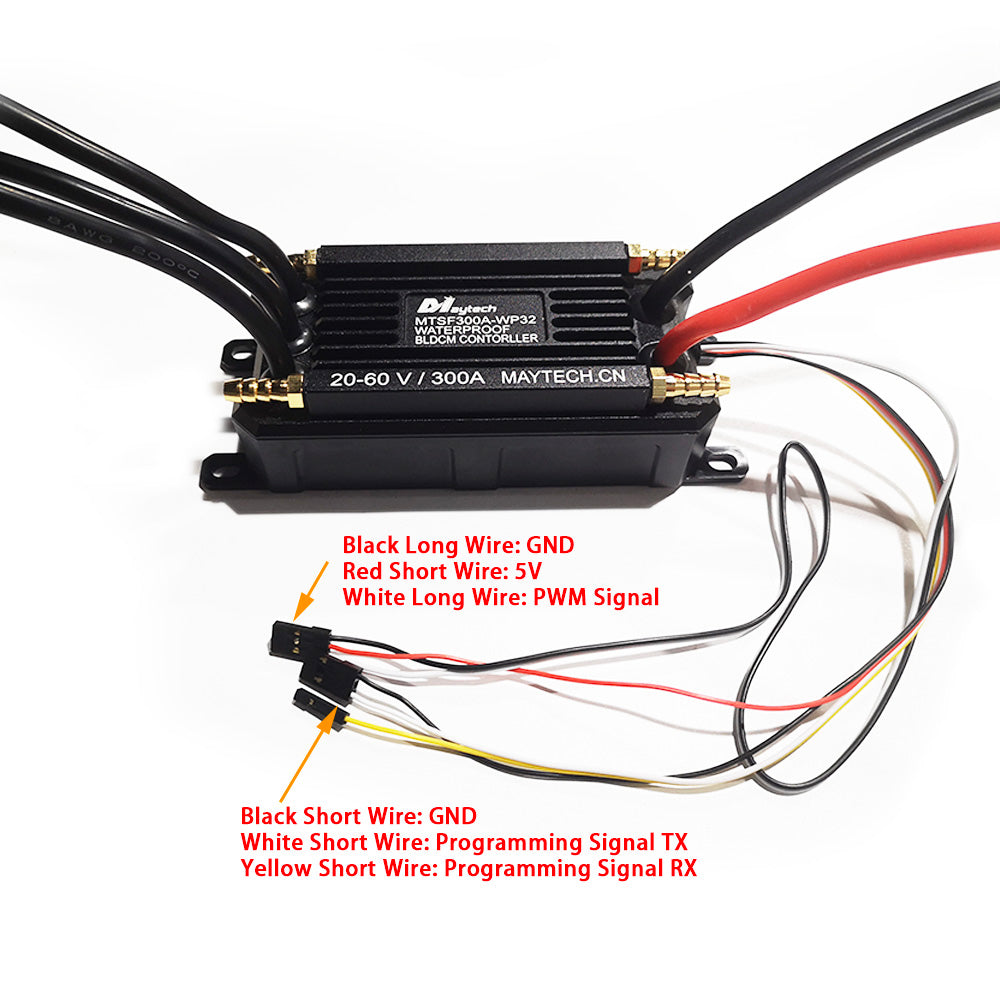

 Model 1.

MTSF300A-WP32
Cont. Current 300A
Max. Current 350A
Volt. 25-60V
6-14S LIPO
Water-cooled

water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.

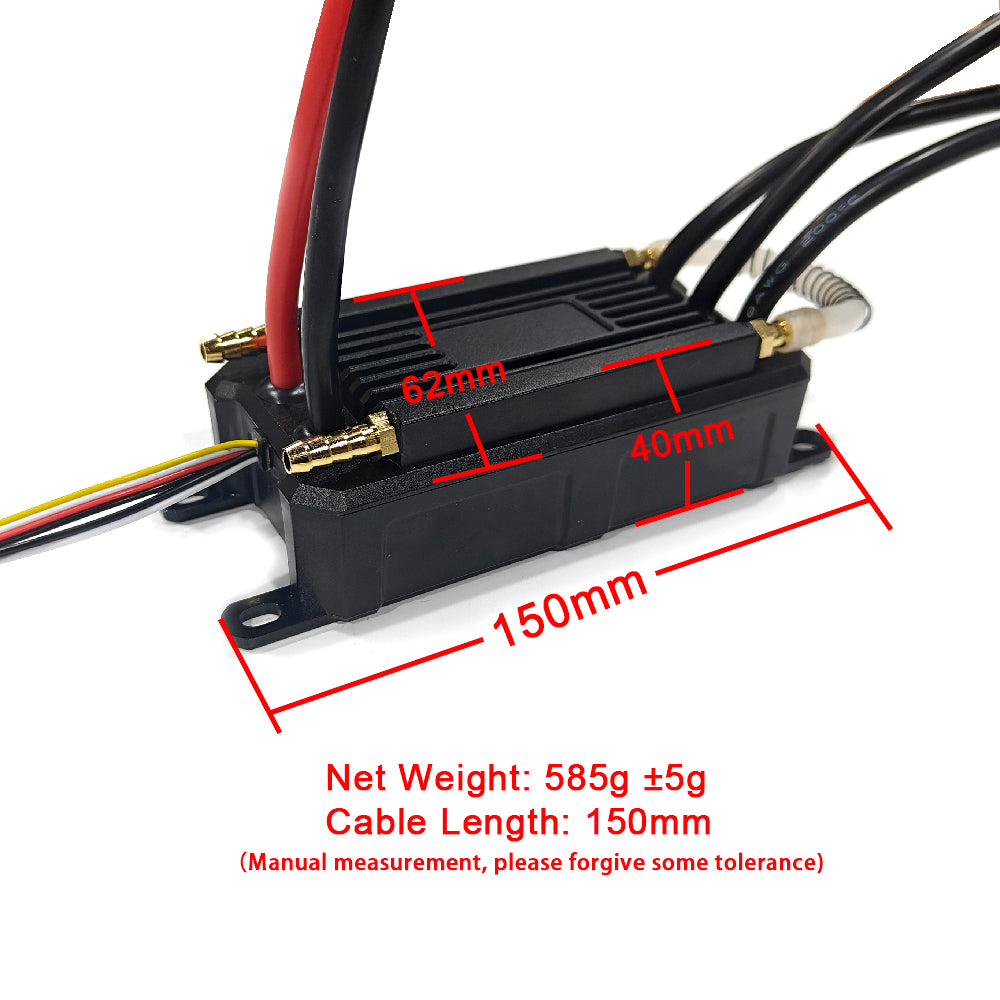

Size PCB size 105*55*18mm
Weight 585g

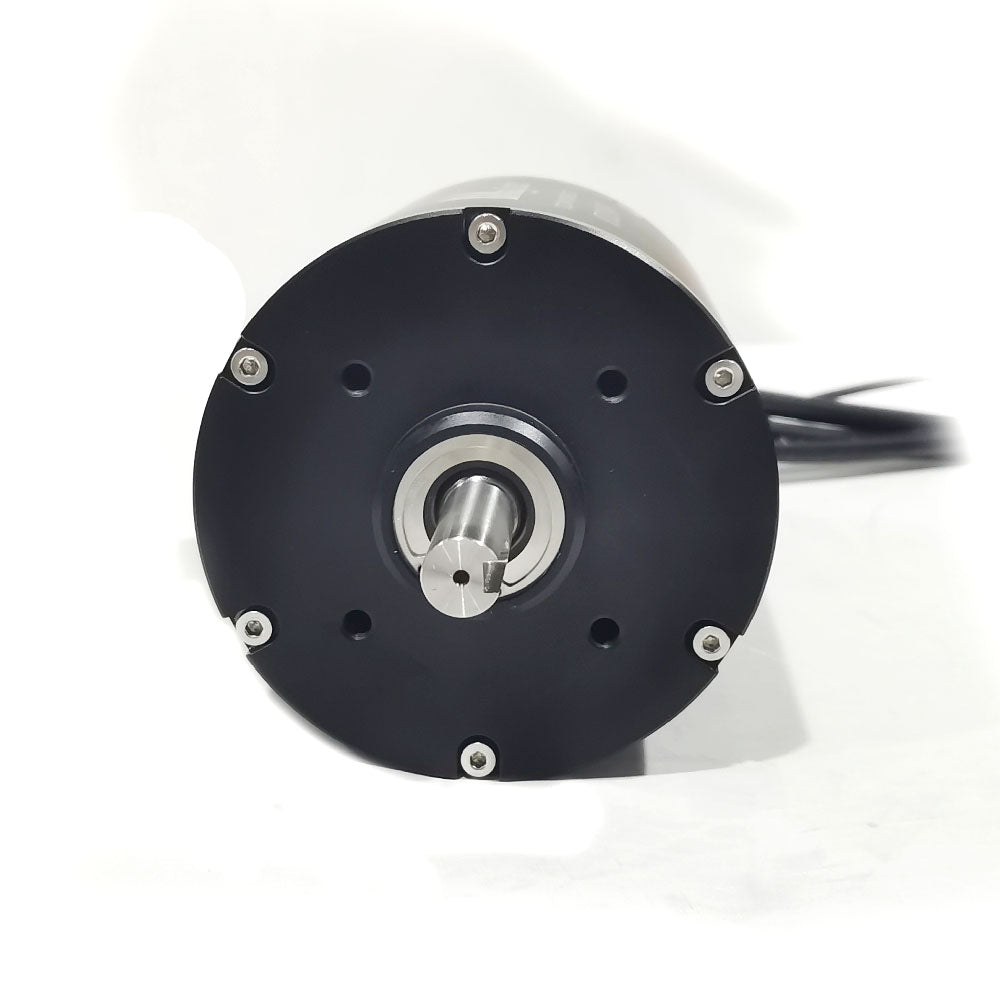

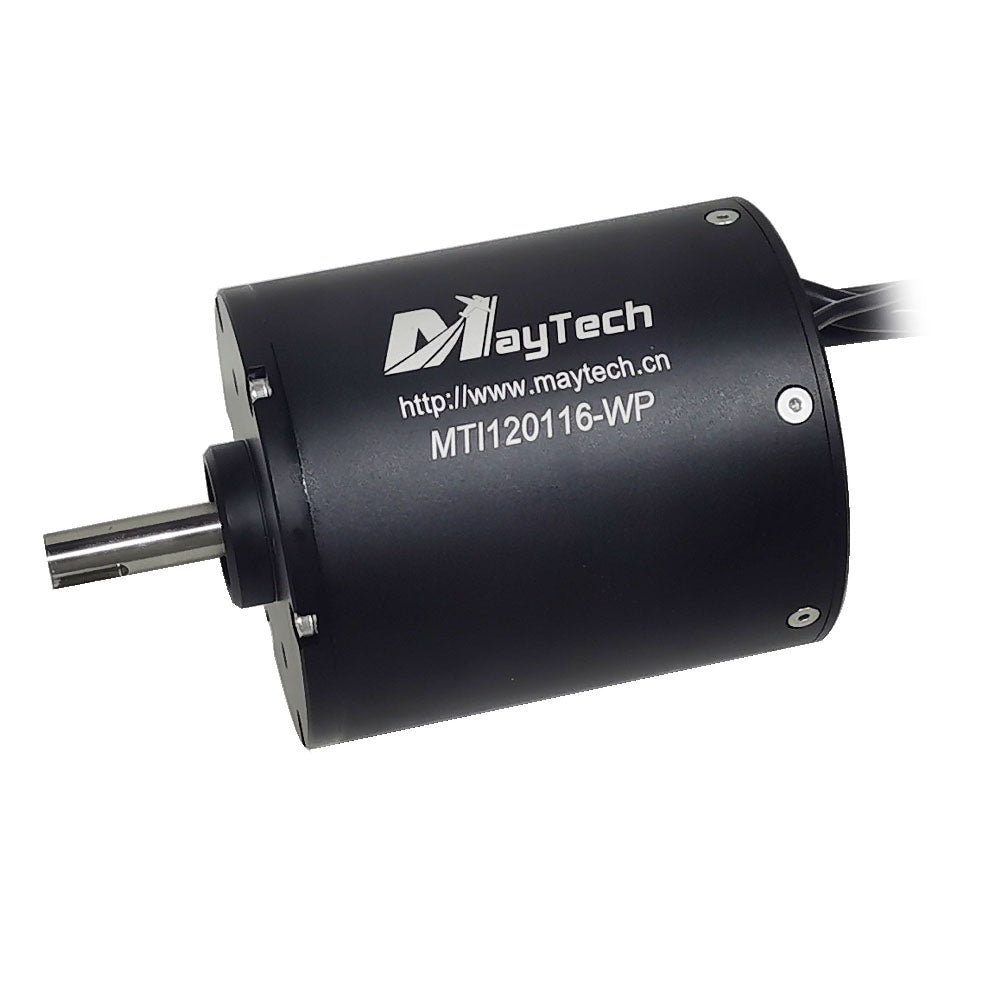

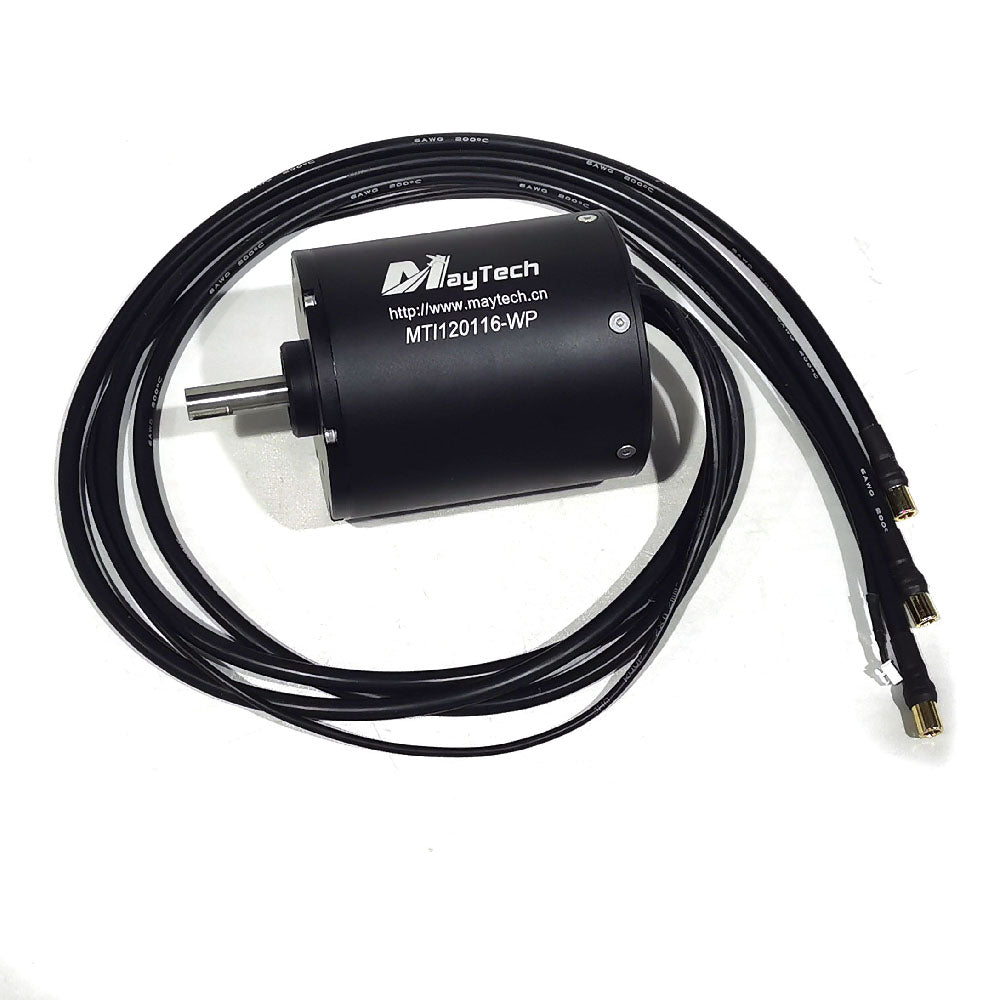

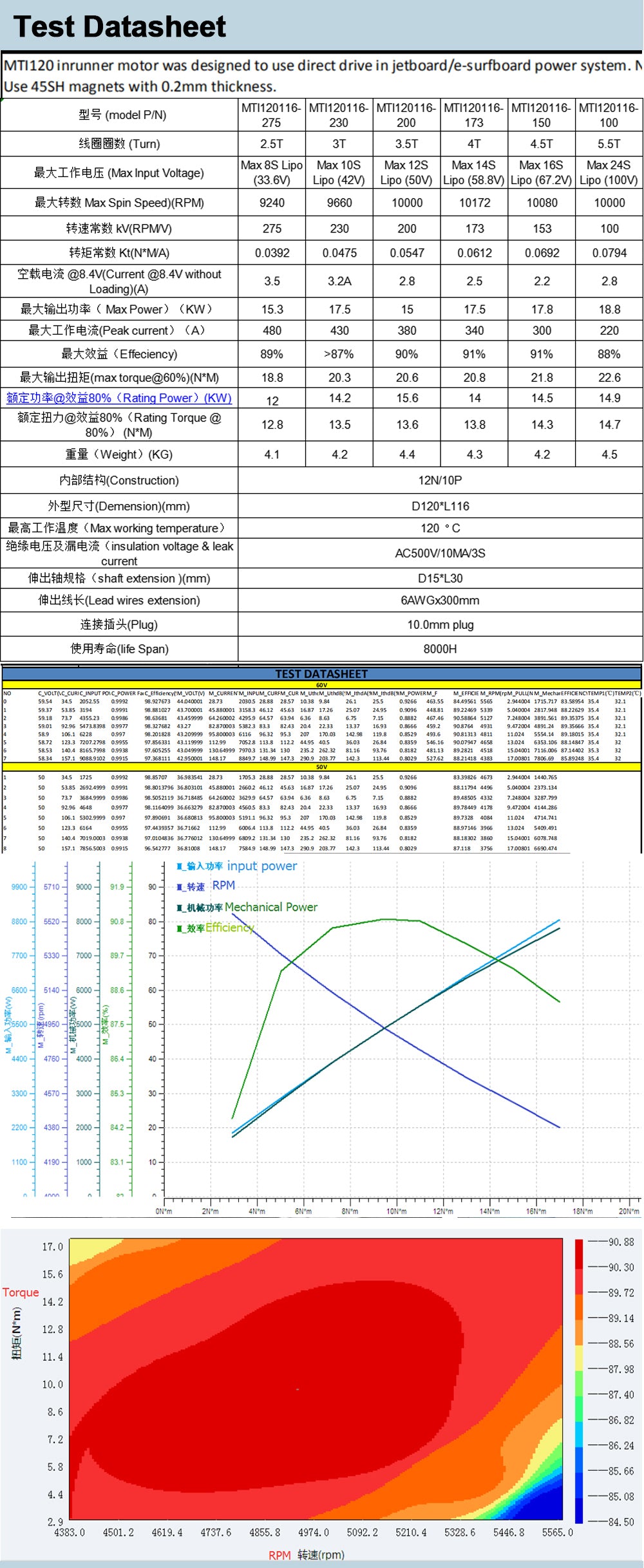

 Model 2. MTI120116-100-WP/MTI120116-200-WP(Fully water-proof)
KV: 100KV/200KV
RPM/V/Max RPM: 100/13440 /(200/13440)
Idle Current@10V: 2.8A
Rated Current/Max Current(A): 300A/380A
Working Voltage: 50-84V
Rated/Max Torque(N*M): 13.6/20.6 N.m
Max Power(10S): 18.8KW
Winding Turns/Construction: 3.5T/12N/10P

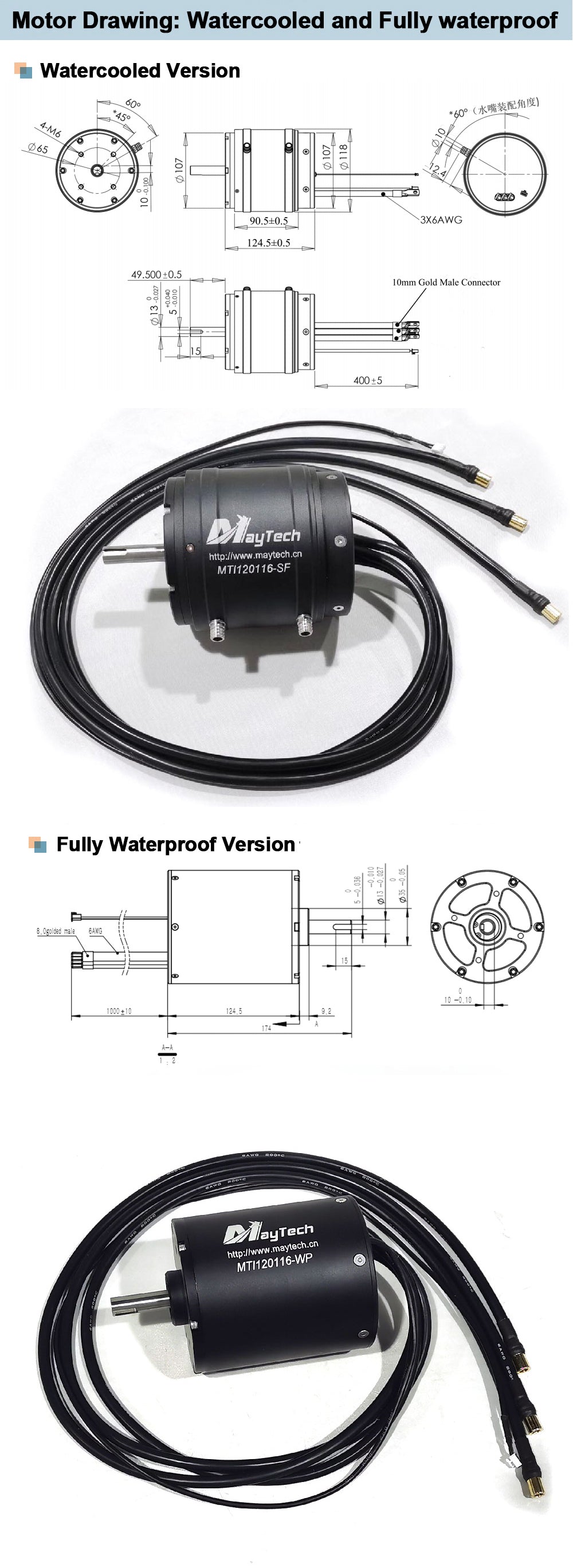

Motor&Shaft Size(mm)： Φ107x 125mm&D15mm
Net Weight (kg)： 4.4

MTSF300A-WP32 Main Features：

▶ 32BIT Micropprocessor

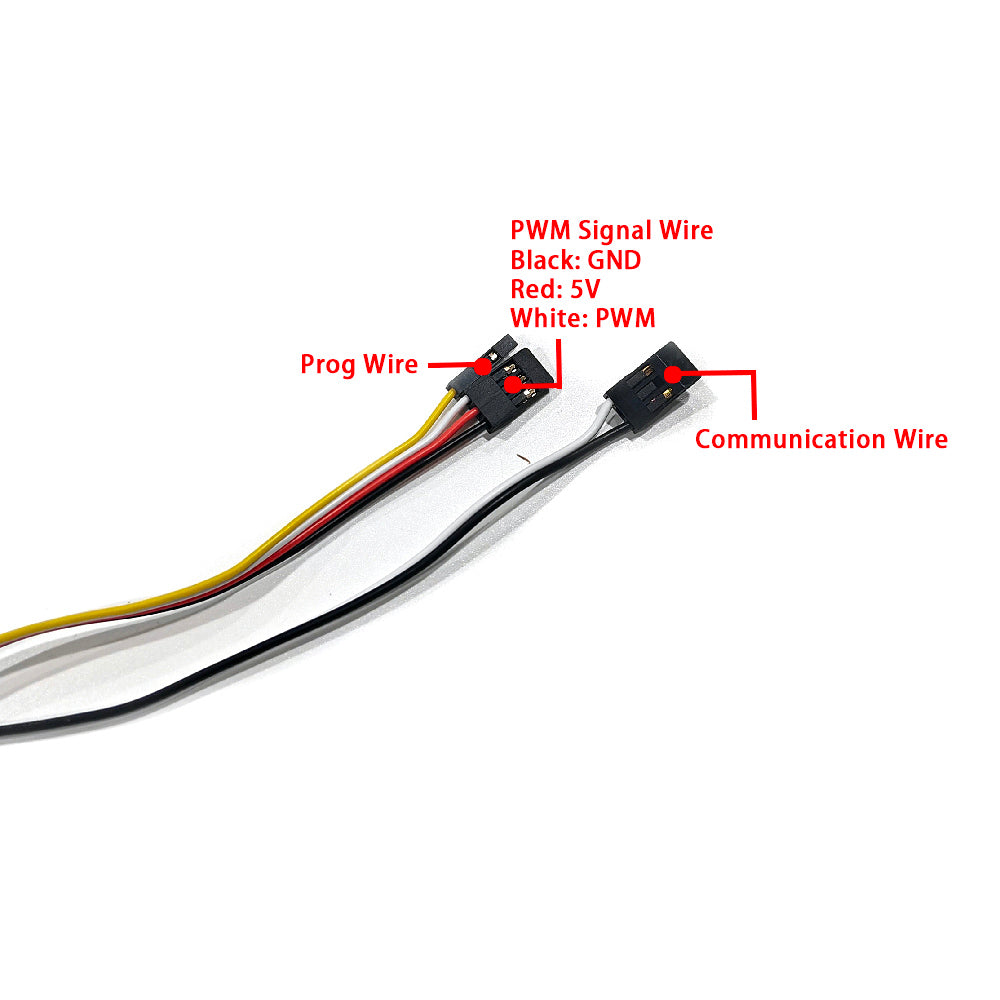

▶ Communicate with Maytech waterproof remote controller. More parameters can be displayed on remote controller, such as main power voltage, motor rpm, current/amps, motor rpm,motor temperature, speed controller/ESC temperature. Users do not need to solder motor cable to receiver to display the main power and motor rpm, which greatly protect the receiver.
▶ 160A-300A Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶ MTSF105AA32 with BEC output 6.0,7.4,8.4V adjustable /8A
▶Compact size, high efficiency, low heat.
▶Only use geniune US and Japan imported electric components.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.
