MAYRC Waterproof ESC 300A 6-14S 120KV 9.1KW Motor with Water cooling 65162 70182 Engine 12V Regulator & 30W Water Pump
MAYRC Waterproof ESC 300A 6-14S 120KV 9.1KW Motor with Water cooling 65162 70182 Engine 12V Regulator & 30W Water Pump
MAYRC Waterproof ESC 300A 6-14S 120KV 9.1KW Motor with Water cooling 65162 70182 Engine 12V Regulator & 30W Water Pump
Specification:

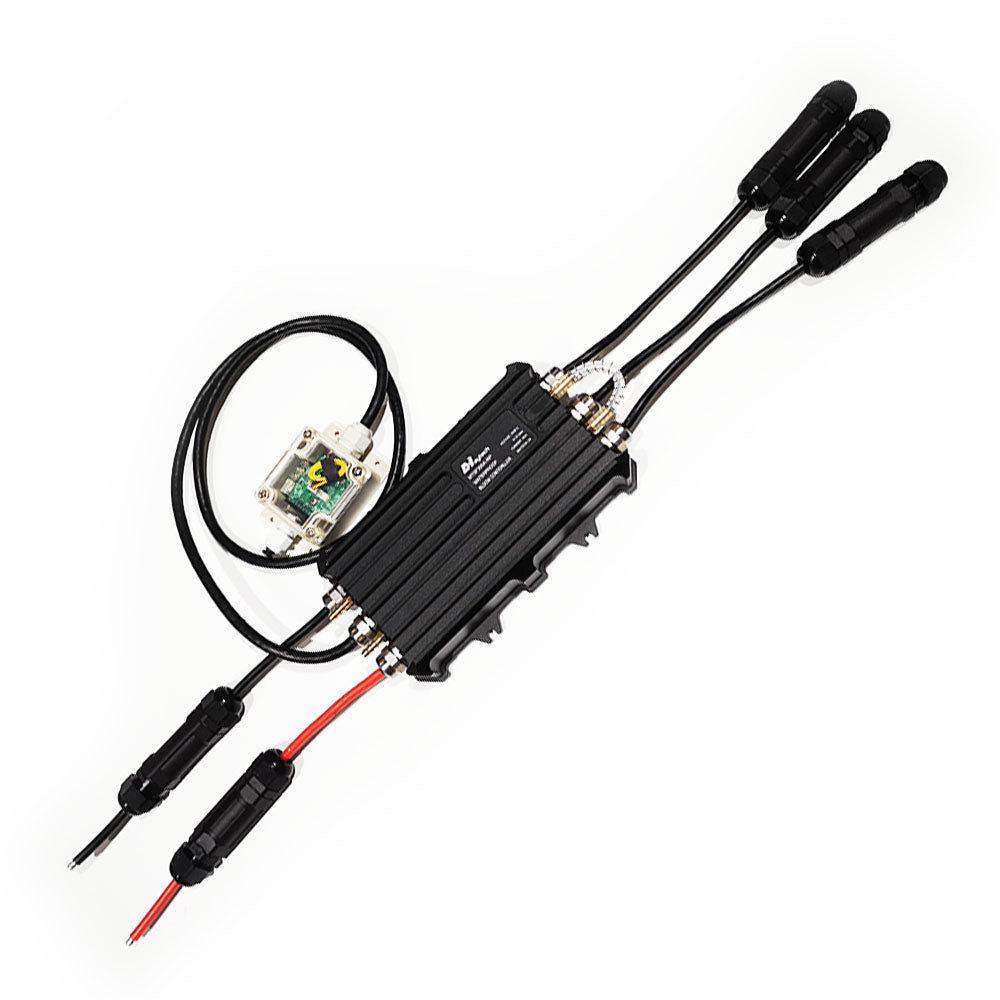

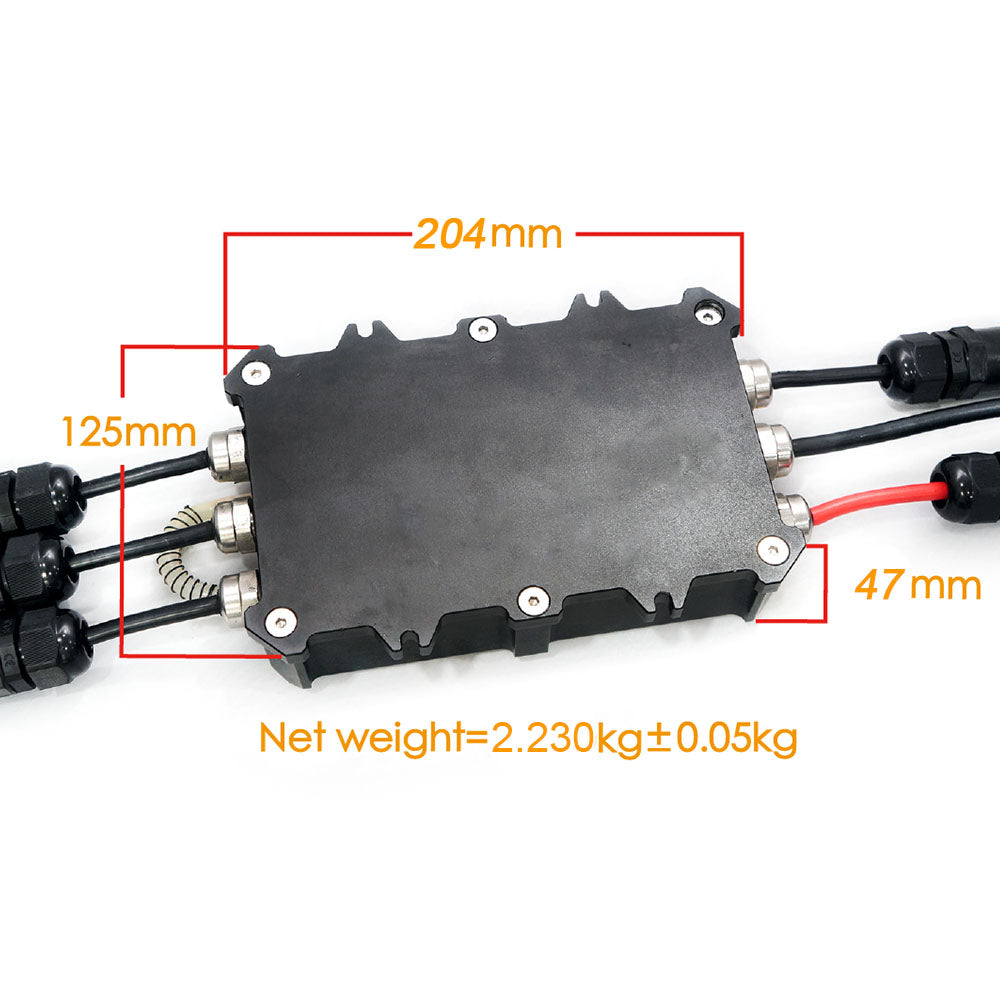

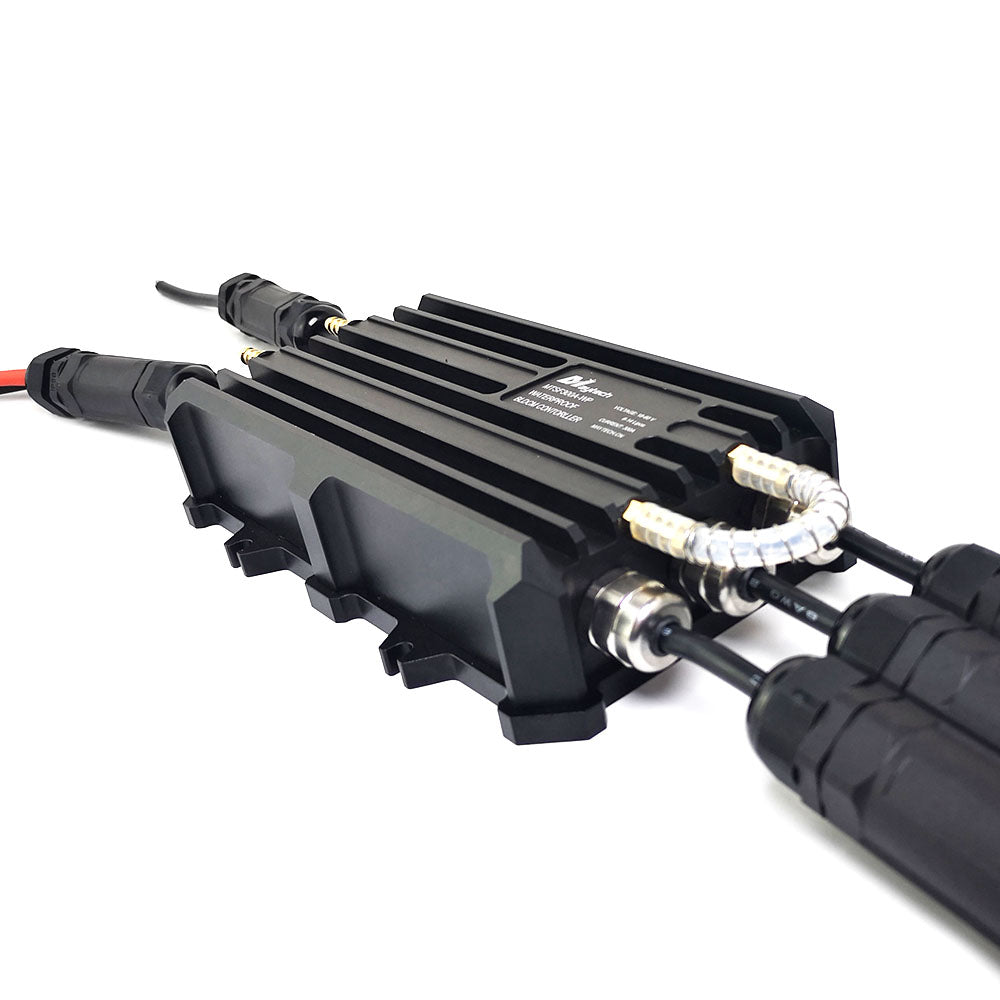

Model 1:MTSF300A-WP
Cont. Current:300A
Max. Current:350A
Volt.:25-60V 6-14S LIPO
Water-cooled :water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.
Size:PCB size 138*80*30mm
Weight:1440g
Model 2:MTI65162-120-SF
KV: 120
RPM/V/Max RPM: 130/14300
Idle Current@10V:1.6A
Rated Current/Max Current(A):240/310
Working Voltage:25-84V
Rated/Max Torque(N*M):7/9.0N*M
Max Power(10S):9.1KW
Winding Turns/Construction:4T/18N/6P
Motor&Shaft Size(mm):Φ65x 162mm&12mm
Net Weight (kg):2.1
Model 3:MTI70182-120-SF
KV: 120
RPM/V/Max RPM: 120/12350
Idle Current@10V:2.0A
Rated Current/Max Current(A):120A/150
Working Voltage:35-118V
Rated/Max Torque(N*M):10.8/13.5N*M
Max Power(10S):9KW
Winding Turns/Construction:3T/12N/10P
Motor&Shaft Size(mm):Φ70x 182mm&12mm
Net Weight (kg):3.1
Model 4:MTEP150(Propeller)
SPECS:3-blade, Diameter 150mm, 108g
Propeller for MTI65162, MTI70182 motors
Model 5:MTWP30W(Water pump)
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight:50g
Model 6:Progcard32
Program MTSF105A-WC32,MTSF160A-WP32,MTSF300A-WP32,MTSF300A-WP32-HV ESC settings.
Net weight:50g
Model 7:Progcard-HA
Program MTSF300A-OPTO, MTSF300A-WP and MTSF500A-WP ESCs settings.
Net weight:30g
Model 8:MTUBEC75T5V
Voltage Regulator, convert 75V voltage to 5V. An optional accessory to 300A controller, supply power to receiver.
Net weight:80g
Remark:

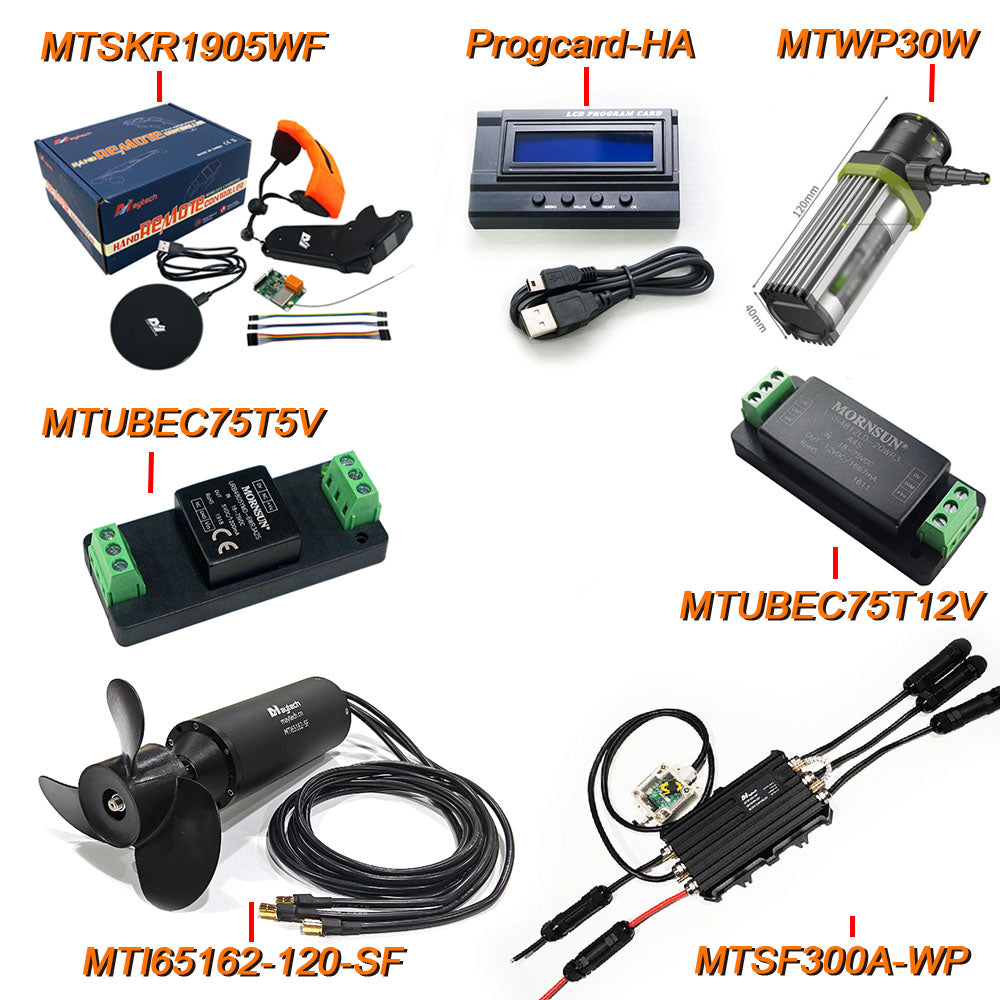

Type A it is include
1pcs MTSF300A-WP ESC+
1pcs MTI65162-120-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs MTEP150 Propeller+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

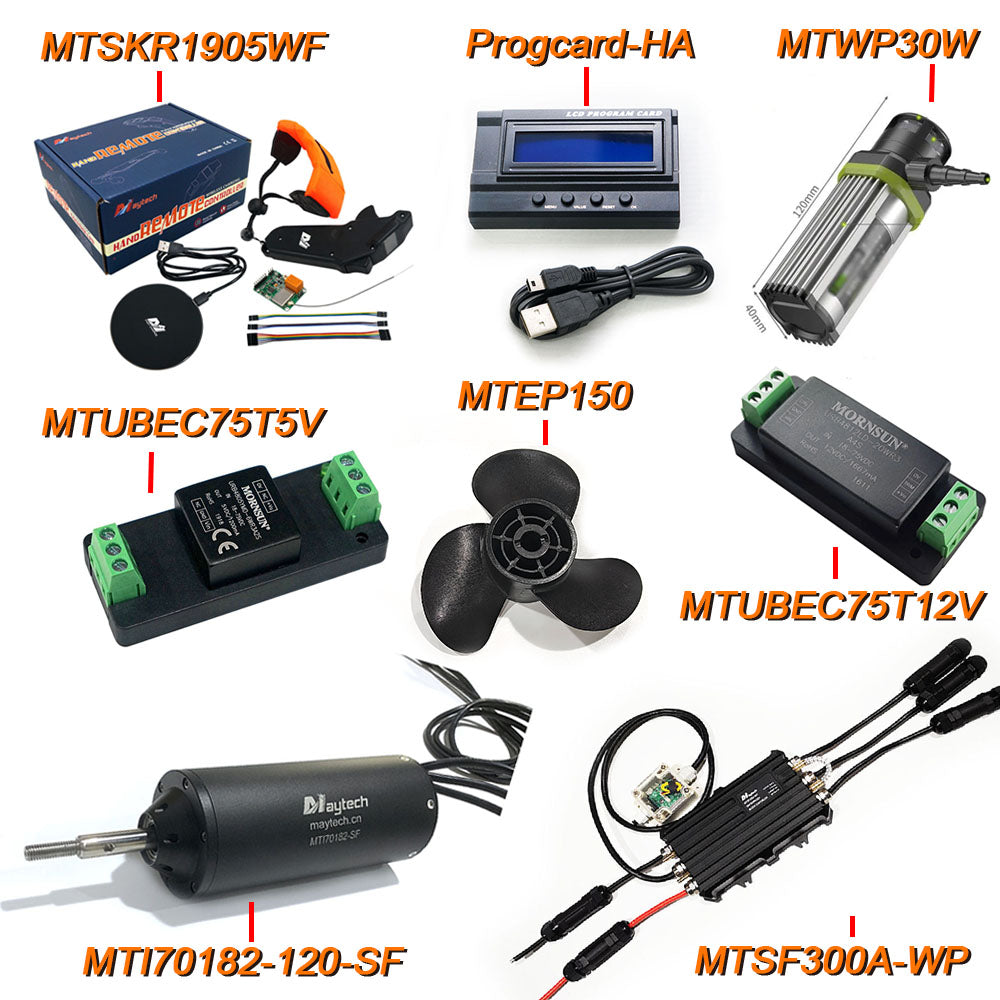

Type B it is include
1pcs MTSF300A-WP ESC+
1pcs MTI70182-120-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs MTEP150 Propeller+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator
Customize Service:
Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email:shelly@mayrc.com
Gmail:mayrcshelly@gmail.com
Note:

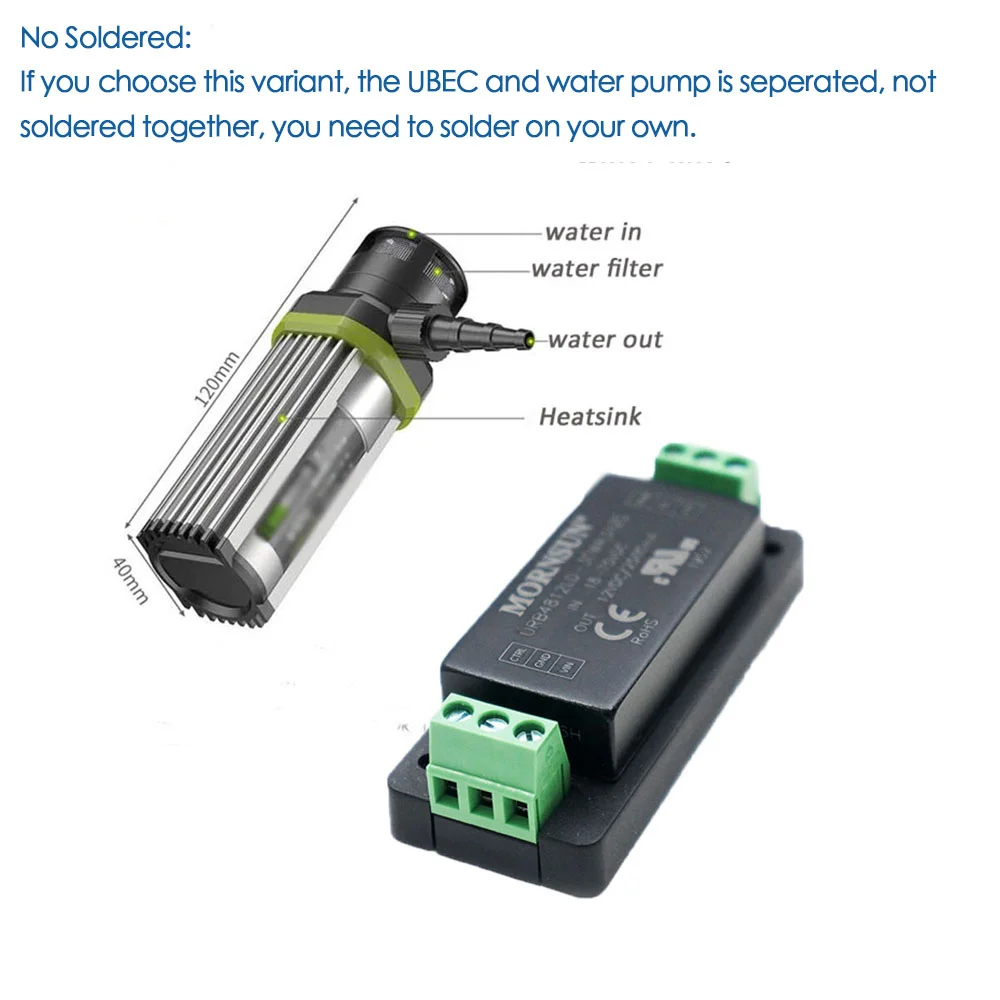

1:If the water pump and UBEC need to be soldered, please remark. If no remarks are provided, welding is not required by default.
2:Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV,so each motor might has ±5%-10% tolerance, this is normal.

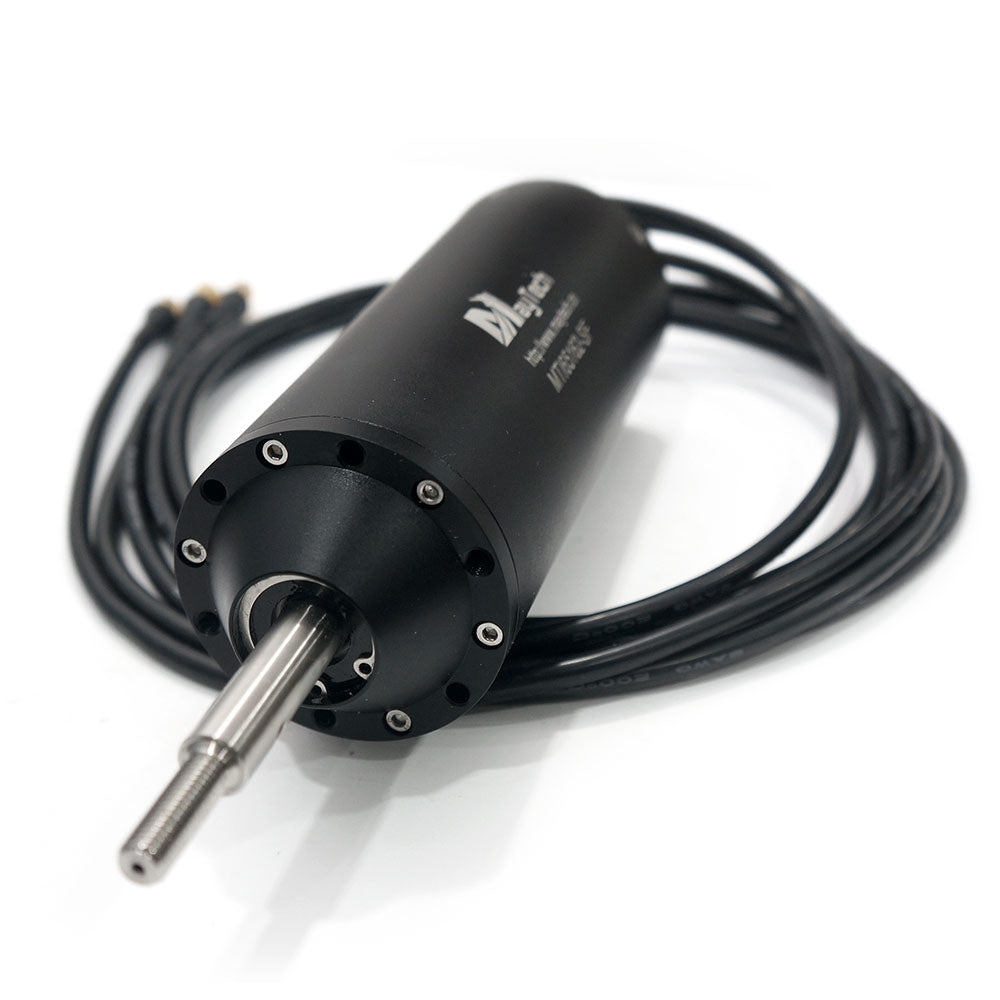

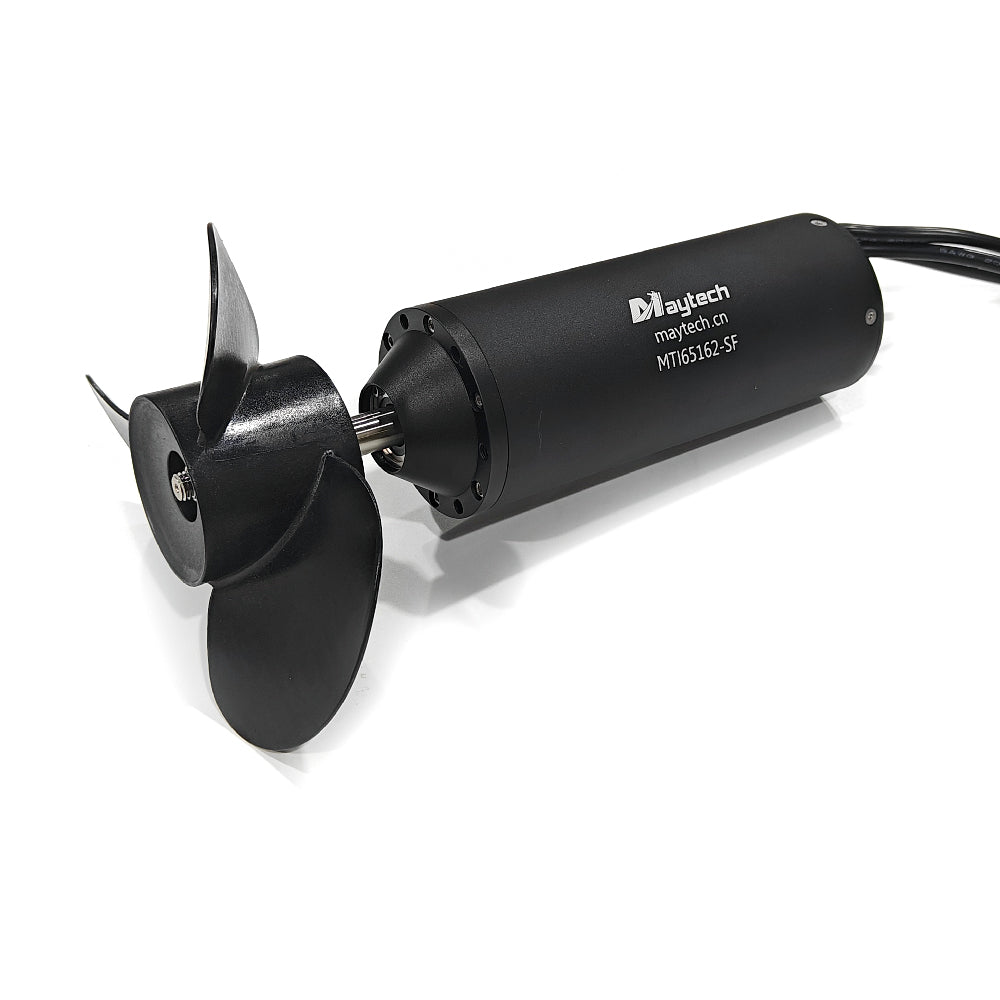

MTI65162-120-SF Motor

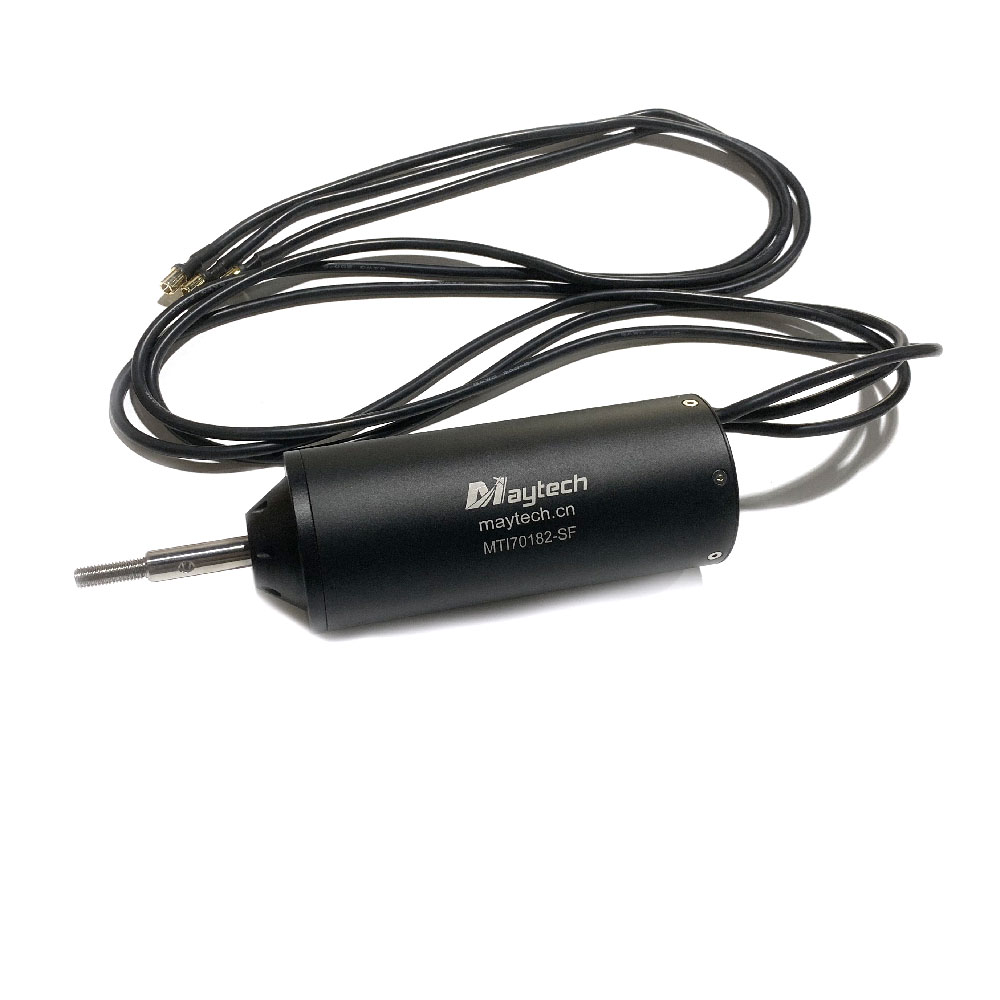

MTI70182-120-SF Motor

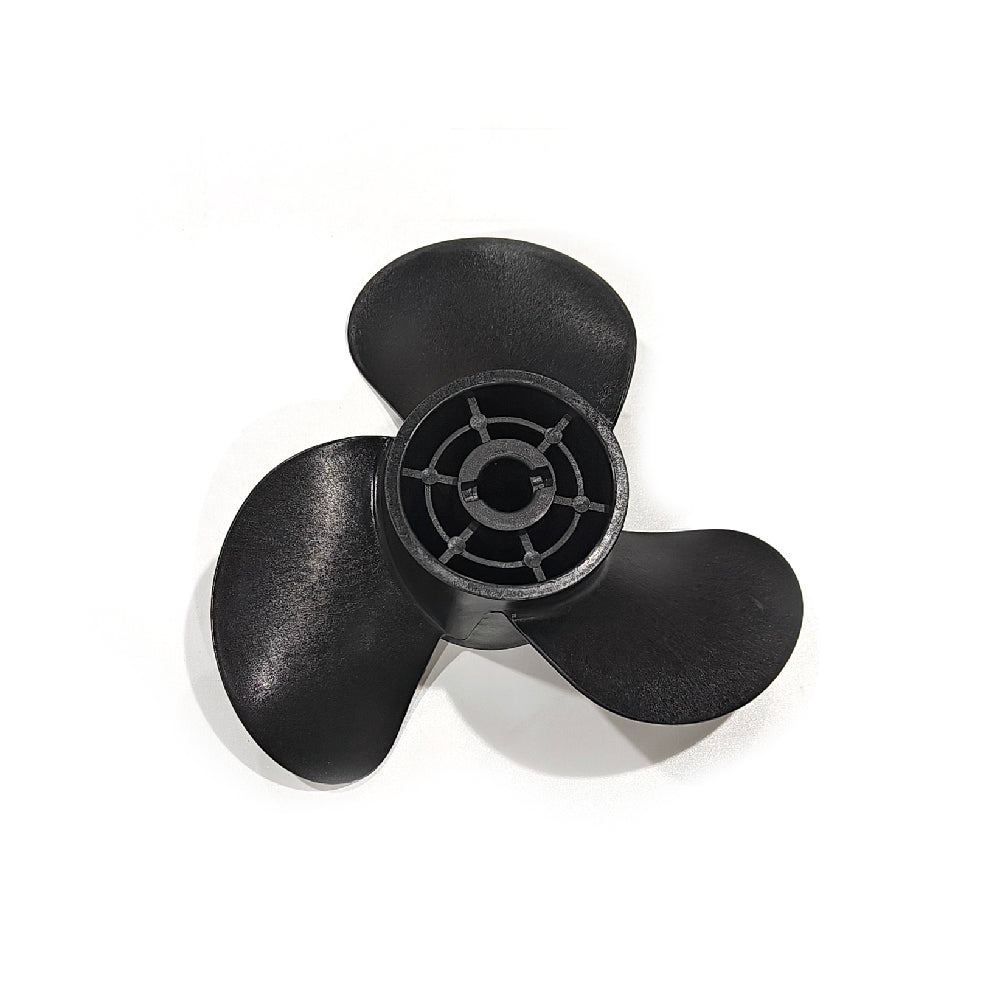

MTEP150(Propeller)
MTWP30W(Water pump)

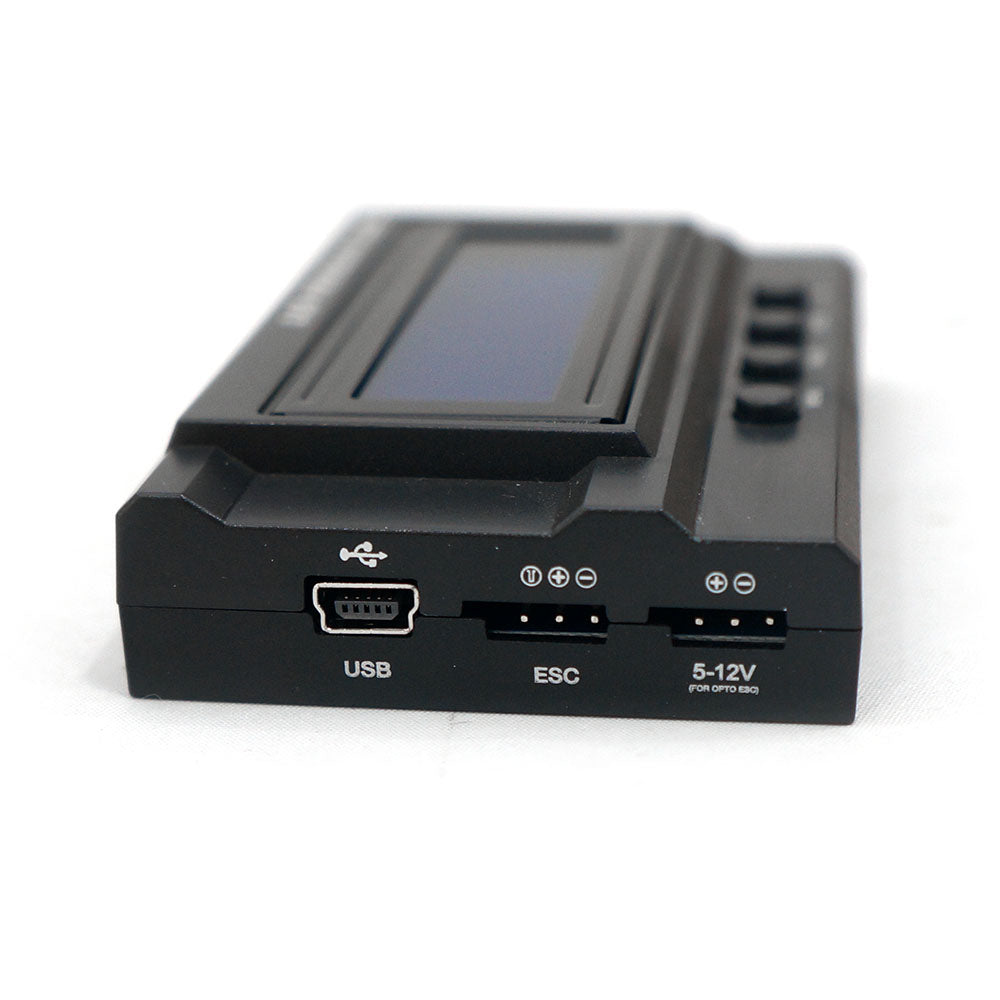

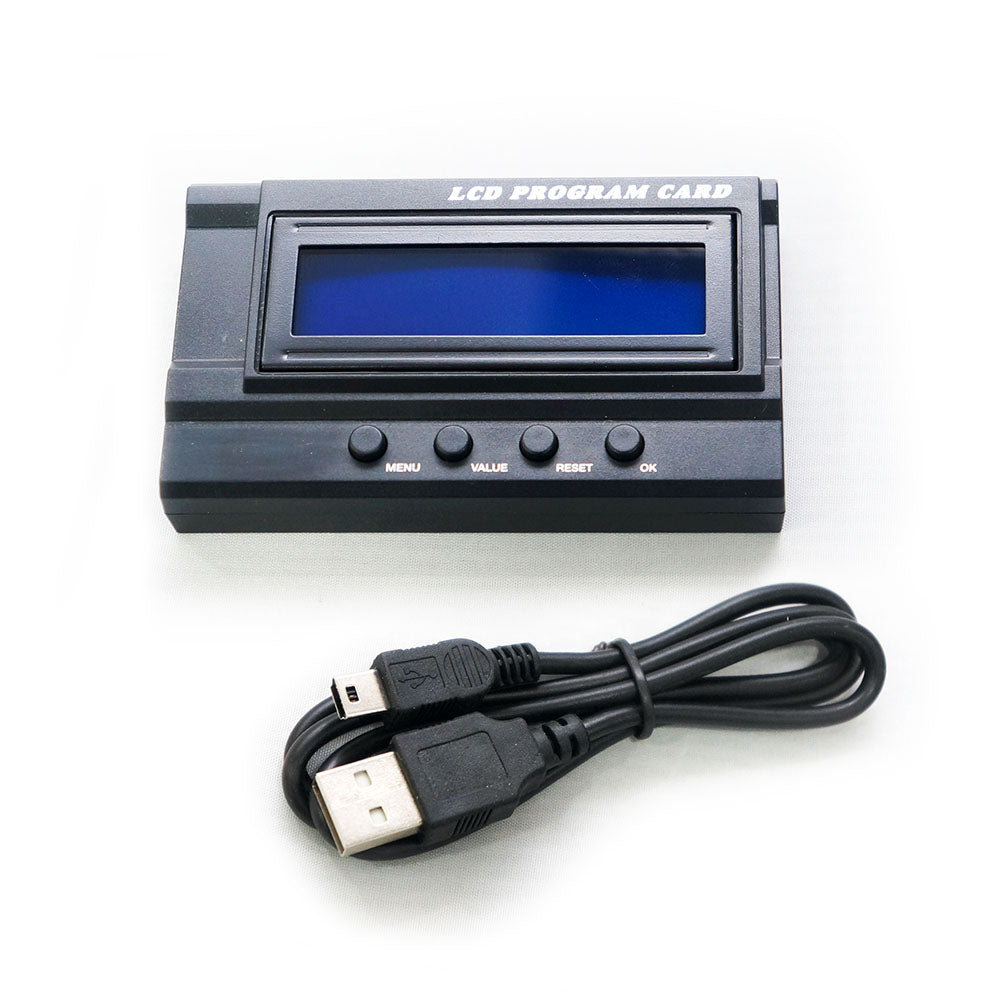

Progcard-HA

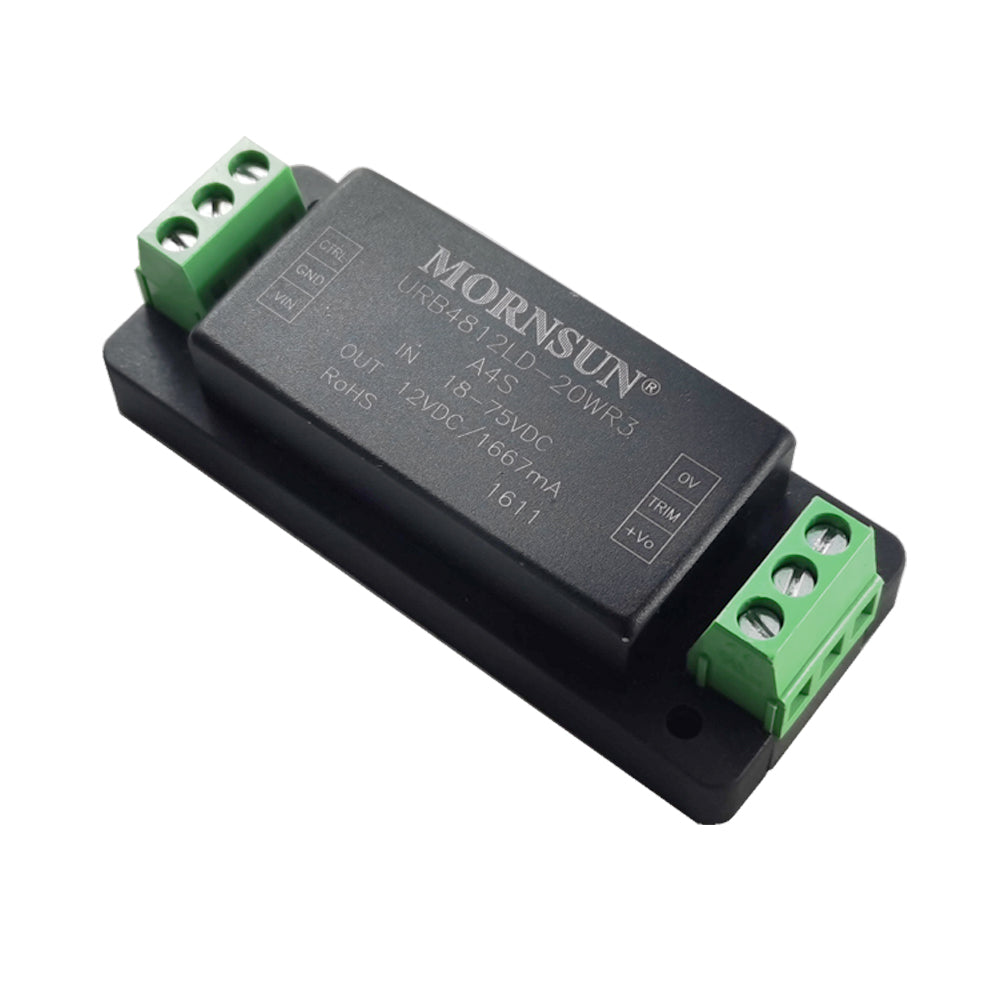

MTUBEC75T12V
MTUBEC75T5V

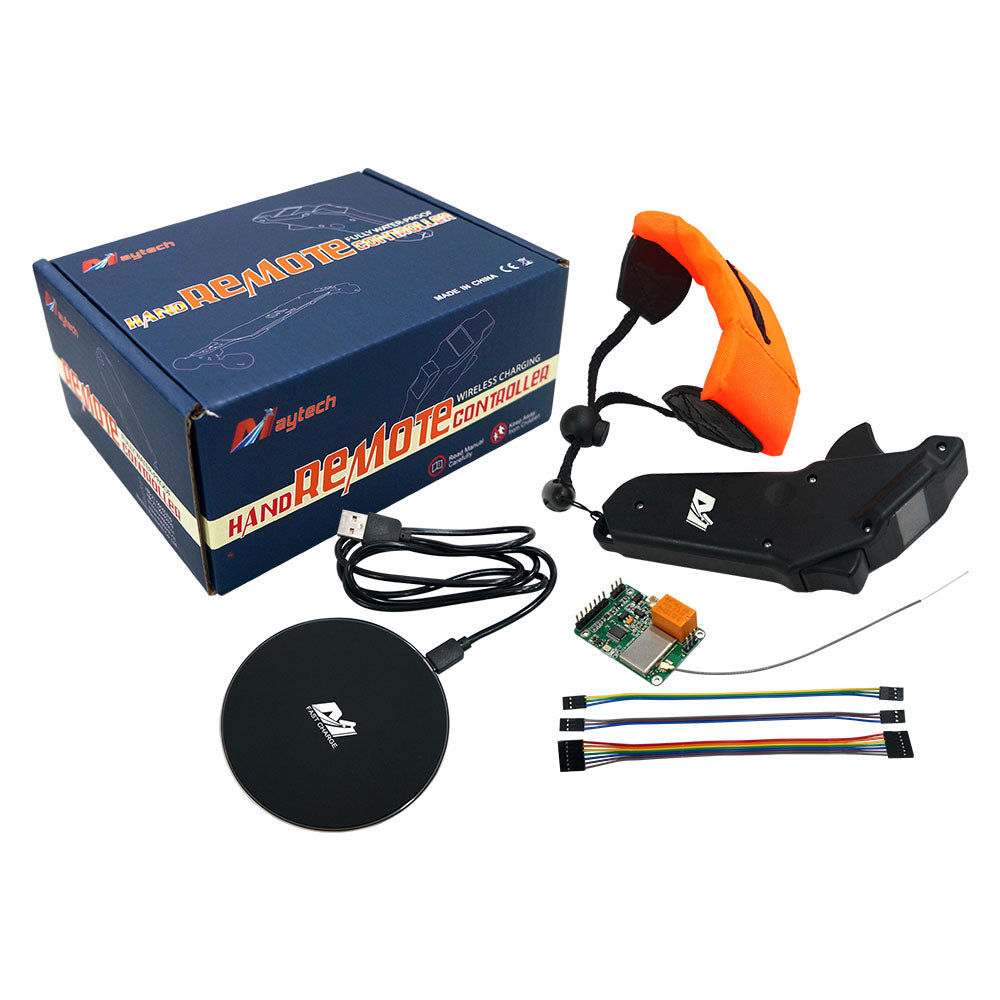

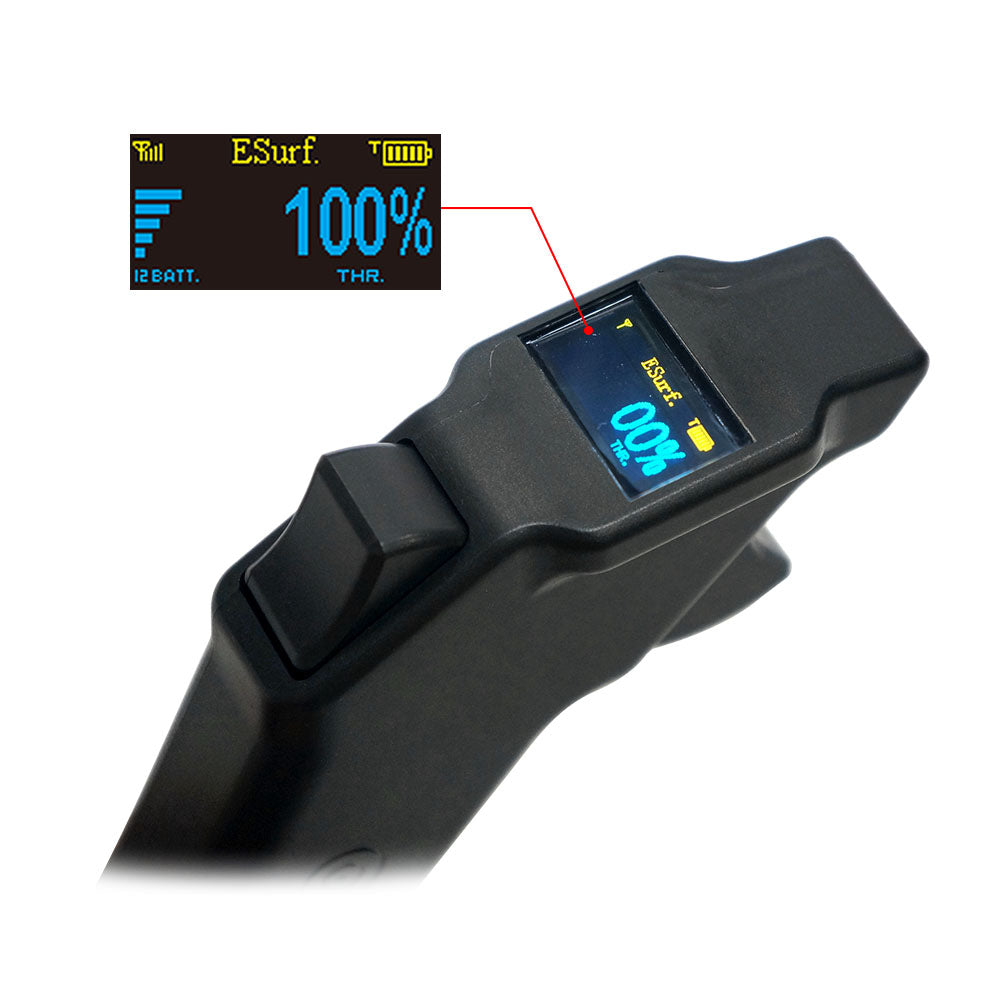

Model :MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad
