MAYRC Waterproof ESC Kit 500A 6-14S &120KV 200KV Motor 85165 120116 120180 18.8KW Engine with Water Cooling

MAYRC Waterproof ESC Kit 500A 6-14S &120KV 200KV Motor 85165 120116 120180 18.8KW Engine with Water Cooling

$1,572.90 USD
$1,588.79 USD $1,572.90 USD
Sale Sold out
Type

MAYRC Waterproof ESC Kit 500A 6-14S &120KV 200KV Motor 85165 120116 120180 18.8KW Engine with Water Cooling

Specification:

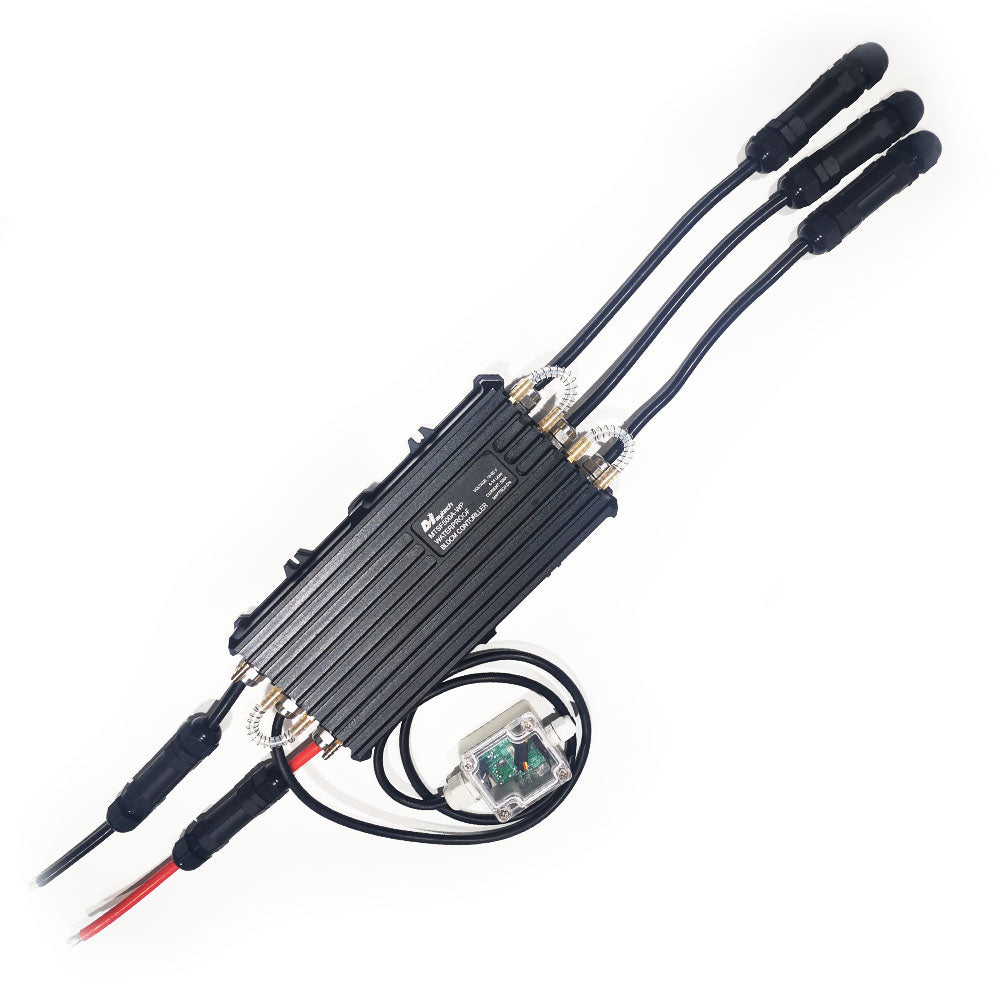

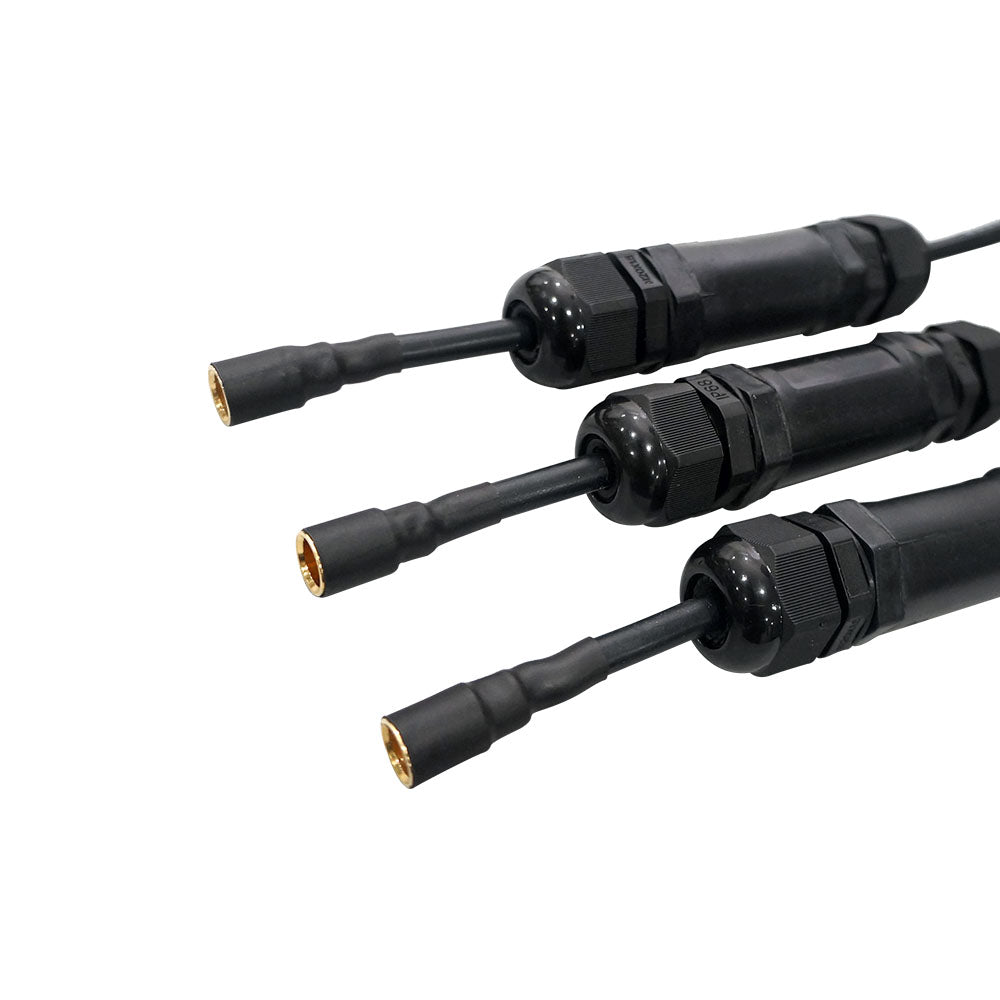

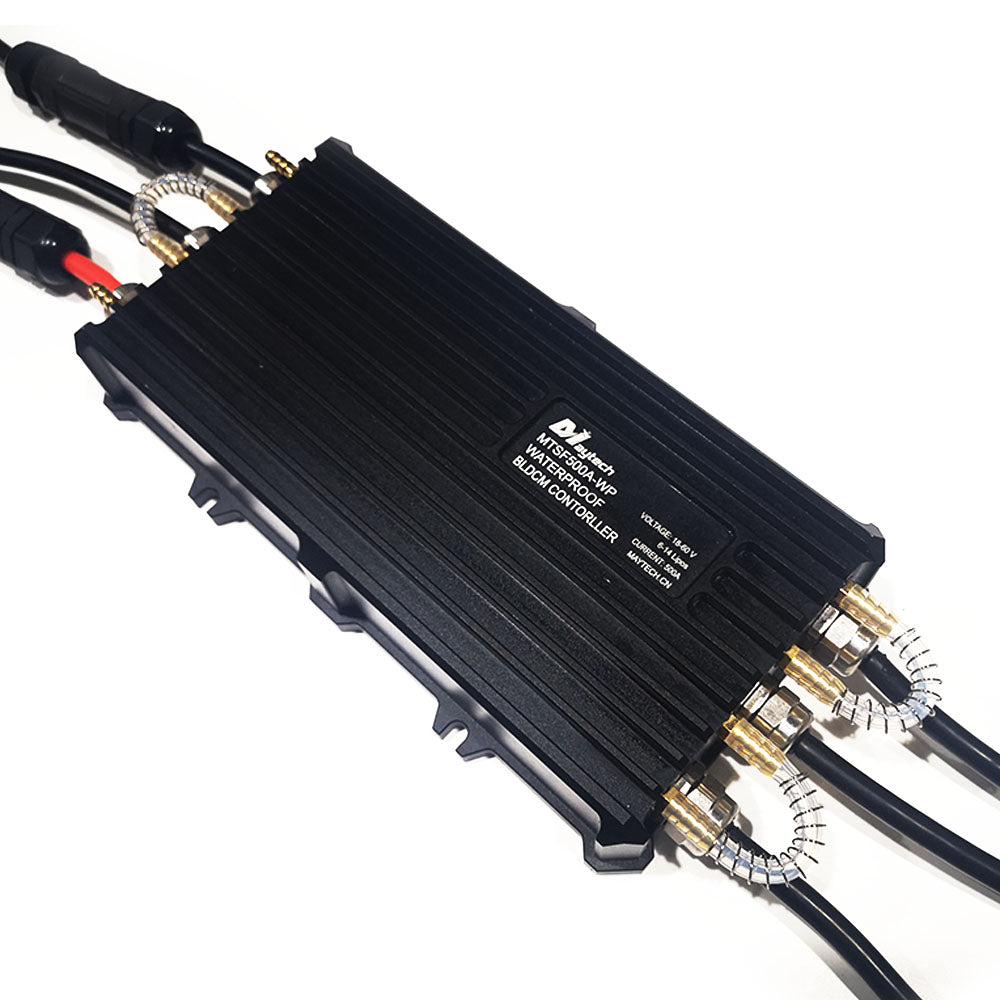

Model 1：MTSF500A-WP
Cont. Current：500A
Max. Current：1000A
Volt.：25-60V 6-14S LIPO
Water-cooled ：water-proof version IP68
Can work in 1 meter deep water;
Combo with MTI65162,MTI70182,mti85165,MTI120116 etc. motors for efoil, surfboard, boat, motorcycle, etc.
Size：PCB size 165*85*35mm
Weight：1250g
Main Features：
▶ 8BIT Micropprocessor
▶ Work with Maytech waterproof remote controller, to display main power voltage, motor rpm.
▶ Fully sealed, IP68 water-proof (water-proof version ESC)
▶ 8-layer 3oz PCB plate, 3.4mm, support high current
▶Only use geniune US and Japan imported electric components.
Work with Maytech waterproof remote controller, main power voltage and motor rpm.
▶Compact size, high efficiency, low heat.
▶Over-heat, over-voltage, over-current, low voltage protection.
▶100% QC test and performance test before deliver. Only qualified ESCs are arranged for delivery.

Customize Service：

Customize : Yes,
logo,kv,cover,shaft,cable,connector,all can be customized,contact us for more details.
email：shelly@mayrc.com
Gmail：mayrcshelly@gmail.com

Note:

1:If the water pump and UBEC need to be soldered, please remark. If no remarks are provided, welding is not required by default.

2:Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV,so each motor might has ±5%-10% tolerance, this is normal.

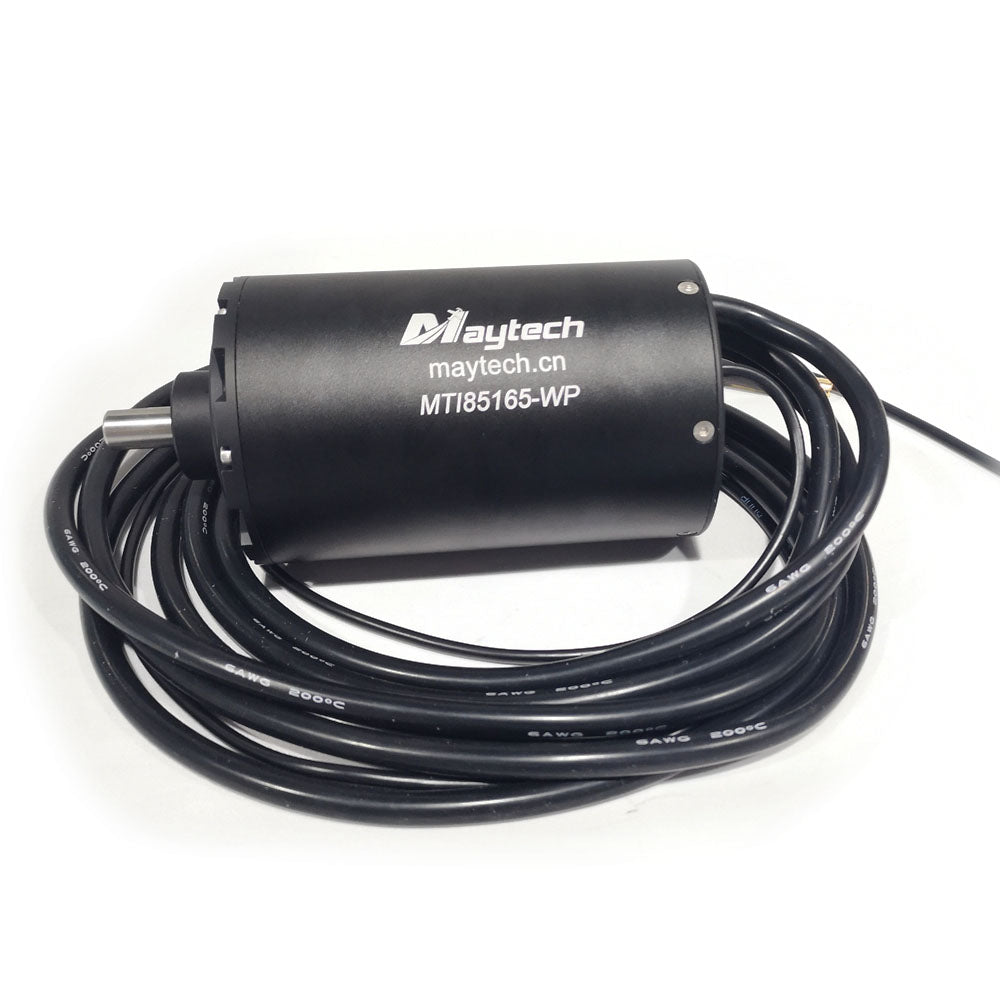

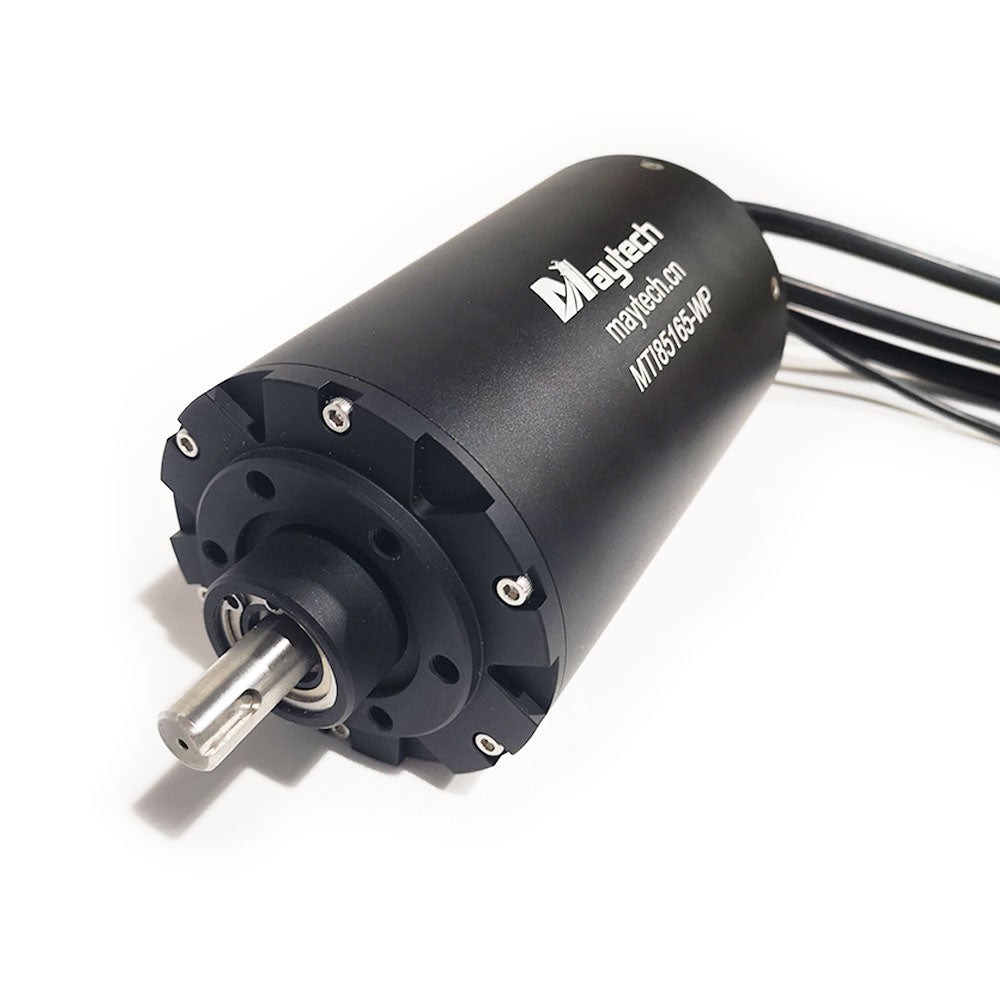

Model 2：MTI85165-200-WP(Fully water-proof)
KV: 200KV
RPM/V/Max RPM: 200/12096
Idle Current@10V：2.1A
Rated Current/Max Current(A)：190A/300A
Working Voltage：50-84V
Rated/Max Torque(N*M)：17.5/21.5N.M
Max Power(10S)：10.5KW
Winding Turns/Construction：7T/12N/10P
Motor&Shaft Size(mm)：Φ85x134mm&12mm
Net Weight (kg)：2.8

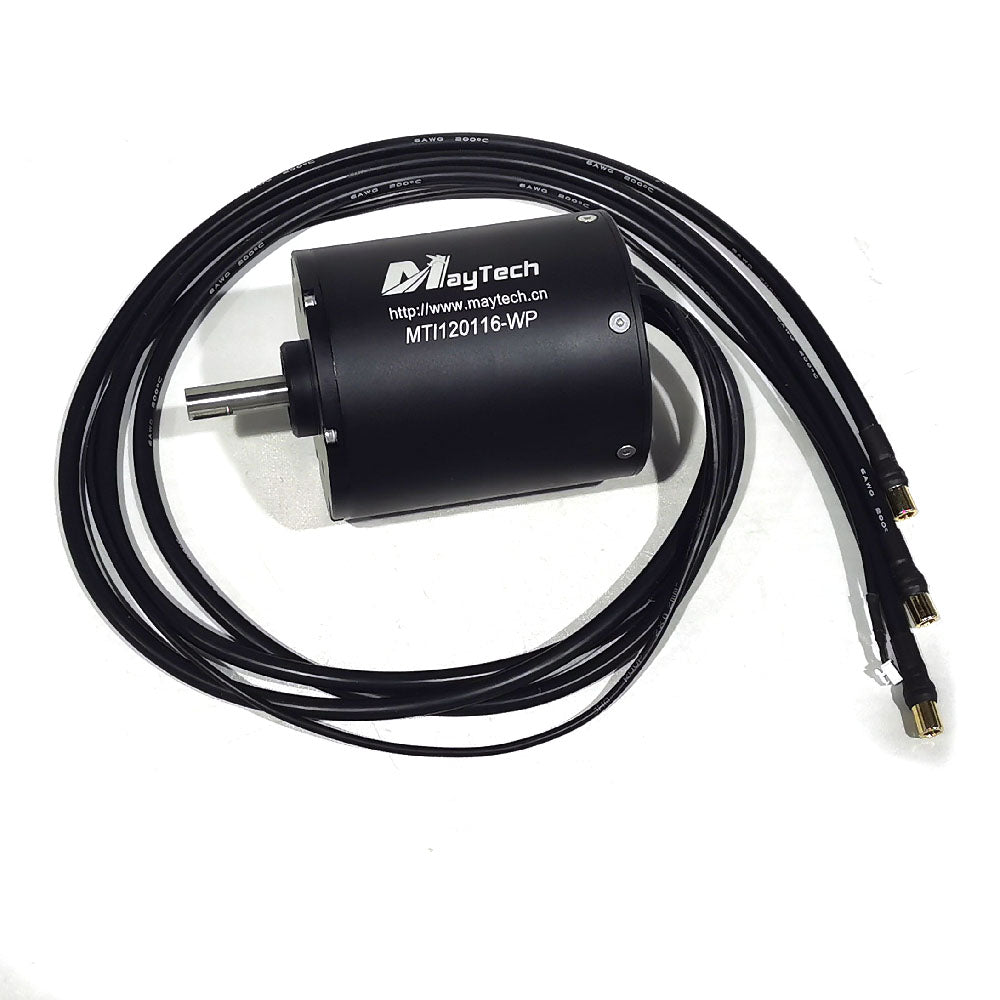

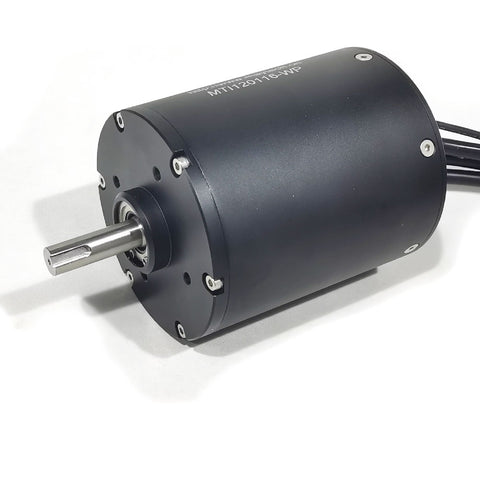

Model 3：MTI120116-100-WP(Fully water-proof)
KV: 100KV
RPM/V/Max RPM: 100/13440
Idle Current@10V：2.8A
Rated Current/Max Current(A)：300A/380A
Working Voltage：50-84V
Rated/Max Torque(N*M)：13.6/20.6 N.m
Max Power(10S)：18.8KW
Winding Turns/Construction：3.5T/12N/10P
Motor&Shaft Size(mm)：Φ107x 125mm&D15mm
Net Weight (kg)：4.4

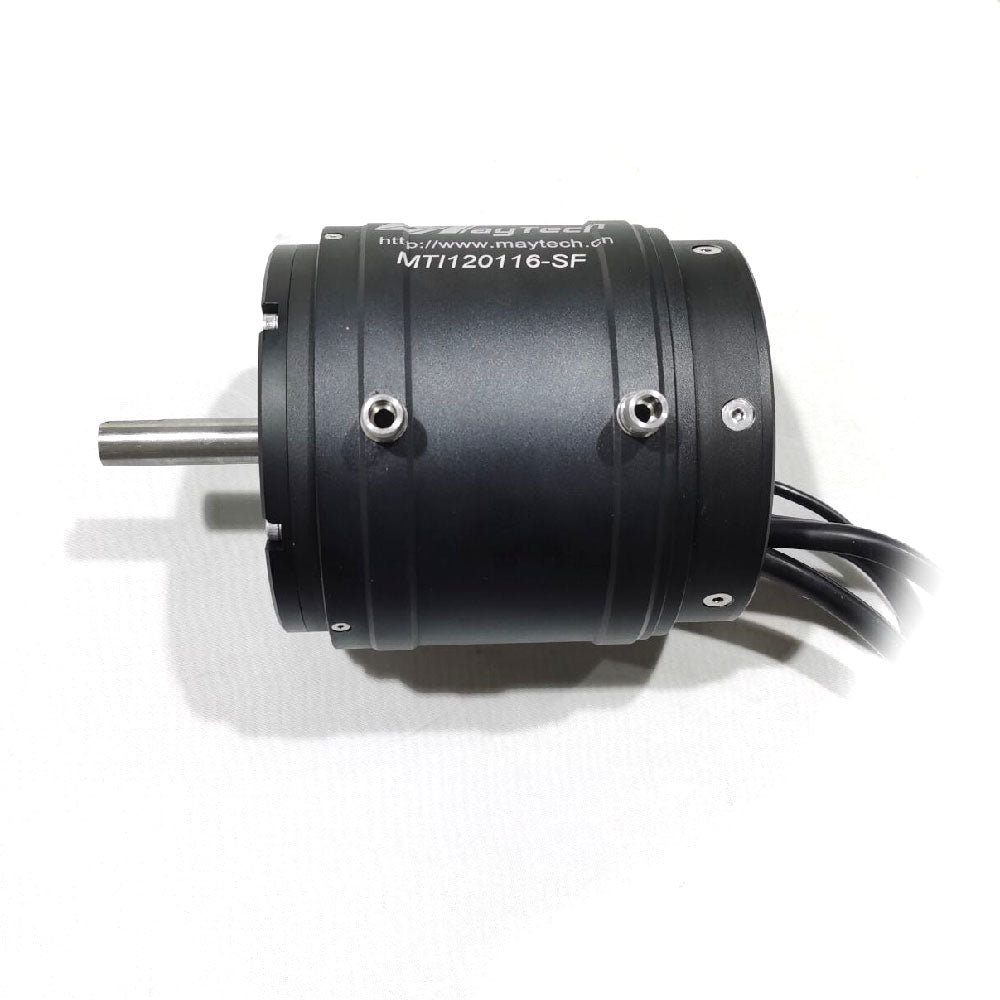

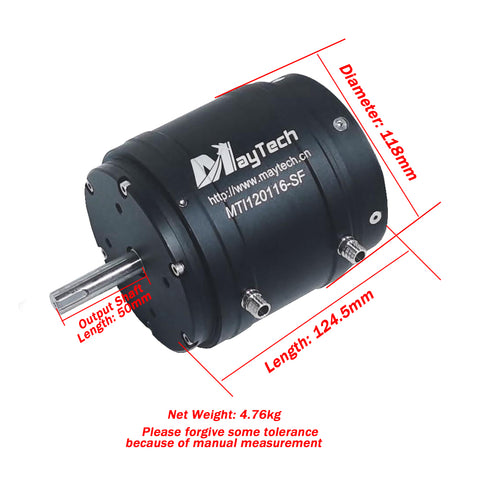

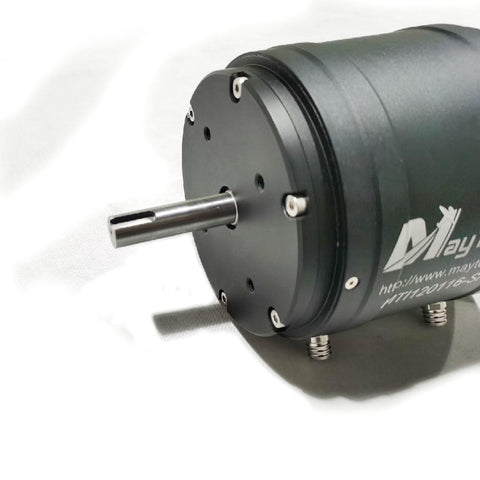

Model 4：MTI120116-200-SF(Water-cooling)
KV: 200KV
RPM/V/Max RPM: 200/13440
Idle Current@10V：2.8A
Rated Current/Max Current(A)：300A/380A
Working Voltage：50-84V
Rated/Max Torque(N*M)：13.6/20.6 N.m
Max Power(10S)：18.8KW
Winding Turns/Construction：3.5T/12N/10P
Motor&Shaft Size(mm)：Φ118x 116mm&D15mm
Net Weight (kg)：4.4

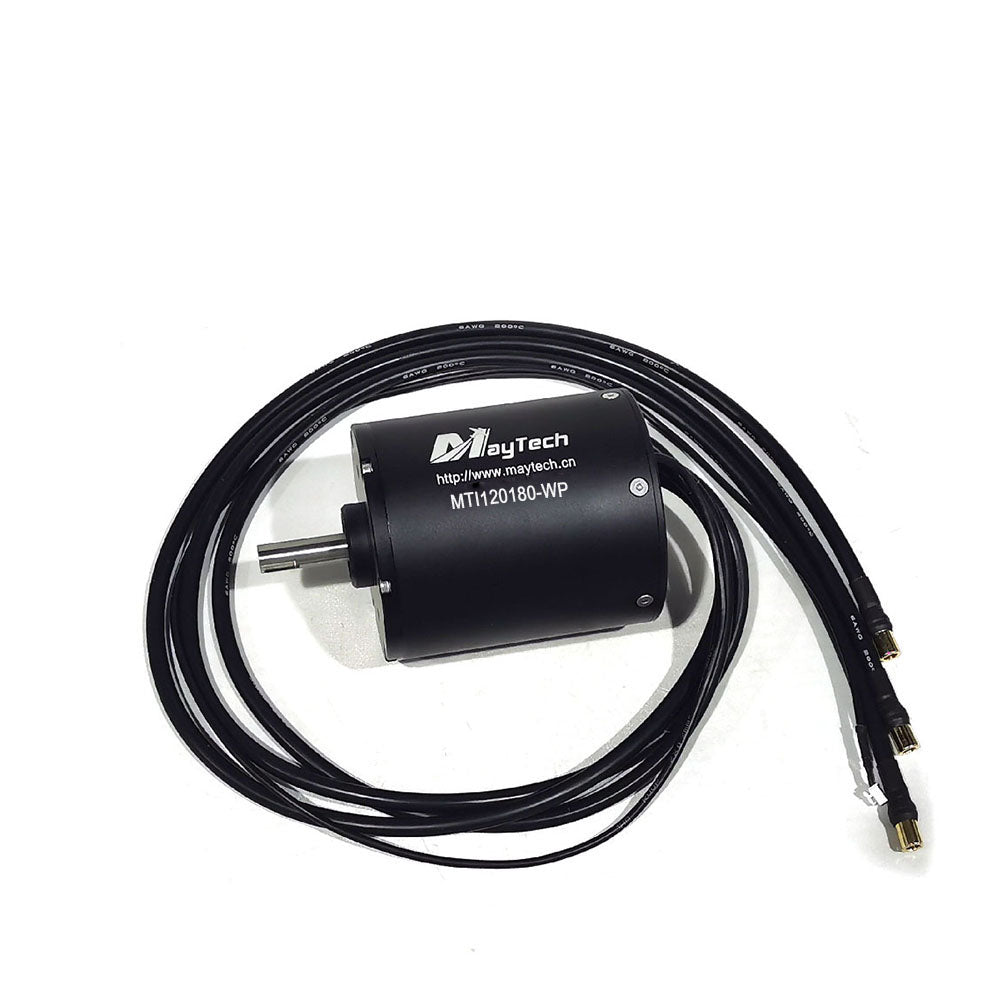

Model 5：MTI120180-120-WP(water-proof)
KV: 120KV
RPM/V/Max RPM: 120/9072
Idle Current@10V：3.2A
Rated Current/Max Current(A)：270A/340A
Working Voltage：25-76V
Rated/Max Torque(N*M)：18.8/28.8 N.m
Max Power(10S)：23.5KW
Winding Turns/Construction：4T/12N/10P
Motor&Shaft Size(mm)：Φ120x 180mm&D15mm
Net Weight (kg)：6.5

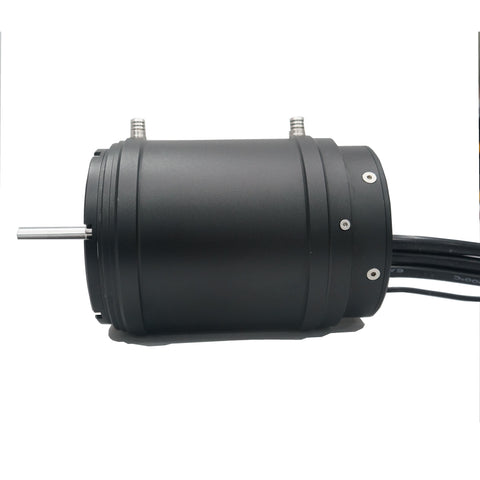

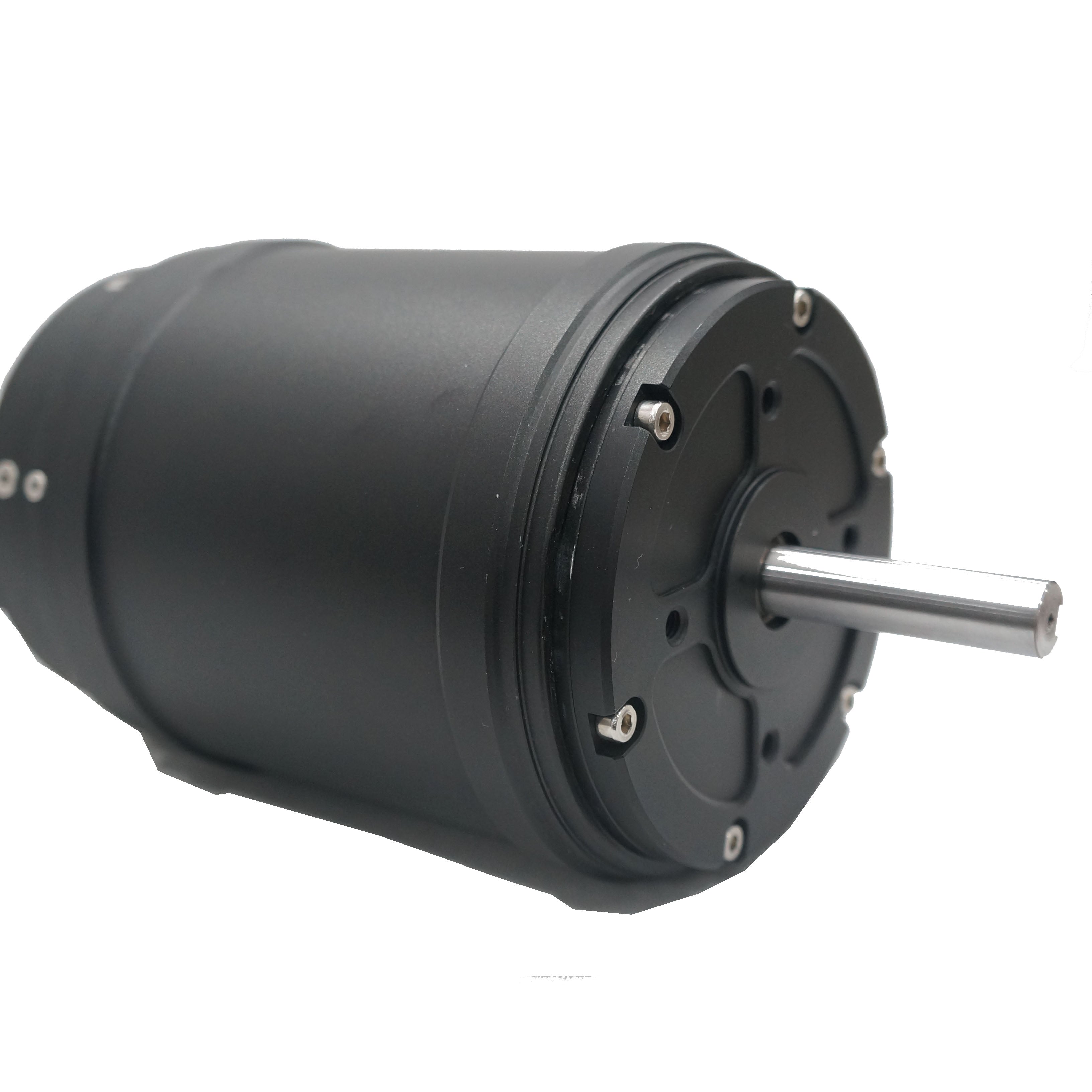

Model 6：MTI120180-120-SF(Water-cooling)
KV: 120KV
RPM/V/Max RPM: 120/9072
Idle Current@10V：3.2A
Rated Current/Max Current(A)：270A/340A
Working Voltage：25-76V
Rated/Max Torque(N*M)：18.8/28.8 N.m
Max Power(10S)：23.5KW
Winding Turns/Construction：4T/12N/10P
Motor&Shaft Size(mm)：Φ120x 180mm&D15mm
Net Weight (kg)：6.5

Remark:

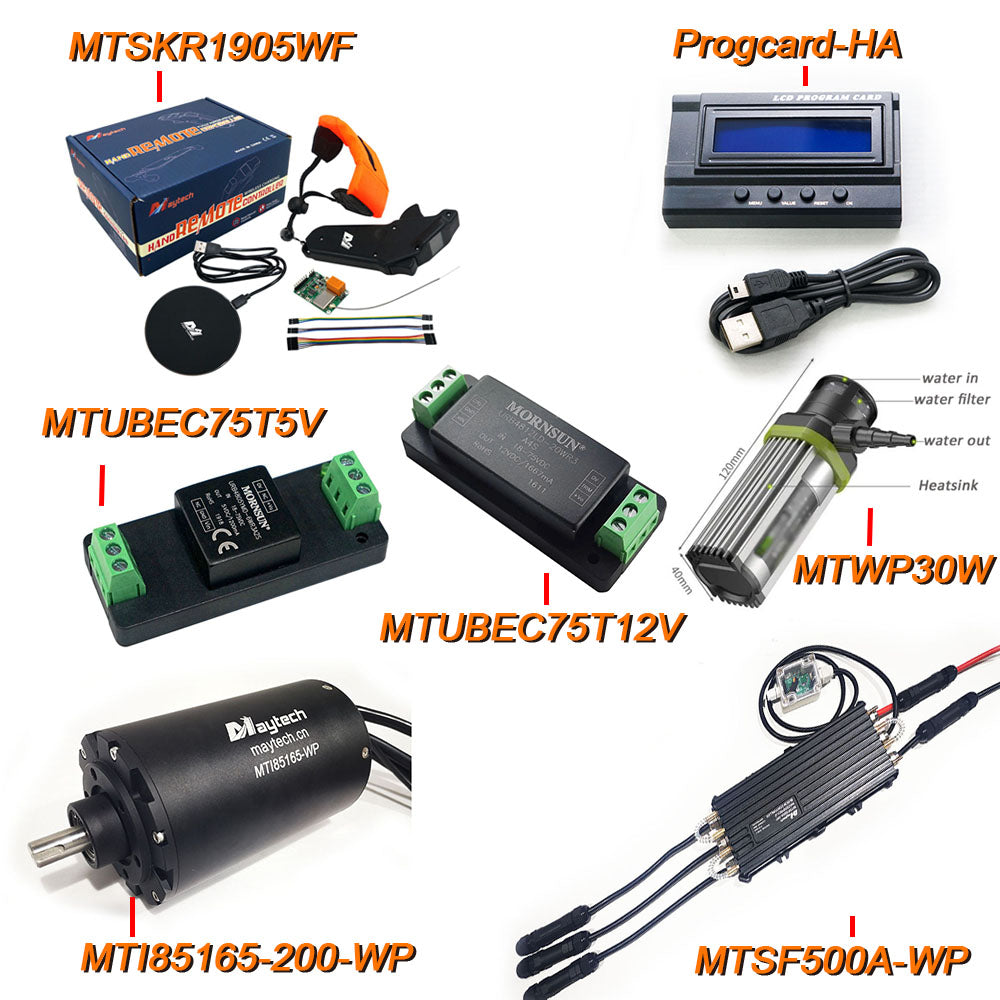

Type A it is include
1pcs MTSF500A-WP ESC+
1pcs MTI85165-200-WP Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

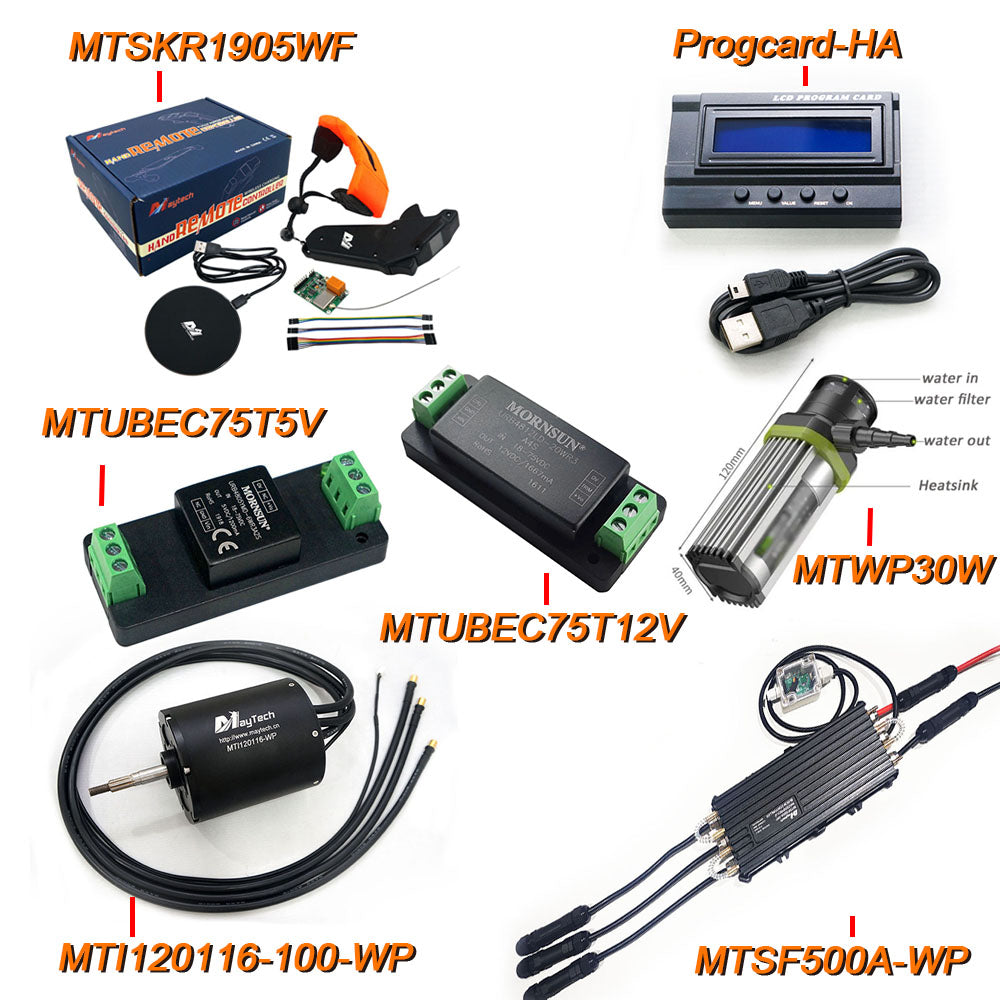

Type B it is include
1pcs MTSF500A-WP ESC+
1pcs MTI120116-100-WP Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

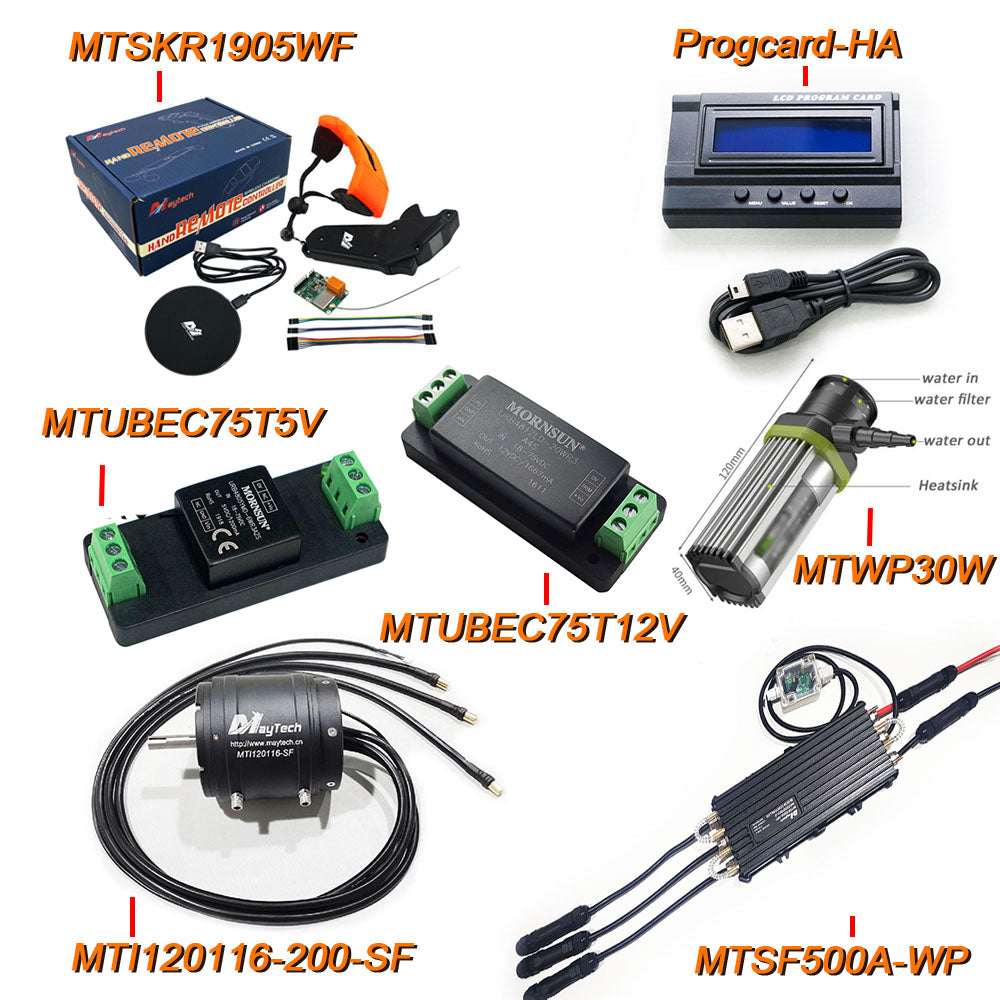

Type C it is include
1pcs MTSF500A-WP ESC+
1pcs MTI120116-200-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

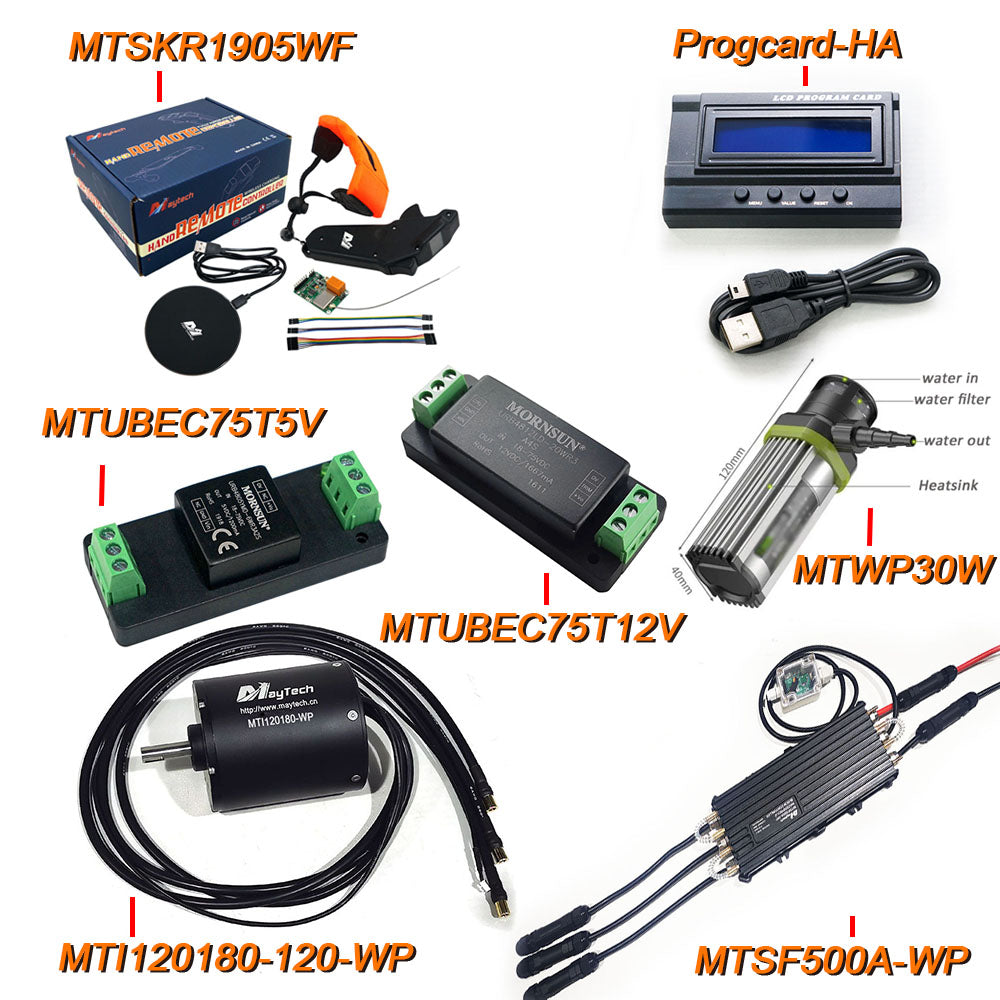

Type D it is include
1pcs MTSF500A-WP ESC+
1pcs MTI120180-120-WP Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

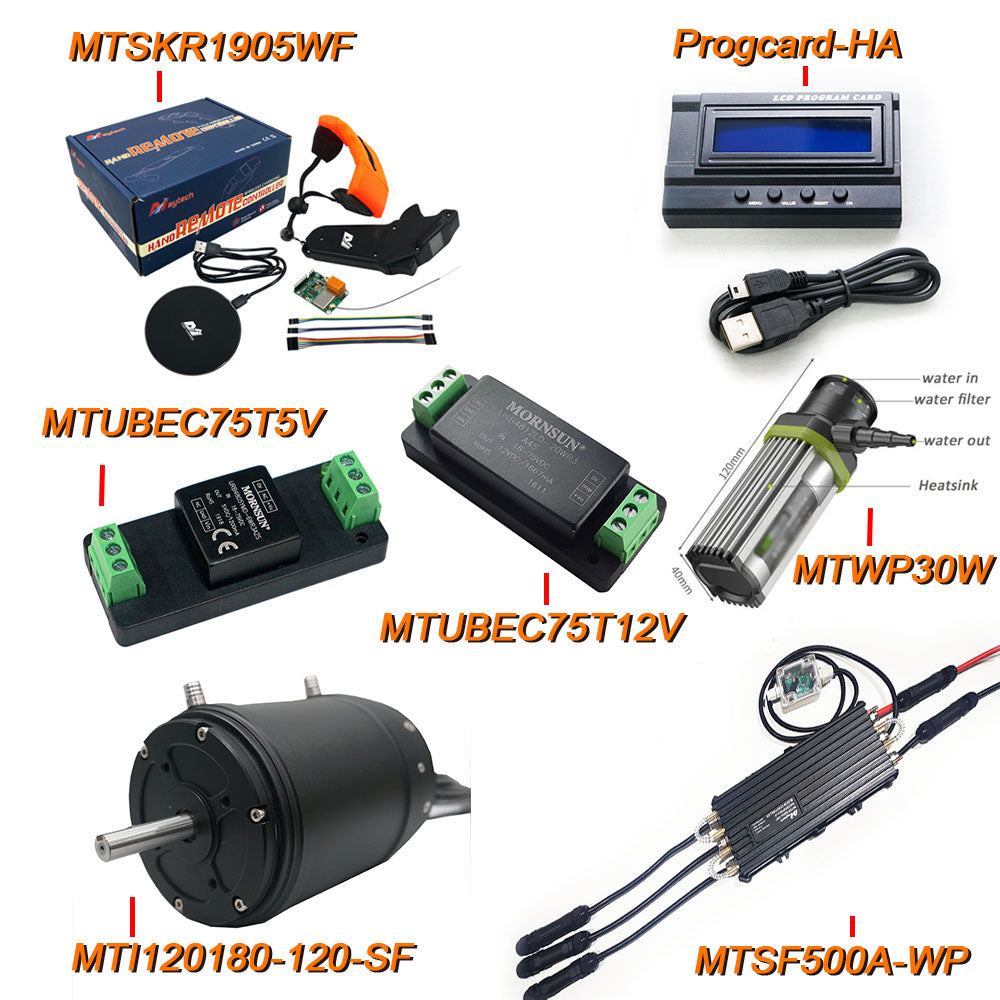

Type D it is include
1pcs MTSF500A-WP ESC+
1pcs MTI120180-120-SF Motor+
1pcs MTSKR1905WF Remote+
1pcs Progcard-HA+
1pcs MTWP30W Water pump+
1pcs MTUBEC75T12V Voltage Regulator+
1pcs MTUBEC75T5V Voltage Regulator

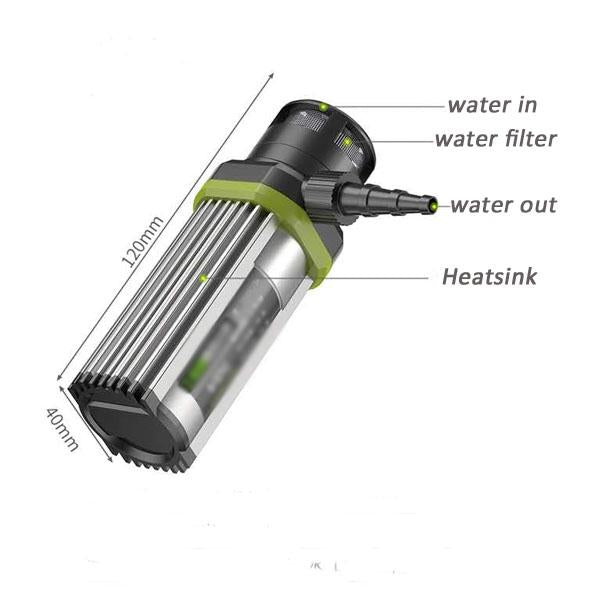

Model 7：MTWP30W（Water pump）
Power : 30W 12V
Water Intake : 35mm
Maximum Flow : 8L/min
Outlet : 6mm / 8mm / 10mm
Net weight：50g

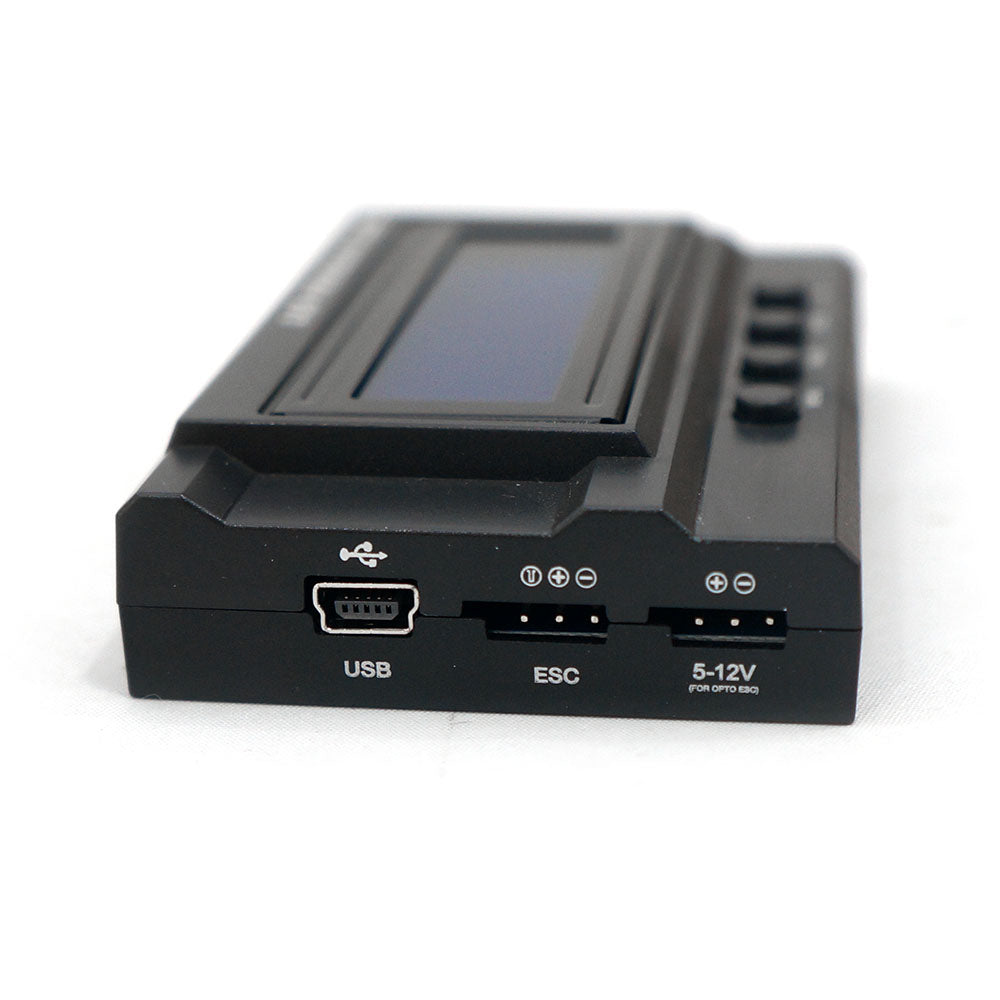

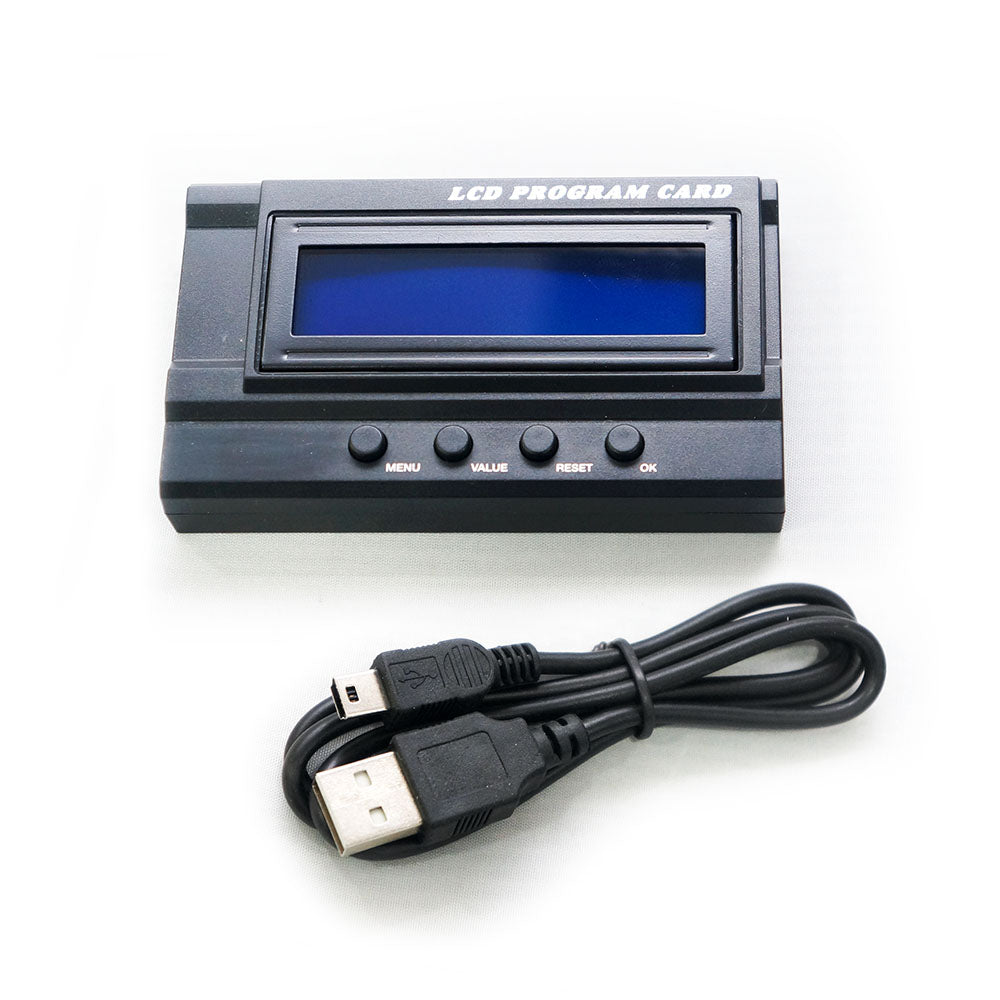

Model 8：Progcard-HA
Program MTSF300A-OPTO, MTSF300A-WP and MTSF500A-WP ESCs settings.

Model 9：MTUBEC75T5V
Voltage Regulator, convert 75V voltage to 5V. An optional accessory to 300A controller, supply power to receiver.
Net weight：80g

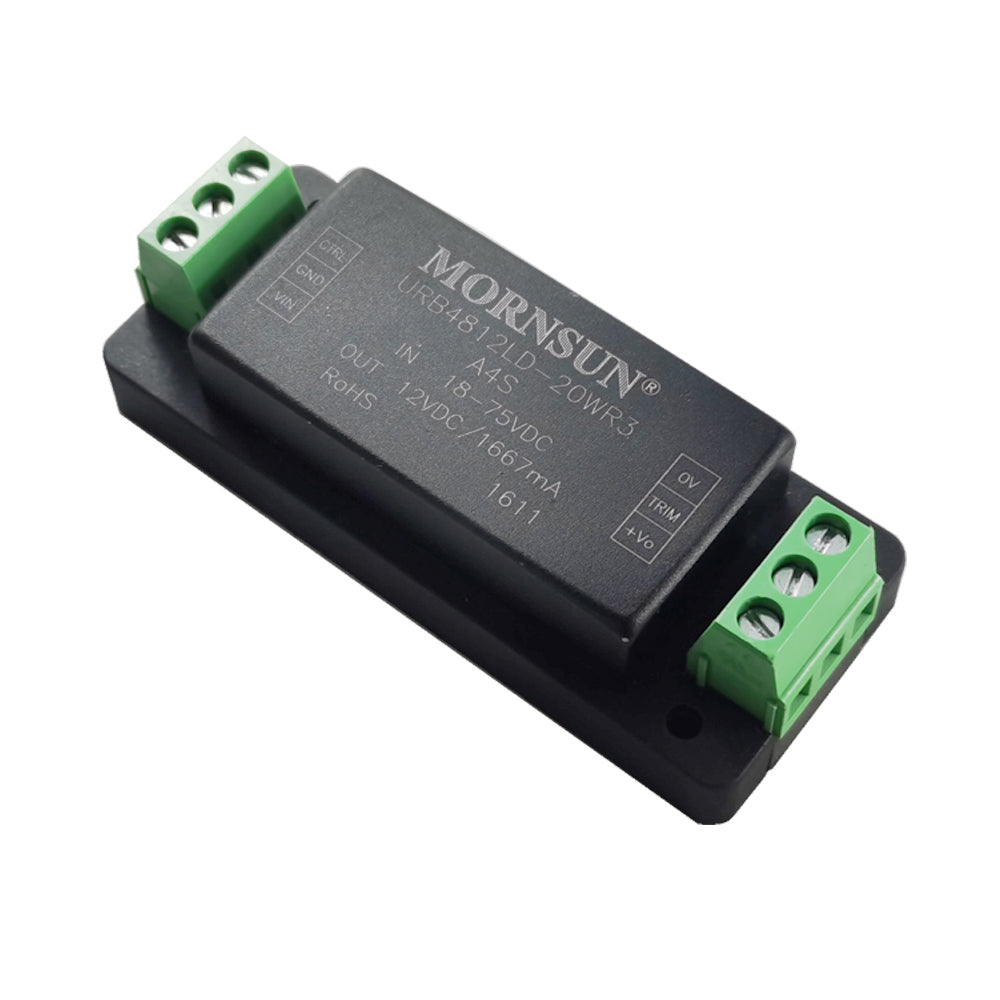

Model 10：MTUBEC75T12V
Voltage Regulator, convert 75V voltage to 12V 2.5A, optional accessory to 300A controller, supply power to pump
Net weight：80g

Model 11：MTSKR1905WF
Application:Esk8, Mountainboard, Esurf, Efoil,boat, etc
Max Voltage detection range: 5-80V ±5%
Hall/Motor phase wire RPM detection range: 0-80000 ERPM Relay
Switch Max current: 3A;
Transistor switch max current: 2A; VESC communication protocol
Fully Waterproof:Yes
Display Screen:Yes
Display Parameters:Voltage, remote & battery power, signal strength, distance,RPM
Frequency:2.4GHZ
Mode:Esk8/Esurf
Wireless Charging:Yes
Accessories:Receiver, strape, 3pcs Dupont cable, Wireless charging pad
