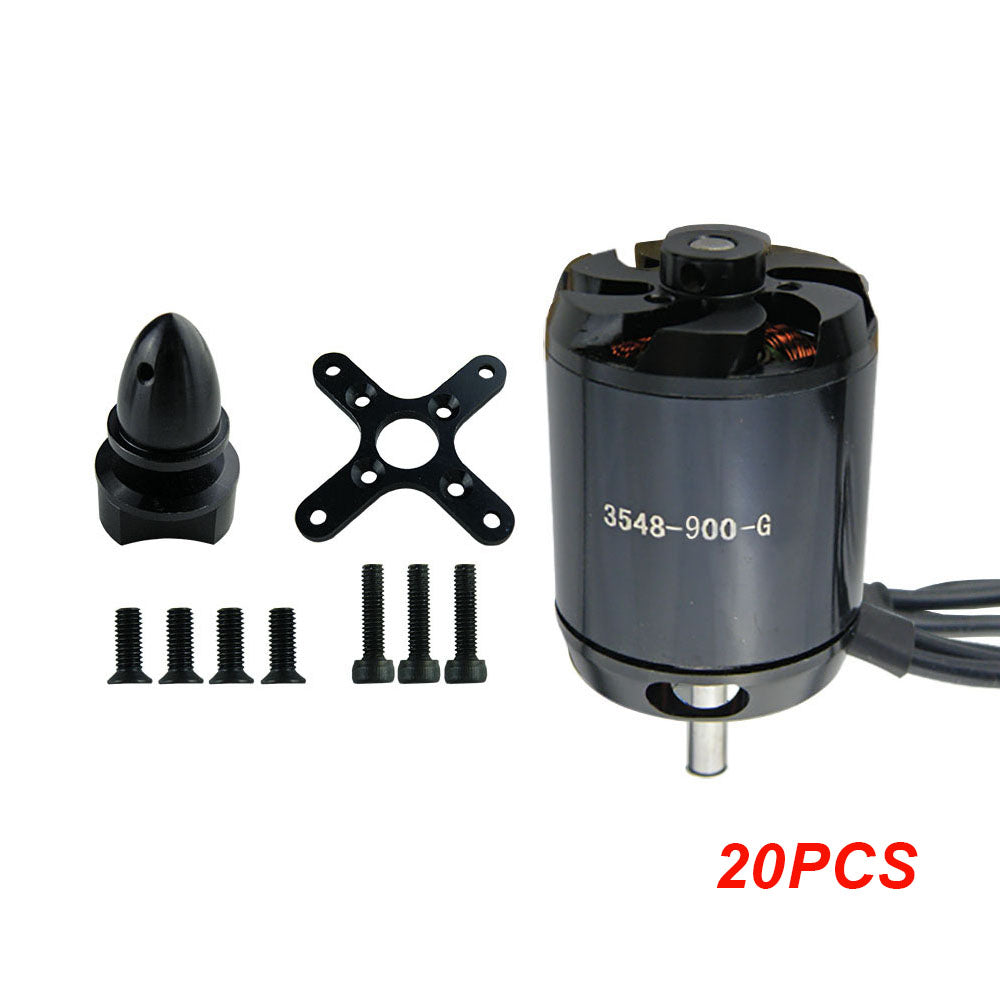

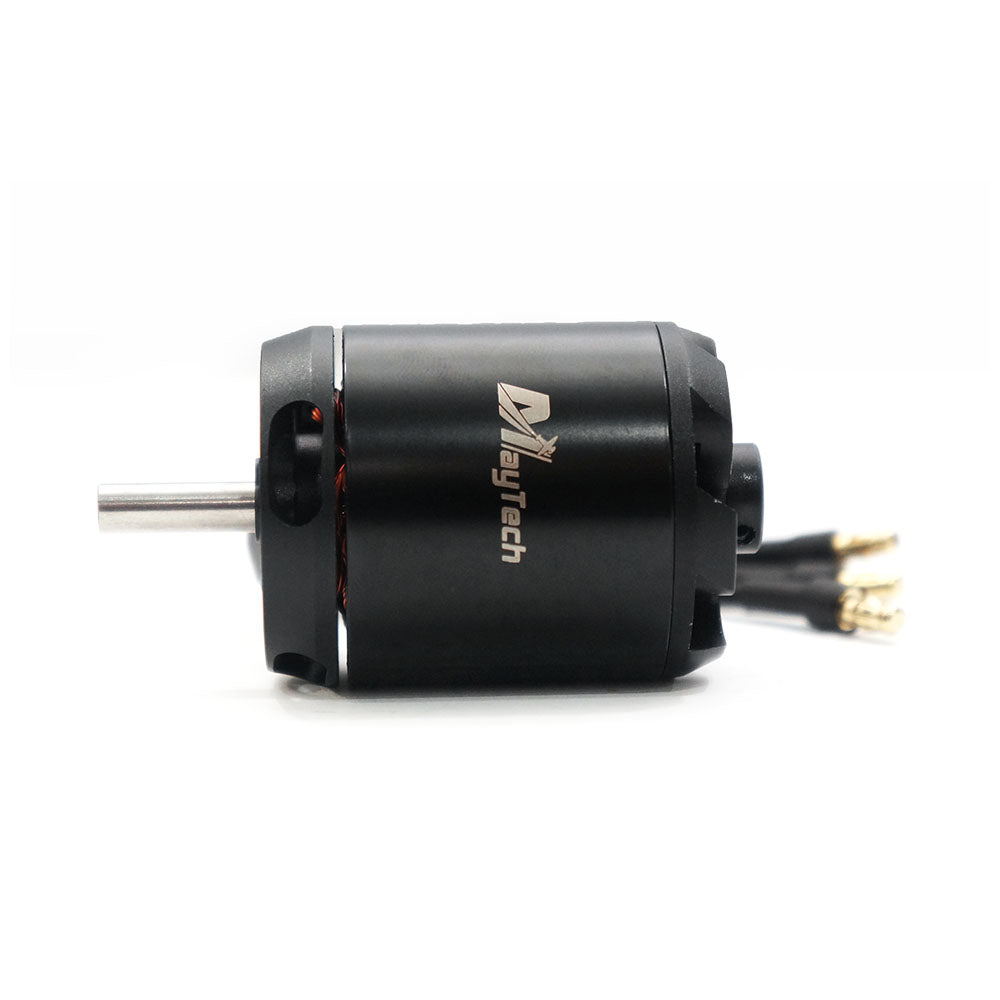

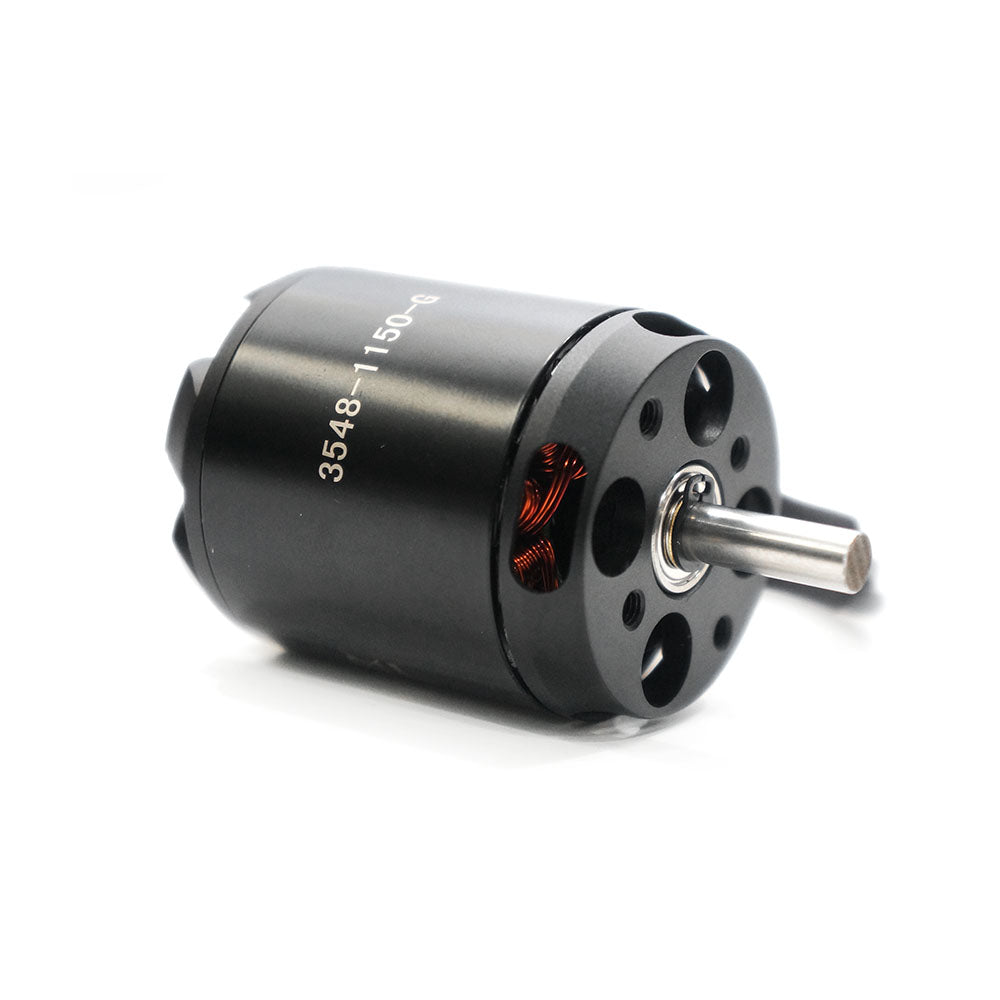

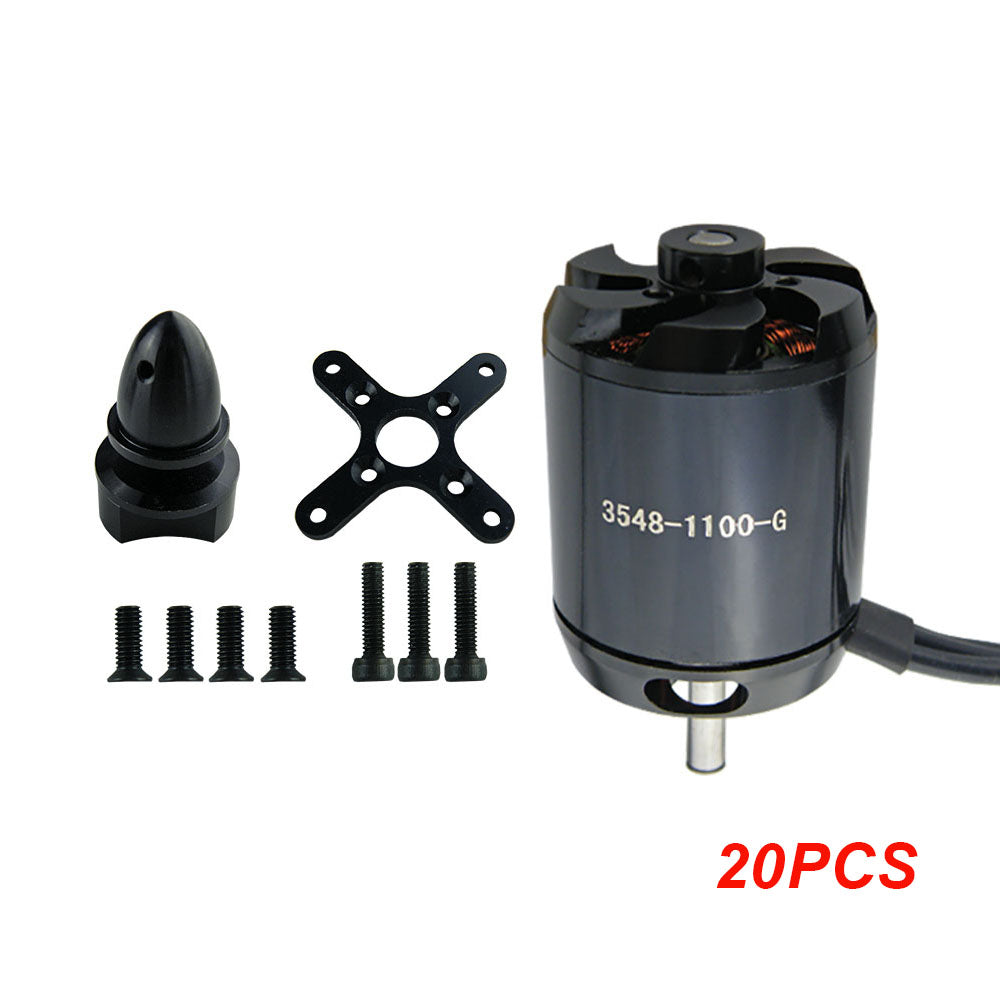

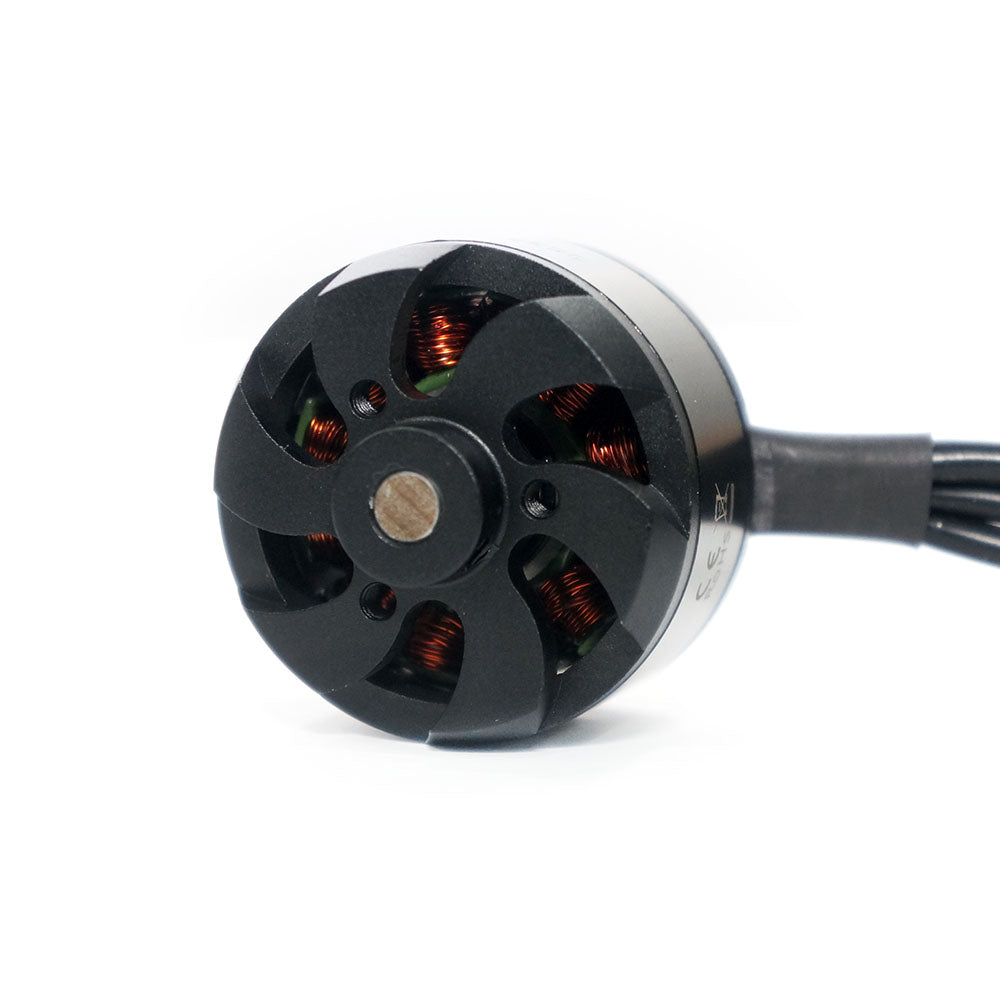

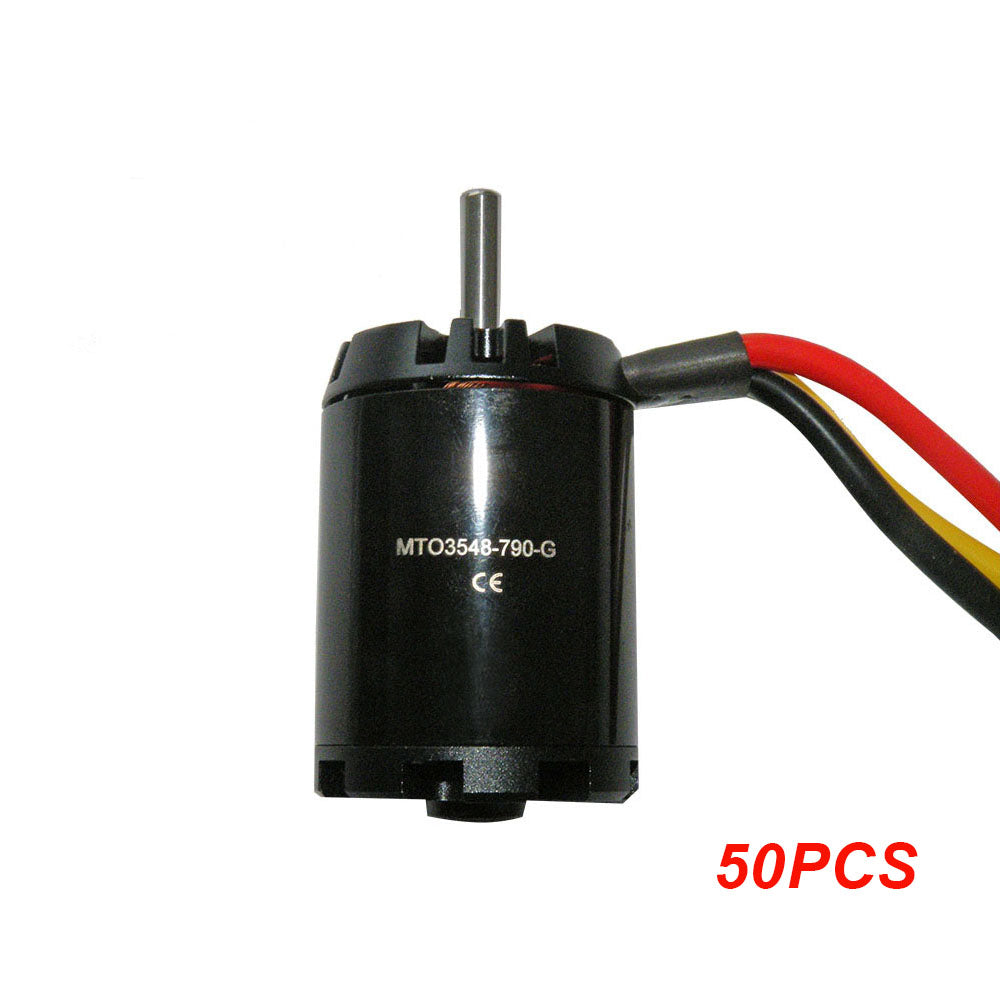

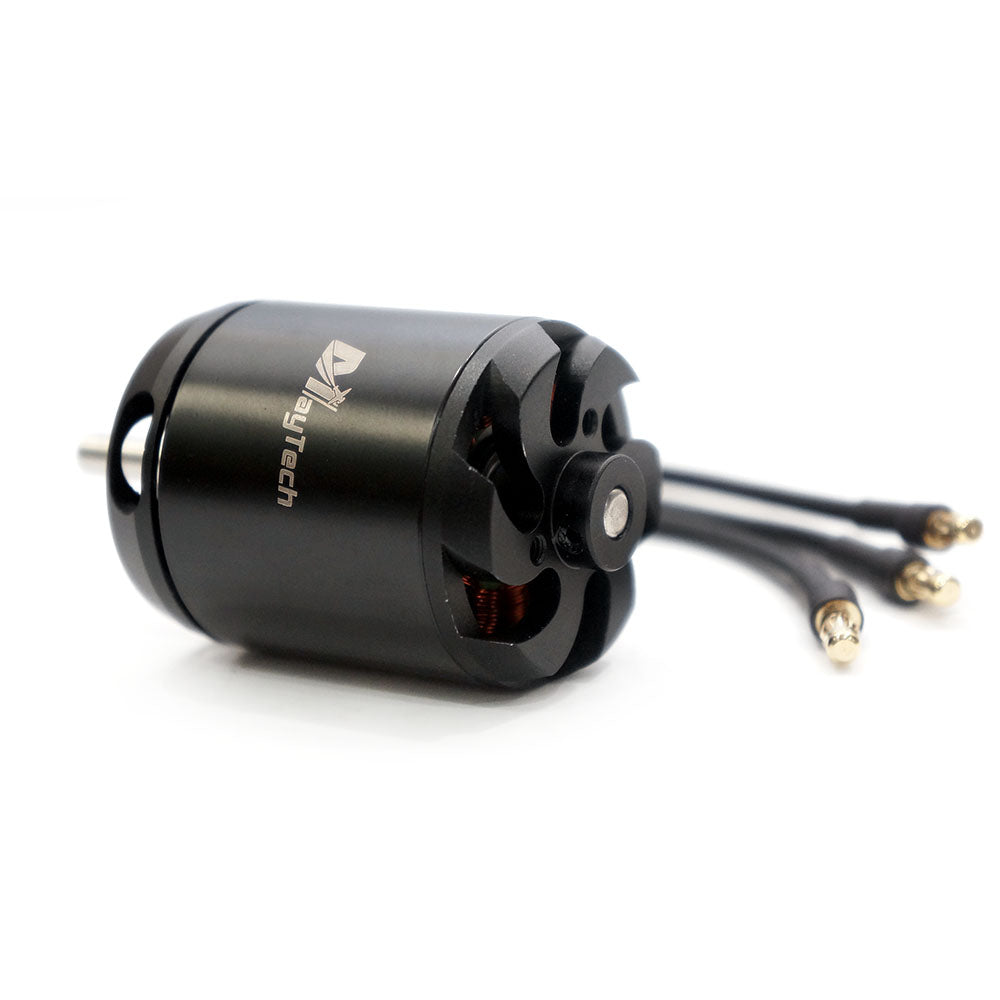

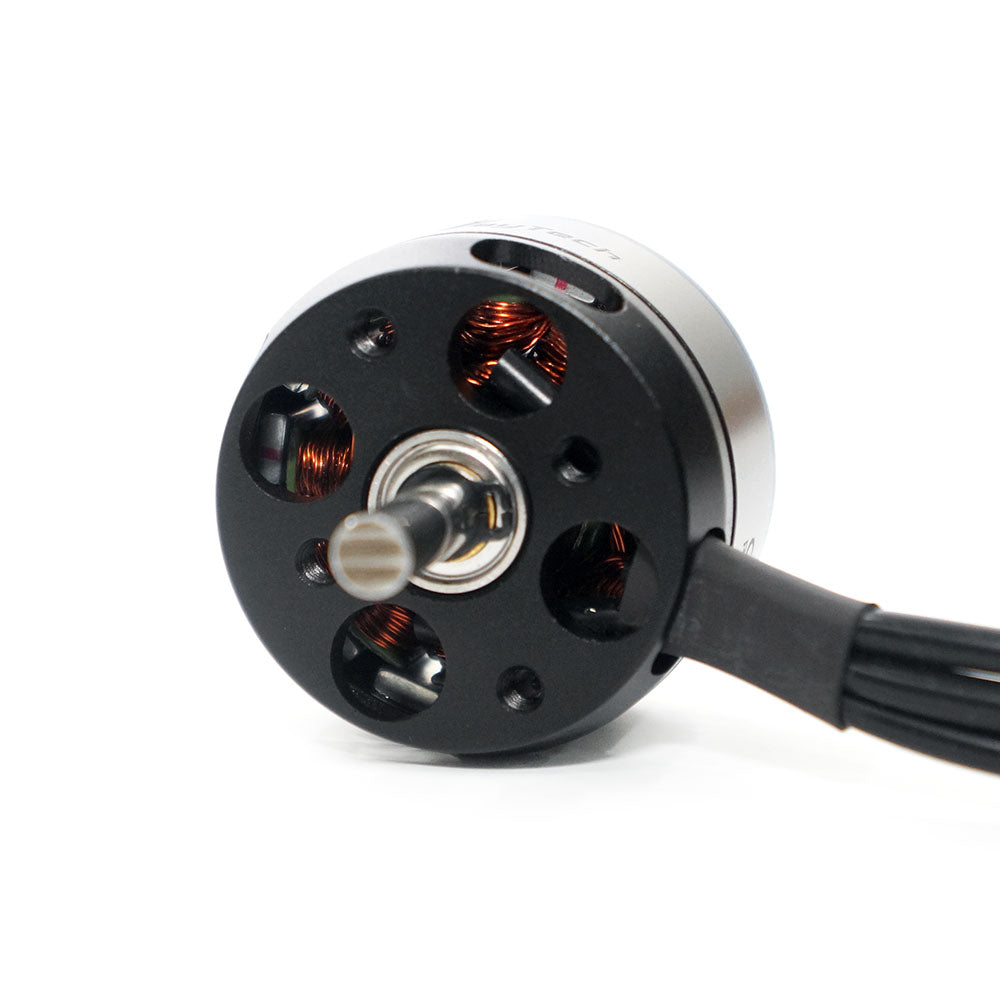

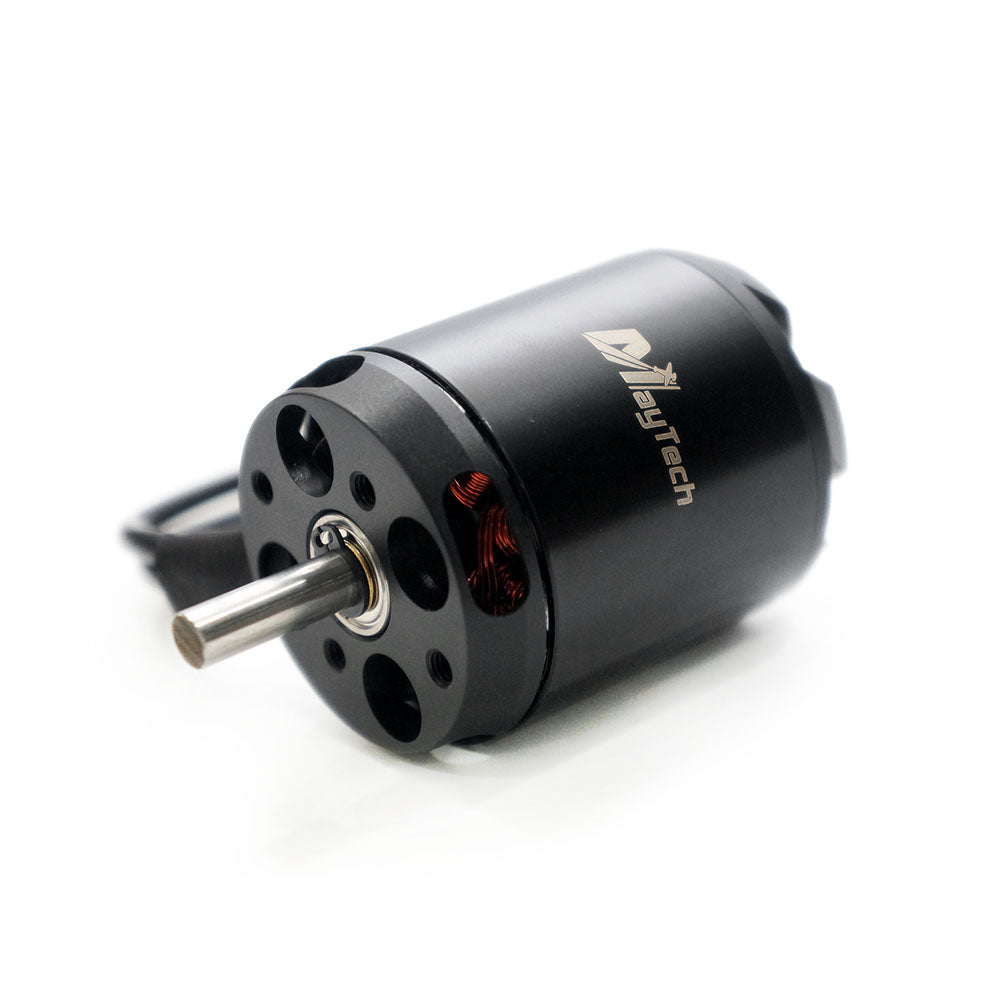

Maytech Brushless 50pcs 3548 790KV/900KV/1100KV Outrunner Sensorless Motor Open Cover for Rc Airplane/Helicopter/Robotics/ROV
MOQ is 50pcs/order for this motor.
Motor logo can be customized.
You can order different KVs for one order.
(For example, order of 25pcs 790KV + 25pcs 900KV)
For more details and customization, please contact shelly@mayrc.com
| Model No. | MTO3548-790-G | MTO3548-900-G | MTO3548-1100-G |
| KV | 790 | 900 |
1100 |
| Shaft(mm) | Ф5.0 | Ф5.0 | Ф5.0 |
| Max. Current | 39.6A | 42.5A | 50.3A |
| Input Volt. | 3-5S Li-Po | 3-5S Li-Po | 3-5S Li-Po |
|
Net Weight (g) |
156 | 155 | 157 |
| Stator Size | Ф28.0 x 26.0 | Ф28.0 x 26.0 | Ф28.0 x 26.0 |

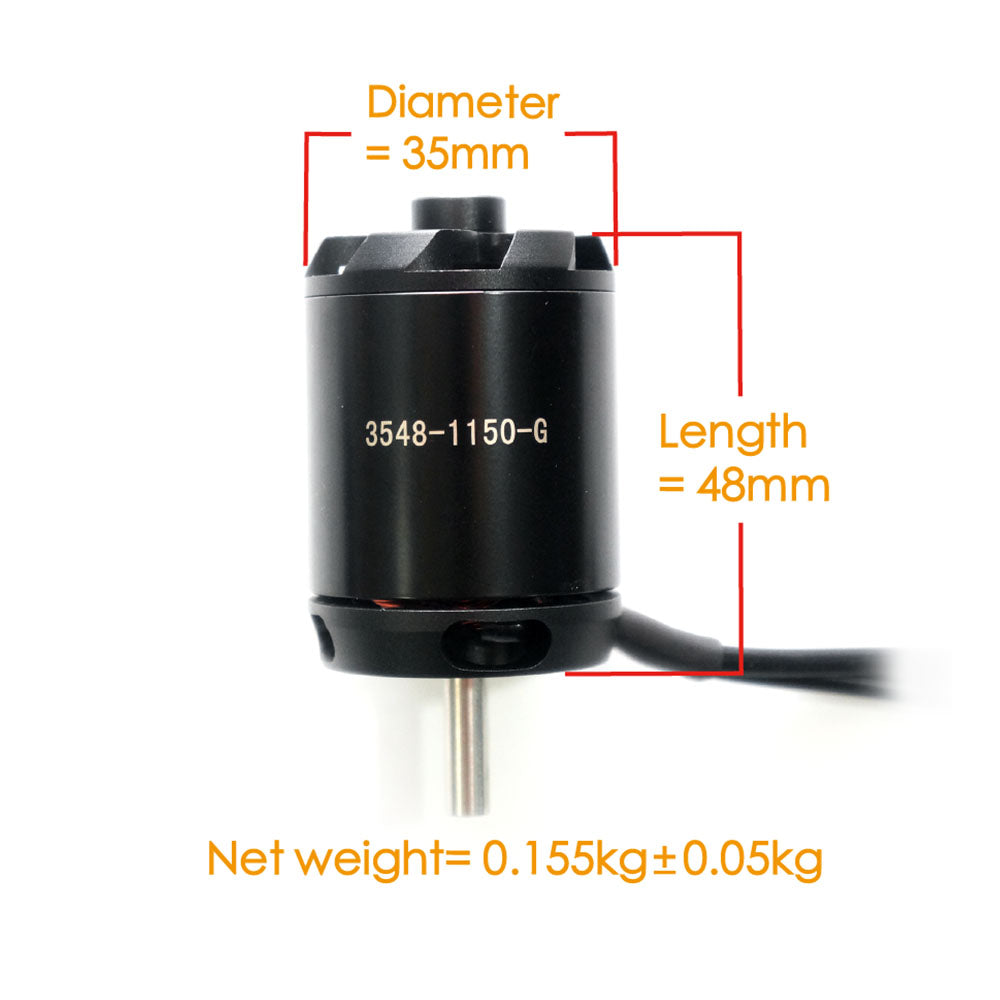

| Motor Size | Ф35.0 x 48.4 | Ф35.0 x 48.4 | Ф35.0 x 48.4 |
| Thurst (g) | 1650 | 1780 | 2150 |
| WATT. (w) | 717 | 770 | 911 |
Features:
- The up and bottom caps are made of aluminium alloy.
- The motor case is made of steel.
- The static balance is confirm.
- NSK Japanese bearings
- 45h sintered ndfeb magnets
- Stator is stacked with silicon steel
- Use high temperature and oxygen-free copper wire
- Stainless steel shaft
- High-temperature micro ball-bearing
Application:
Airplane / RC Airplane / 3D flying / RC Hobby Applications / sport flying / aggressive aerobatics / helicopter / racing airplane / ROV / ROVEEE / remote operated vehicle / underwater robot / Underwater Robotics / underwater remotely operated vehicles / subsea robots, etc.
