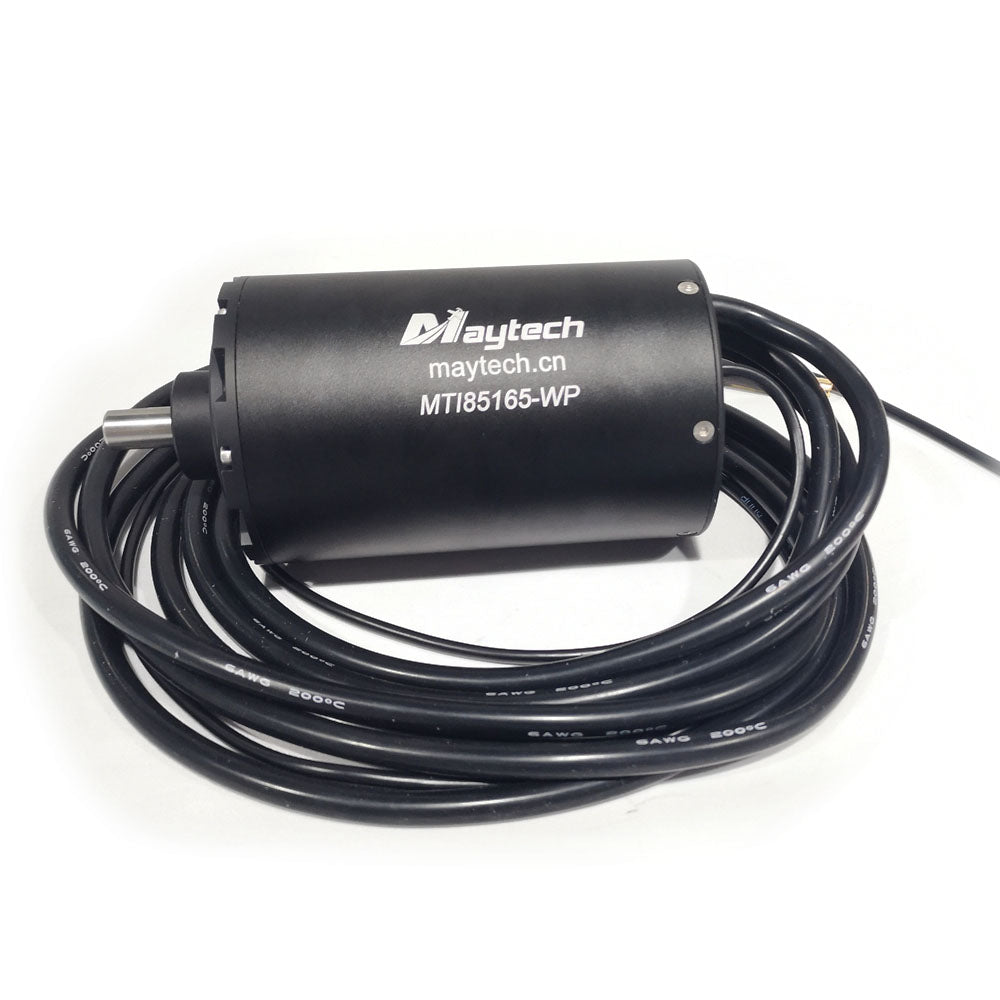

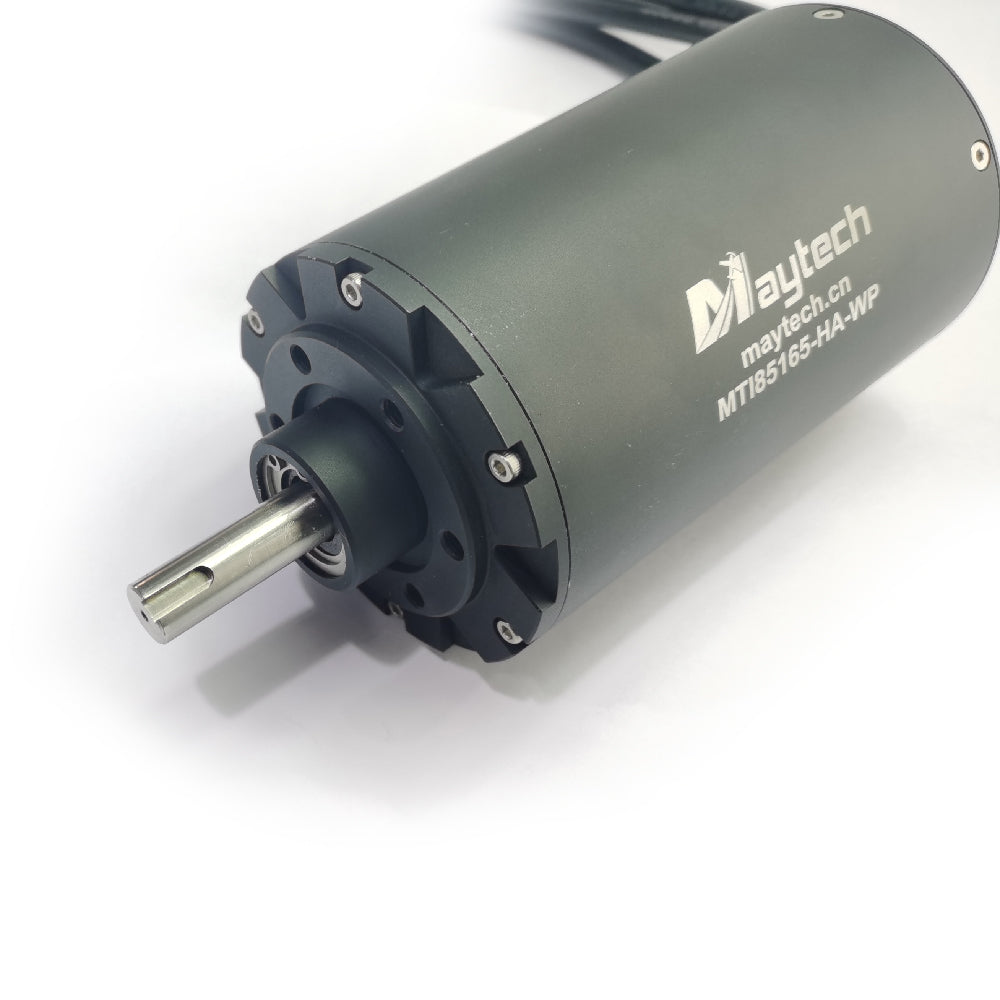

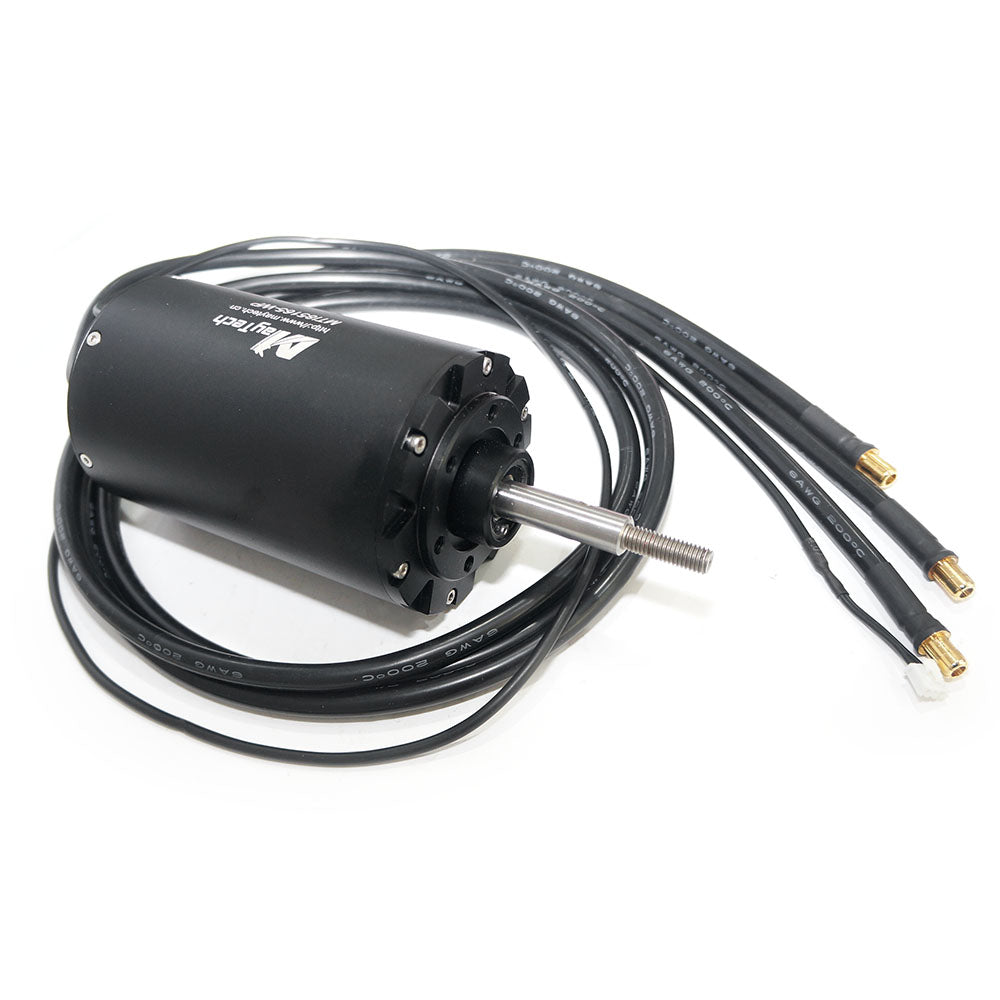

Maytech Brushless Inrunner Motor MTI85165 Fully Waterproof/Watercooled Motor for Eletcirc Surfboard Hydrofoil Efoil Jetsurf Electric RC Boat

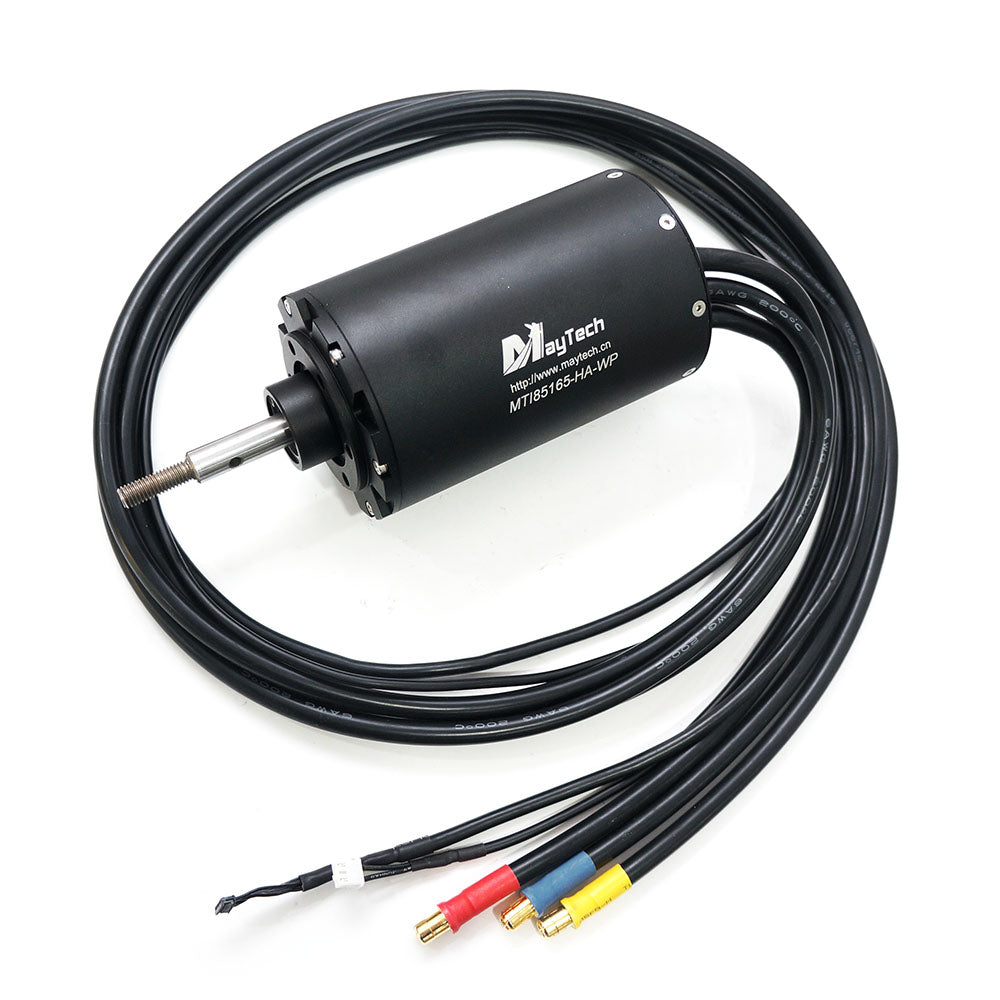

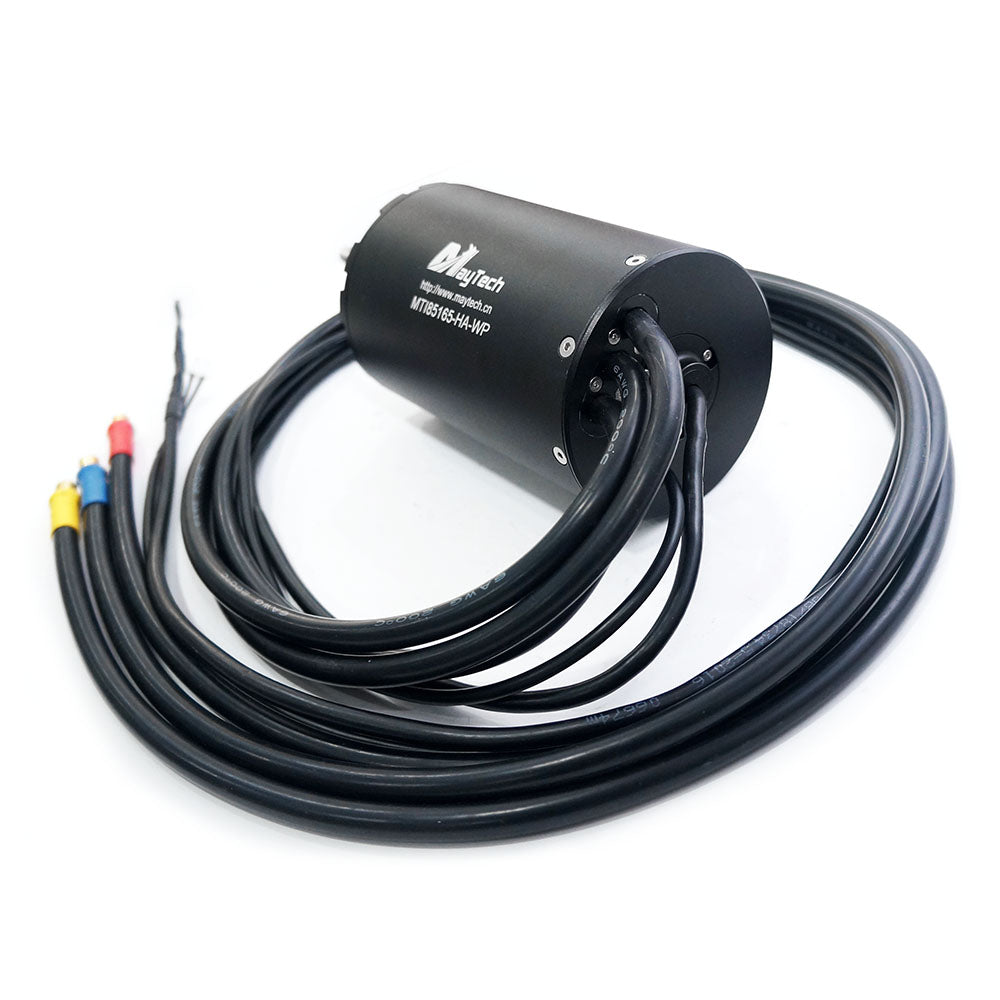

Choose a sensored or sensorless motor?
Sensored version can be used not only for underwater application but also for electric skateboard, fighting robots, electric cars, etc.,
Sensorless version usually be used for underwater electric vehicles, electric surfboard, Efoil, hydrofoil, rc boat, water jet propulsion, etc.,
1. Main Advantage
- Fully water-proof, IP68 (Water-proof version);
- Rust-prevention, can be used in sea water, salt water, rivers, lakes, etc (Water-proof version);

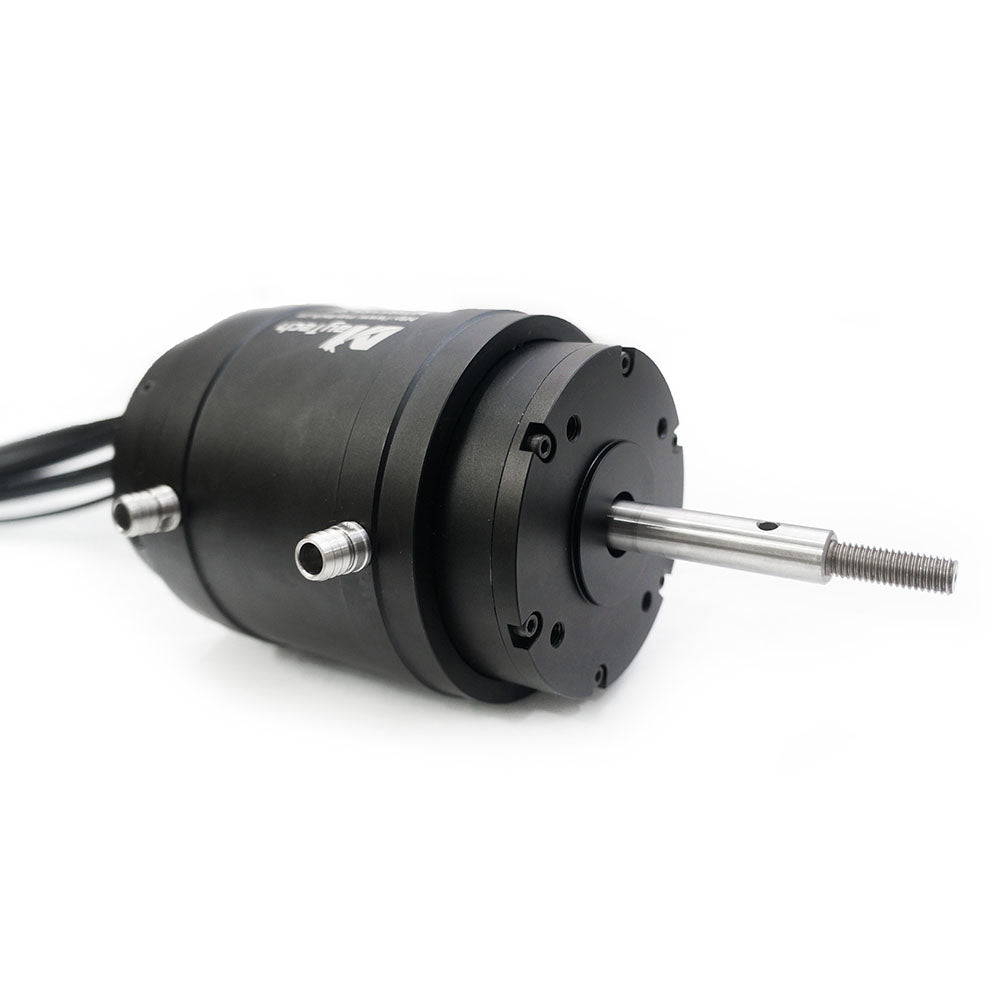

- With solid water-cooling tubes (Water-cooled version);
- With rust-prevention screws;
- Can be customized to use 200-300V high voltage application;
- Shaft, KV, motor cables can be customized.
|Model No.||MTI85165-200||Motor Type||Inrunner Motor|
|Max. Current||300A||Input Volt||12-16S|
|Max. Output Watt||10.5KW||Max. Pull||15.5N.m|
|Idle Current @8.4V||2.1A||Internal Resistance||0.0322Ω|
3. Motor Drawing

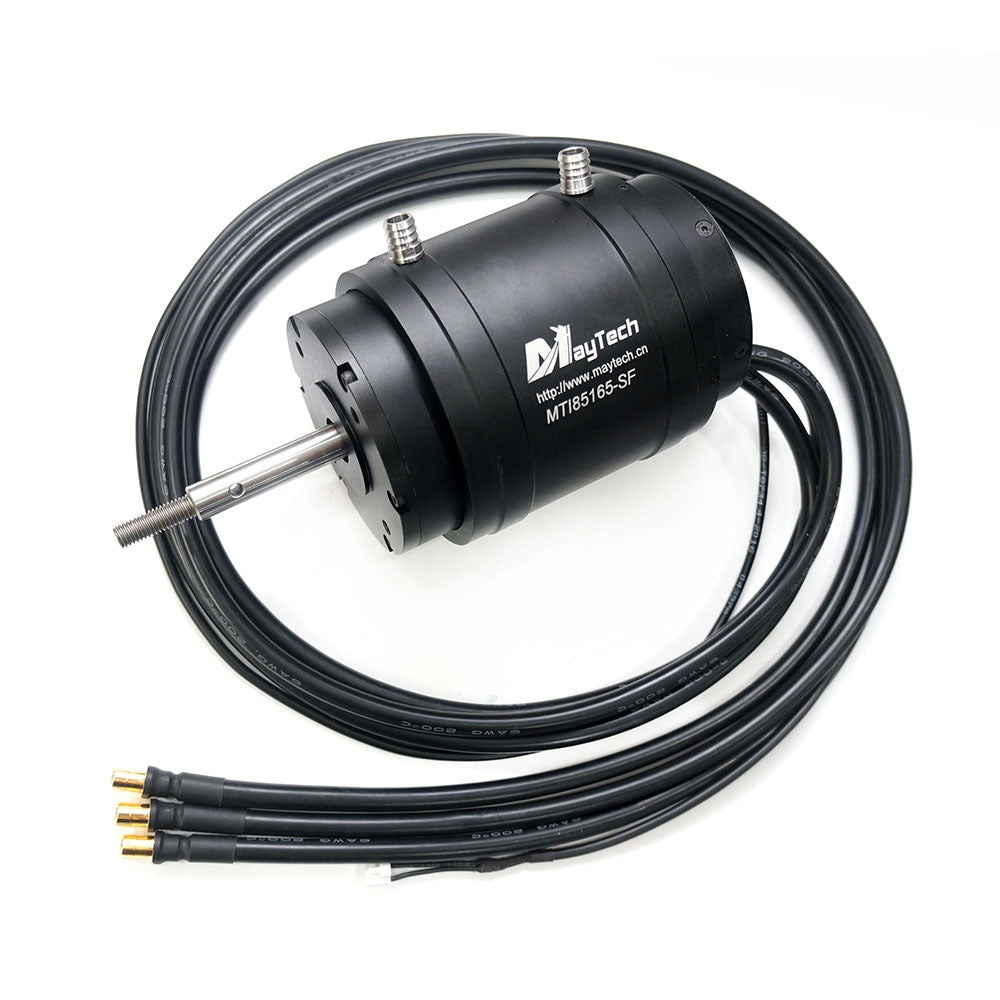

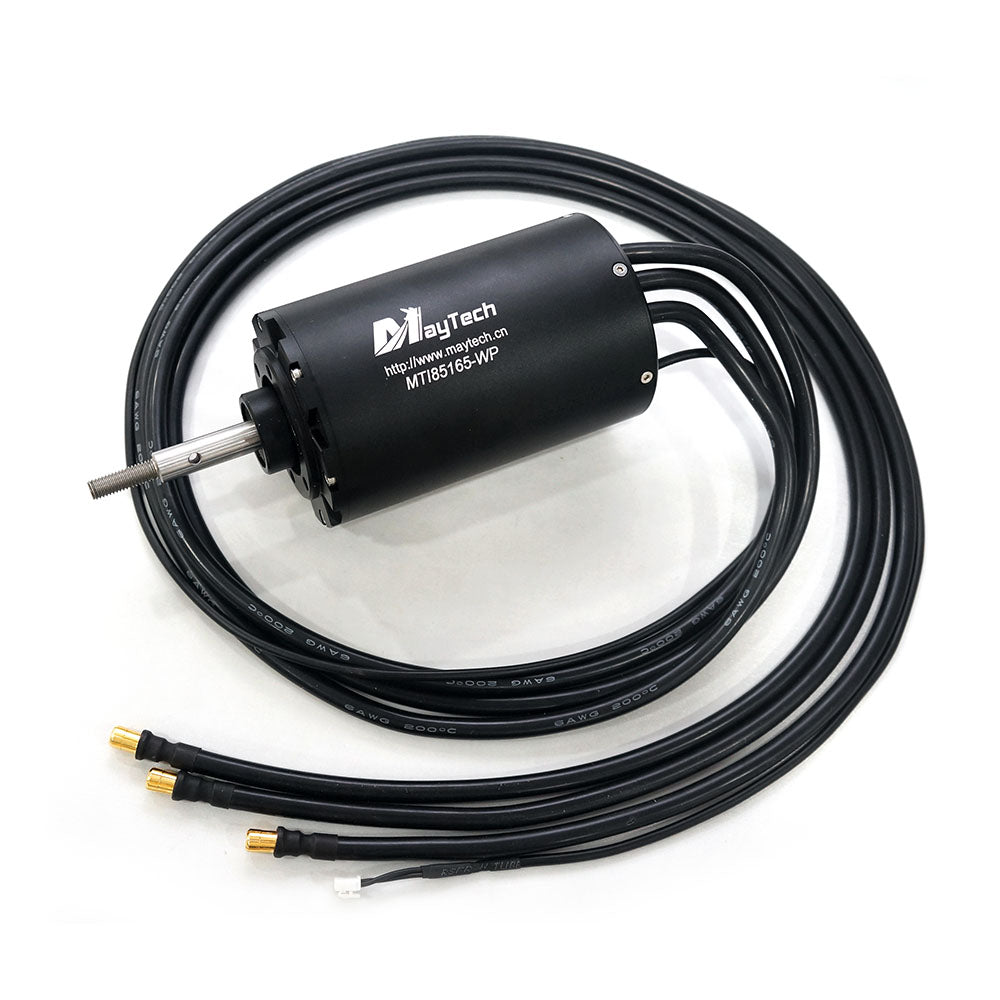

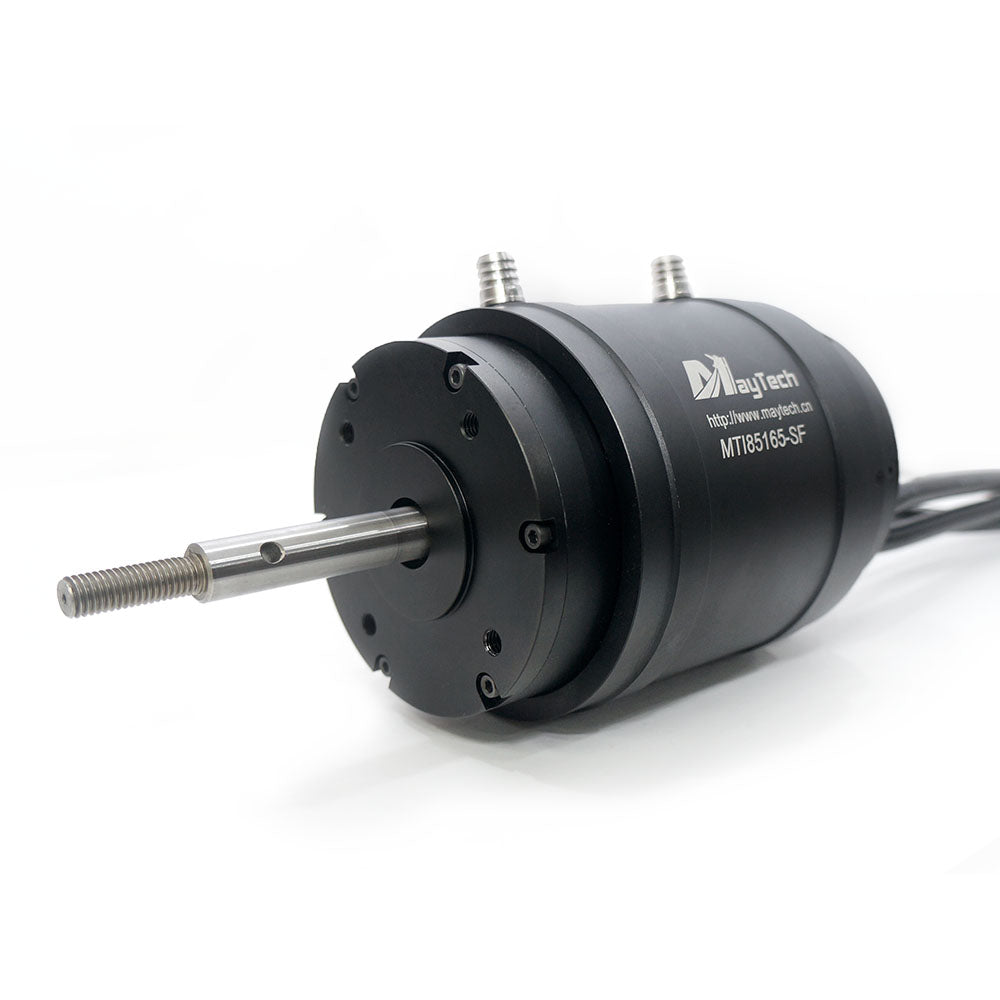

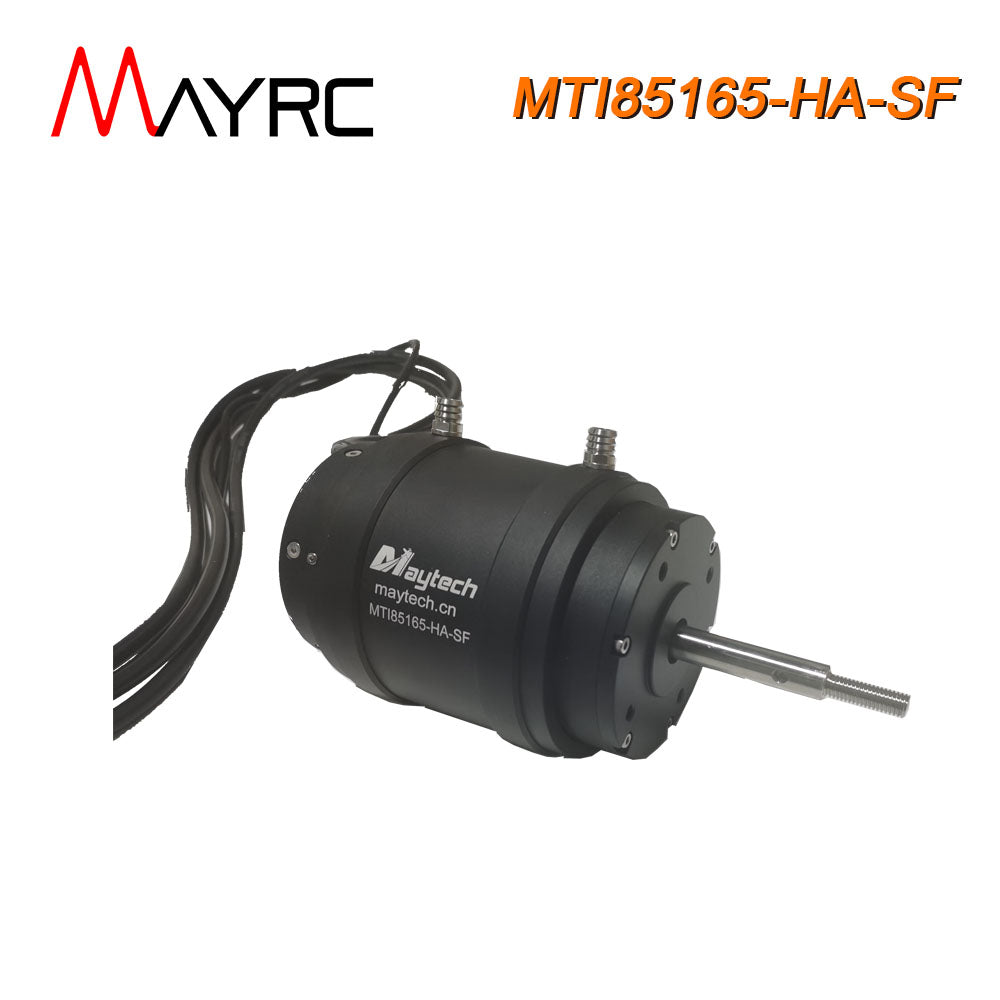

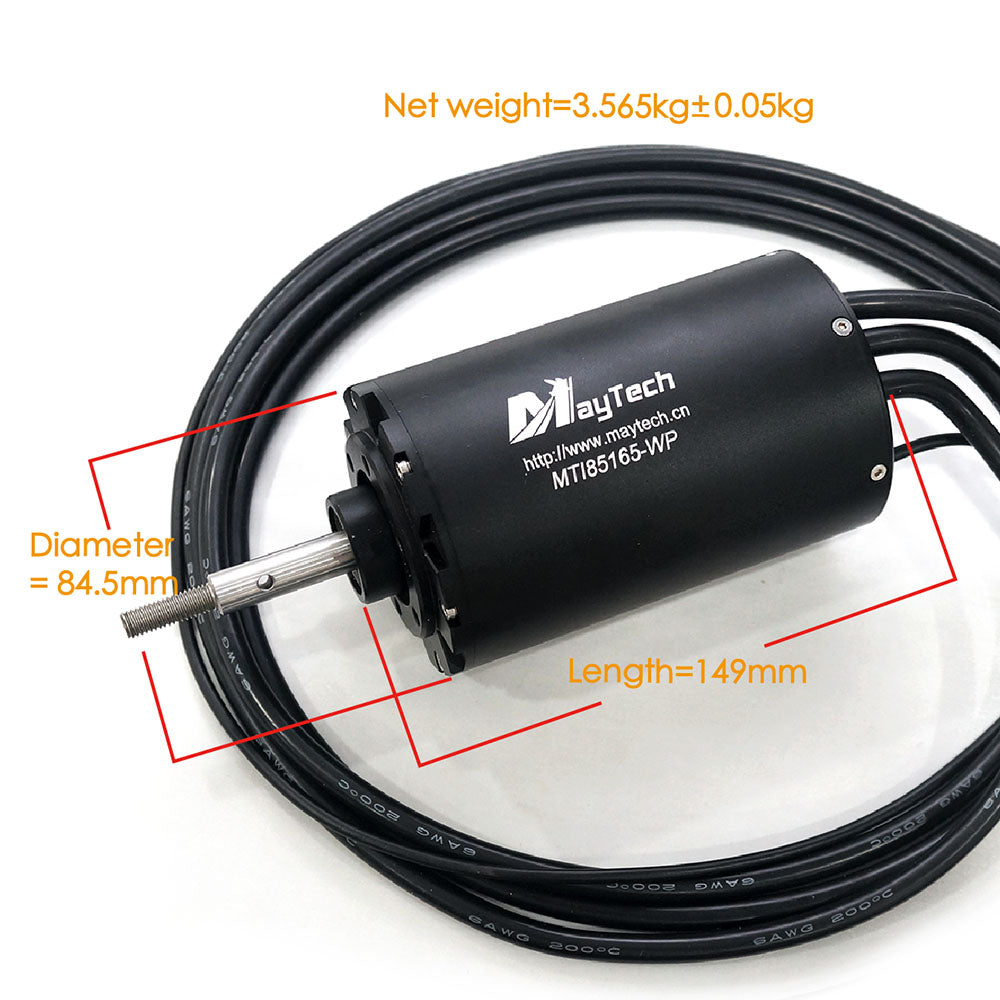

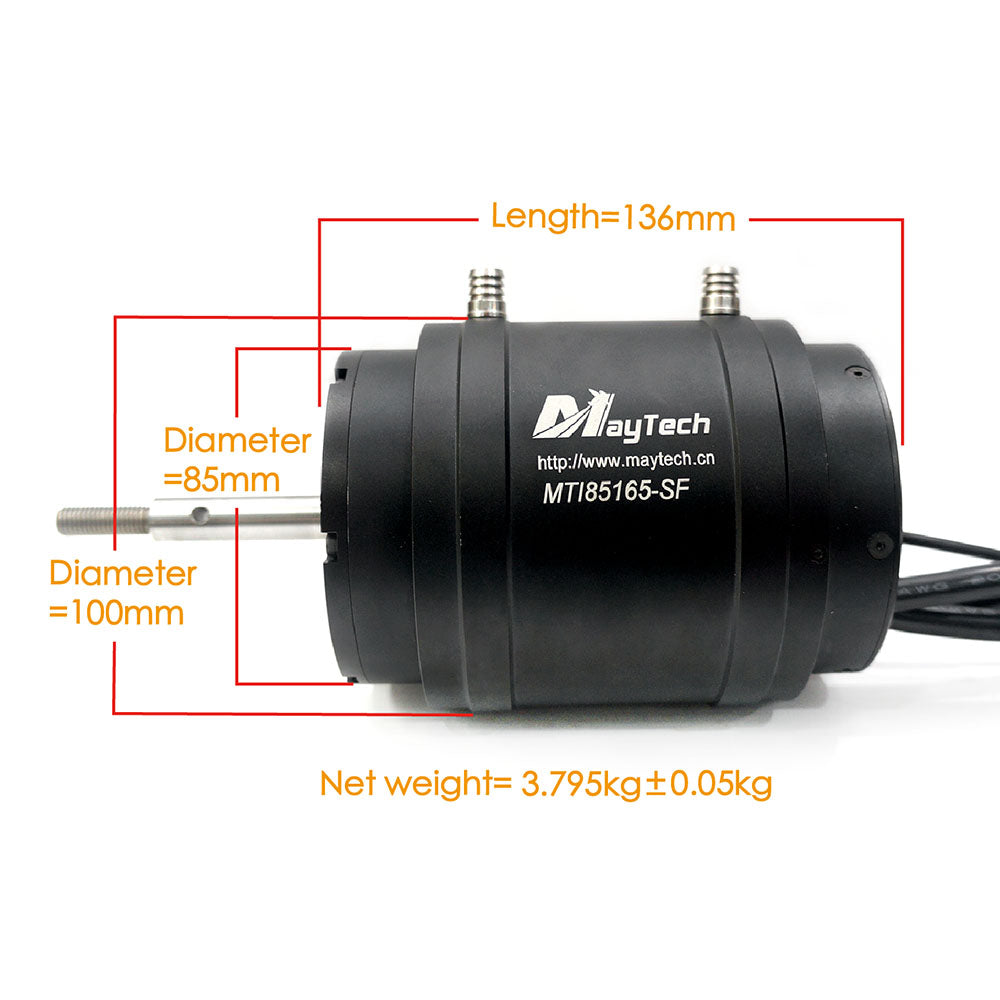

The motor has 2 versions, fully waterproof version and splash proof water-cooled version.
Fully waterproof motor has upgraded to water-seal.

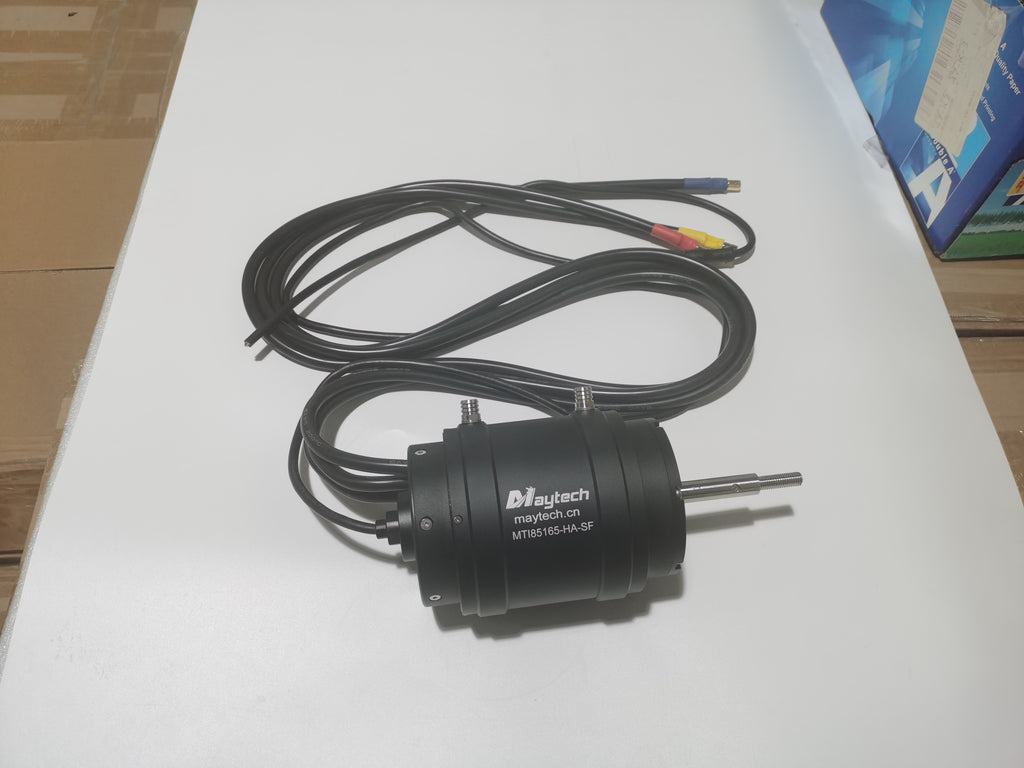

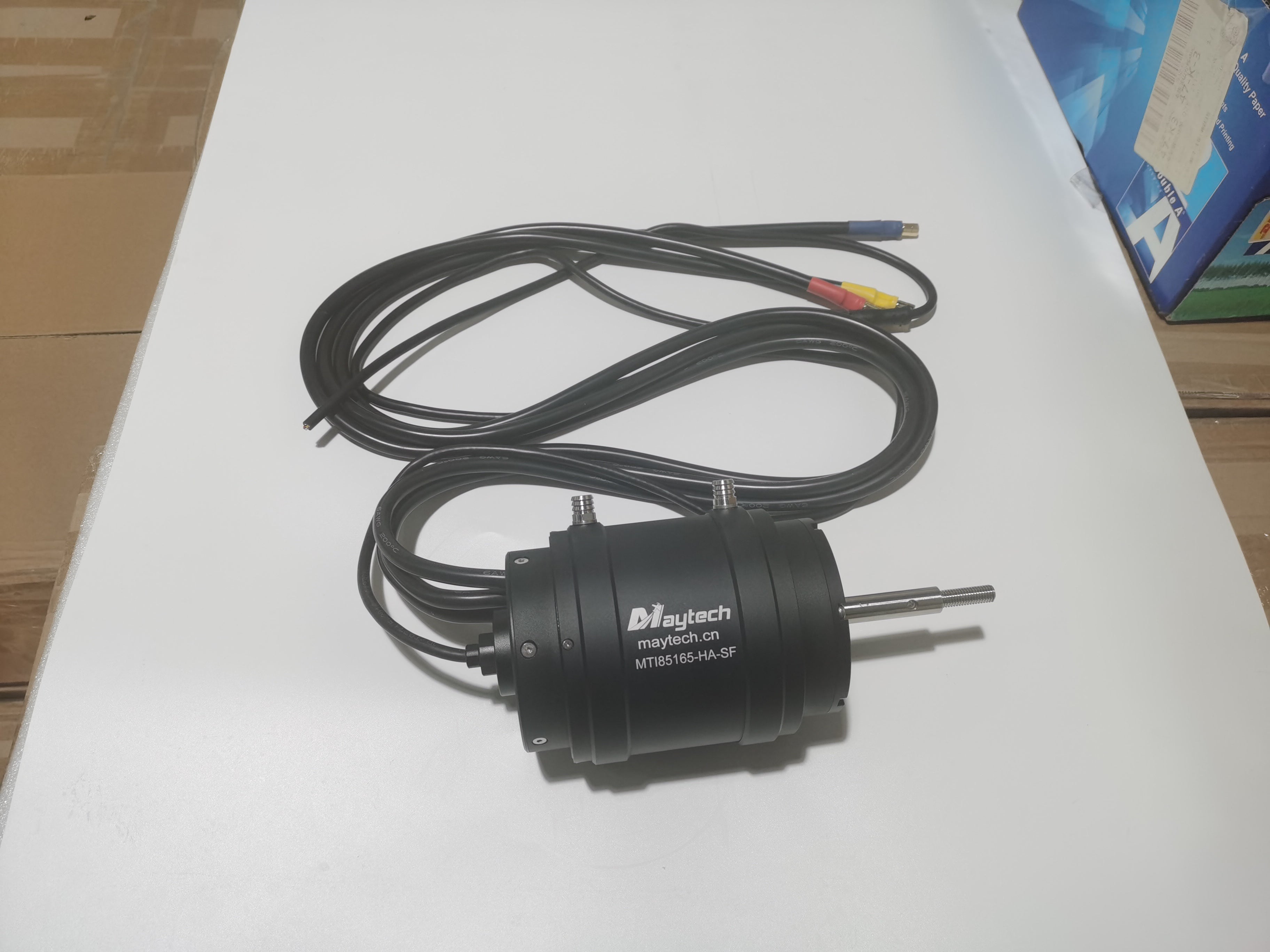

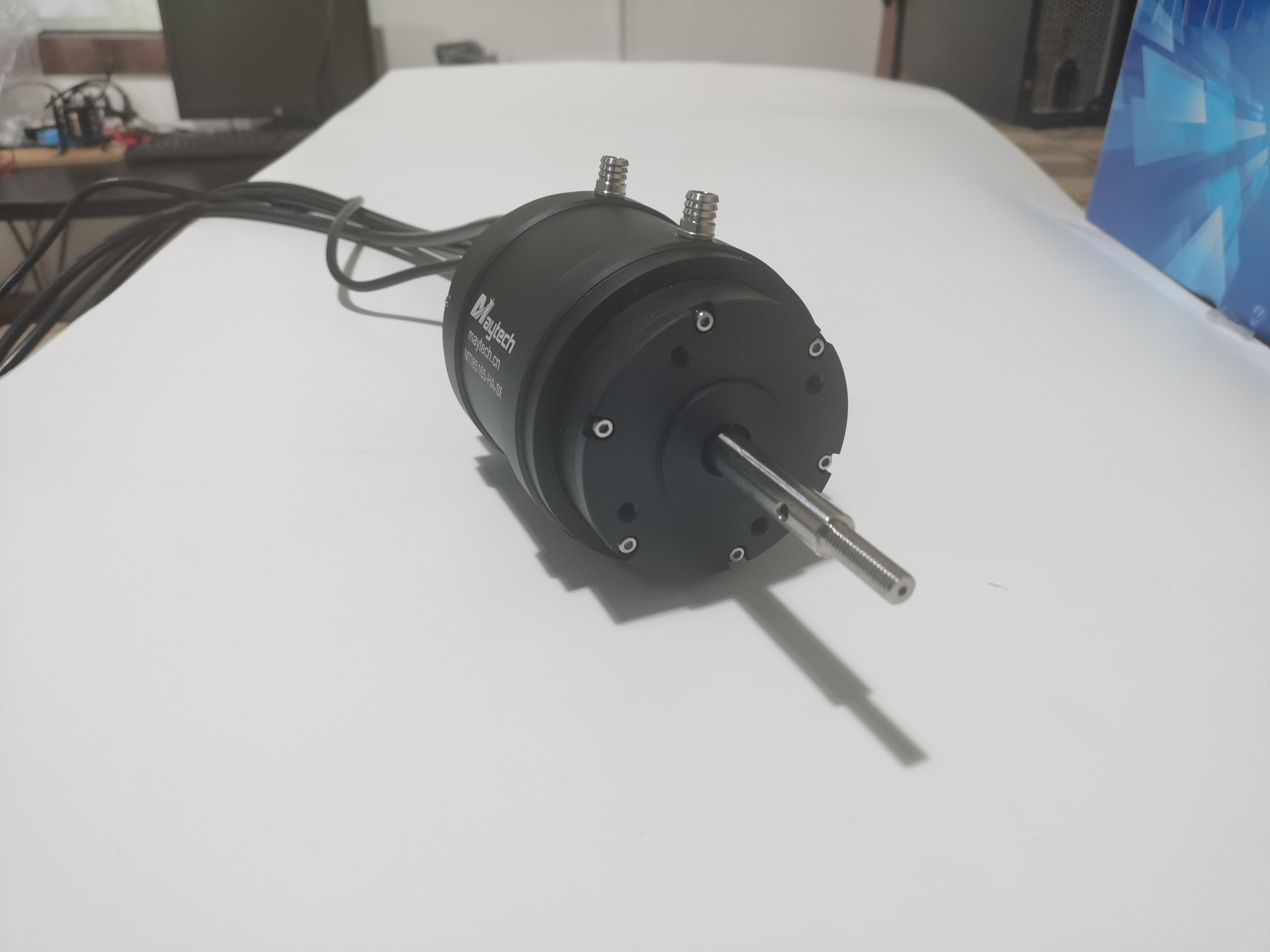

5. Application and Feedback
Flier ESC is not compatible with Maytech motors. Recommend Maytech ESC.
7. Related Products
>Maytech 300A Water-cooled ESC
