Maytech 3pcs Brushless Inrunner Motor MTI65162 Fully Waterproof Motor 100KV/120KV/190KV for Eletcirc Surfboard Hydrofoil Efoil Jetsurf Electric Boat Robot
Maytech 3pcs Brushless Inrunner Motor MTI65162 Fully Waterproof Motor 100KV/120KV/190KV for Eletcirc Surfboard Hydrofoil Efoil Jetsurf Electric Boat Robot
Regular price
$1,054.94 USD
Regular price
$1,482.00 USD
Sale price
$1,054.94 USD
Unit price
/
per
Couldn't load pickup availability
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/65162_1_dcd714d6-78de-471a-8848-0bd7ca797852_480x480.jpg?v=1698917103)
![](https://cdn.shopifycdn.net/s/files/1/0268/1153/1338/files/65162-SF_7_10a7a199-e982-485c-8611-c40c1f425583_480x480.jpg?v=1698916536)

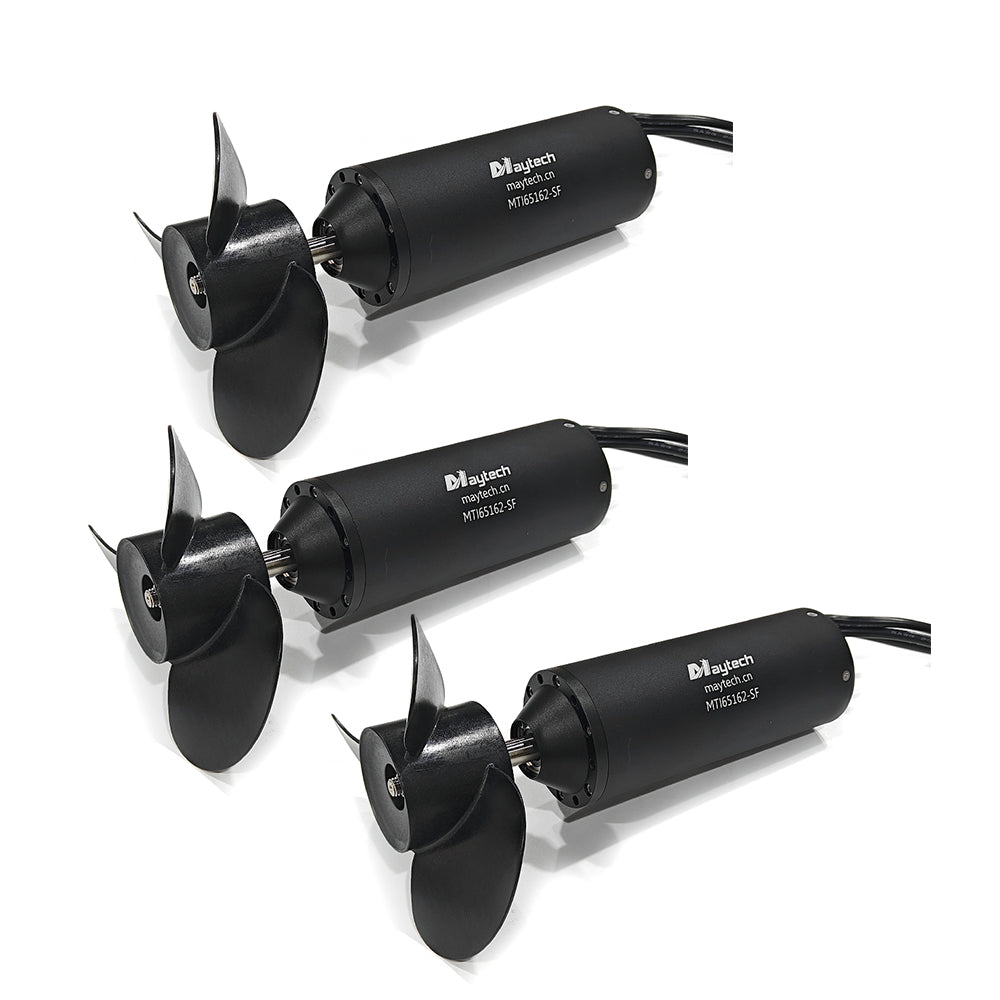

3PCS 65162 Motor Promotion
Price:
US$1343.9/set - 3PCS MTI65162 100KV splined shaft with propeller
US$1259.7/set - 3PCS MTI65162 120/190KV screw shaft
Product Details:
1. Main Advantage
- Fully water-proof, IP68;
- Rust-prevention, can be used in sea water, salt water, rivers, lakes, etc.;
- With roller bearing for longer life span, more thrust power;
- With ceramic ring waterseal technology, better water-proof performance than oil-sealed;
- Shaft, KV, motor cables can be customized.
2. Specification
Model No. | MTI65162-SF | Motor Type | Inrunner Motor |
Waterproof | IP68 | KV(RPM/V) | 100 |
Max. Current | 300A | Input Volt | 6-20S |
Max. Output Watt | 9.8KW | Rated Power | 8.9KW |
Idle Current @8.4V | 1.5A | Max. Torque | 10N.m |
Motor Weight | 2850g | Shaft | 12mm |

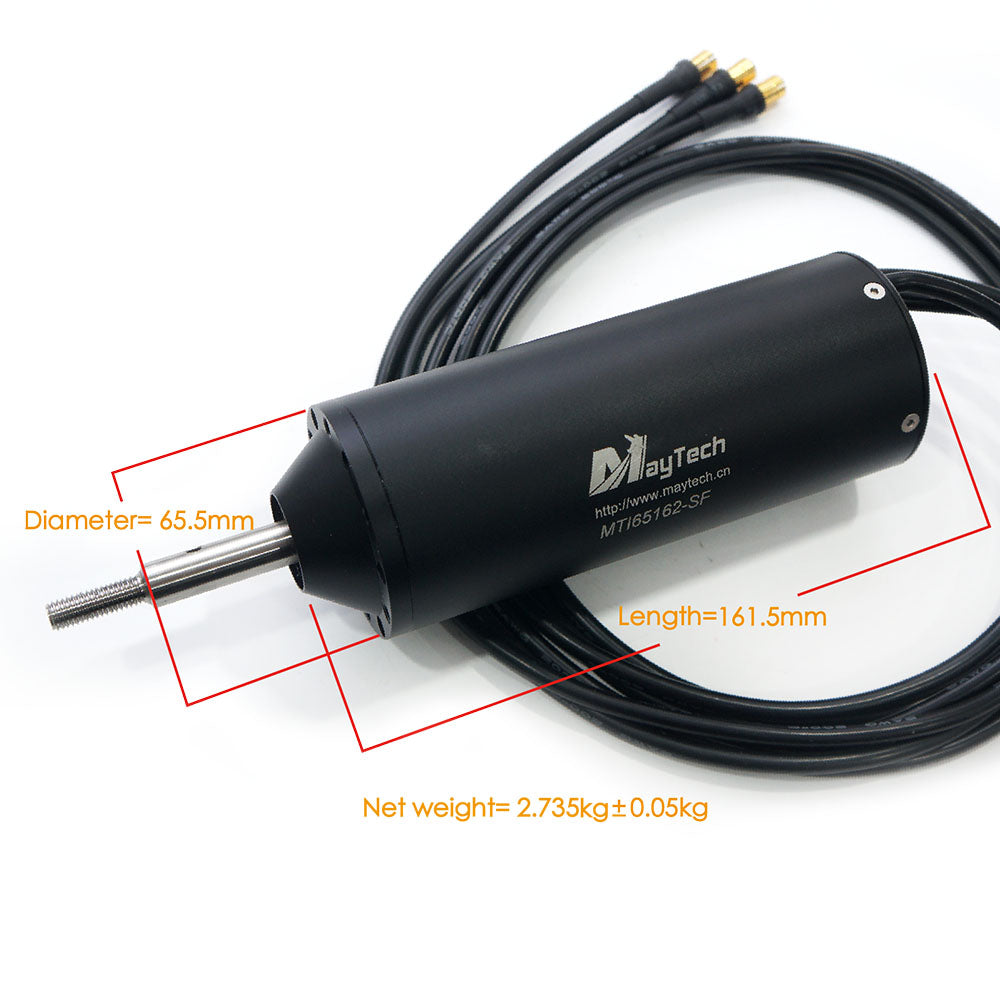

Motor Dimension | Φ65x 162mm | Stator Dimension | Φ61x 100mm |
Hall Sensor | No | Propeller | 7.5*7 inch |
Model No. | MTI65162-SF | Motor Type | Inrunner Motor |
Waterproof | IP68 | KV(RPM/V) | 120/190 |
Max. Current | 310A | Input Volt | 14-20S |
Max. Output Watt | 9.1KW | Rated Power | 8.2KW |
Idle Current @8.4V | 1.6A | Max. Torque | 9N.m |
Motor Weight | 2850g | Shaft | 12mm |
Motor Dimension | Φ65x 162mm | Stator Dimension | Φ61x 100mm |
Hall Sensor | No | Propeller | Without |
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/3._Test_datasheet.jpg?v=1599629037)

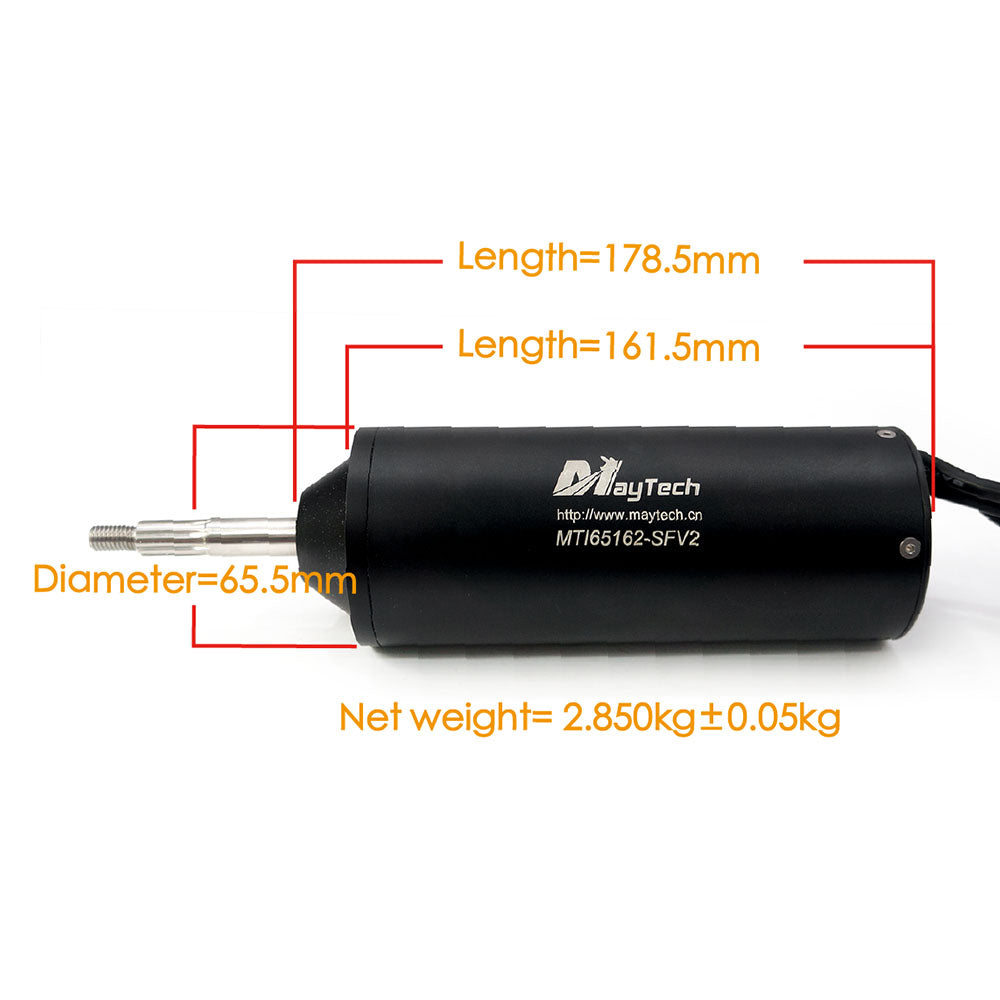

3. Motor Drawing
-

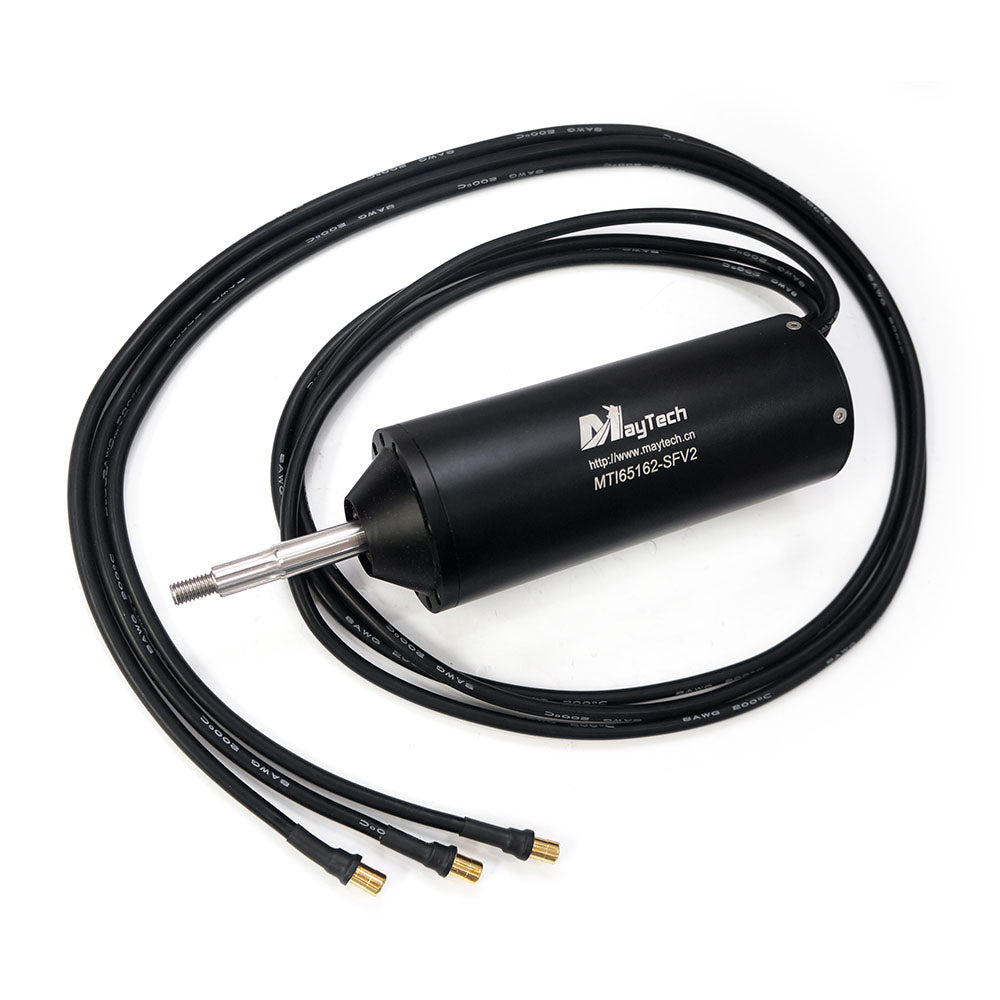

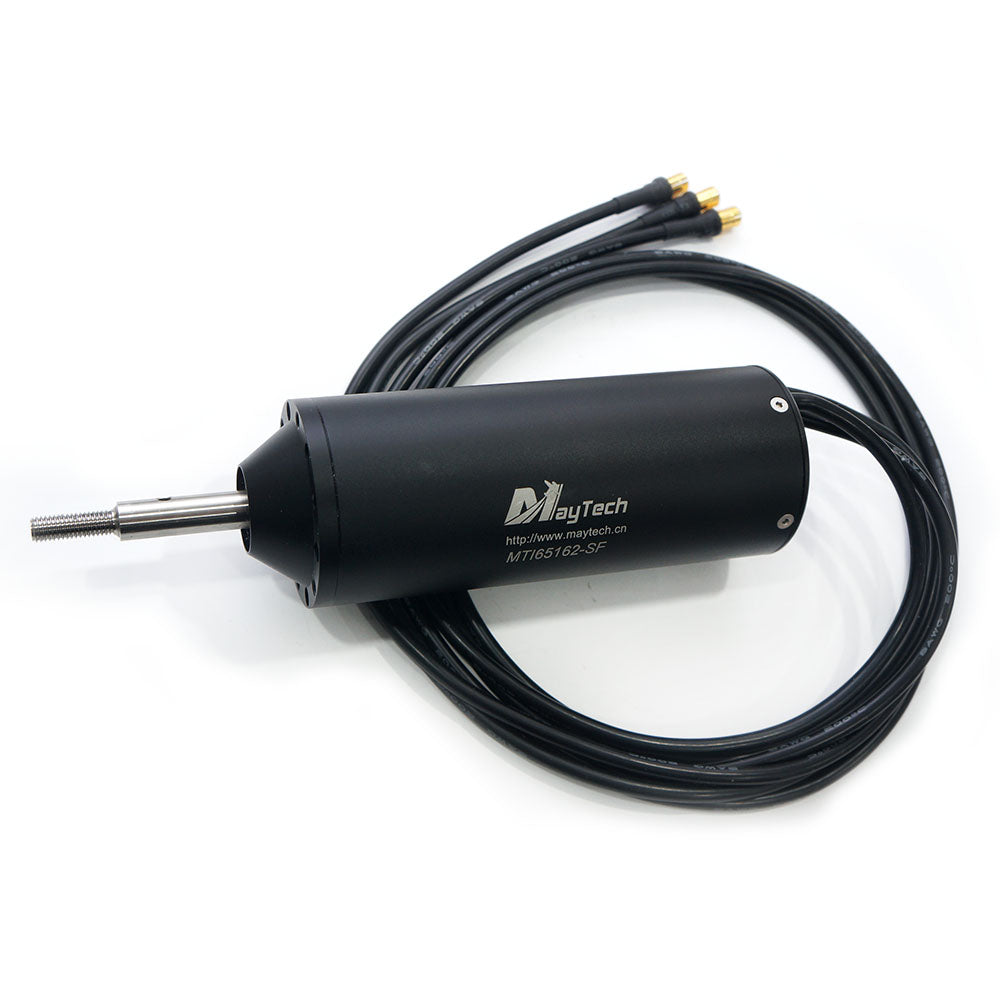

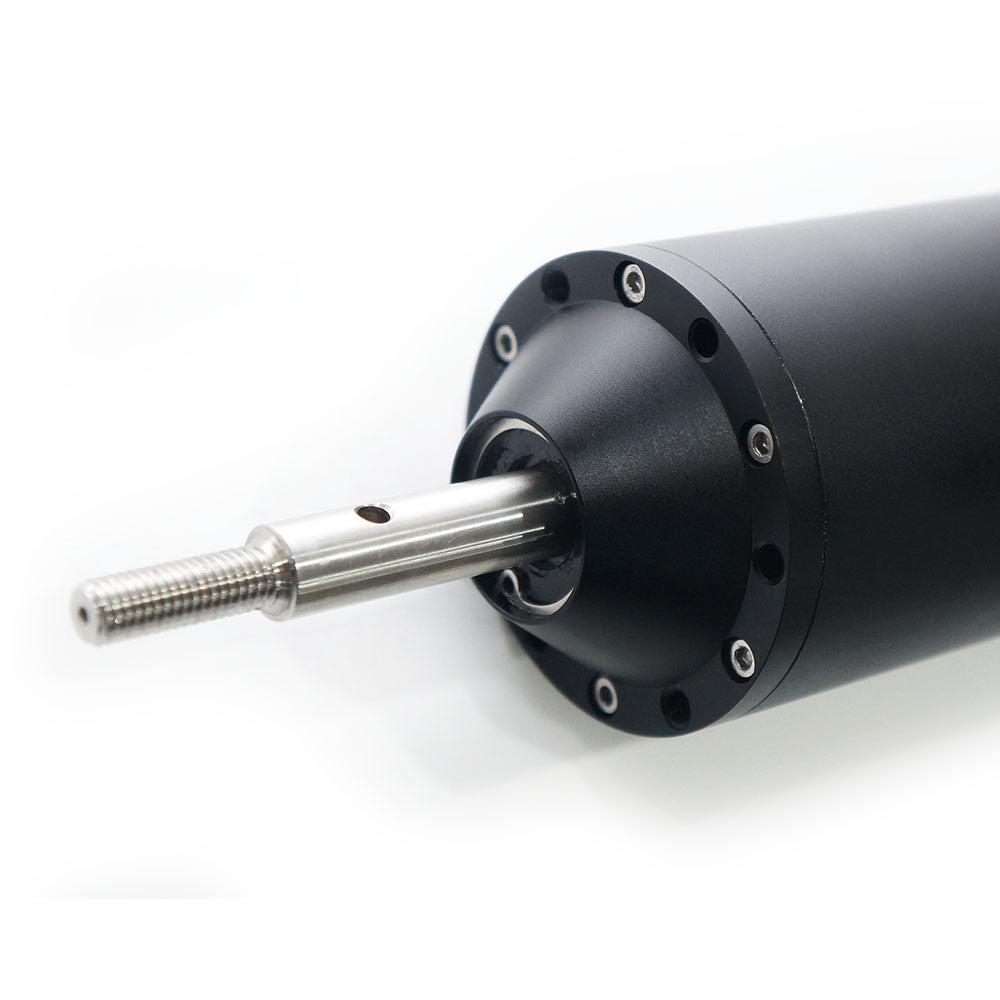

The motor has 2 types of shaft, splined shaft and screw shaft.
-

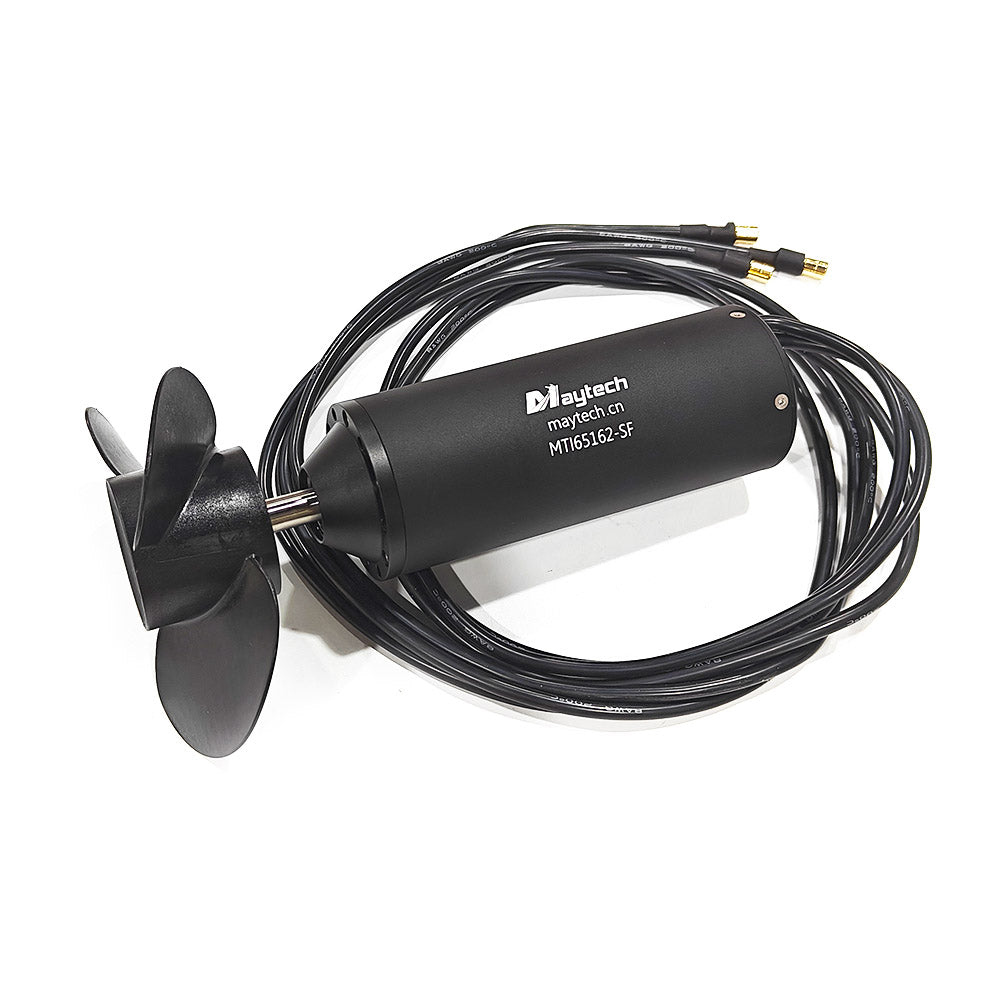

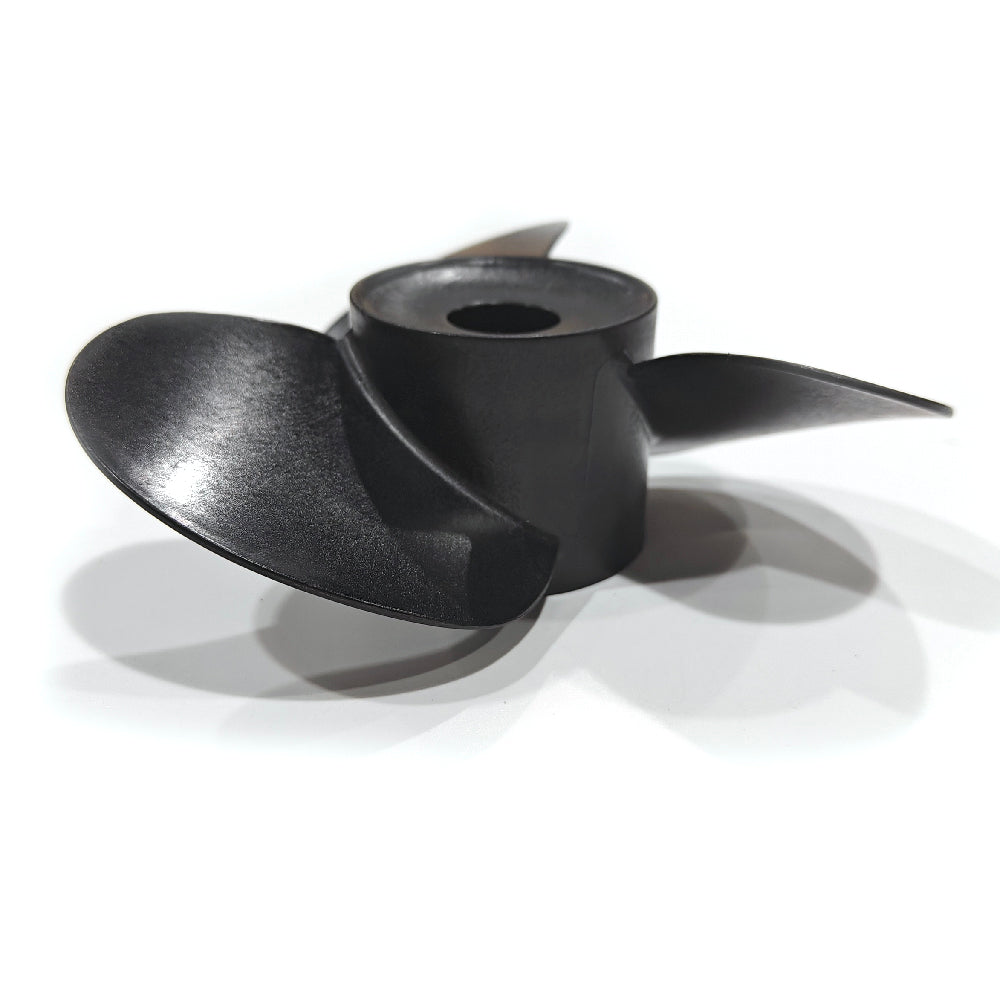

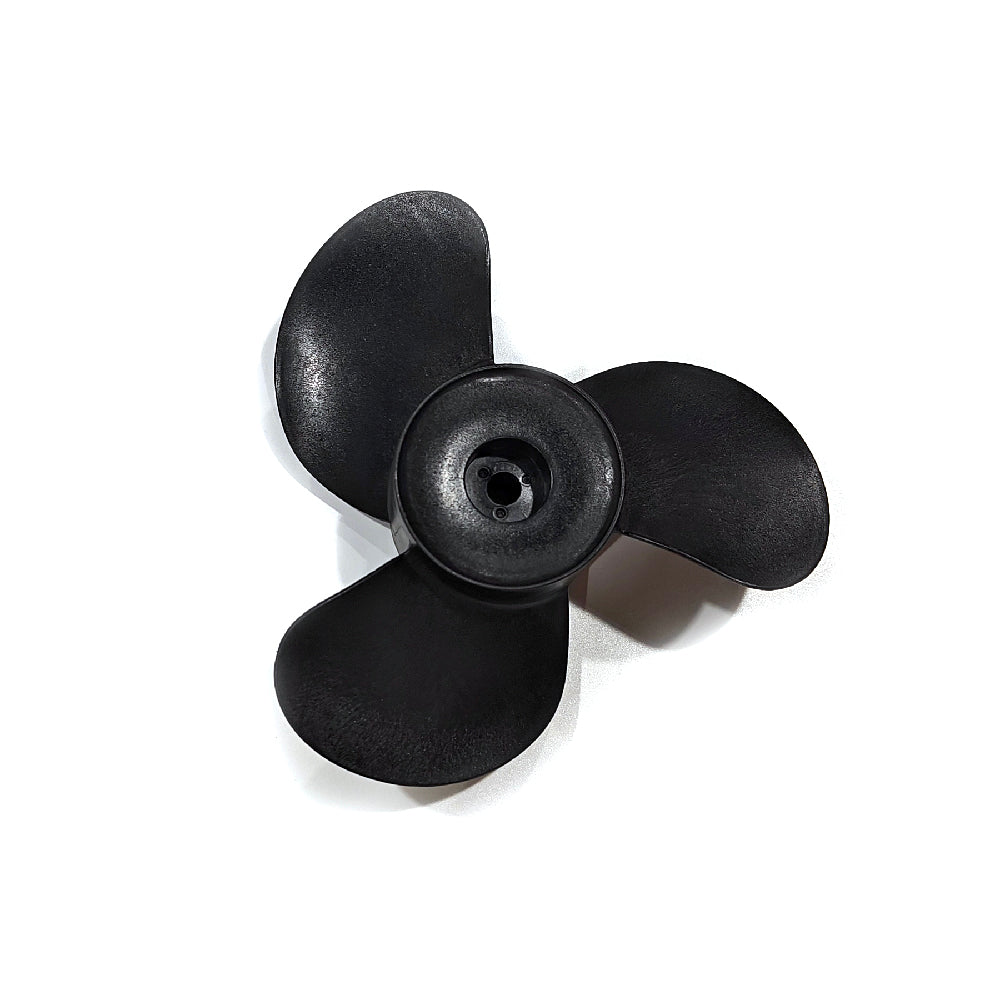

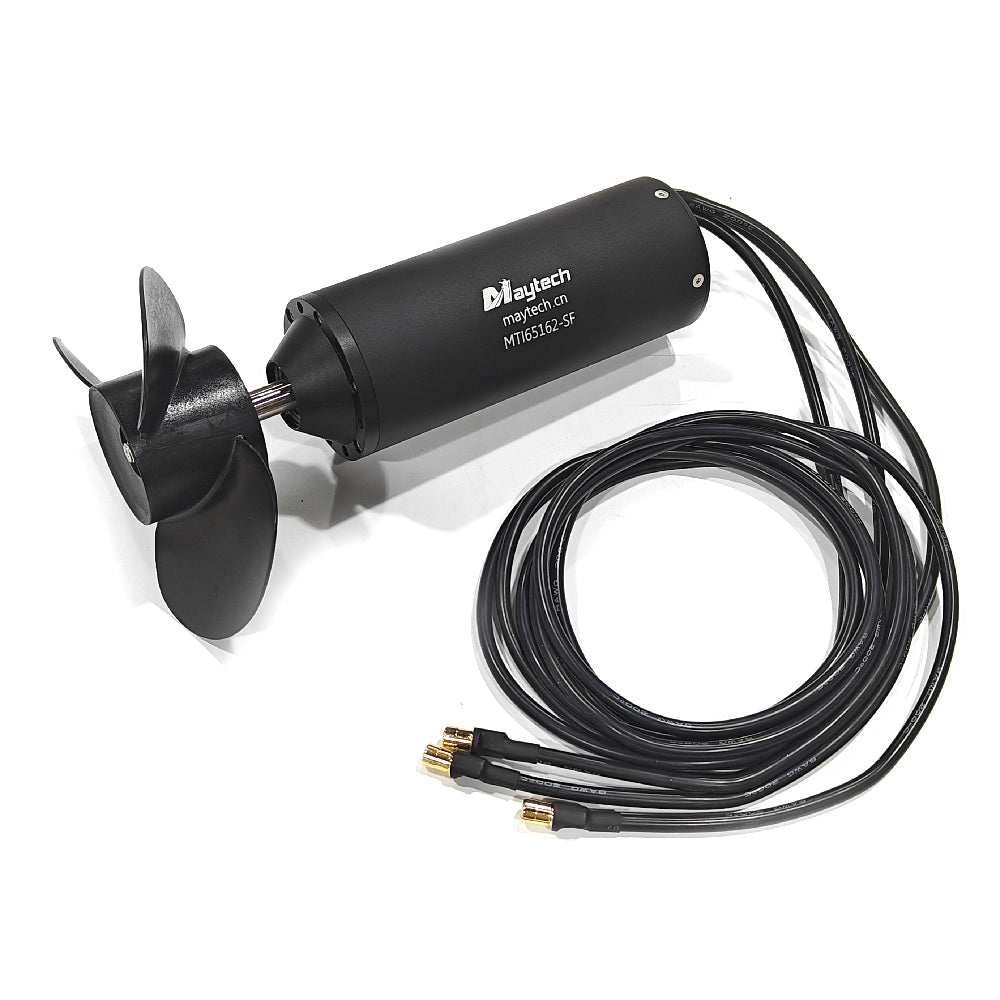

Splined shaft motor is 100KV with 7.5*7 inch splined propeller.
-

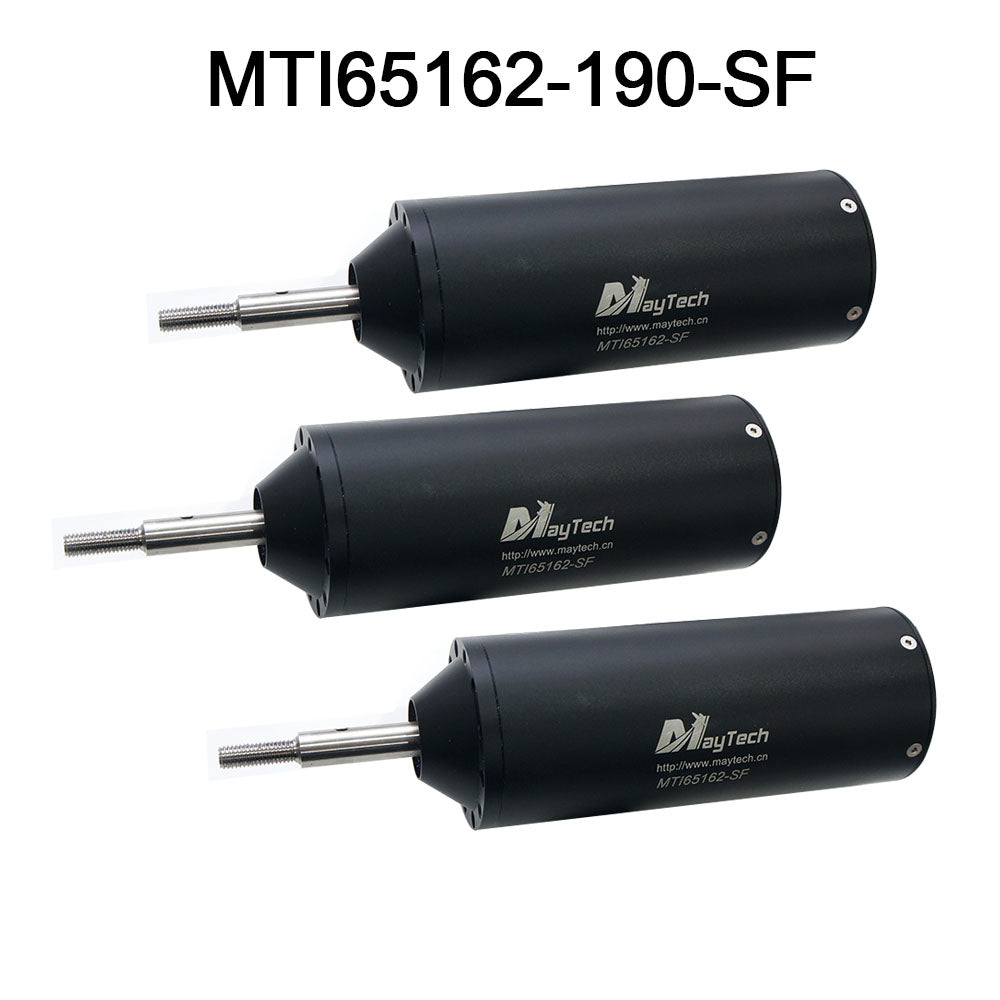

Screw shaft motor is 120KV and 190KV, propeller is not included.
![](https://cdn.shopify.com/s/files/1/0268/1153/1338/files/motor_drawing_splind_and_screw.jpg?v=1599629280)
4. Production
5. Application and Feedback
6. Test Video
7. Tips
-
Flier ESC is not compatible with Maytech motors. Recommend Maytech ESC.
8. Related Products
>Maytech 300A Water-cooled ESC
>Maytech 300A Fully Waterproof ESC
