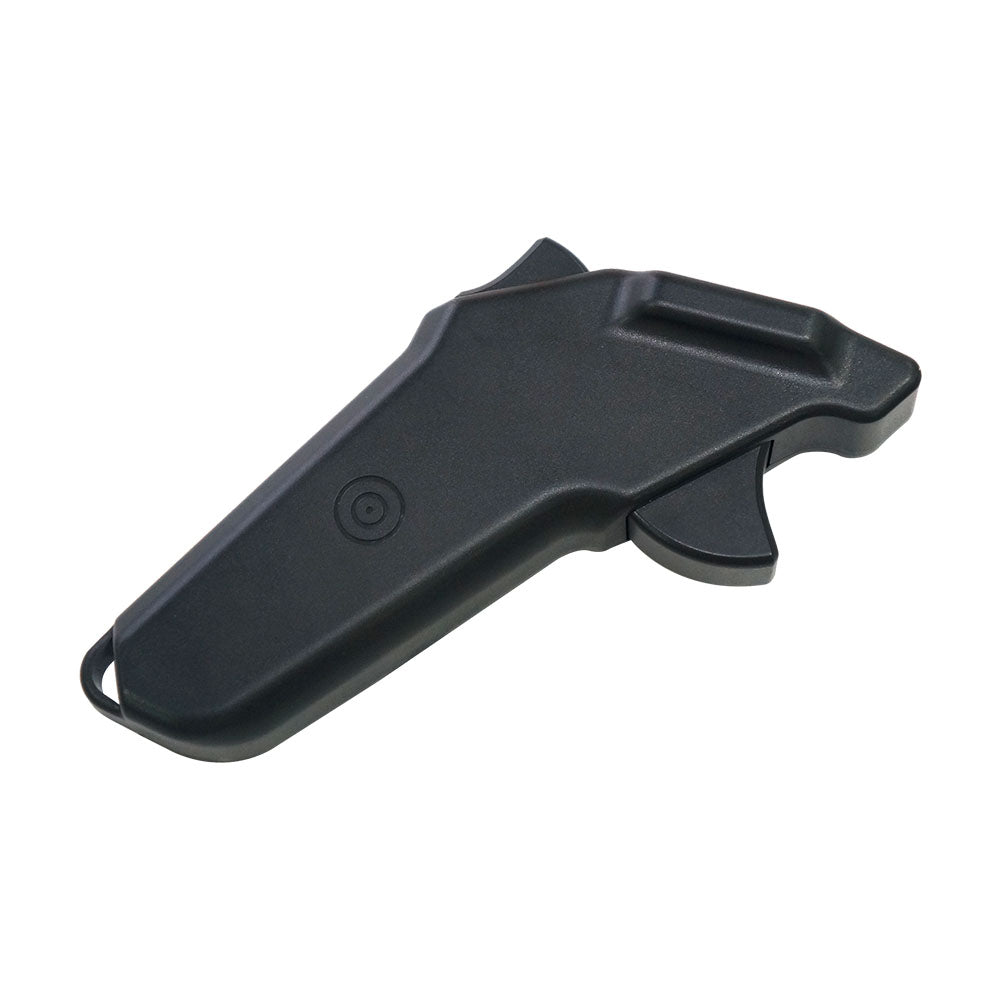

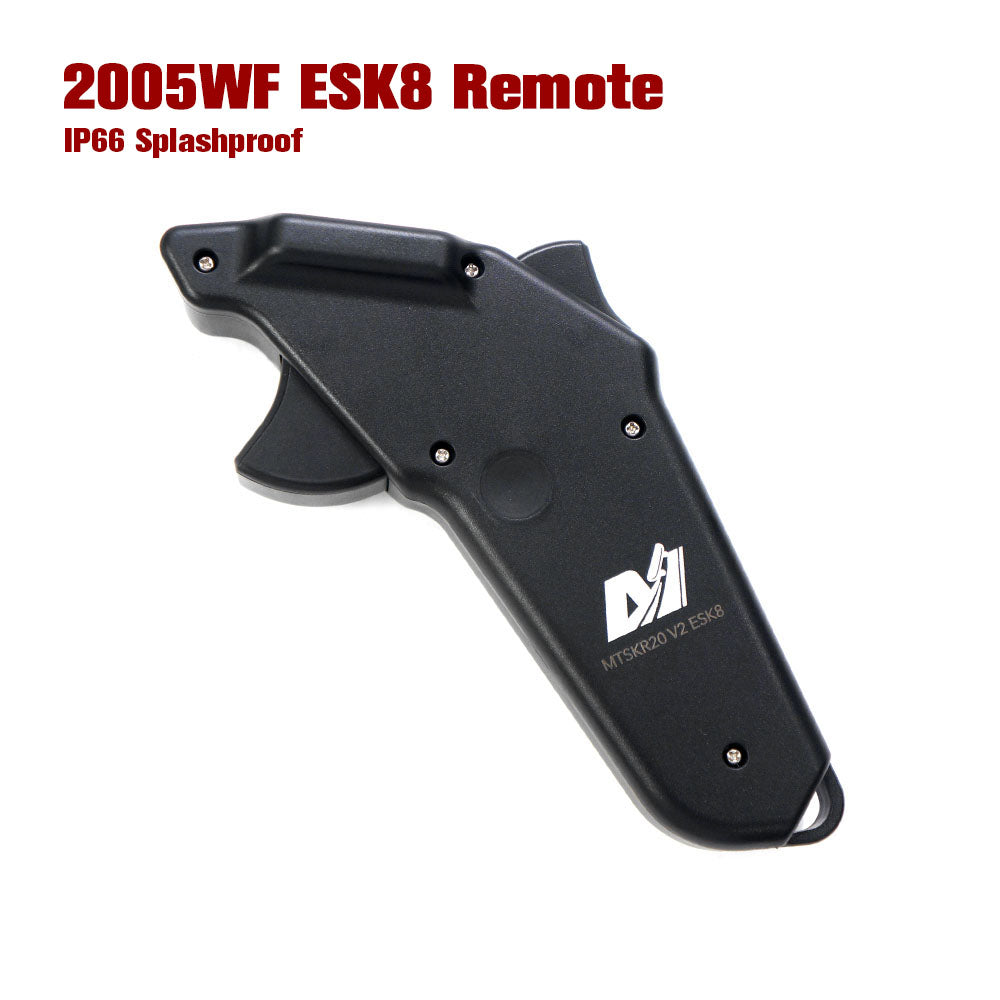

Maytech MTSKR2005WF V2 Waterproof IP66 Remote Control Wireless Charging LED Screen for ESK8 DIY Electric Skateboard

  • $86.90
    Unit price per
  • Save $15.30


Compared MTSKR1902WF and MTSKR2005WF

 Model No.

MTSKR1905WF

MTSKR2005WF

Waterproof

IP67 double waterproof

IP66 waterproof

Control mode

Esurf mode

Esk8 mode

new ESK8 mode

Application

Electric-surfboard/Efoil; Underwater control;

E-skateboard

ESK8

Throttle display

 0-100%

 ±100%

±100%

 Cruise control

 Yes

 No

No

 Speed display

 No

 Yes

Yes

 Travel distance

 No

 Yes

Yes

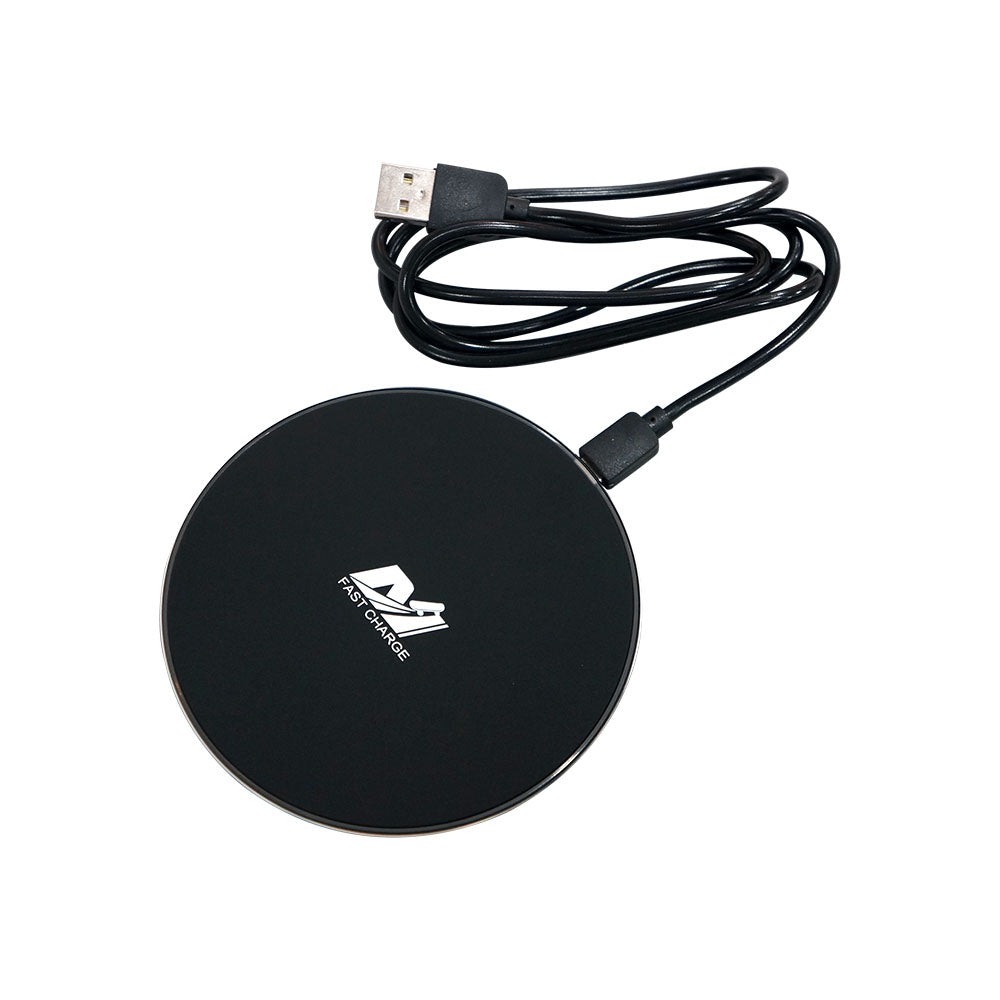

Charger

QC 2.0 Wireless

Wireless frequency

2.4GHz wireless with 40 Channel

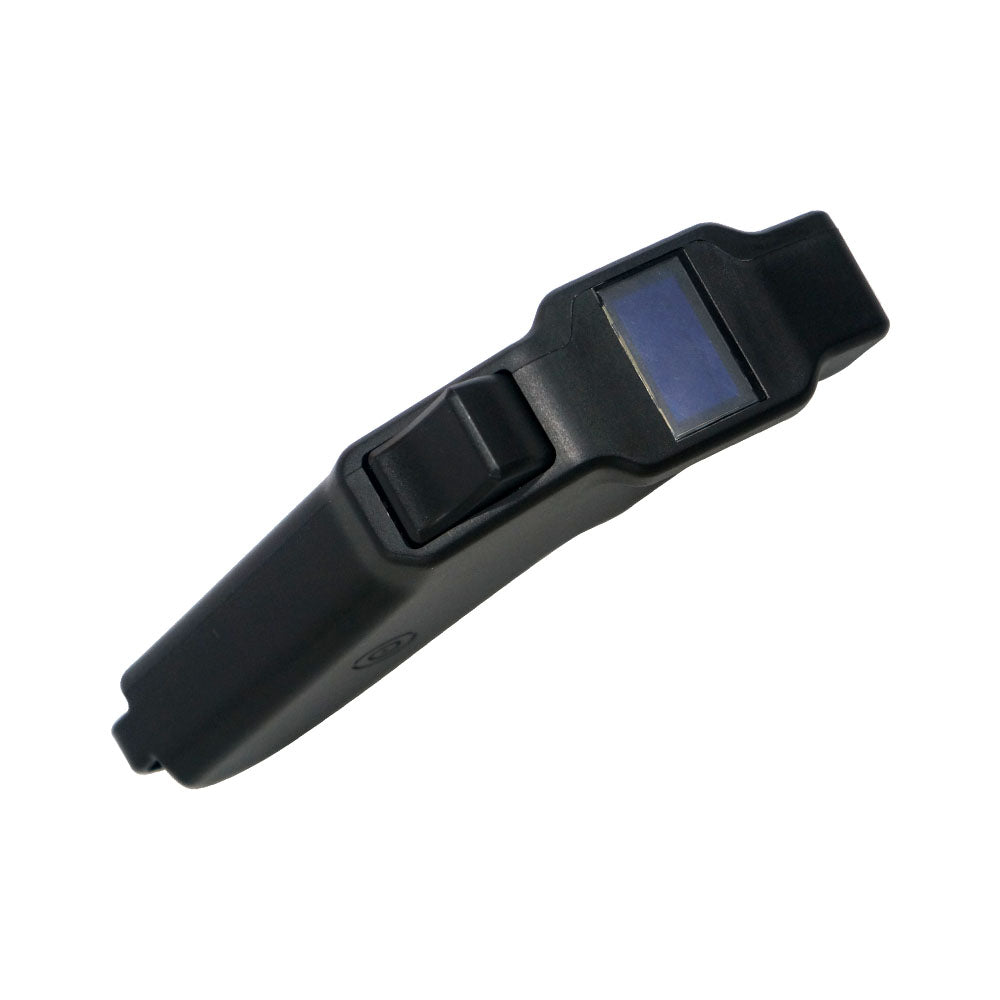

 Display screen

OLED Yellow and Blue

Voltage display

Remote and Main Battery Voltage Level(Lithium iron/lithium ion battery optional)

Triggers

2 x High sensitivity triggers

Throttle output

PWM 1ms-2ms 100Hz

 Telemeter  Data by Recevicer

Motor RPM/Main Battery Voltage

 Telemeter  Data by VESC

ESC voltage/current/temperature/Motor temperature/RPM

Compatible ESCs

VESC4/VESC6/FOCBOX/Other PWM ESCs

VESC control mode

Duty Cycle / Current Mode

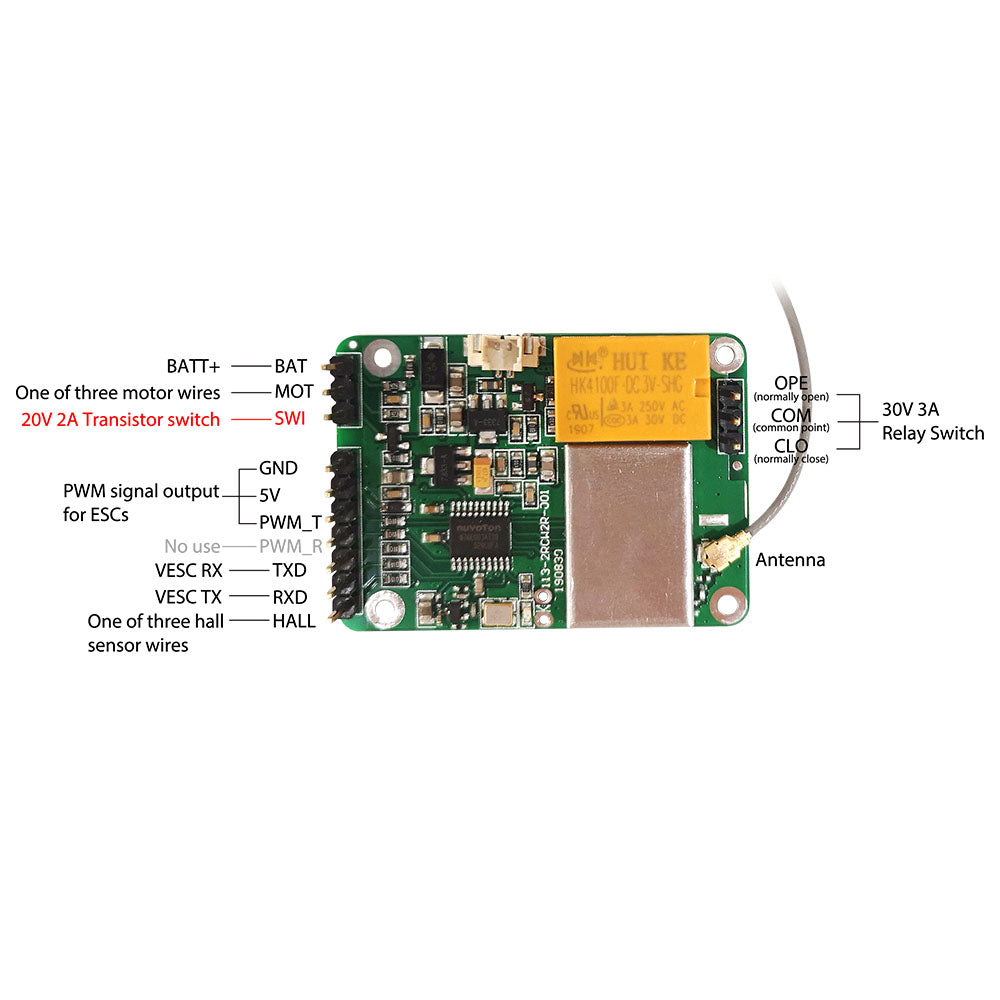

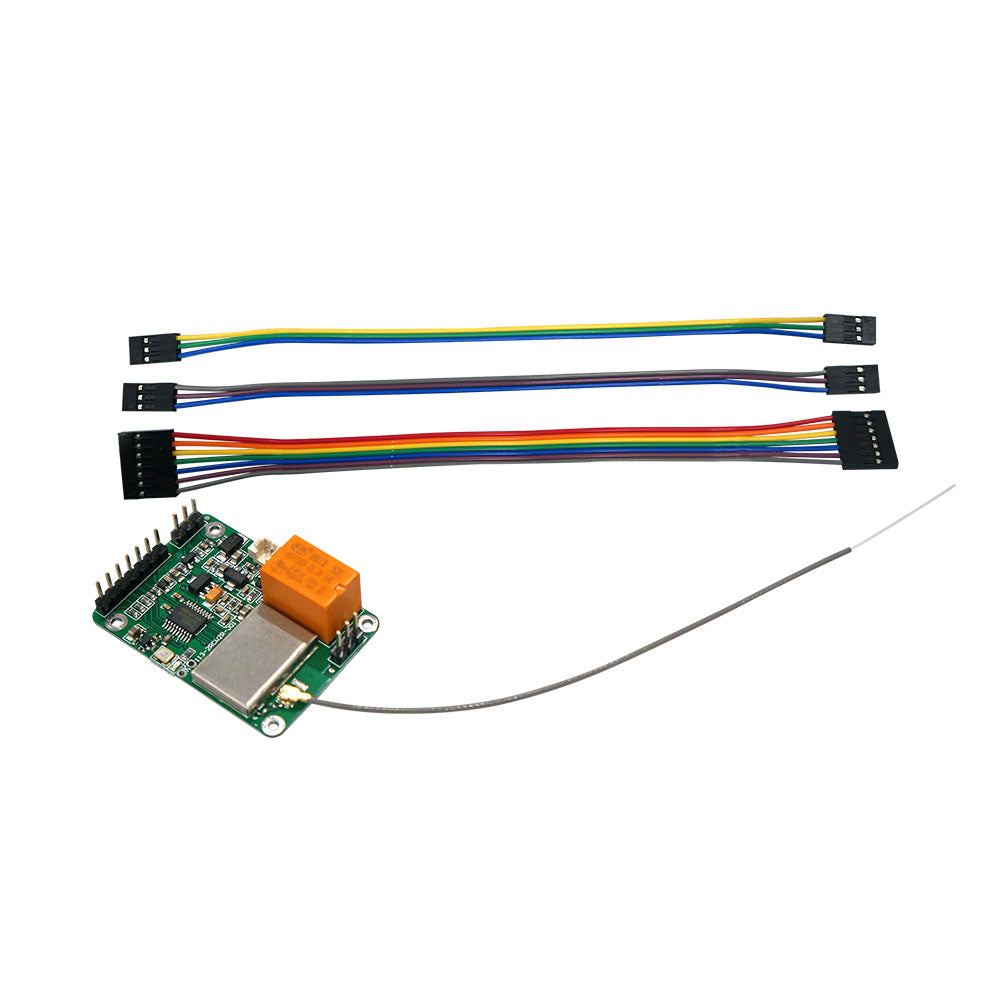

Receiver's built-in switches for esk8 lights, esurf water pump using, etc

1 x 30V 3A mechanical relay switch

1 x 20V 2A transistor electronics switch



Tips for Usage:

1. This remote only has Esk8 mode, and it's just normal waterproof, can only work for electric skateboard, please do not use for Esurf.

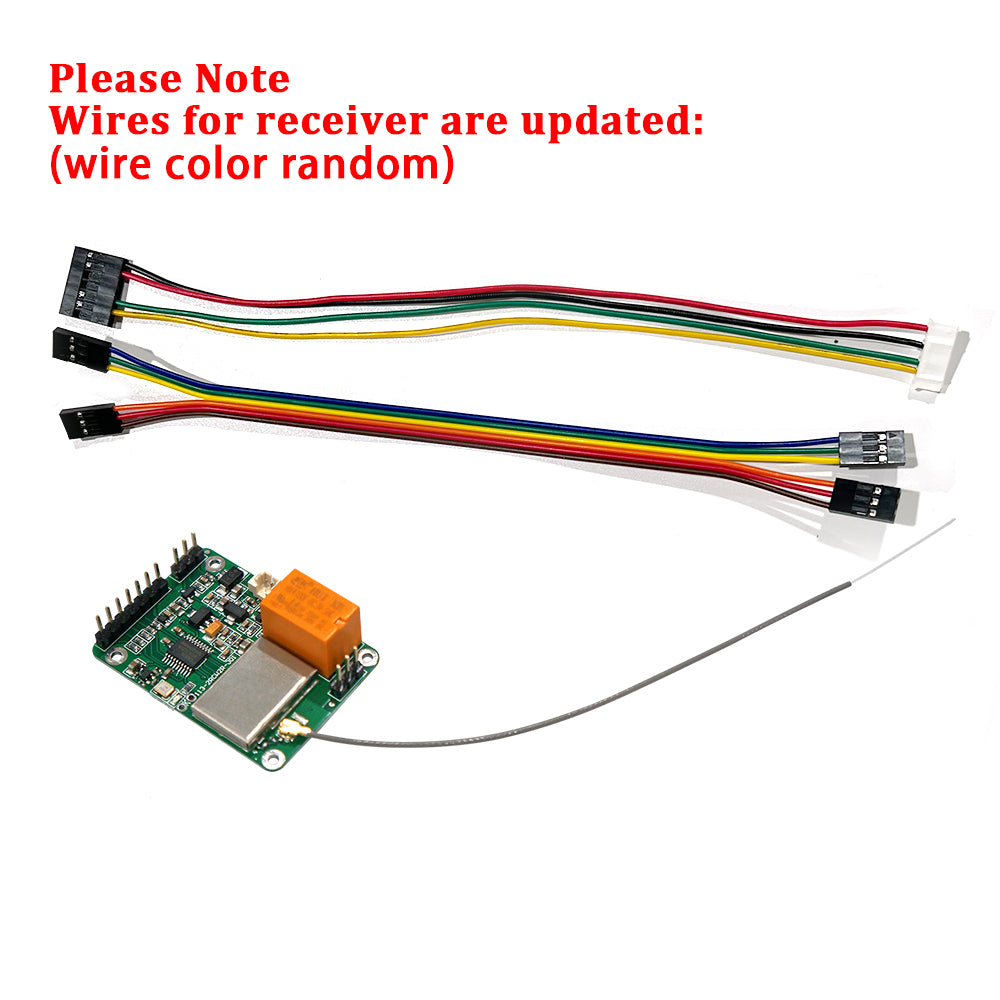

​2. The receiver is not waterproof, please keep the receiver away from water, otherwise the receiver would easy to have short circuit ​problem.

​3. Please attention when weld wire on the receiver or when using, each 2 pins do not touch each other, otherwise would easy to burn the receiver.
