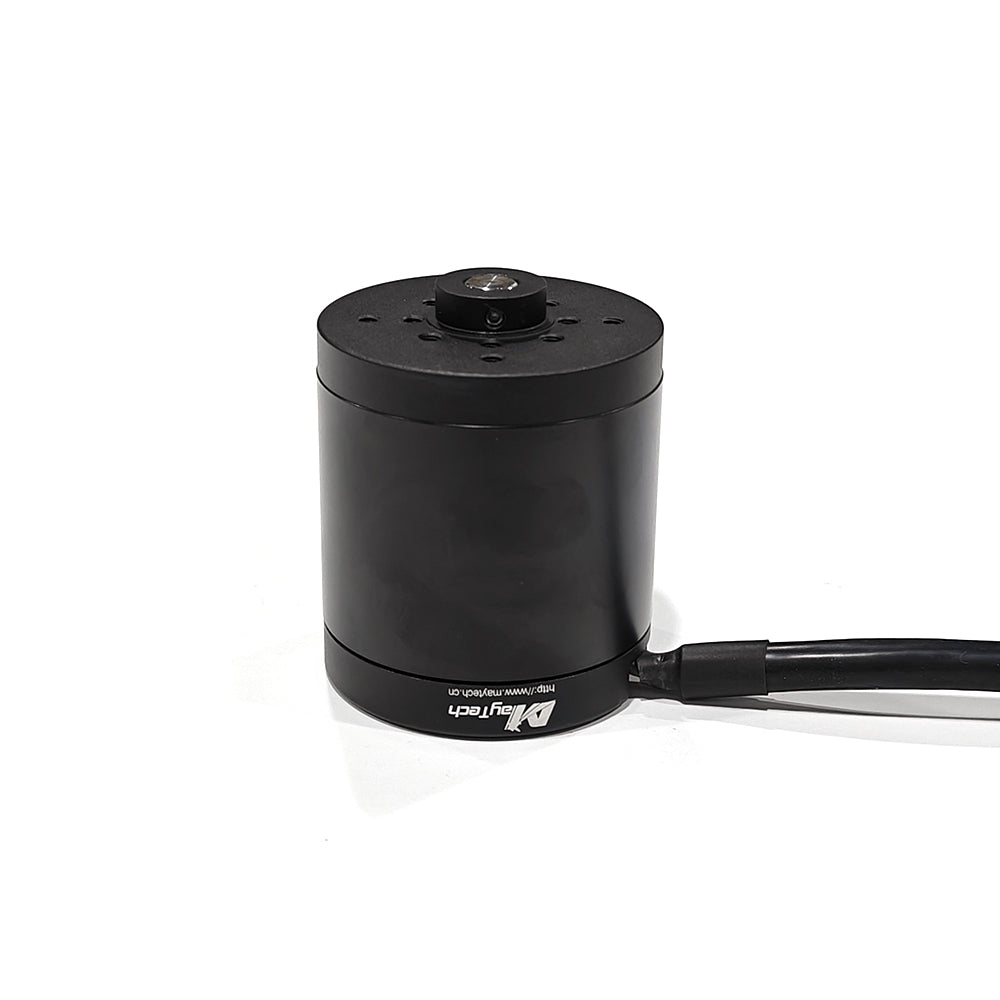

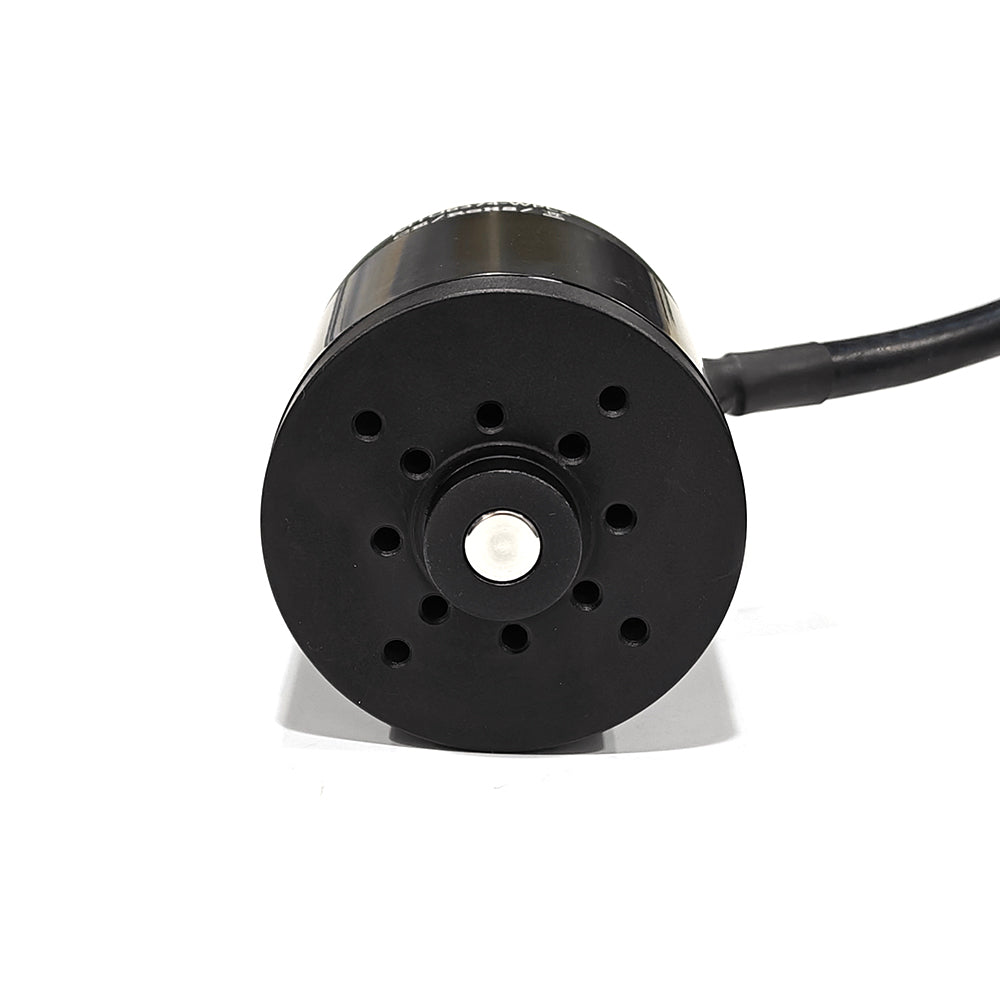

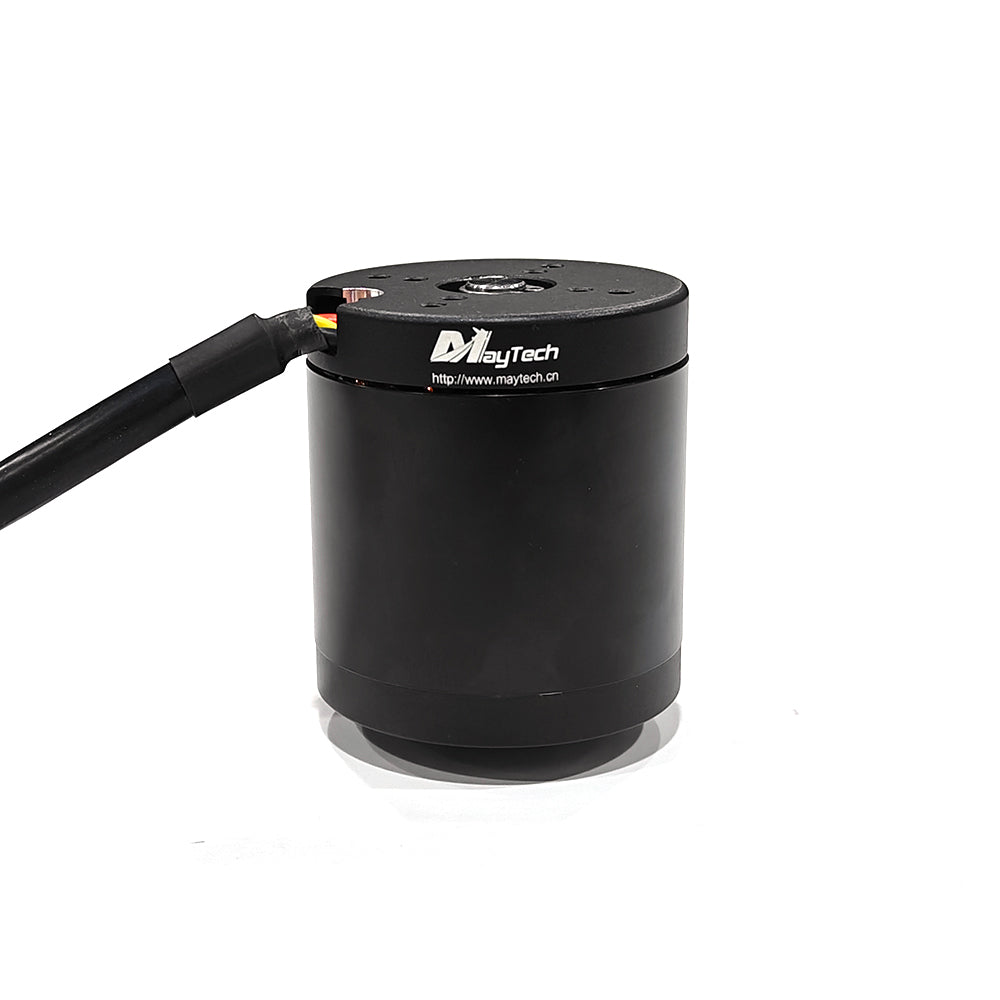

In Stock Foil Assist Motor 6374 80KV Marine Motor BLDC Outruner Waterproof Boosted Foil Motor
In Stock Foil Assist Motor 6374 80KV Marine Motor BLDC Outruner Waterproof Boosted Foil Motor
Couldn't load pickup availability
Notice:
The motor actual apperance is a little different from the picture, please subject to drawing and actual motor you receive.
Tips of usage:
In order to increase the motor lifespan, please take apart the rotor and stator, clean stator and rotor with fresh water after every time use, must remove salt on the surface of magnets and lamination, then keep them all dry, after all dried, please apply anti-rust paint or anti-corrossion protection on rotor and stator for maintainence.
> Check Test Datasheet
1. 6374 80KV Waterproof Motor

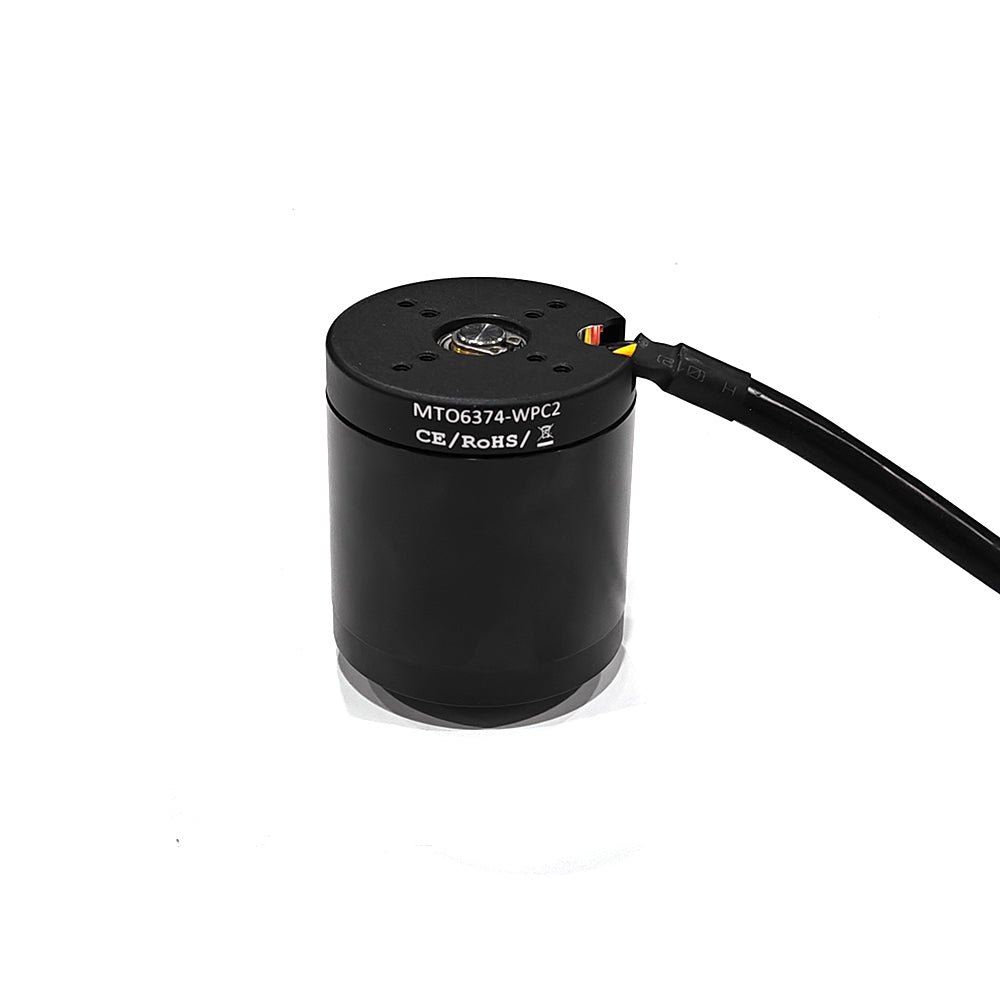

| Model No | MTO6374-80-WPC2 |
| KV | 80KV, can be customized, contact eileen@maytech.cn |
| Idle Current | 0.8A |
| Max Current | 102A at 42V |
| Rated Current | 60A |
| Input Voltage | 6-10S Lipo (24-42V) |
| Max Output Watt | 4.3KW |
| Shaft | No output shaft |
| Hall Sensor | Without |
| Waterproof Rank | IPX8 |

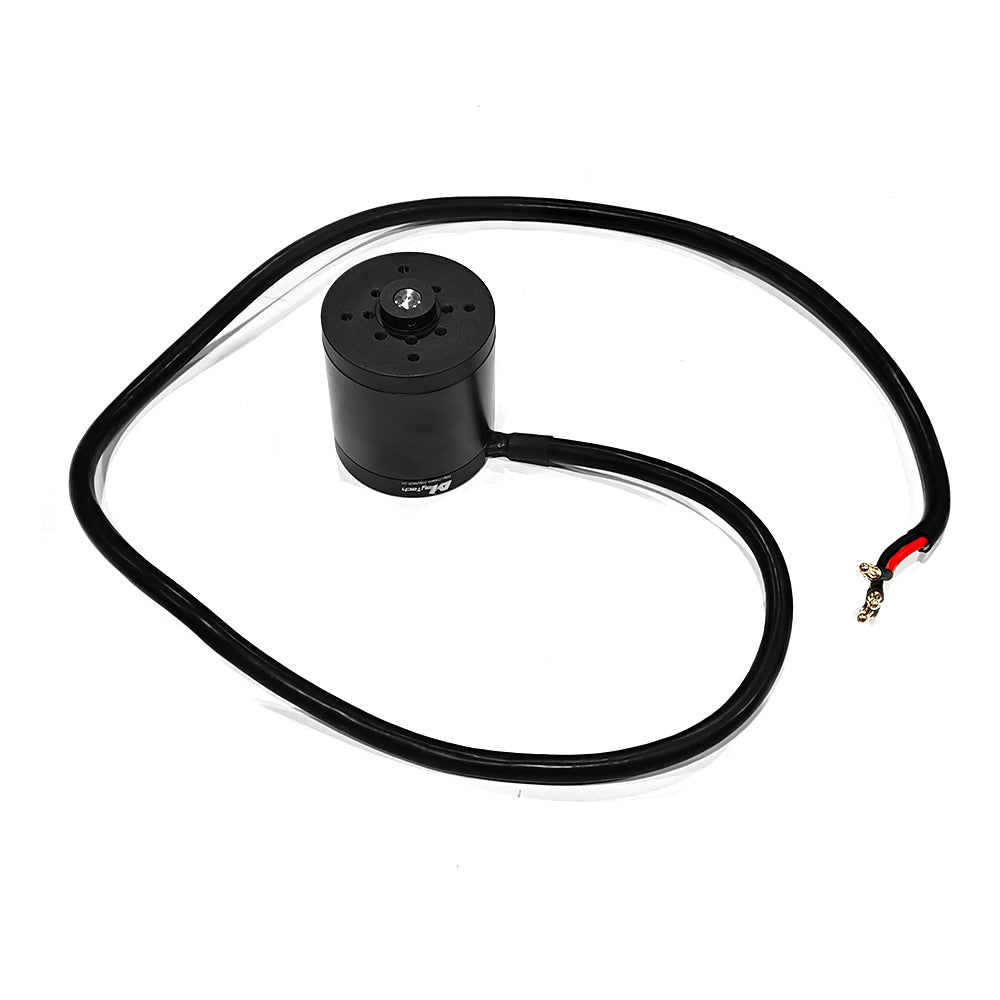

| Cable Length | 1m |
| Cable Guage | 3x 12AWG |
| Connector | 4.0mm Male bullet connector |
| Bearing | Stainless steel bearing |

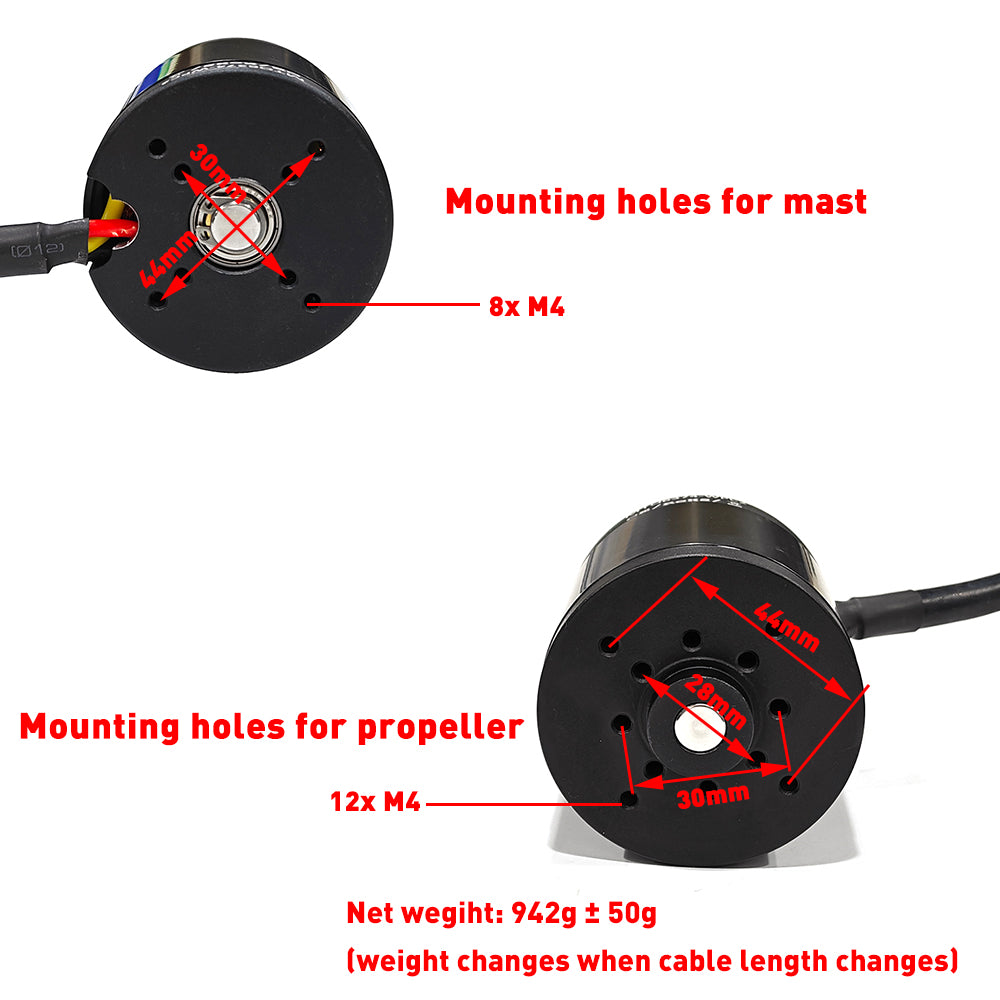

| Customize | KV, logo, shaft, mounting hole pattern, color, connector, cable, etc. contact shelly@mayrc.com |
Application:
DIY foil assist on wing foil, wind surf foil, sup foil board, kite foil, underwater thruster, sup foil assist, paddle assist, tow boogie, winch foil, wind foil board, sup board, downwind, hull cleaning device, underwater rov, underwater cleaning robot, boat cleaner, quariums or submerged environments, tank cleaning, underwater drone, etc.,

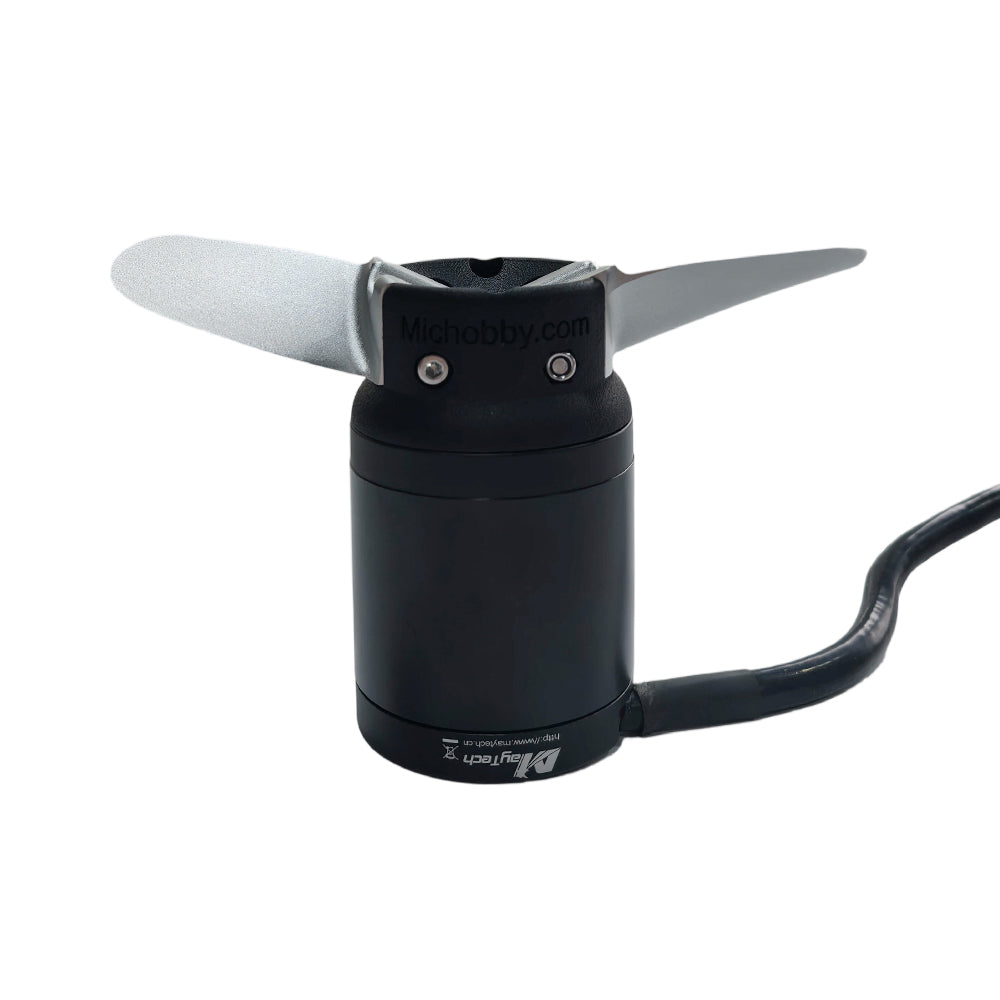

Propeller Options: All with plastic hub and same size, just different blades material

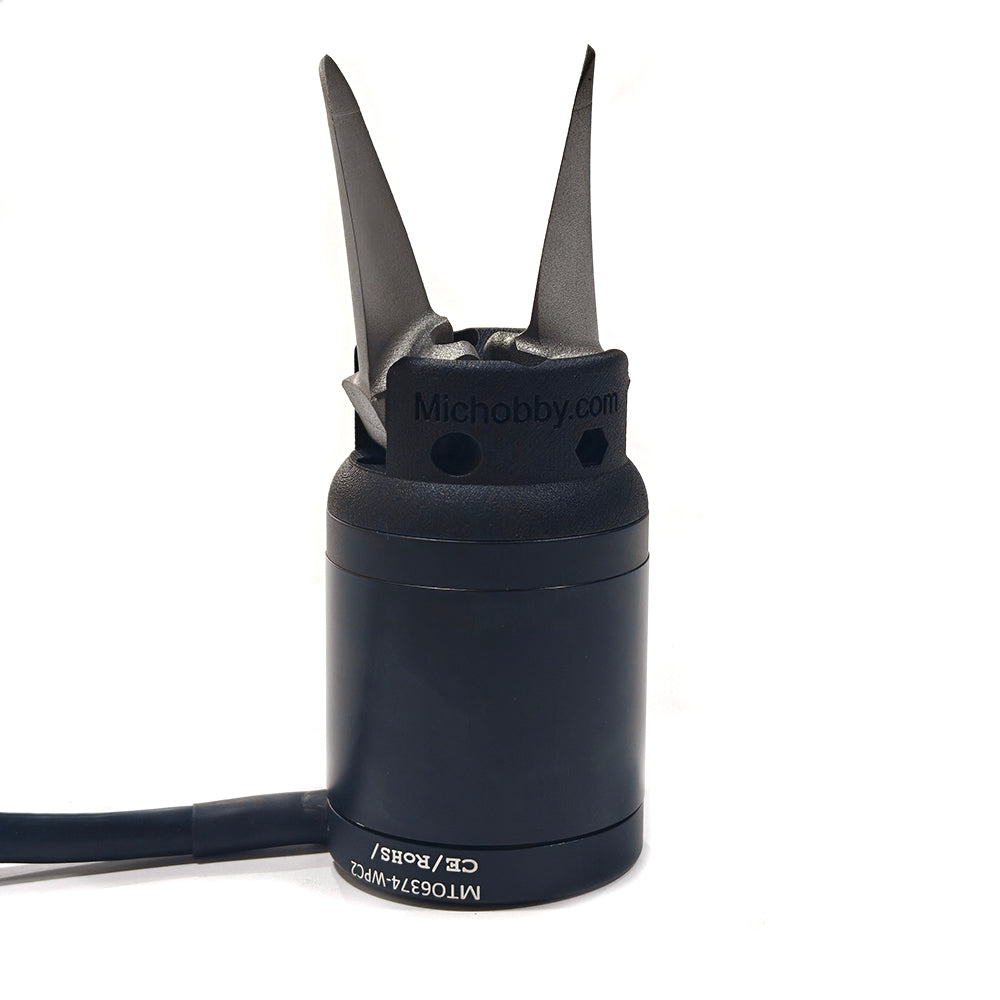

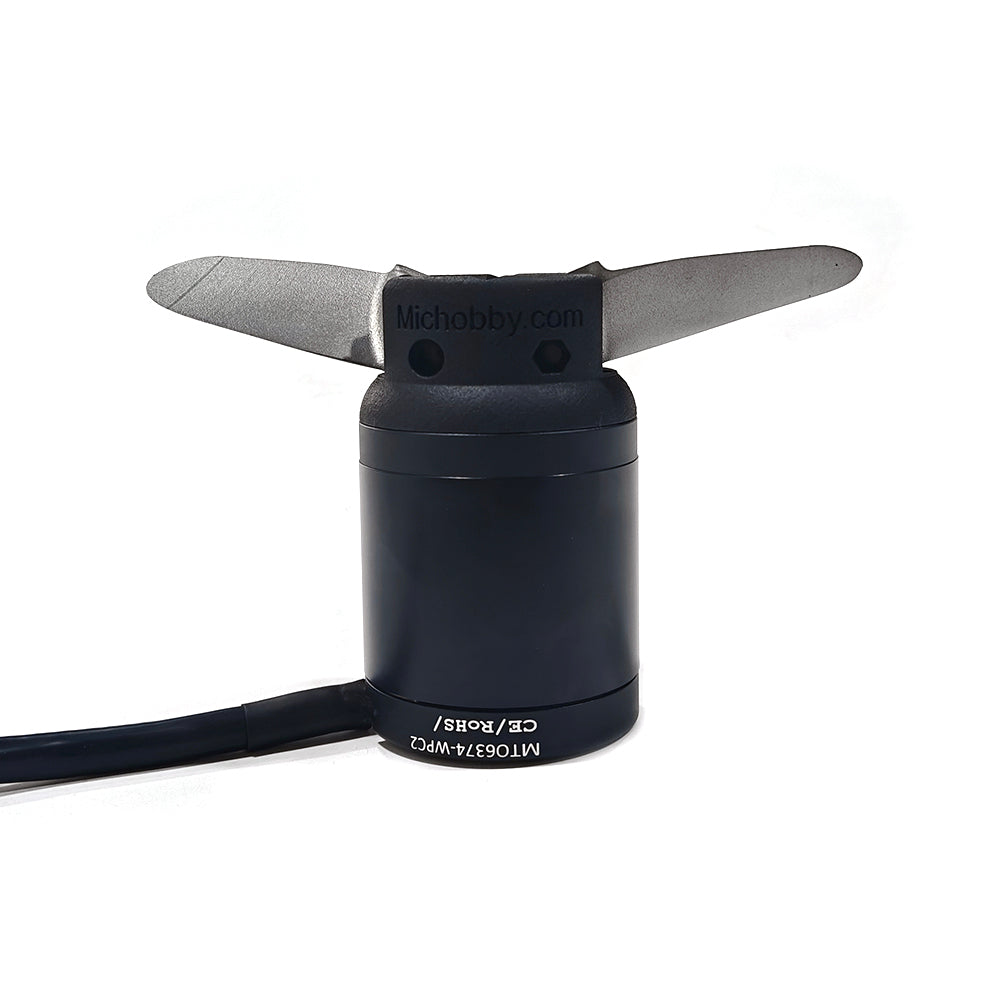

1. Titanium alloy baldes: great performance on corrosion resistance, thrust and efficiency, high impact resistance
2. Aluminum alloy baldes: good performance on corrosion resistance, thrust and efficiency, lighter than titanium alloy

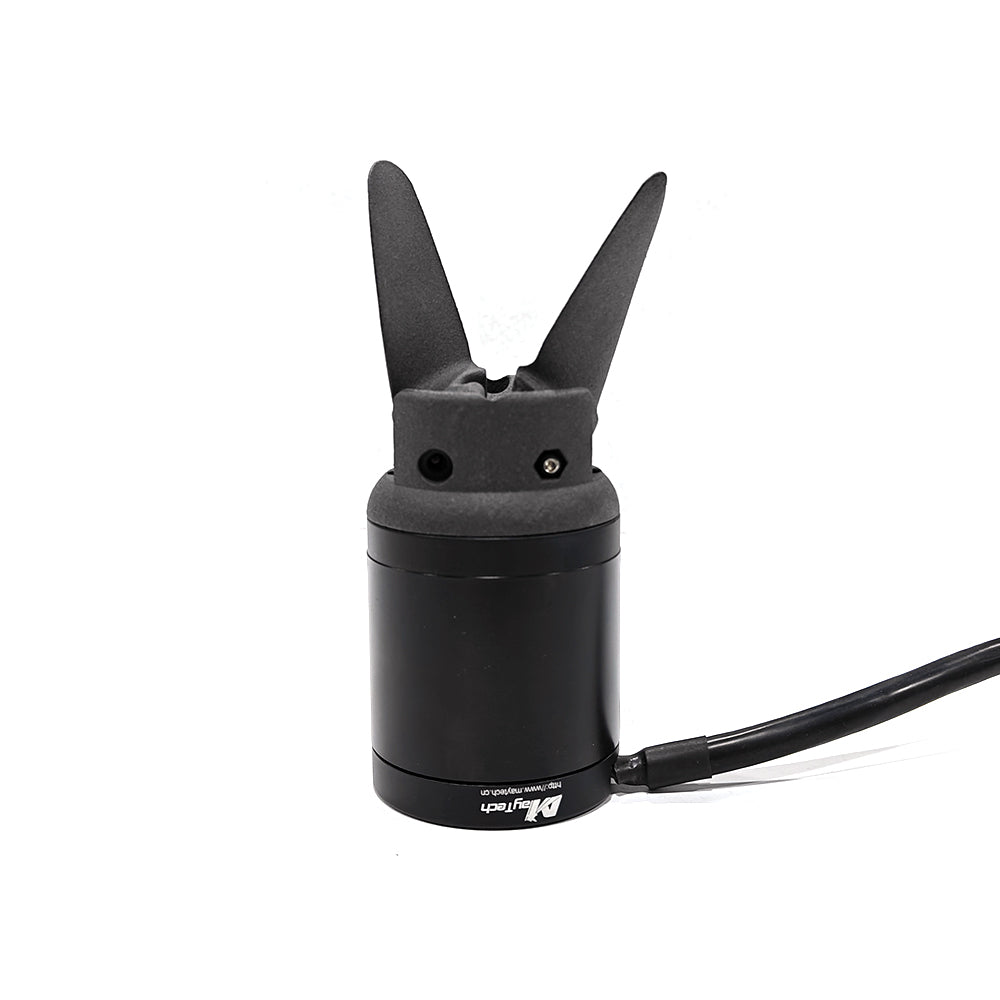

3. Nylon baldes: light weight, cost-effective
Customers Feedbacks:
Stock Notice Before Place Order:
2. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Stock Notice before Place Order:
The motor stock is limited, please email to shelly@mayrc.com if you're interested.
