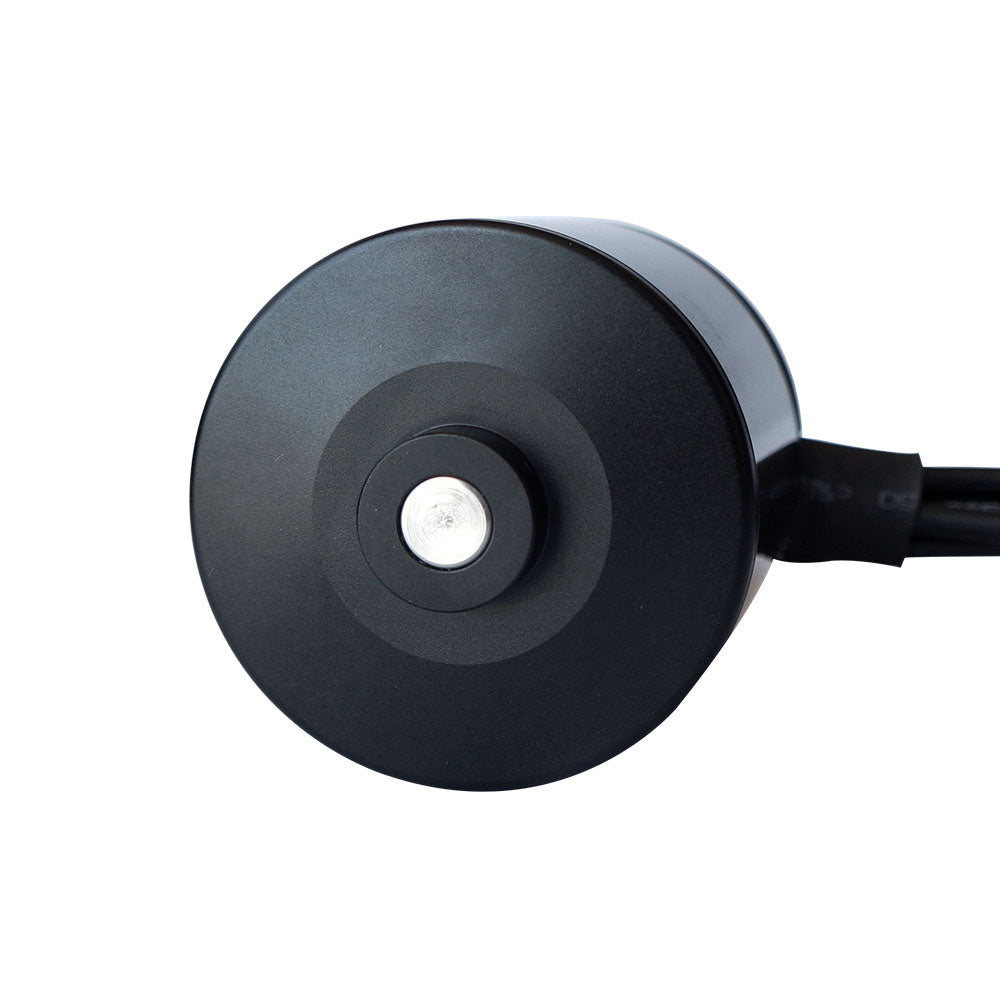

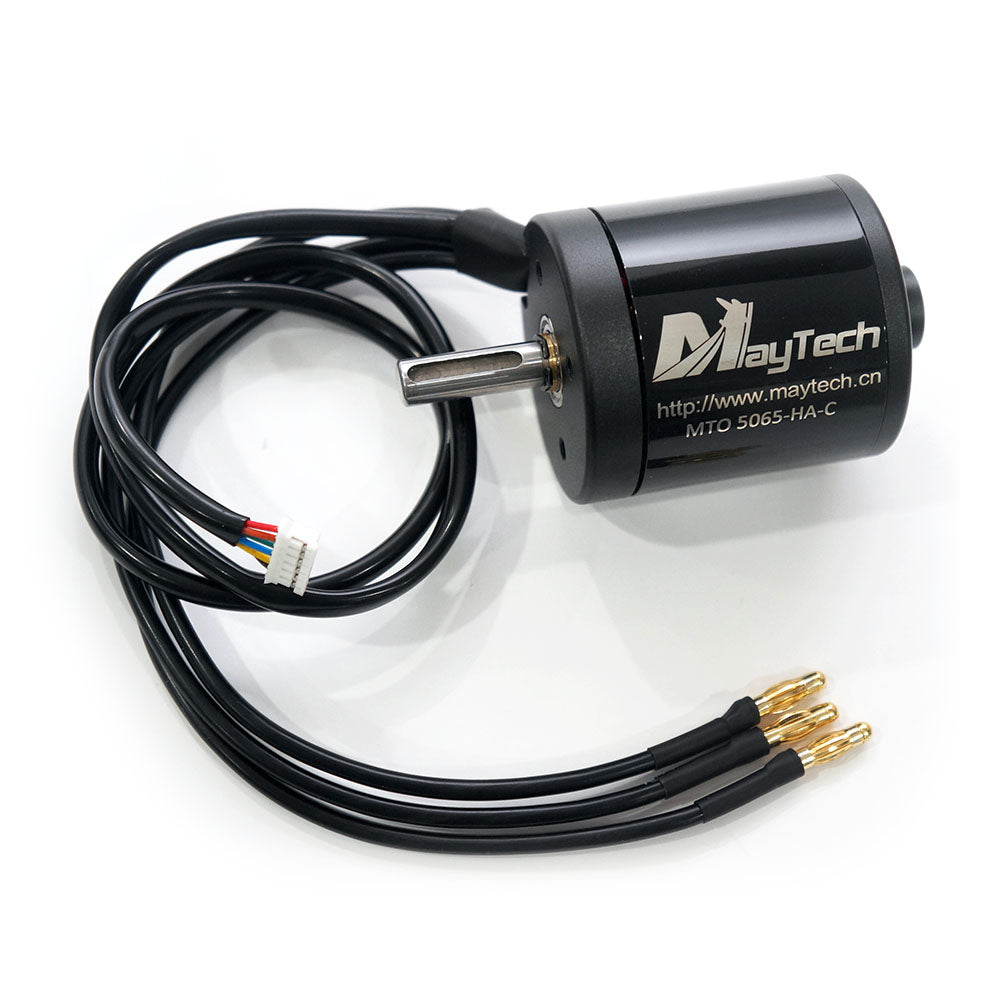

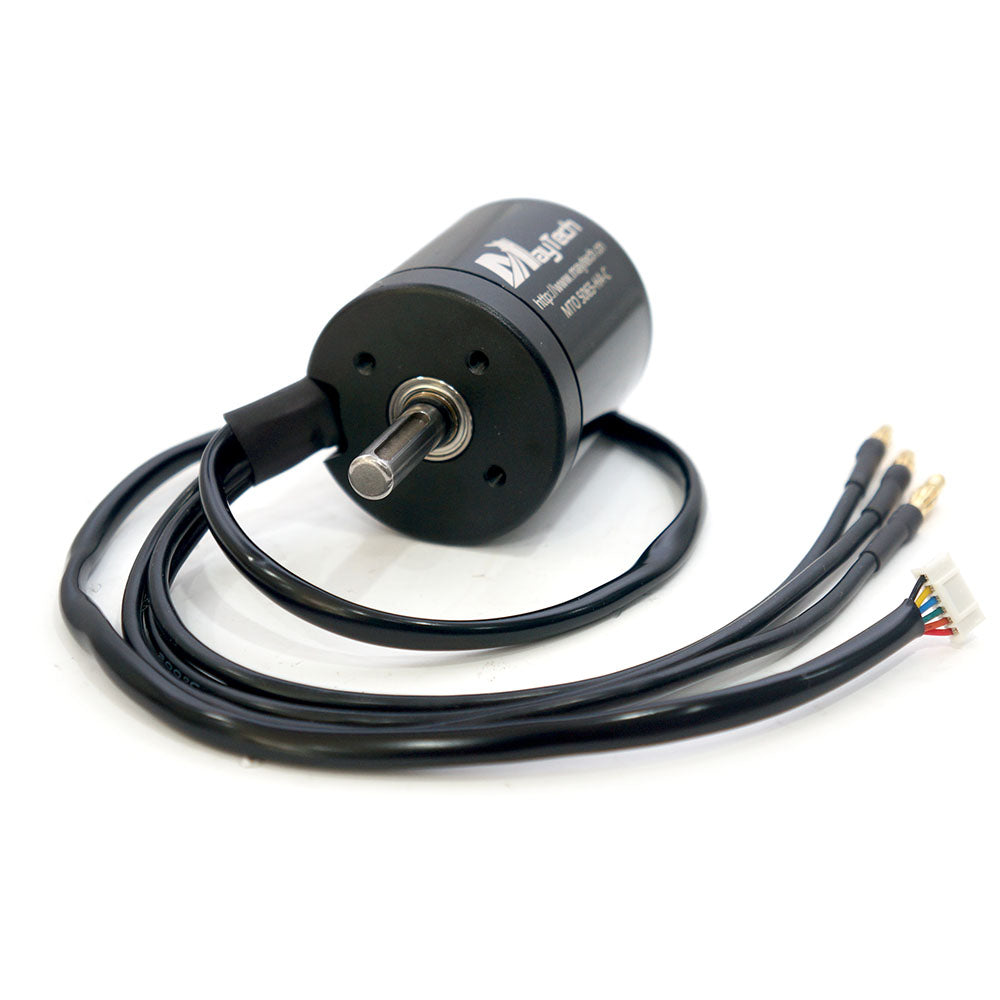

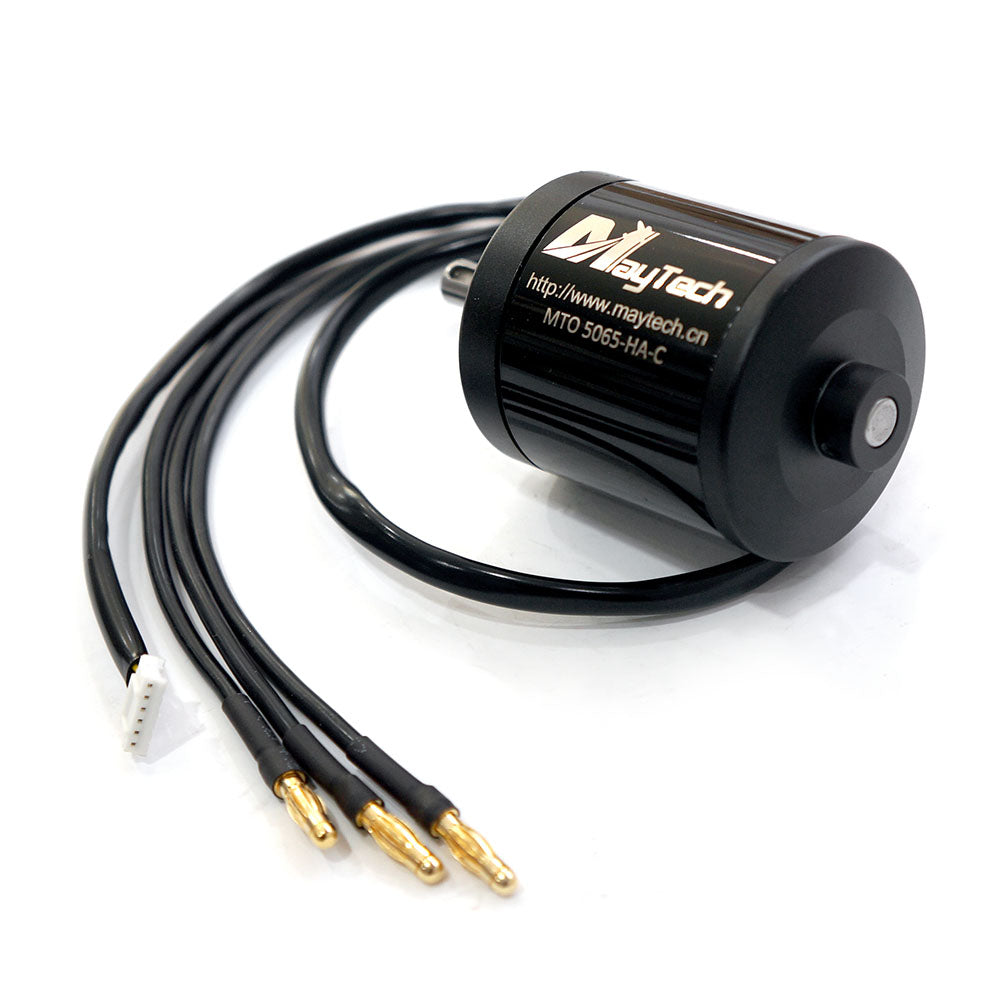

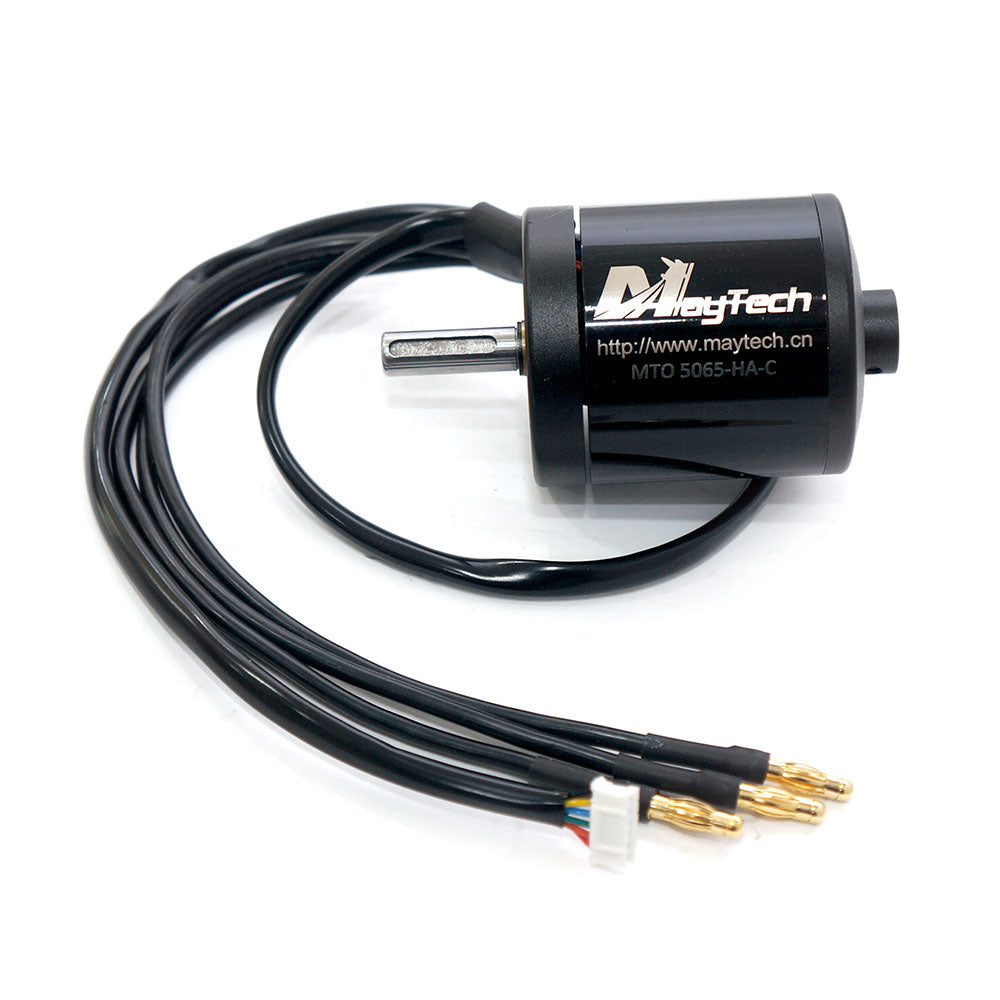

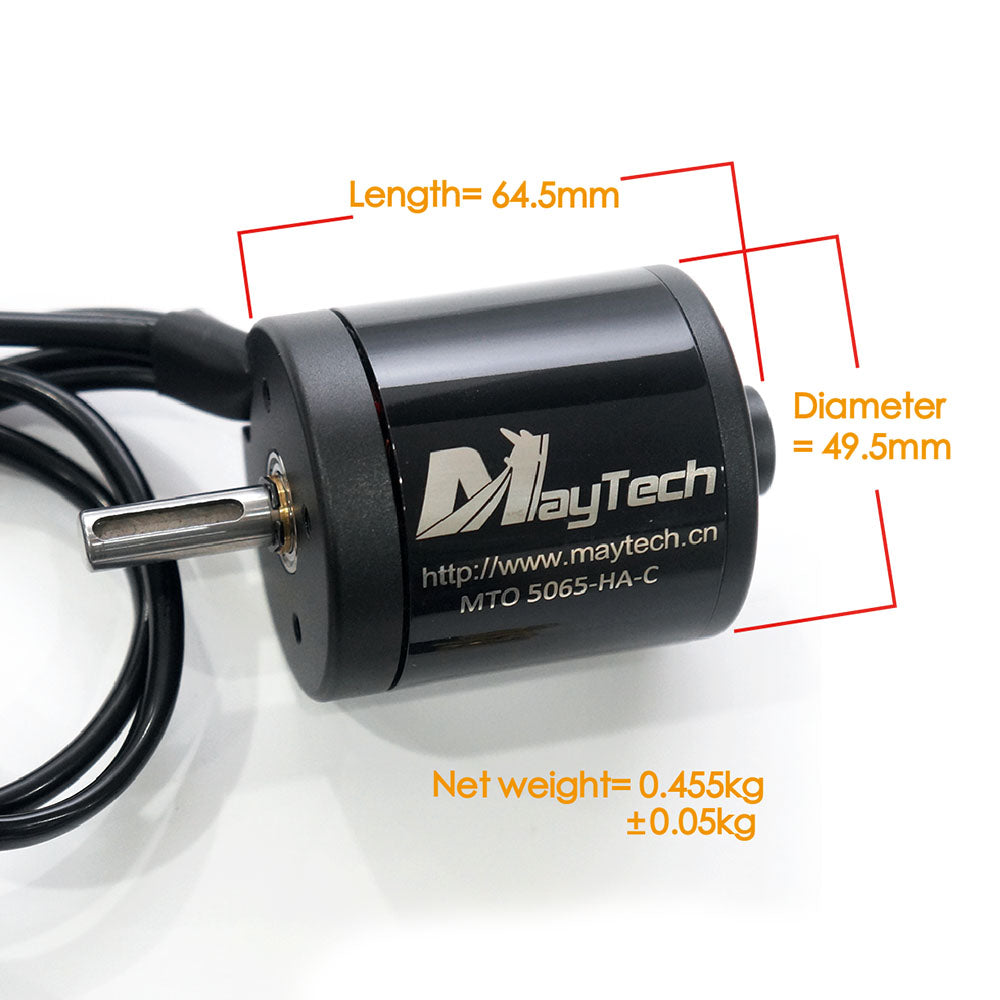

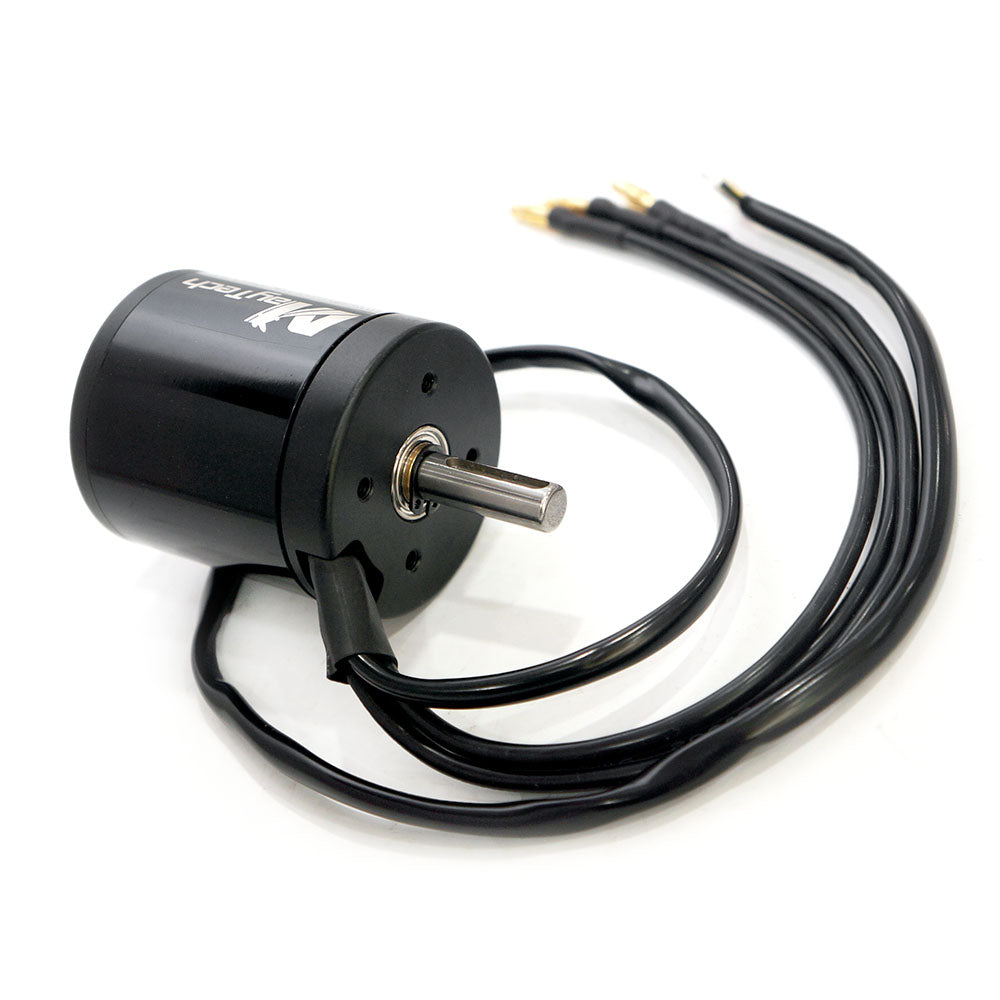

Maytech Brushless Motor 5065 170KV Sealed Cover with 8mm Shaft Sensored for Electric Mountainboard Eskateboard Robotics
Maytech Brushless Motor 5065 170KV Sealed Cover with 8mm Shaft Sensored for Electric Mountainboard Eskateboard Robotics
Regular price
$59.90 USD
Regular price
Sale price
$59.90 USD
Unit price
per
Couldn't load pickup availability
If you want to use other cheaper but slower shipping method, please contact shelly@mayrc.com
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Specifications:
| Model No. | MTO5065-HA-C | Motor Type | Outrunner Motor |
| Input Volt | 2-10S Lipo | KV(RPM/V) | 170KV |
| Rated Current | 42.5A | Max. Current | 50A |
| Max. Output Watt | 1815W | Idle Current | 1.2A |

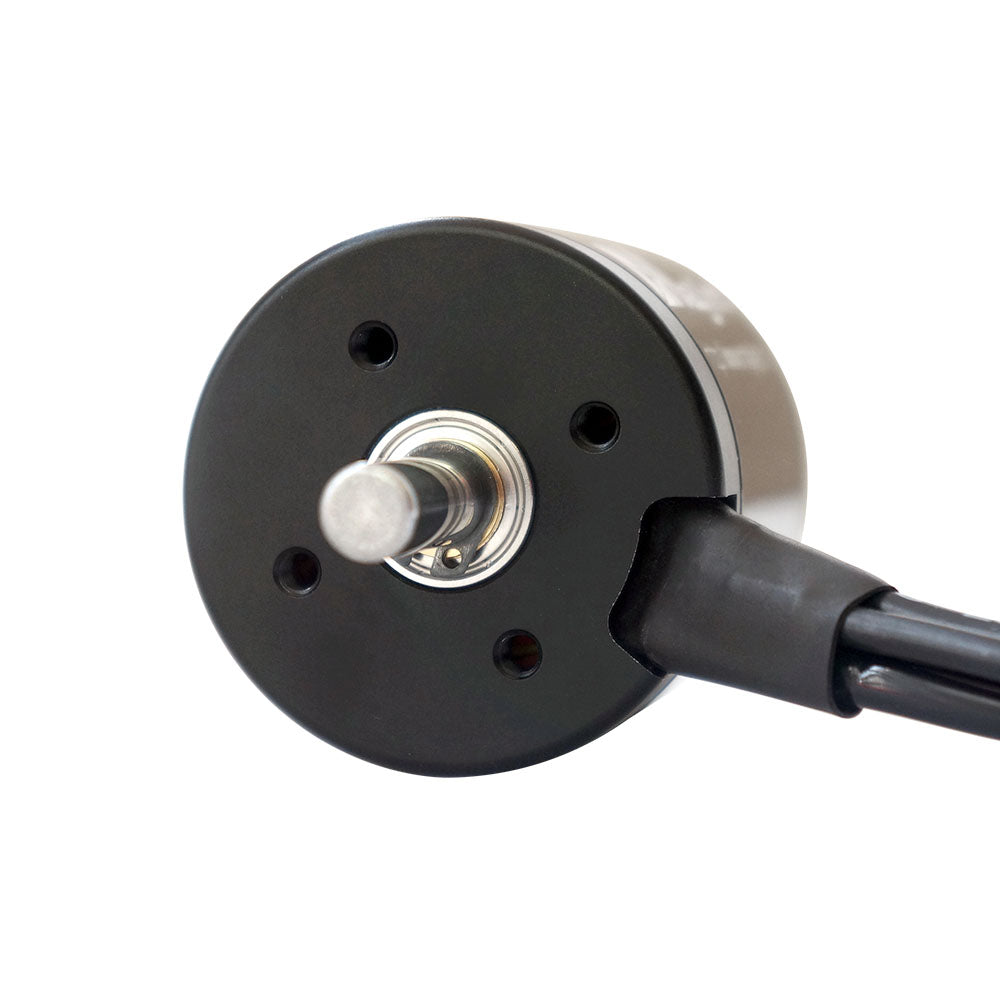

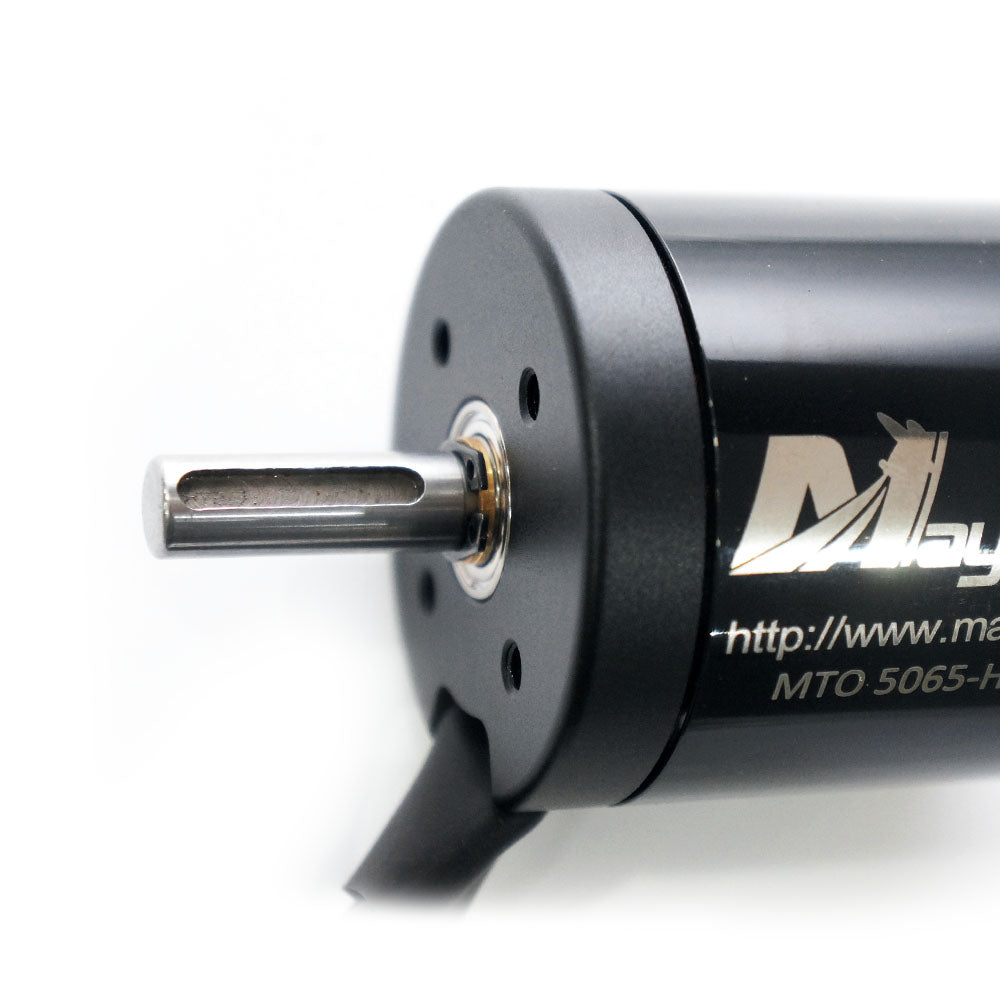

| Shaft | 8mm | Output Shaft Length | 26mm |
| Motor Weight | 455g/pcs | Brand | Maytech |
If you want other KV, please email to shelly@mayrc.com
Notice:

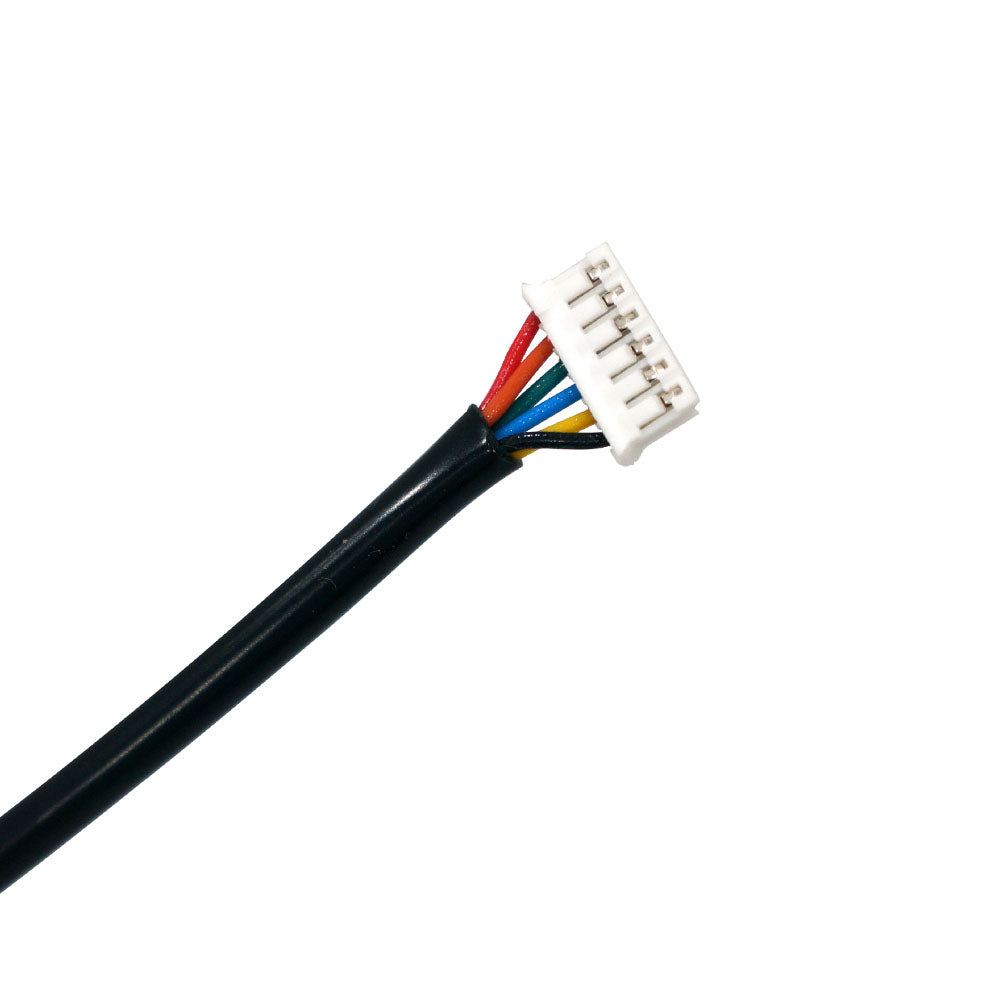

The motor has upgraded hall sensor embedded into stator, hall sensor board is more stable and motor has more precise positioning and smoother startup.
Printing on the motor case also has updated to with CE & ROHS symbol.
The upgraded version can work with previous version in same KV.
Stock Notice Before Place Order:
1. The motor 170KV and 70KV are stock item, but stock is limited, so please confirm your order asap, or please contact us eileen@maytech.cn to check stock first if you need very urgently.2. Shipping time is about 24 working hours after your order confirmed if the product you ordered is in stock, if not in stock, lead time is about 30-40 days.
3. Motor wire leads out position is specific, if wind one more circle or one less circle, the KV would differ much, hard to make exact KV, so each motor might has ±5%-10% tolerance, this is normal.
Motor Drawing:
