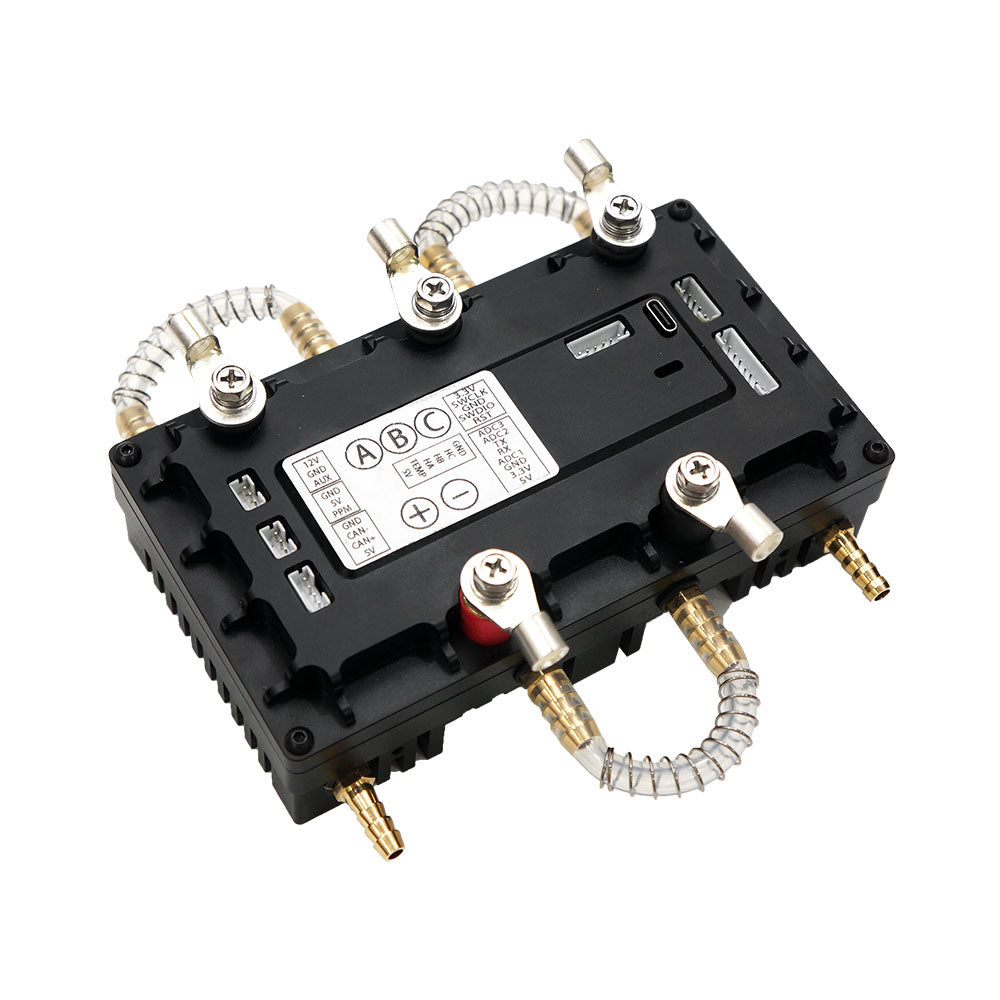

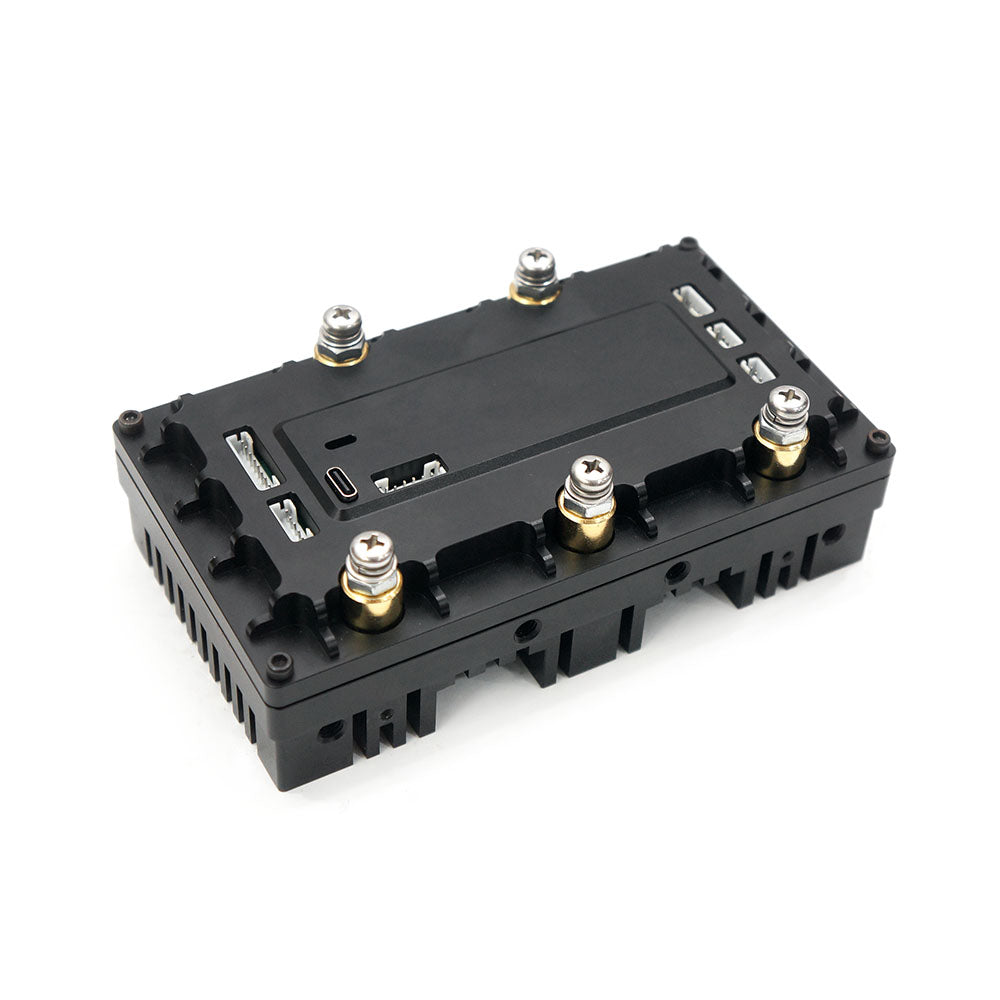

In Stock Watercooled MTSPF7.5HK 75V 300A VESC75/300 based VESC Controller with Heat Sink for Efoil Formula Racing Electric MotorcyclE
$509.90 USD
Sale price
$509.90 USD
Regular price
If you want to use other cheaper but slower shipping method, please contact shelly@mayrc.com
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Overview:
Electric Motorcycles/scooters, electric offroad skateboards, go-karts, and robots, etc demands ESCs with high current, high voltage and small size, but traditional electric bicycle ESCs are large in size and small in current. Electric motorcycle ESC can meet the requirements in terms of voltage and current, but it has a very large volume, a heavy weight, and a very high price.
MTSPF7.5H VESC Controller Specification:
| Model No. | MTSPF7.5HK |
| Input Voltage | 5-18S Lipo (18V-75V) |
| Hardware | based on V75/300 |
| Firmware | Updatable |
| Current | 300A |
| Software | VESCTOOL Compatible |
| Heat Sink | With |
| Water Cooling | With |
| Capacitors | 9pcs 100V 470μf capacitor |
| Application | electric skateboard, fighting robot, e-bike, electric motorcycle, efoil, electric surfboard, watercraft, electric boat, underwater ROV, agricultural robots, robotic sprayer, etc |
Set in VESCTOOL:
-Motor Current Max: ≤100A (According to your motor current)
-Absolute Maximum Current: 150A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)
-Absolute Maximum Current: 150A (According to your motor current)
-Battery Current Max: ≤150A (According to your battery discharge current)

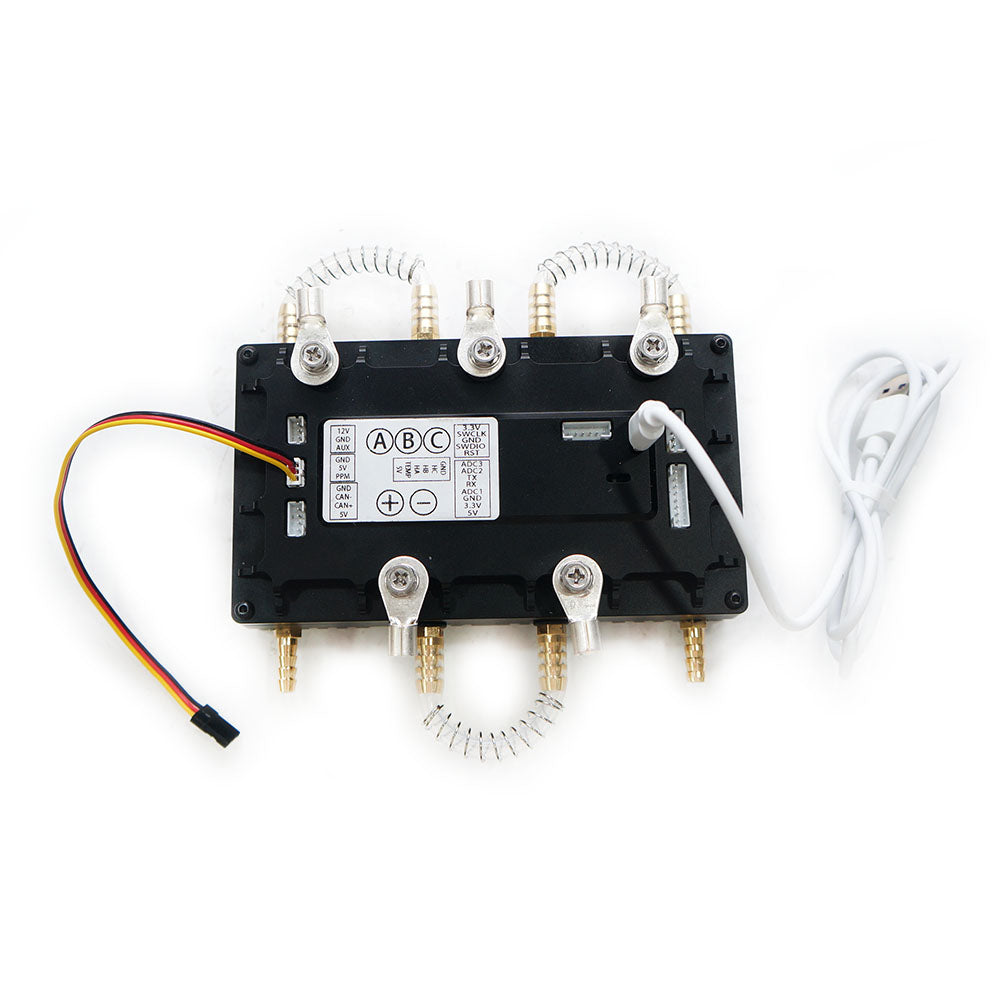

Ports definitions:
- AUX port to supply 12V and 5V to external device;
- PPM port to connect PPM transceivers; Never connect one receiver to two or more VESCs in an array ! Permanent damage may result from Y-PPM wiring
- CAN Port for CAN communication with other devices and controller arrays; Only connect CAN L and CAN H ! GND pins and 5V should never be connected in aVESC array.
- Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
- SWD port to get direct access to the Chipset. Diagnostics, debugging, and real time data;
- COMM port for various kinds of other communication methods like I2C, ADC, Uart,you can use your Arduino or Raspberry Pi to control the SuperESC!
- USB port for programming.
Features:
-This new controller can work to highest 75V voltage, can use for electric skateboard, surfboard, motorcycle, ATV, etc., fixed the problem of high voltage and compatible with VESC_TOOL that most controller can't do in the current market.
-Compatible with VESC_TOOL, programmable;
-Use High voltage components, more stable, better performance;
-With 24pcs mosfets;
-With high quality machined aluminum case;
-With Great heat dissipation for high voltage and high current applications;
-Compatible with brushed and brushless Motor, intrunner and outrunner motors
-Sensored or Sensorless operation + Hybrid mode
-Adjustable Forward/Backward/Brake
-Regenerative Braking Function
-Configurable RPM, Current, Voltage and Power limits
-Support PPM, Analog (ADC), UART, Canbus input
-Support BLDC square wave mode control and FOC sine wave mode
-Communication ports: USB, CAN, UART
-Throttle curve and ramping for all input sources
-Seamless 4-quadrant operation
-Motor Revolution, Amp Hour, Watt Hour counting
-Real time data analysis and read out via communication ports
-Adjustable protection against:
Max and Minimum Input(Battery) Voltage
Max Motor Current and Input(Battery) Current limits
Max Power (Wattage)
Max Motor and ESC Temperature
Max Regenerative Braking Current (separate limits for the motor and the input)
Max ERPM(RPM) (separate limits for each direction)
Compare to Original 75_300 VESC_TOOL compatible controller, what upgraded points and advantages MTSPF7.5HK have?
-

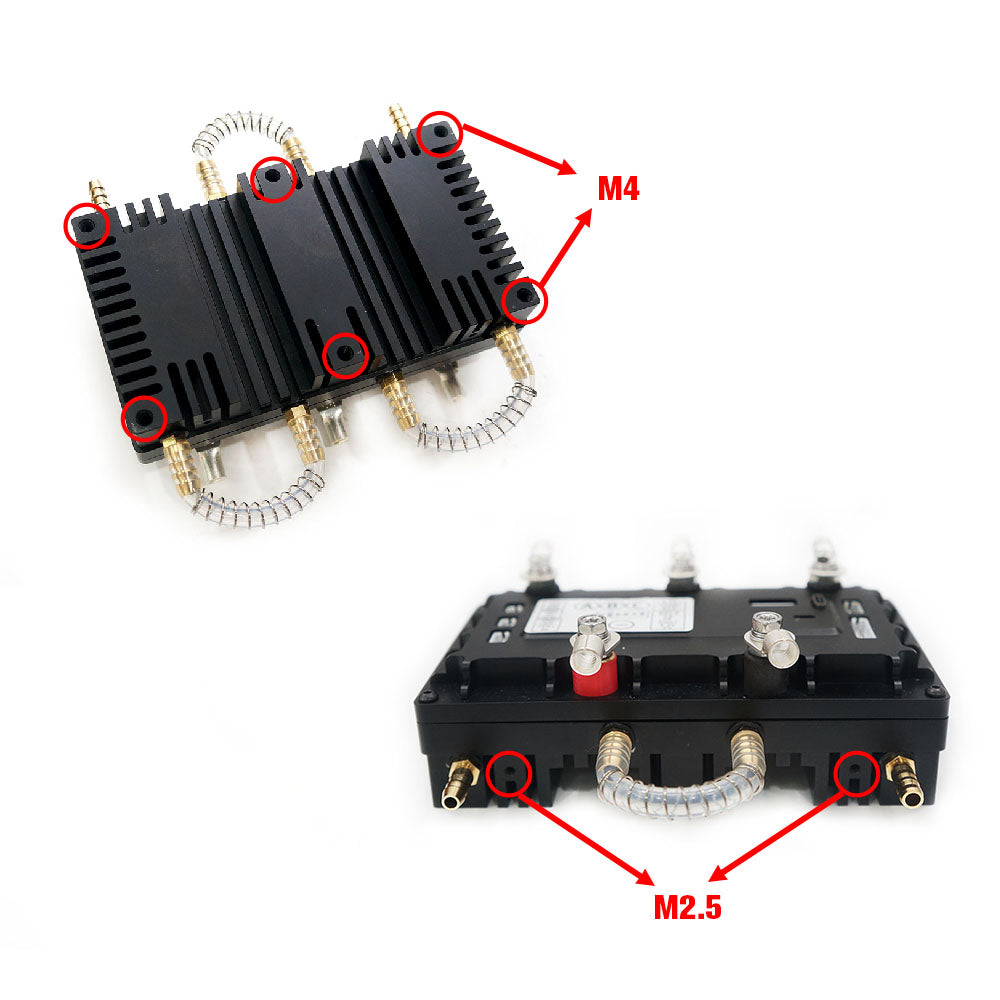

With CNC aluminum alloy heat dissipation case, optional water cooling system and forced air cooling system.
-
With larger heat sink case that has better heat dissipation performance.
-
Its heat sink case bottom is coverd by fins that can better heat dissipation.
-
Its PCB board has 4pcs MOS paralleled, could withstand higher current, original version only has 3pcs MOS.
-
Its PCB board with cooper stripe, can reduce resistance in high current, better heat dissipation.
-
With larger capacitor, 9pcs 100V 470μf capacitor, while original version only has 6pcs 80V 470μf.
-
With separate design of strong and weak current circuit board, and between 2 boards added heat sink for better heat dissipation.
-
Exclusive 5V and 12V external power supply interfaces will not cause interference when powering analog circuits such as twist/thumb throttles.
Some Using Tips for this SUPERFOC Controller:
1. If you will use the controller for water sports or other application that will need to use water cooling, then better choose type with water cooling tube, and work with water pump for cooling. Blow has compatible water pump setup recommended, if you need, can order together.
2.Must do a good job of heat dissipation! If place it in a sealed container(recommend touse metal container), it must be forced to be cooled with water. Also make sure your container has enough space for the controller, make sure the cooling tube do not bent, otherwise will influence water flow in cooling tube, also make sure water flow is enough for cooling before office use.
3. Before the new ESC is officially used, please test it with a low-voltage and low-throttle, after success, then slowly increase voltage and throttle. Be sure to pay attention to safety during this period!
4. Recommend to add an electronic switch with short circuit protection function between the ESC and battery, such as MTS2009AS 300A electronic switch or BMS with switch function. It is not recommended to use only contactor without short circuit protection!
5. The battery and motor side terminals must be connected tightly, they can’t be loose. Also please make sure terminals not touch case or other wires, here's the video shows you the way to install cold-pressed terminal connector: https://youtu.be/unFfV9RPPCc
6. In actual use, please use hot melt glue to fix the hall/UART interface cables the corresponding sockets of the ESC, to prevent the cables loose due to the bumps of the vehicle!
7. Please do not disconnect relay switch or electronic switch during usage ! Otherwise it will cause electromagnetic interference, which might damage the controller.
8. If you use the controller to work with our MTSKR1905WF remote on Esurf/ Efoil, please noted below settings:
Our remote PWM signal output pulselength in Esurf mode is 1-2ms, no brake no stop, and in controller default pulselength is 1ms start, 2ms end, 1.5ms center, so if you will use our remote in Esurf mode, then please adjust below settings in VESC_TOOL:
PPM Control Type: Current no reverse
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
PPM Mapping: Pulselength Start: 1.1ms; Pulselength End: 1.9ms; Pulselength Center: 1.5ms
9. In PPM Control type, do not use Duty Cycle or Duty Cycle No Reverse, this control type only works at fighting robots, 3F Prototyping, drone application, because this control type can't fully disconnect battery power, it needs battery to absorb braking energy.
The above tips are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
Videos show you how to connect cables to the controller cold-pressed terminal connector:
V6 Bluetooth Module Specification:
Clieck here to check instruction video:
| Model No. | MTBLEV6 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. Wireless connect to Maytech receiver, save space |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm or 50 x 36mm (version maybe different for different production batch) |
Functions:
1. The bluetooth is developed for communication between controller and VESCTOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.
2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.
3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.
4. It supports VESCTOOL Compatible controller based on V4, V6.0, V75_300 hardware, please choose the correct hardware version of your controller, we will match compatible cable for you.
5. Firmware is updatable.
V5 Bluetooth Module Specification:
| Model No. | MTBLEV5 V5 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm |
V2 Bluetooth Module Specification:
| Model No. | MTBLEV2 V2 Version |
| With 3 LED Lights status | power, communication, database |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
|
Compatible Software |
VESCTOOL App |
| Frequency | 2.4Ghz |
| ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
| PCB Size | 41mm x 21mm |
| Net Weight | 5g |
| Antenna Length | 90mm |
