In Stock MTSPF75200 75V 200A VESC Speed Controller for Electric Mountainboard Fighting Robots
$195.60 USD
Sale price
$195.60 USD
Regular price
If you want to use other cheaper but slower shipping method, please contact shelly@mayrc.com
Shipping time by DHL or UPS is fast, normally 3-7 days arrive to you.
Overview:
Electric Motorcycles/scooters, electric offroad skateboards, go-karts, and robots, etc demands ESCs with high current, high voltage and small size, but traditional electric bicycle ESCs are large in size and small in current. Electric motorcycle ESC can meet the requirements in terms of voltage and current, but it has a very large volume, a heavy weight, and a very high price.
Our MTSPF75200 200A SUPERFOC ESC has successfully solved these problems, Max 75V voltage, 200A current, compact size and compact design, and light weight.
MTSPF75200 VESC Controller Specification:
| Model No. | MTSPF75200 | Dust-proof | Yes |
| Output Cont Current | 200A | Splash Waterproof | Yes |
| Software | VESC_TOOL | BEC | 5V/1.5A |
| Input Volt |
18-75V If do not use brake, can use max to 75V, if use brake, please use no exceed 50V. |

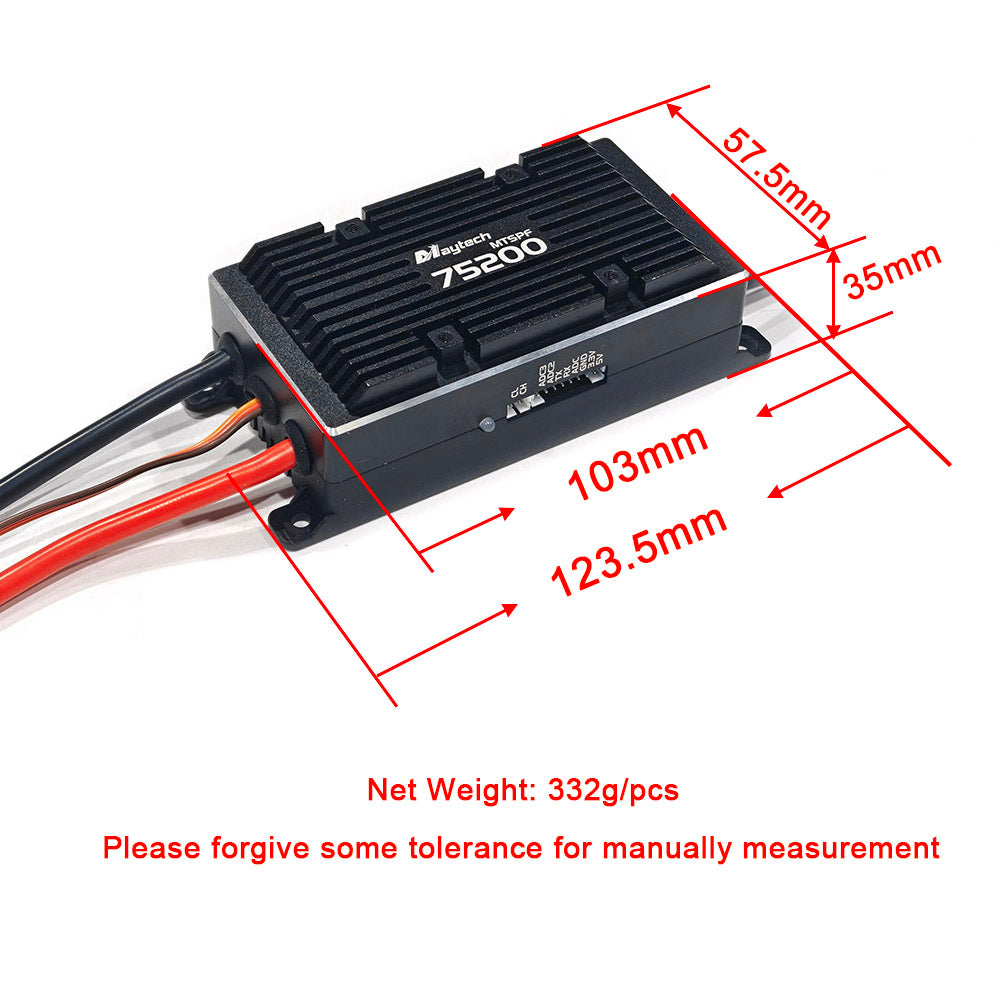

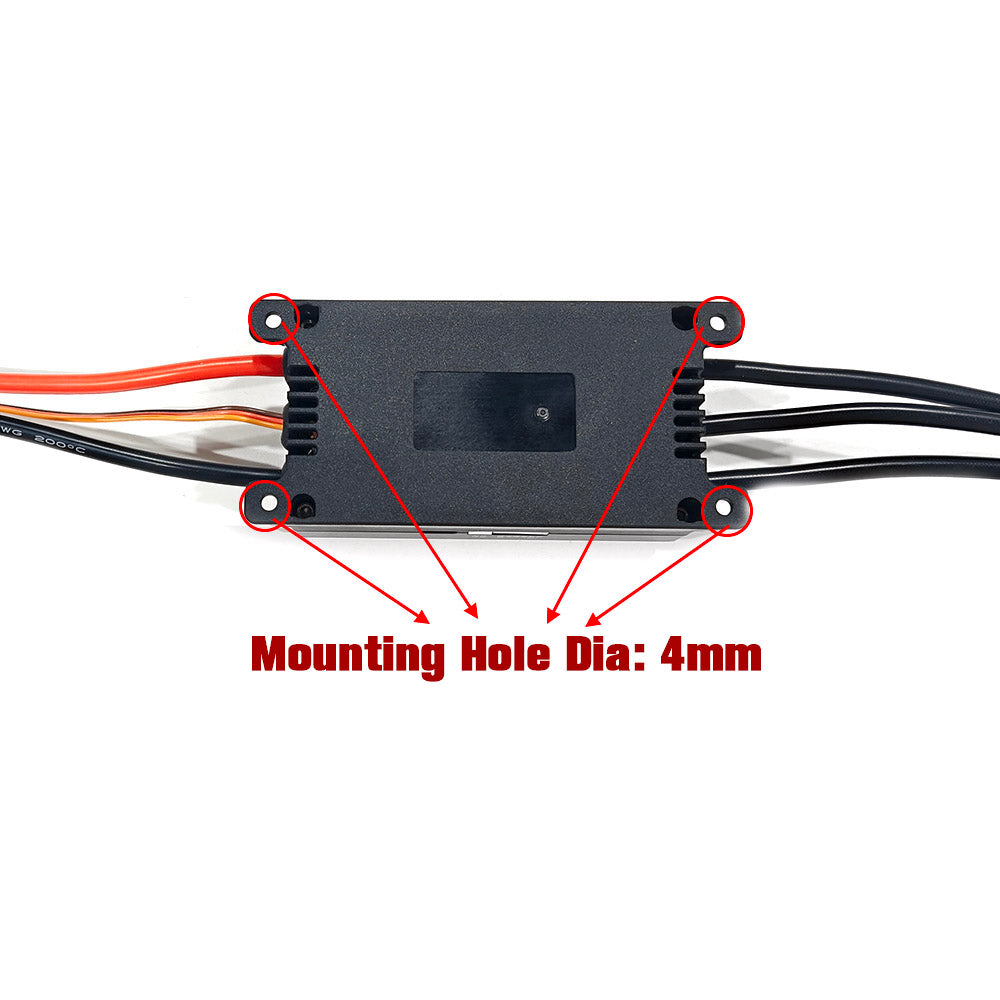

PCB Size | 91*51*21mm |
| Hardware | Based on V75_300 | Firmware Updatable | Yes |
| Case Size | 103*57.5*35mm |
PCB Net Weight | 148g |
| Feature |
12pcs mosfets; 8-layer PCB; separate high current components and low-curent components to two PCBs; etc |
| Application | Electric skateboard, mountainboard, elongboard, all terrain skateboard, fighting robots, combat robots, walking robots, ROV, Esurf, Efoil, foilsurf, jetski, electric hydrofoil, etc., |
Notice:
Never connect one receiver to two or more V6/V75 based SUPERFOC ESCs or VESCs in an array! Permanent damage may result from Y-PPM wiring.
Only connect CAN L and CAN H ! GND pins and 5V should never be connected in a V6/V75 based SUPERFOC ESCs or VESC array.
Recommend Set in VESCTOOL:
Motor Current Max: ≤200A (According to your motor current)
Absolute Maximum Current: 250A (According to your motor current)
Battery Current Max: ≤100A (According to your battery discharge current)
Motor Current Max: ≤200A (According to your motor current)
Absolute Maximum Current: 250A (According to your motor current)
Battery Current Max: ≤100A (According to your battery discharge current)

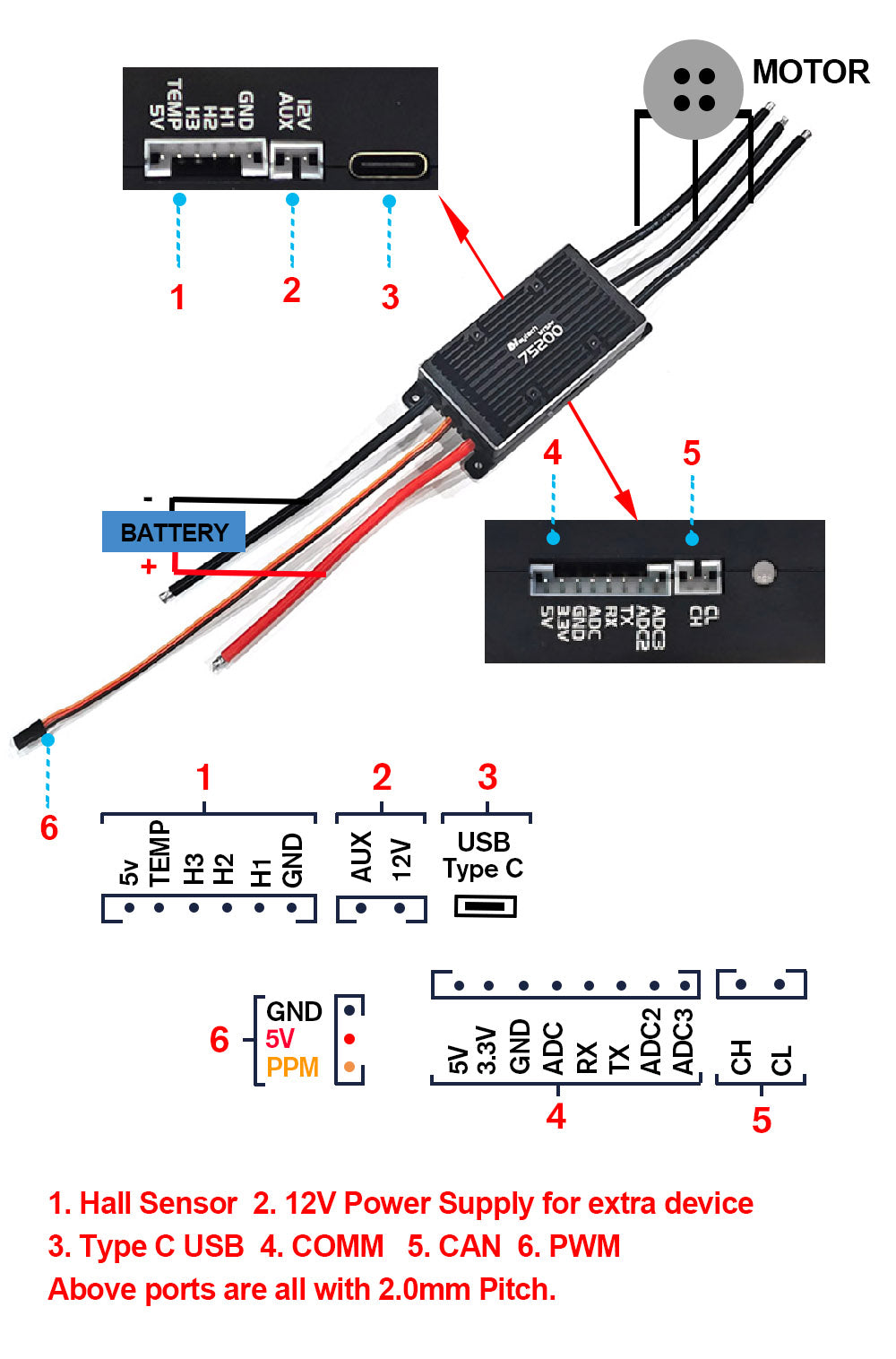

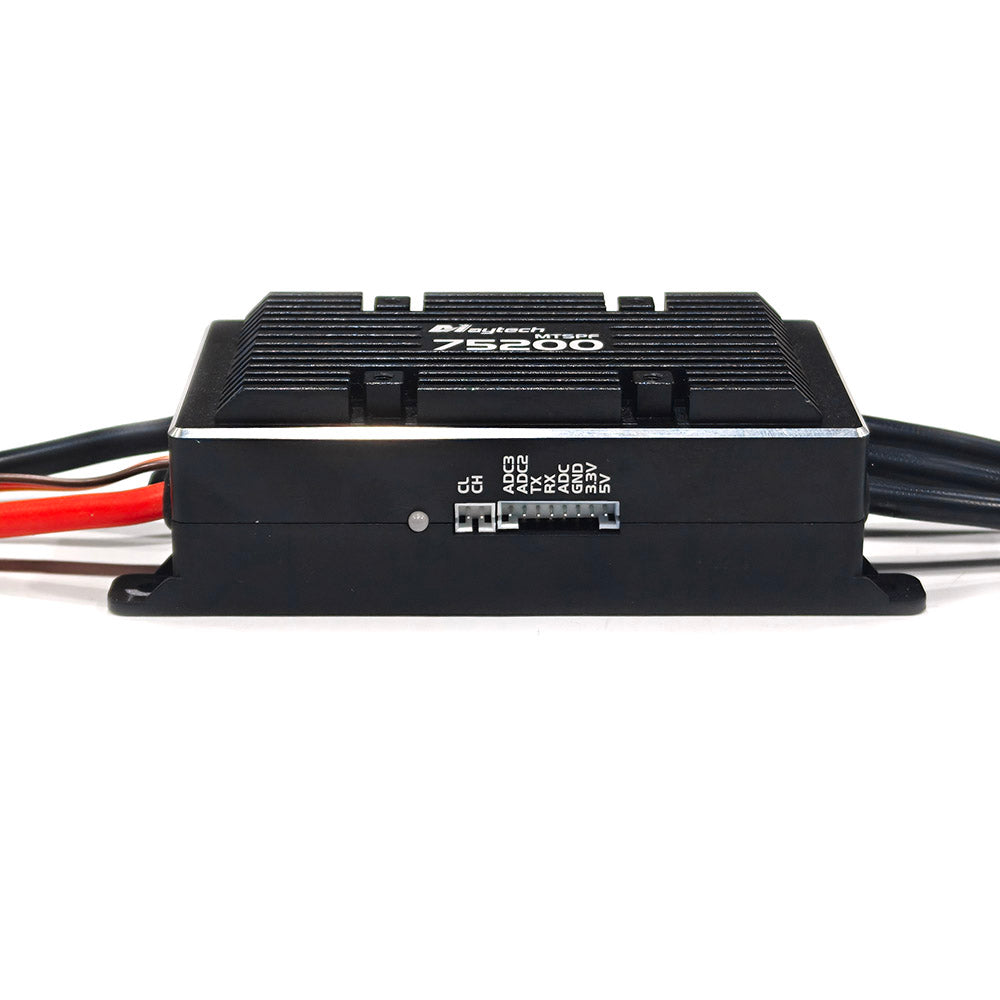

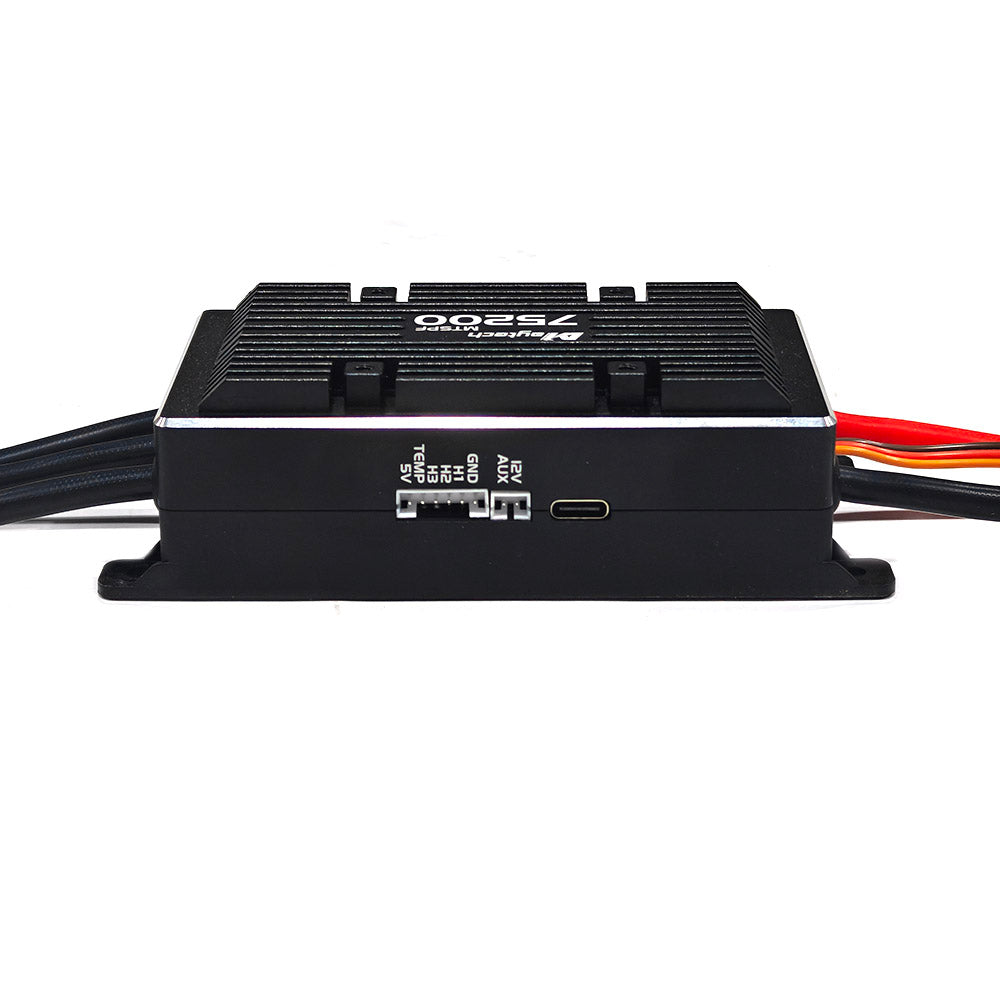

Port definations: 1. Sensor port for motor Hall sensors (ABI, HALL, magnetic precision encoders);
2. 12V power supply for external devices
3. Type C USB port to connect computer for programming;
4. COMM port for various kinds of other communication methods like I2C, ADC, Uart,You can use your Arduino or Raspberry Pi to control the SuperESC!
5. CAN Port for CAN communication with other devices and controller arrays;
6. PPM port to connect PPM transceivers.
Features：
- High voltage 18S, High curent 200A, tiny size and compact design, light weight.
- Superior Safety: With over-current protection, over-voltage protection, over-heat protection.
- 2pcs PCBs to separate high and low power components (more stable and reliable).
- 8-layer 3oz PCB Board, 3.4mm thick, supports high current and has efficient heat-dissipation capability. (Other brand PCB is only 1-2mm thick).
- 12pcs high quality Mosfets, greater efficiency, handle higher current.
- ARM 32bit processor, faster data transfer and storage.
- 3pcs Capacitors 63V 820μf, prevent power circuit impact.
- 3pcs Current sampling chips, It can make the current sampling faster and more accurate, and has a good improvement on the FOC and over-current protection functions.
- 6061 Premium Alu-Alloy Case, Quick heat-dissipation, Sleek aluminum finish, comfortable hand-feeling.
- Removable cooling fan, 20W high power for quick cooling. Ensure reliable performance with excellent temperature control technology
- USB Type C port- easy to connect and program settings.
- Firmware standard: VESCTOOL automatically recognizes this ESC as 7.5_300. This firmware can be used.
Features:
- High voltage: If use current mode, without brake, max voltage is 75V; If use current mode with brake or duty cycle mode, max voltage is 12S lipo (Max 50.4V).
- High current: 200A
- Compatible with brushed and brushless motors, intrunner and outrunner motors Sensored or Sensorless operation + Hybrid mode
- Adjustable Forward/Backward/Brake
- Regenerative Braking Function
- Configurable RPM, Current, Voltage and Power limits
- Support PPM, Analog (ADC), UART, Canbus input
- Communication ports: USB, CAN, UART
-
Support FOC sine wave mode
-
Throttle curve and ramping for all input sources
- Seamless 4-quadrant operation
- Motor Revolution, Amp Hour, Watt Hour counting
- Real time data analysis and read out via communication ports
- Adjustable protection against:
Max and Minimum Input(Battery) Voltage
Max Motor Current and Input(Battery) Current limits
Max ERPM(RPM) (separate limits for each direction)
Max Power (Wattage)
Max Motor and ESC Temperature
Max Regenerative Braking Current (separate limits for the motor and the input)
All products had been double checked and tested one by one before shipment, only if the products are working normally would be shipped out.
- When you receive the controller, please test without load and do not connect motor, first check if the controller can successfully connect to your computer, if ok, then connect to motor and you can start to adjust parameters.
- Do not use switching power supply, the instant voltage when switching power supply connect to controller is very high, which would easy damage the controller.
- Do not push the throttle too hard when test without load, gently and slowly speed up.
- Be cautious when adjust parameters, if parameters set mistake, would also easy damage the controller.
- Please must remember to change to corresponding modes when you adjust parameters, for example, the controller default mode is BLDC mode, but if you want to detect FOC mode and adjusted FOC parameters, at this time if mode in VESCTOOL didn't change to FOC mode, then when you push throttle, would easy burn the VESC, same as FOC mode.
-
In FOC mode, ERPM suggest to control in 30000-40000; In BLDC moed, ERPM suggest to control in 50000-60000, otherwise driver IC would easy to be damaged. ERPM= motor pole pairs number * KV * Voltage
ERPM= motor pole pairs number * KV * Voltage - If you use UART port, the wire better do not over 0.5m or even shorter, and better use Stranded wire.
- For V4 based controller:
Do not suggest to use FOC mode, suggest to use BLDC mode.
If need to use FOC mode, then must use voltage under 20V.
- The above are only suggestions based on the experience of our engineers. how to actually operate is up to you. Parameters for different setup is also different, please noted
V6 Bluetooth Module Specification:
Clieck here to check instruction video:
| Model No. | MTBLEV6 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. Wireless connect to Maytech receiver, save space |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm or 50 x 36mm (version maybe different for different production batch) |
Functions:
1. The bluetooth is developed for communication between controller and VESCTOOL via BLE, to display parameters on mobile phone, so you can monitor real time parameters on app easily.
2. Motor current, duty cycle, ERPM, motor power, motor temperature, battery voltage, battery current, MOS temperature, charging current, charging power, etc., are able to display through the bluetooth module.
3. You can adjust parameters for motor settings, Including General, BLDC, FOC, PID controllers, etc informations.
4. It supports VESCTOOL Compatible controller based on V4, V6.0, V75_300 hardware, please choose the correct hardware version of your controller, we will match compatible cable for you.
5. Firmware is updatable.

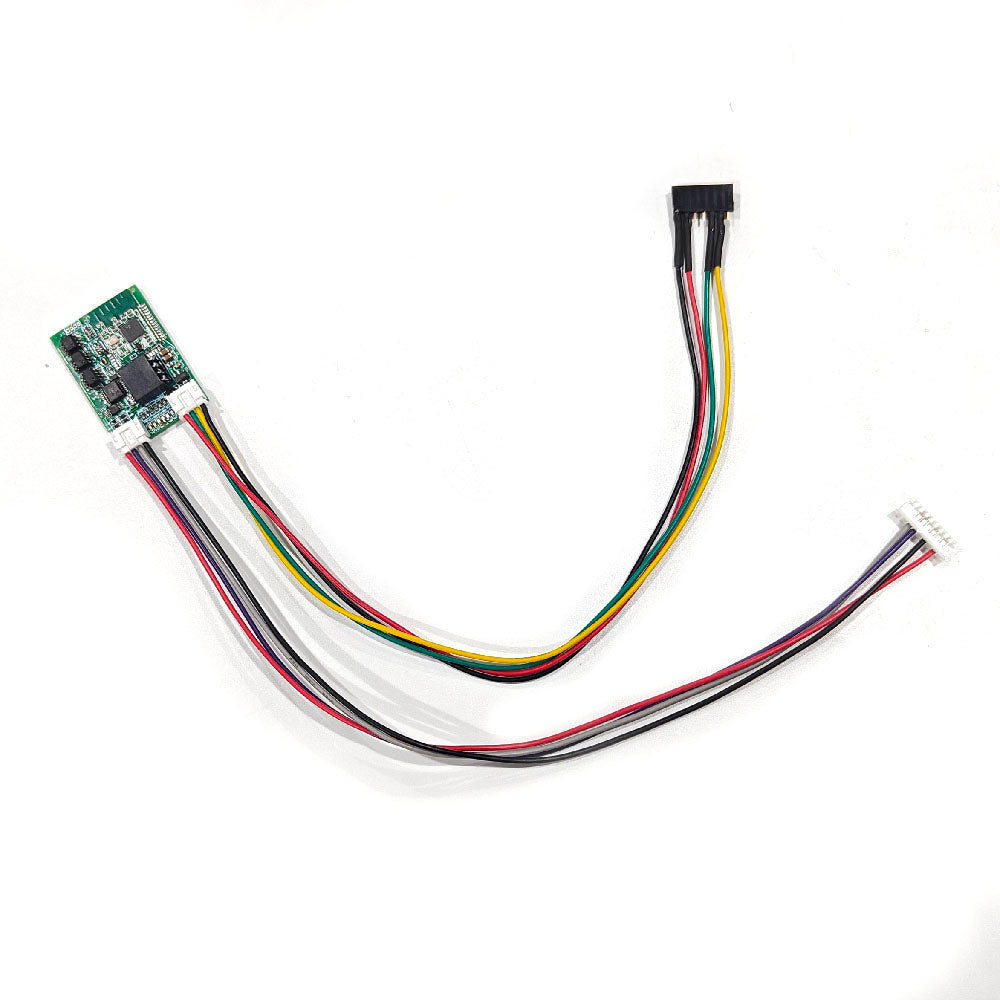

V5 Bluetooth Module Specification:
| Model No. | MTBLEV5 V5 Upgraded version |
| Features | With optocoupler isolation, industrial grade anti-interference, and wired long distance communication |
| Upgrade Function | It supports connection together with receiver TXD and RXD to VESC, so it can automatically switch VESC communication with receiver or bluetooth and you don't need to unplug connections. When bluetooth module connect to VESCTOOL App, it will automatically disconnect receiver TXD and TXD, really convenient. |
| With 6 LED Lights status | power, communication, data tranmission |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
| Compatible Software | VESCTOOL App |
| Frequency | 2.4Ghz |
| Distance | 15m |
| Input Voltage | 3.3-24V |
| PCB Size | 46mm x 32mm |
V2 Bluetooth Module Specification:
| Model No. | MTBLEV2 V2 Version |
| With 3 LED Lights status | power, communication, database |
| Compatible Controller Hardware | V4 / V6 / V75 based SuperESC |
|
Compatible Software |
VESCTOOL App |
| Frequency | 2.4Ghz |
| ARM Processor | ARM Cortex-M0 32 bit processor 256kB flash&16kB RAM |
| PCB Size | 41mm x 21mm |
| Net Weight | 5g |
| Antenna Length | 90mm |
